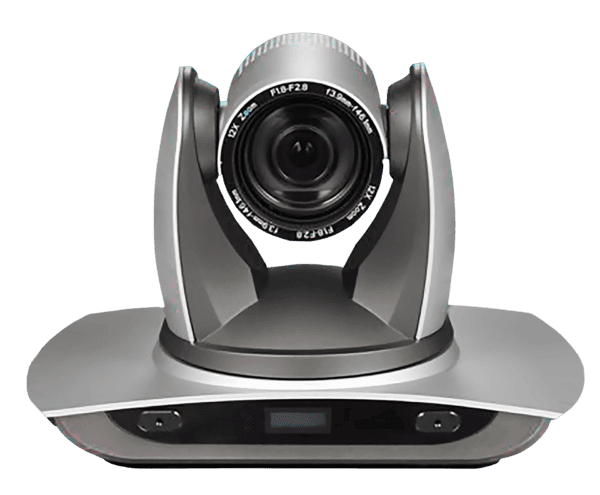

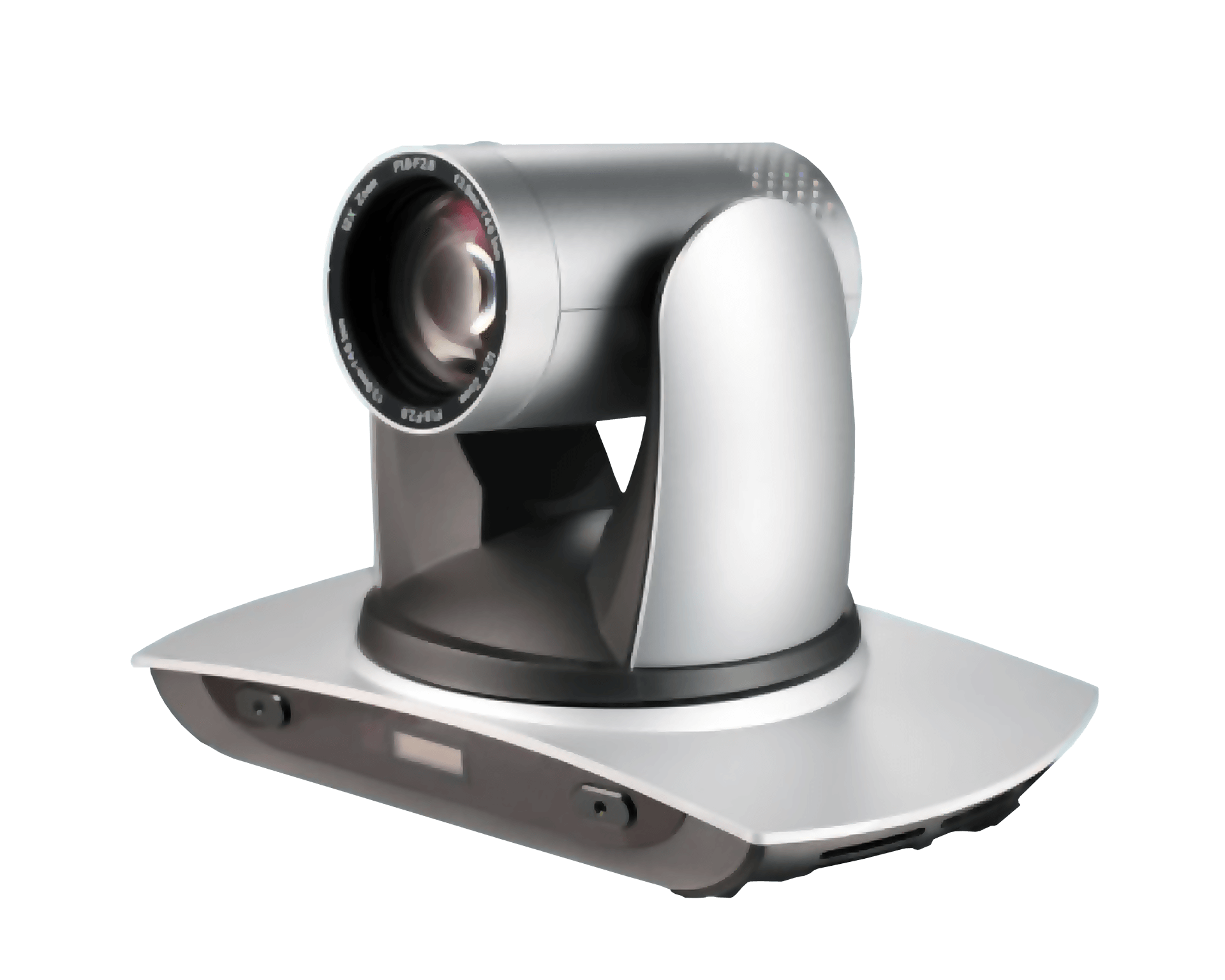

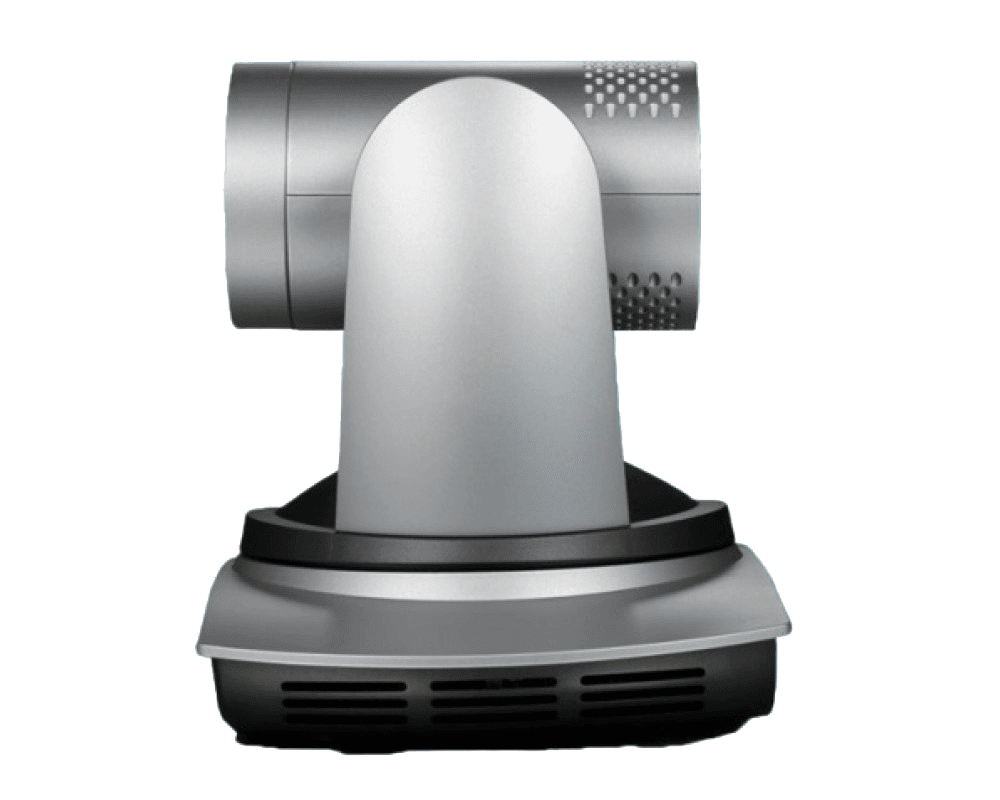

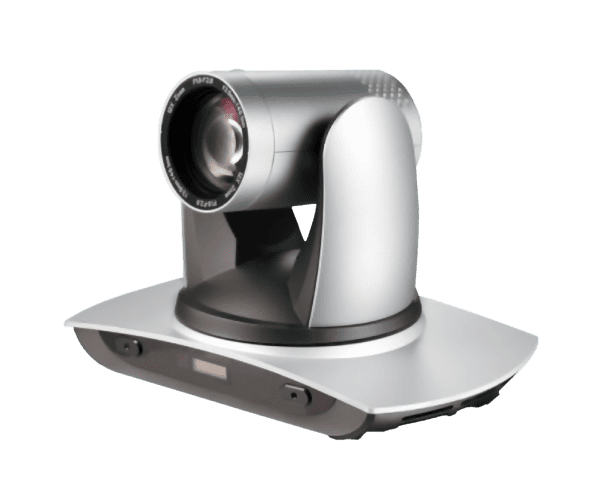

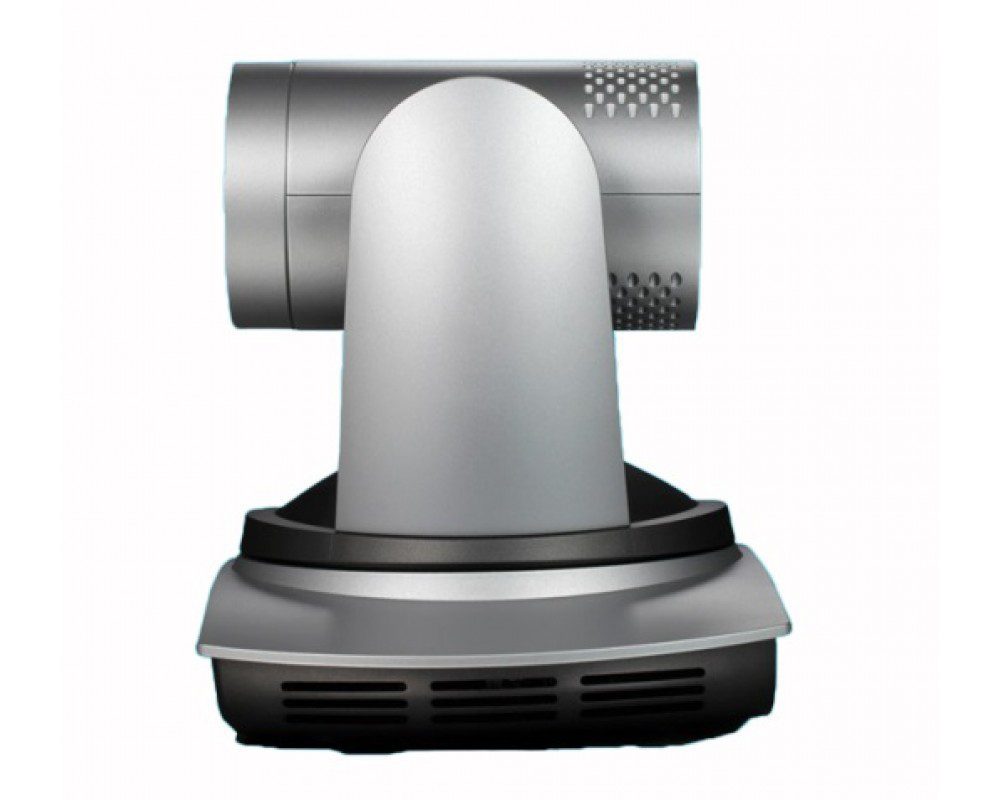

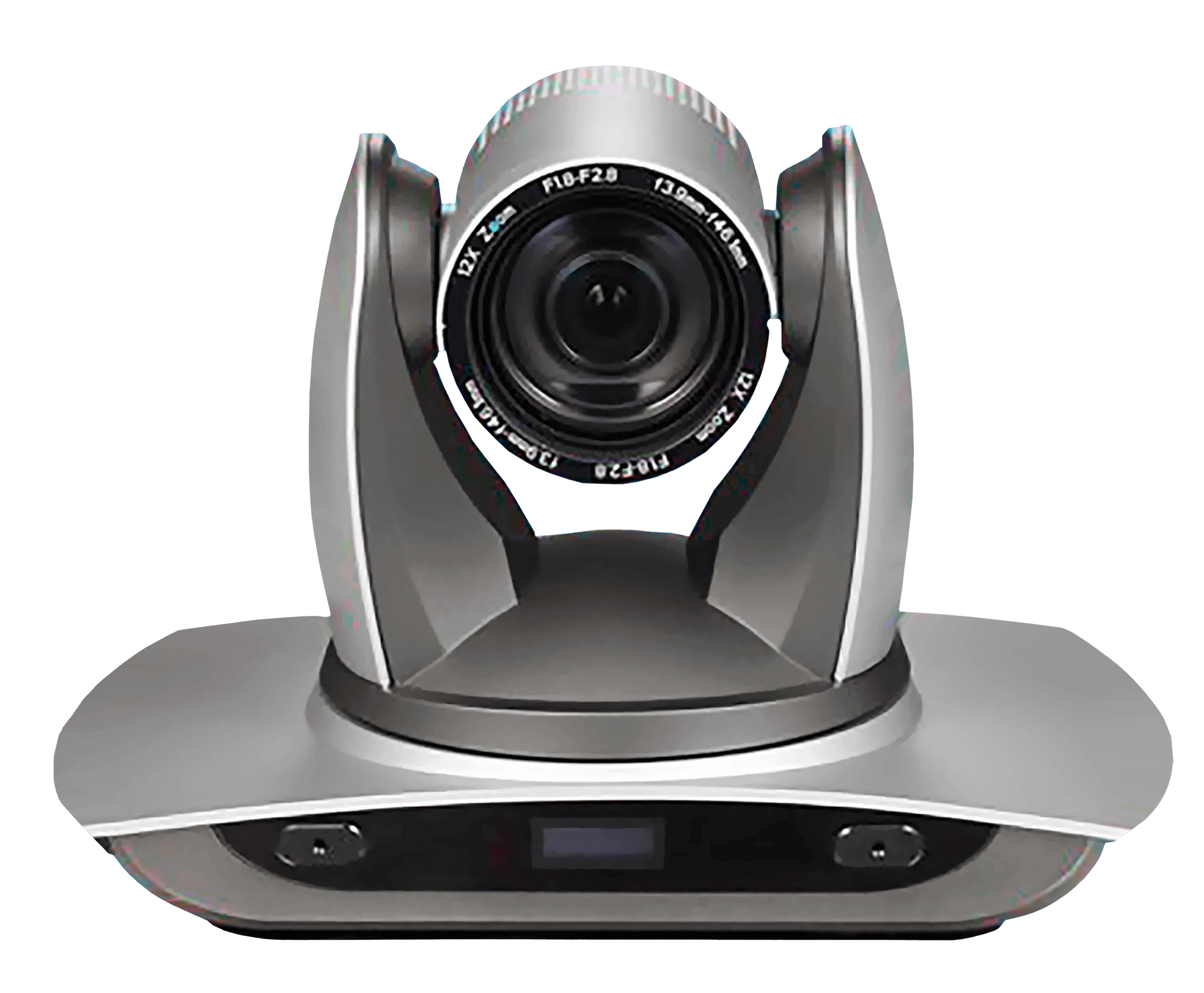

ARV-UT12
ARV-UT12 is an integrated audiovisual open endpoint platform,which applies Android operating system. It hasseries of audio/video interface configuration, which makes many functions available, such asaudio and video interaction, desktop sharing, multimedia sharing, recording etc. It can be widely used in Video conferencing, Remote training, Tele-medicine, Collaborative office, Command & Control center and many other high-end professional applications.
Key Features
Integrated platform design
Support audio input and output; support 1x HDMI input, 1x HDMI output; with LAN interface; with 2x USB2.0 interface; with Bluetooth and 5GWiFi interface. Camera and endpoint platform successfully integrated together during video conference.
Compact design
ARV-UT12 adopts integrated compact design, built-in camera and multiple interfaces. With mall size, rich interface and easy connection advantage, ARV-UT12 is easy to install and maintain.
Wireless WiFi
Support standard wireless protocols ; support simple and efficient equipment deployment during video conference.
Built-in audio
Built-in high-sensitivity pickup to contribute to high-quality voice two-way intercom; voice echo cancellation; noise suppression and automatic gain control function are matched to ensue high-fidelity voice and low latency.
MORE FEATURES
- OPEN HARDWARE PLATFORM AND SDK
ARV-UT12 fully supports the secondary development by users to achieve custom needs.
- UNMATCHED PLAYFORM COMPATIBILITY
Support users to customize developments such as H.323 / SIP protocol stack, and achieve good interoperability with mainstream standard endpoint and MCUs in the industry; to facilitate customers expansion and upgrading.
- BLUETOOTH INTERFACE
Built-in Bluetooth module,which could be paired with an external Bluetooth interface to achieve Bluetooth data transmission.
- LOCAL STORAGE
Support SD card storage; U disk storage; storage space is up to 32G.
- SUPERB HIGH-DEFINITION IMAGE
The camera employs 1/2.8 inch, 2.07 million pixels high quality CMOS sensors with resolutions of up to 1920×1080 and frame rate up to 60 fps.
- WIDE ANGLE ZOOM LENS WITHOUT DISTORTION
The camera has the option of 12X optical zoom lenses. 12X zoom lens offers 72.5 ° wide view angle without distortion.
- LEADING AUTO FOCUS TECHNOLOGY
The leading auto focus algorithm provides fast, accurate and stable auto-focusing.
- LOW NOISE AND HIGH SNR
Low noise CMOS sensors ensures high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
- MULTIPLE VIDEO COMPRESSION
Supports H.265/H.264 video compression.
- LOW-POWER SLEEP FUNCTION
Supports low power sleep/wake up with consumption in sleep mode.
- QUIET AND QUICK PAN/TILT MECHANISM
By adopting a step driving motor mechanism, the camera works extremely quietly and moves very smoothly.
Specifications
| CPU | Quad core ARM Cortex A7，Main frequency 1.5GHz |
| 3D GPU | Quad core Mali450 OpenGL ES 2.0/1.1/1.0 OpenVG 1.1，EGL |
| Memory | DDR3/3L interface；capacity 2GB；Dram 32bit；Maximum frequency is up to 800MHz/DDR1600 |
| EMMC | Support SLC/MLC device; Support 8bit data width；Capacity 8GB |
| Video coding and decoding | H.265 Main [email protected] High-tie H.264 BP/MP/HP@ level 5.0； Support 4 ways HD streaming decoding simultaneously. |
| Audio coding and decoding | MPEG L1/L2；DRA decoding； AAC-LC；HE AAC V1/V2 decoding；APE/FLAC/Ogg/AMR-NB/WB decoding；G.711(u/a) audio decoding；downmix process，resample，high dynamic volume control ；Support High Quality Kara OK function，Support echo cancellation and G.711(u/a) /AMR-NB/AMR-WB /AAC-LC audio coding； |
INPUT/OUTPUT INTERFACE
| LAN | 1000ML LAN Port（10/100BASE-TX） |
| WIFI | Support 802.11b/g/a protocol |
| HDMI Input/output | 1 x HDMI Input，1 x HDMI output, HDMI 1.4 |
| USB | 2 x USB2.0 output. Support Outsourcing Video and Storage Device. |
| Audio Input/output | 3.5mm linear output, Mini XLR Input. |
| Built-in Mic | Built-in high sensitive digital Pickup. |
| Bluetooth | Bluetooth 4.1 |
| IR Control | Camera Control, Meeting control by IR Controller |
| Power | HEC3800, DC12V |
| LED Display | Display necessary information like system status in the front panel. |
| SD CARD | Local Recording, up to 32G. |
CAMERA PARAMETER
| Sensor | 1/2.8Inch High Quality HD CMOS Sensor |
| Effective Pixels | 2.07MP, 16:9 |
| Video Format | 1080P60/50/30/25/59.94/29.97 1080I60/50/59.94 720P60/50/30/25 /59.94/29.97 |
| Video Compression | H.265、H.264 |
| Optical Zoom | 12X optical Zoom, f＝3.9~46.8mm |
| View Angle | 6.3°(Narrow Angle)~ 72.5°(Wide Angle) |
| Aperture | F1.8~F2.4 |
| Minimum Illumination | 0.5Lux(F1.8, AGC ON) |
| Digital ZOOM | X10 |
| Digital ZOOM | 2D﹠3D |
| White Balance | Auto/Manual/OnePush/ 3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K |
| Focus/Aperture/ Shutter | Auto/Manual/One Push |
| BLC | On/Off |
| WDR | OFF/ Dynamic level adjustment |
| Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
| SNR | >55dB |
| Control Protocol | VISCA, UVC |
PAN TILT PARAMETER
| Pan Rotation | ‐170°~+170° | |
| Tilt Rotation | -30°~+30° | |
| Pan control speed | 0.1 ~180°/s | |
| Tilt control speed | 0.1~80°/s | |
| Presets Number | 255 points（10points by Controller） | |
| Preset Speed | Pan: 180°/s, Tilt: 80°/s | |
OTHERS
| Power Adapter | AC110V‐AC220V to DC12V/2A | |
| Power supply | DC12V±10% | |
| Currency | 1A(Max) | |
| Power | 12W(Max) | |
| Storage Temperature | -10℃~+60℃ | |
| Storage Humidity | 20%~95% | |
| Working Temperature | -10℃~+50℃ | |
| Working Humidity | 20%~80% | |

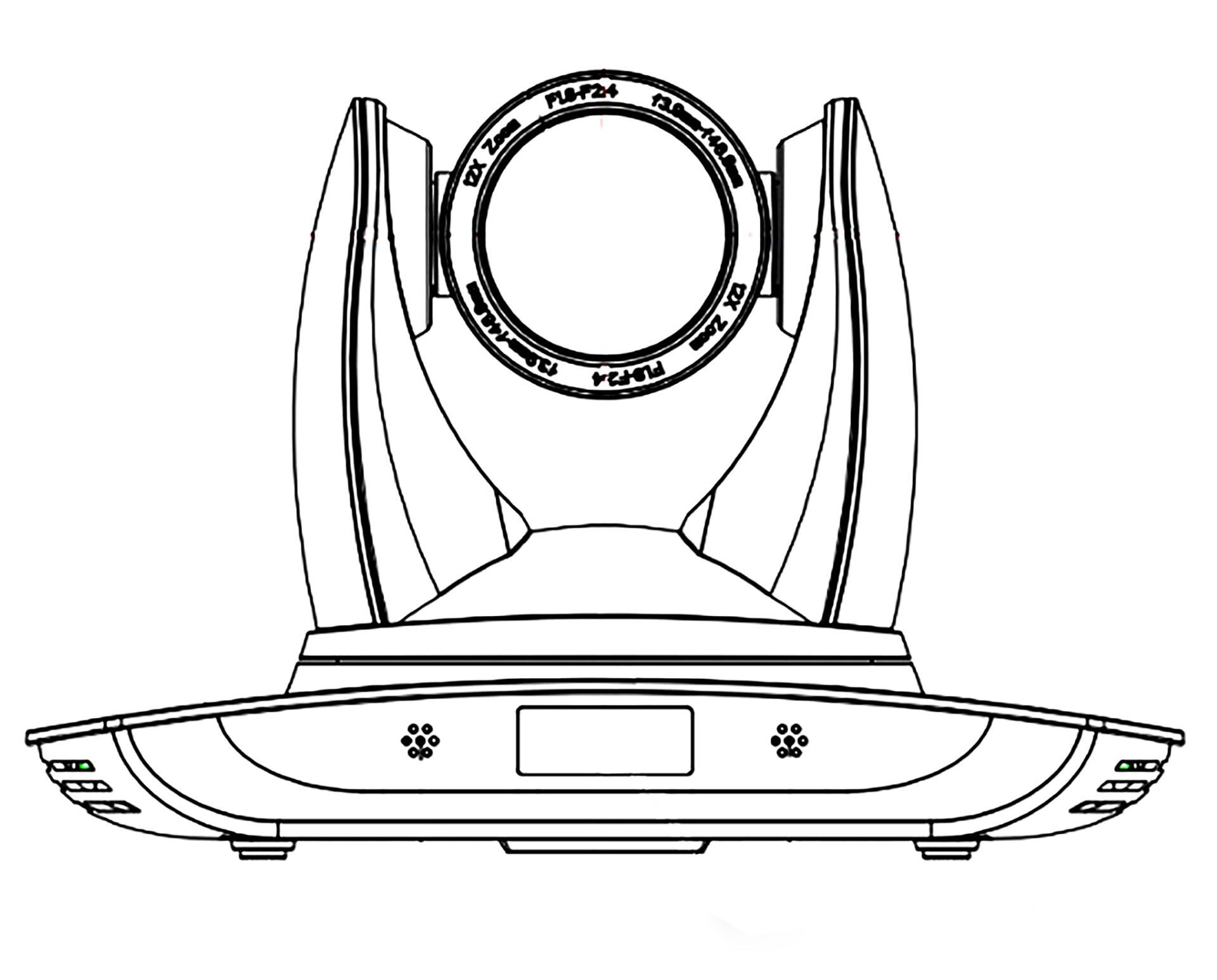

| Dimension（WXHXD） | 253mmX168mmX144mm | |
| Weight（Appx.） | 1.55kg | |
| Application Environment | Indoor | |
| Network Maintenance | Remote Upgrade, Remote Reboot, Remote Reset | |
