Full HD, Wide View Angle, Multiple Video Interfaces. Multiple protocols

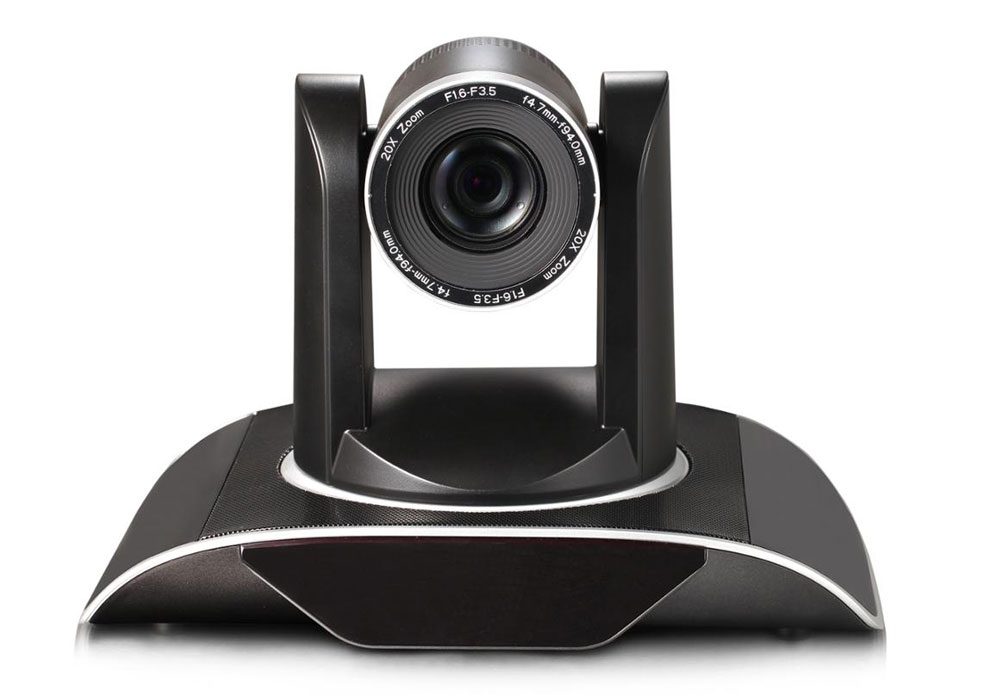

UV950A series camera offers perfect functions, superior performance and rich interfaces for video conference.The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution,and fantastic color rendition.It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.
ARV-VC 950 employs 1/2.8 inch high quality CMOS sensor. Resolution is up to1920x1080 with frame rate up to 60fps.

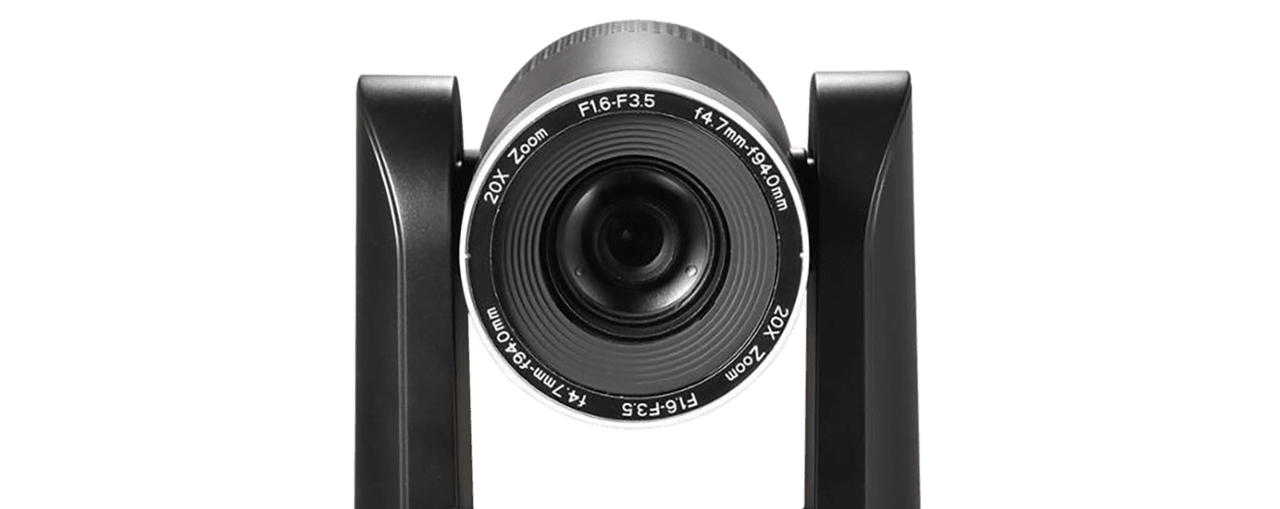

ARV-VC 950 has 12X/20X/30X optical zoom lens for options. 12x zoom lens is with 72.5 ° wide view angle without distortion.
Leading auto focus algorithm makes lens a fast, accurate and stable auto focusing during video conference.
Low Noise CMOS effectively ensure high SNR of camera video.Advanced 2D/3D noi se reduction technology is also used to further reduce the noise, while ensuring image sharpness.
Leading auto focus algorithm makes lens a fast, accurate and stable auto focusing.
By adopting step driving motor mechanism, UV950A camera works extremely quiet and moves smoothly.
Support H.264/H.265 video compression; AAC, MP3 and PCM audio compression; Support compression of resolution up to 1920×1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression.
Support ONVIF, RTSP, RTMP, NDI protocols and support RTMP push mode, easy to link streaming media server (Wowza, FMS)
Support H.264/H.265 video compression; AAC, MP3 and PCM audio compression; Support compression of resolution up to 1920×1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression.
Support low-power sleep/wake up, the consumption is lower than 400mW under sleep mode.
Model | ARV-VC950-12 | ARV-VC950-20 | ARV-VC950-30 | |
Camera Parameter | ||||
Optical Zoom | 12X f=3.9~46.1mm | 20X f=55.7~110mm | 30X f=4.3~129mm | |
Sensor | 1/2.8 inch high-quality HD CMOS sensor | |||
Effective Pixels | 16: 9 2.07 megapixel | |||
Video Format | ST video format 1080P60/50/30/25/59.94/29.97;1080I60/50/59.94;720P60/50/30/25/59.94/29.97 U3.0 interface video format 1)USB3.0: 1920X1080P60/50/30/25;1280X720P60/50/30/25;960X540P30;640X360P30;640X480P30;352X288P30;960X540P30 2) USB3.0 compatible with USB2.0 :960X540P30; 640X360P30; 1280X720P10/15; 720X576P50; 720X480P60; 640X480P30; 352X288P30. | |||
View Angle | 6.3°(tele)–72.5°(wide) | 3.3°(tele)–54.7°(wide) | 4.3°(tele)–54.7°(wide) | |
AV | F1.8 ~ F2.4 | |||
Digital Zoom | 10X | |||
Minimum Illumination | 0.5Lux (F1.8, AGC ON) | |||
DNR | 2D & 3D DNR | |||
White Balance | Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K | |||
Focus | Auto/Manual | |||
Aperture | Auto/Manual | |||
Electronic Shutter | Auto/Manual | |||
BLC | ON/OFF | |||
WDR | OFF/ Dynamic level adjustment | |||
Video Adjustment | Brightness,Color,Saturation,Contrast,Sharpness,B/W mode,Gamma curve | |||
SNR | >55dB | |||
Input/Output Interface | ||||

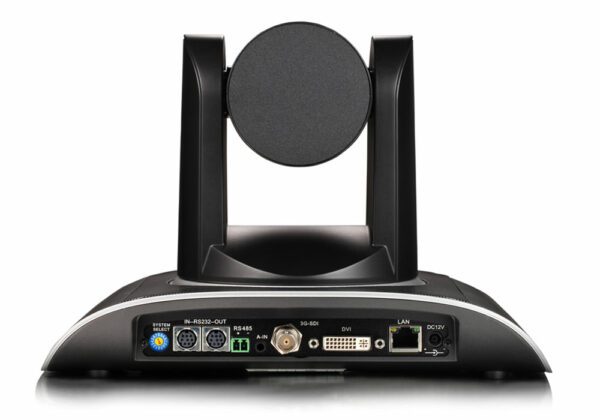

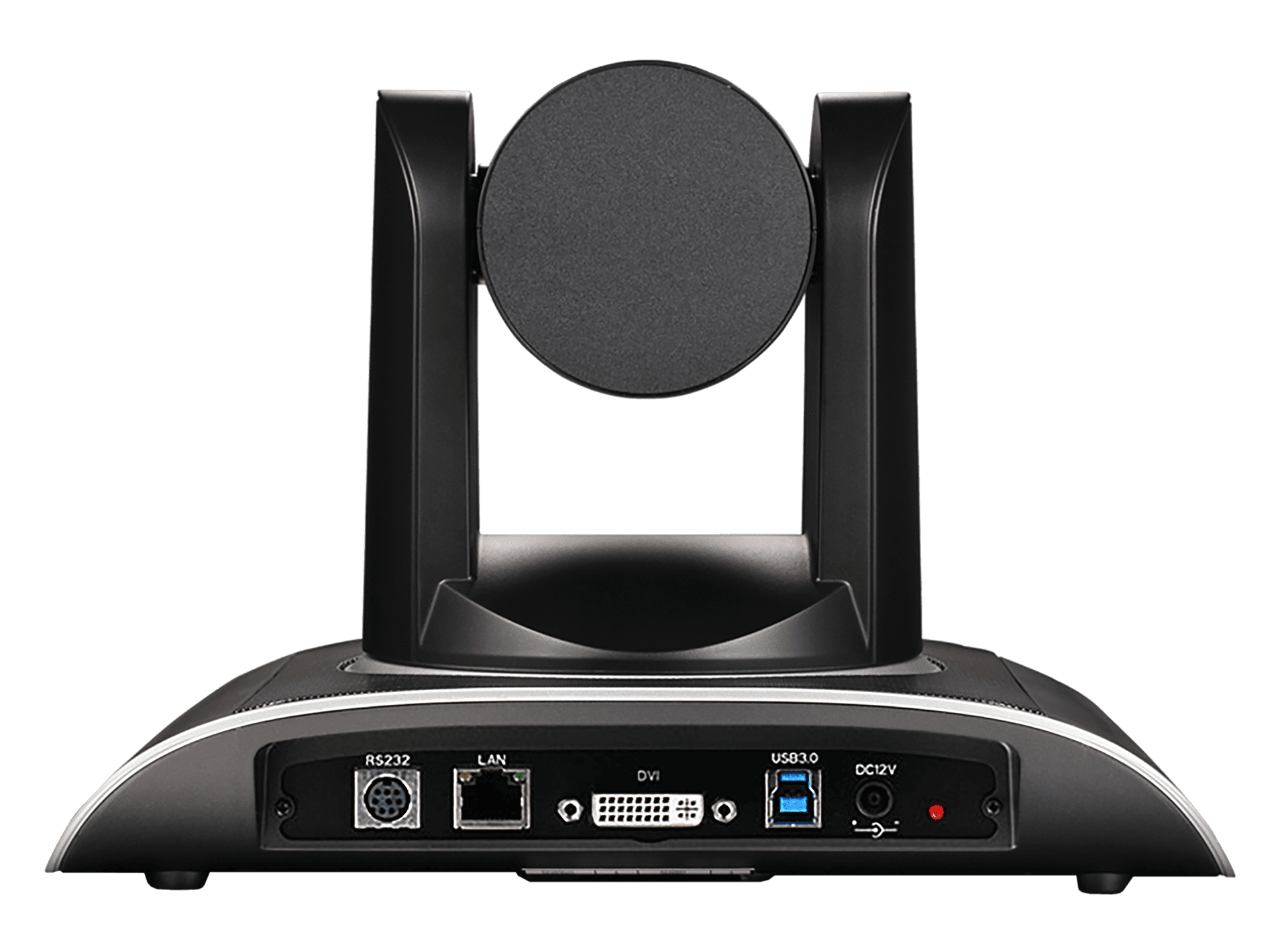

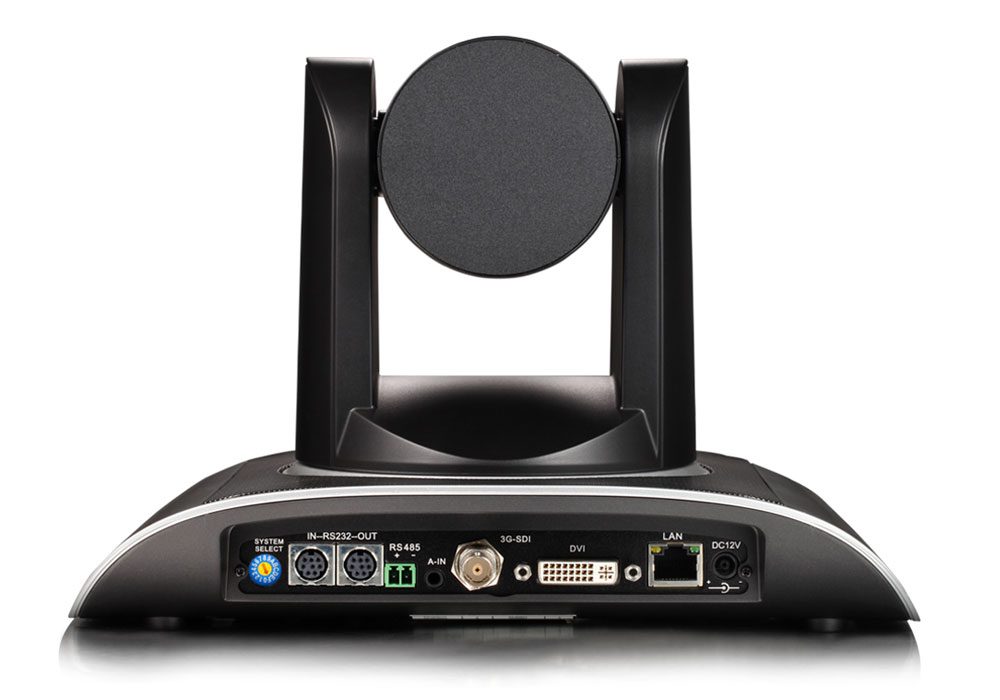

Video Interfaces | UV950A-12/20/30-ST Model:3G-SDI,DVI(HDMI),LAN,RS232(IN/OUT),RS485,A-IN UV950A-12/20/30-U3 Model:USB3.0,DVI(HDMI),LAN,RS232(IN) UV950A-12/20/30-U2U3 Model: USB3.0,USB2.0, HDMI, LAN, RS232(IN), A-IN | |||
Image Code Stream | Dual-stream output | |||
Video Compression Format | H.264, H.265 | |||
Control Signal Interface | RS-232 Ring through RS232 output | |||
Control Protocol | VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps | |||
Audio Input Interface | Double track 3.5mm linear input; | |||
Audio Compression Format | AAC/MP3/PCM Audio compression | |||
HD IP Interface | 100M IP port(100BASE-TX); 5G WiFi (optional), Support Visca protocol control through IP port. | |||
Network Protocol | RTSP/RTMP,ONVIF,GB/T28181, NDI (Additional option) | |||
Power Interface | HEC3800 outlet (DC12V) | |||
PTZ Parameter | ||||
Pan Rotation | ±170° | |||
Tilt Rotation | -30°~+90° | |||
Pan Control Speed | 0.1 -100°/sec | |||
Tilt Control Speed | 0.1-45°/sec | |||
Preset Speed | Pan: 100°/sec,Tilt: 45°/sec | |||
Preset Number | 255 presets (10 presets by remote controller) | |||
Other Parameter | ||||
Supply Adapter | AC110V-AC220V to DC12V/1.5A | |||
Input Voltage | DC12V±10% | |||
Input Current | 1A(Max) | |||
Consumption | 12W (Max) | |||
Store Temperature | -10℃~+50℃ | |||
Store Humidity | 20% – 95% | |||
Working Temperature | -10℃~+50℃ | |||
Working Humidity | 20%–80% | |||
Dimension | 258mmX172mmX168mm | |||
Weight | 1.54KG | |||
Remote Operation (IP) | Remote Upgrade, Reboot, and Reset | |||
Accessory | power supply,RS232 control cable,remoter,manual,warranty card,bracket(optional) |
