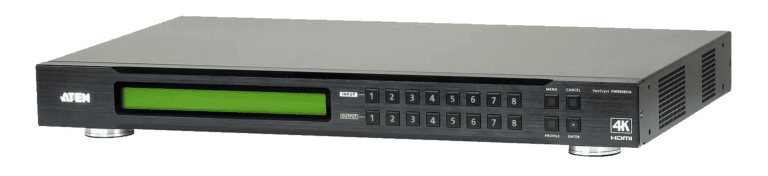

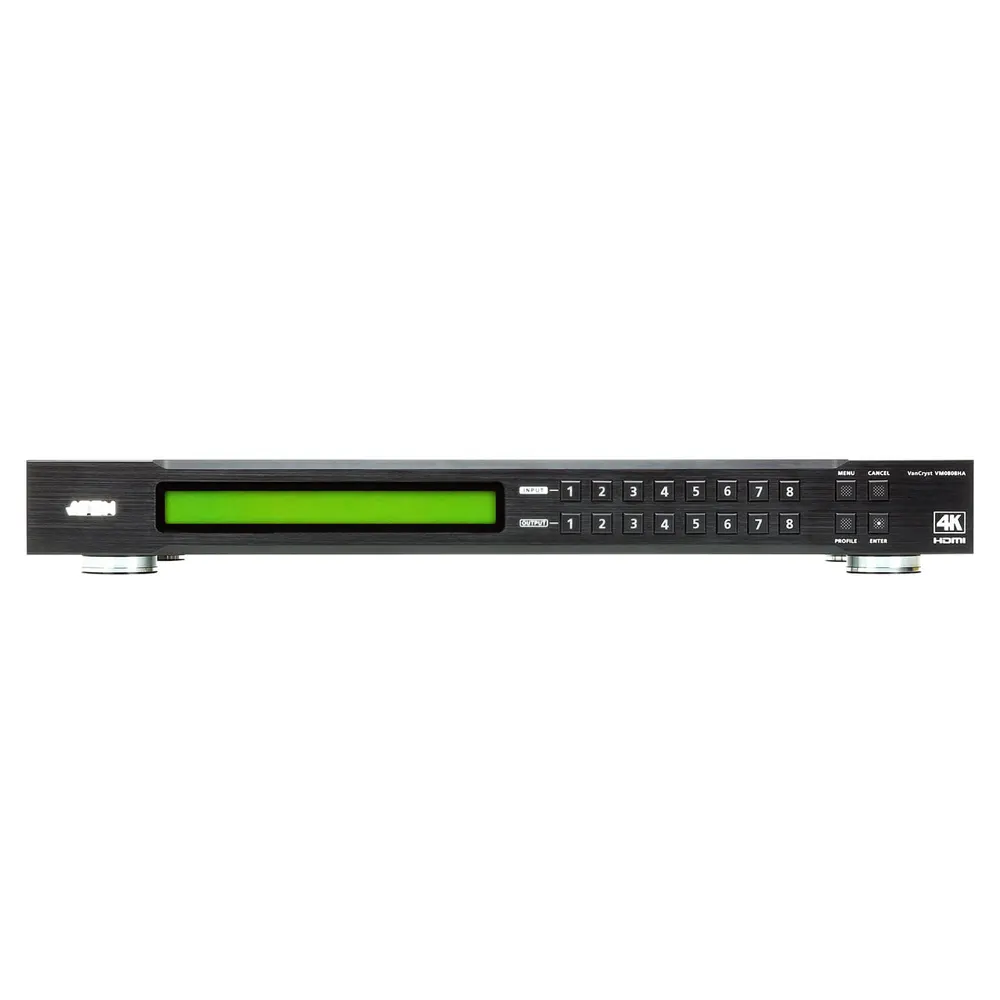

Aten 8×8 4K HDMI Matrix Switch – VM0808HA
Videowall Controller-Supports 4K resolutions of UHD (3840 x 2160) and DCI (4096 x 2160)
-Refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0).
-Route any of 8 HDMI video sources to any of 8 HDMI displays
-Operated through front-panel pushbuttons, IR remote, RS-232 control and Ethernet connections
• Optimum viewing and control of high-definition video.
Description
Descriptions
The ATEN VM0808HA 8×8 4K HDMI Matrix Switch supports 4K resolutions of UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0). Ready for the future of high-definition video switching, the VM0808HA is ideal for applications where the routing of 4K digital signals is required, such as in classrooms, auditoriums, department stores and more.
The VM0808HA matrix switch offers an easy and affordable way to route any of 8 HDMI video sources to any of 8 HDMI displays and can be operated through front-panel pushbuttons, IR remote, RS-232 control and Ethernet connections, ensuring optimum viewing and control of high-definition video. Moreover, with a built-in Web GUI, the VM0808HA is easily accessible via any web browser for remote configuration and customization of each HDMI source and display connection.
Key Features
- Connects any of 8 HDMI sources to any of 8 HDMI displays
- Supports 4K resolutions up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)
- EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
- Multiple Control Methods – system management via front-panel pushbuttons, IR remote, RS-232 control, and Ethernet connections (Web GUI)
- View and control via ATEN Video Matrix Control App in a swift and agile way
- Supports Dolby True HD and DTS HD Master audio
- Signaling rates up to 3.4 Gbits for flawless 4K output
- HDMI (3D, Deep Color, 4K) and HDCP 2.2 compatible
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control
- Supports ATEN’s LockPro™ HDMI cable lock for secure HDMI cable connections
- ESD protection for HDMI
- Firmware upgradeable
- Rack Mountable (1U design)

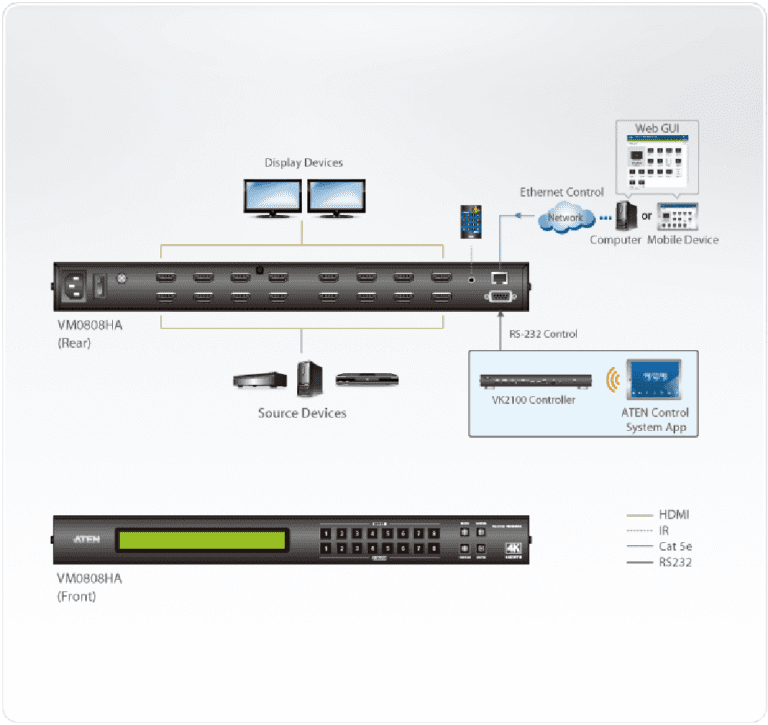

DIAGRAM
Specifications
Video Input
Interfaces 8 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 5 m
Video Output
Interfaces 8 x HDMI Type A Female (Black)
Max. Distance 15 m
Impedance 100 Ω
Video
Max. Pixel Clock 340 MHz
Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
Compliance HDMI (3D, 4K, Deep Color)
HDCP 2.2 Compatible
Consumer Electronics Control (CEC)
Max. Distance Up to 15 m
Control
RS-232 Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR 1 x Mini Stereo Jack Female (Black)
Ethernet 1 x RJ-45 Female
EDID Settings EDID Mode: Default / Port 1 / Remix / Customized
(EDID Wizard Support)
Environmental
Operating Temperature 0-40°C
Humidity 0 - 80% RH, Non-Condensing
Storage Temperature -20 - 60°C
Connectors
Power 1 x 3-Prong AC Socket
Carton Lot 1 pc
Power Consumption AC110V:24W:113BTU
AC220V:24.4W:114BTU
Power
Maximum Input Power Rating 100-240 VAC; 50-60 Hz; 1.0A
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Physical Properties
Weight 3.86 kg ( 8.5 lb )
Housing Metal
Dimensions (L x W x H) 43.24 x 26.23 x 4.40 cm
(17.02 x 10.33 x 1.73 in.)
Package Contents
- 1x VM0808HA 8x8 4K HDMI Matrix Switch
- 1x Power Cord
- 1x IR Remote Control
- 1x IR Receiver
- 1x Mounting Kit
- 1x User Instructions
