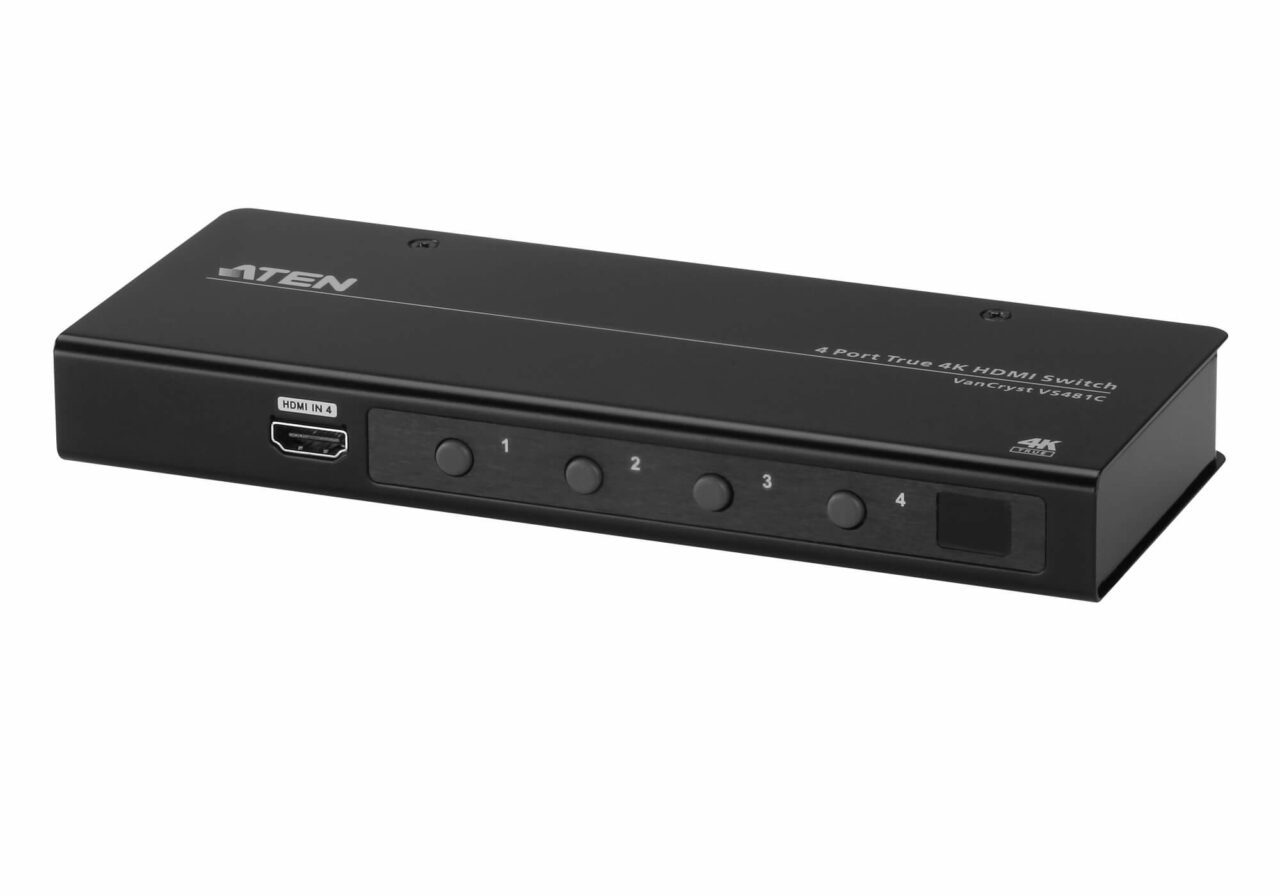

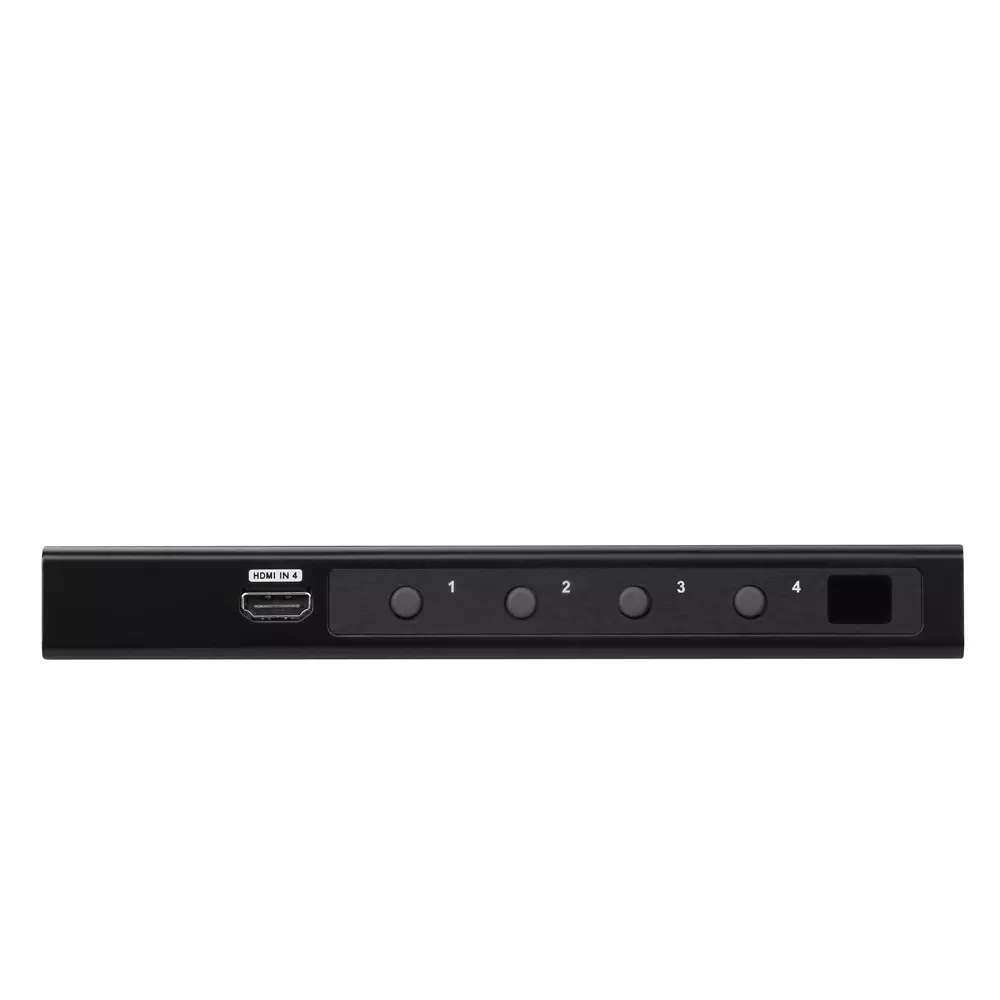

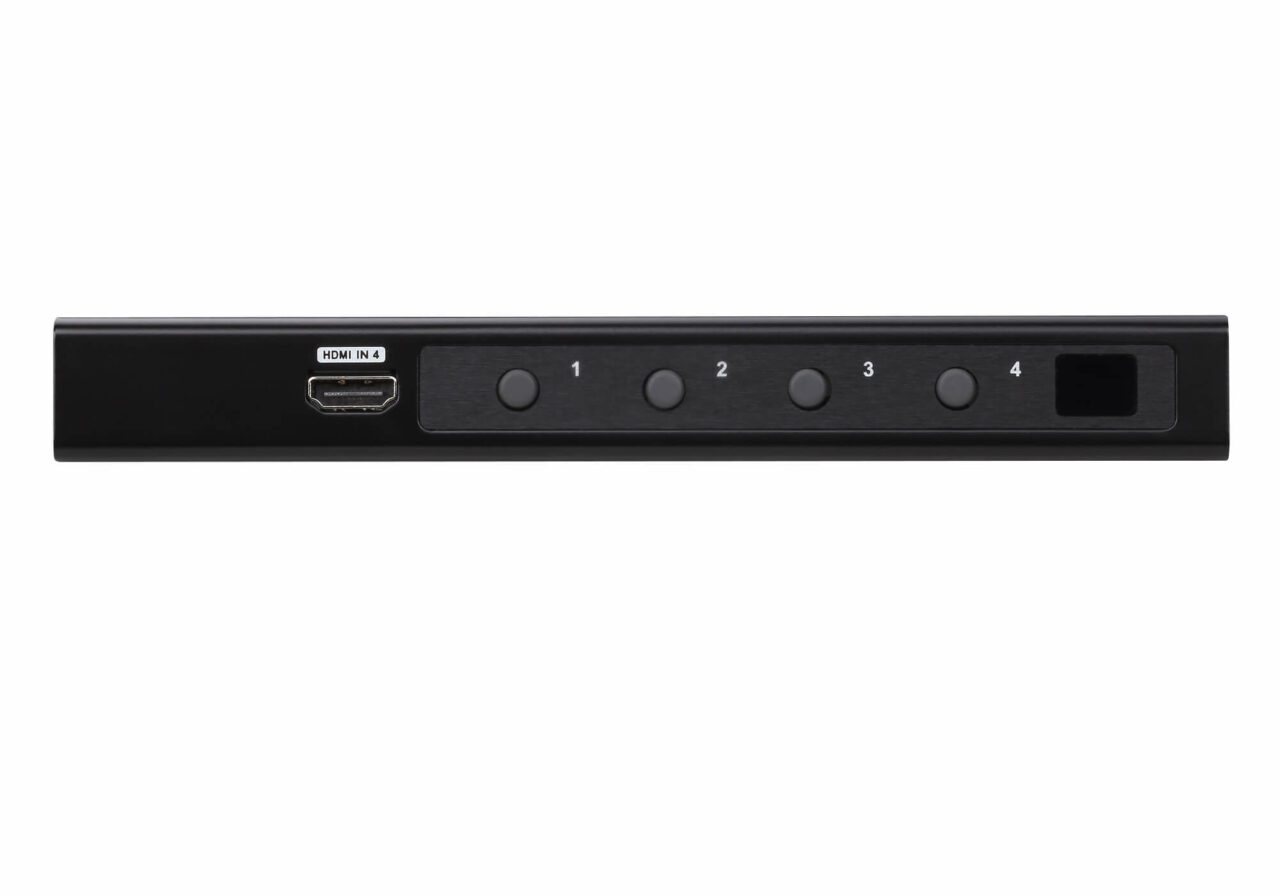

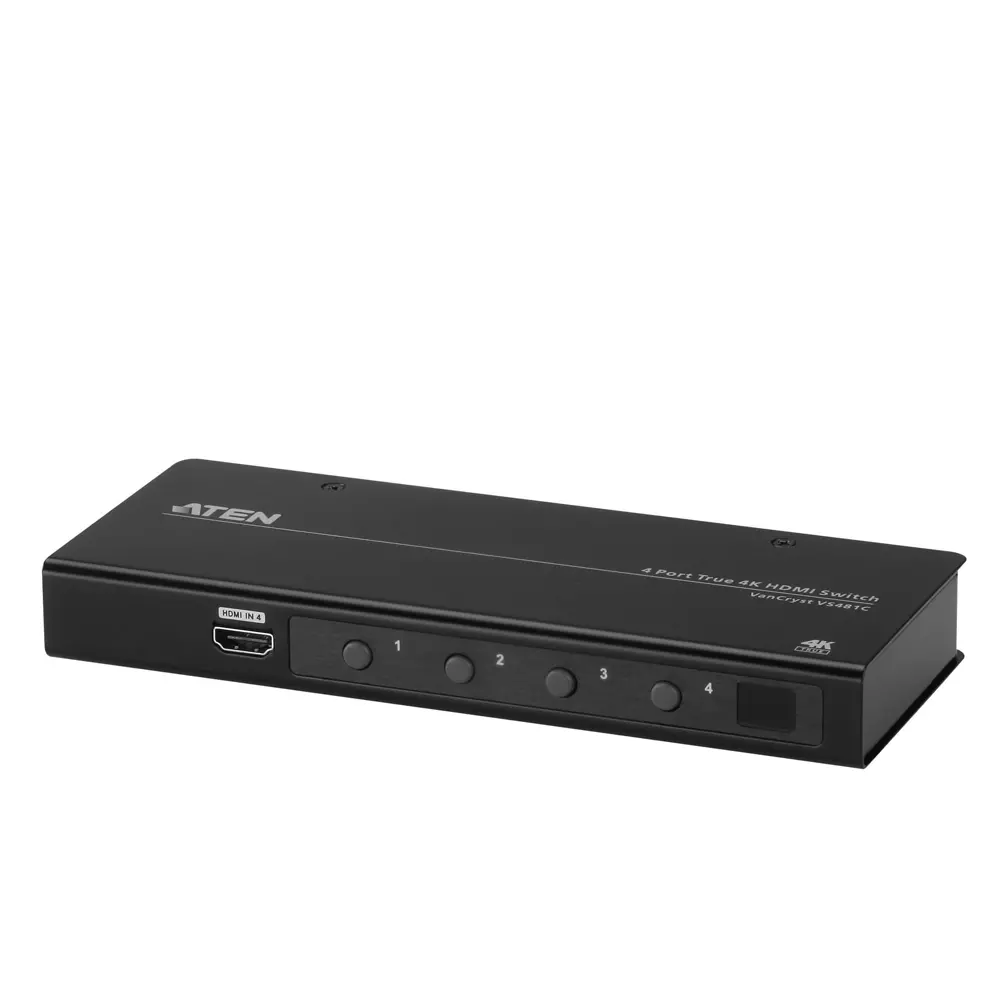

ATEN 4 Port True 4K HDMI Switch – VS481C
Videowall Controller• Allows up to 4 HDMI sources to display on one HDMI display
• HDMI 2.0(3D, Deep Color, 4K); HDCP 2.2 compliant
• Support True 4k resolutions of 4k x 2k @ 60 Hz
• Built-in bi-directional RS-232 serial port for high-end system control
Description
Descriptions
The ATEN VS481C is designed for applications that require the routing of 4 sources to one compatible display device. It enables the reliable transmission at video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Color up to 12-bit, and HD lossless audio formats. Integrator-friendly features include Auto Switching modes for auto port selection, bi-directional RS-232, and IR for remote device control.
Engineered to meet today’s demand of True 4K signal transmission and user- oriented design, the ATEN VS481C is a powerful solution for a wide range of settings, such as home theater, meeting rooms, trade shows, and shopping centers.
Key Features
Allows up to 4 HDMI sources to be connected to one HDMI display
HDMI 2.0(3D, Deep Color, 4K); HDCP 2.2 compliant
Superior video quality- True 4k resolutions of 4k x 2k @ 60 Hz (4:4:4)
Supports IR extension
Built-in bi-directional RS-232 serial port for high-end system control
Auto switching modes for auto port selection
LED indication of source device status
Plug-and-play
Specifications
| Housing | Metal |
| Weight | 0.47 kg ( 1.04 lb ) |
| Dimensions (L x W x H) | 20.00 x 8.21 x 2.50 cm (7.87 x 3.23 x 0.98 in.) |
| Operating Temperature | 0-40 °C |
| Storage Temperature | -20 - 60 °C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Switches | |
| DIP | Auto Switch ON/OFF |
| Video Input | |
| Interfaces | 4 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | 5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
| Video Output | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | 5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
| Video | |
| Max. Data Rate | 18 Gbps (6 Gbps Per Lane) |
| Max. Pixel Clock | 600 MHz |
| Compliance | HDMI 2.0 (3D, Deep Color, 4K) HDCP 2.2 Consumer Electronics Control (CEC) |
| Max. Resolution | 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
| Control | |
| RS-232 | Connector：1 x DB-9 Female (Black) Baud Rate：19200 / Data Bits：8 / Stop Bits：1 / Parity：NO / Flow Control：NO |
| IR | 1 x Mini Stereo Jack Female (Black) 1 x IR Receiver |

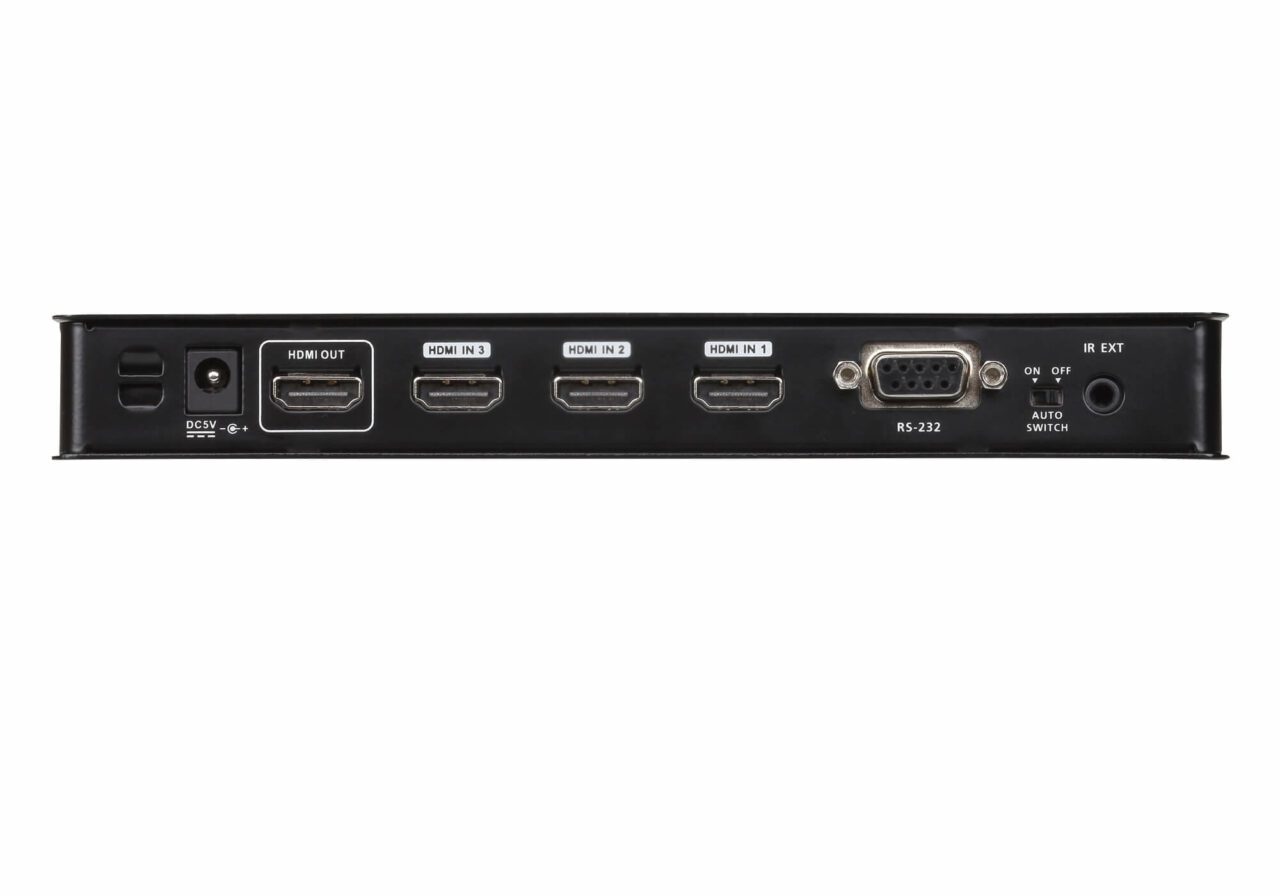

| Connectors | |
| Power | 1 x DC Jack (with locking) |
| Power Consumption | DC5V:0.924W:20BTU |
- 1x VS481C 4-Port True 4K HDMI Switch
- 1x Power Adapter
- 1x IR Remote Control Unit
- 1x HDMI Cable
- 1x User Instructions
