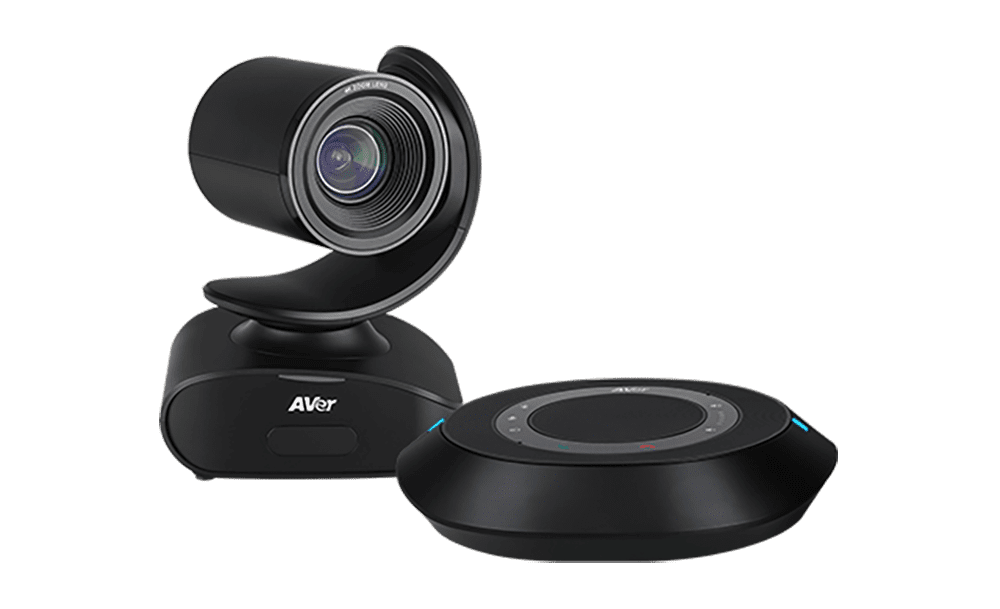

AVER VC540
Superior Audiovisual System for Collaboration
Descriptions

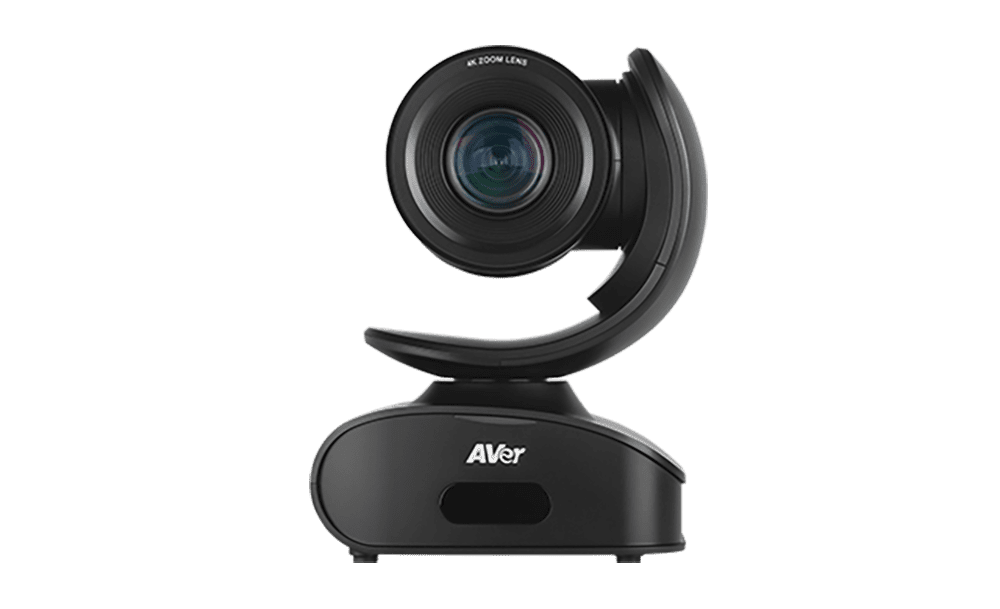

4K Conference Camera
The CAM540 brings AVer’s new SmartFrame auto-framing technology to 4K high definition video conferencing. With a wide field of view, the CAM540 is guaranteed to provide an incredible communication experience in your meeting room.
Key Features
Bluetooth Makes Things Simple
Get rid of complicated cables. The upgraded speakerphone’s Bluetooth capability makes connecting to tablets and mobile phones easy, and it keeps your conference room clean so you can make a strong impression.
Make an Impression with the CAM540’s Stylish New Design
The CAM540 offers a new sleek and fluid design for conferencing rooms. Compared to traditional designs, the CAM540 is elegant and compact to save you space. The CAM540 easily fits your modern meeting room and provides an experience that both novices and experts can enjoy in style.
Professional Clarity with a 16X total Zoom
Cutting-Edge 4K Ultra HD
Specifications
Package dimensions: 259 x 259 x 349 mm
Package weight: 4.6 kg
Camera: 130.7 x 97.8 x 171.1 mm
Speakerphone: 220 x 181.5 x 49.5 mm
Remote control: 200 x 50 x 21 mm
Windows® 7/10 or later
Mac OS X v10.13 or later
Google Chromebook™ version 76.0.3809.102 or later
Android™ 6 or later
Camera
Ultra-crystal-clear image support up to 4K
Frame rate: 4K 30fps, 1080p , 720p , 640x480, 320x240 at 60, 30, 15fps
SmartFrame: automatic FOV adjustment to fit all participants
16X zoom
Autofocus: minimum working distance 1 meter
86° horizontal field of view
Backlight compensation and 2D noise reduction technology for optimizing light balance in varying conditions
Standard tripod screw holes
Analytics API: enterprises and third-party software providers can obtain people-counting data to better understand meeting-space usage
Speakerphone
Bluetooth / USB Wired
Full-duplex microphone array with echo cancellation
Advanced noise suppression
2-microphone array
3.5 mm phone-in Jack
3.5 mm line out
Speaker volume: adjustable to 90 dB SPL at 0.5 m
Touch controls for volume down/up, mute, phone input, call, and hang up
Can bridge phone-in and USB into one call
Security: Kensington slot
Motorized Pan & Tilt Movement
Pan: ±160°
Tilt: +90° (up) -30° (down)
10 camera presets (via remote control)
Fast and quiet pan & tilt movement
Connectivity
Mini DIN 6 for RS232 connector for camera
USB Type-C connector for camera
Micro USB connector for speakerphone
IP (RJ45) connector for speakerphone
Bluetooth for speakerphone
Video Format
YUV, MJPEG
USB
2.0, 3.1 Gen1
UVC (USB Video Class) 1.1
UAC (USB Audio Class) 1.0
Control
IR remote control
VISCA/pelco and P/pelco D via RS232
UVC/plug-and-play
PTZApp
Optional Accessories
Mini DIN 6 to RS232 adapter for camera
Expansion Speakerphone (10 m cable included, daisy-chain up to three speakerphones)
Expansion Pair Microphone (Two 5 m cables included, daisy-chain up to four microphones)
USB 2.0 type-C to type-A Cable (16 ft)
Warranty**
Camera/Speakerphone: 3+2 years
Accessories: 1 year
Security and Mount
Camera mount included for wall or ceiling
Kensington slot
COMPATIBLE APPLICATIONS
Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting ®, TrueConf, Adobe® Connect™, Cisco Webex®, Fuze, GoToMeeting™, Vidyo, vMix, WebRTC, Wirecast, XSplit
CAM540 Camera
FONE540 Speakerphone
Remote control
Power adapter x 2
Power cord (6 ft)
USB 3.1 type-C to type-A Cable (6 ft)
Micro USB 2.0 to Type-A cable (16 ft)
3.5 mm aux cable (3 ft)
Warranty card
Quick Start Guide
Metal mount, tripod screws
Batteries
