Independent Controller - MCTRL 300

MCTRL300 is NovaStar’s independent control card from the M3 Series, and supports audio and video input. The M3 undertakes encoding and data processing, sending the audio and video to the display. A single card supports maximum loading capacity of 2048×[email protected] It communicates with PC via USB port for convenience.

– DVI video input
– Audio transmission
– Dual-Ethernet output, with dual-Ethernet cable hot backup and multiple controller hot backup
– USB port control, for cascading and control of multiple units

Descriptions

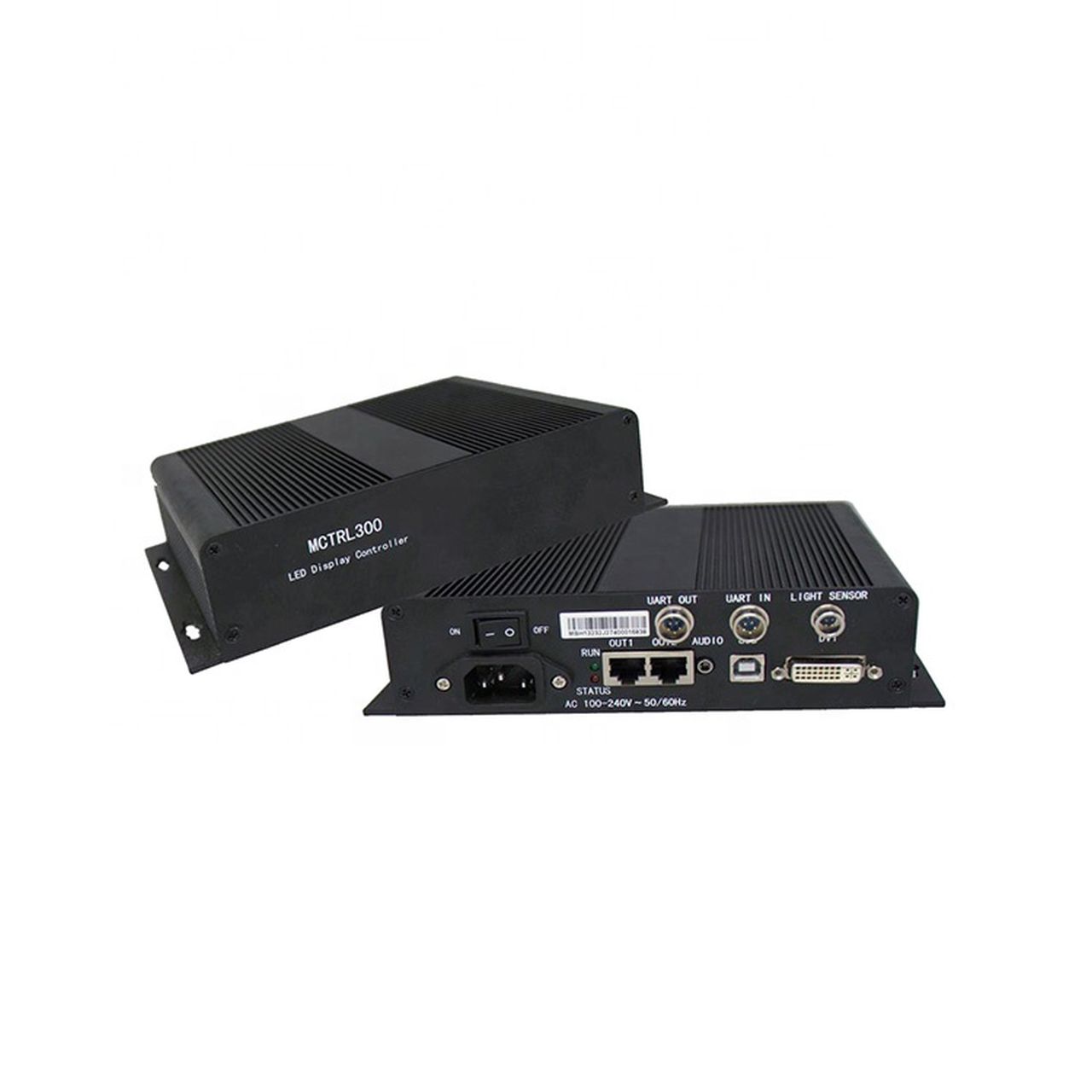

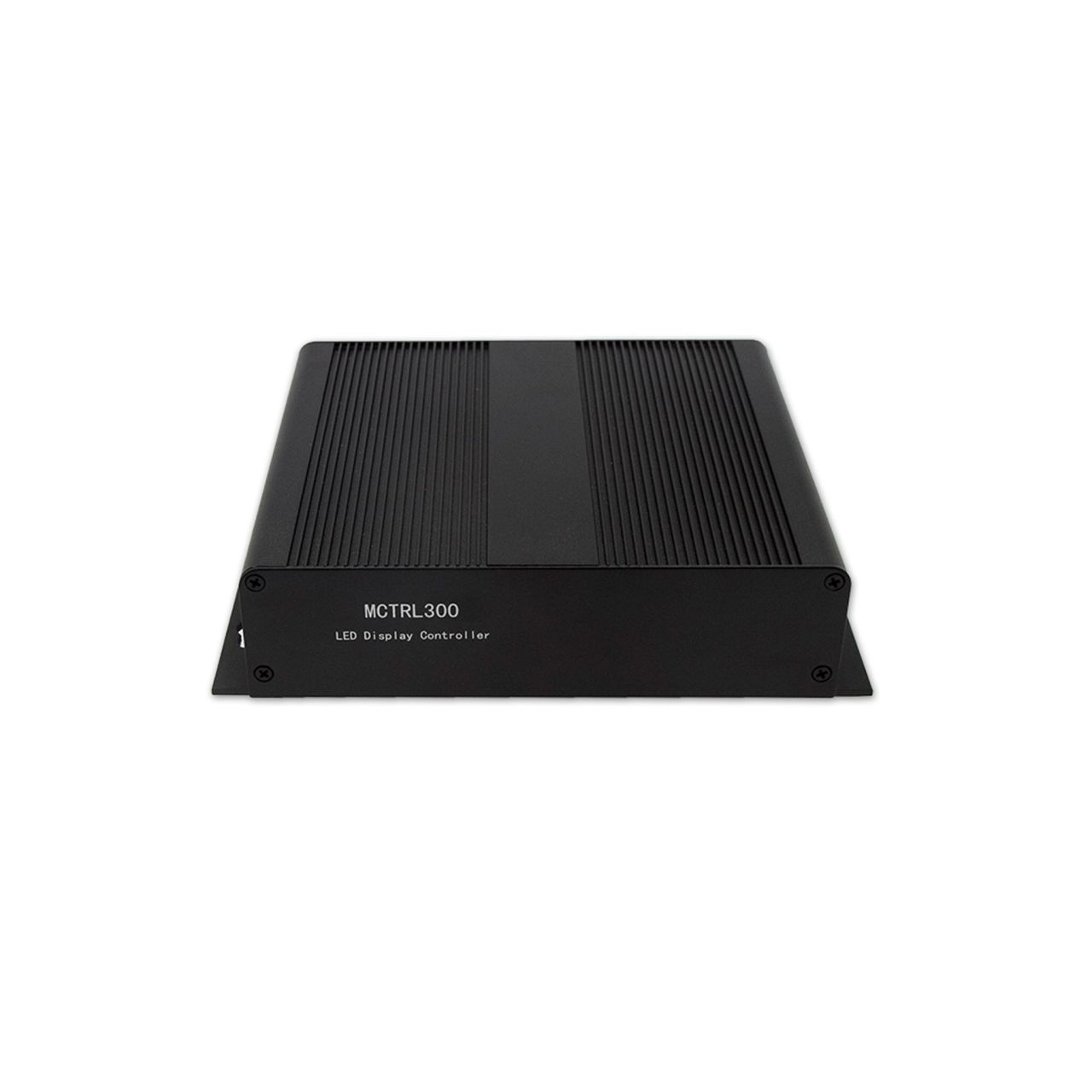

NOVASTAR MCTRL300 LED Controller Box

MCTRL300

1.3 million pixel loading capacity, with resolutions of 1280×[email protected], 1024×[email protected], 1600×[email protected], 1920×[email protected], 2048×[email protected] and Maximum height: 3840; Maximum height:3840

1 light sensor interface, adjust the screen brightness automatically

Independent power supply

Certifications: CE, RoHS, EAC, FCC, IC

Key Features

1 × DVI input 1 × audio input 1 × type-B USB control port UART control ports to cascade devices for uniform control. Dual Ethernet outputs. Supports the new generation of NovaStar calibration technology, which is fast and efficient. 1 × light sensor connector. Supports resolutions up to 2048×668@60Hz and downward compatibility. Supports a variety of video formats.

1 × DVI input

1 × audio input

1 × type-B USB control port

UART control ports to cascade devices for uniform control.

Dual Ethernet outputs.

Supports the new generation of NovaStar calibration technology, which is fast and efficient.

1 × light sensor connector.

Supports resolutions up to 2048×[email protected] and downward compatibility.

Supports a variety of video formats.

MCTRL300 connection diagram

independent controller novastar mctrl 300 002

Specifications

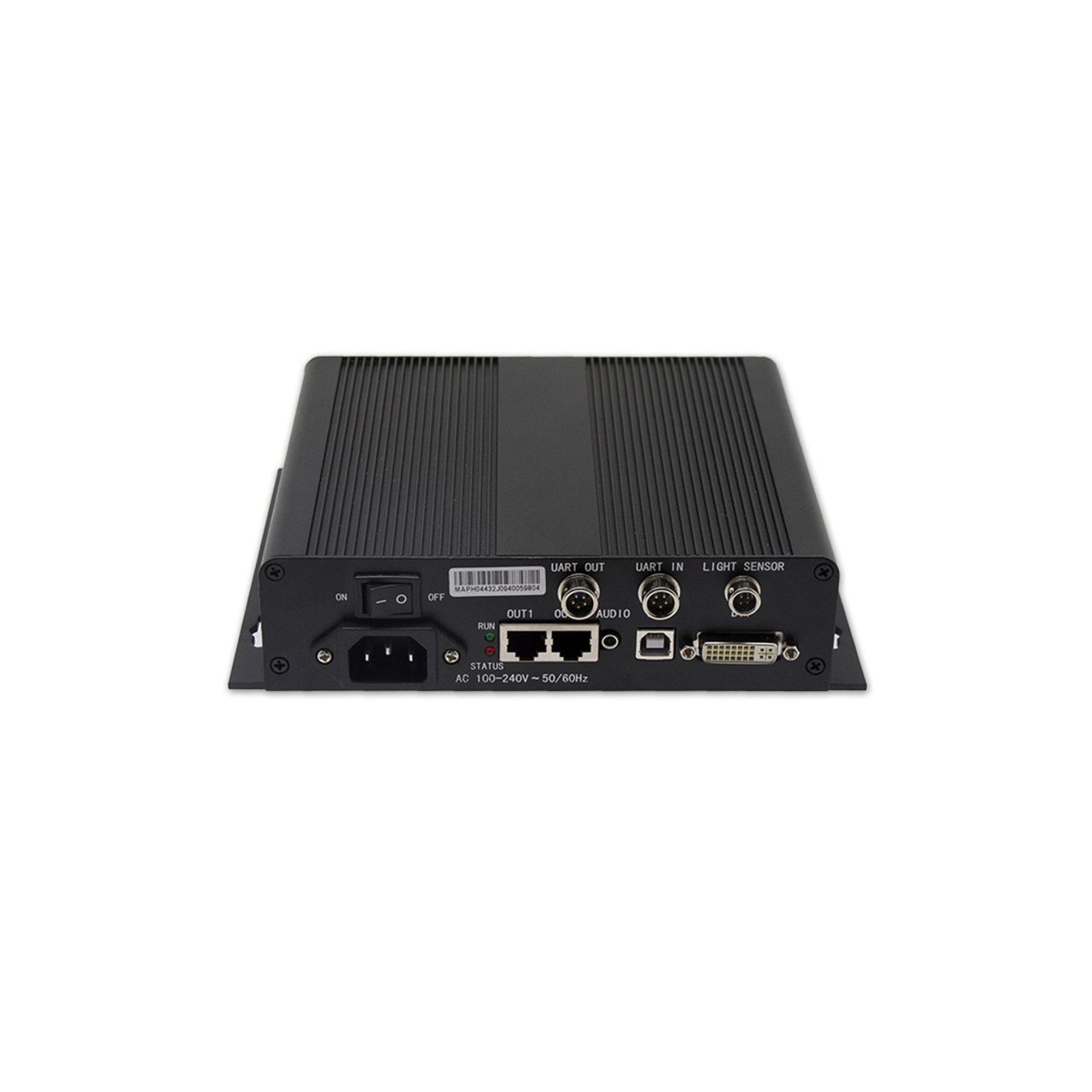

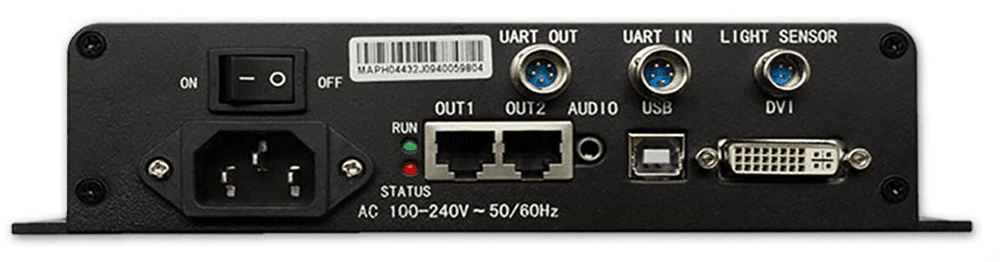

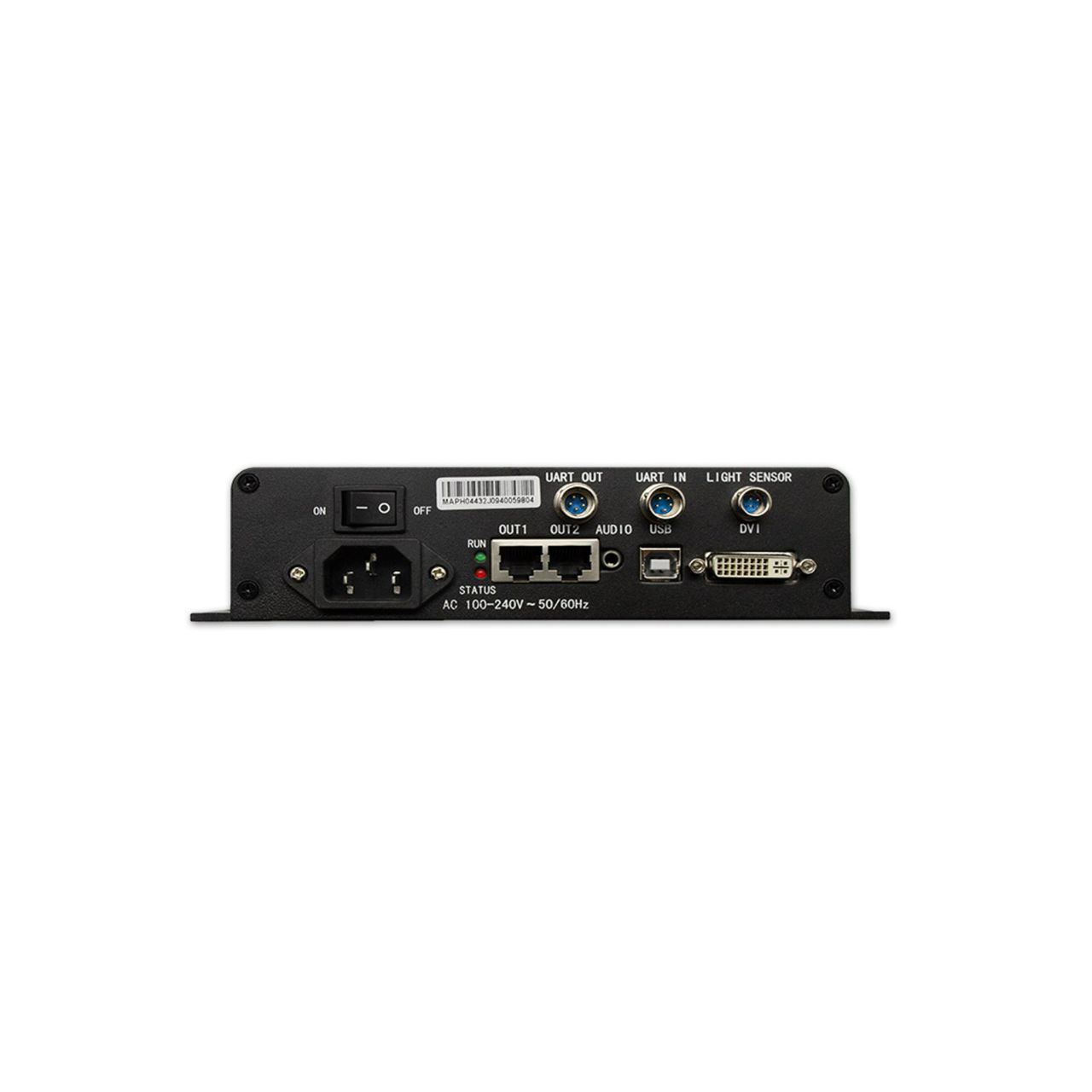

CONNECTOR

INPUT

DVI IN

Single-link DVI connector
Resolution up to 1920×[email protected] and downward compatible
Custom resolutions supported:
Resolution with maximum width: 3840×[email protected] Resolution with maximum height: 800×[email protected]

AUDIO

Audio input connector

OUTPUT

RJ45 × 2

2 Gigabit Ethernet outputs
Maximum loading capacity of a single Ethernet port: 650,000 pixels
Support redundancy between Ethernet ports.



FUNCTION

LIGHT SENSOR

Connect to light sensor to monitor ambient brightness to realize automatic screen brightness adjustment.



CONTROL

UART IN/OUT

Input and output ports for cascading devices

USB

Type-B USB control port for connecting to PC



POWER

AC 100V-240V~50/60Hz



RUN

Device operating indicator. Working status:

- Flashing slowly: Video input unavailable
- Flashing normally: Video input available
- Flashing rapidly: The screen is displaying startup image.
- Breathing: Ethernet port redundancy has taken effect.



STATUS

FCC, RoHS, EAC, IC, PFOS, LVD, EMC
