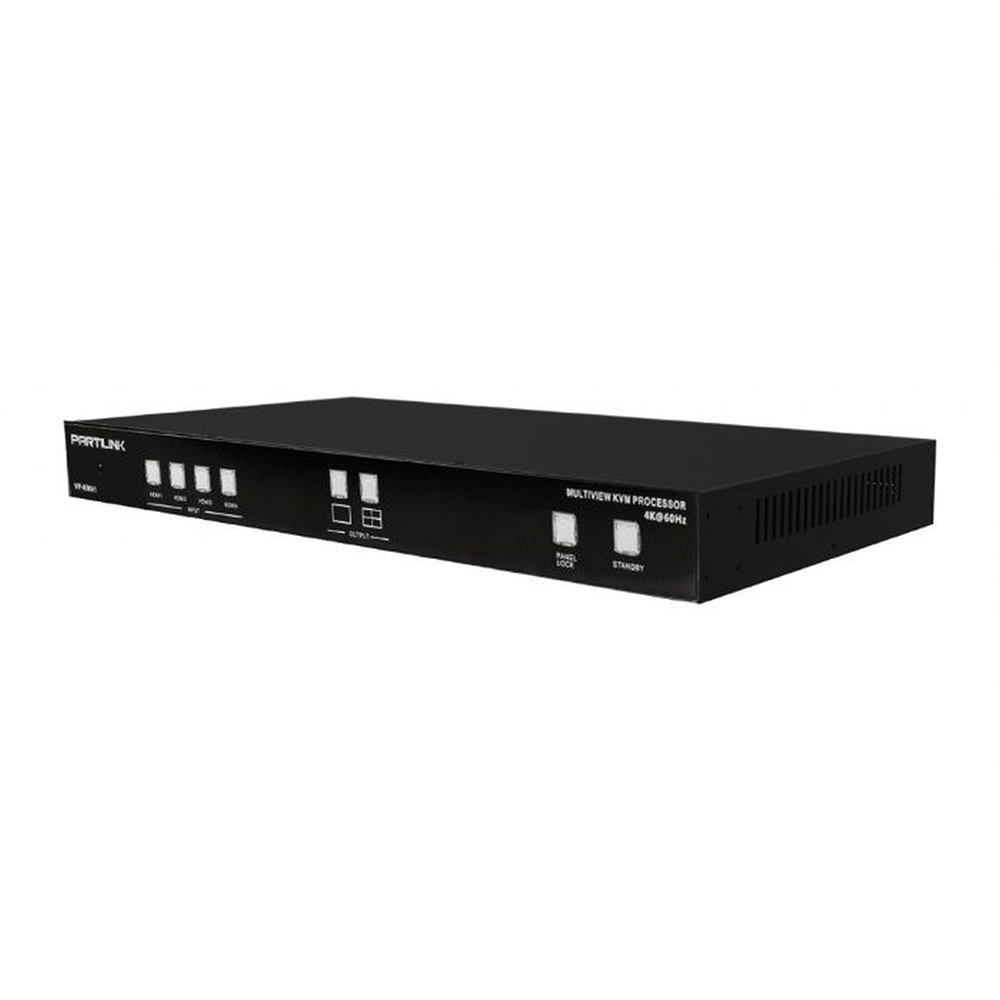

Partilink - KM41 Quadview KVM Processor

• For simultaneous display and control of four computers

• Via HDMI 1.4/2.0 with only one mouse and one keyboard single output screen

• Resolution up to 4K UHD @60Hz  4:4:4

• Cascadable: Display and control up to 16 HDMI KVM inputs via one mouse and one Keyboard.

Descriptions

partilink quadview kvm processor kvm 41 01

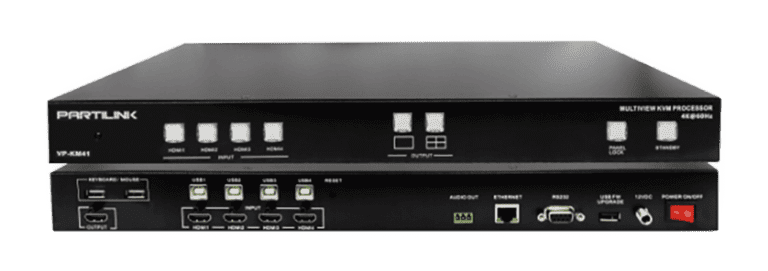

OVERVIEW

With Secure KVM Switch, The Partilink VP-KM41 Quadview KVM processor is designed to display up to four USB HDMI computers in high resolution up to 4K @60Hz 4:4:4 color sampling on a single screen in full view and quad view and the KVM control of every sources with one set of mouse/keyboard improves the operational efficiency of real-time monitoring.

Key Features

partilink quadview kvm processor kvm 41 07

FEATURES

– Fast switching between the input channels in full screen mode or the quadview mode
– Seamlessly move your mouse from monitor to monitor across computers in quad view mode
– [email protected] full screen and quad view layout configuration
– Input resolution up to [email protected], 4:4:4 color sampling
– Output resolution up to [email protected], 4:4:4 color sampling
– Scaling up to [email protected], 4:4:4 color sampling and downscaling as well
– Deep Color and HDCP 1.4 / 2.2
– Cascading up to 5 units to create max. 16 host devices controlled by 1 set of keyboard and mouse.
– Stereo audio output
– Control by USB keyboard/ mouse console, front panel button, IR remote control, RS232/Telnet and Web UI
– Firmware upgrade via USB port

partilink quadview kvm processor kvm 41 06

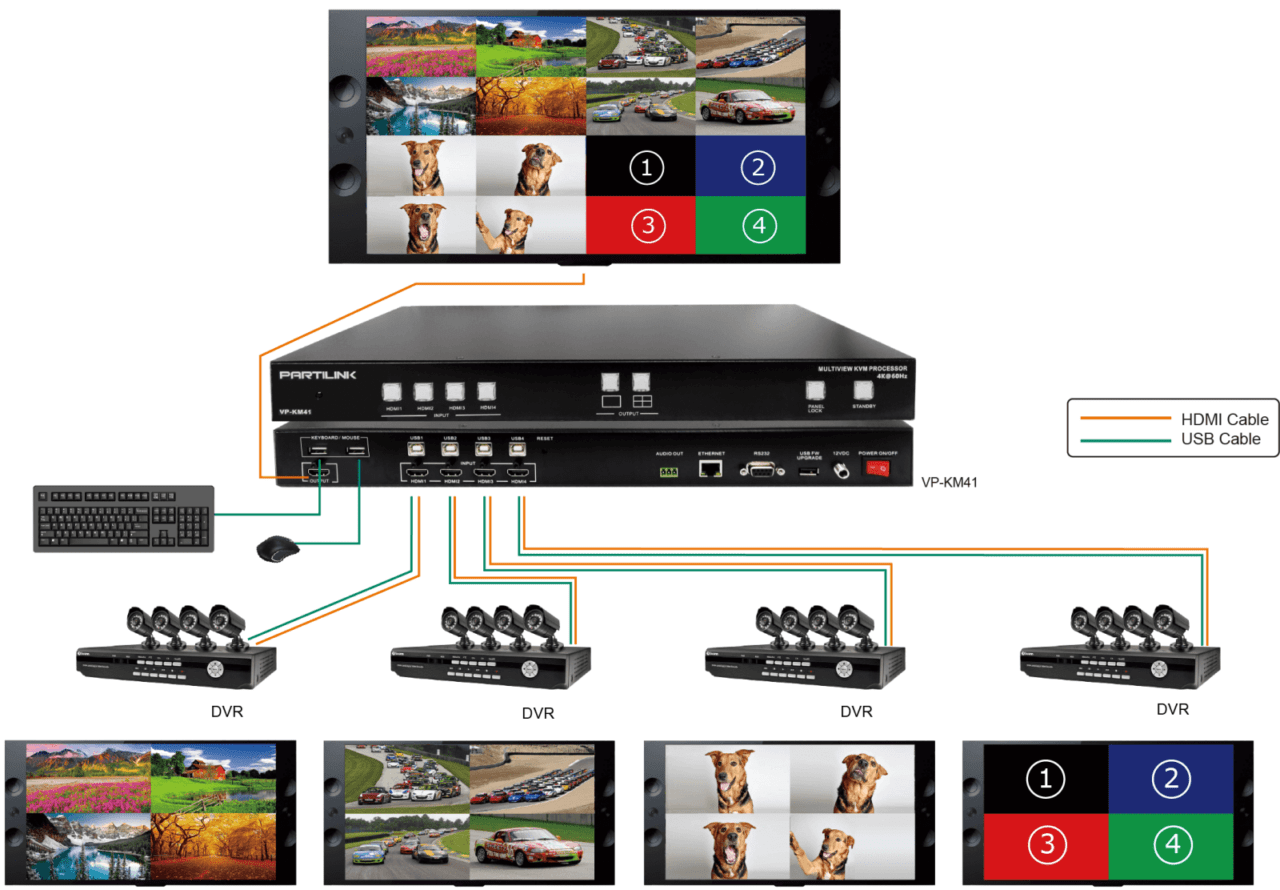

APPLICATION

– Hospitality in lobby, hospital, clinic
– Conference room presentation
– Advertising in shopping mall, supermarket, restaurant,
– Broadcast in airport, bus or train station, classroom, Casino
– Rental and staging
– Entertainment in restaurant, bar, multimedia room, boardrooms, home cinema
– Integrating with DVR, IP camera as a surveillance system
– Monitoring in bank and stock market

Specifications



MODEL NO.

VP-KM41



HARDWARE

System Structure

pure hardware

Operating System

no CPU and operating system



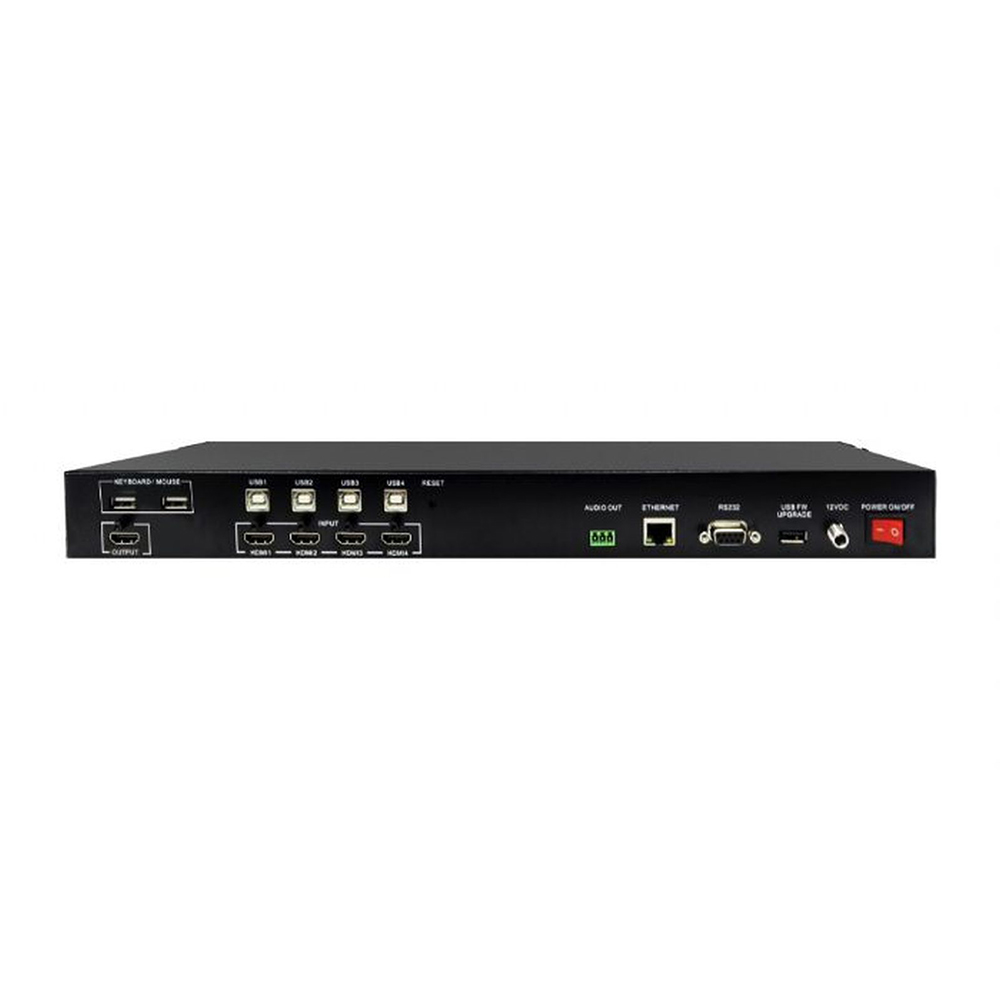

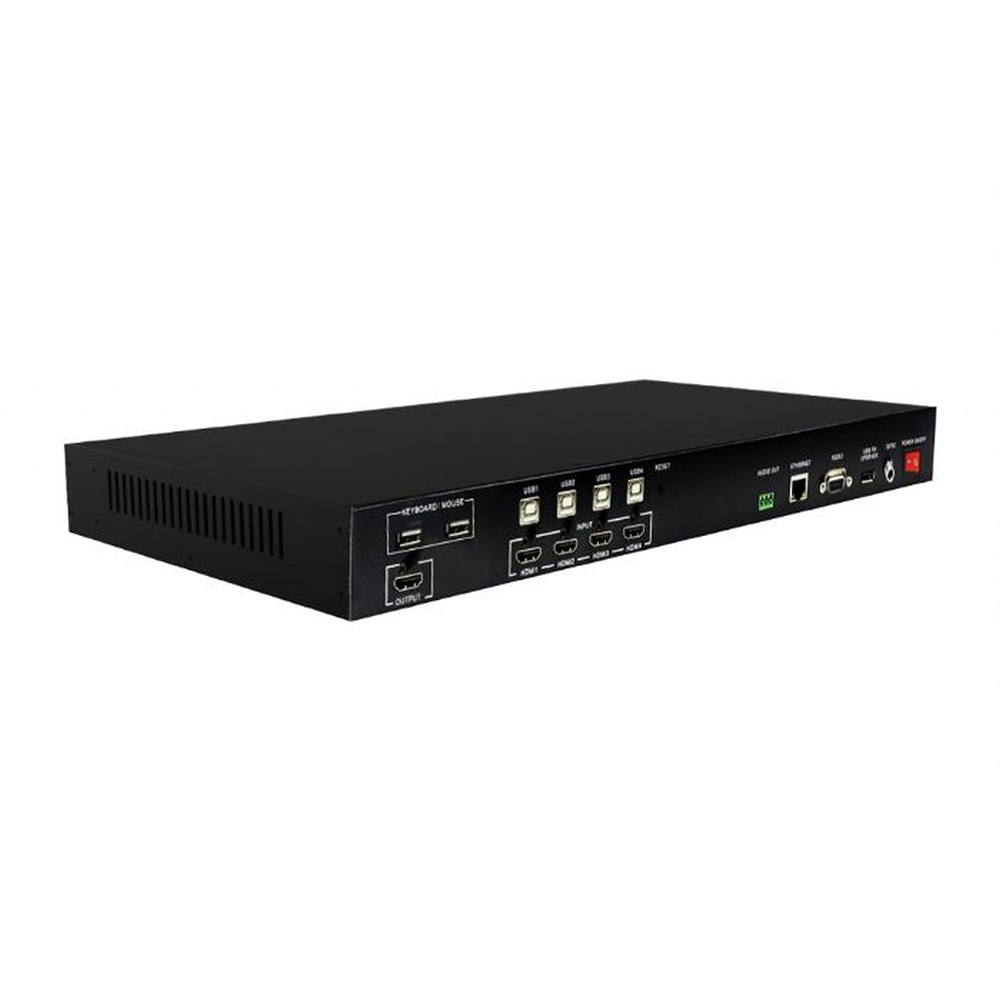

INPUT/ OUTPUT

Inputs

4 x HDMI 2.0 with locking

Output

1 x HDMI 2.0 with locking

Audio Output

terminal block 3 pole, stereo













IMAGE PROCESSING

Display Mode

full screen, quad view, PIP, PoP

Input Resolution

up to 3840 x [email protected], 4:4:4 color sampling

Max Output Resolution

up to 3840 x [email protected], 4:4:4 color sampling



Output Resolutions



3840x2160 - 60Hz, 50Hz, 30Hz              1920x1080 - 60Hz

1280x720 - 60Hz                                  720x480 - 60Hz

Output Color Depth

8 bpc (24 bit/px)

Scaler

scaling up to [email protected], 4:4:4 color sampling and downscaling as well

Video Bandwidth

up to 18 Gbps

HDMI Compliance

HDMI 1.4 and HDMI 2.0

HDCP Compliance

HDCP 1.4 and 2.2



KVM

Host Devices

4 x USB type B for host devices

KVM

2 x USB type A for keyboard and mouse console







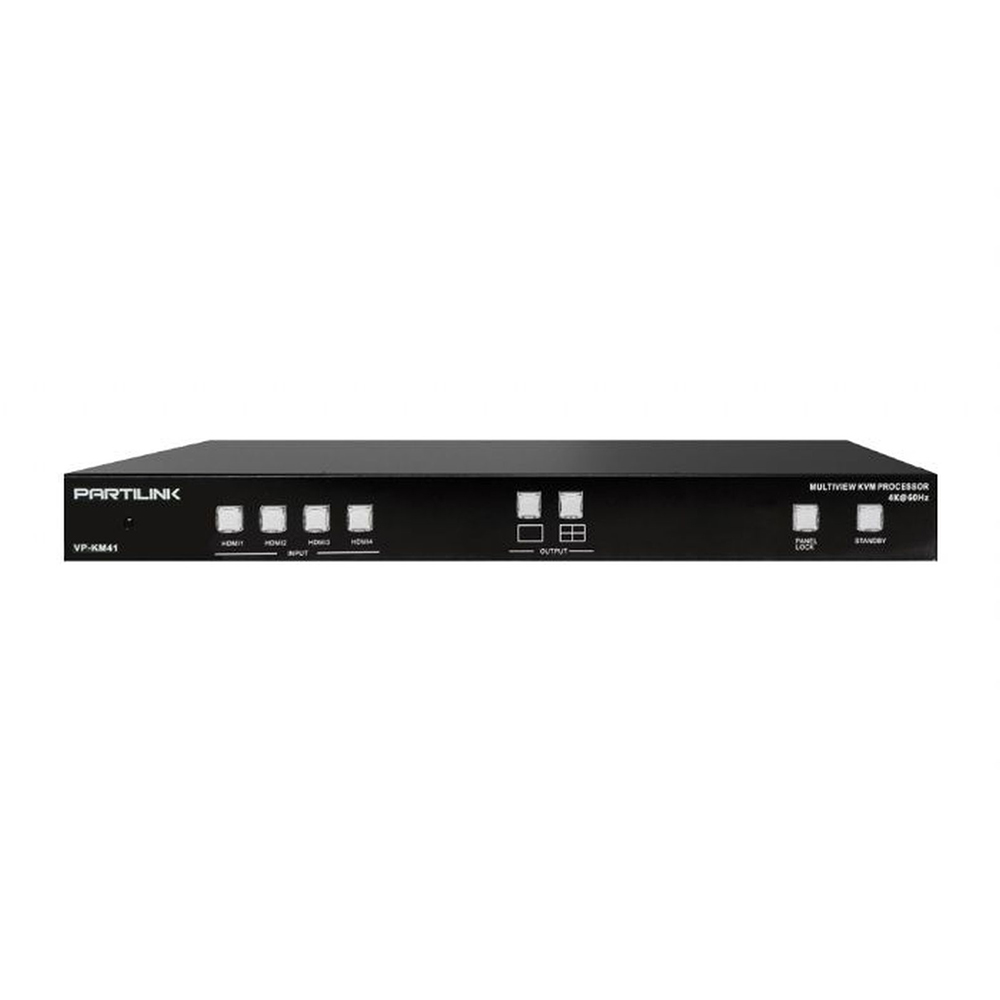

CONTROL METHODS



Front Panel Buttons

4 x select HDMI 1,2,3,4 input and/or audio, 2 x display layout, 1 x Panel lock, 1x Standby

IR

1 x IR remote control

RS232/ Telnet

1 x D9 Female Connector / Compatible with third party control system

Ethernet Port

1 x RJ45

Web UI

browser / touch screen



STABILITY

Safety

hardware structure, no risk of virus interference

Running Time

no auto-reboot during 365 days/year, 7days/7, 24h/24

FIRMWARE

Possible Upgrade

1 x USB 2.0



LED INDICATOR

Input

blue backlight

Standby On

red backlight

Output

blue backlight

Standby Off

green backlight

Panel Lock

blue backlight



POWER

Internal Power Supply

DC 12V/2A, locking barrel connector

Power Consumption

15W

Power Adaptor

universal power adapter



ENVIRONMENT

Operating Temperature

0 °C~45°C

Operating Humidity

20~90% RH

Storage Temperature

-20 °C~60 °C



PHYSICAL

Dimensions

440.4 x 230 x 45 mm (L x W x H, standard 1U)

Fixing Components

Rear bracket, footpad and screws

Weight

2.8 KG
