LED Display - KSLIM Series

Innovative & Flexible LED Signage Solution

Descriptions

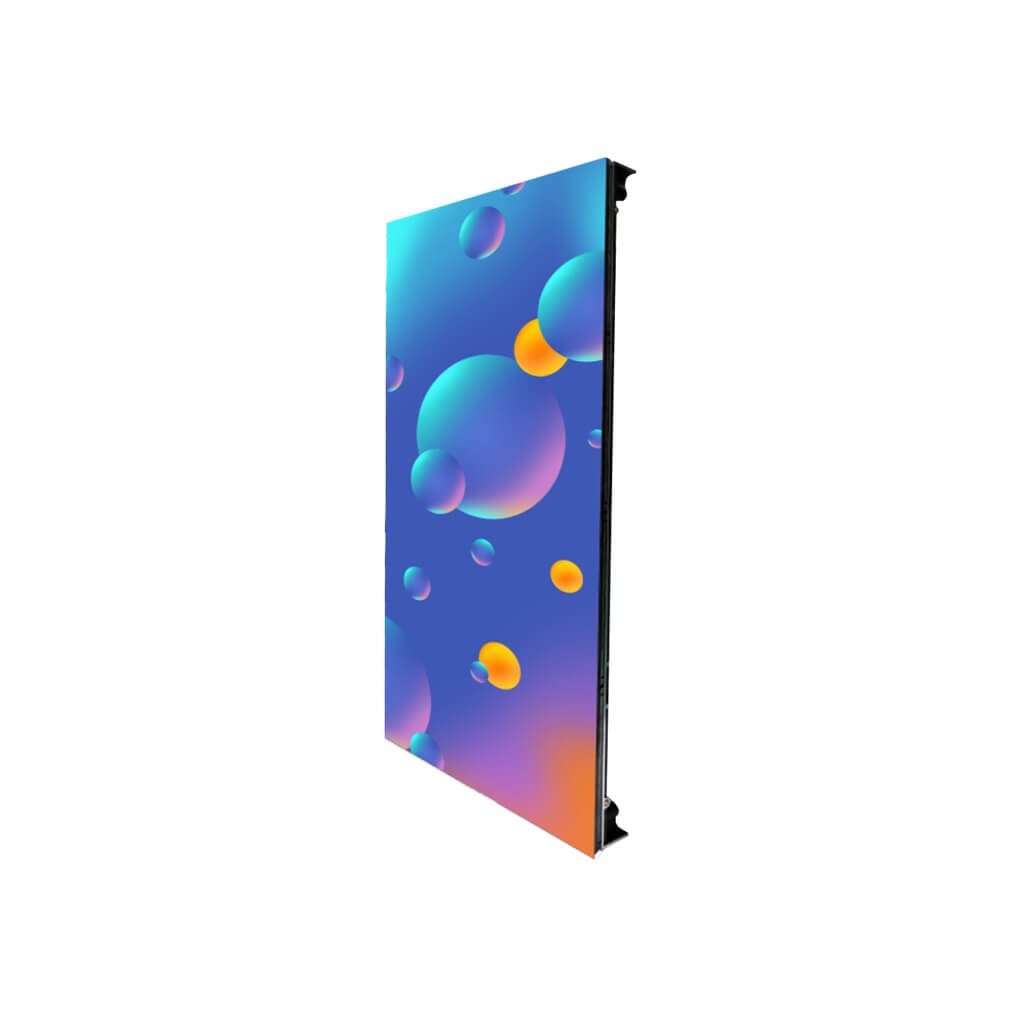

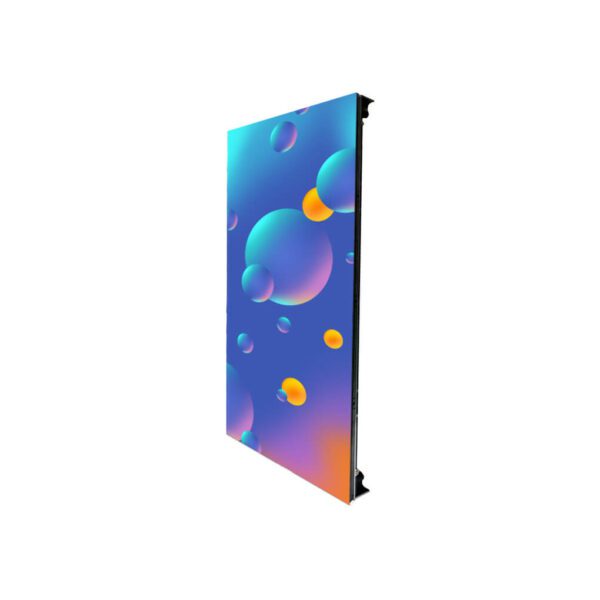

led display kslim series 02

kslim

Super lightweight and slim Noiseless & low power consumption Magnetic module contributes to quick installation and front maintenance High flatness with excellent image performance

Key Features

Application scenario

led display kslim series 12

Conference

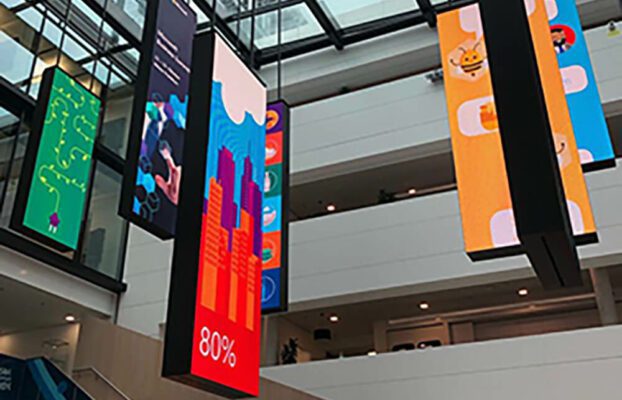

led display kslim series 04

Commercial

led display uslim II Series Retail

Retail

led display kslim series 13

Airport

Convenient Installation And Maintenance By Magnetic Module Design

led display kslim series 18
led display kslim series 05

Super Light And Slim

Effective Splicing, High Flatness, Excellent Image Performance

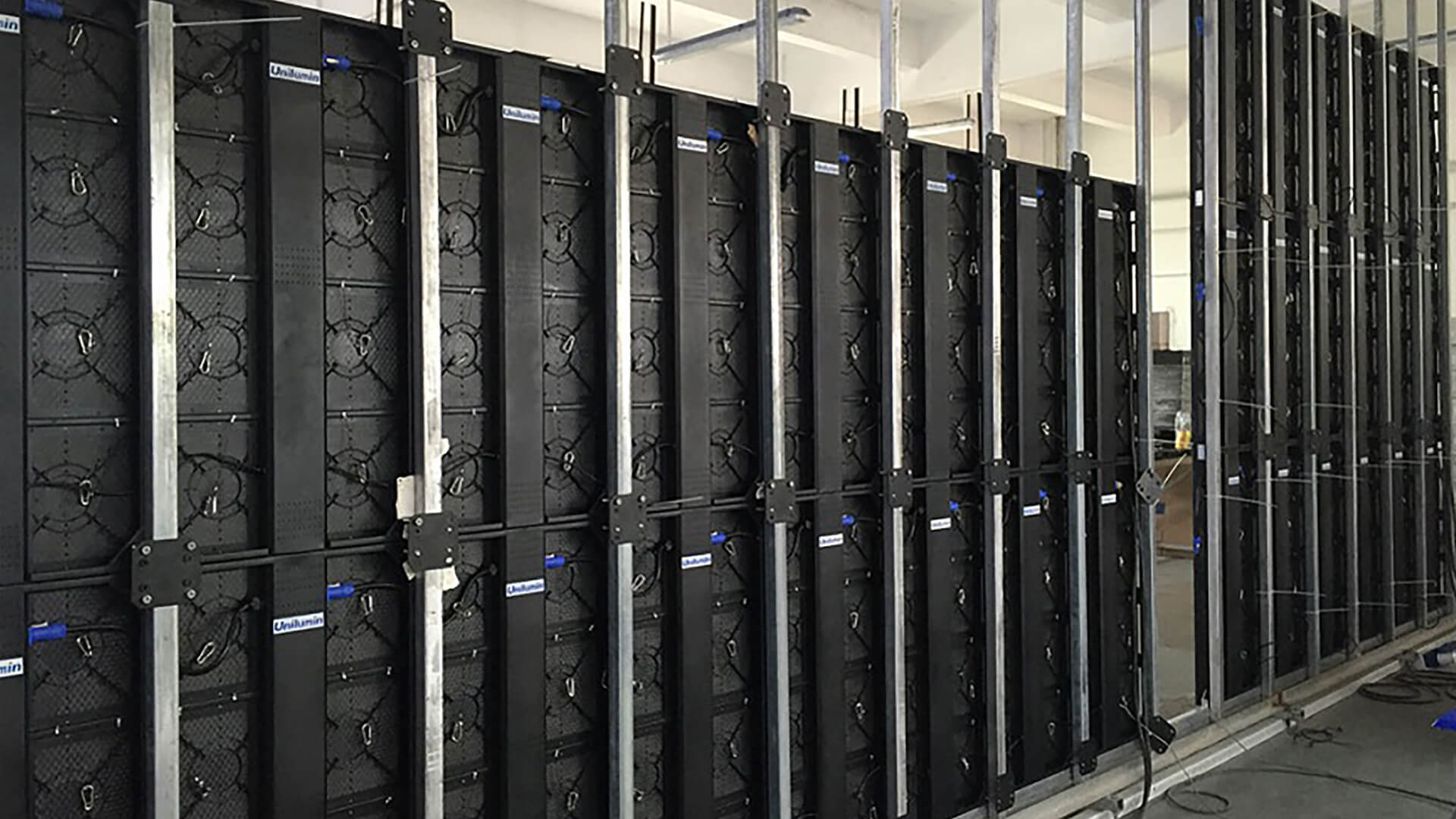

led display kslim series 10

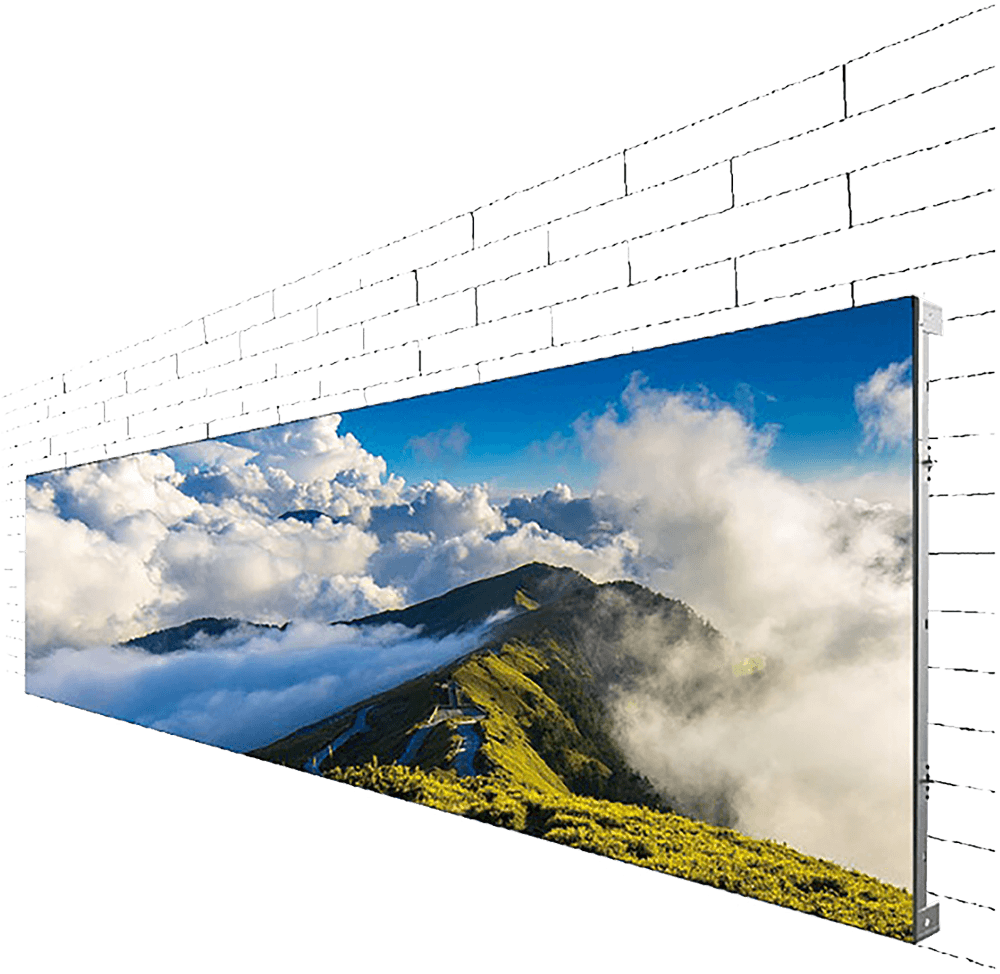

led display kslim series 11

Quick Installation & Fully Front Maintenance

Wall mounting LED Display is available

Fanless And Noiseless

Fanless design
led display kslim series 06
led display kslim series 07

Low Power Consumption

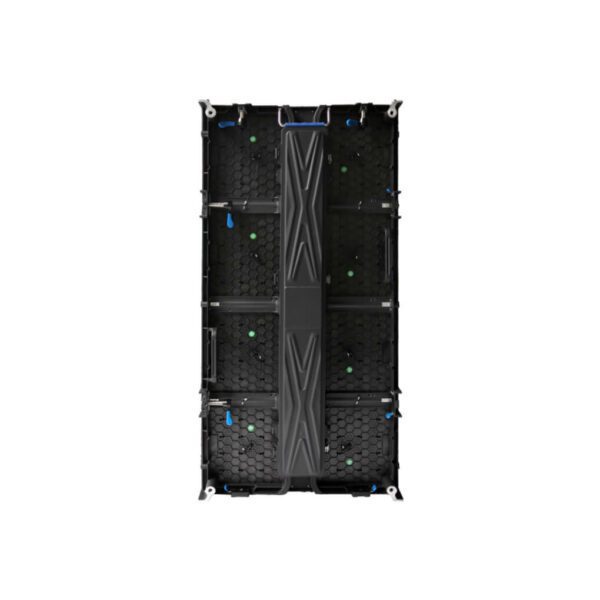

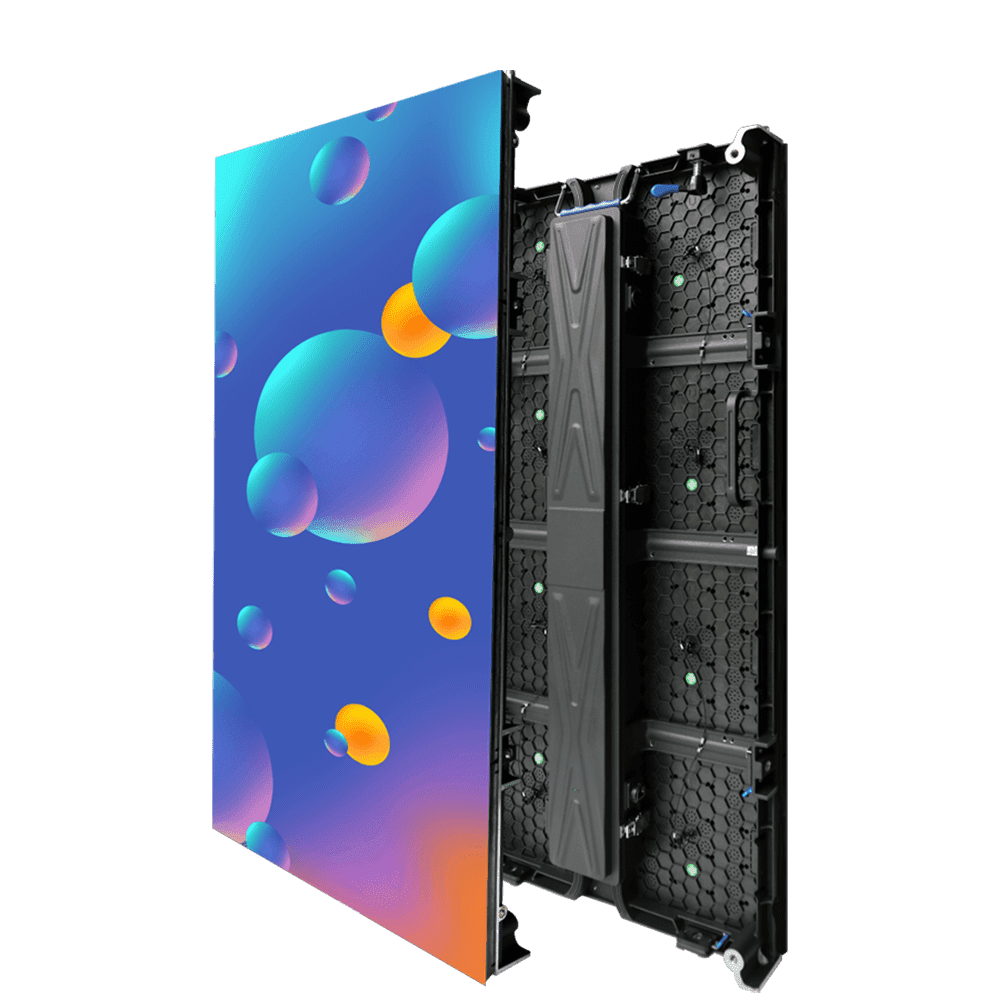

Standardized Cabinet

Three standard sizes of die-cast aluminum cabinets can be delivered quickly through standardized & modularized main materials and accessories.
led-display-kslim-series-20

Specifications

Pixel Pitch 3.9mm

LED Type 3-in-1 SMD

LED Configuration 1Red, 1Green, 1Blue

Brightness 800cd/m² Pixel Density 65, 536 pixels/m²

Pixels Per Panel 128×256 Dots

Area 0.5 m²

Recommended Viewing Distance ≥3.9m Material sheet

Contrast Ratio 3000:1

Environment Indoor

Ingress Protection IP40/IP30

Operating Temperature/Humidity -10℃~+45℃/10~85%RH

Storage Temperature/Humidity -20℃~+55℃/10~90%RH

Maintenance Front

Gap Between Modules Seamless

Bezel Width None

Horizontal Viewing Angle 140°

Vertical Viewing Angle 110°

Color Temperature 2000-9300K Adjustable

Calibration Support luminance/chroma

Colors 4.4 Trillion

Brightness Control Manual/Automatic

Input Power <Max> 250W/panel

Input Power <Typical> 82W/panel

Driving Method Constant Current Drive

Video Frame Rate 50/60 Hz

Rate Refresh ≥2880 Hz

Input Voltage 200~240VAC

Input Power Frequency 50~60 Hz

Input Signal DVI/HDMI/VGA/SDI/DP/AV/S-Video, etc

LED Life Time ≥100,000 Hours

LED Wavelength R:620~630nm G:520~535nm B:465~475nm

Standard Mounting Configuration Fixed

Professional Services Design, configuration, install and service available

Data Interconnection CAT5 Cable; multi-mode fiber; single mode fiber

Note: Specifications are subjected to change without notice.

Module Size W250mm×H250mm

Cabinet Size W500mm × H1000mm × D59mm Aspect ratio 1:2

Weight 11.5 kg/panel
