LED Display - Super LED

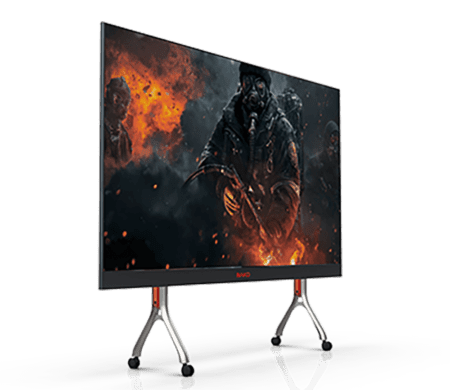

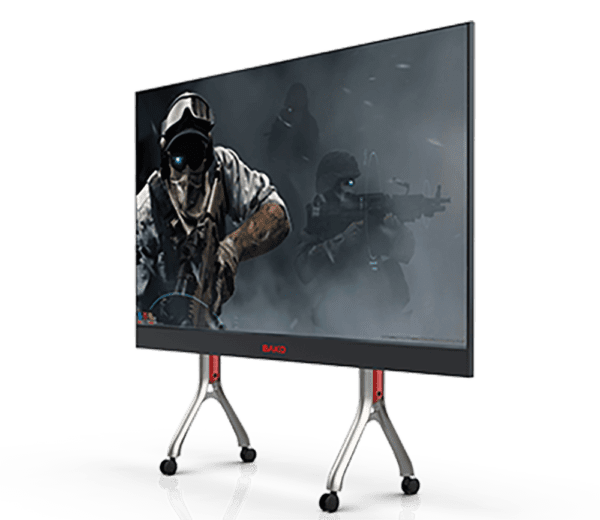

Intelligent Large Size LED Display

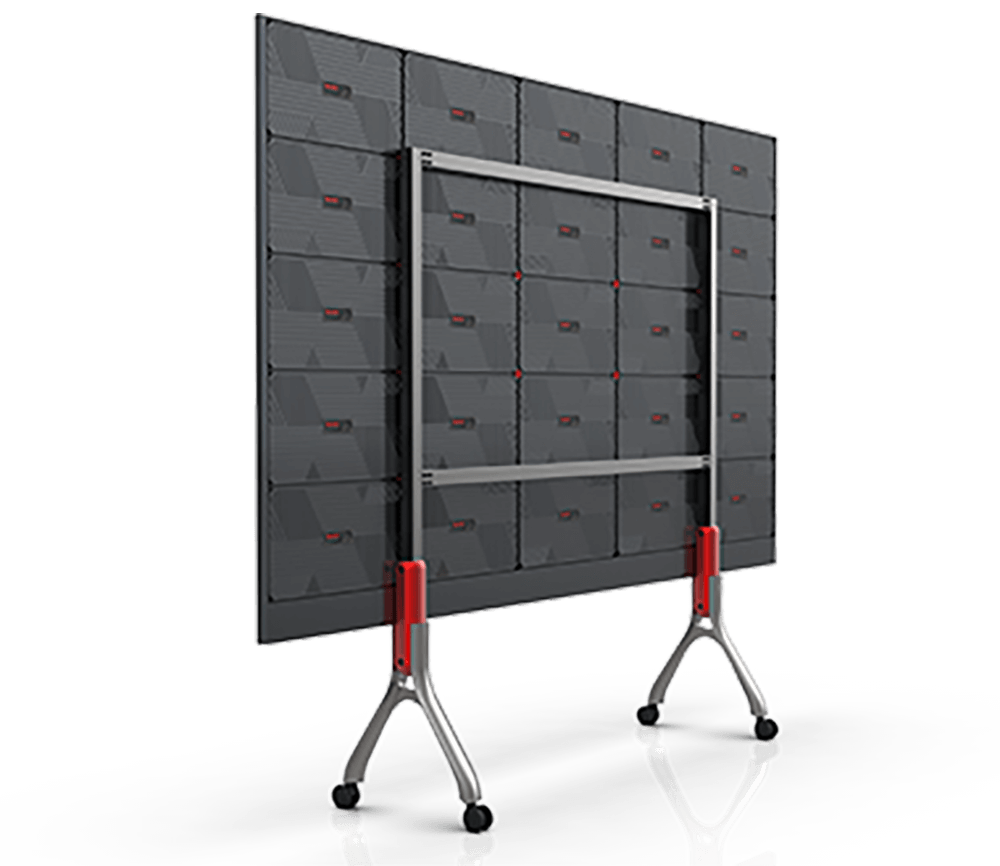

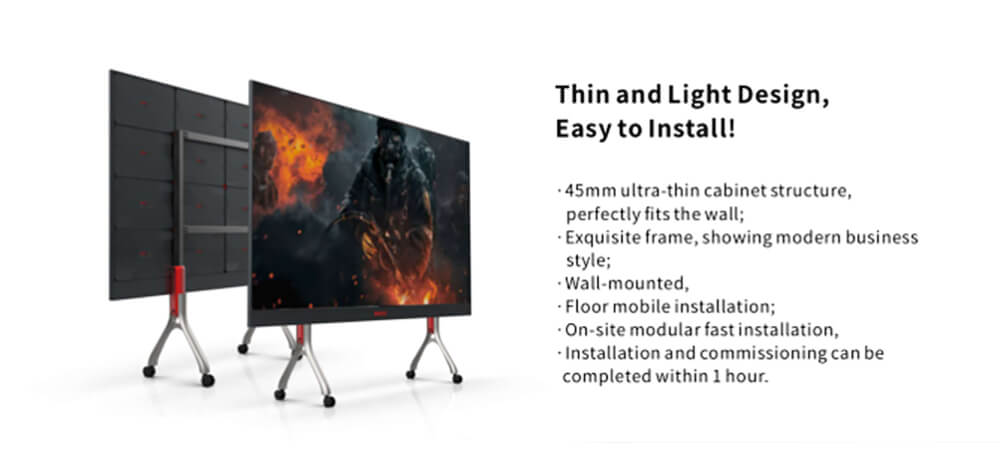

– Thin and Light Design, Easy to Install!

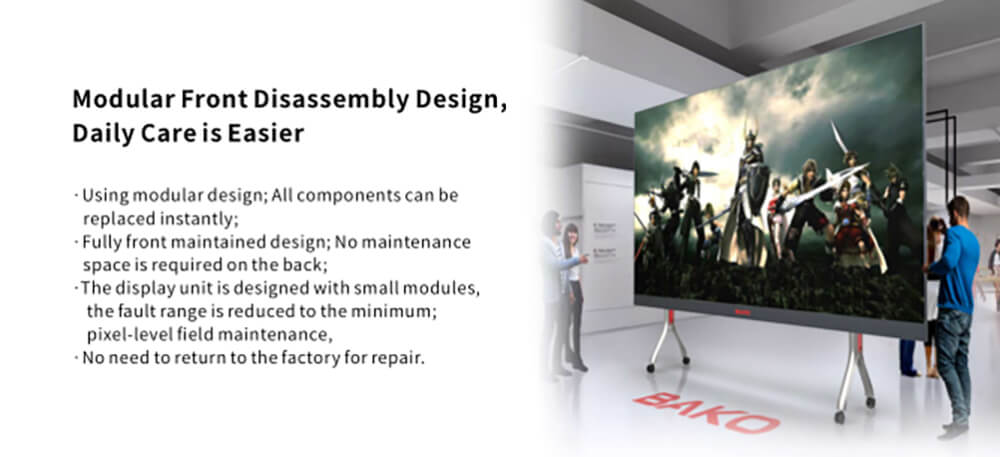

– Modular Front Disassembly Design, Daily Care is Easier

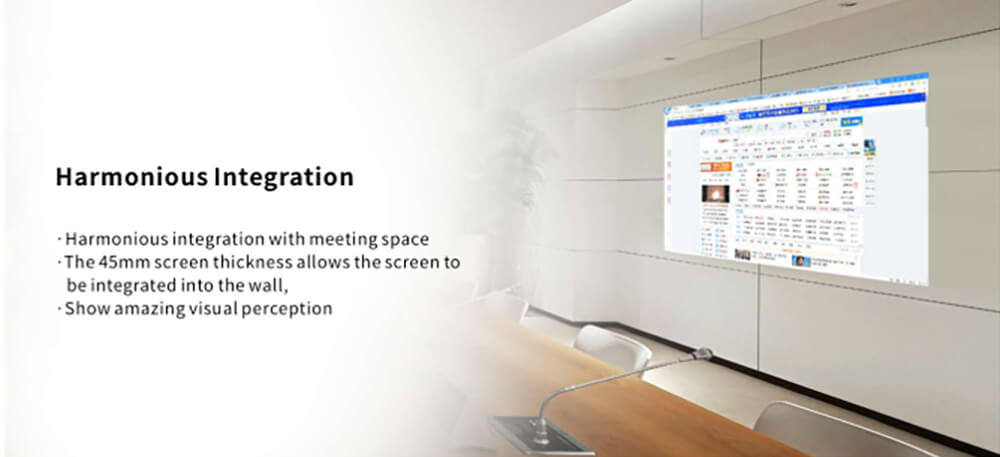

– Harmonious Integration

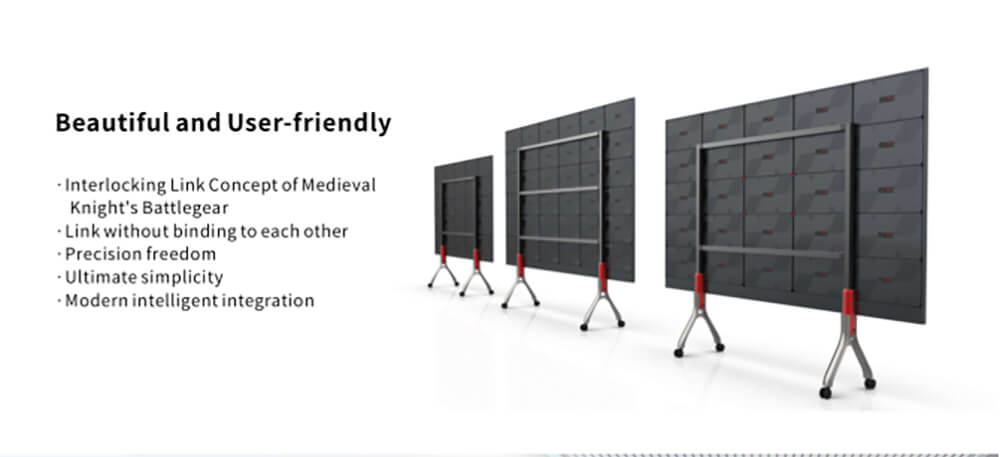

– Beautiful and User-friendly
– Simplify Complexity, Make Office More Simple and Efficient

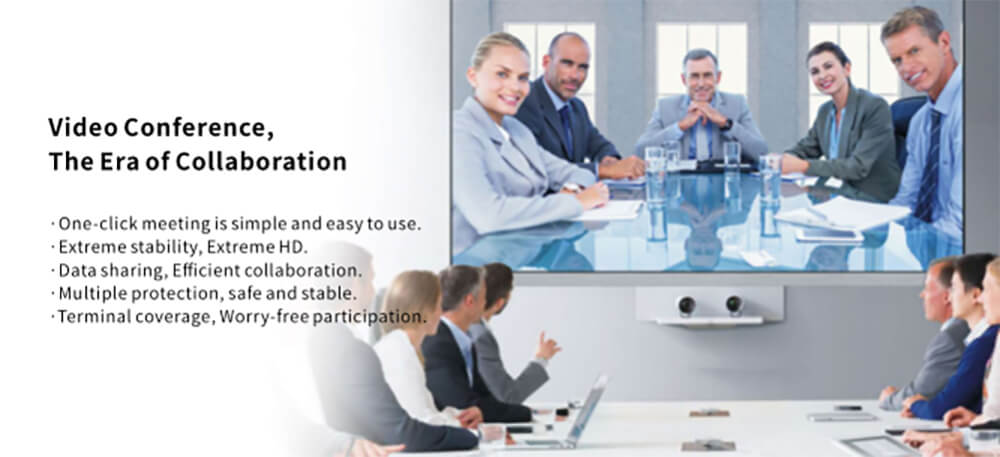

– Multi-screen Display, Easy interaction and Efficient Decision

Brand :

Descriptions

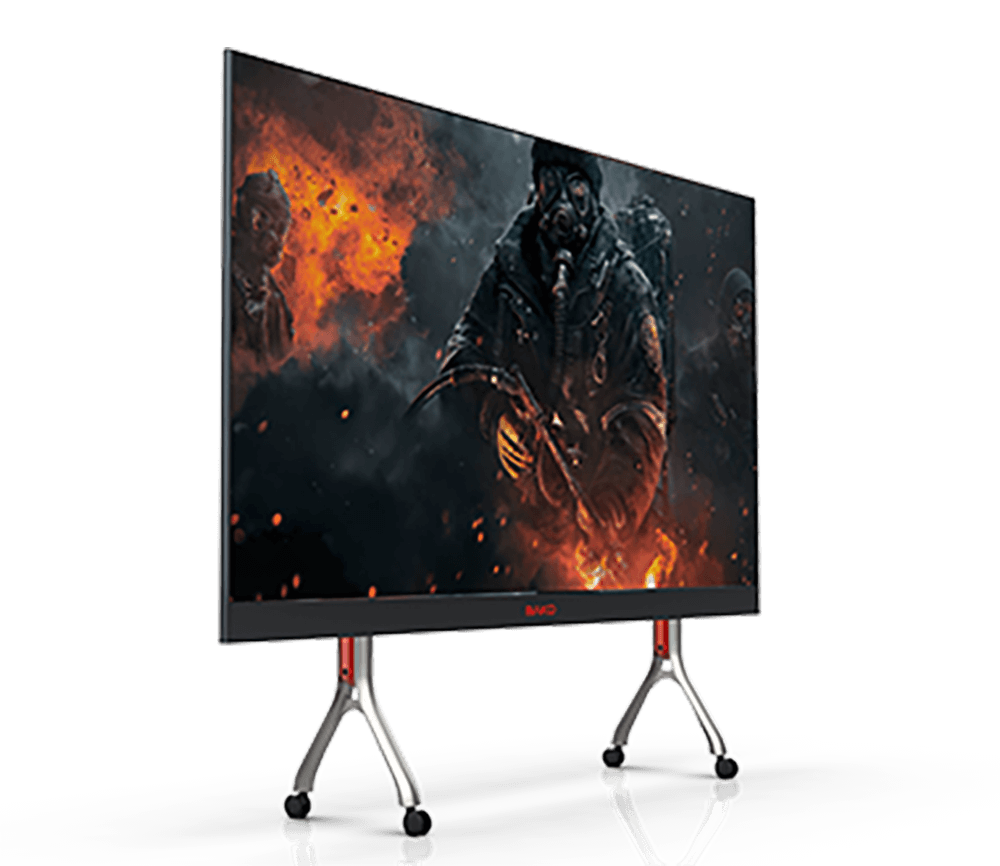

Intelligent Large Size LED Display

Intelligent Large Size LED Display

With excellence technological level top quality system LED Display

Key Features

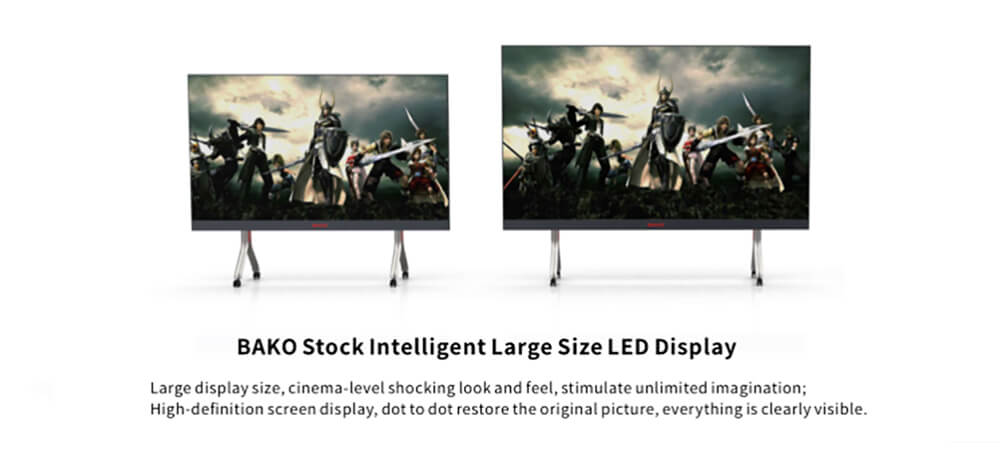

bako led display super led 10
BAKO Intelligent Large Size LED Display
bako led display super led 12
bako led display super led 13
BAKO Intelligent Large Size LED Display
BAKO Intelligent Large Size LED Display
BAKO Intelligent Large Size LED Display
bako led display super led 17
bako led display super led 18
bako led display super led 19

Specifications

Product model P1.25

Display diagonal dimensions 108“

Screen size(mm)2400x1350x45

Resolution ratio 1920x1080

Brightness 600~800nits

Viewing angle 160°

Contrast ratio 8000:1

Color gamut range 110%NTSC

Supply voltage 110-240V

Avg. consumption 0.6KW

Operating system Android(Standard)/Windows(Optional)

Interface type USB3.0 / USB2.0 /Type-C / HDMI / 3.5mm TRS

Best viewing distance 2.4m

Recommended scene area 20~30m²

Recommended attendance 10~20 people

* the parameters vary slightly depending on the configuration

Product model P1.25

Display diagonal dimensions 135”

Screen size(mm)3000x1687.5x45

Resolution ratio 2400x1350

Brightness 600~800nits

Viewing angle 160°

Contrast ratio 8000:1

Color gamut range 110%NTSC

Supply voltage 110-240V

Avg. consumption 0.6KW

Operating system Android(Standard)/Windows(Optional)

Interface type USB3.0 / USB2.0 /Type-C / HDMI / 3.5mm TRS

Best viewing distance 3.0m

Recommended scene area 30~40m²

Recommended attendance 20~40 people

* the parameters vary slightly depending on the configuration

Product model P1.25

Display diagonal dimensions 162“

Screen size(mm)3600x2025x45

Resolution ratio 2880x1620

Brightness 600~800nits

Viewing angle 160°

Contrast ratio 8000:1

Color gamut range 110%NTSC

Supply voltage 110-240V

Avg. consumption 0.6KW

Operating system Android(Standard)/Windows(Optional)

Interface type USB3.0 / USB2.0 /Type-C / HDMI / 3.5mm TRS

Best viewing distance 3.5m

Recommended scene area 40~50m²

Recommended attendance 40~60 people

* the parameters vary slightly depending on the configuration

Product model P1.56

Display diagonal dimensions 135”

Screen size(mm)3000x1687.5x45

Resolution ratio 1920x1080

Brightness 600~800nits

Viewing angle 160°

Contrast ratio 8000:1

Color gamut range 110%NTSC

Supply voltage 110-240V

Avg. consumption 0.6KW

Operating system Android(Standard)/Windows(Optional)

Interface type USB3.0 / USB2.0 /Type-C / HDMI / 3.5mm TRS

Best viewing distance 3.5m

Recommended scene area 50~80m²

Recommended attendance 30~40 people

* the parameters vary slightly depending on the configuration

Product model P1.56

Display diagonal dimensions 162“

Screen size(mm)3600x2025x45

Resolution ratio 2304x1296

Brightness 600~800nits

Viewing angle 160°

Contrast ratio 8000:1

Color gamut range 110%NTSC

Supply voltage 110-240V

Avg. consumption 0.6KW

Operating system Android(Standard)/Windows(Optional)

Interface type USB3.0 / USB2.0 /Type-C / HDMI / 3.5mm TRS

Best viewing distance 3.5m

Recommended scene area 80~120m²

Recommended attendance 40~60 people

* the parameters vary slightly depending on the configuration

Product model P1.875

Display diagonal dimensions 162“

Screen size(mm)3600x2025x45

Resolution ratio 1920x1080

Brightness 600~800nits

Viewing angle 160°

Contrast ratio 8000:1

Color gamut range 110%NTSC

Supply voltage 110-240V

Avg. consumption 0.6KW

Operating system Android(Standard)/Windows(Optional)

Interface type USB3.0 / USB2.0 /Type-C / HDMI / 3.5mm TRS

Best viewing distance 3.8m

Recommended scene area 80~120m²

Recommended attendance  40~60 people

* the parameters vary slightly depending on the configuration
