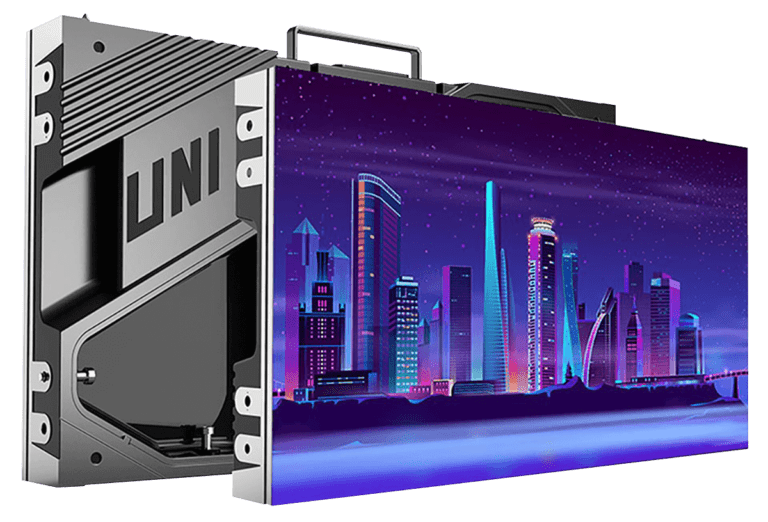

led display unilumin upanel II cover
led display unilumin upanel II 002

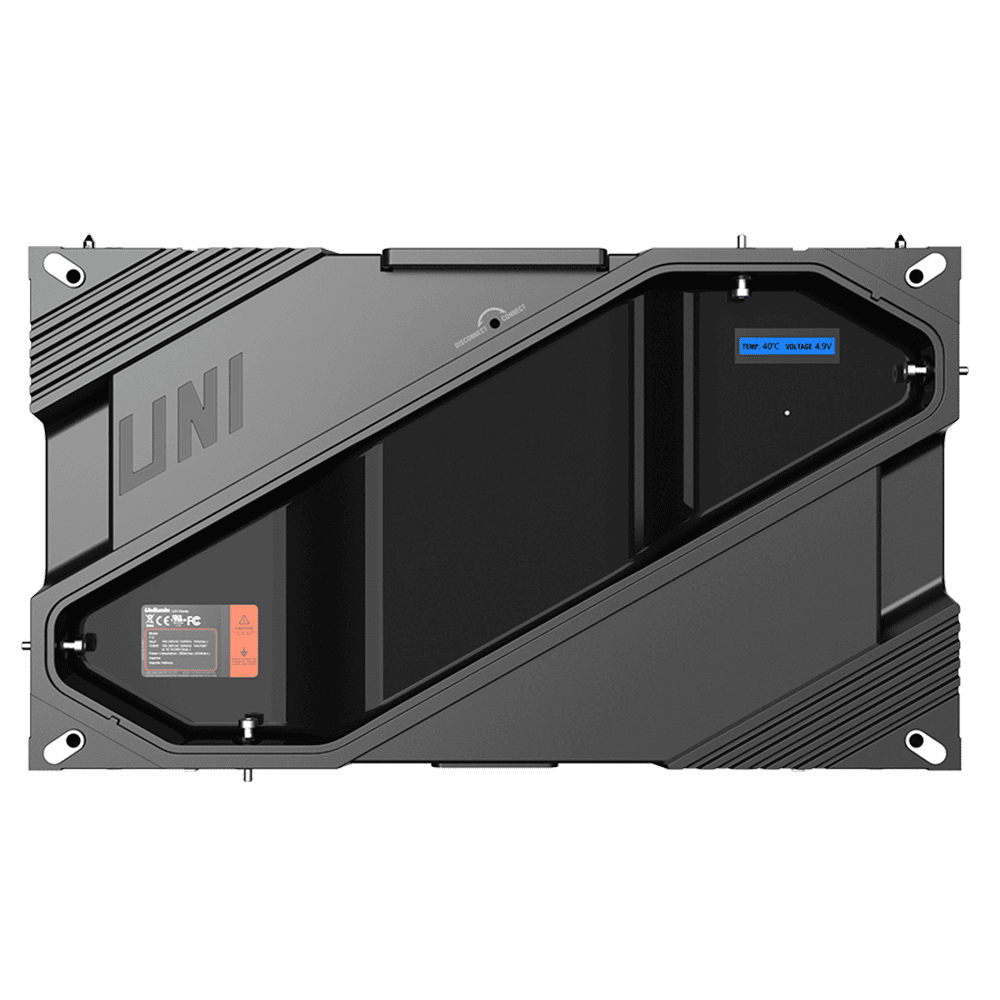

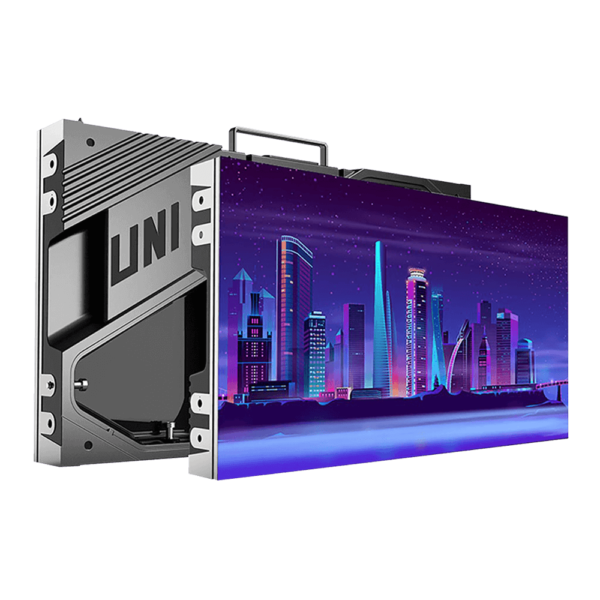

UPANEL II Series

High Flatness Front  Maintenance LED Display

Key Features

Application scenario

led display unilumin upanel II 007

Broadcast

led display unilumin upanel II 008

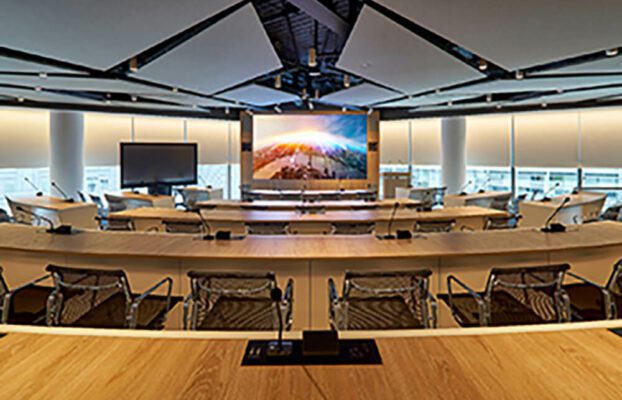

Conference

led display unilumin upanel II 005

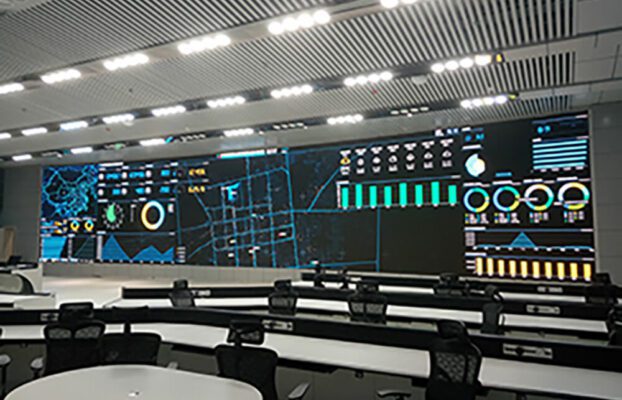

Control Room

led display uslim II Series Retail

Retail

led display unilumin upanel II 014

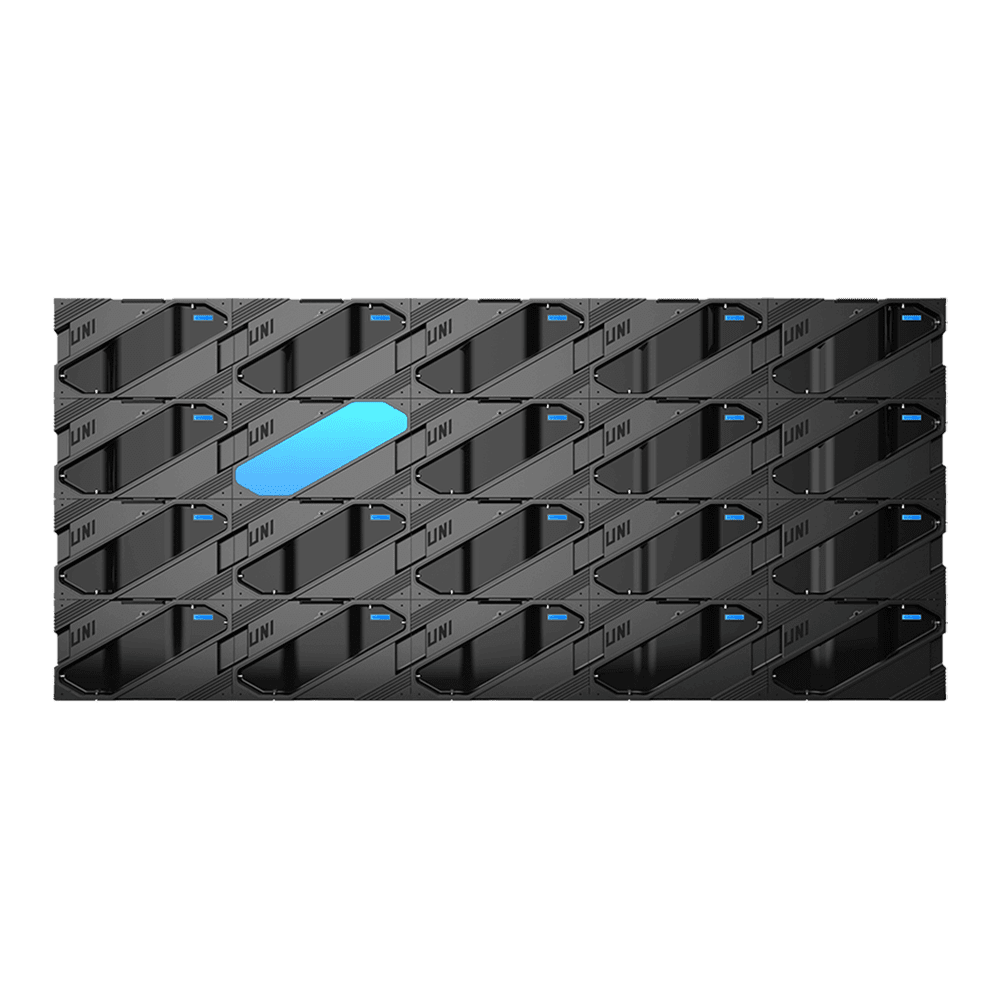

U-Shield Protection- IP60

By applying hermetically sealed structure and new modular design, UpanelII achieves high efficient heat dissipation and high protection of IP60.

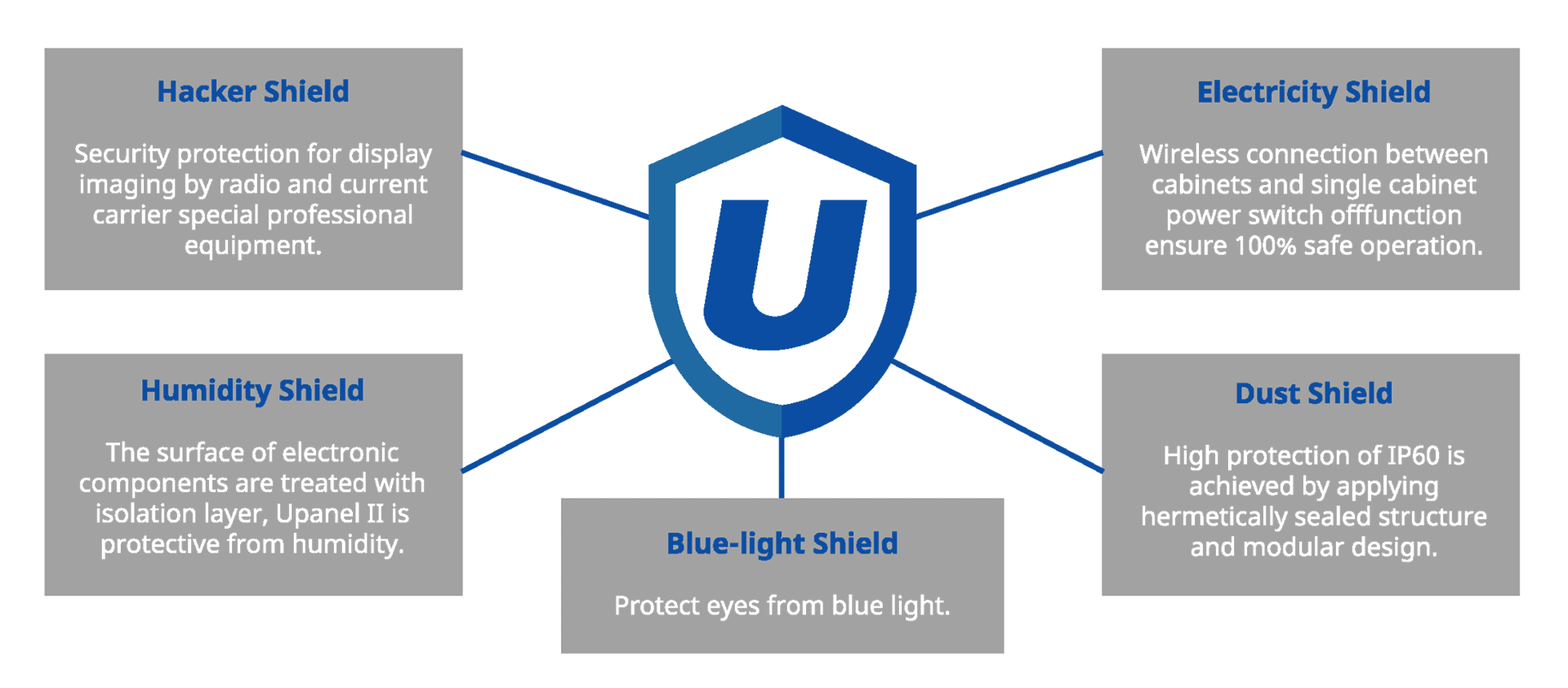

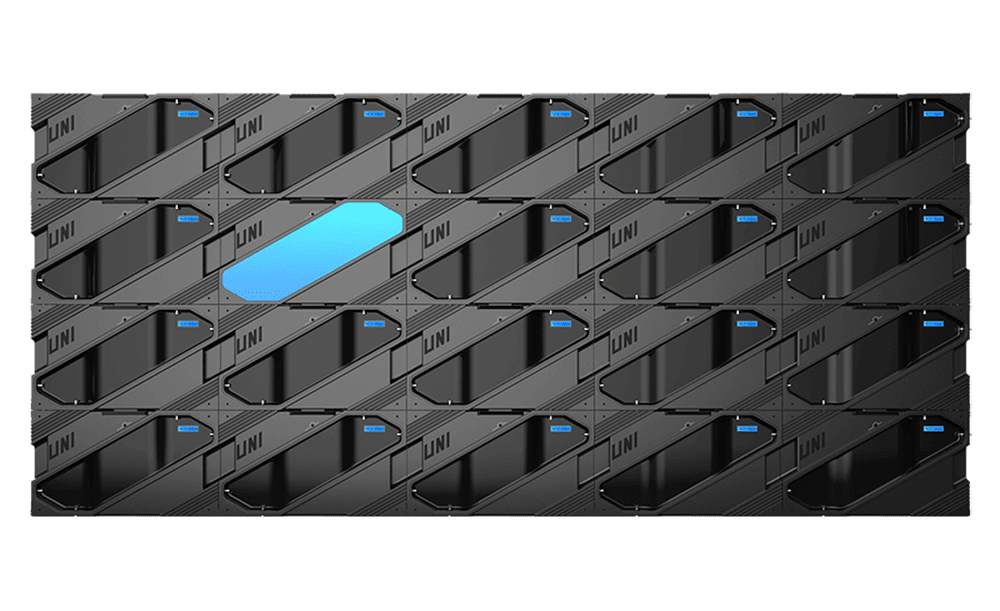

U-Shield Protection

led display unilumin upanel II 015
led display unilumin upanel II 016

U-Shield Protection - Cable-Free Design

The cable-free design between the cabinets not only effectively reduces the failure rate but also extends the life of the screen.

U-Shield Protection- Single Cabinet Power-Off Function

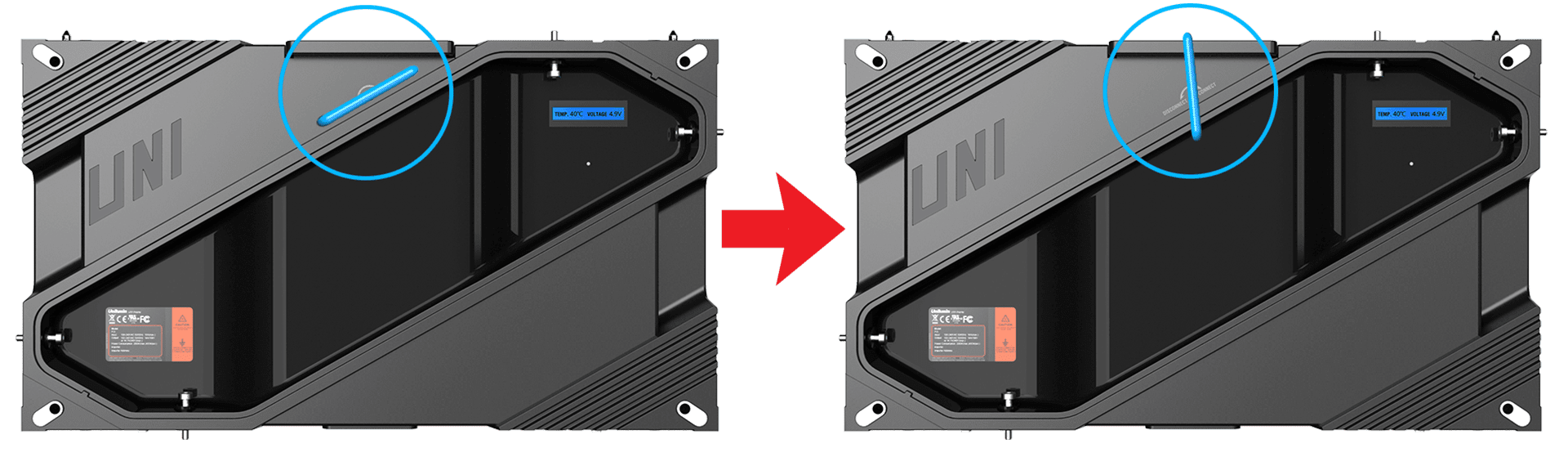

The cabinet power switch of the LED Display adopts the telescopic structure to achieve 100% safe operation

led display unilumin upanel II 013
led display unilumin upanel II 011

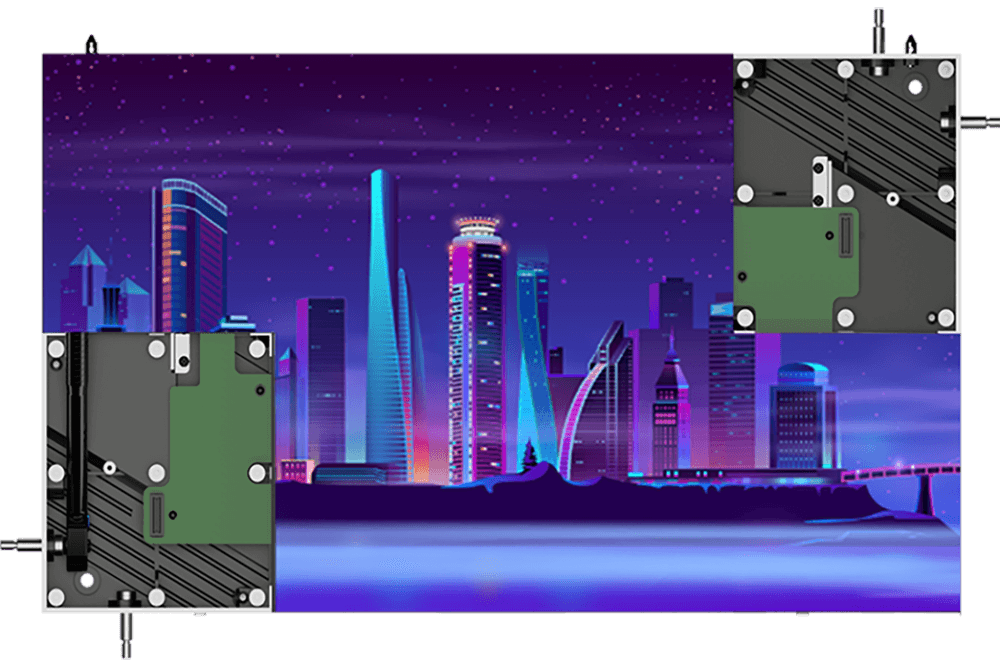

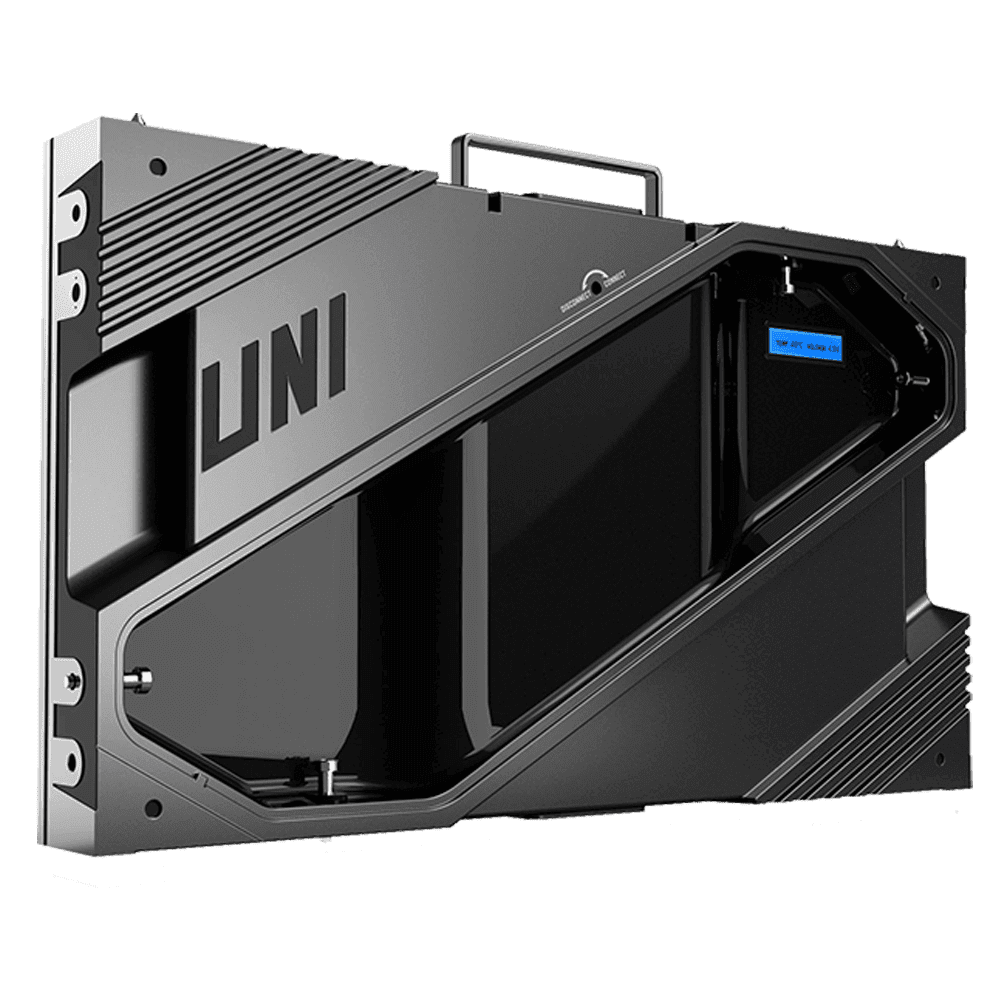

Front Maintenance

Modules, power supplies and internal cables can be replaced from the front. The design of full front maintenance not only saves time but also saves costs.

Specifications

Pixel Pitch 0.953mm

LED Type 3-in-1 SMD

LED Configuration 1Red, 1Green, 1Blue

Brightness 600cd/m²

Pixels Per Panel 640×360 Dots

Pixel Density 1,101,068 pixels/m²

Aspect Ratio 16:9

Area 0.209 m²

Planeness ≤0.15mm

Recommended Viewing Distance ≥1 m

Material Die-casting Aluminum

Environment Indoor

Ingress Protection IP60

Operating Temperature/Humidity -10℃~+45℃/10~80%RH

Storage Temperature/Humidity -20℃~+55℃/10~85%RH

Maintenance Front service of module, system card ,power supply

Gap Between Modules Seamless

Curve /

Horizontal Viewing Angle 160°

Vertical Viewing Angle 160°

Color Temperature 2000-9500K Adjustable

Colors 4.4 Trillion

Brightness Control Manual/Automatic

Input Power <Max> 145W/panel

Input Power <Typical> 48W/panel

Driving Method Constant Current Drive

Video Frame Rate 50/60 Hz

Rate Refresh 1920 ~3840Hz（Optional）

Input Voltage 100~240VAC

Input Power Frequency 50~60 Hz

LCD Monitoring Module Support

Input Signal DVI / HDMI / VGA / SDI / DP / AV / S-Video, etc.

Calibration Support brightness and chroma

Fanless operation

LED Life Time ≥100,000 Hours

LED Wavelength R:620 ~ 630nm G:520 ~ 535nm B:465 ~ 475nm

Standard Mounting Configuration Fixed

Optional Mounting Configuration Wall-mounting

Professional Services Design, configuration, install and service available

Power Status Diagnostic LEDs

Video Signal Redundancy Optional

Video Extension Redundancy Optional

Data Interconnection Network Cable ( L≤100m ); multi-mode fiber ( L≤300m ); single mode fiber ( L≤15km )

Weight 7 kg/panel

Module Size W152.48mm × H171.54mm

Cabinet Size W609.92mm × H343.08mm × D68mm

Cabinet Diagonal 27.5’’ (699.79mm)
