AW-UE4 Wide Angle 4K PTZ Camera with IP Streaming

Ultra wide-angle lens with 111° field of view
Supports 4K/30p video output
Video output via 3 interfaces, including HDMI, LAN & USB
Supports PoE or USB power options

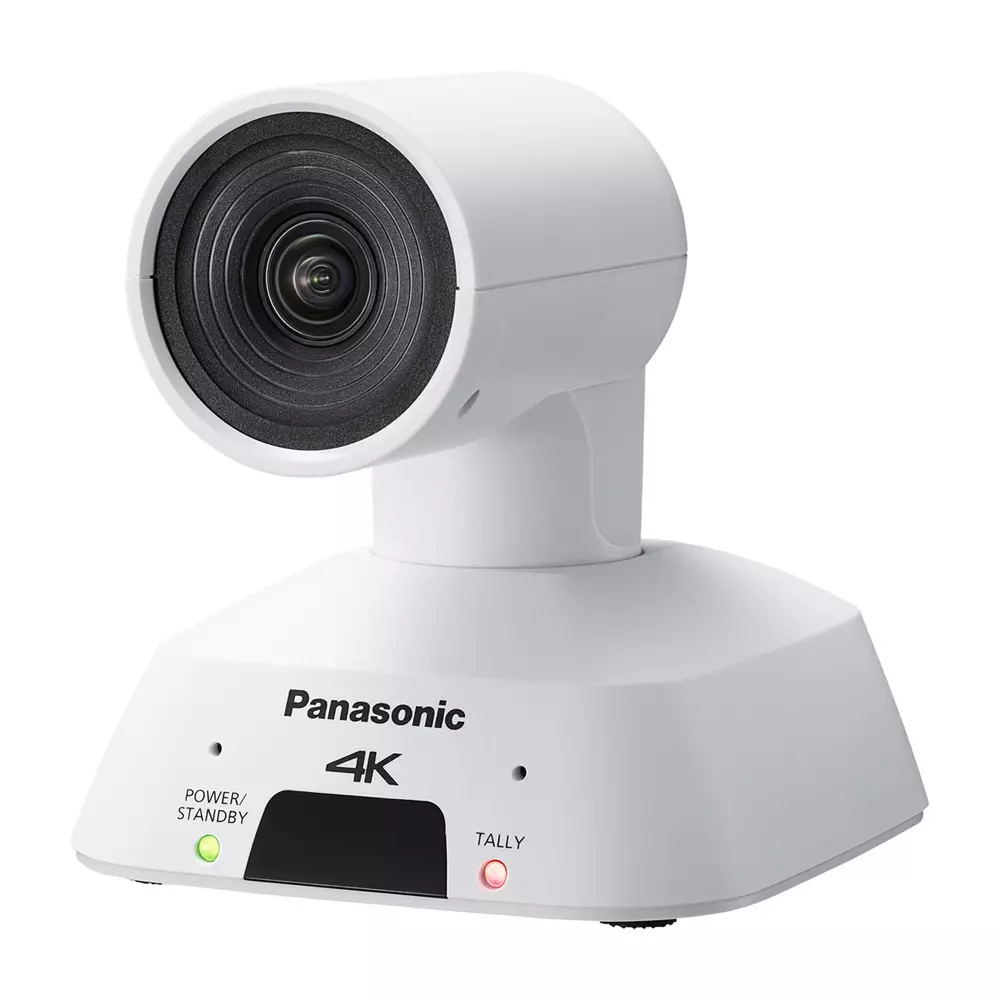

AW-UE4K (black) / AW-UE4W (white) 4K Professional PTZ Remote Camera

Video Conferencing Brand : Panasonic

DESCRIPTIONS

AW-UE4: Professional Video Production in a Compact Form Factor

The AW-UE4 4K PRO PTZ POV Camera supports 4K 30p/29.97p/25p video output and is equipped with an ultra-wide-angle lens with a 111° field of view. This allows capture of every part of even the largest spaces and the transmission of wide-angle footage from even the smallest installation spaces. With the compact size and versatility of the UE4 body design, it is the perfect remote camera for recording/streaming everything from lectures and meetings to esports and other live productions.

The UE4 supports PoE or USB power, allowing video transmission, camera control and power all through a single cable. Furthermore, the UE4 boasts high-performance operability through RTMP (Real-Time Messaging Protocol) compatibility for direct upload of videos to livestreaming services such as YouTube Live.

Play Video

KEY FEATURES

Zoom Certified USB Camera

The AW-UE4 supports UVC so it can be used with an existing USB-based system. A single LAN cable can be used to connect multiple camera units to a PC, allowing wire-saving installation and configuration of a simple and compact system. By using the free PTZ Virtual USB Driver software, the AW-UE4 can be used as a web camera linkable to an online conference service via LAN cable even when the USB cable cannot reach the camera installation location such as a ceiling.

With Zoom certification and a dedicated mode (USB: Video Conference), the AW-UE4W/K is ideal for web conferencing.

Ultra-Wide Angle Captures the Full Picture

111° horizontal viewing angle enables the entire space to be captured, regardless of the installation position. This wide-angle field of view makes the AW-UE4 an ideal camera for huddle rooms, conference rooms, and areas requiring a wide reference view.

Versatile Video Outputs for a Range of Video Productions

Take your pick when selecting video outputs. The AW-UE4 outputs video via HDMI, LAN and USB-C, giving you a range of options for current camera installations, while also preparing you for future video workflows.

Single Cable Connectivity via PoE

The UE4 supports PoE or USB power, allowing video transmission, camera control and power all through a single cable. In addition to PoE power, power via a USB cable is also supported to enable operation without the need for connecting an AC adapter.

Flexible Installation Options

The AW-UE4 can be installed in the spaces you need it. It can be placed on a desktop, attached to a tripod, hung from the ceiling, or even mounted on the wall. It’s small form factor and wide-angle lens provides you remarkable flexibility, ensuring that everything makes it in the shot.

Multiple Control Options

The AW-UE4 can be controlled via the web browser when connected to the network, allowing for quick and easy camera movement, preset access, and image adjustments. Additionally, the camera can be controlled using the AW-RM50 IR remote control and the AW-RP60 hardware-based camera controller. These control choices make it easy to integrate the UE4 into your video production workflow.

Live Streaming Made Easy

The AW-UE4 PRO PTZ camera boasts high-performance operability through RTMP / RTMPS compatibility for direct upload and steaming of videos to livestreaming services such as YouTube, Facebook Live and other services that utilize RTMP / RTMPS for video transmission.

High-Quality Video Output Formats

Enables 3840 x 2160 4K output and a variety of other formats.

4K (2160)	2160/30p, 2160/29.97p, 2160/25p
HD (1080)	1080/60p, 1080/59.94p, 1080/50p, 1080/30p, 1080/29.97p, 1080/25p
HD (720)	720/60p, 720/59.94p, 720/50p

Intuitive Web Control Interface

When connected to an IP network, the AW-UE4 camera can be accessed through the web browser. The camera can be setup and controlled via the web interface. Presets can also be created and recalled.

Enterprise-Grade Camera

Flexible camera workflows are enabled by simple connectivity and installation. Whether being deployed by a system integrator across an entire campus or installed in a single conference room, the AW-UE4 helps keep it simple. With PRO PTZ camera DNA, you can count on the UE4 providing high-quality video performance day-in and day-out.

Digital Pan, Tilt & Zoom [min-E PRO PTZ]

Equipped with digital zoom for magnification up to 4 times to capture distant subjects clearly. Expanded images can also be manipulated for pan and tilt-like effects to capture images from a variety of angles. A powerful 4K sensor enables pan and scan functionality, allowing you to move around a source video image without reducing the quality of the output.

Integrated Stereo Mic

Capture it all with the AW-UE4 integrated stereo microphone. Includes a privacy mute mode and ALC function.

Upgrade Your AW-HE2 Camera for the 4K IP World

Video integrators have been asking for an upgrade for the AW-HE2 camera. We are now proud to introduce the AW-UE4 as an HE2 alternative. With many upgrades and a powerful new 4K sensor, the UE4 is the ideal replacement for the discontinued AW-HE2.

Work Hard, Play Hard.

With the compact size and versatility of the UE4 body design, it is the perfect remote camera for recording / streaming everything from lectures and meetings to esports and other live productions.

SPECIFICATIONS

Dimensions (W x H x D)	4-53/64 inches x 5-5/32 inches x 5-11/32 inches (123 mm x 131 mm x 136 mm)
Footnote	Preliminary specifications are subject to change without prior notice.
LENS	Digital zoom: 4x
Internal Microphone	Yes (with mute function)
VIDEO OUTPUT	HDMI, IP, USB
Power Requirements	DC 5 V (USB) DC 42 V - 57 V (PoE)
Tilting Range	50° (±25°)
Imaging Sensors	1/2.5-type MOS
Panning range	220° (±110°)
Camera/pan-tilt head control	Manual adjustment
Angle of View Range	111°

*All specifications are preliminary and subject to change without prior notice.
