Partilink - HDMI to DP 4K60 Converter P4K2-H1D2

• HDMI 2.0 Input (x1)

• DisplayPort 1.2A Outputs (x2)

• Superior video quality 4K60 (4:4:4)

• 18Gbps Bandwidth

• Plug and play (PnP)

Descriptions

P4K2-H1D2

OVERVIEW

P4K2-H1D2 is a HDMI 2.0 to DisplayPort 1.2a converter (X1 HDMI to x2 DisplayPort).
It supports resolution up to [email protected] 4:4:4 color sampling.

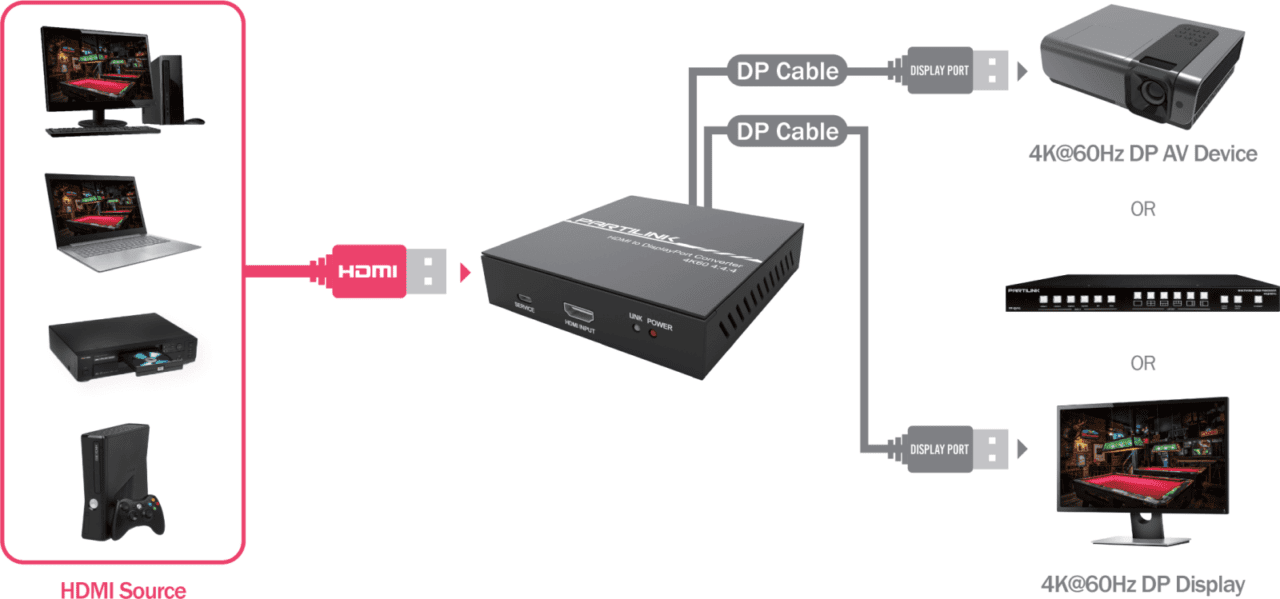

Beside the converter function, it can be taken as a HDMI to DP 1×2 splitter

Key Features

P4K2-H1D2

FEATURES

– DisplayPort 1.2a & HDMI 2.0 compliant

– HDMI input supports video bandwidth up to 18Gbps.

– HDCP 1.4 / 2.2

– DisplayPort output supports link rate RBR/HBR/HBR2

– Resolution up to [email protected] 4:4:4 8bits

– Stereo audio

– Firmware upgrade via USB port

Specifications

MODEL NO.

P4K2-H1D2

INPUT INTERFACE

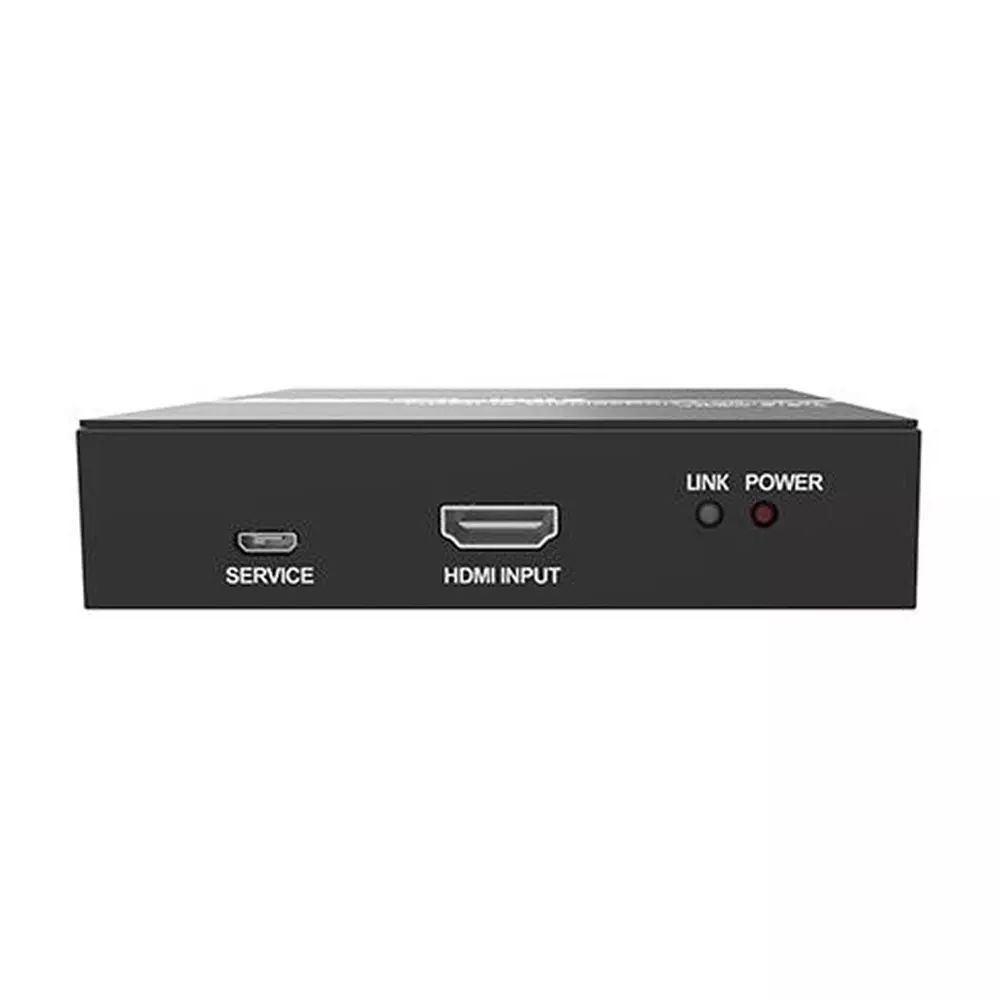

1 x HDMI Type A female

Resolution 3840 x 2160/ 4096 x 2160 @60Hz YUV 4:4:4

OUTPUT INTERFACE

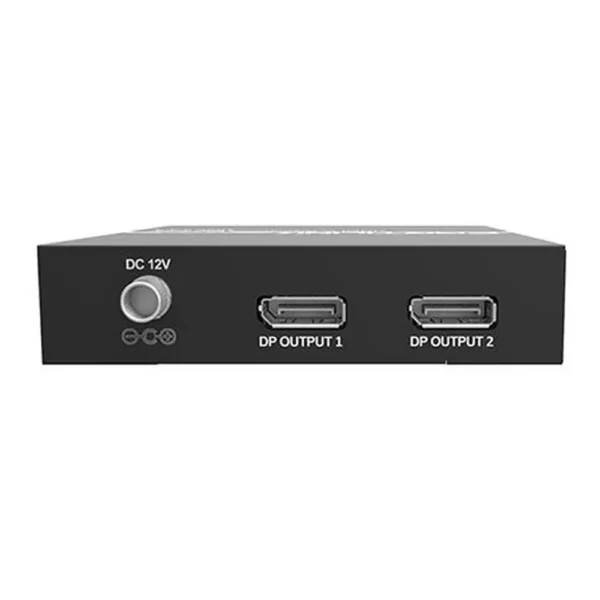

2 x DisplayPort female

Resolution 3840 x 2160/ 4096 x 2160 @60Hz YUV 4:4:4

AUDIO

Stereo, 32k~192kHz sampling rate

POWER

DC 12V/2A, locking barrel connector



ENVIRONMENT

Operating temperature 0~45°C Operating humidity 20~90% Storage temperature -20~60°C

DIMENSION

108 x 114 x 24.6 mm (W x L x H)

WEIGHT

356 G
