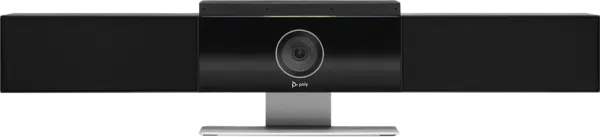

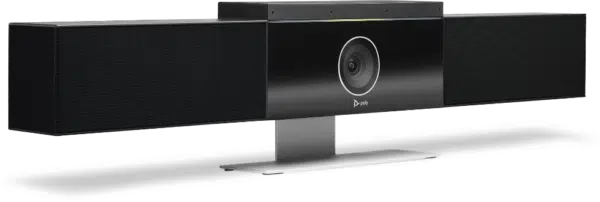

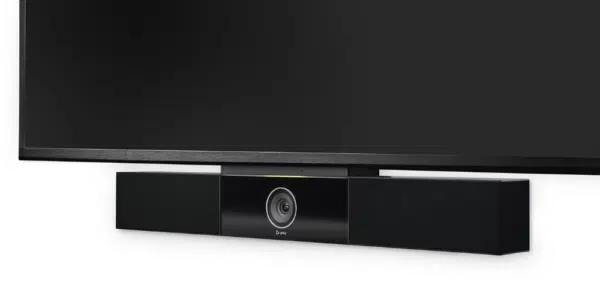

Poly STUDIO

PREMIUM USB VIDEO BAR
  • Hear sound in meetings like never before
  • Experience video that feels natural
  • Keep it simple for IT to manage and deploy

DESCRIPTION

RAISE THE BAR

Whether you want to make a persuasive point or a lasting connection, you need technology that lets you interact naturally. So put the days of frustrating video-conferencing experiences behind you. Now you can see and hear everyone clearly, and converse naturally, with Poly Studio. Simple USB connectivity gets up and running fast, keeps the technology in the background and you in the foreground, and provides a business-class solution to everybody working in a huddle room. It’s time to raise the bar for video conferencing—it’s time for Poly Studio.

Poly Studio left 1

Hear best-in-class sound

You’ve never heard a USB video bar sound this good. It’s the only one with patented NoiseBlock™ technology to intelligently tune out distracting sounds that interrupt meetings. And outside conversations stay out of your calls with Acoustic Fence—it captures just the voices within a defined space of the video conference

See natural video

With group framing and automatic speaker tracking, the connection feels personal. And it’s built right in, no drivers or software is needed on the PC. Everybody on the video call can see the important details—right down to body language and facial expressions.

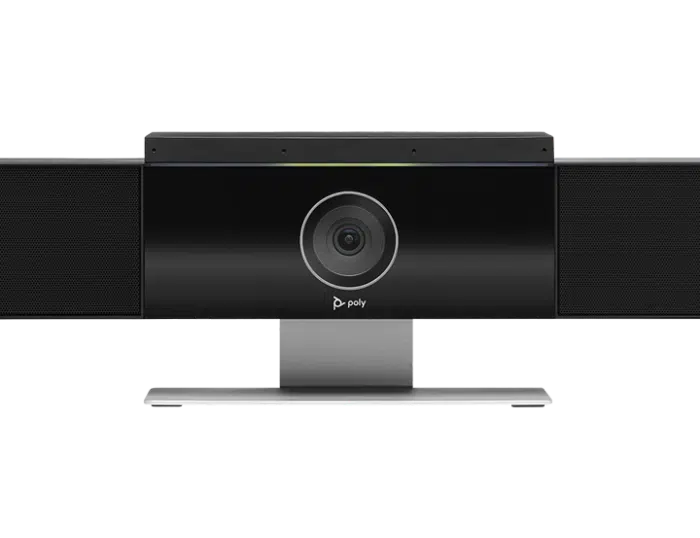

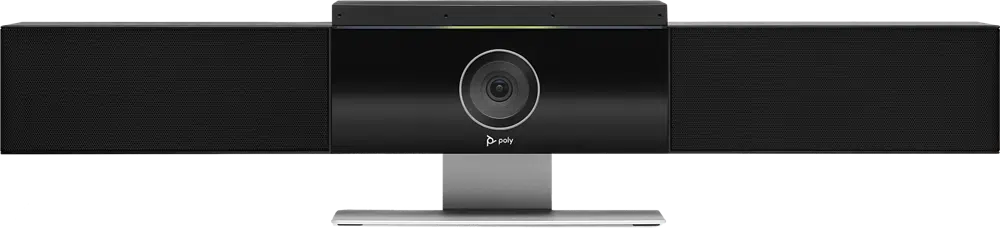

poly studio front
studio huddle 01 rendering

Manage and Deploy with ease

Cloud-based management tools let IT push software updates and make settings changes without ever leaving their desk. Centralized management and high-scale deployments help IT eliminate “sneakernet.” Plus it works with nearly any video platform—so you can be confident this is a future-proof solution.

WE WORK EVERYWHERE THAT YOU DO

Poly video solutions make meetings a breeze. Use cloud video apps for a full experience with all the features you know and love. Or use standards-based SIP and H.323 compatibility to connect to different cloud video services throughout your day.
zoom certified
microsft certified teams badge grey 500x138 2
gotomeeting 2
blue jeans
8x8 Logo

FEATURES

BEST IN-CLASS AUDIO

Delivering the best audio quality in its class, Poly Studio lets teams on both ends of the call catch every word. You’ve never heard a USB video bar sound this good.

NOISE BLOCK AI

This is the only USB video bar with NoiseBlockAI technology that intelligently tunes out distracting sounds that interrupt meetings.

ACOUSTIC FENCE

Outside conversations stay out of your calls with Acoustic Fence, which captures only the voices within a defined space.

AUTOMATIC FRAMING

With group framing and automatic speaker tracking, the connection feels personal. And it’s built right in, no drivers or software is needed on the PC. Smart panning and our unique split-screen conversation mode follow the conversation flow.

EASY MANAGEMENT

Cloud-based management tools let IT push software updates and make settings changes without ever leaving their desk Centralized management and high-scale deployments help IT eliminate “sneakernet.”

SPECIFICATIONS

DIMENSIONS
•Unit dimensions:
-105 mm x 700 mm x 70 mm =
4.2” x 27.3” x 2.8” (HxWxD) without stand
-156 mm x 700 mm x 70 mm =
6.2” x 27.3” x 2.8” (HxWxD) with stand
•Weight:
-5 lbs 2.6 oz (2342 g) without stand
-6 lbs 4.7 oz (2856 g) with stand
•Remote control dimensions:
-183 mm x 40 mm x 19 mm =
7.2” x 1.6” x .75” (HxWxD)

APPLICATION REQUIREMENTS
•Supported operating systems
-Windows 7, 8.1, 10
-MacOS 10.12, 10.13, 10.14
•Support for standard audio and video device drivers
-UAC 1.0 Audio
-UVC 1.1/1.5 Video
-HID 1.11

POWER REQUIREMENTS
•12VDC/5A @ 100~240VAC, 50/60 Hz

PACKAGE INCLUDES
•Poly Studio

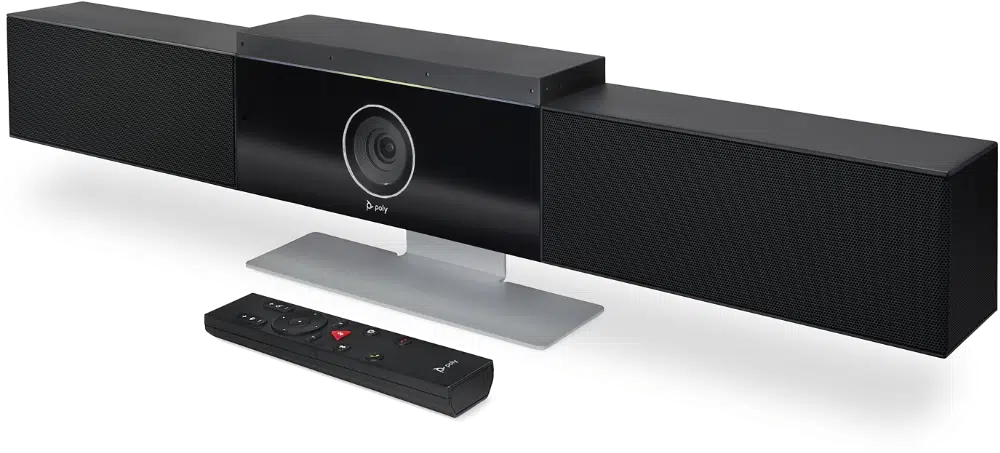

•Remote control with 2 AAA batteries
•Power adapter
•5 m USB 2.0 cable (Type-C to Type-A)
•Wall mount kit
•Setup sheet

OPTIONAL ACCESSORIES
•Expansion microphone
•Display mount

CAMERA
•120-degree FOV
•UHD 2160p (4K) capture resolution
•Automatic people framing &
speaker tracking
•5x zoom / EPTZ
•2 camera presets

AUDIO
•Poly Acoustic Clarity technology
provides full-duplex conversations,
acoustic echo cancellation and
background noise suppression
•Poly NoiseBlockAI technology
•Poly Acoustic Fence technology
•Mute/unmute controls
•Stereo microphones:
-6-element beamforming
microphone array
-12 ft pickup range
-120 Hz–16 kHz frequency response
•Stereo speakers:
-100 Hz–20 KHz frequency response
-Output = 90 dB @ 0.5m

INTERFACES
•1x USB 3.0 Type-C port
(with 2.0 compatibility)
•Power connector
•Optional external microphone
•3.5 mm stereo Audio In
•Kensington security lock
•802.11ac Wi-Fi wireless networking  for manageability; IEEE 802.11a/b/g/n compatible
•Bluetooth® 4.2

APPLICATION COMPATIBILITY
•Compatible with any application that supports standard USB audio and video drivers, including but not limited to:
-Certified for Microsoft Teams and Skype for Business
-Zoom Certified
-LogMeIn GoToMeeting®
-BlueJeans Network
-Google Hangouts™ communication platform
-Amazon Chime
-Cisco Webex®
-VidyoDesktop™
-Polycom RealPresence Desktop

SECURITY
•802.1x support
•Certification management

MANAGEABILITY (VIA WI-FI)
•Polycom Companion App (running on Win/Mac PC connected to device)
•Polycom RealPresence Resource Manager
•Polycom Device Management Service

WARRANTY INFORMATION
•1-year limited hardware warranty

COUNTRY OF ORIGIN
•Laos

ENVIRONMENTAL
•Operating temperature: 32–104°F (0–40°C)
•Relative humidity: 5–95%, noncondensing
•Storage temperature: -13–160°F
(-25°–70°C)
