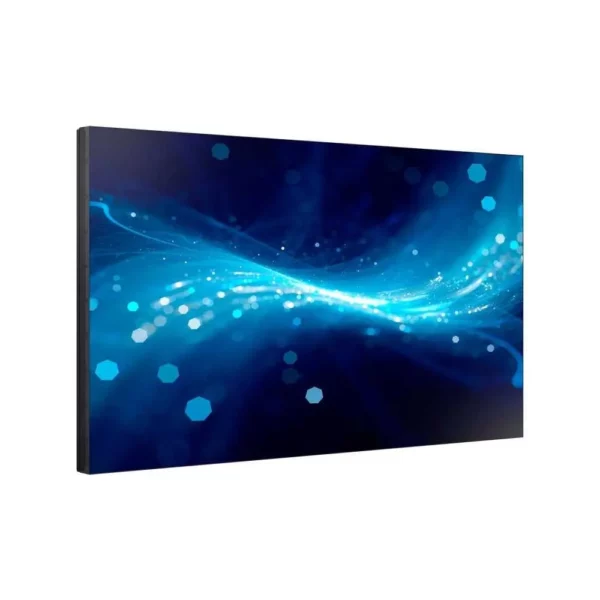

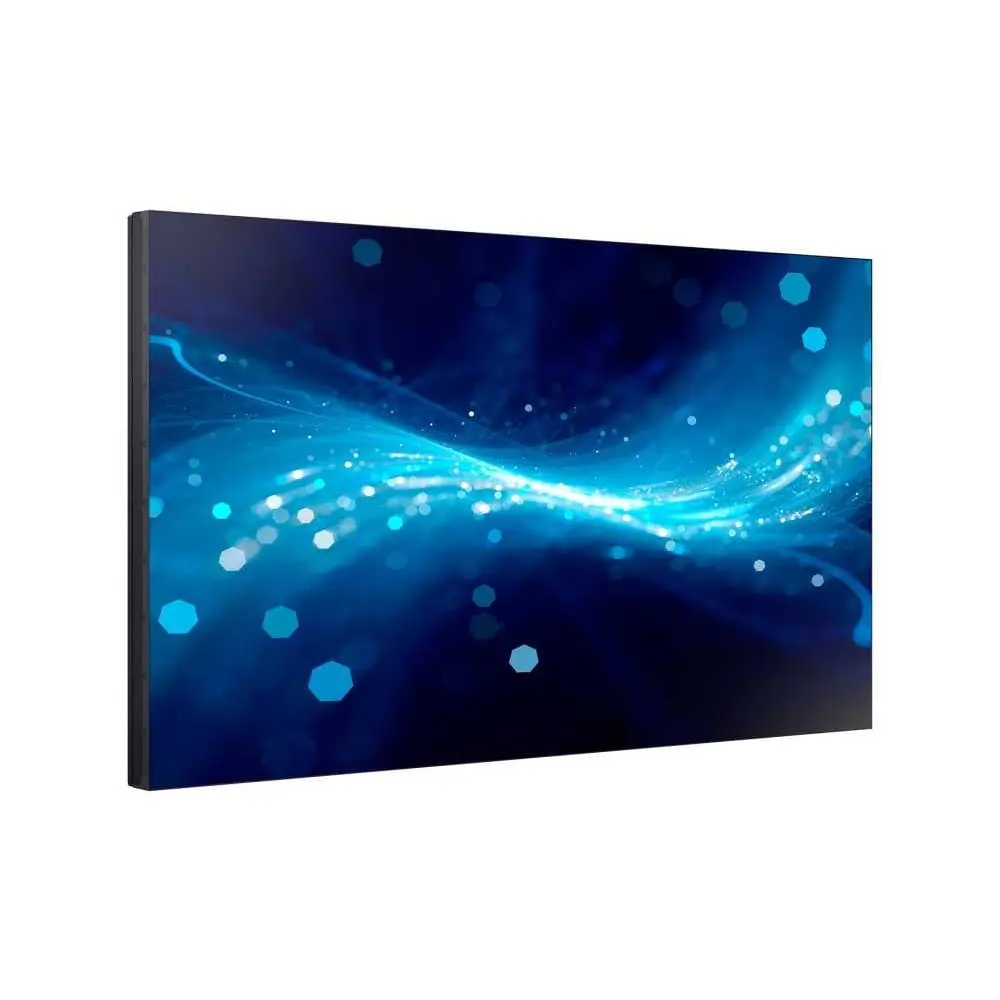

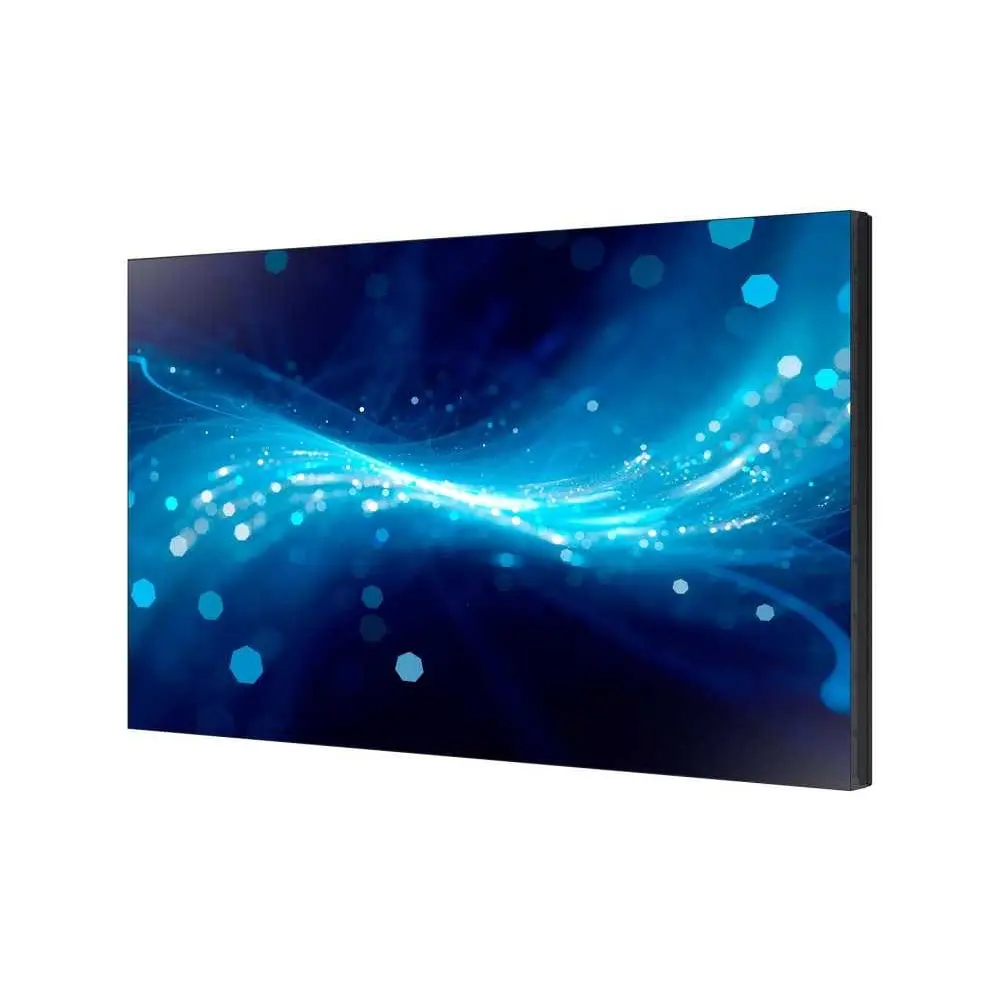

SAMSUNG VIDEOWALL UMH-E Series

Advanced video wall displays featuring deeper visual impact and thinner bezel to bezel width of 1.7mm.

Extreme-narrow bezel (B-to-B 1.7mm) and UHD resolution for virtually seamless, life-like viewing experience
Superb color accuracy and brightness uniformity thanks to precise calibration and panel technology
Daisy Chain through use of DisplayPort (DP) 1.2 or HDMI port, eliminating the need for graphic cards
Highly reliable displays designed for 24/7 operation, with simple, easy-to-use special wall mount

Videowall Brand : Samsung

DESCRIPTIONS

UMH-E Series

KEY FEATURES

DELIVER DEEPER VISUAL IMPACT

Samsung’s narrow bezel video wall features bezel–to-bezel width of 1.7mm that minimizes the visual distraction of video walls to elicit impacting imagery of products. The display produces a near-seamless picture across multiple screens without interruption, captivating and impressing customers.

Amplify image clarity in any environment

Combined with a non-glare panel, the extreme narrow bezel video wall display is designed to help businesses create memorable content presentation even under ambient light. This panel evenly distributes light throughout the screen, eliminating glare while maintaining content vibrancy and accuracy.

Extend content presentation capabilities

Samsung’s video wall offers a powerful UHD viewing experience with minimal effort or additional equipment. As the first in the industry to have up to 5×5 wall configuration based on the use of DisplayPort 1.2 and HDMI ports, the display can project UHD content across multiple screens simultaneously.

Share accurate and uniform content

Samsung’s multi-step factory calibration process tunes video walls to uniform brightness and color throughout multiple displays. In addition to rigorous factory calibration, users can also manage brightness and color uniformity with Samsung’s Color Expert Pro, a powerful free software program.

Cost saving mobile calibration with ease

Samsung’s Color Expert Pro Mobile solution provides a quick and easy video wall calibration through a mobile camera. With the solution’s intuitive UI, even non-expert users can adjust up to 5×5 video wall’s white balance simultaneously without the need for additional equipment.

* Some of the models may require the use of additional PC and Color Expert Pro software to calibrate the screens.

Enjoy continuous, long-term performance

Samsung’s extreme narrow bezel video walls are engineered for long-term performance, eliminating maintenance expenses for users. The display features durable panels that offset backlight discrepancies while simultaneously protecting the display against heat and dust exposure.

Reliable content delivery for business

Designed to maintain performance in various indoor environment conditions, Samsung’s video wall produces an engaging viewing experience with the elevated contrast ratios and brightness. With continuous 24/7 operations, the display enables vivid and reliable content delivery for every business need.

All-in-one box with versatile usability

Backed by a Quad Core CPU, Signage Player Box allows for multi-source switching and a media player to coexist in a single box. Leveraging the embedded Samsung SMART Signage Platform, the box transforms video walls for faster information processing and easy content management with MagicINFO solution.

Highly configurable wall mounts

The user-friendly special wall mounts ensure easy installation of video walls through minimal steps. Sized to the dimensions of the video wall, the wall mount allows users to install the mount first and fit into the video wall, eliminating tedious efforts to measure and adjust the wall mount size.

SPECIFICATIONS

Panel

Diagonal Size	55
Type	D-LED DID
Resolution	1920*1080 (Full HD)
Pixel Pitch(mm)	0.63mm(H) * 0.63mm(V)
Active Display Area(mm)	1209.6 * 680.4mm
Brightness(Typ.)	500 nit
Contrast Ratio	4000:1
Viewing Angle(H/V)	178/178
Response Time(G-to-G)	8ms
Display Colors	8 bit - 16.7M
Color Gamut	72%
Operation Hour	24/7
Haze	25% (Outer Haze 23%)

Display

Dynamic C/R	MEGA DCR
H-Scanning Frequency	30kHz ~ 81kHz
V-Scanning Frequency	48Hz ~ 75Hz
Maximum Pixel Frequency	148.5MHz

Connectivity

Input
RGB		Analog D-SUB, DVI-D, Display Port 1.2
Video		HDMI 2.0 (2)
HDCP		HDCP 2.2
Audio		Stereo mini Jack
USB		Only F/W upgrade
Output
RGB		DP1.2(Loop-out)
Audio		Stereo mini Jack

External Control		RS232C(in/out), RJ45
External Sensor		Detachable type(IR, Ambient)

Power

Type		Internal
Power Supply		AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
Max[W/h]		143
Typical[W/h]		120
BTU(Max)		488
Sleep mode		less than 0.5W
Off mode		less than 0.5W

Mechanical Specification

Dimension (mm)
Set		1211.6 X 682.4 X 96.3
Package		1355 X 809 X 320
Weight (kg)
Set		21.0kg
Package		28.2kg
VESA Mount (mm)		600 * 400 (mm)
Bezel Width (mm)		1.15mm(U/L), 0.55mm(R/B)

Operation

Operating Temperature	0.0 ℃ ~ 40.0 ℃	Humidity	10.0 % ~ 80.0 %

Feature

Key Features		Extreme Narrow Bezel
Orientation		N/A
Remote Control		N/A
Special Features		ACM Support(Advanced Color Management), Auto Source Switching & Recovery, Haze 25%, Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), Video Wall(15x15(OSD)), Video Wall Daisy Chain(10x10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting UHD Resolution, HDCP support), Smart F/W update, Clock Battery(80hrs Clock Keeping)
Internal Player	Processor	N/A
	On-Chip Cache Memory	N/A
	Clock Speed	N/A
	Main Memory Interface	N/A
	Graphics	N/A
	Storage (FDM)	N/A
	Multimedia	N/A
	IO Ports	N/A
	Operating System	N/A

Certification

Safety		UL (USA) : UL 60950-1 CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1 NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore) : IEC60950-1 GOST (Russia) : IEC60950-1, EN55022 SIQ (Slovenia) : IEC60950-1, EN55022 PCBC (Poland) : IEC60590-1, EN55022 NOM (Mexico) : NOM-019-SCFI-1993 IRAM (Argentina) :IEC60950-1 SASO (Saudi Arabia) : IEC60950-1
EMC		FCC (USA) FCC Part 15, Subpart B class A CE (Europe) EN55022, EN55024 VCCI (Japan) V-3 (CISPR22) KCC (Korea) :KN22, KN24 BSMI (Taiwan) : CNS13438 (CISPR22) C-Tick (Australia) : AS/NZS3548 (CISPR22) CCC(China) :GB9254-2008, GB17625.1-2012

Accessory

Included		Quick Setup Guide, Warranty Card, DP cable, stereo to DB9 cable, Power Cord, Remote Controller, Batteries,
Optional
Stand		N/A
Mount		WMN-55VD
Specialty		N/A

Media Player

Media Player		SBB(Slide In), Signage player box
