SAMSUNG VIDEOWALL VMR-U Series
Flexible and Dynamic Content Options with Powerful SoC Embedded Video Wall.
Built-in quad core embedded system-on-chip (SoC) technology effi ciently showcases both standalone and video wall content without needing an additional media player
Samsung SMART Signage Platform (SSSP) powered by Tizen 4.0 allows for effortless real time content updates that are necessary in this fast-paced industry
3.5mm (B-to-B) ultra-narrow bezel allows for seamless, clear content. MagicINFO S Player creates a smooth transition between content with no lag, black screens or gaps during playback
DESCRIPTIONS

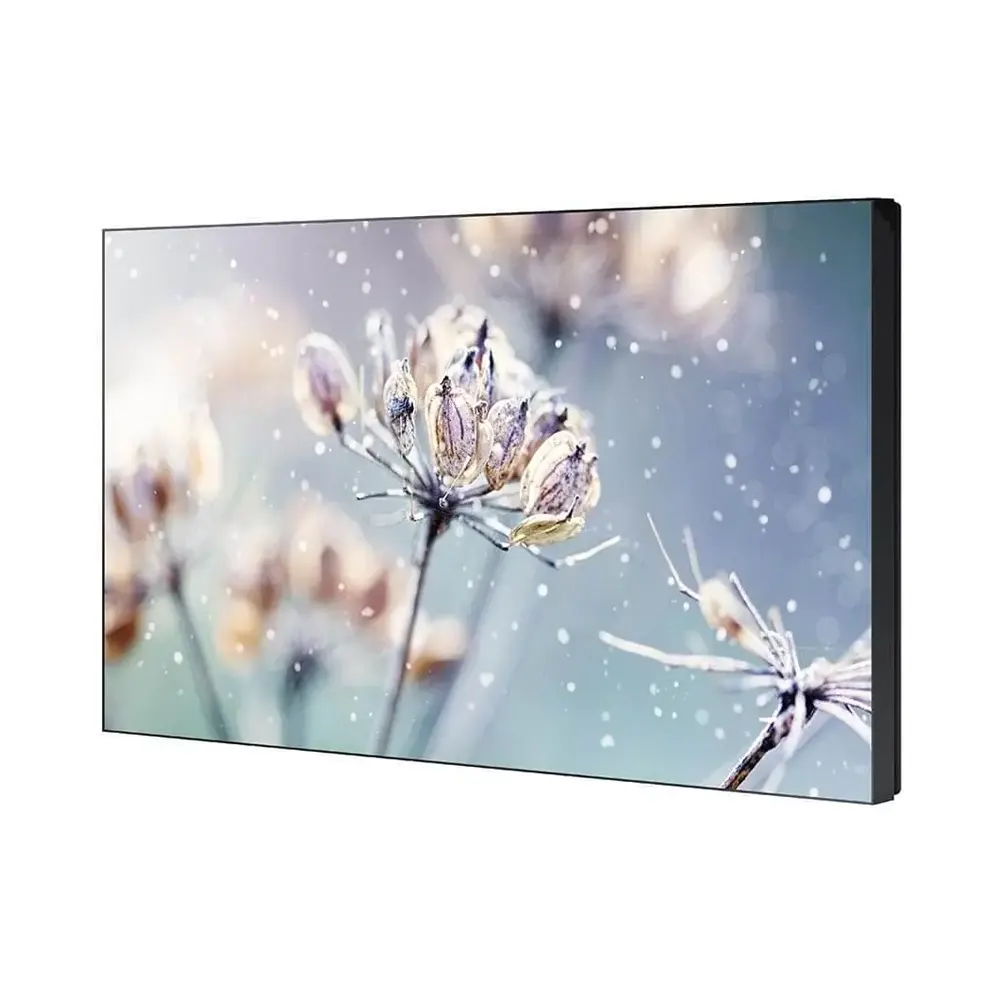

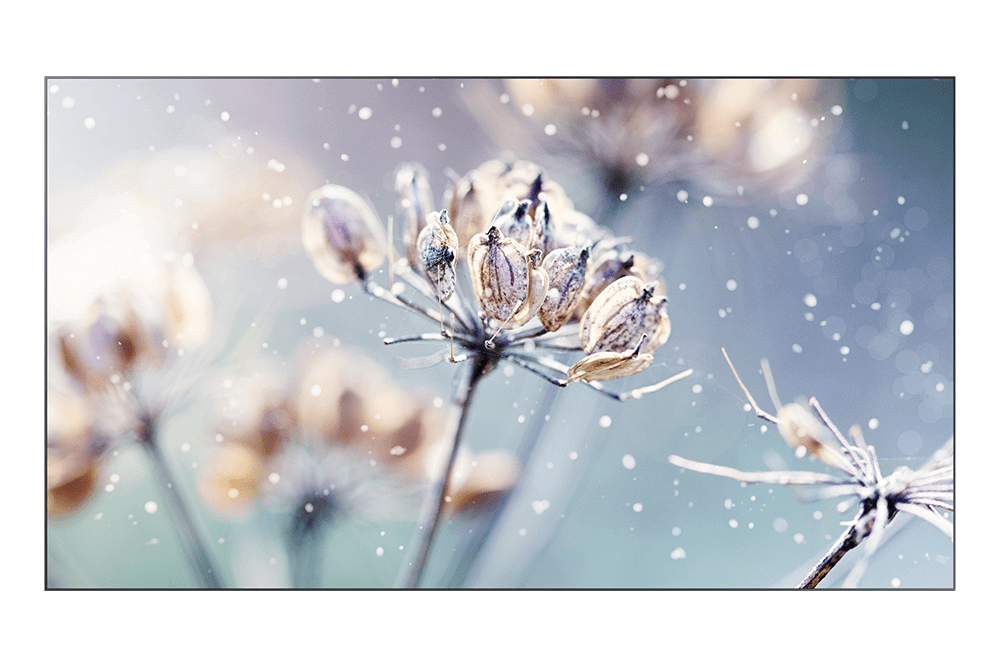

Ultra Narrow Bezel
Powerful and versatile video wall solution for various business needs
KEY FEATURES

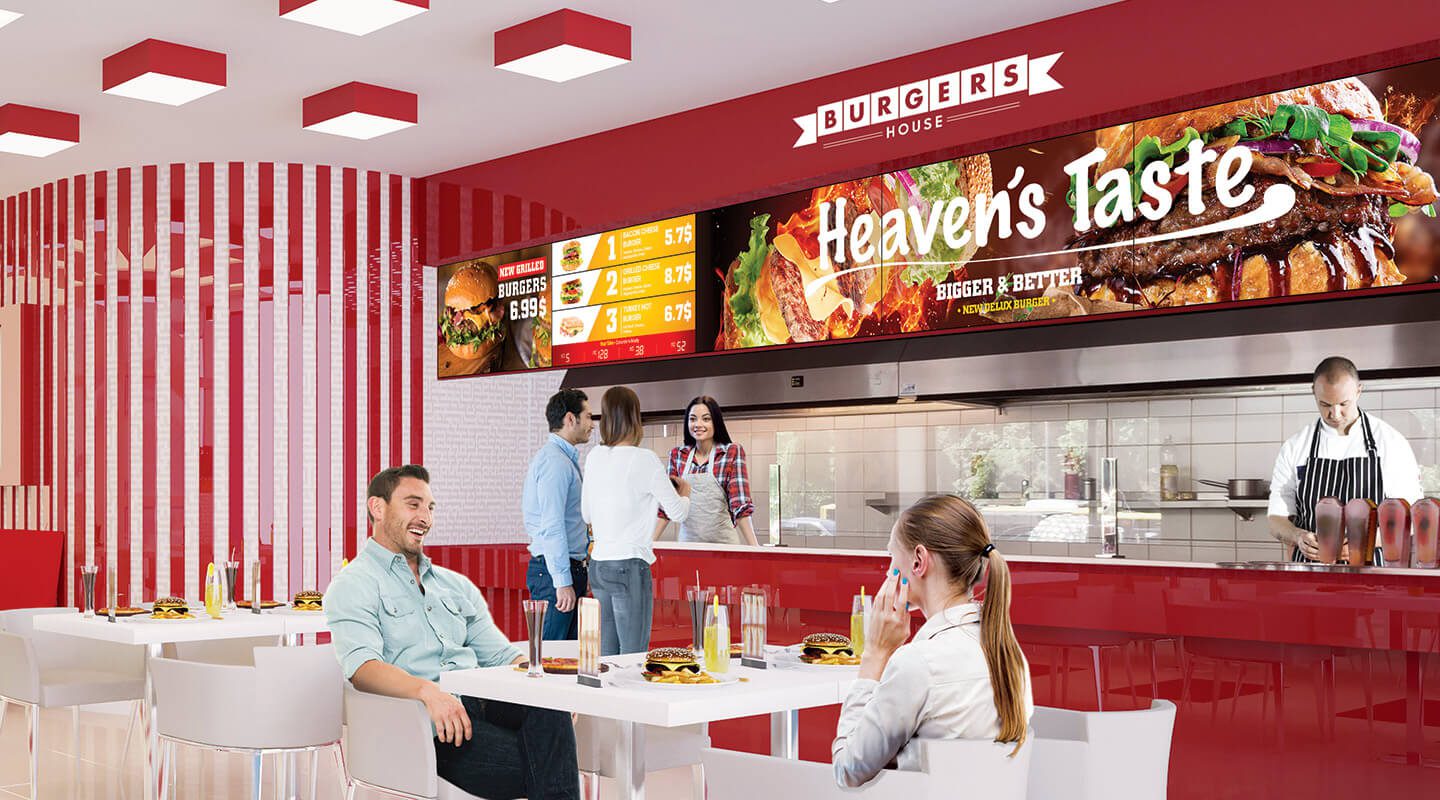

Flexible and dynamic content options with powerful SoC embedded video wall
Samsung’s VMR-U is a powerful and efficient SoC embedded video wall that can easily transform screens from displaying standalone content to operating as one cohesive unit without the need for additional hardware. The VMR-U is the best solution for capturing and keeping your customer’s attention.
System-on-chip (SoC)

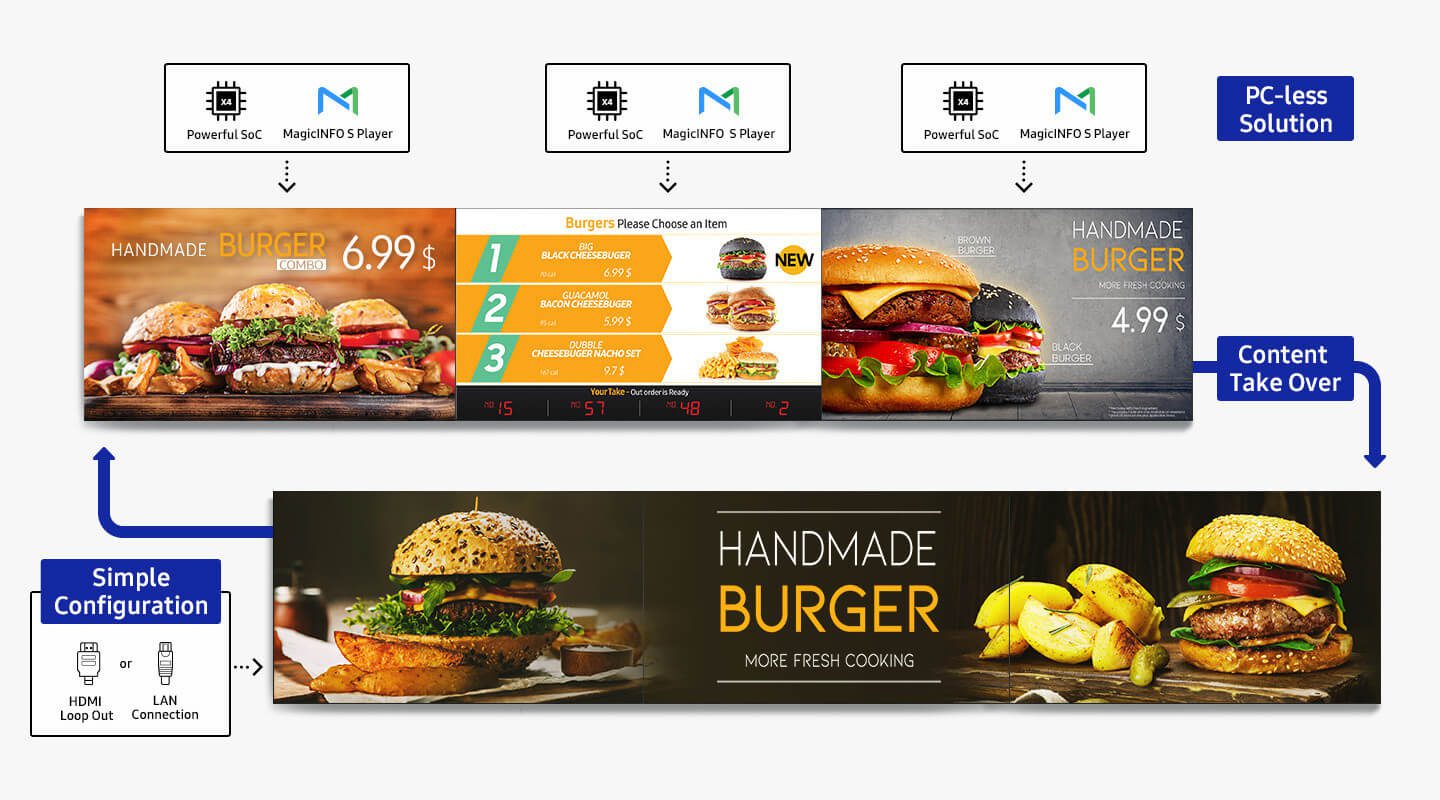

The VMR-U features embedded system-on-chip (SoC) technology, allowing screens to easily switch between displaying individual content and operating together to display a cohesive image. This can be done with a simple HDMI loop out or LAN connection, eliminating the need for an external media player.

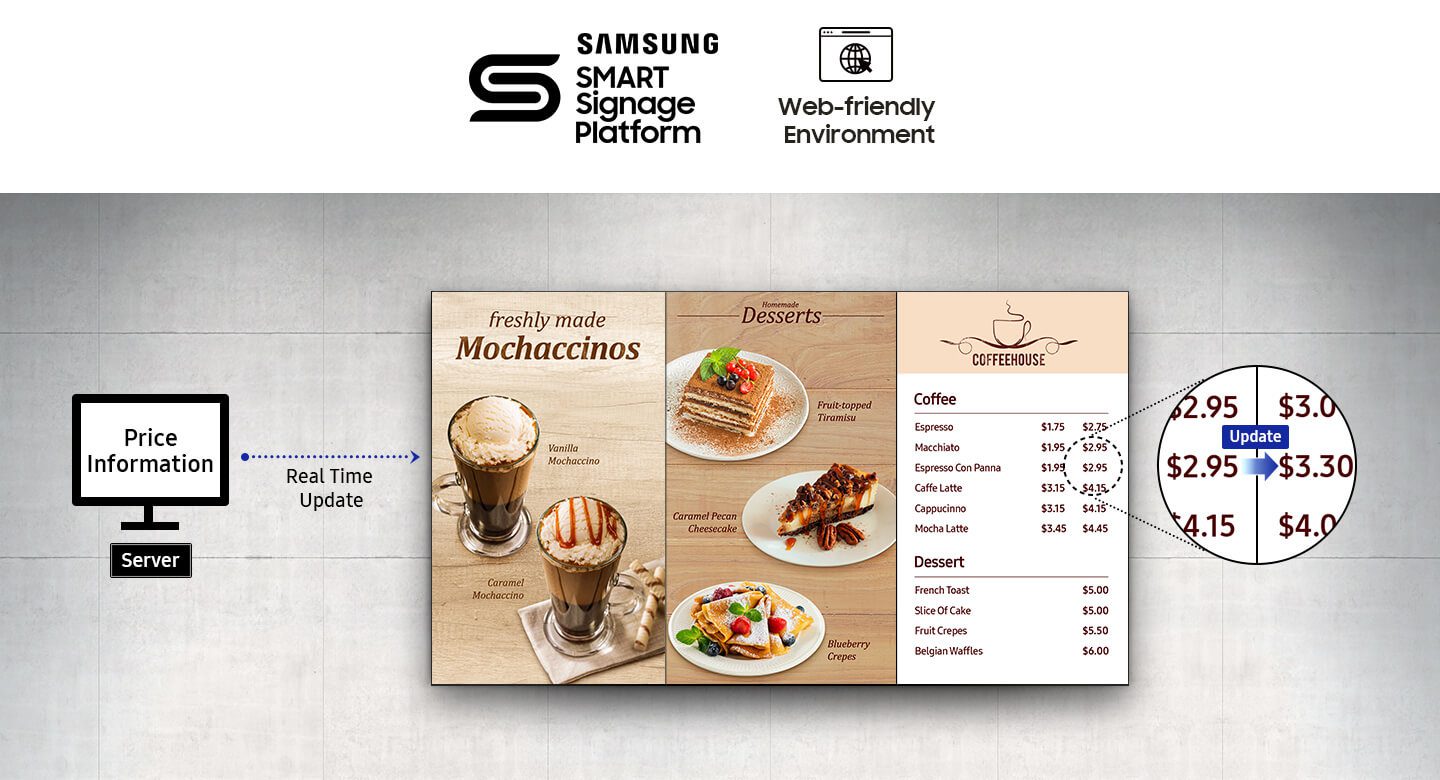

Samsung SMART Signage Platform (SSSP)
Samsung’s SMART Signage Platform (SSSP) powered by Tizen 4.0, supports a web friendly environment for development through reinforced compatibility with web formats and standards. It allows for effortless, real-time content updates that are necessary in this fast-paced industry.

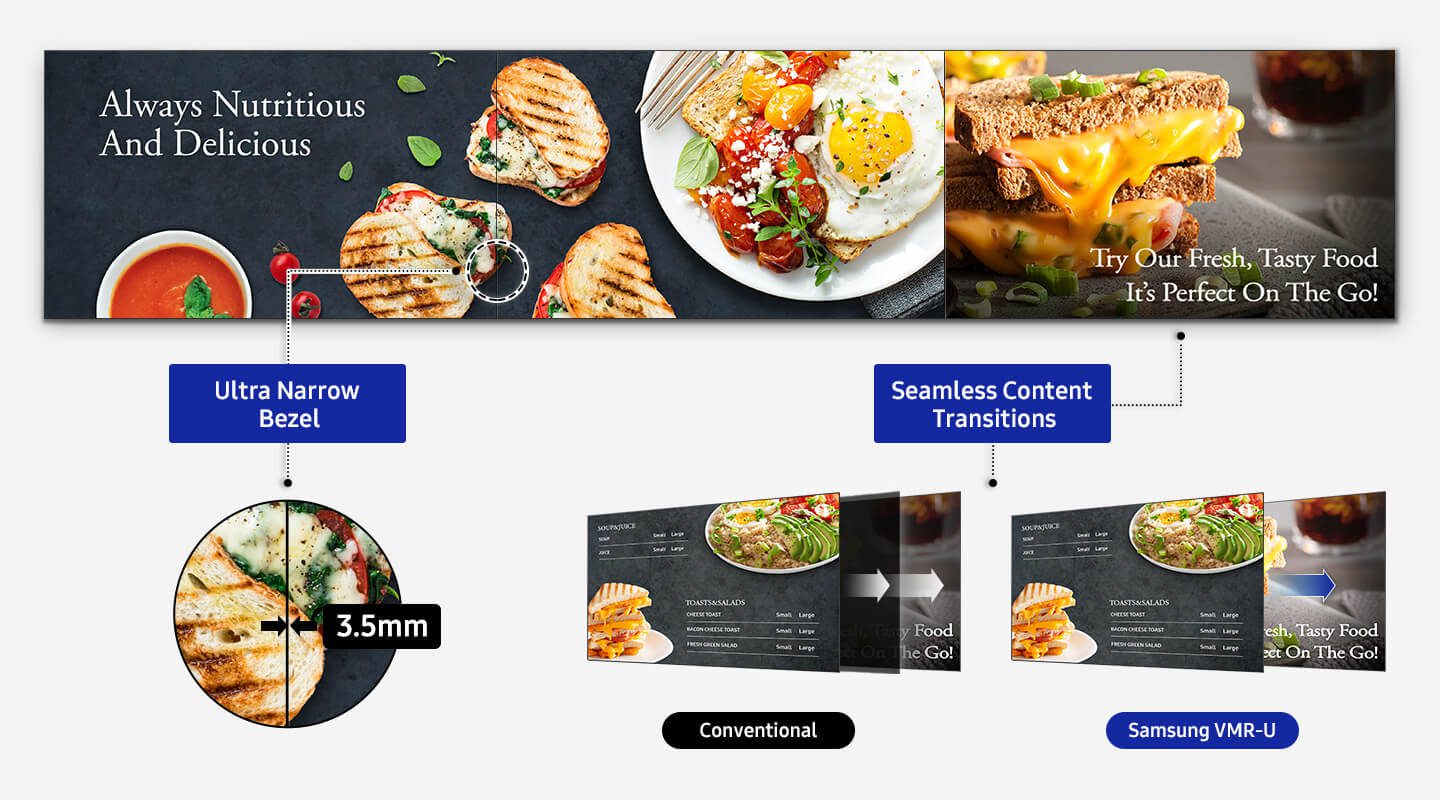

Seamless content
The VMR-U delivers seamless content with its ultra-narrow bezel, while MagicINFO S Player’s powerful performance creates smooth transitions between content with no lag, black screens or gaps during playback.
* Conventional display example represents operation without Tizen OS.
* Black screen may briefly appear between images if content is encoded at a different frame rate.
24/7 operation
Designed to maintain performance in various indoor environment conditions, The VMR-U enables vivid and reliable content delivery for every business need with continuous 24/7 operation.

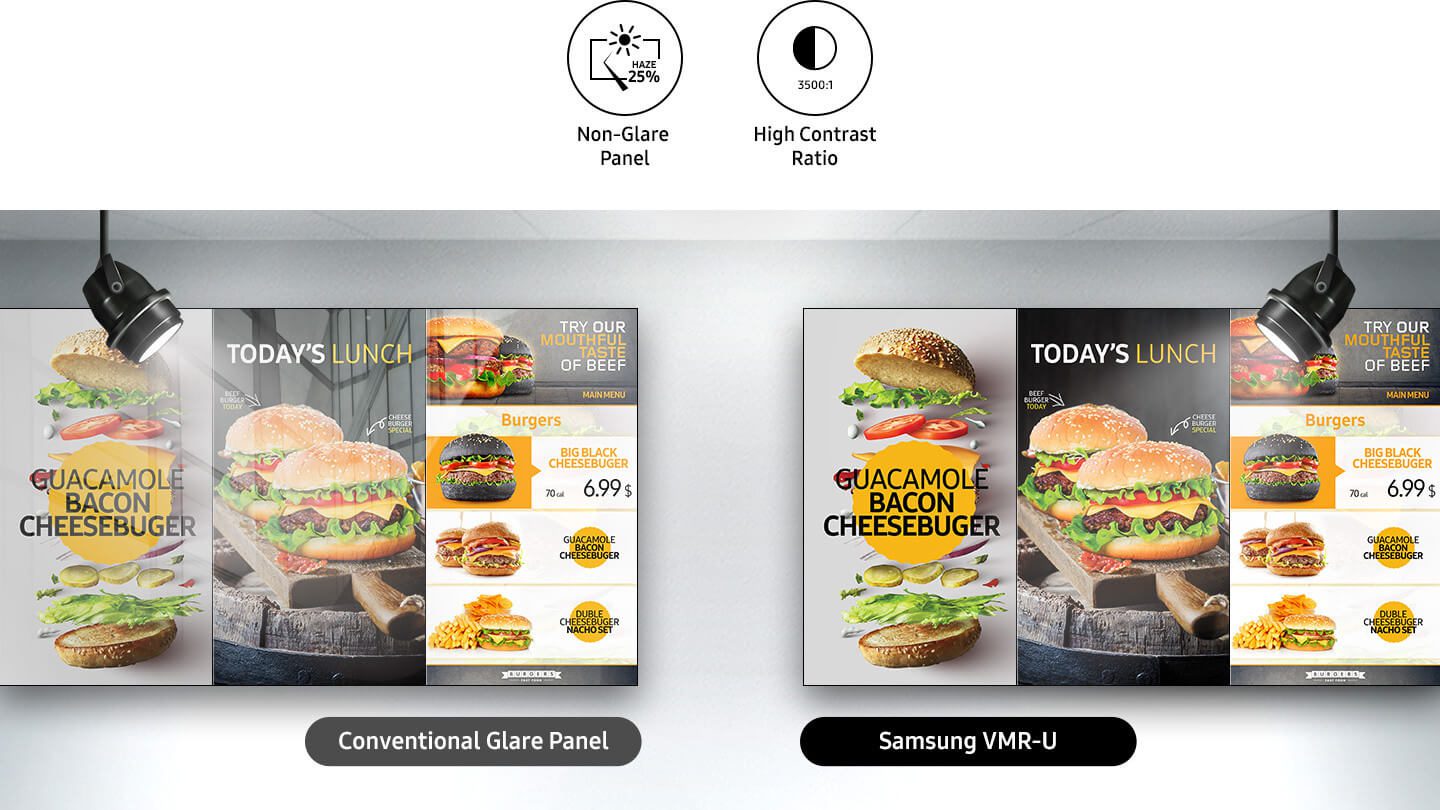

Non-glare panel
The VMR-U features a non-glare panel that evenly distributes light across the screen to maintain content vibrancy and accuracy, with a high contrast ratio to display vivid and memorable content.

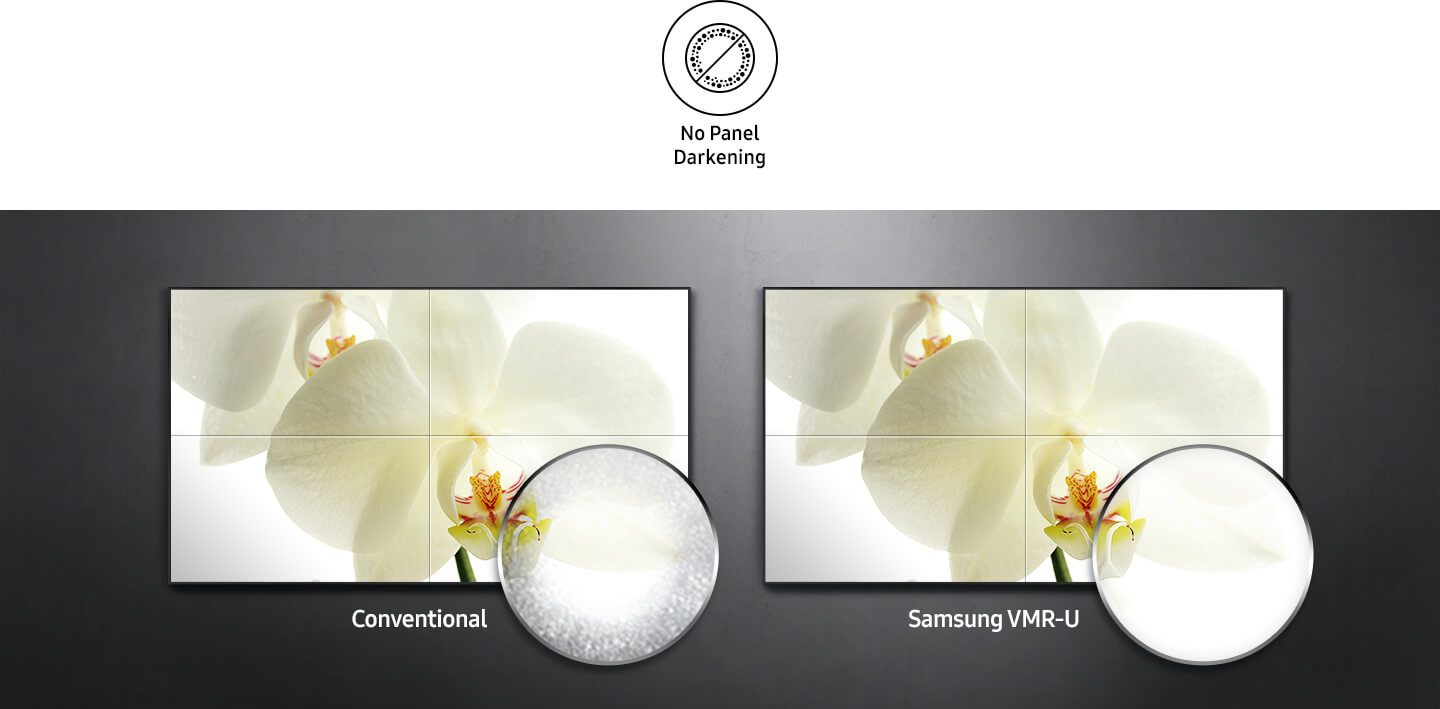

Durable and reliable
Each VMR-U display features a reinforced panel for long-term performance. This superior panel prevents screen darkening, light leakage and picture deterioration.

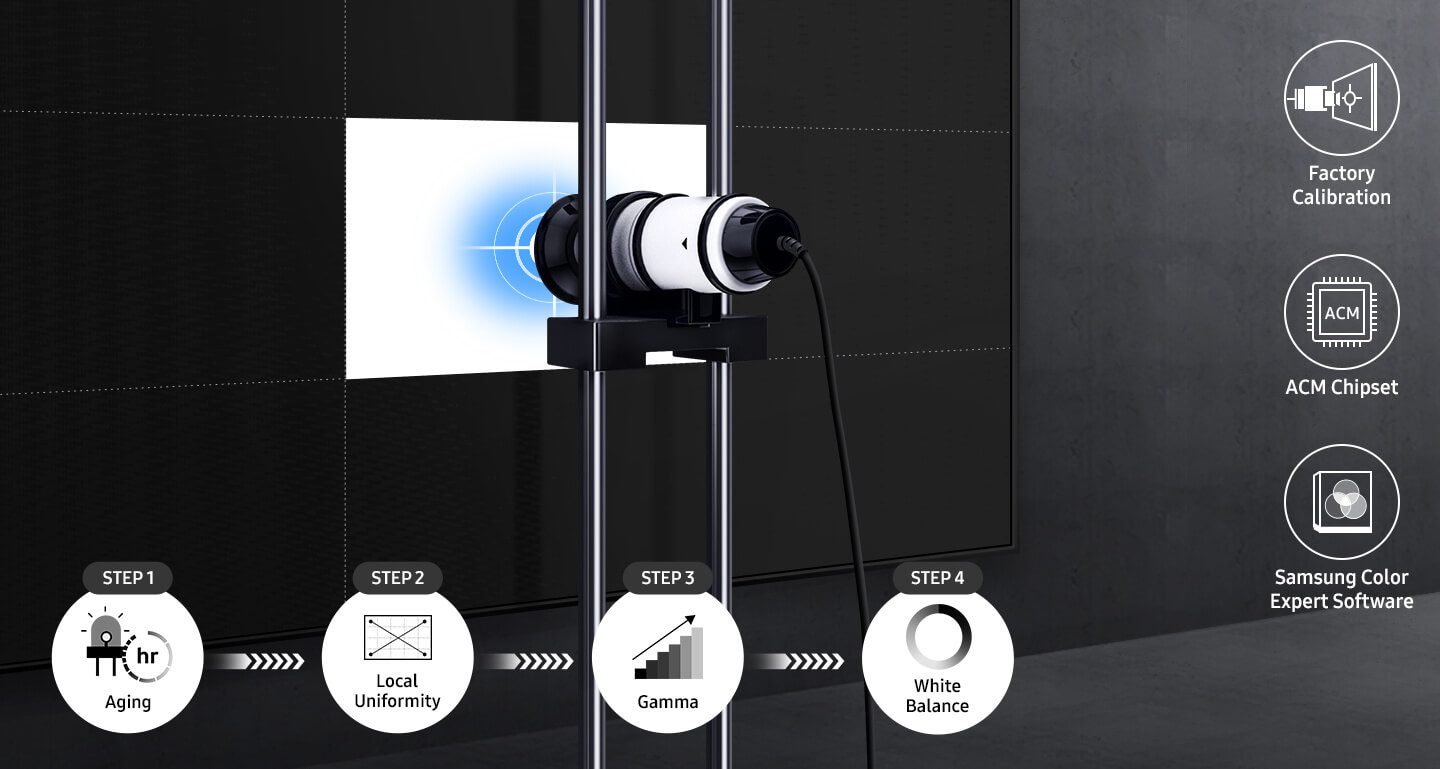

Comprehensive calibration
Samsung’s multi-step factory calibration process tunes video walls to uniform brightness and color throughout multiple displays. In addition to rigorous factory calibration, users can also manage brightness and color uniformity with Samsung’s Color Expert Pro, a powerful free software program.
Color Expert Pro Mobile
Samsung’s Color Expert Pro Mobile solution provides a quick and easy video wall calibration through a mobile camera. With the solution’s intuitive UI, even non-expert users can adjust up to 5×5 video wall’s white balance simultaneously without the need for additional equipment.
SPECIFICATIONS
| Panel | |||
| Diagonal Size | 46 | ||
| Type | D-LED DID | ||
| Resolution | 1920*1080 (Full HD) | ||
| Pixel Pitch(mm) | 0.53025mm(H)*0.53025mm(V) | ||
| Active Display Area(mm) | 1018.08mm*572.67mm | ||
| Brightness(Typ.) | 500 nit | ||
| Contrast Ratio | 3500:1 | ||
| Viewing Angle(H/V) | 178/178 | ||
| Response Time(G-to-G) | 8ms | ||
| Display Colors | 8 bit - 16.7M | ||
| Color Gamut | 72% | ||
| Operation Hour | 24/7 | ||
| Haze | 25% (Outer Haze 23%) | ||
| Display | |||
| Dynamic C/R | MEGA DCR | ||
| H-Scanning Frequency | 30kHz ~ 81kHz | ||
| V-Scanning Frequency | 48Hz ~ 75Hz | ||
| Maximum Pixel Frequency | 148.5MHz | ||
| Connectivity | |||
| Input | |||
| RGB | Display Port 1.2 | ||
| Video | HDMI 2.0 (2) | ||
| HDCP | HDCP 2.2 | ||
| USB | USB 2.0 x 1 | ||
| Output | |||
| RGB | HDMI (Loop-out) | ||
| Audio | Stereo mini Jack | ||
| External Control | RS232C(in/out), RJ45 | ||
| External Sensor | Detachable type(IR, Ambient) | ||
| Power | |||
| Type | Internal | ||
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz | ||
| Power Consumption | |||
| Max[W/h] | 143 | ||
| Typical[W/h] | 96 | ||
| BTU(Max) | 488 | ||
| Sleep mode | less than 0.5W | ||
| Off mode | less than 0.5W | ||
| Mechanical Specification | |||
| Dimension (mm) | |||
| Set | 1022.1 X 576.6 X 97.4 | ||
| Package | 1153 X 724 X 295 | ||
| Weight (kg) | |||
| Set | 15.9kg | ||
| Package | 21.7kg | ||
| VESA Mount (mm) | 600 * 400 (mm) | ||
| Bezel Width (mm) | 2.3mm(U/L), 1.2mm(R/B) | ||
| Operation | |||
| Operating Temperature | 0 ℃ ~ 40 ℃ | Humidity | 10 % ~ 80 % |
| Feature | |||
| Key Features | Ultra Narrow Bezel | ||
| Orientation | N/A | ||
| Remote Control | N/A | ||
| Special Features | ACM Support(Advanced Color Management), Auto Source Switching & Recovery, Haze 25%, Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), Pivot Display, Image Rotation, Button Lock, HDMI Digital Daisy Chain(Supporting UHD Resolution, HDCP support), Smart F/W update, Clock Battery(80hrs Clock Keeping) | ||
| Internal Player | Processor | Coretex A72 1.7GHz Quad-Core CPU | |
| On-Chip Cache Memory | L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB | ||
| Clock Speed | 1.7GHz | ||
| Main Memory Interface | 2.5GB LPDDR4 1.5GHz 64bit | ||
| Graphics | Graphic resolution : 1920x1080 - Supports OpenGL ES | ||
| Storage (FDM) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) | ||
| Multimedia | Video Decoder - MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC - VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder - AC3 (DD), MPEG | ||
| IO Ports | USB 2.0 | ||
| Operating System | Tizen 4.0 (VDLinux) | ||
| Certification | |||
| Safety | UL (USA) : UL 60950-1 CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1 NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore) : IEC60950-1 GOST (Russia) : IEC60950-1, EN55022 SIQ (Slovenia) : IEC60950-1, EN55022 PCBC (Poland) : IEC60590-1, EN55022 NOM (Mexico) : NOM-019-SCFI-1993 IRAM (Argentina) :IEC60950-1 SASO (Saudi Arabia) : IEC60950-1 | ||
| EMC | FCC (USA) FCC Part 15, Subpart B class A CE (Europe) EN55022, EN55024 VCCI (Japan) V-3 (CISPR22) KCC (Korea) :KN22, KN24 BSMI (Taiwan) : CNS13438 (CISPR22) C-Tick (Australia) : AS/NZS3548 (CISPR22) CCC(China) :GB9254-2008, GB17625.1-2012 | ||
| Accessory | |||
| Included | Quick Setup Guide, Warranty Card, HDMI cable, stereo to DB9 cable, Power Cord, Remote Controller, Batteries, External IR | ||
| Optional | |||
| Stand | N/A | ||
| Mount | WMN-46VD | ||
| Specialty | N/A | ||
| Media Player | |||
| Media Player | SBB(Slide In), Signage player box | ||
