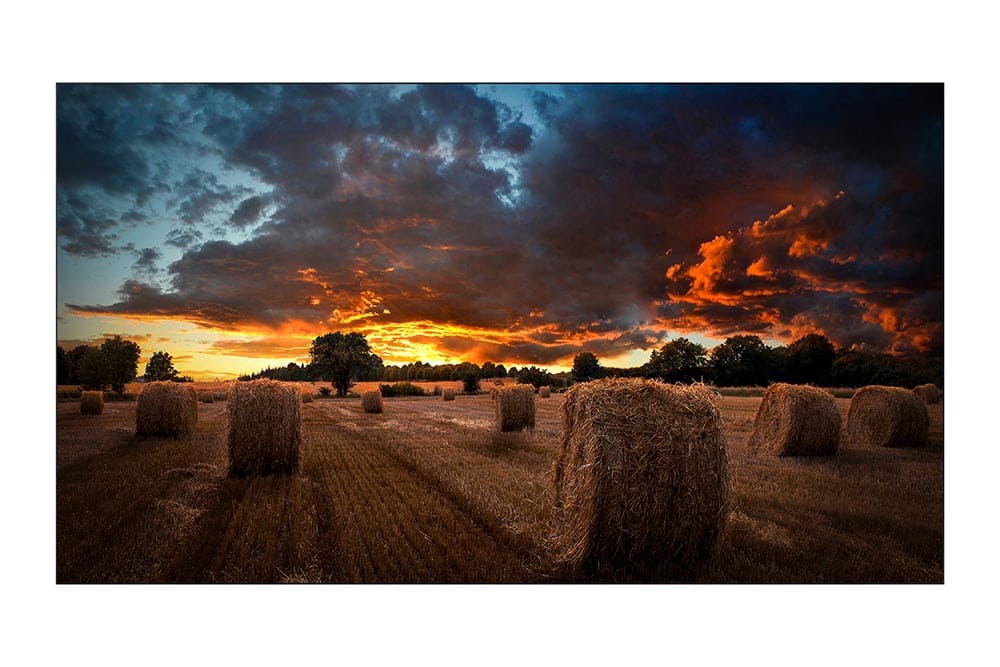

SAMSUNG VMT-U Series

Flawless uniformity and vivid viewing experience with ultra narrow bezel video wall displays

3.5mm (B-to-B) ultra-narrow bezel video wall allows seamless display
The exceptionally thin cabinet depth provides flexibility to create the exact video wall
Non-glare panels evenly distribute light across the screen to maintain vibrant and accurate content

Brand :

Descriptions

video wall ultra narrow videowall lcd samsung vm55t u cover
Play Video

Key Features

Always-on, space-saving solution with ultra-narrow bezels

See an immersive and dependable viewing experience, 24/7 with Samsung’s VMT-U series. The display’s slim depth and 500 nit brightness ensures highly visible images and legible messages in a wide range of locations from shopping malls to lobbies, meeting rooms, control rooms and more.

Transform any space with high impact visuals

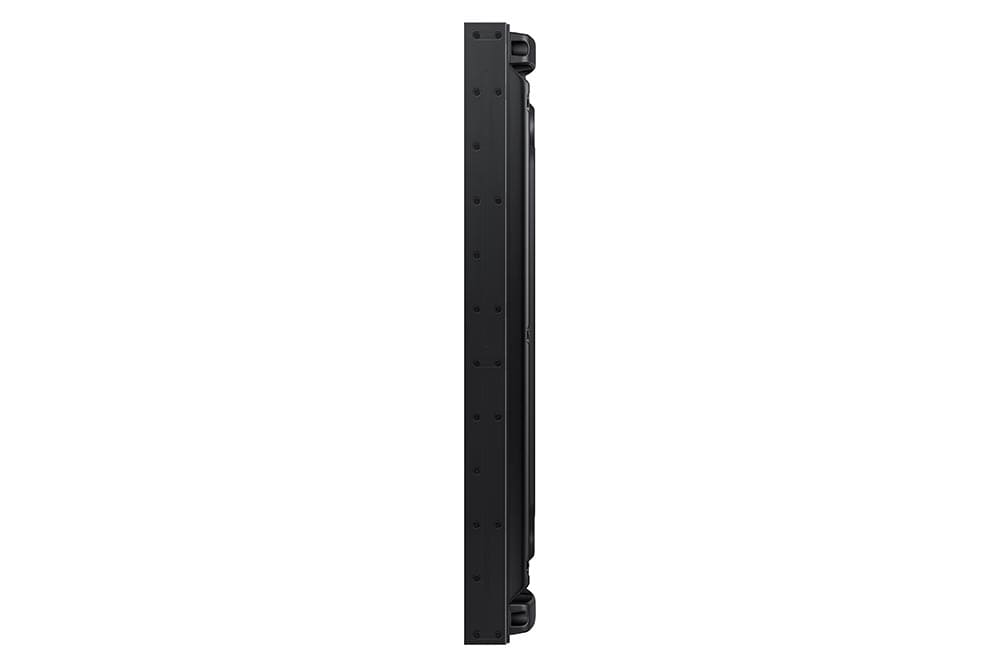

The slender design and 69.9mm cabinet depth provide flexibility for installation and an ultra-narrow 3.5mm bezel-to-bezel width creates a seamless picture opening endless possibilities for designing a captivating visual experience.
video wall ultra narrow videowall lcd samsung vm55t u banner 2
* Exact depth varies by display size.

View content from any angle

Wide viewing angles mean content is easily visible even if viewers aren’t standing directly in front of the display. Audiences can get clear details and vivid colors regardless of where the screen is located.
video wall ultra narrow videowall lcd samsung vm55t u banner 3

Vibrant images in any light

Non-glare panels evenly distribute light across the screen to maintain vibrant and accurate content. Combined with a high contrast ratio and 24/7 operation, visuals are vivid and eye-catching any time of the day or night – regardless of ambient light.
video wall ultra narrow videowall lcd samsung vm55t u banner 4

Image enhancement

Samsung’s powerful picture enhancement technology ensures all content is vibrant and clear. With Picture Enhancer mode, color saturation and contrast are improved by adjusting the gamma curve. Using Black Equalizer mode, dark images are lightened, making details easier to see.
video wall ultra narrow videowall lcd samsung vm55t u banner 5

Comprehensive calibration to fit your needs

Multi-step factory tuning provides uniform brightness and color. Users can also fine-tune advanced settings with free powerful Color Expert Pro software. For quick and simple calibration, Color Expert Pro Mobile enables white balance adjustments for video wall displays up to 5×5 using a mobile camera.

video wall ultra narrow videowall lcd samsung vm55t u banner 6

Advanced presentation, simplified operation

Utilizing daisy chain design through DisplayPort 1.2 or HDMI ports enables the display to present UHD content on multiple screens without an external graphic card. Samsung’s UHD Signage Player Box streamlines functionality by combining the media player and content management software.
video wall ultra narrow videowall lcd samsung vm55t u banner 7

Durable and user-friendly design

IP5x certified, the VMT-U series is dust-resistant and able to withstand a range of environmental conditions without needing to prepare additional enclosure in dusty places. An embedded, centrally located infrared receiver (IR) allows for easier and more flexible user control to the video wall display.

video wall ultra narrow videowall lcd samsung vm55t u banner 8

Rigorous testing, robust protection

VMT-U series is delivered in specialized packaging which has passed a rigorous 4-step test to meet ISTA standards, ensuring the display is protected from any potential damage during transit. This provides peace of mind for businesses that the display is ready to function immediately after delivery.
video wall ultra narrow videowall lcd samsung vm55t u banner 9

Specifications

Diagonal Size 55"

Type IPS

Resolution 1920*1080 (Full HD)

Pixel Pitch(mm) 0.63mm(H)*0.63mm(V)

Active Display Area(mm) 1209.6 * 680.4 mm

Brightness(Typ.) 500 nit

Contrast Ratio 1200:1

Viewing Angle(H/V) 178/178

Response Time(G-to-G) 8ms

Display Colors 8 bit - 16.7M

Color Gamut 72%

Operation Hour 24/7

Haze 25%

Dynamic C/R 45,000:1

H-Scanning Frequency 57.3kHz ~ 70kHz

V-Scanning Frequency 48Hz ~ 75Hz

Maximum Pixel Frequency 78MHz

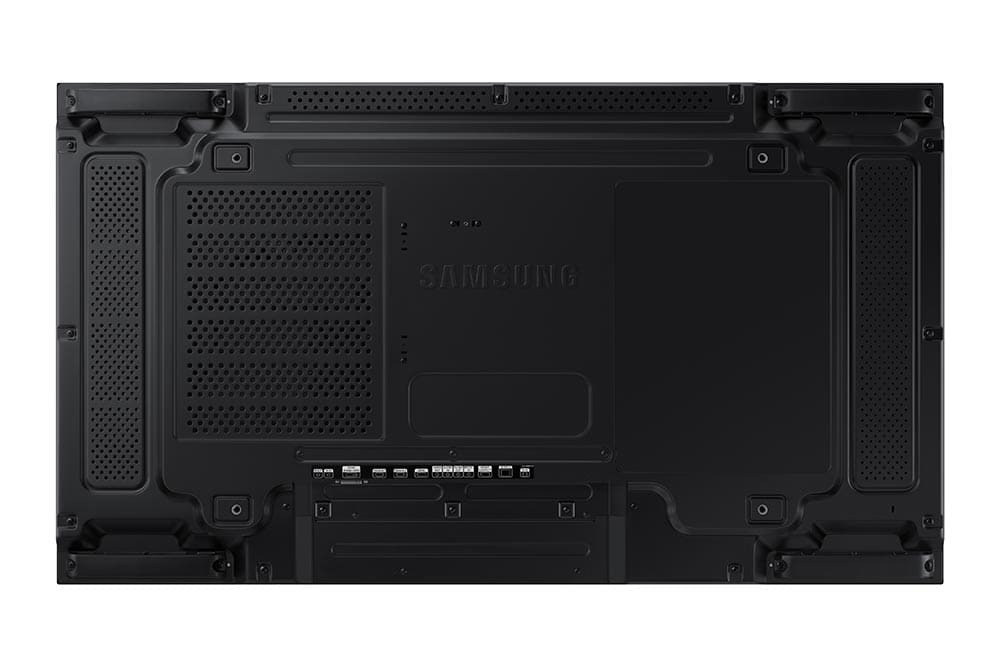

VESA Mount (mm) 600 * 400 (mm)

Bezel Width (mm) 2.3mm(U/L), 1.2mm(R/B)

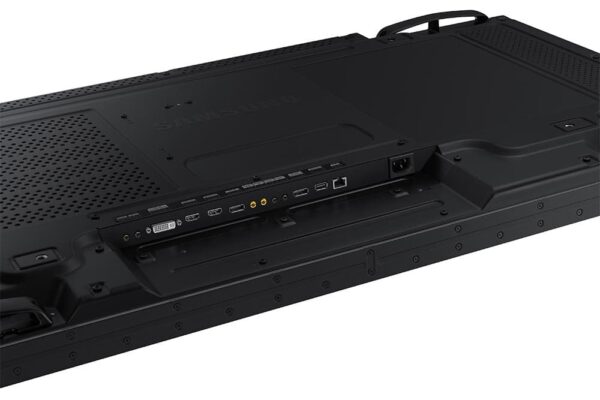

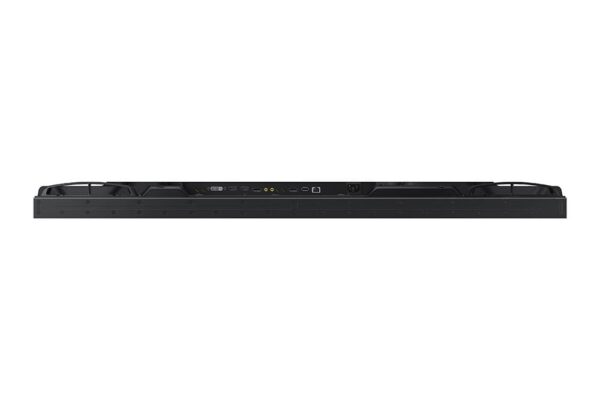

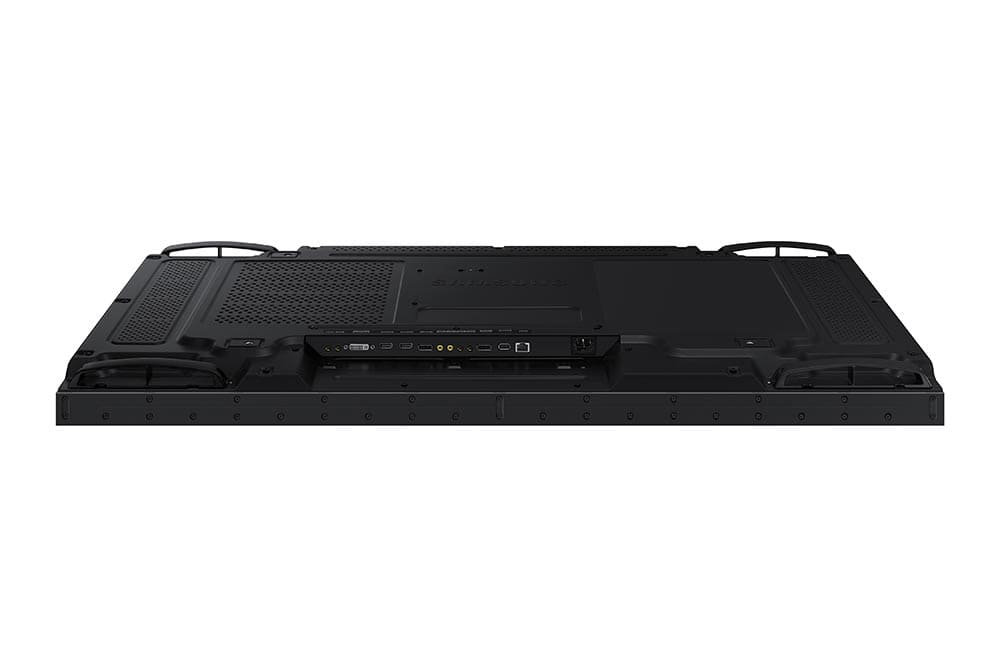

Input
RGB DVI-D, Display Port 1.2

Video HDMI 2.0 (2)

HDCP HDCP 2.2

Audio Stereo mini Jack

USB Only F/W upgrade

Output
RGB DP1.2(Loop-out)

Audio Stereo mini Jack

External Control RS232C(in/out), RJ45

External Sensor Detachable type(IR)

Type Internal

Power Supply AC 100 - 240 V, 50/60 Hz

Power Consumption
Max[W/h] 242

Typical[W/h] 136

BTU(Max) 825.0

Sleep mode less than 0.5W

Off mode less than 0.5W

Operating Temperature 0 ℃ ~ 40 ℃

Humidity 10 % ~ 80 %

Key Features Ultra Narrow Bezel

Orientation N/A

Remote Control N/A



Special Features ACM Support (Advanced Color Management), Auto Source Switching & Recovery, Haze 28%, Temperature Sensor, RS232C/RJ45 MDC, Plug and Play (DDC2B), Video Wall(15x15(OSD)), Video Wall Daisy Chain(10x10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain (Supporting UHD Resolution, HDCP support), Smart F/W update, Clock Battery (168hrs Clock Keeping) IP5X tested, EMC Class A, Center IR

Safety
UL (USA) : UL 60950-1 CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1 NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore) : IEC60950-1 GOST (Russia) : IEC60950-1, EN55022 SIQ (Slovenia) : IEC60950-1, EN55022 PCBC (Poland) : IEC60590-1, EN55022 NOM (Mexico) : NOM-019-SCFI-1993 IRAM (Argentina) :IEC60950-1 SASO (Saudi Arabia) : IEC60950-1

EMC
FCC (USA) FCC Part 15, Subpart B class B CE (Europe) EN55022, EN55024 VCCI (Japan) VCCI CISPR32:2016 KCC (Korea) :KN32, KN35 BSMI (Taiwan) : CNS13438 (CISPR22) C-Tick (Australia) : AS/NZS CISPR32:2015 CCC(China) :GB9254-2008, GB17625.1-2012

IP Rating
IP5X

Dimension (mm)

Set 1213.5 x 684.3 x 73.1

Package 1398 x 844 x 257

Weight (kg)
Set 21.2kg

Package 28.8kg

Included
Quick Setup Guide, Warranty Card, DP cable, stereo to DB9 cable, Power Cord, Remote Controller, Batteries, External IR

Optional
Stand N/A

Mount WMN-55VD

Specialty N/A
