Video Wall Controller - VR40 Series

VR40 series video wall controller is new generation professional image processing product which is based on the development of multi-windows, ultra-high definition and visual display control technology.

Descriptions

modular videowall controller vr40 series product 4new

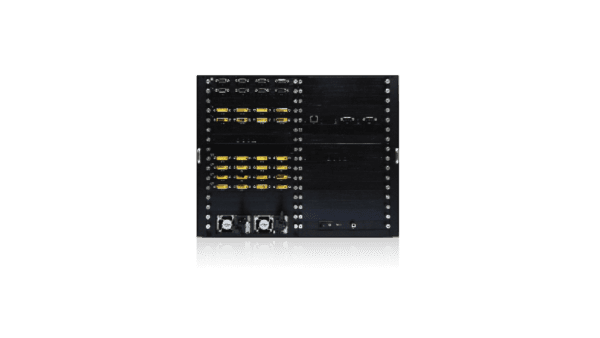

VR40 Series Video Wall Controller

VR40 series video wall controller is new generation professional image processing product which is based on the development of multi-windows, ultra-high definition and visual display control technology.

Unlimited Video Wall Content Layout Design

Roaming, Picture in Picture, Zooming in/out, Stretching, Cropping. Opening at least 4 windows on single display. Up to 255 presets management.

Key Features

Seamless Matrix Switch and Multi-Group Control

One controller controls 5 different groups of video wall with independent display arlay and resolution. Each content windows on the video wall can be seamlessly switched without affecting others.
modular videowall controller vr40 series product 11

Most Leading And Popular Content Types Directly Access

Support [email protected] HDMI/DP/Dual-link DVI input and [email protected] HDMI output.

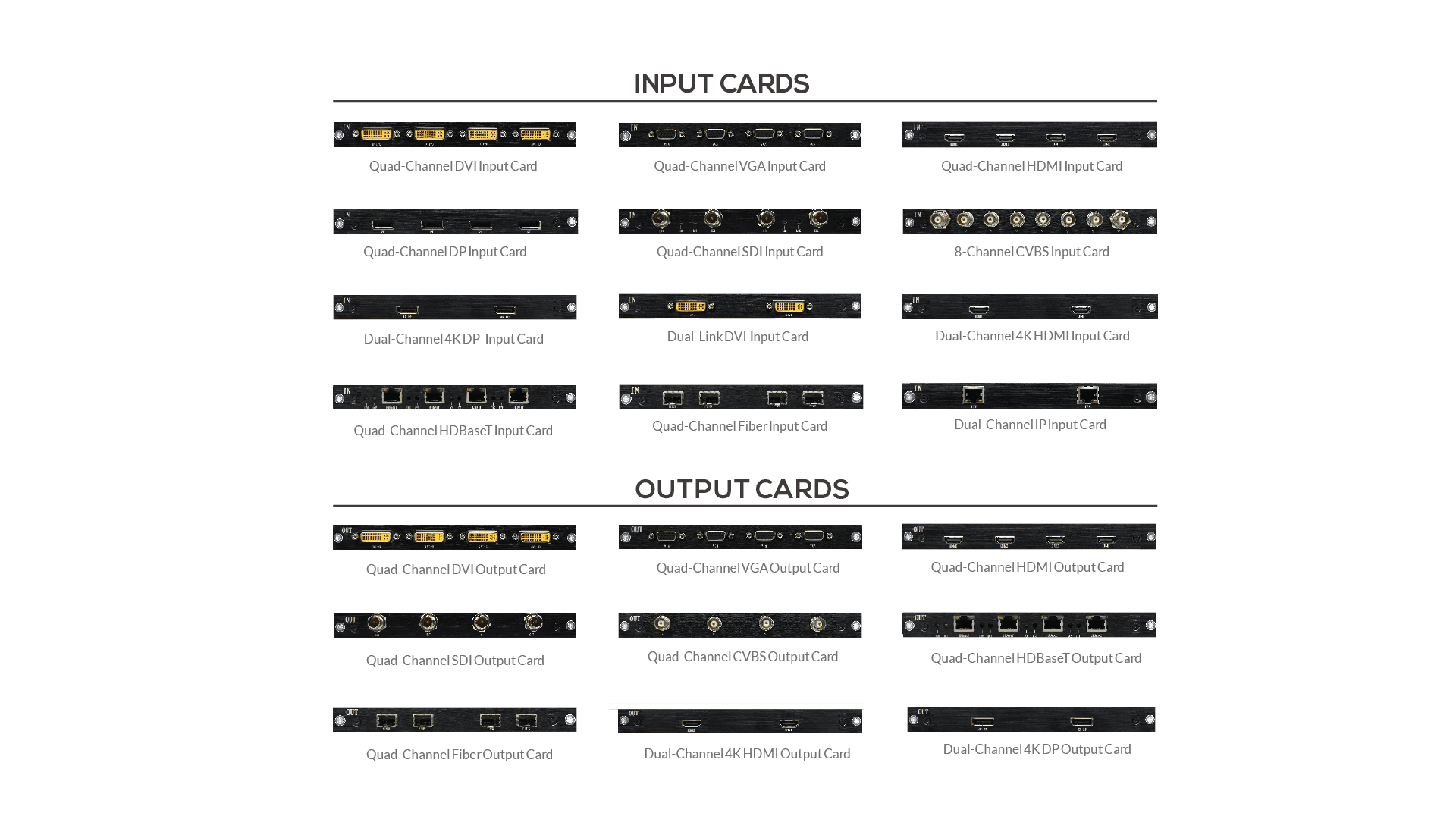

Input: VGA, DVI, HDMI,CVBS, DP, SDI, HDbaseT, IP-Video, Fiber optic, etc.

Output: VGA, DVI, HDMI,CVBS, SDI, HDbaseT, Fiber optic, etc.

modular videowall controller vr40 series product 3

Control Your System At Anytime, Anywhere, With Any Device

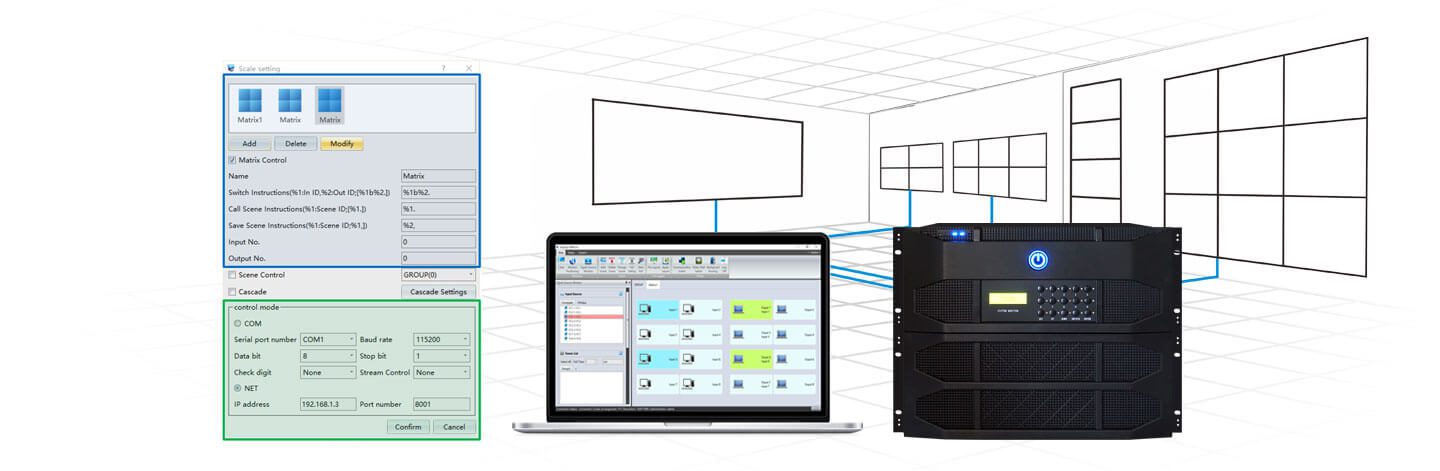

Support windows / iOS / web control. Support signal preview and video wall monitoring. Support KVM control remote content servers through network, no additional hardware required.

Open Control Protocols

Support third-party control.

Multi-User Management

Each user can be set with different operating function and privileges.

7/24 Continuously Operation

Support redundant power supply, industrial grade design.

Pre-Layout

To avoid operator misoperation, setup all displaying contents layout.

Scheduling

Change or reycle contents and layout on the video wall at any designated time.

Video Wall Switch On/Off

Support switch on/off video wall power by sending control commands to the video wall.

iOS / Web Control

More Power, More Performance, More Pro. Synchronization Control.

iOS Control

Free and user-friendly ios app. It can be easily downloaded free from Apple App store and provides users with the interface needed to quickly and effectively manage video walls of any size in real-time.

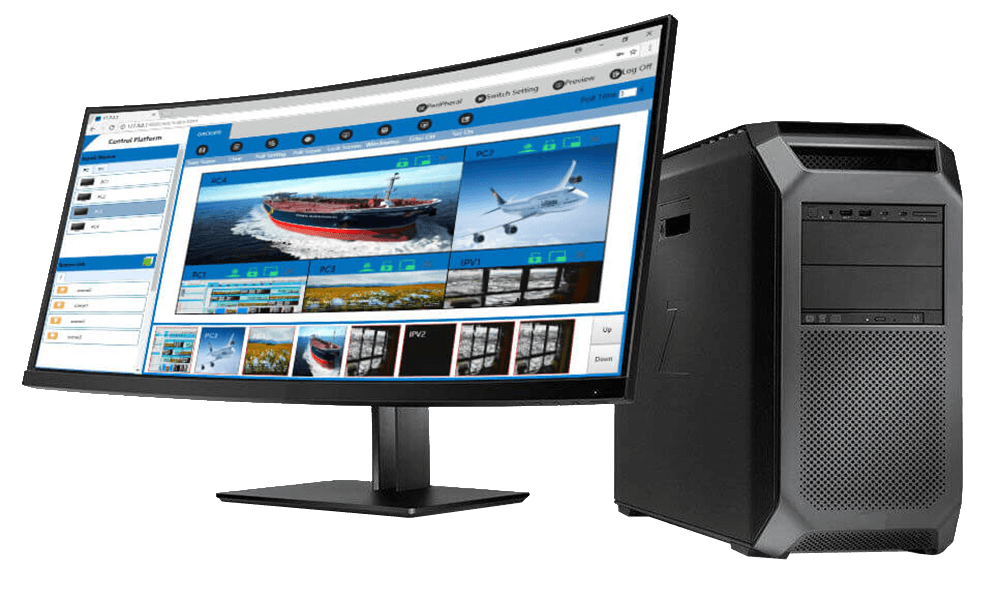

Web Control

Free and user-friendly web-based software. It allows users to control the BRWall-based controller from anywhere through any popular web browseres by using an off the shelf PC/Server with IP network.

Synchronous Control

Synchronizes control video wall stutas from all controllers in the specific network and has its own database. It allows users to control same system either by PC, iPad or Web browser at the same time.
modular videowall controller vr40 series product software control 06

IOS CONTROL

Free and user-friendly ios app. It can be easily downloaded free from Apple App store and provides users with the interface needed to quickly and effectively manage video walls of any size in real-time.

Web Control

Free and user-friendly web-based software. It allows users to control the BRWall-based controller from anywhere through any popular web browseres by using an off the shelf PC/Server with IP network.
modular videowall controller vr40 series product 10

Synchronous Control

Synchronizes control video wall stutas from all controllers in the specific network and has its own database. It allows users to control same system either by PC, iPad or Web browser at the same time.

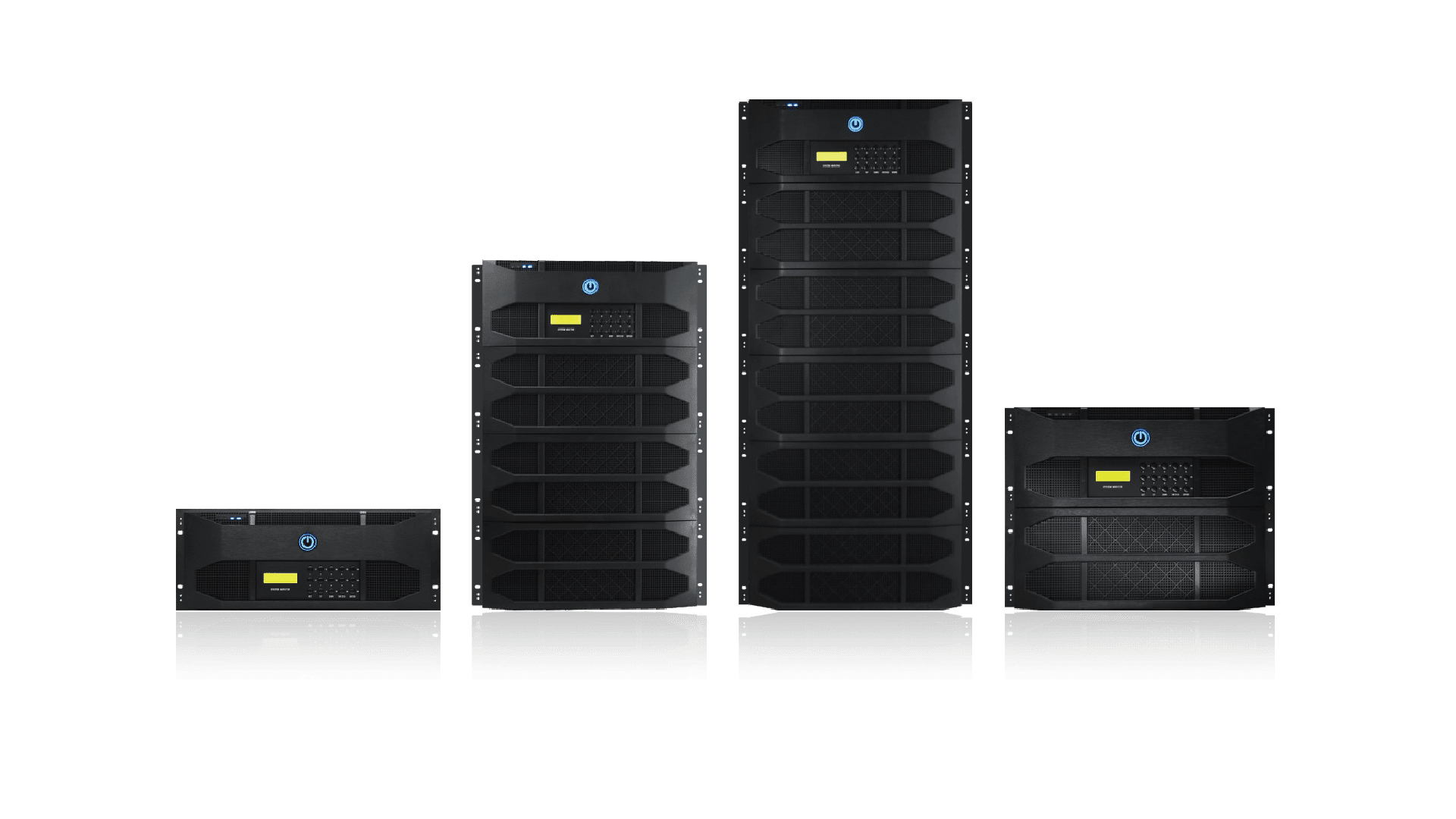

Specifications

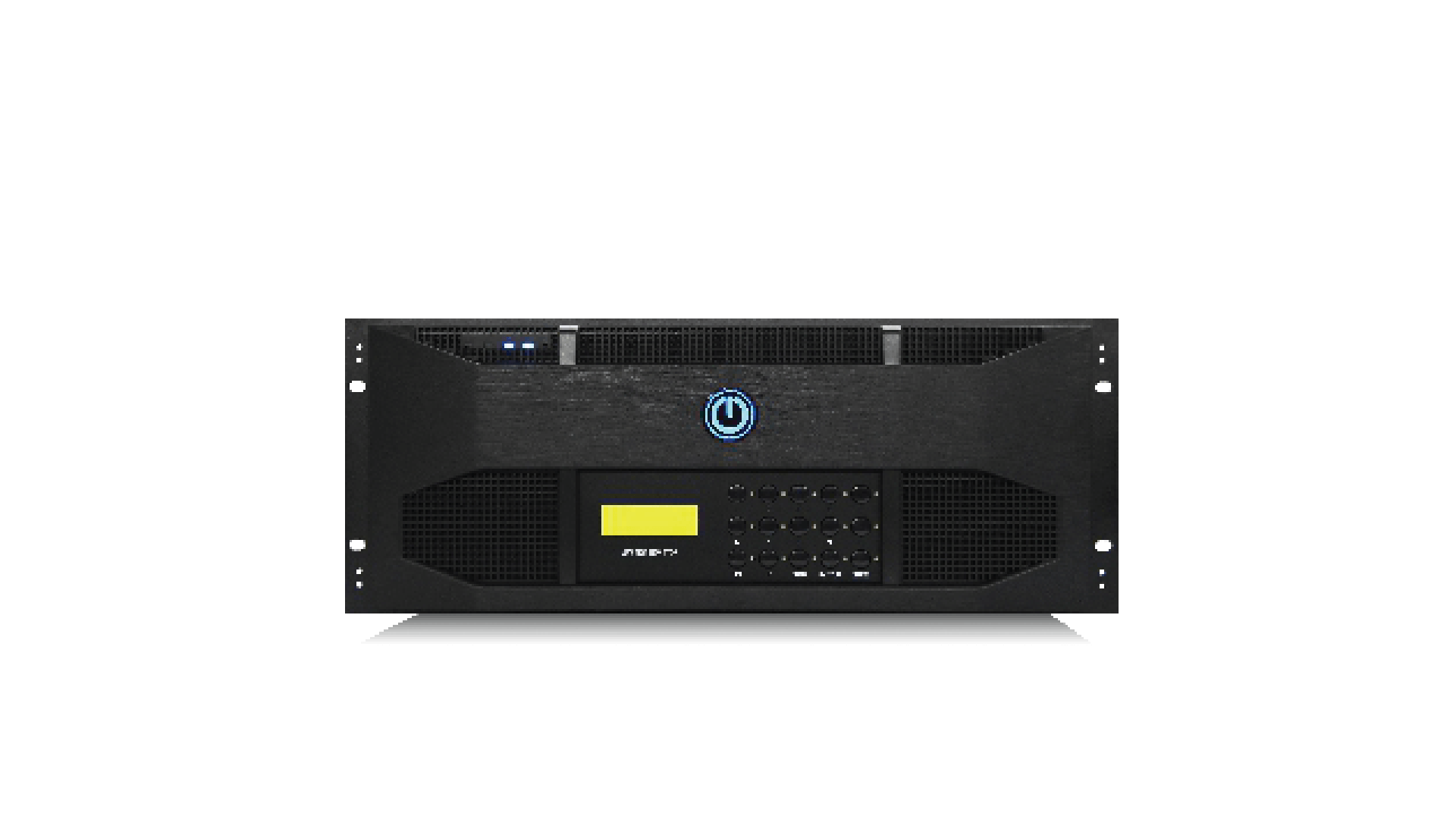

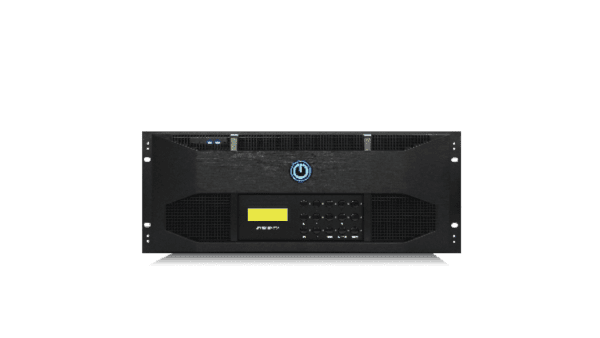

4U
Input

Slots 4

Redundant PSU 1+1

Output

Slots 4

Redundant PSU 1+1

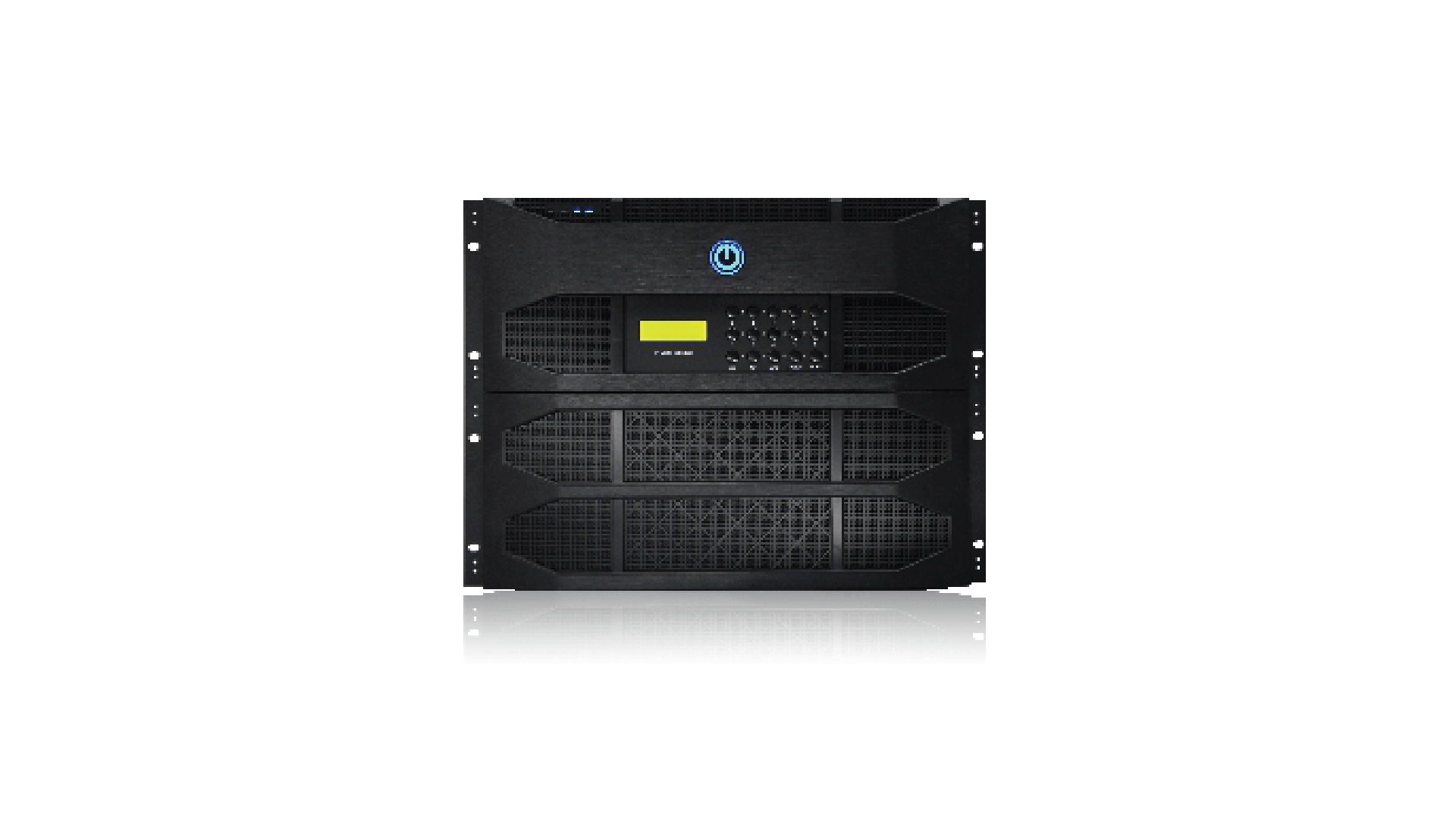

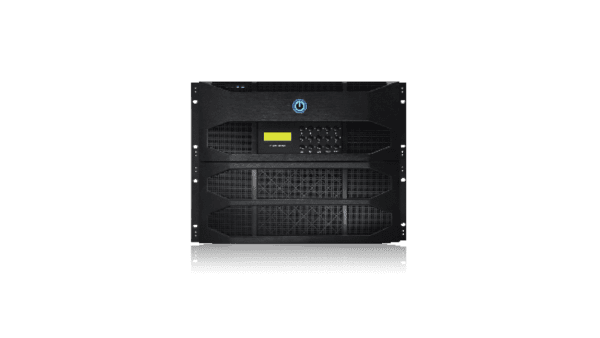

8U
Input

Slots 9

Redundant PSU 1+1

Output

Slots 8

Redundant PSU 1+1

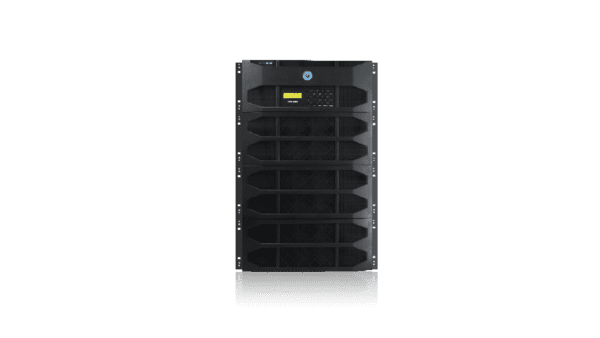

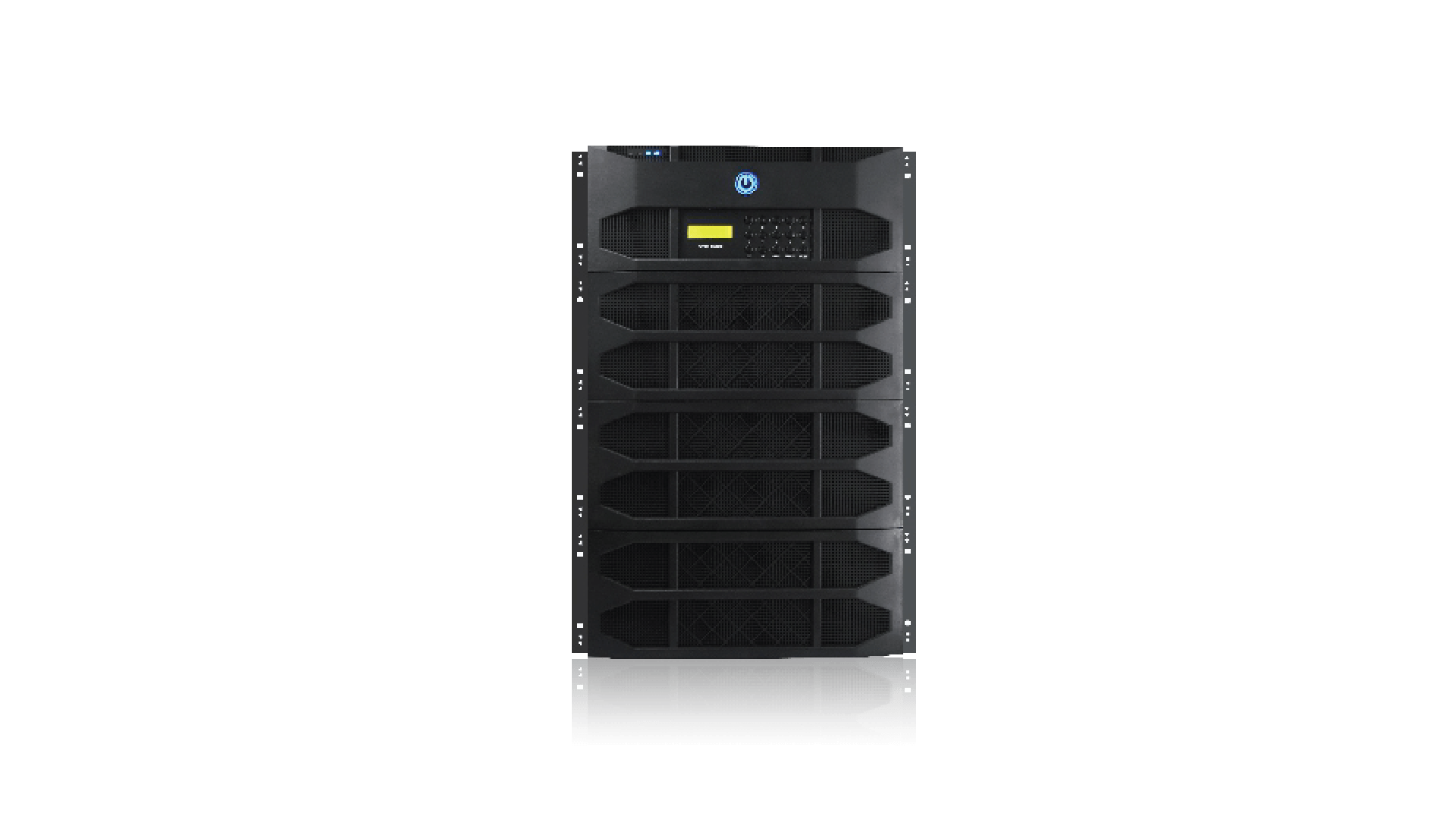

16U
Input

Slots 20

Redundant PSU 2+2

Output

Slots 20

Redundant PSU 2+2

16UA
Input

Slots 29

Redundant PSU 2+2

Output

Slots 15

Redundant PSU 2+2

16UB
Input

Slots 15

Redundant PSU 2+2

Output

Slots 29

Redundant PSU 2+2

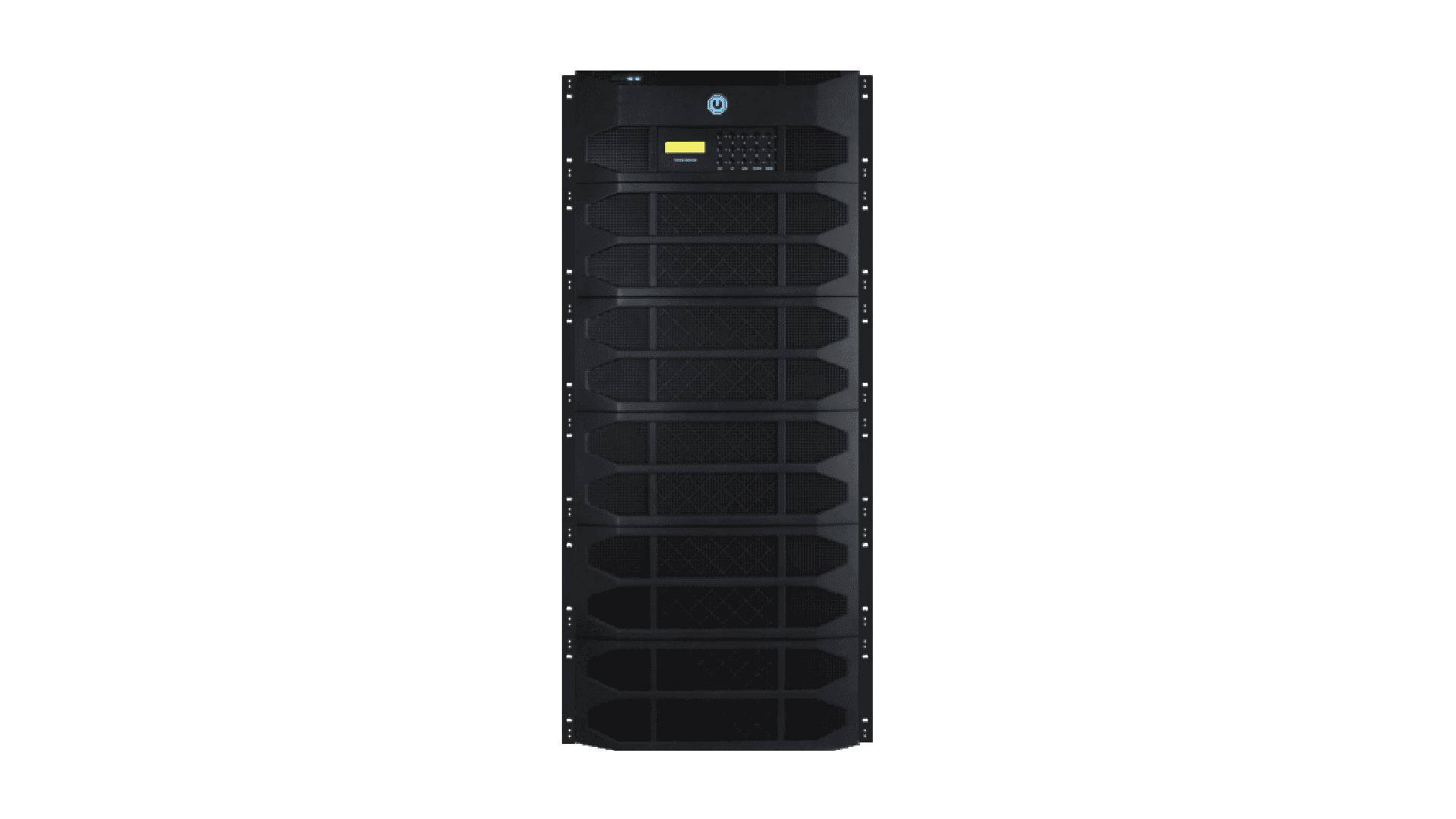

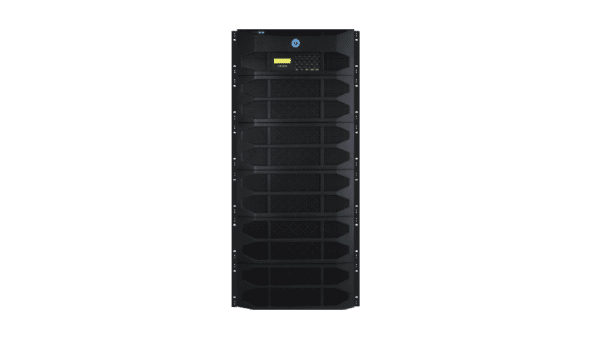

24U
Input

Slots 40

Redundant PSU 2+2

Output

Slots 40

Redundant PSU 2+2

32U (DOUBLE)
Input

Slots 80

Redundant PSU 8+8

Output

Slots 80

Redundant PSU 8+8

PRODUCT HARDWARE INFORMATION

System structure Pure hardware FPGA architecture

Operating system No CPU and operating system

Board type Pure hardware pluggable, hot- swappable structure

INPUT / OUTPUT SIGNAL

Input type VGA, DVI, HDMI, DP, CVBS, SDI, HDBaseT, IP-Video, Fiber

Input channel 1080P up to 320 channel, 4K up to 80 channel

Output type VGA, DVI, HDMI, CVBS, SDI, HDBaseT, Fiber

Output channel 1080P up to 320 channel,4K up to 80 channel

IMAGE PROCESSING

Display mode Roaming, overlay, zoom in/out, multi-windowing, scene switch, PIP, full screen and combination screen

Input resolution Single channel 4K: duallink DVI/HDMI/DP

Scene/ Signal switching time Millisecond-level switching

Number of signal copy More than the number of output ports

Max input/ output resolution 3840*[email protected]

Single-screen window At least 8 windows on each two screens

Hot-swappable Support

Power supply configuration N+1 redundant power supply structure

Signal preview Support

CONTROL FUNCTION

Control structure Software /Hardware

Maximum scenes 255

Control method RS232 / Network / Touch screen / Keypad and compatible with third party control system

Management mode B/S, C/S, Mobile

Matrix control Supports digital /analog matrix linkage control

STABILITY

Safety Hardware structure, no virus interference

MTBF 50000h

Continuity 365 days, 7x24 hours operation

Operating temperature - 15~60℃
