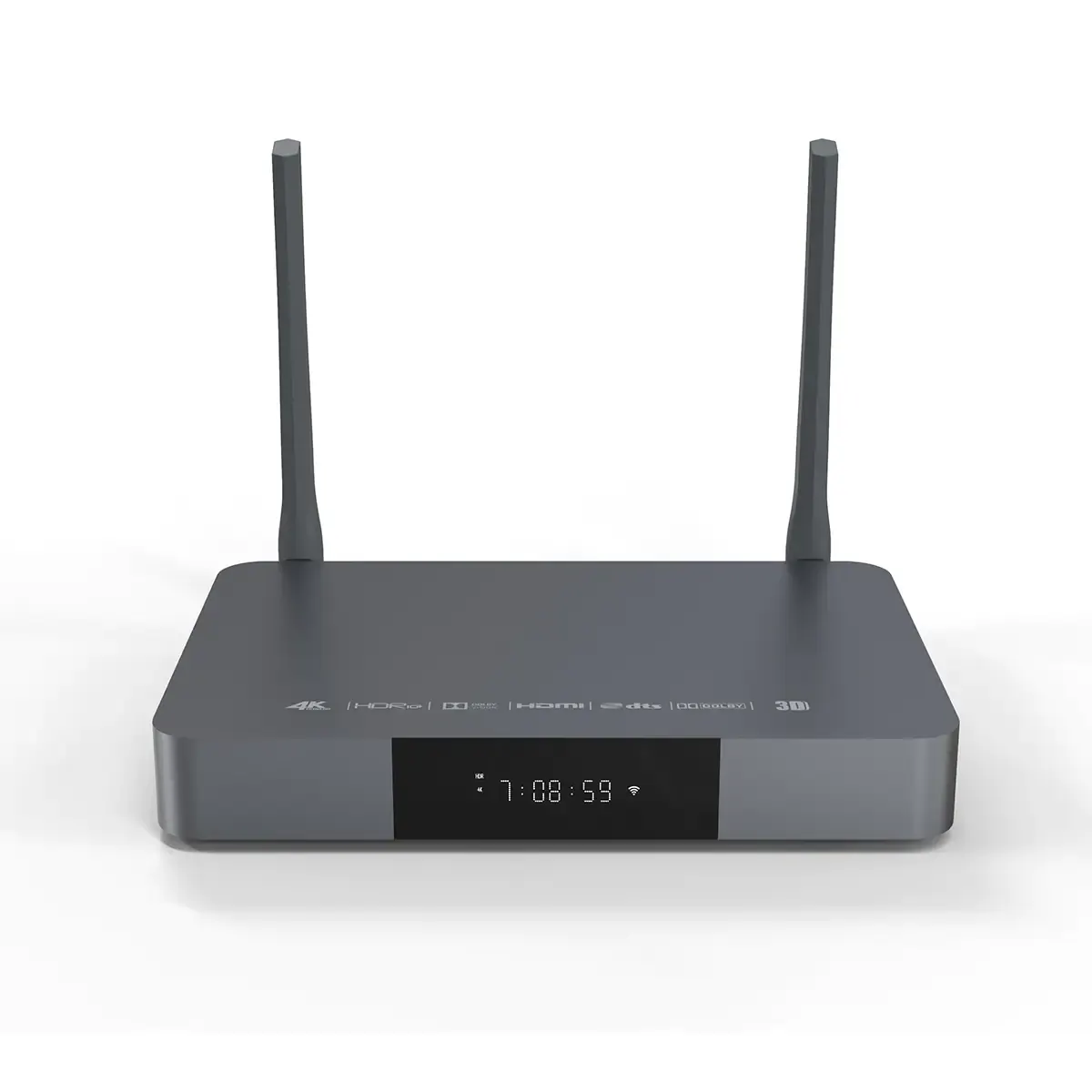

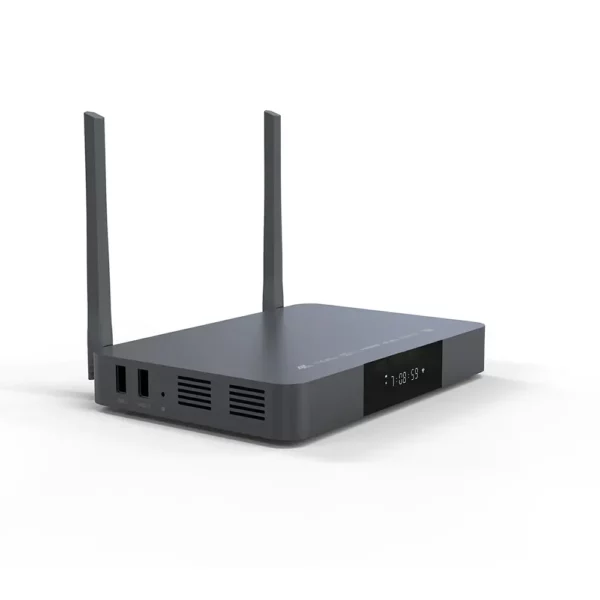

ARVIA 4K UHD Media player- ARV S9x
High End 4K HDR Experience
ARV S9x is a 4K UHD media player with powerful graphics engine for home theater. Compared with last generation, it has significant improvement in audio and video decoding especially the support for HDR 10+ and Dolby vision, which has filled up the vacancy of the market. Meanwhile, it is still a cost-effective and high-performance model
DESCRIPTIONS

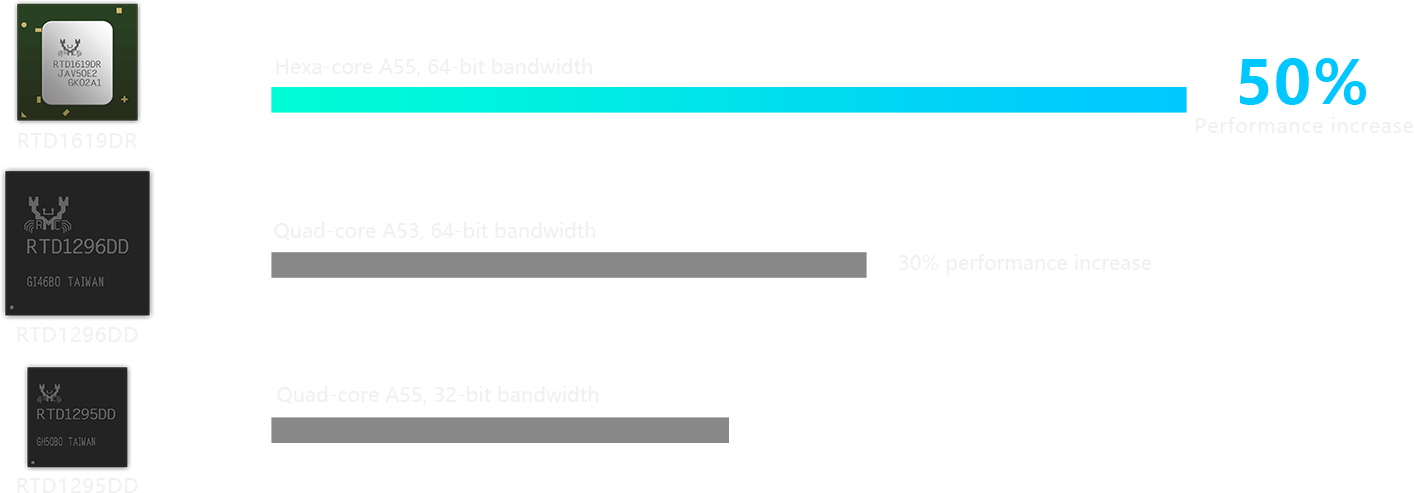

Powerful Chipset
ARV S9x media player is equipped with RTD1619DR hexa-core 64-bit high-performance CPU, which has faster response speed and more efficient computing capability. Strong decoding performance supports accurate UHD decoding and excellent image quality output
KEY FEATURES
High End 4K HDR Experience
ARV S9x is a 4K UHD media player with powerful graphics engine for home theater. Compared with last generation, it has significant improvement in audio and video decoding especially the support for HDR 10+ and Dolby vision,which has filled up the vacancy of the market. Meanwhile, it is still a cost-effective and high-performance model
Powerful Chipset
Equipped with RTD1619DR hexa-core 64-bit high-performance CPU, which has faster response speed and more efficient computing capability. Strong decoding performance supports accurate UHD decoding and excellent image quality output
Large Memory and Internal Storage
2GB DDR4 large memory comes with fast and smooth playback response, which helps enjoying wonderful movie and music. 16GB eMMC super internal storage supports installing masses of favorite apps and create more possibilities for audio-visual entertainment
WiFi and Bluetooth
Has a built-in 2.4G+5G dual-band 2R2T MIMO WIFI module, the wireless transmission rate is up to 867Mbps. And Z9X has high-gain antennas. It can avoid interference and maintain a stable and high-speed connection even in the harsh network environment
Equipped with Bluetooth BT 4.2 module, Z9X supports connecting with Bluetooth remote control,Bluetooth mouse, Bluetooth speaker and Bluetooth headphone etc.

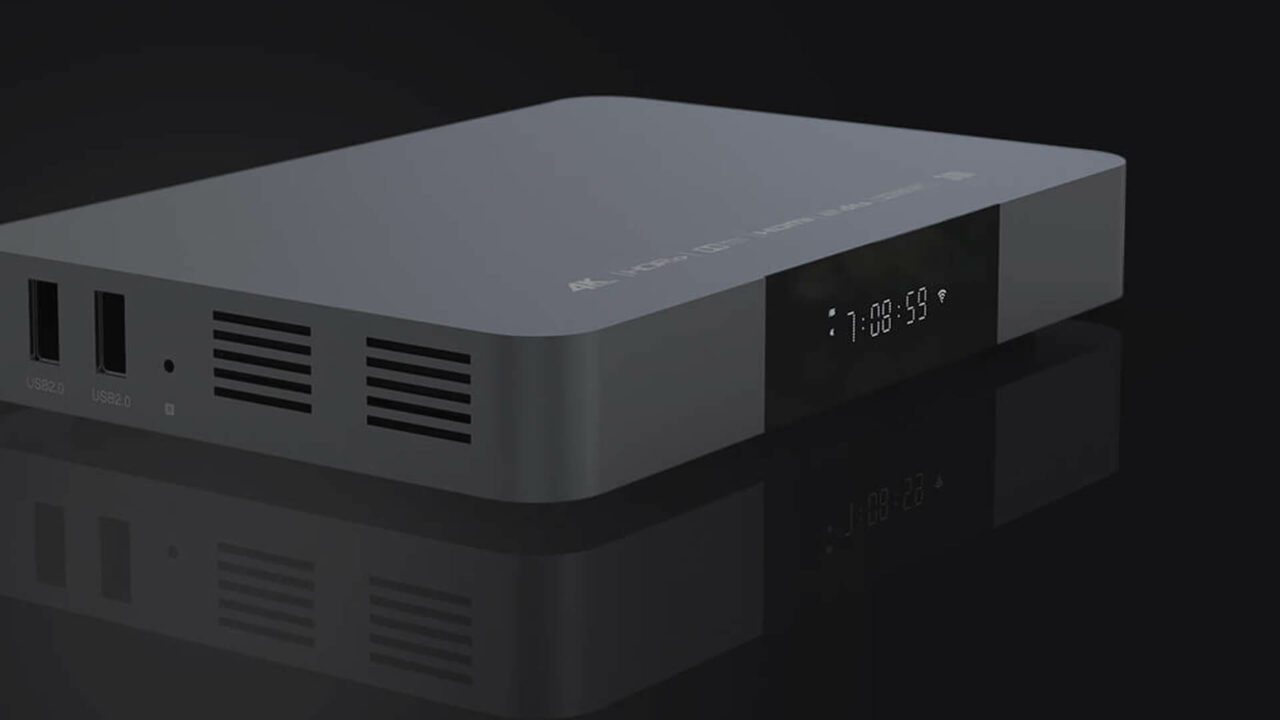

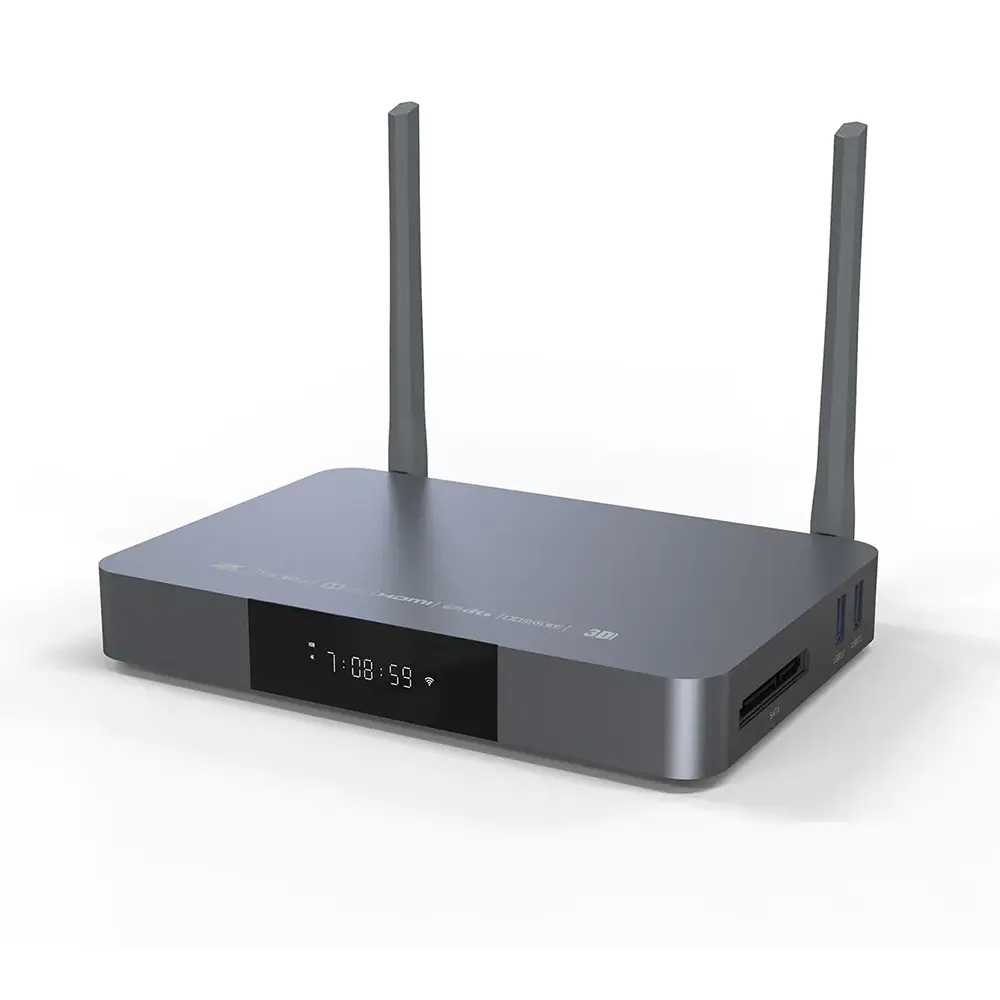

Chassis Material and Workmanship
The chassis is all made of metal, which is exquisite and durable
The gray surface has a nice feel with sandblasting and oxidation workmanship

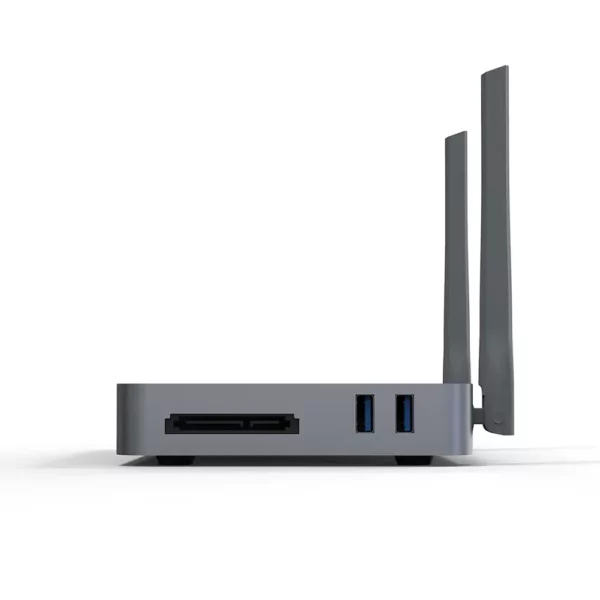

Multiple Interfaces

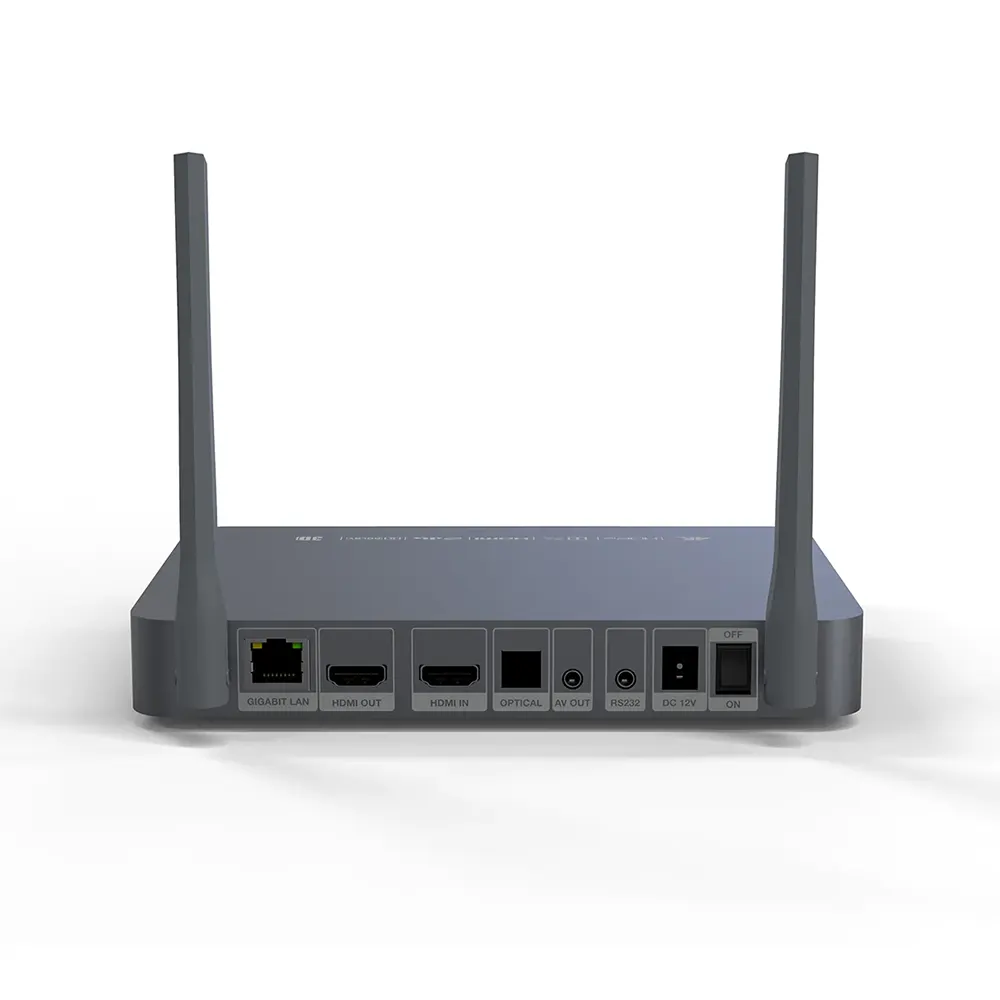

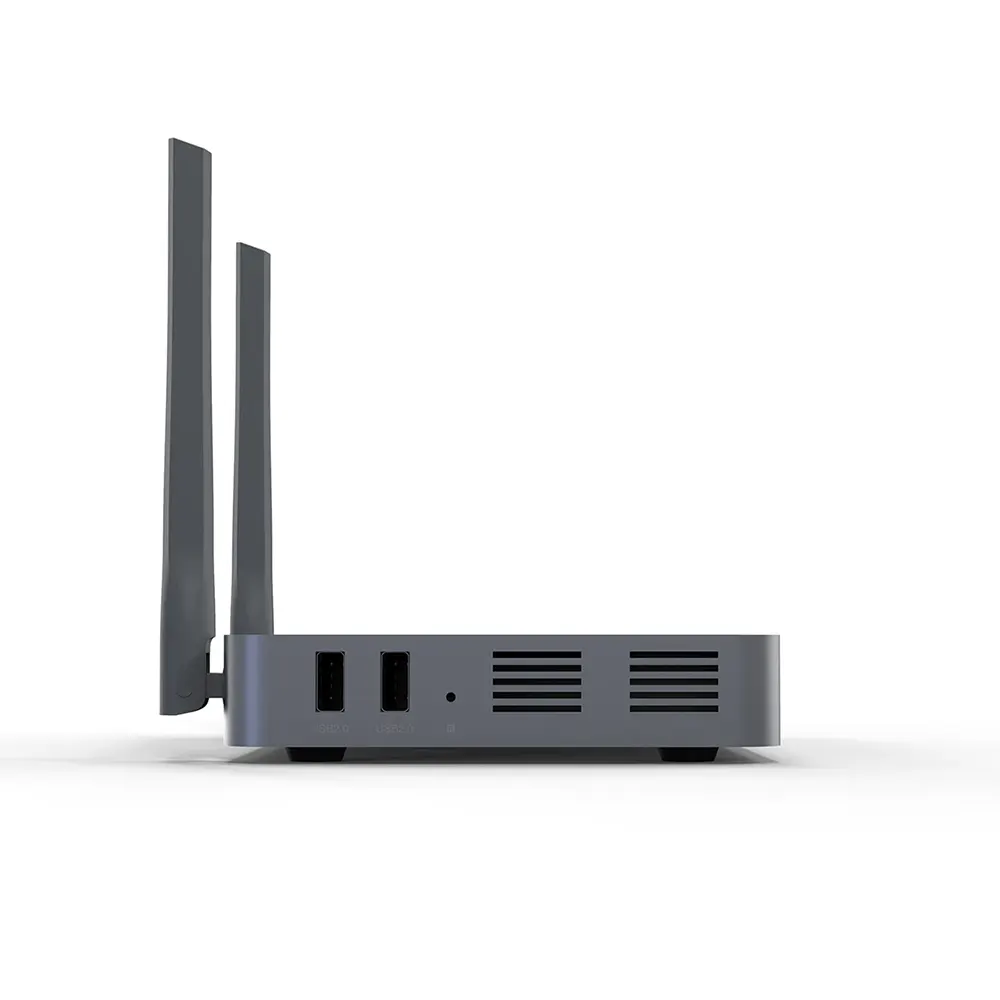

ARV S9X has many interfaces including HDMI input, HDMI output, SATA3.0, USB 3.0 x 2, USB 2.0 x 2, AV out, Optical, RS232, Gigabit LAN etc. Meet home theater enthusiasts’ needs for connecting various equipments
4K UHD Image Quality
ARV S9X image engine can easily decode 4K HDR images which encoded with HEVC/H.265
Support 3840 x 2160 60Hz output, each pixel is natural and full
Images are clear and vivid even in a large screen
Accurate Frame Rate Switching
Z9X supports switching original resolution and frame rate automatically and accurately (23.976,59.94,25,30,50 and 60). The new automatic switching algorithm allows completing the film frame rate switching in advance to ensure smooth and integral film playback
Stunning HDR Technology
New HDR processing engine can deal with HDR10 static metadata (MaxFall, MaxCll) more accurately. Color contrast is stark, both highlights and shadows can be displayed perfectly, which could display images like real scene
Meanwhile, ARV S9X provides HDR to SDR algorithm, it helps displaying HDR movies very well on SDR devices through dynamic correction and color reproduction
SDR brightness range: 0.1nits – 100nits
HDR10 brightness range: 0.005nits – 1000nits
Higher Level HDR10+
ARV S9X takes the lead in adding HDR10+ and Dolby Vision technology. HDR10+ technology could not only display peak brightness up to 4000 nits, but also process metadata accurately for each frame. Namely, colors and brightness levels are obtained frame by frame and scene by scene, images could be displayed in details with wide dynamic contrast and richer colors
Dolby Vision VS10 Technology
Z9X integrates Dolby Vision VS10 image engine, which supports Dolby Vision low latency（LLDV）output. Dolby Vision has adopted advanced dynamic metadata processing technology, so that the most suitable brightness could be output for images and scenes of each frame. Shadows are darker while highlights are brighter. Even in the dark and weak-light environment, it could also display the best visual effect
Meanwhile, VS10 is a powerful engine, no matter what formats (Dolby Vision, HDR,HLG,SDR etc. ) or displaying devices, whether HDR outputting or SDR converting, all could keep color accuracy and bring good experience to customers. Even normal TV could experience Dolby Vision technology
* DOLBY VISION brightness range: 0.007nits – 10000nits
12Bit Color Depth
ARVIA S9X new image engine not only supports 10 Bit (approximately 1.07 billion colors) decoding and outputting at the resolution of 4K 60Hz, but also supports higher color depth 12 bit (approximately 68 billion colors); 12 bit has vibrant colors and natural color transition

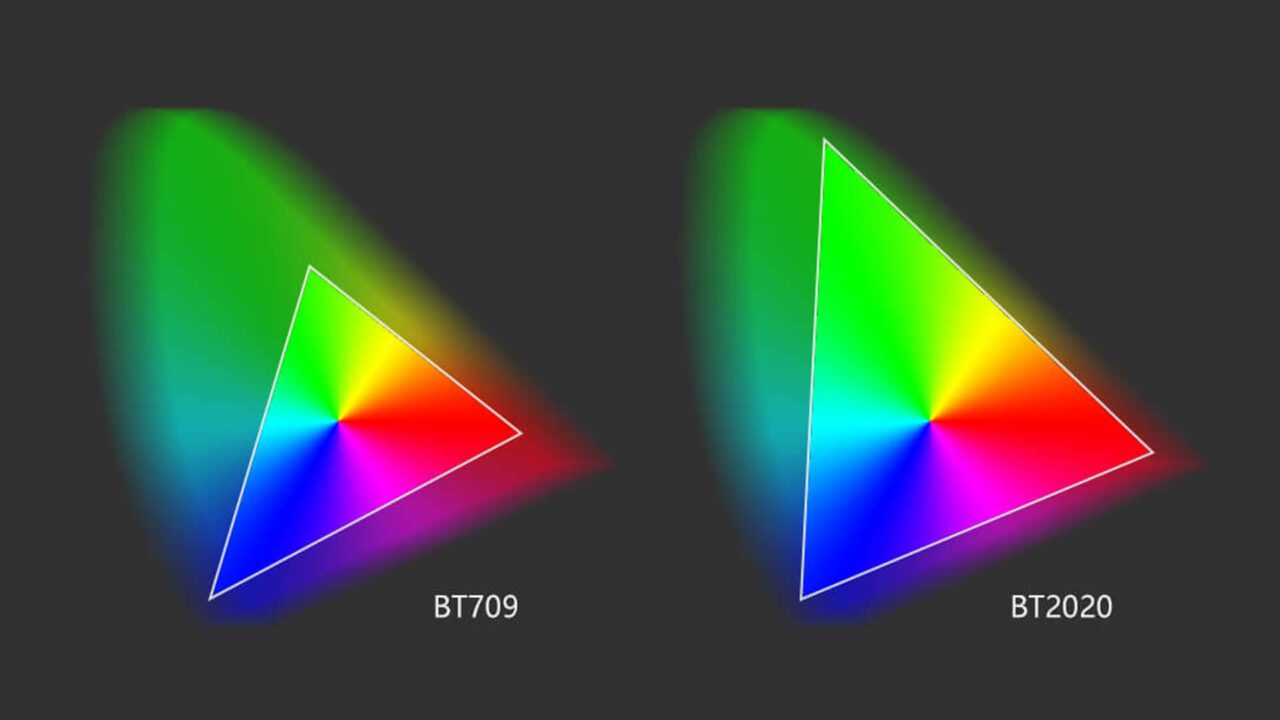

Wider Color Range
ARVIA S9X supports BT.2020 wide color range which could display 75% nature colors and closer to what human eyes could see, while traditional BT.709 could only display 35% nature colors. It has bright and eye-catching colors, rich and full images, and a better sense of space, three dimension and layering
SPECIFICATIONS
Model ARV S9x
Shell Material Aluminum alloy
Front Display LED
OS Android 9.0
CPU Realtek RTD1619DR ARM Cortex-A55 Hexa-core
GPU ARM Mali-G51 MP3
RAM 2GB DDR4
Internal Storage 16GB eMMC
Bluetooth BT 4.2
Wifi Connectivity 2.4G+5G dual-band WiFi, 802.11 a/b/g/n/AC 2R2T MIMO 867Mbps
Ethernet RJ-45 Ethernet jack(10/100/1000Mbps) * 1
HDMI Output HDMI 2.0a, support up to [email protected], HDR, 12Bit, YCbCr 4:4:4 color range, support audio passthrough
HDMI Input HDMI 2.0, support [email protected], 48khz PCM audio
Video Decode [email protected] HEVC/H.265 12 Bit HDR10, HDR10+, Dolby vision
Audio Decode Support HD audio passthrough and decode 2 channels
Intelligent Control APP control, HTTP control
Power Supply DC 12V 2A
SATA SATA 3.0 * 1
USB USB 3.0 * 2
USB 2.0 * 2
Other Interfaces 3.5mm AV output * 1 / SPDIF optical output (5.1CH) * 1 / 3.5mm RS232 * 1 / high-gain antenna * 2
Accessories Remote control * 1 / Power adapter * 1 / SATA cable * 1
User manual * 1
