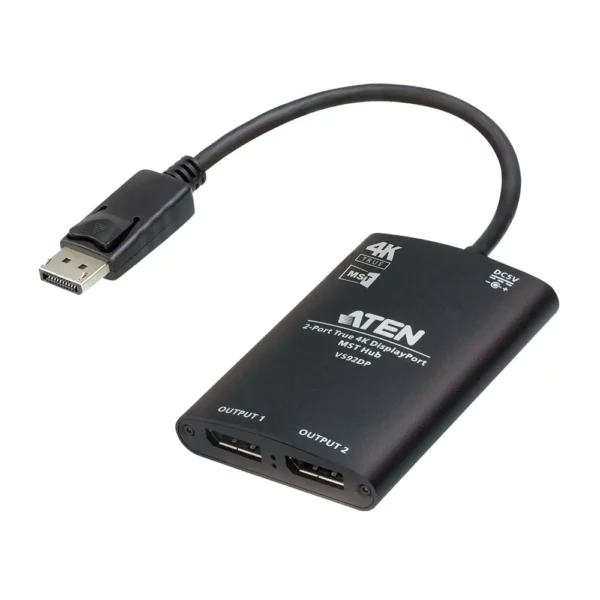

Aten 2-Port True 4K DisplayPort MST Hub - VS92DP

– Distributes one True 4K source to two DisplayPort displays simultaneuosly
– Allows Multi-Stream Transport (MST) Mode
– DisplayPort 1.2; HDCP 1.3 compliant
– Very High quality and durable aluminum enclosure

Brand :

Descriptions

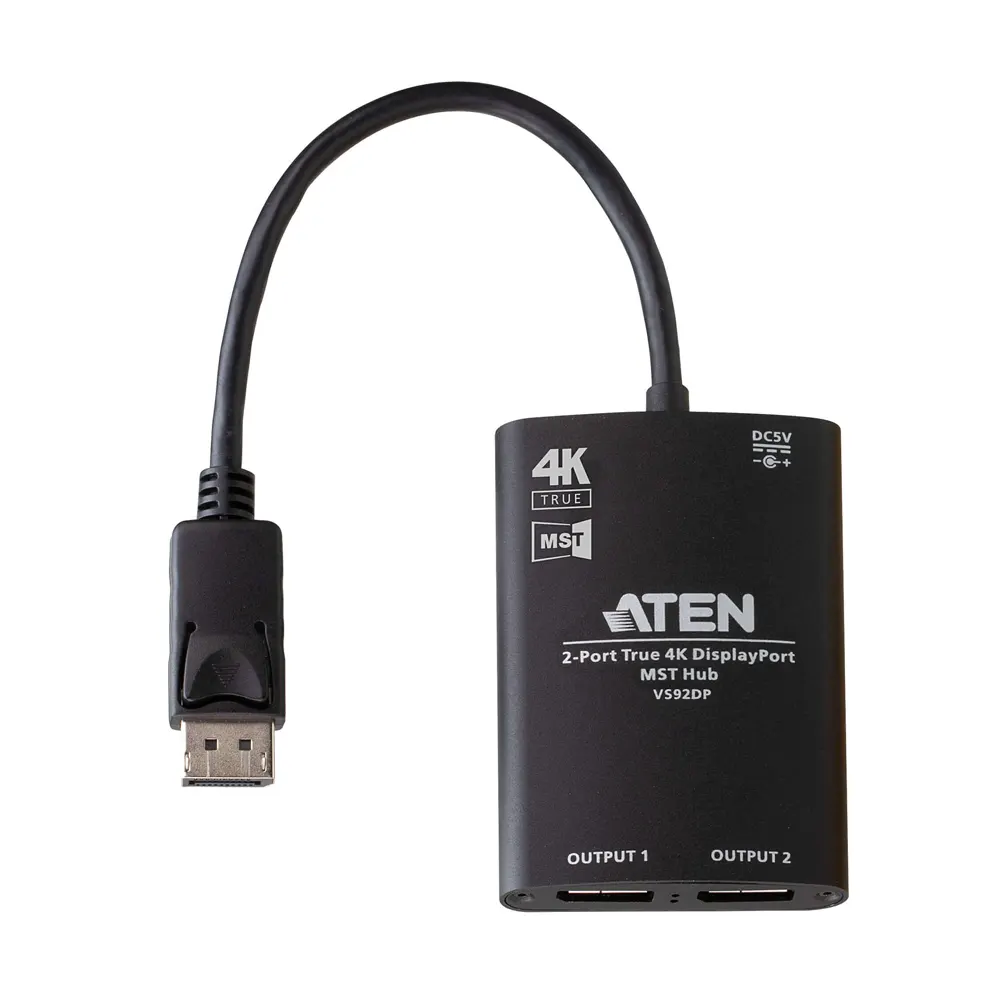

vs92dp.professional audiovideo.video splitters.rear

Designed with a cost effective, yet advanced DisplayPort MST solution in mind, the ATEN VS92DP 2-Port True 4K DisplayPort MST Hub allows the high-definition video to be transmitted to two different locations without losing quality. Productivity is enhanced with its feature that permits up to two displays to be connected to a Windows-based laptop / PC. Meanwhile, users can mirror the same image onto two displays or display independent content to each display for multitasking.

The VS92DP supports up to [email protected] (4:4:4) video resolution, HDR Dolby TrueHD and DTS-HD Master Audio 7.1, ensuring distortion less and superb video / audio quality. It is ideal for home theater systems, commercial settings, educational centers, conference rooms, or any scenarios where high video quality is needed.

Key Features

  • Distributes one True 4K source to two DisplayPort displays at the same time
  • Allows for Single Stream Transport (SST) or Multi-Stream Transport (MST) Mode
  • Supports 4K resolution for dual output – up to 3840 x [email protected] (4:4:4)
  • DisplayPort 1.2; HDCP 1.3 compliant
  • Provides Dolby TrueHD and DTS-HD Master 7.1 Audio channel
  • High quality and durable aluminum enclosure

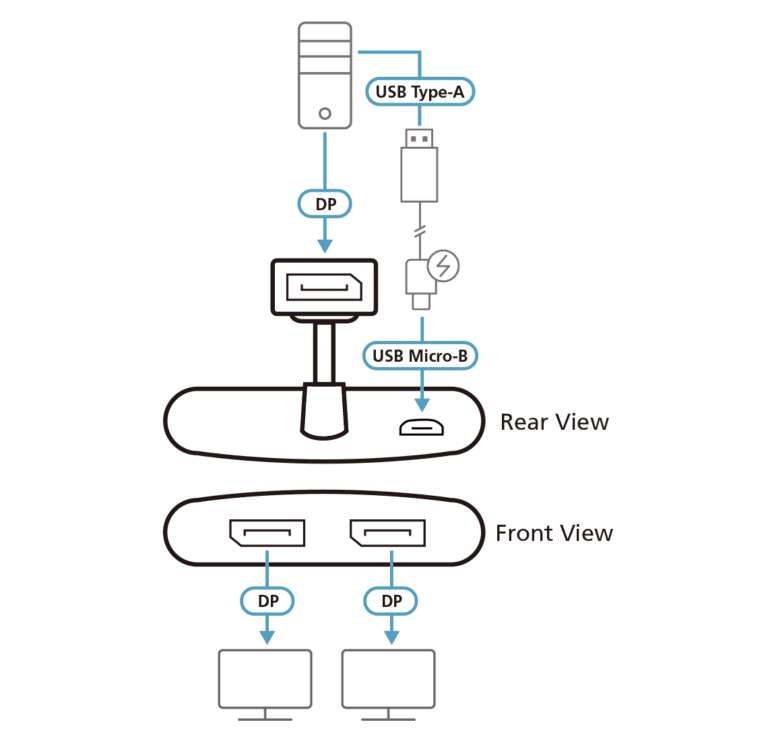

Diagram Large Line VS92DP

Specifications

LEDs
Status Display Port Output x 2 (Blue)
Power Input x 1 (Blue)

Video Input
Interfaces 1 x DisplayPort Male (Black)
Max. Distance 15cm

Video Output
Interfaces 2 x DisplayPort Female (Black)
Max. Distance Max 3m at [email protected] (4:4:4) - Single output
Max 3m at [email protected] (4:4:4) - Dual output (MST/SST mode)

Video
Max. Data Rate 21.6Gbps (5.4Gbps per lane)
Compliance DisplayPort 1.2 / HDCP 1.3
Max. Resolution Up to [email protected] (4:4:4, 8 bits)
Power Consumption 2WATT(MAX)BTU

Connectors
USB Port USB Type Micro B x 1 (Firmware upgrade & power source)

Environmental
Operating Temperature 0-40 °C
Storage Temperature -20 - 60 °C
Humidity 0 - 80% RH, Non-Condensing

Physical Properties
Housing Metal (aluminum)
Weight 0.09 kg ( 0.2 lb )
Dimensions (L x W x H) 8.80 x 6.00 x 15.00 cm
(3.46 x 2.36 x 5.91 in.)

Carton Lot 10 pcs

Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Package Contents

  • 1x VS92DP 2-Port True 4K DisplayPort MST Hub
  • 1x USB Type-A to USB Micro-B cable
  • 1x user instructions
