Key Features
Huddle Room Conference Camera
Unbox, unfold, and connect to instantly start a next-generation video communication experience from your huddle and small conferencing rooms.
Premium Video Quality
Experience your meetings in 4K at 30fps with the versatile CAM340+. Capable of 4X zoom, as if it were a traditional optical camera, the CAM340+ scans the room with no moving parts and no quality lost.
*ePTZ and 4X zoom are not available in 4K or 60fps

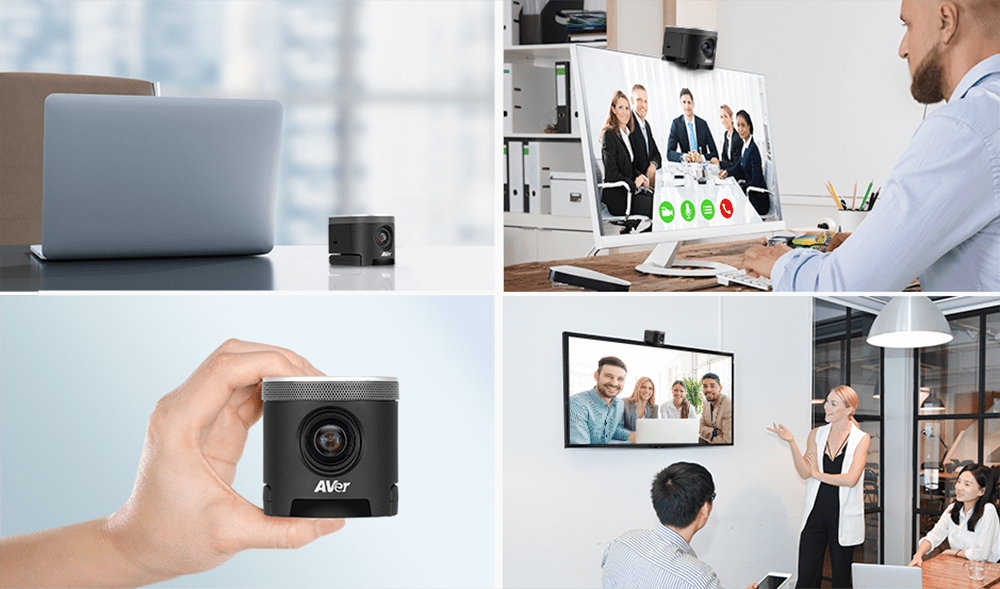

Freedom to Collaborate Anywhere
The CAM340+ is a completely portable solution for ultimate video conferencing convenience. With a versatile monitor mount, easy-to-carry size, and durable construction, the CAM340+ gives users the flexibility to make any room a huddle room.
Reliable Video and Outstanding Quality
Specifications
Package dimensions
138 x 138 x 149 mm
Package weight
0.622 kg
Camera (folded)
60 x 60 x 75 mm
Camera weight
0.251 kg
Windows 7/10
Mac OS X 10.7 or higher
Android 7.0 or above
Camera
Sensor: 1/2.5"Sony Exmor 4K CMOS sensor
Frame rate: 4K 30fps; 1080p , 720p , 960x540, 848x480, 800x448, 640x480, 640x360, 424x240, 320x240, 320x180 at up to 60fps
120° Wide field of view
Lens iris, focus, zoom: fixed
AE, white balance: auto, manual override by PTZApp
Minimum working distance: 80cm
Back light compensation and 2D noise reduction technology for optimizing light balance in different conditions
Standard tripod screw holes
Zoom, Pan, and Tilt Movement
Zoom: up to 4X leveraging 4K sensor (not available in 4K or 60fps)
Pan and tilt: when zoomed in leveraging 4K sensor
Microphone
1 uni-directional microphones
Frequency response: 100~12K Hz
Sensitivity: -37dB
Connectivity
USB Type C connector
Reset button
DC jack for power adapter (for USB 2.0 connection)
Video Format
YUV, MJPEG
USB
2.0, 3.1 Gen1 type C
UVC (USB Video Class) 1.1
Control
IR remote control (optional accessory, compatible with CAM540)
UVC / plug-and play
PTZApp
Security and Mount
Built-in TV mount (above TV, up to 46 mm deep)
Kensington slot
1/4" tripod mounting screw
Hardware Spec*
2.4GHz Intel@ Core 2 Duo processor
2GB RAM or more
USB 2.0 port and above (USB 3.1 required for 4K or 60fps)
Power Supply
Consumption: USB 3.1 Supports up to 4K : 5V/0.9A;
USB 2.0 Supports up to 2K: 5V/0.5A
Environmental Data
Operation temperature: 0 ~40°C
Operation humidity: 20% ~80%
Storage temperature: -20 ~60°C
Storage humidity: 20% ~80%
Optional Accessories
Wall mount
Remote control (compatible with CAM540)
Power adapter (for USB 2.0)
Warranty**
Camera: 3+2 year
Accessories: 1 year
Compatible Applications
ZOOM, Microsoft® Teams, Skype for Business, Skype™, Google Hangouts, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe Connect, Cisco WebEx®, Fuze, GoToMeeting™, Microsoft® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit
Package Contents
USB3.0 4K Camera
USB3.1 type-C to type-A Cable (6ft)
Quick-start guide
