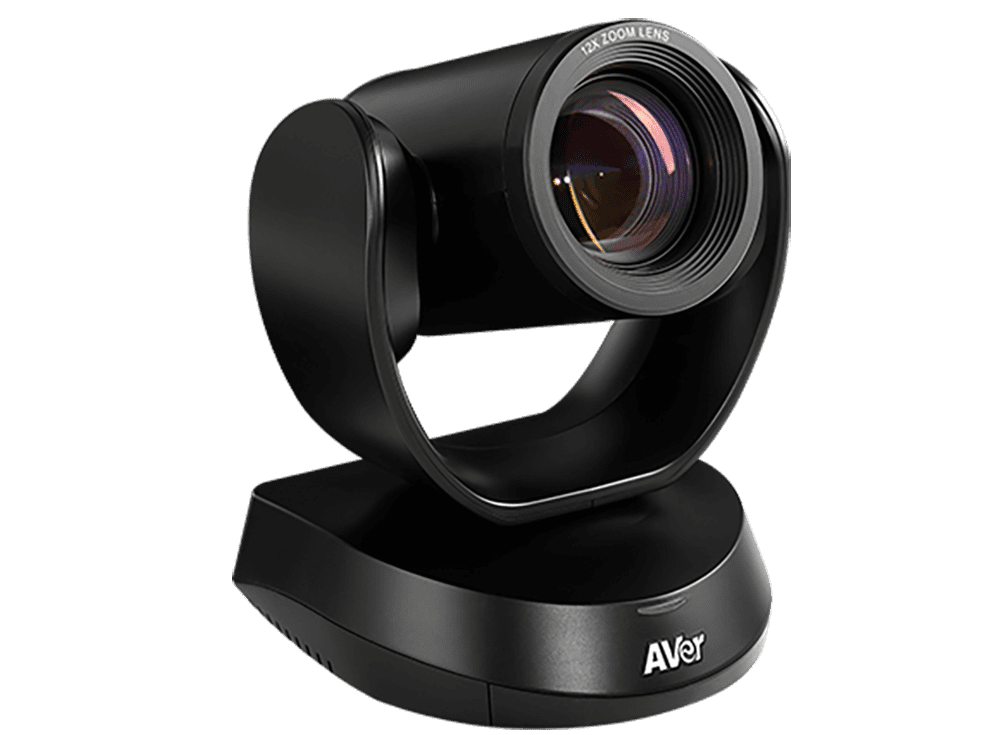

AVER CAM520 Pro
Video ConferencingEvery Detail Crystal Clear
Professional USB 3.1 Conferencing Camera for
Mid-to-Large Rooms
The CAM520 Pro is equipped with a high-class 18X total zoom
that displays every detail in crystal-clear quality. Also, on-trend
technology such as AVer SmartFrame, Sony True WDR, and IP
video streaming provide enterprises with a professional meeting
experience.
Description
Descriptions
4K Video Bar with Intelligent Lighting for Huddle Rooms
The All-in-One VB130 is equipped with the latest Intelligent Lighting so you can appear energetic and professional in any environment. Also, AVer’s audio fence, beamforming technology, and audio tracking precisely pick up voices. There’s even auto framing to fit every participant onscreen in seconds. Activate a brighter and better video conferencing experience with the VB130.
Key Features

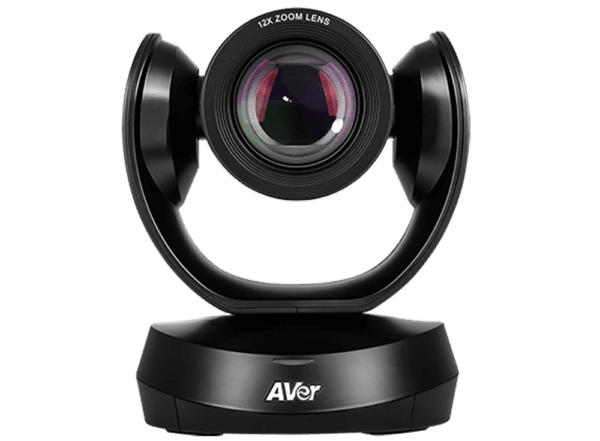

See Every Detail Clearly with an 18X Total Zoom
Improve your communication by adding a CAM520 Pro and its 18X total zoom to your meeting room. Show off every detail of your most complex product to remote participants using smoother video imaging than ever, with up to 1080p, 60fps quality.
SmartFrame Automatically Captures Everyone
Efficiently start a meeting conference with the CAM520 Pro by simply facing the camera to activate facial detection. AVer SmartFrame will do the rest, automatically capturing and fitting all participants on-screen in seconds.
Efficient and Safe Meetings with Less Touching
True WDR off
Remotely Control the Camera and Share Online with IP Video Streaming
Share content on YouTube or Facebook. The CAM520 Pro provides RTSP/RTMP support through H.264 IP streaming compatibility for livestreaming, remotely controlling the camera, and managing settings via the Chrome browser.
Specifications
Package dimensions
256 x 256 x 274 mm
Package weight
3.335 kg/7.35 lbs
Camera
182 x 142.7 x 153 mm/1.47 kg
Remote control
200 x 50 x 21 mm/0.09 kg
Windows® 7/10
Windows® 10 Enterprise (IoT) LTSC (version 1809)
Mac OS X 10.7 or higher
Google Chromebook™ version 29.0.1547.70
Android 5 or higher
Camera
Sony super-low-light 2M pixel sensor, clear and natural imaging in low-light conditions
Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps
SmartFrame for automatic FOV adjustment to fit all participants
True WDR up to 120db: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
Zoom: 18X total zoom (12X optical zoom)
Wide field of view (DFOV): 82°
Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)
Lens F#: 1.8 (wide) ~ 2.8 (tele)
Mirror, flip, AE, white balance: auto/manual override via PTZApp
Minimum focus distance: 1.5 m
Standard tripod screw holes and Kensington slot

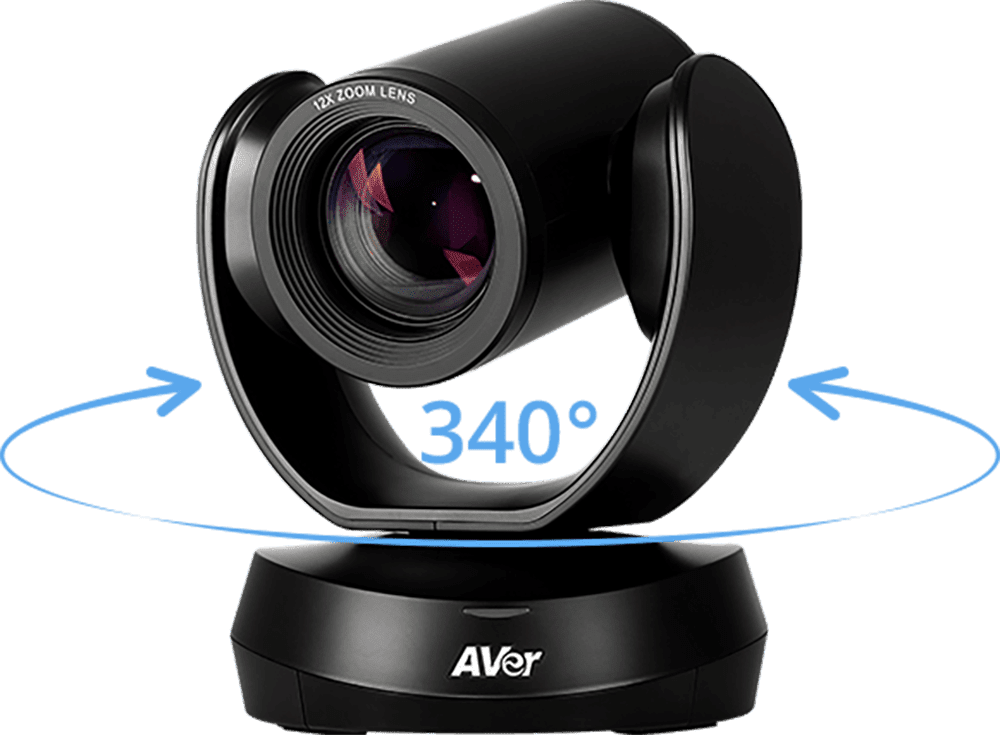

Motorized Pan & Tilt Movement
Pan: ±170°
Tilt: +90° (up) -30° (down)
10 camera presets (via remote control)
Fast and quiet pan/tilt movement
Video Format
YUV, YUY2, MJPEG, NV12
Network video compression format: H.264
Network protocol: RTSP, RTMP
HDMI & PoE**
HDMI 1.3: Up to 1080p 60fps
DIP Switch
PoE+: 802.3at
** There are two SKUs for CAM520 Pro: CAM520 Pro and CAM520 Pro (PoE). HDMI & PoE functions are only included for the CAM520 Pro (PoE) SKU. Please contact your local agents to get these features.
Connectivity
12V/2A power adaptor
Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy chain)
USB 3.1 type-B connector
IP (RJ45)
HDMI **
** Only available for CAM520 Pro (PoE) SKU
USB
3.1 Gen1 Type B, backward compatible with USB 2.0
UVC (USB video class) 1.1
Control
IR remote control
VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
Remote side: VISCA over IP, IP (RJ45)
UVC/UAC plug and play
WebUI: Browser IP access via Chrome (Does not support Internet Explorer)
OSD setting: HDMI out to TV monitor**
PTZApp
** Only available for CAM520 Pro (PoE) SKU
Mount
Camera wall-mount bracket included
Optional foldable TV mount
Hardware Specs*
3.2 GHz Intel® Core™ i5-4460 processor
4 GB RAM or more
USB 3.1 port , backward compatible with USB2.0 port
Web page browser requirement
Chrome: version 76.x or above
Firefox: version 69 or above
IE: Not support
Power Supply
AC 100V ~ 240V, 50/60 Hz
Consumption: 12V, 2A
COMPATIBLE APPLICATIONS
Zoom, Microsoft® Teams, Skype for Business, Skype, Google Hangouts Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect™, Cisco Webex®, Fuze, GoToMeeting™, Microsoft® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit
CAM520 Pro unit
Remote control
USB 3.1 type-B to type-A cable (10 ft/3 m)
Power adapter (10 ft/3 m)
Quick-start guide
Warranty card
Wall-mount bracket
¼" tripod screw
HDMI cable** (10 ft/3 m)
