AVER VC520 Pro

A Lifelike Audiovisual Experience

Descriptions

video conferencing ptz aver vc520pro cover
Play Video
video conferencing ptz aver vc520pro product microsoft team 1 1

MICROSOFT TEAM EDITION

video conferencing ptz aver vc520pro standard 1

STANDARD

4K Video Bar with Intelligent Lighting for Huddle Rooms

The All-in-One VB130 is equipped with the latest Intelligent Lighting so you can appear energetic and professional in any environment. Also, AVer’s audio fence, beamforming technology, and audio tracking precisely pick up voices. There’s even auto framing to fit every participant onscreen in seconds. Activate a brighter and better video conferencing experience with the VB130.

icon 1080p 1
Full HD 1080p
icon WDR 2
Sony True WDR
icon 18X 1
18X zoom
icon mic
Expansion Speakers / Microphones

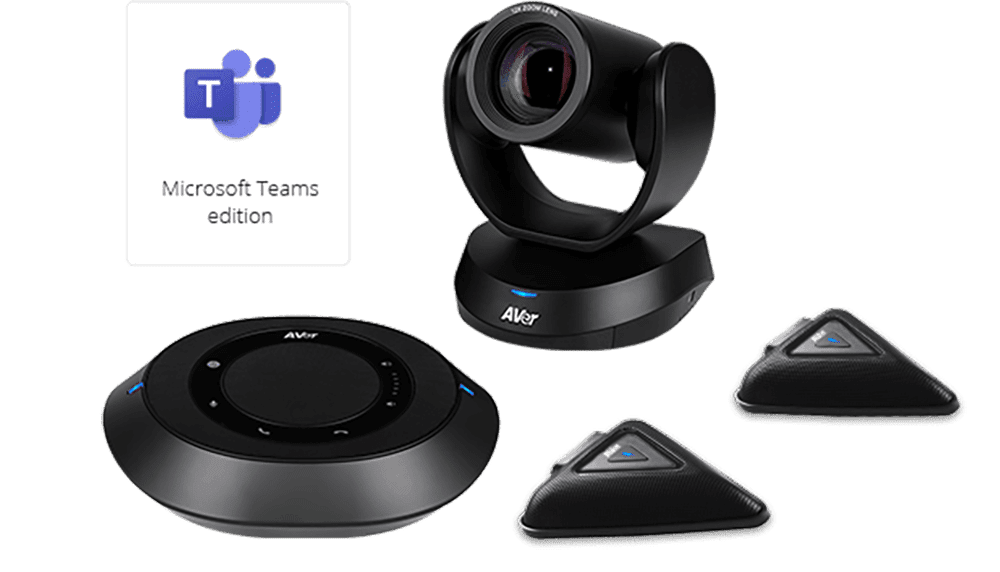

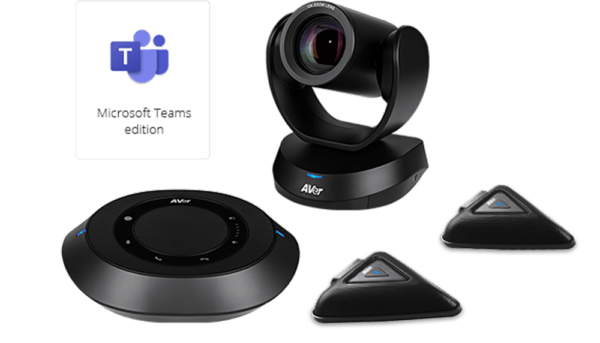

VC520 Pro Microsoft Teams Rooms Edition

This exclusive version of the VC520 Pro speakerphone lets you start meetings instantly with an embedded Microsoft Teams button* and LED status indicator. Just touch the button to enter a meeting and check the call status. Also, you can enjoy an always-clear audio experience via the two expansion microphones that come with this special edition system.

* Only available for the VC520 Pro Microsoft Teams Rooms edition, which includes a camera,   a speakerphone, and two expansion microphones.

Key Features

Play Video

Perfect Audio for Professional Conferencing

Experience lifelike audio in various sizes of meeting rooms with the VC520 Pro. The speakerphone’s pickup range is up to 6 meters in diameter, or you can daisy-chain two additional speakerphones to fit into your conference room configuration. Touch controls make it easy to adjust or mute the volume, and echo cancellation ensures a steady audio experience. You can also connect extra microphones for ultra-clear voice pickup during video conference.

SmartFrame Captures Everyone in Seconds

Improve productivity by starting meetings instantly. The VC520 Pro processes facial recognition to capture everyone on-screen in seconds and automatically re-frames whenever someone walks in or out of the room.
video conferencing ptz aver vc520pro smart frame cover
Play Video
Play Video

Professional Clarity with an 18X Total Zoom

Show every detail precisely and smoothly to enhance communication. The VC520 Pro is embedded with a 12X true optical zoom and multi-coated auto-focus optics to present complex product details in full HD 1080p quality

Video Streaming and Remote Control via IP-Based Management

The VC520 Pro features advanced centralized management through the Chrome browser. Remotely control the camera and share on Facebook or YouTube with H.264 and AAC-LC RTSP/RTMP streaming in 1080p at 60fps via USB 3.1.
video conferencing ptz aver vc520pro stream

Specifications

Package dimensions: 259 x 259 x 349 mm

Package weight: 5.4 kg

Camera: 142.7 x 153 x 182 mm/1.45 kg

Speakerphone: 220 x 181.5 x 49.5 mm/0.85 kg

Remote control: 200 x 50 x 21 mm/0.09 kg

Windows® 7/10

Mac OS X 10.13 or higher

Google Chromebook version 76.0.3809.102 or later

Android 6 or higher

Camera
Sony super-low-light 2M pixel sensor for clear and natural imaging in low-light conditions
Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps
SmartFrame for automatic FOV adjustment to fit all participants
True WDR up to 120dB: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
Zoom: 18X total zoom (12X optical zoom)
Field of view (DFOV): 82°
Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)
Lens F#: 1.8 (wide) ~ 2.8 (tele)
Mirror, Flip, AE, white balance: aut o, manual override via PTZApp
Minimum focus distance: 1.5 m
Standard tripod screw holes and Kensington slot

Motorized Pan & Tilt Movement
Pan: ±170°
Tilt: +90° (up) -30° (down)
10 camera presets (through remote control)
Fast and quiet pan & tilt movement
Video Format
YUV, MJPEG, H.264
Network video compression format: H.264
Network protocols: RTSP, RTMP

Speakerphone
Full duplex microphone array with echo cancellation
Advanced noise suppression
Dual-microphone array
3.5 mm phone-in jack
3.5 mm line out
Speaker: 6W, Adjustable to 90dB SPL at 0.5 m
Microphone frequency response: 120Hz–16kHz
Microphone sensitivity: -34± 2 dBV @1KHz, 94dBSPL
Microphone distortion: < 1% from 150Hz
Microphone support range: Diameter 6M
Touch controls for volume down/up, mute, phone input, call, and hang-up
Bridge phone-in and USB into one call
Security: Kensington slot
Audio Format
AAC-LC
Network protocol: RTSP, RTMP

LAN
10/100/1000 Mbps
Connectivity
12V/5A power adaptor
Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)
USB 3.1 Type-B connector
IP (RJ45)

USB
3.1 Gen 1 Type-B, backward compatible with USB 2.0
UVC (USB video class) 1.1
UAC (USB audio class) 1.0
Control
IR remote control
VISCA/Pelco-P/Pelco-D via RS232 (128 preset points via VISCA command)
Remote side: VISCA over IP, IP (RJ45)
UVC/UAC plug-and-play
WebUI: Browser IP access via Chrome (does not support Internet Explorer)
PTZApp

Mount
Camera wall-mount bracket included
Optional foldable TV mount

Hardware Specs
3.2 GHz Intel® Core™ i5-4460 Processor or higher
4 GB RAM or more
USB 3.1 port, backward compatible with USB 2.0 port
Web page browser requirement
Chrome: version 76.x or above
Firefox: version 69 or above
IE: Not support

Power Supply
AC 100V ~ 240V, 50/60 Hz
Consumption: 12V, 5A
Free Applications for Meeting Collaboration (Windows® and Mac)
EZManager: Camera Central Management software
Remotely group FW/SW upgrades, control the camera, and configure settings
PTZApp
Upgrade firmware automatically or manually
Control camera
Set parameters and adjust camera image
Diagnose operating status
View live video
EZLive
Real-time streaming / annotating / snapshots / video recording

Environmental Data
Operation temperature: 0°C ~ 40°C
Operation humidity: 20% ~ 80%
Storage temperature: -20°C ~ 60°C
Storage humidity: 20% ~ 80%

Optional Accessories
Mini DIN9 to RS232 adapter
Expansion Speakerphone (10 m cable included, daisy-chain up to three speakerphones)
Expansion Pair Microphone (Two 5 m cables included, daisy-chain up to four microphones)
Foldable TV mount

Warranty*
Camera / Speakerphone: 3+2 years (not available in US, JP, and certainother areas)
Accessories: 1 year
* Please register online to receive a free 2-year warranty extension.
For detailed warranty information, please contact an AVer representative.

Compatible Applications
Zoom, Microsoft® Teams, Skype for Business, Skype, Google Hangouts meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect™, Cisco Webex®, Fuze, GoToMeeting™, Microsoft® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit

Package Contents

VC520 Pro Camera

VC520 Pro Speakerphone

Remote control

Power adapter

Power cord (6 ft/1.8 m)

USB 3.1 Type-B to Type-A cable (10 ft/3 m)

CATE6 speakerphone cable (33 ft/10 m)

3.5 mm aux cable (3 ft/0.9 m)

Quick-start guide

Warranty card

Wall-mount bracket

¼" tripod screw
