AW-RP60 Compact Remote PTZ Camera Controller

– Control of up to 200 remote robotic network cameras
– Intuitive joystick for smooth and responsive PTZ camera control
– 3.5″ LCD screen displays menu and key camera information
– Easy management of up to 100 PTZ camera presets
– Supports PoE power

DESCRIPTIONS

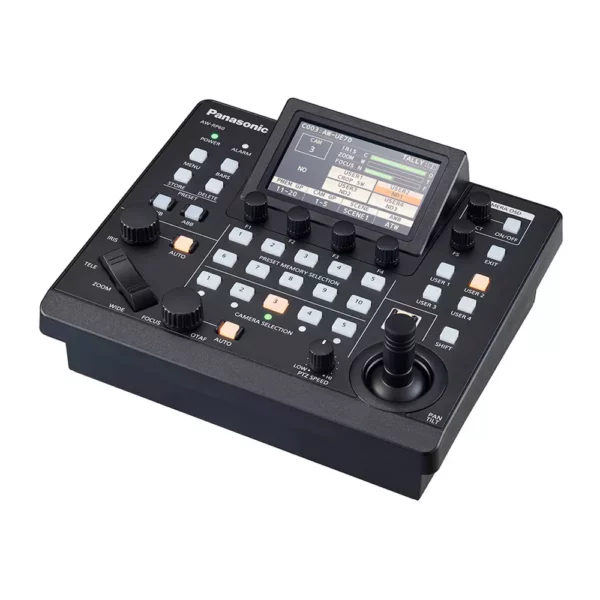

AW-RP60 Compact Remote PTZ Camera Controller

A compact, hardware-based controller for use with Panasonic PRO PTZ remote cameras. The AW-RP60 features an improved joystick for smooth and responsive camera control of up to 200 robotic cameras, as well as easy management of up to 100 camera presets.

panasonic ptz camera controllers rp50 rp60 rp150 rp120 aw rp50 aw rp60 aw rp150 aw rp120 live robotic camera control

KEY FEATURES

AW-RP60 PRO PTZ Camera Controller

Introducing the all-new AW-RP60 Remote Camera Controller. Equipped with a large LCD to display a GUI menu screen with clear visibility and an improved joystick for smoother control, this controller is the ideal companion to Panasonic PRO PTZ camera models. Thanks to the improved GUI, all important information about the cameras, such as iris, zoom and focus can be seen at all times directly on the screen. The AW-RP60 is also capable of supporting up to 200 cameras, manages 100 presets and comes with PoE support allowing for easy integration into your video production workflow.

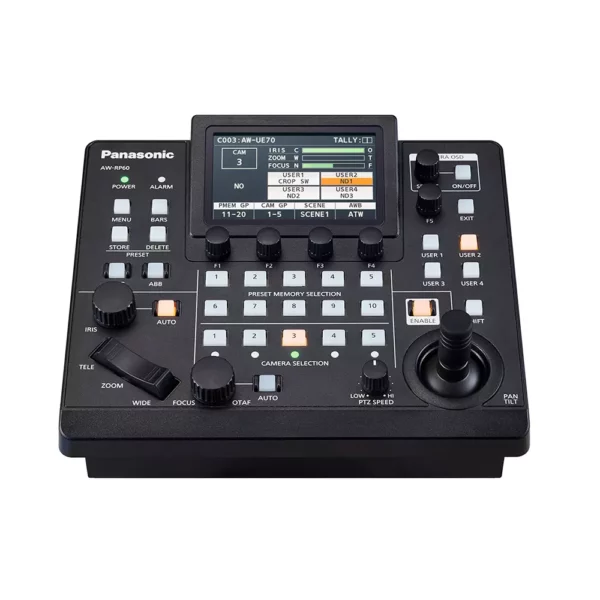

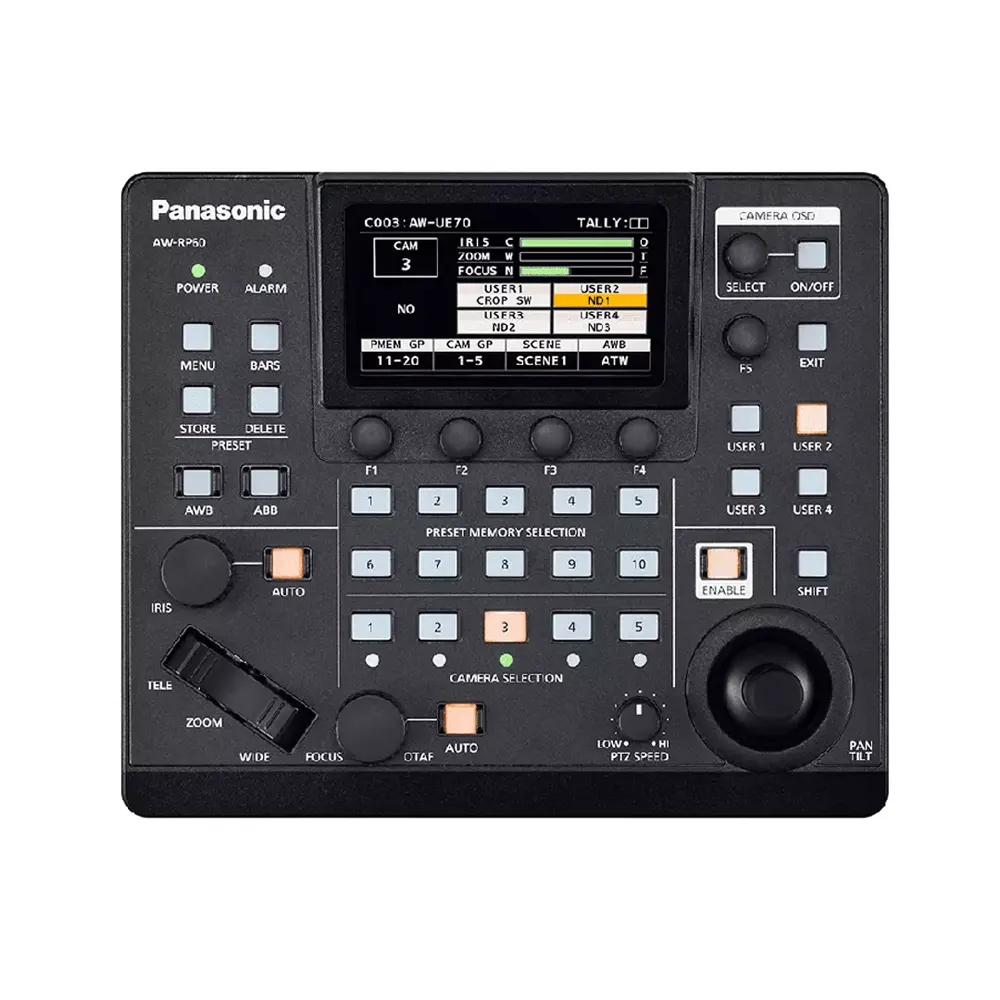

aw rp60 panasonic ptz camera controller top
AW RP60 GUI 3.5 inch screen display 2

3.5" LCD Screen

The AW-RP60 controller is equipped with a 3.5″ LCD screen to deliver a GUI menu where the information you need is provided at a glance for intuitive and quick camera control.

Flexible Customization

The controller is equipped with 4 user assignable buttons to which up to eight functions of your choice can be assigned. Each preset name can also be customized with a PC tool. The flexible features of the controller make it perfect for use in a wide range of environments, from lectures and corporate seminars to live streaming and broadcasting at sporting events.

AW RP60 user assignable buttons presets 2
AW RP60 easy joystick control for panasonic ptz cameras 2

Advanced Joystick

The new joystick supports smooth pan and tilt operations and ensures accurate capture of your target image. The grip of joystick is approximately 1.5x larger than the previous model, AW-RP50, allowing for an even more stable PRO PTZ camera operation.

PoE Support

PoE (Power over ethernet) support enables power and camera control to be delivered via a single ethernet cable. In addition to camera control operation, gamma, white balance and other color adjustment functions can be performed, making advanced camera adjustments possible.

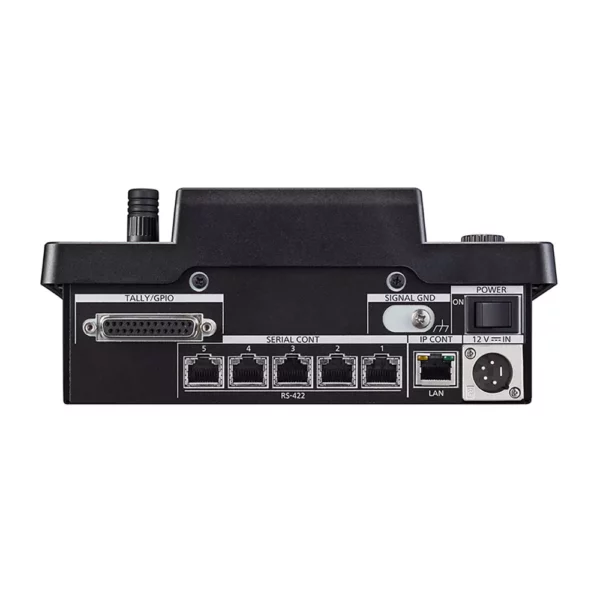

aw rp60 rear inputs outputs poe support ethernet 1

SPECIFICATIONS

Current consumption0.9 A (XLR connector input), 0.3 A (PoE power supply)
Power Requirements12 V DC (10.8 V to 13.2 V)
Mass1.5 kg (3.31 lbs)
Dimensions (W x H x D) (mm)W 210 mm x H 92 mm x D 177 mm (excluding protrusions)
Dimensions (W x H x D) (inch)8-9/32 inches x 3-5/8 inches x 6-31/32 inches (excluding protrusions)
Display3.5-type liquid crystal (QHD 960 x 540)
Connection SpecificationsNo. of Connectable Cameras :
200 (IP), 5 (RS422)
*Up to 100 for cameras other than the AW-UE150

Remote Camera Selection :
5 (6 to 200 controlled from the LCD)

No. of Camera Groups :
20 (10 units/group)

No. of Memory Presets :
100
PoE*IEEE802.3af standard: 42 V to 57 V DC (Camera Input)
Note*PoE is the abbreviation for Power over Ethernet.
