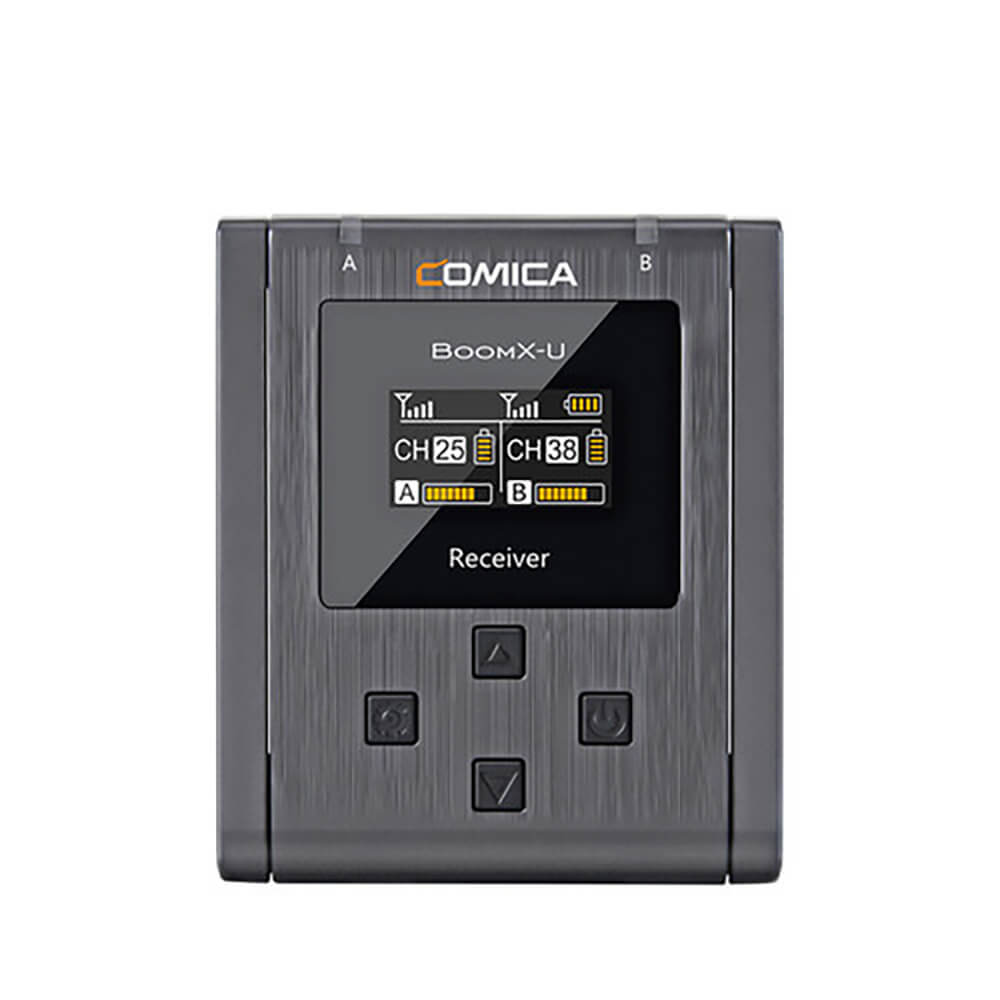

COMICA - BoomX-U U1/U2

Broadcasting-Level Multi-functional Mini UHF Wireless Microphone with

– One-transmitters and One Receiver (U1)
– Dual-transmitters and One Receiver (U2)

Descriptions

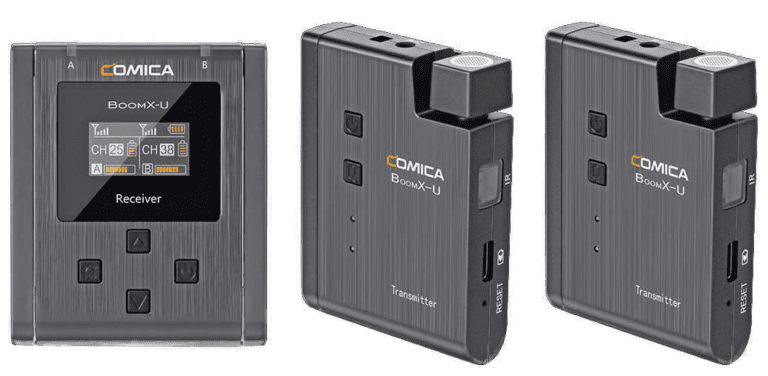

comica wireless lavalier microphone system boomx u u1 u2 uhf 01

COMICA BoomX-U U1/U2 UHF
Wireless Lavalier Microphone System

Key Features

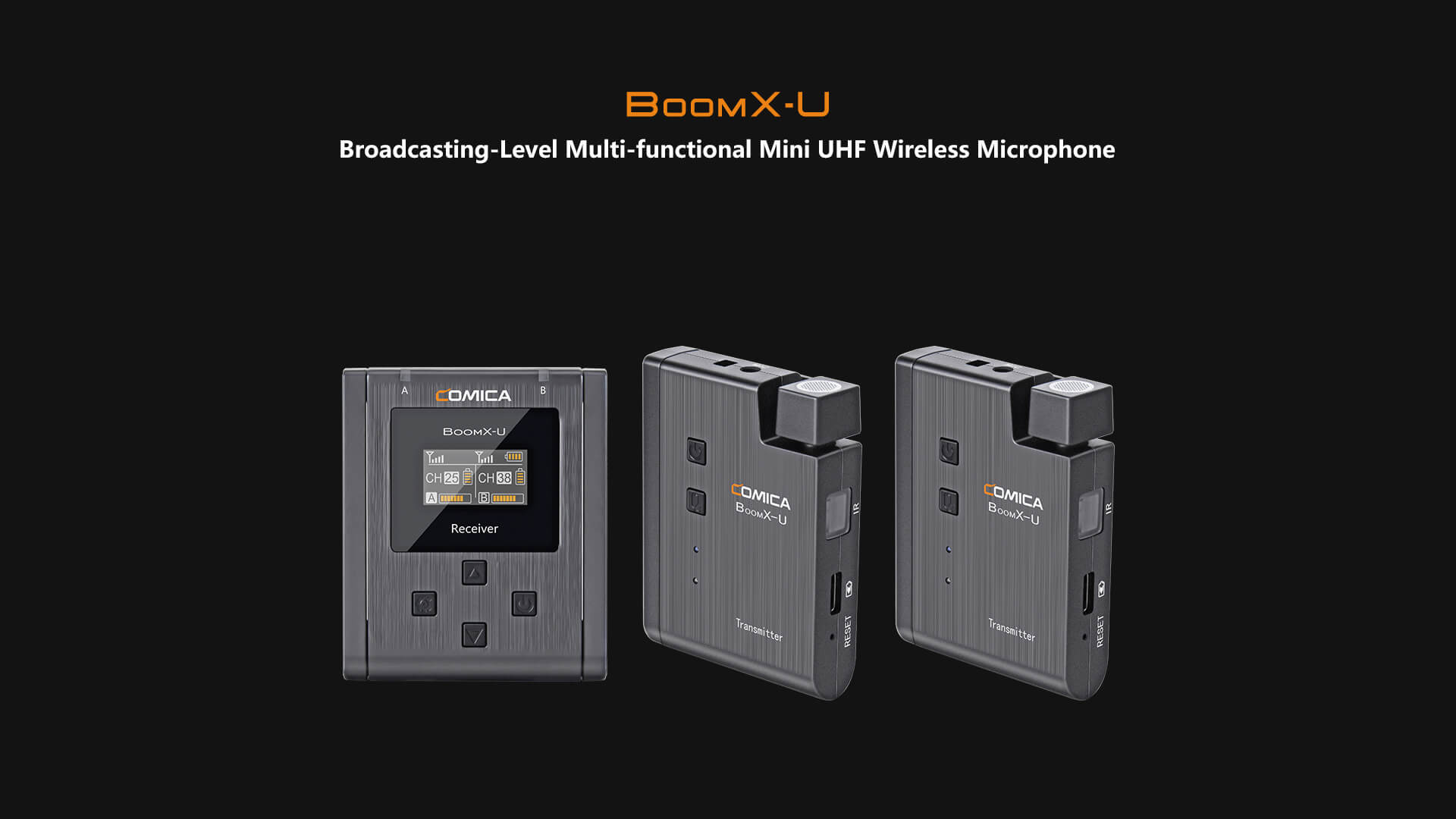

comica wireless lavalier microphone system boomx u u1 u2 uhf 01

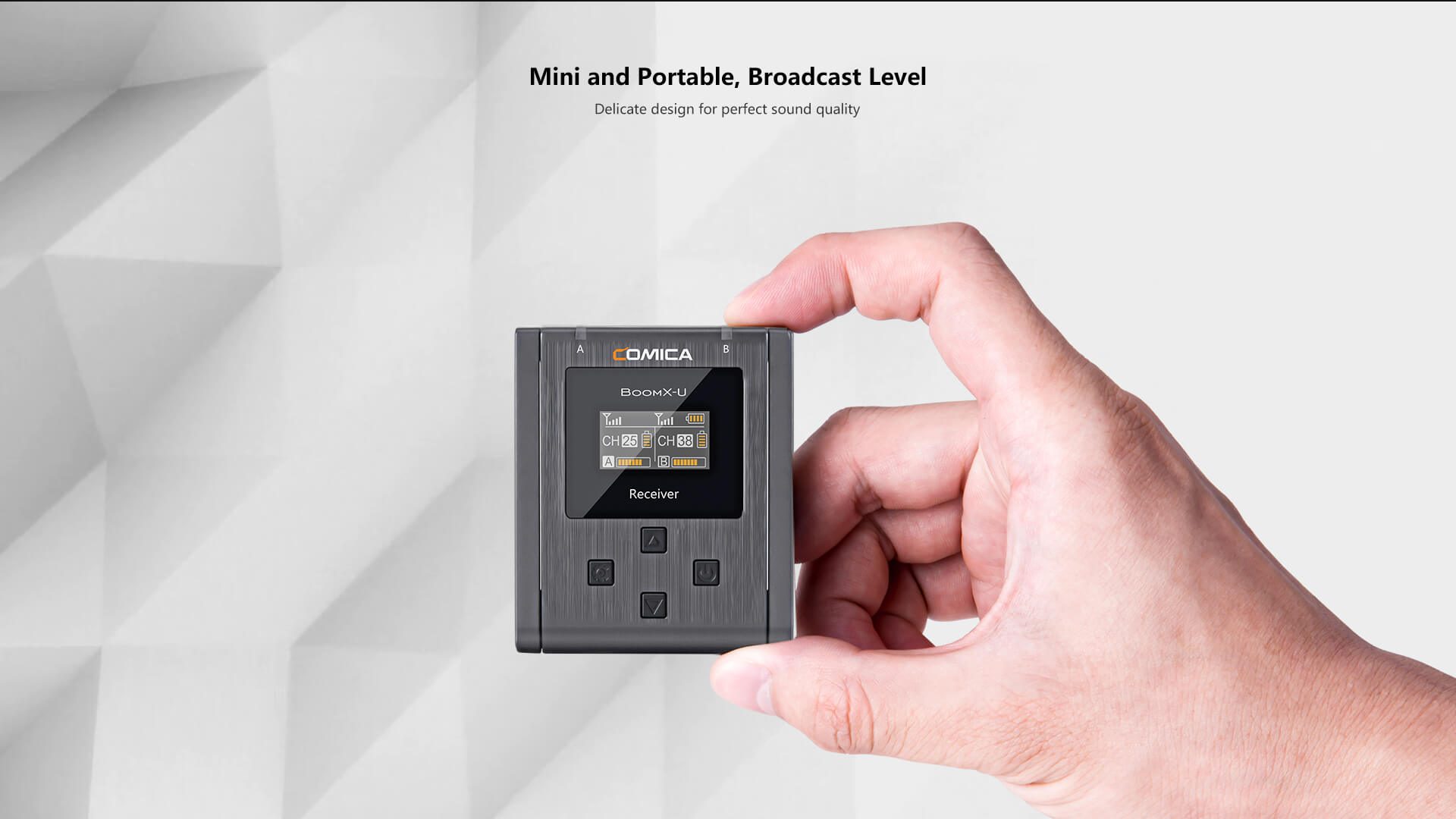

comica wireless lavalier microphone system boomx u u1 u2 uhf 02

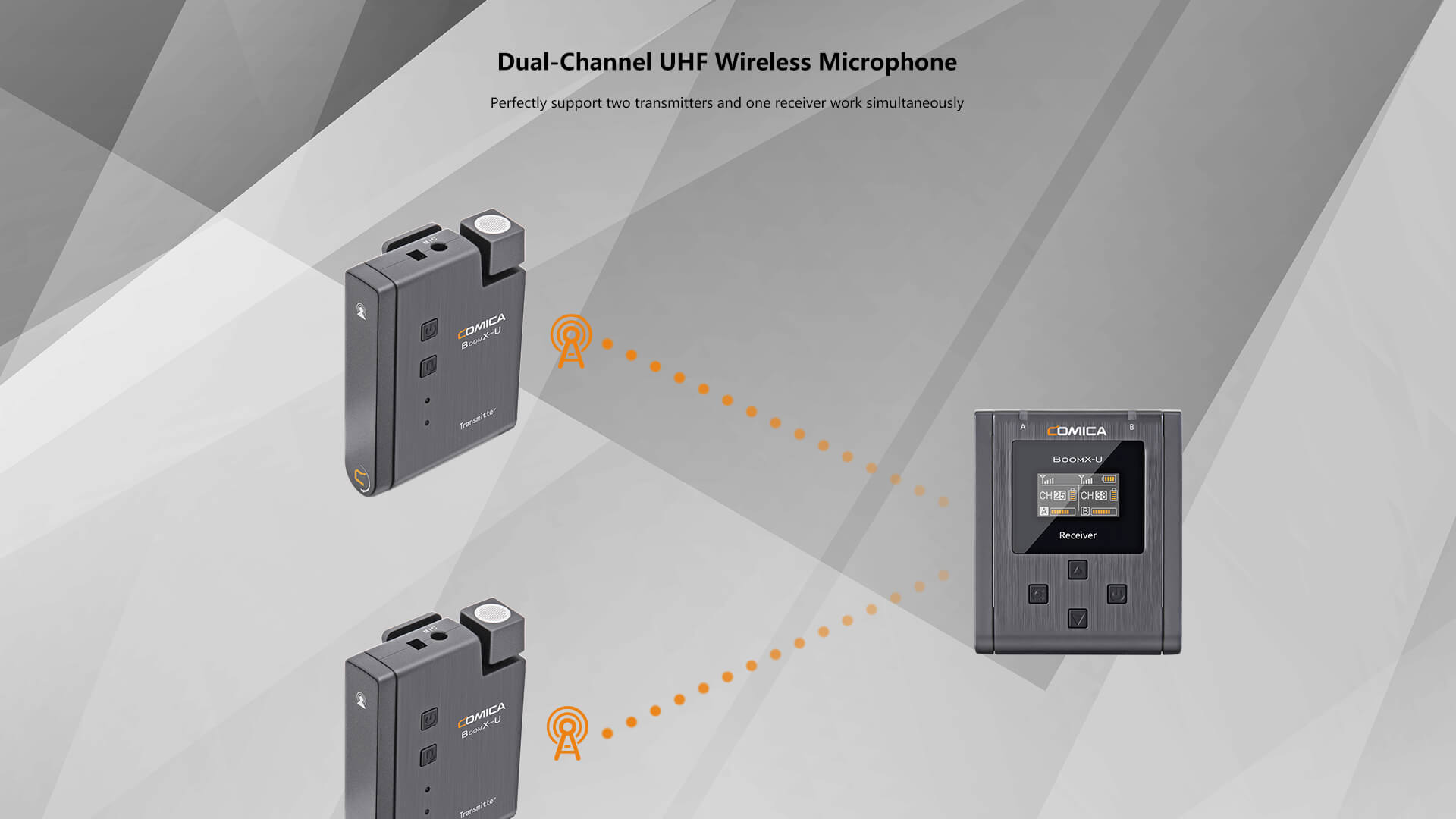

comica wireless lavalier microphone system boomx u u1 u2 uhf 03

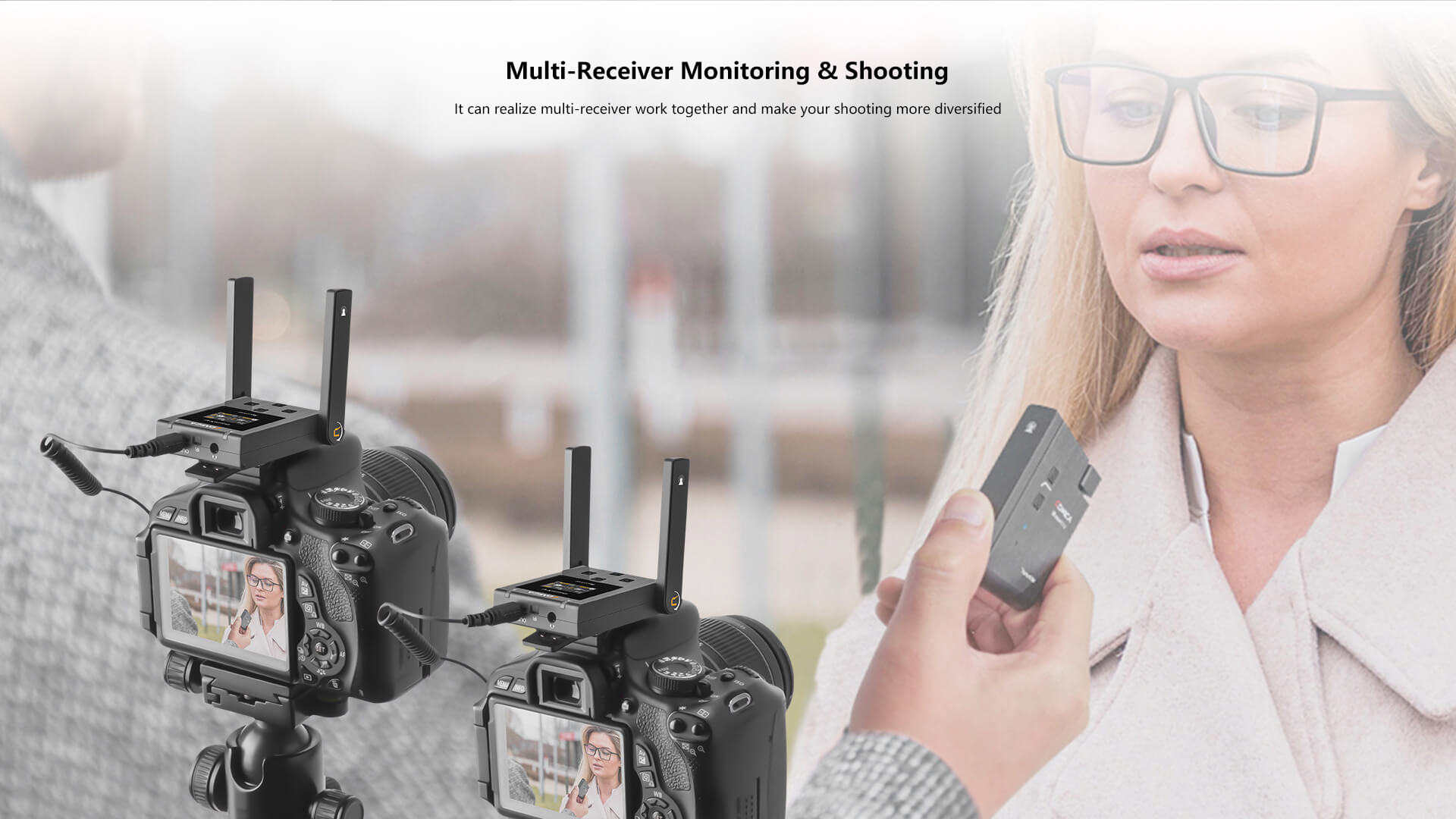

comica wireless lavalier microphone system boomx u u1 u2 uhf 04

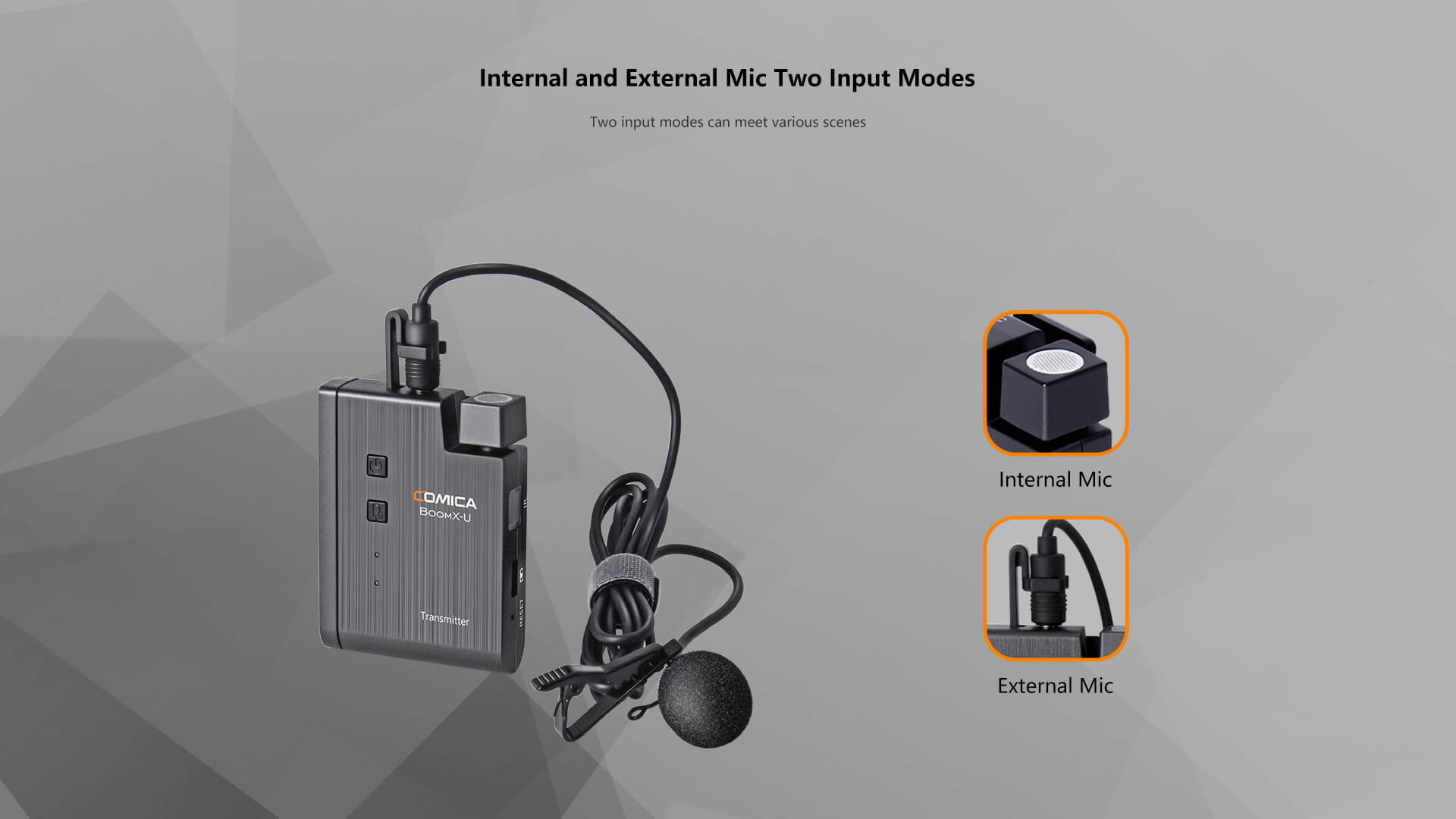

comica wireless lavalier microphone system boomx u u1 u2 uhf 05

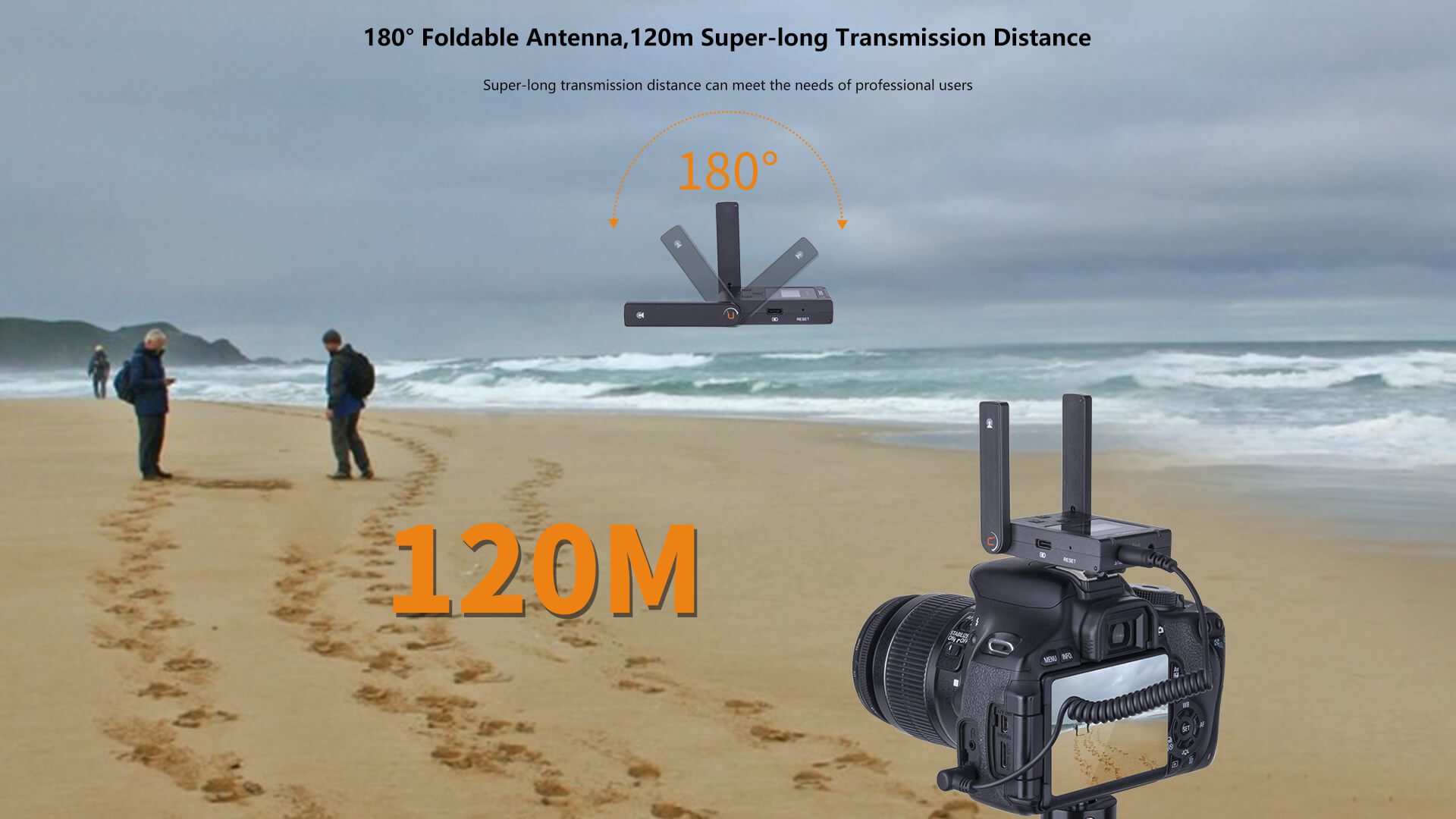

comica wireless lavalier microphone system boomx u u1 u2 uhf 06

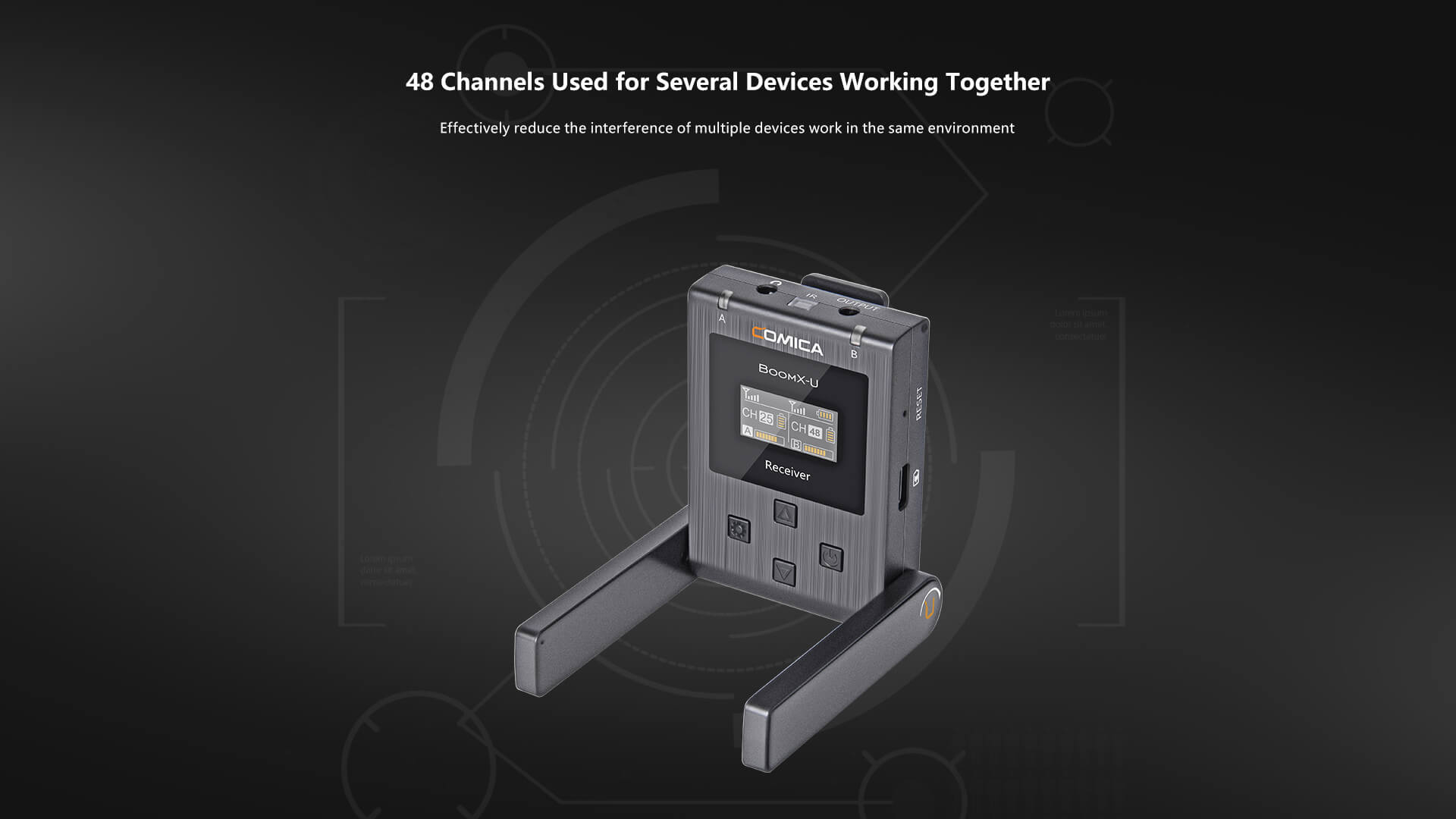

comica wireless lavalier microphone system boomx u u1 u2 uhf 07

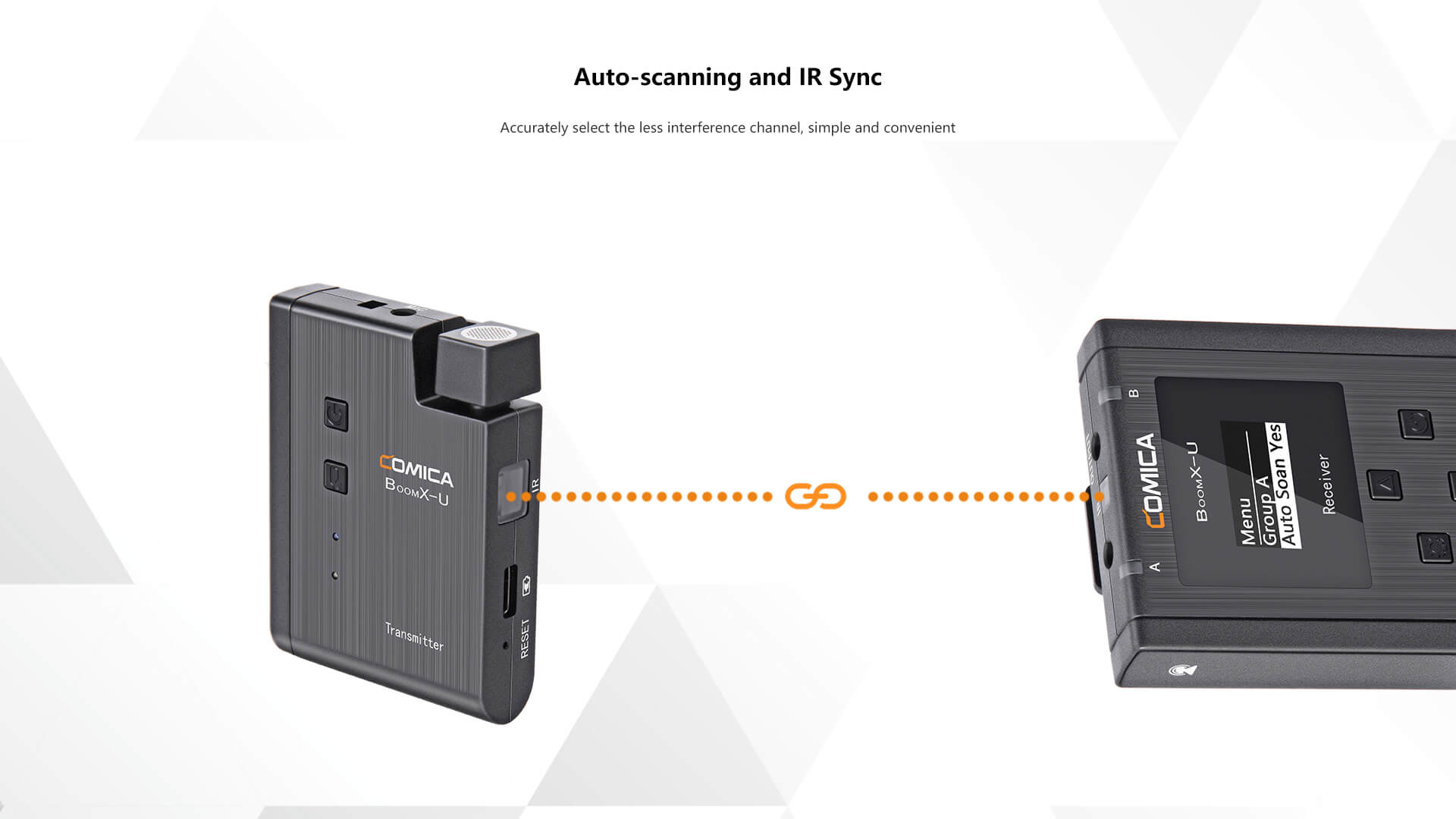

comica wireless lavalier microphone system boomx u u1 u2 uhf 08
comica wireless lavalier microphone system boomx u u1 u2 uhf 09

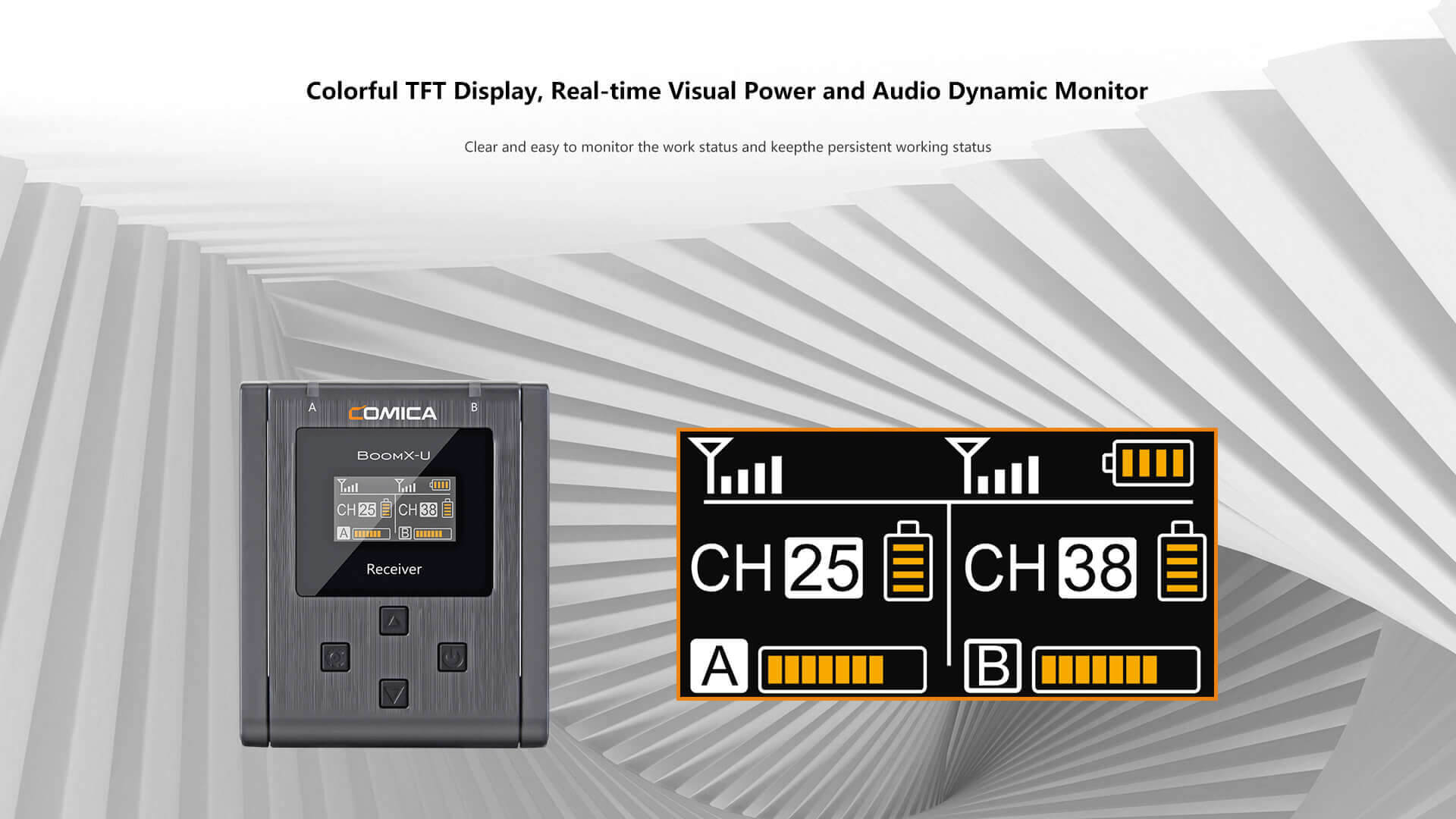

comica wireless lavalier microphone system boomx u u1 u2 uhf 10

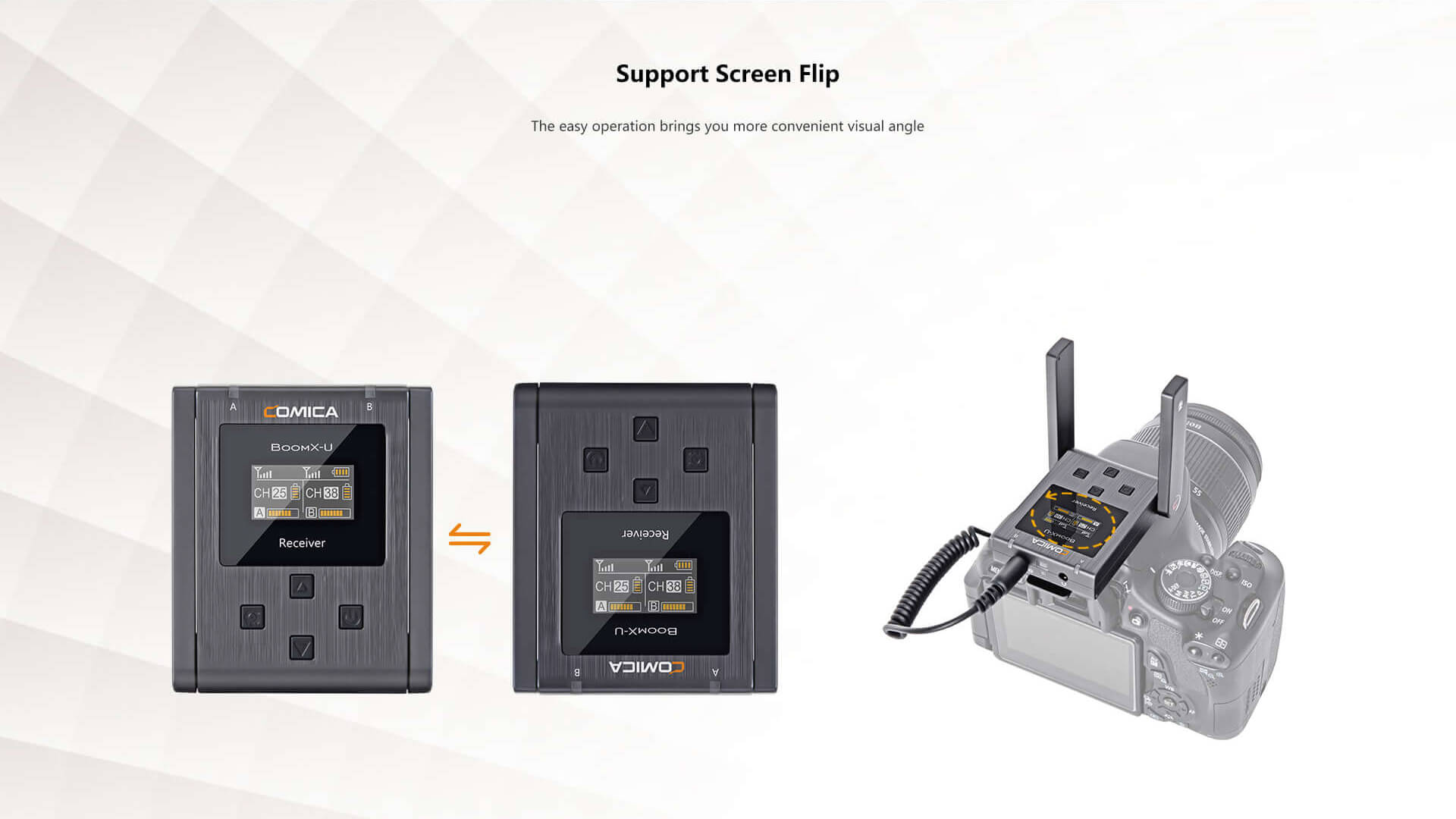

comica wireless lavalier microphone system boomx u u1 u2 uhf 11

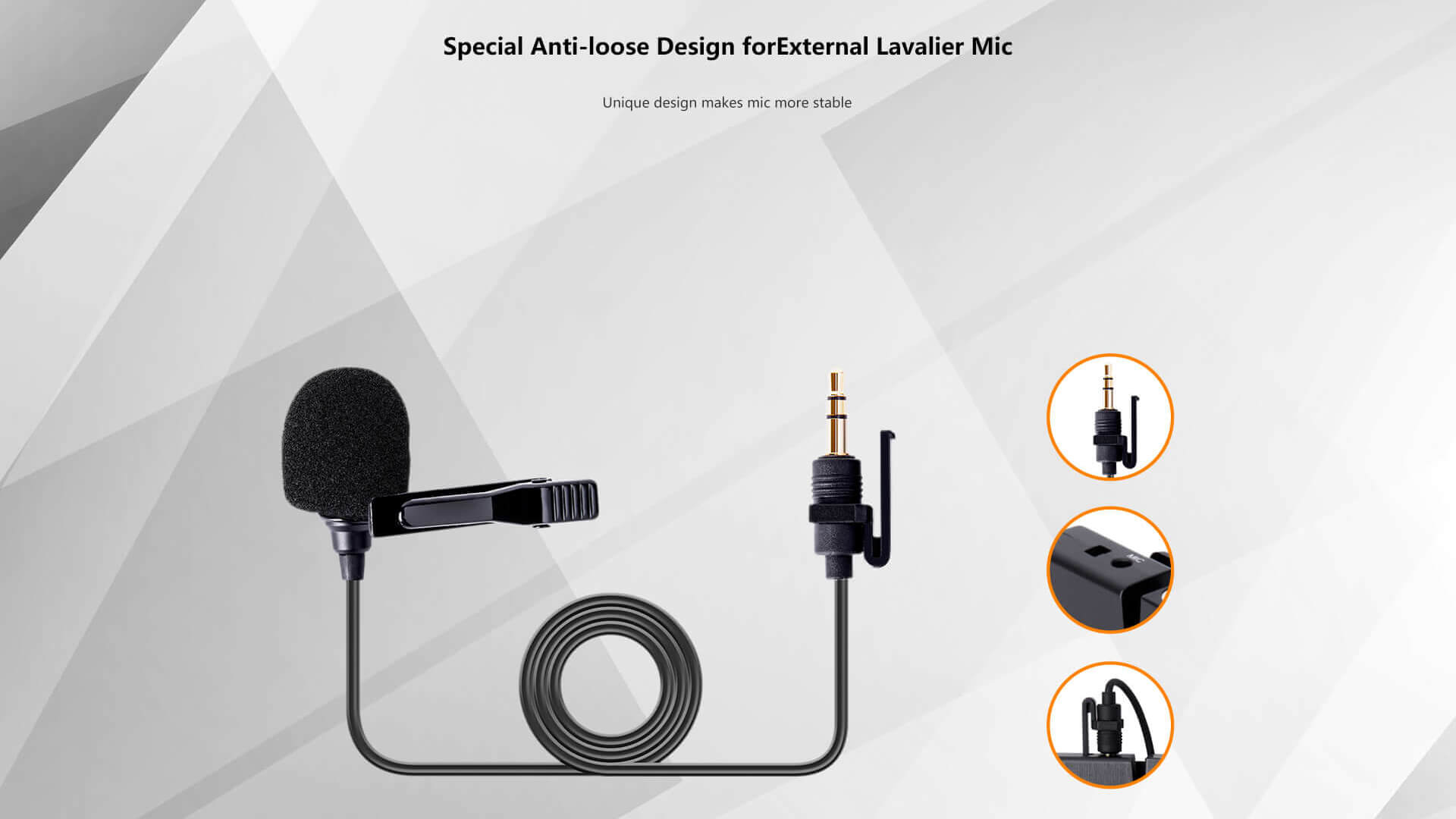

comica wireless lavalier microphone system boomx u u1 u2 uhf 12

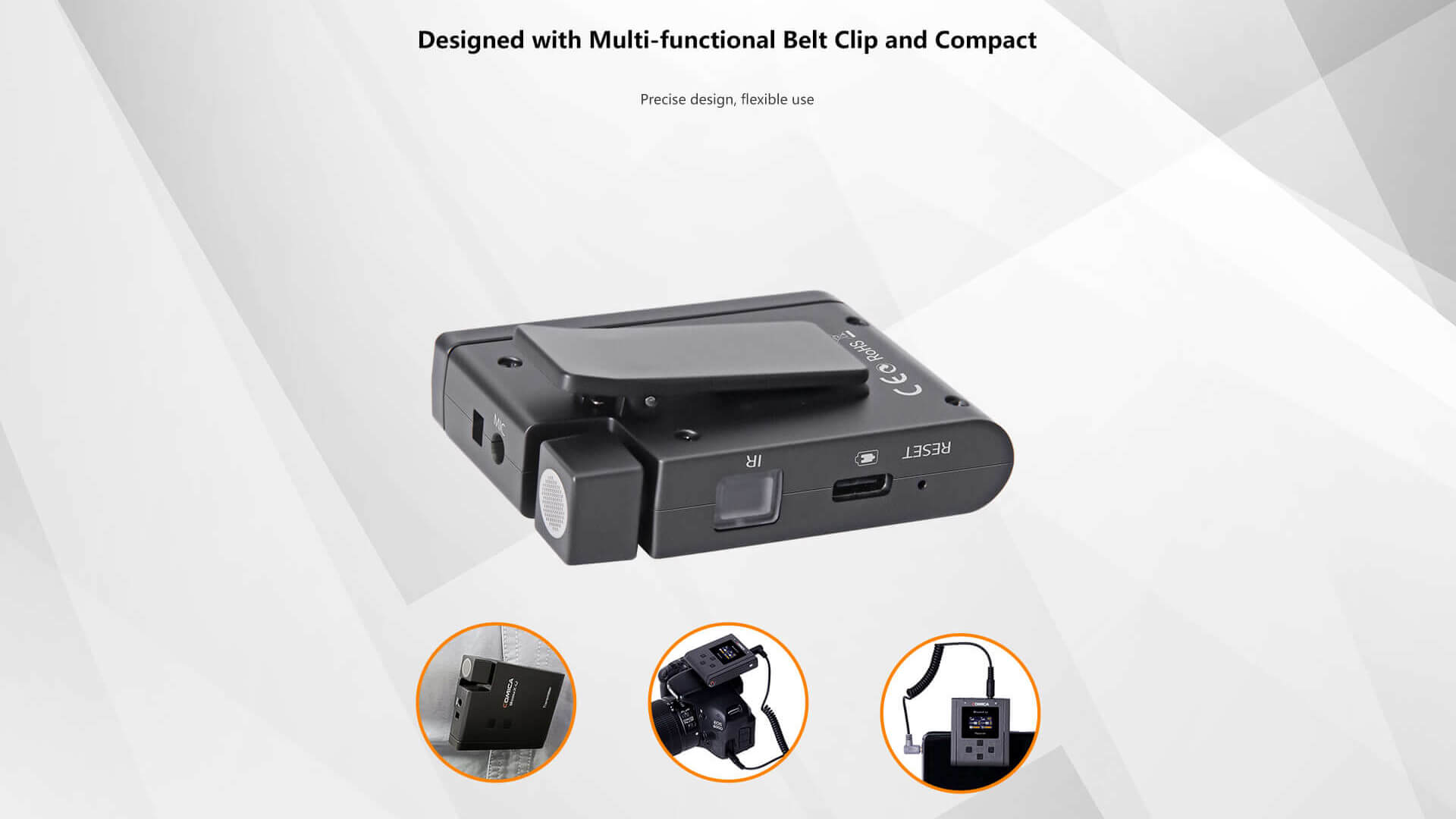

comica wireless lavalier microphone system boomx u u1 u2 uhf 13

Specifications

Antenna

PCB Antenna

Polar Pattern

Omnidirectional

Frequency Response

80Hz ~ 20kHz

Sound Delay

<20ms

External Mic Input Interface

3.5mm TRS

Battery

Li-ion Battery 600mAh 3.7V

Battery Life

6 Hours

Net Weight

47g

Dimension

49 x 22 x 66mm

Operating Temperature

0℃ ~ 50℃

Storage Temperature

-20℃ ~ 60℃

Channels

48

Group A Wireless Frequency

568.125MHz ~ 579.875MHz

Group B Wireless Frequency

580.125MHz ~ 591.875MHz

Transmitting Power

15dBm

Antenna

PCB Antenna

Receiving Sensitivity

-90dBm

Sound Delay

<20ms

External Mic Input Interface

3.5mm TRS

Monitor Interface

3.5mm TRS/TRRS

Battery

Li-ion Battery 600mAh 3.7V

Battery Life

6 Hours

Net Weight

55g

Dimension

49 x 22 x 66mm

Operating Temperature

0℃ ~ 50℃

Storage Temperature

-20℃ ~ 60℃

Channels

48

Group A Wireless Frequency

568.125MHz ~ 579.875MHz

Group B Wireless Frequency

580.125MHz ~ 591.875MHz
