Digital Signage Monitor MON 100

Our displays combine the visual power of its signage with the touch-driven efficiency of its interactive offerings to better serve the needs of retail, public, corporate and transportation environments, among others. Businesses benefit from the reduced total operational costs that come with a low-maintenance, hassle-free visual display upgrade.

• Full HD Display
• Supports Android/Windows/Linux System
• Supports LAN or WAN Digital Signage Content Management Software
• Diverse Customization
• Optional Touchscreen
• Panel Life Over 50000 hours

Descriptions

mon100 wall mount lcd display product

HD Wall Mounted LCD Advertising Player

digitalsignagemonitormon100features

Key Features

mon100 wall mount lcd display014

HD image qualiy,visual enjoyment

Select LG A+ panel, with resolution of 1920*1080 and 16.7M colors,smoother picture switching
mon100 wall mount lcd display015

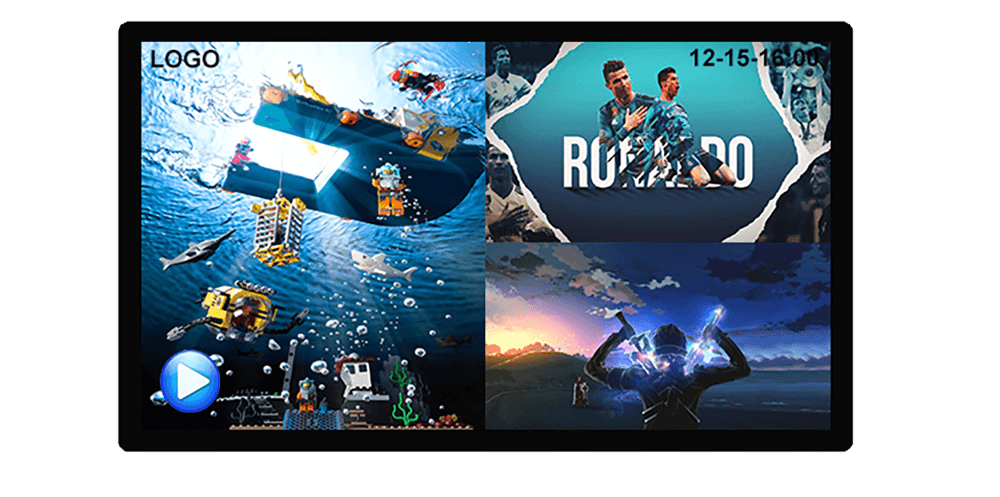

Smart split screen playback

Support multiple split screen modes,can play videos and pictures at the same time.Can add time ,weather, rolling title, LOGO,etc.
mon100 wall mount lcd display016

Wide perspective and delicate color

178° wide-angle technology, high brightness display, high transmittance ,any angle can clearly show the picture

mon100 wall mount lcd display017

Support horizontal and vertical installation

mon100 wall mount lcd display018
mon100 wall mount lcd display019

Auto copy + loop playback

Automatically copy pictures, videos and other programs after nserting the U disk, and play them in cycles.

Cloud Intelligent Remote Publishing

A mobile phone or computer can publish advertising programs.
mon100 wall mount lcd display020
mon100 wall mount lcd display021

All round protection

Pursue every details, what you worry about is what we consider.

– Original toughened glass explosion-proof and high temperature resistant.

– The back cover is made of imported cold-rolled steel plate.

– The frame is made of aluminum alloy, rust proof and not easy to damage.

– Rich cooling hole design effectively reduce the temperature.

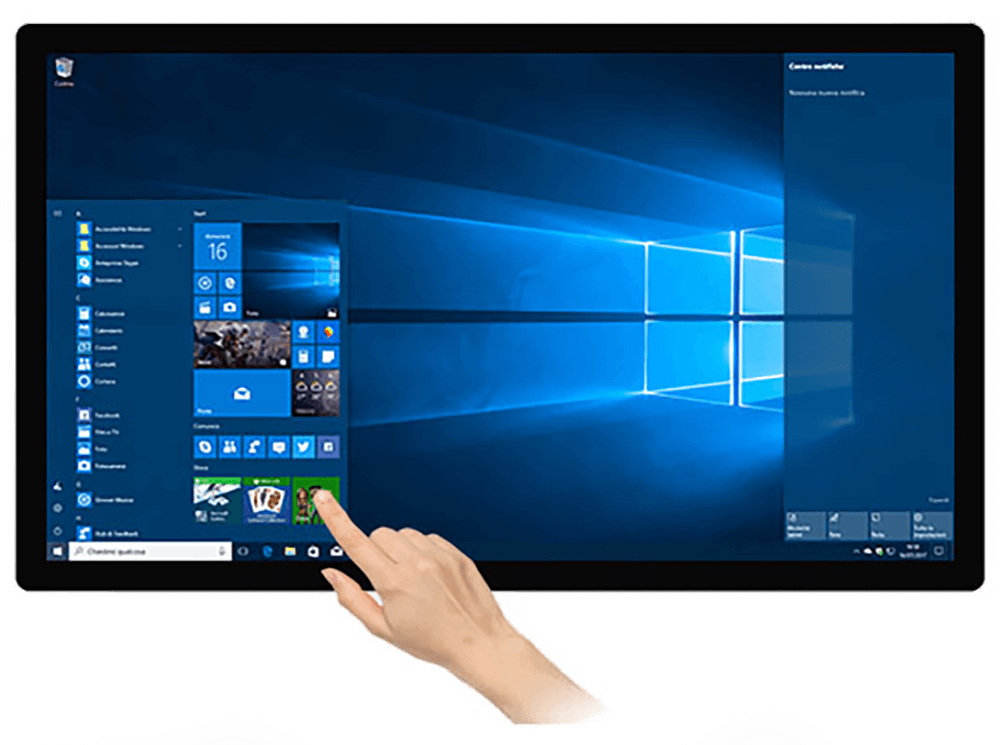

Touch screen (optional)

Support multi-touch, multi-person operation at the same time, providing a smooth control experience.

mon100 wall mount lcd display022

Specifications

OS Windows 7/10 or Android 5.1

CPU Intel i3, i5 or i7 RK3188 RK3288, eight-core ARM Cortex A7 2.0 GHz RK3366

GPU Intel HD Graphic / ARM Mail-764

RAM Windows  4GB-16GB Android : DDR 1GB (Upgradable to 4GB)

Built-in storage capacity Windows : 64GB - 512GB SSD Android: 8GB (Upgradable to 64GB)

WIFI WIFI module+WIFI AntennaPanel Size 15.6” – 98” real color LCD screenPanel Original LG Panel A+ Aspect Ratio 16:9 Max. Resolution 1920x 1080 Dot Pitch 0.74mm(H) x 0.74mm(W) Number of Color 16.7M Brightness 250-450cd/m2Contrast Ratio 3000:1 Optional Touch Technology Projective Capacitive Touch, Touch foil Responsive Time 5ms Panel Life above 50000 hours
Optional Media

Panel Size 15.6” – 98” real color LCD screen

Panel Original LG Panel A+

Aspect Ratio 16:9 Max. Resolution 1920x 1080

Dot Pitch 0.74mm(H) x 0.74mm(W)

Number of Color 16.7M

Brightness 250-450cd/m2

Contrast Ratio 3000:1

Optional Touch Technology Projective Capacitive Touch, Touch foil

Responsive Time 5ms

Panel Life above 50000 hours

Video formats MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1)

Audio formats MP3

Photo formats JPG

Scrolling Text ROL(UNICODE)

Input/output interface USB,HDMI,VGA,RJ45

Shell Material Metal shell + Aluminum Alloy frame + toughened glass

Surface Metal case with powder burning; Tempered glass to protect LCD panel

Speaker 2*10W built-in stereo speakers

Heat Dispersion Built-in DC fans

Standby ≤3W

Working 30W-180W

Power supply AC 110V - 240V, 50/60HZ

Storage -7 to 65 Celsius degree

Normal Working -5 to 65 Celsius degree

OSD Language

English, Chinese, French, German, Italian, Spanish, Arabic
