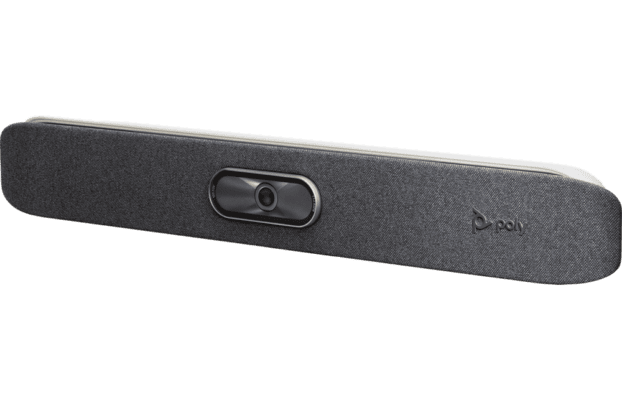

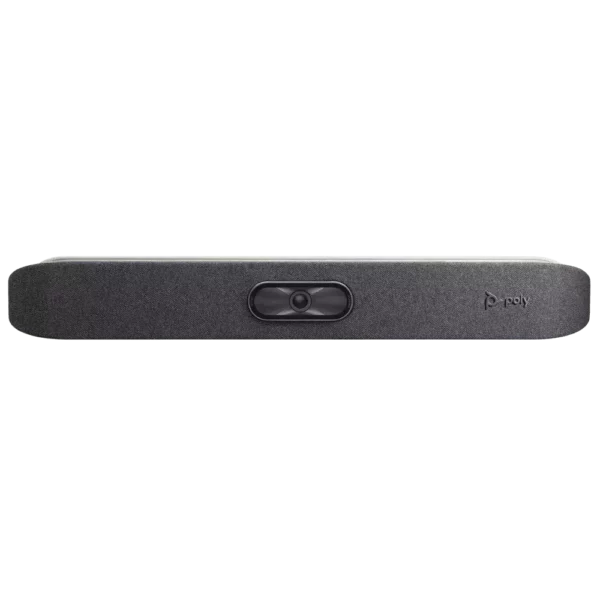

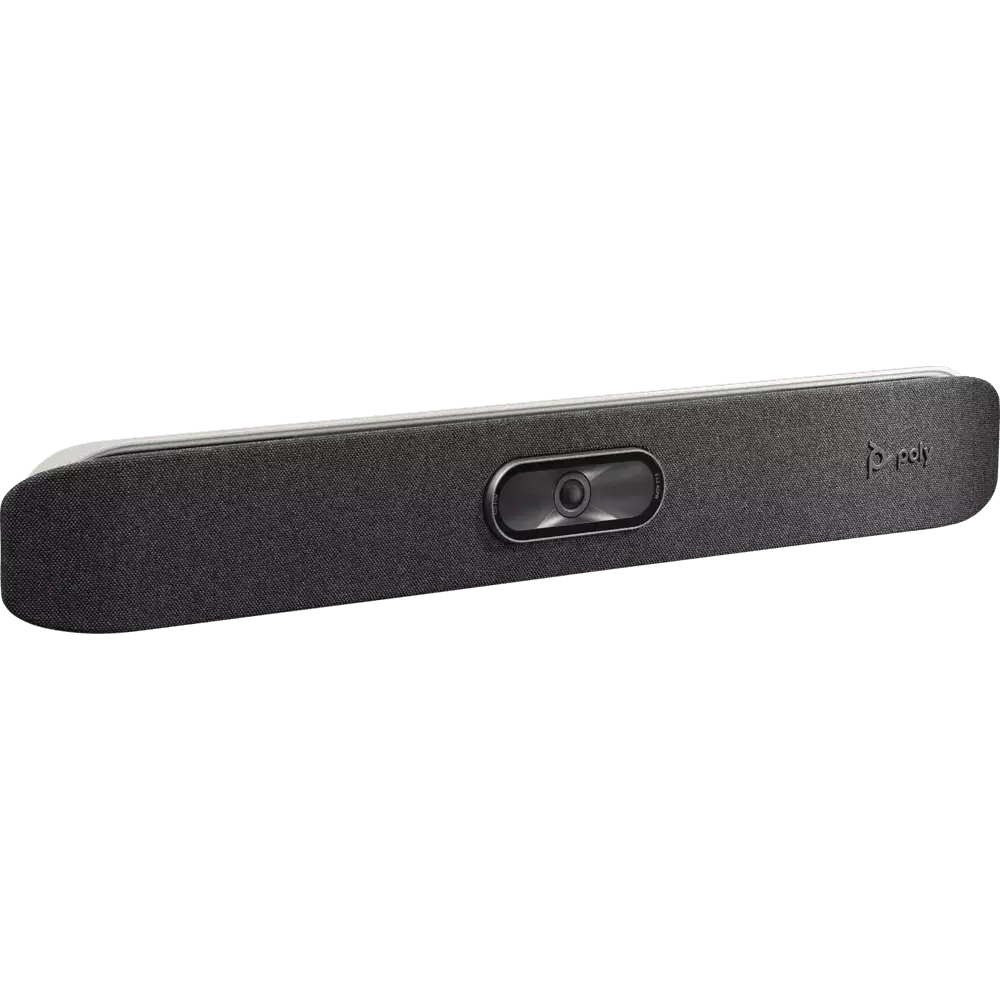

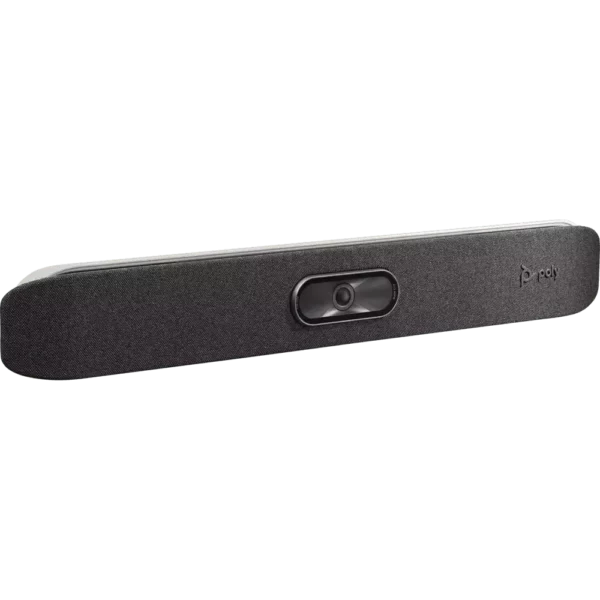

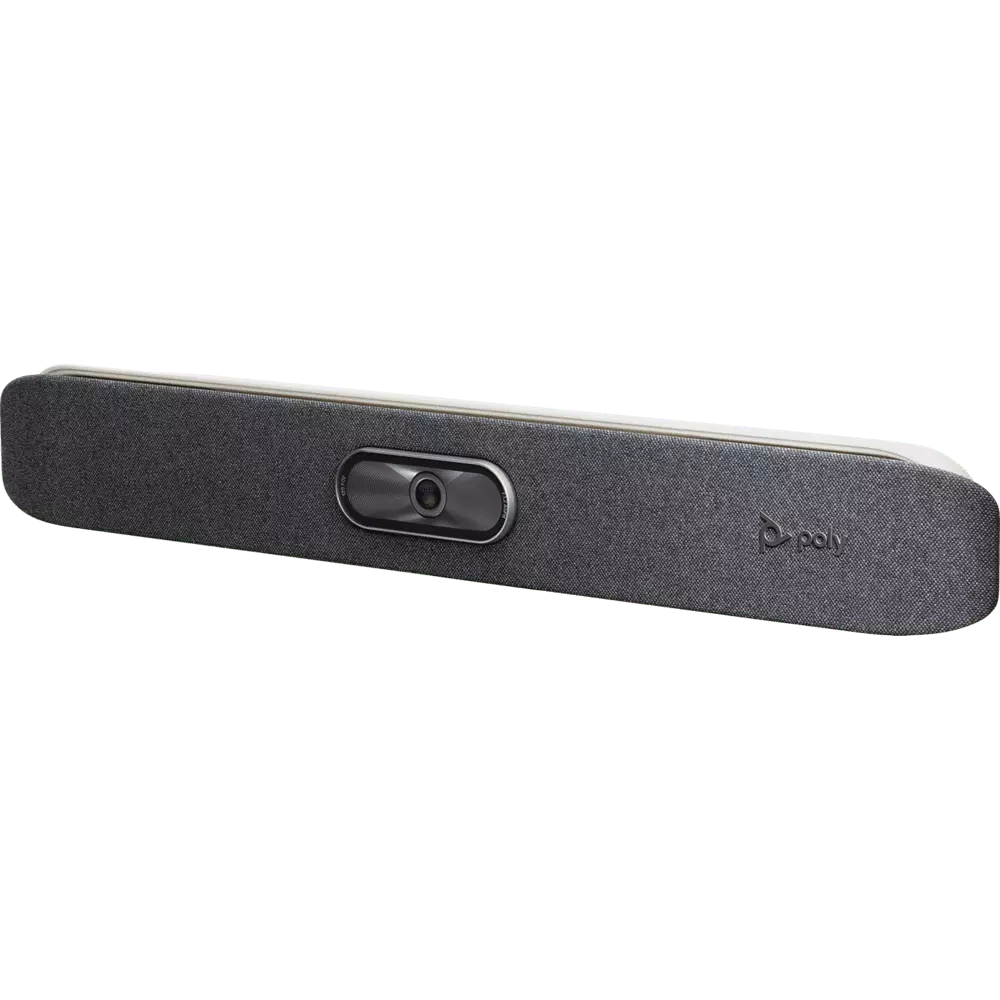

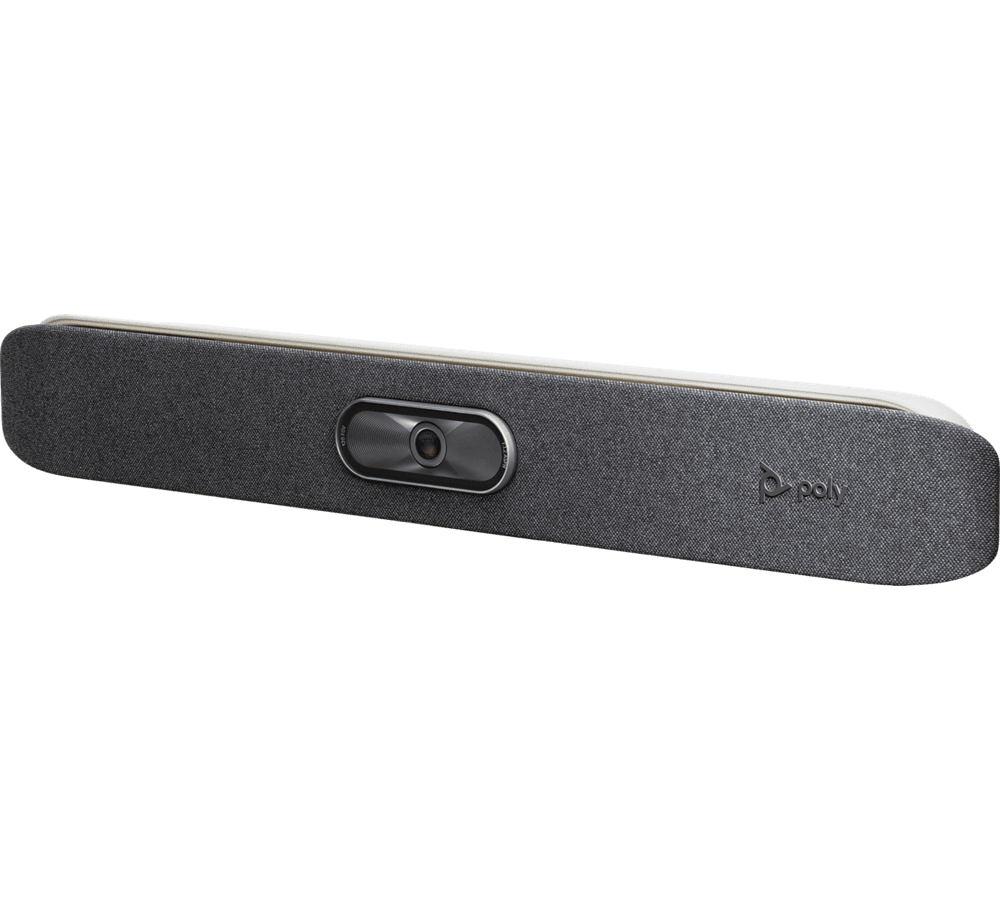

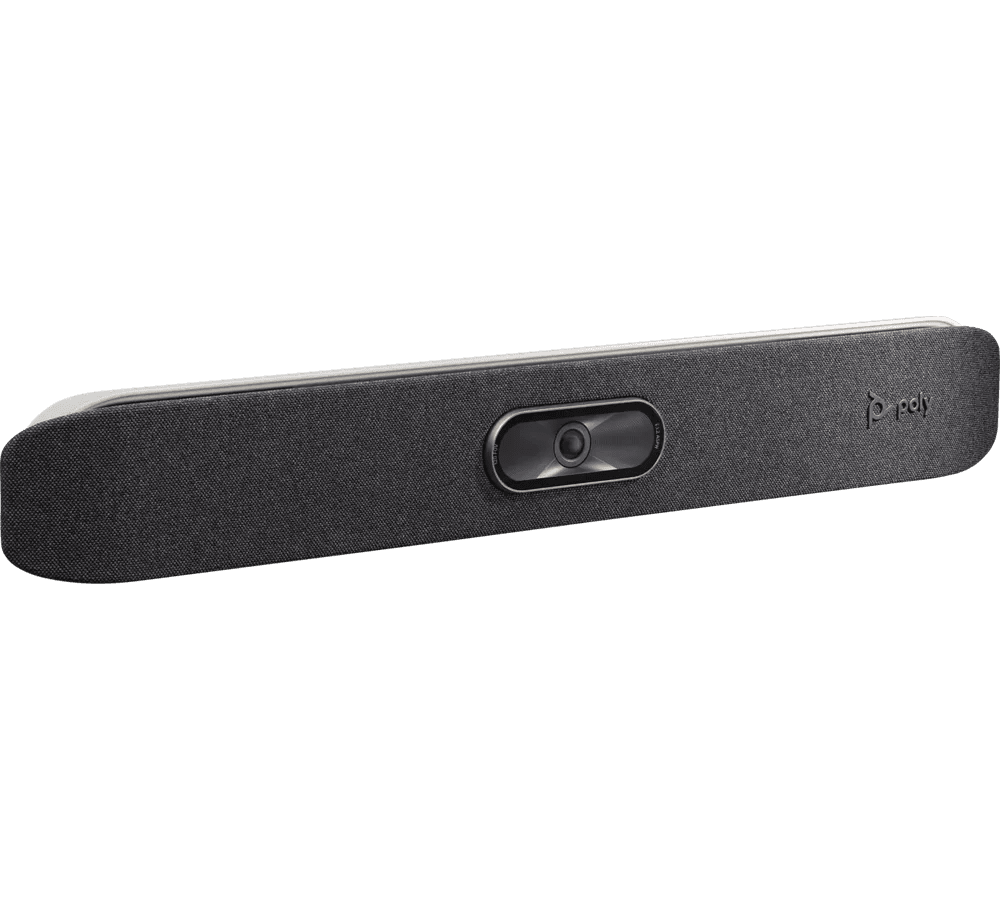

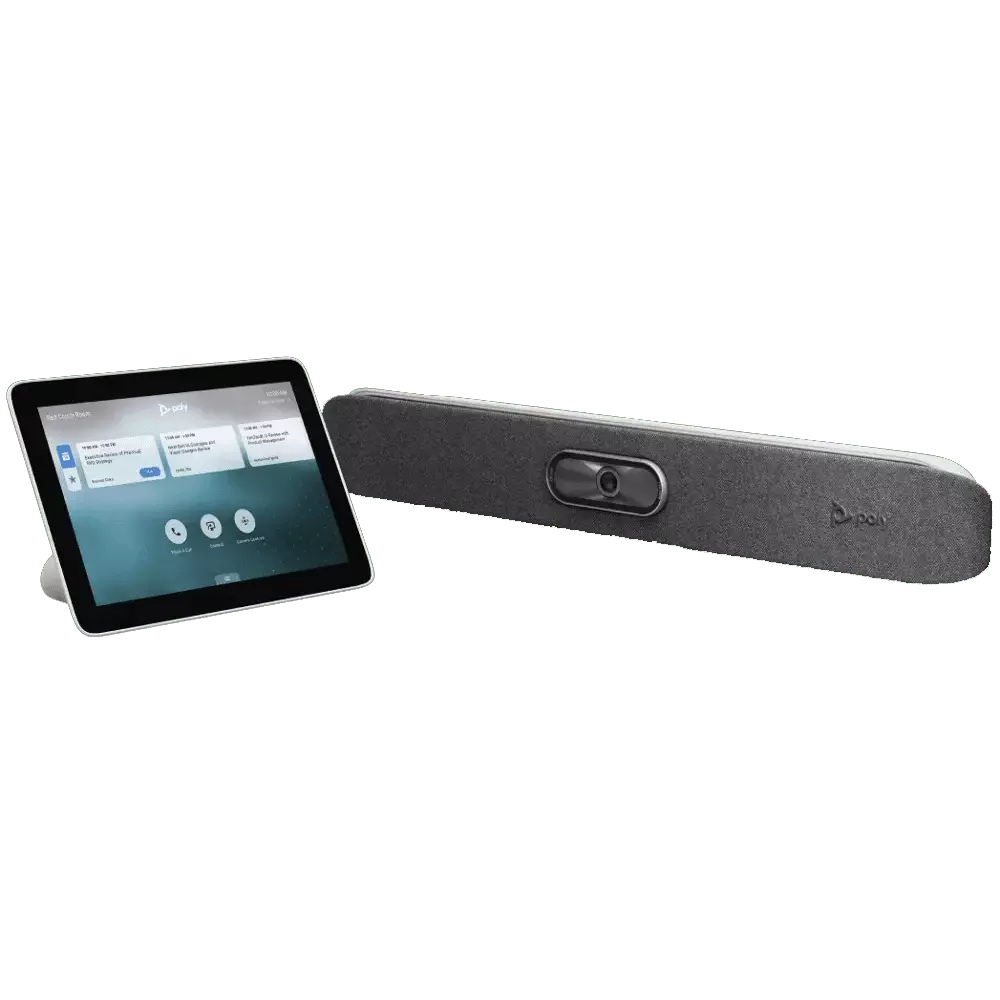

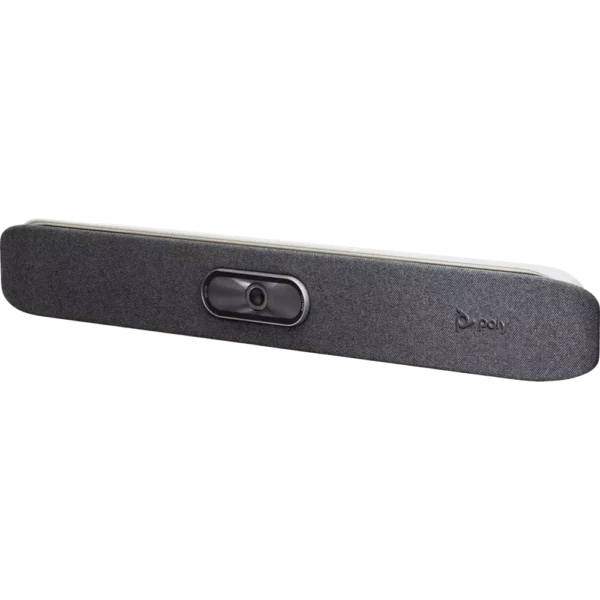

Polycom All-in-One Bar Poly Studio X30

• Ideal for huddle and small sized rooms
• 5x digital zoom, 120° FOV , UHD 2160p (4K) capture resolution
• Automatic people framing, Automatic speaker tracking
• Microphone pickup range 25 ft
• Can be connected easily with any video collaboration software and no PC or Mac required as supported with cloud video services built right in.

Descriptions

YOUR TICKET TO BOARDROOM PERFORMANCE

Don’t just have a meeting. Experience a boardroom-quality performance. The Poly Studio X30 is an all-in-one video bar for huddle and small rooms video conferencing. It’s radically simple to use with support for leading cloud video services built right in—no PC or Mac required. Voices are crisp and clear. And wireless content sharing lets users collaborate from their devices without the need for cables or pucks.

Key Features

POWERFUL AUDIO

Don’t let its small size fool you—Studio X30 has room-filling audio to ensure everyone can hear clearly.

Polycom_video conference_poly-studio-x30
Polycom_video conference_poly-studio-x30

BEAMFORMING MICROPHONE ARRAY

Crisp, clear voice pickup so you can be confident you’re being heard, no matter where you sit in conferencing room.

SMART CAMERA

Feel connected with production-quality camera framing and tracking that keeps the visual focus in the right place throughout the conversation.

Polycom_video conference_poly-studio-x30

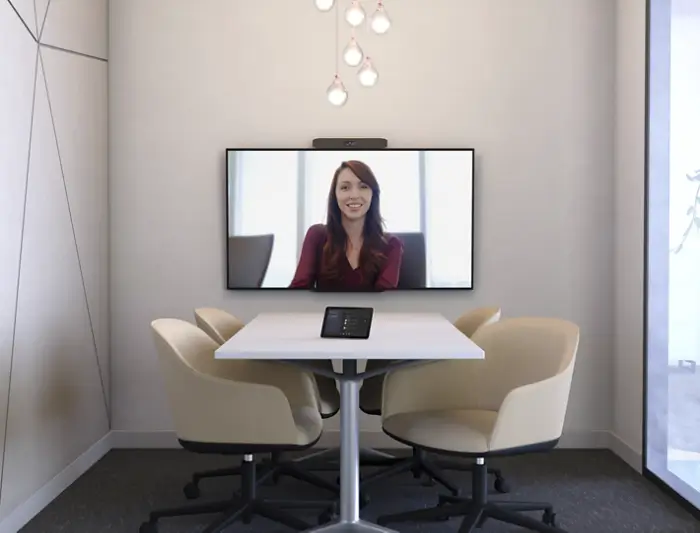

Studio X30 Small Room Rendering Teams

NOISE BLOCKING INNOVATIONS

Keep distracting noise and outside conversations from disrupting your meeting with Poly NoiseBlockAI and Acoustic Fence.

CLOUD VIDEO SOFTWARE BUILT RIGHT IN

No PC or Mac needed for always-on connectivity to your favorite video platforms.

Studiox30 Screencap zoom 1

Specifications

  • 17.39 W x 2.46 H x 2.42 D (inches) 441.8 W x 62.5 H x 61.6 D (mm)
  • 1.6 lbs/.73 kg
  • Operating temperature: 0 to 40 °C
  • Operating humidity (non-condensing): 15 to 80%
  • Non-operating temperature: -40 to 70 °C
  • Non-operating humidity (non-condensing): 5 to 95%
  • Maximum altitude: 16,000 ft
  • Poly Studio X30
  • Cable bundle
  • Monitor clamp
  • Privacy cover

VIDEO STANDARDS AND PROTOCOLS

  • H.264 AVC, H.264 High Profile, H.265



VIDEO INPUT

1x HDMI



VIDEO OUT

  • 1x HDMI
  • Touch display compatible



PEOPLE VIDEO RESOLUTION

  • 4K, 30 fps (TX and RX) from 2048 Kbps
  • 1080p, 60 fps from 1740 Kbps
  • 1080p, 30 fps from 1024 Kbps
  • 720p, 60 fps from 832 Kbps
  • 720p, 30 fps from 512 Kbps



CONTENT VIDEO RESOLUTION

  • Input
    • UHD (3840 x 2160)
    • HD (1920 x 1080p)
    • WSXGA+ (1680 x 1050)
    • UXGA (1600 x 1200)
    • SXGA (1280 x 1024)
    • WXGA (1280 x 768)
    • HD (1280 x 720p)
    • XGA (1024 x 768)
    • SVGA (800 x 600
  • Output
    • UHD (3840 x 2160)
    • WUXGA (1920 x 1200)
    • HD (1920 x 1080)
    • WSXGA+ (1680 x 1050)
    • SXGA+ (1400 x 1050)
    • SXGA (1280 x 1024)
    • HD (1280 x 720)
    • XGA (1024 x 768)
  • Content frame rate
    • 5–60 fps (up to 4K resolution at 15 fps in call)

CONTENT SHARING

  • Poly Content app support
  • Apple Airplay
  • Miracast
  • HDMI input
  • Digital Whiteboarding



CAMERA

  • 5x digital zoom
  • 120° FOV
  • UHD 2160p (4K) capture resolution
  • Electronic pan/tilt/zoom
  • Automatic group framing
  • Automatic speaker tracking



AUDIO INPUT

  • Four MEMS microphones
  • Microphone pickup range 15ft



AUDIO OUTPUT

  • Single Speaker
  • Microphone pickup range 15ft



OTHER INTERFACES

  • 1x USB-A (3.0)
  • 1x USB-C
  • Bluetooth 5.0
  • WiFi 802.11a/b/g/n/ac (MIMO) Multi-channel Concurrency



AUDIO STANDARDS AND PROTOCOLS

  • 22 kHz bandwidth with Polycom Siren 22 technology
  • 20 kHz bandwidth with G.719 (M- Mode)and Polycom Siren 22 technology
  • 14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C
  • 7 kHz bandwidth with G.722, G.722.1
  • 3.4 kHz bandwidth with G.711, G.728, G.729A



NETWORK

  • IPv4
  • 1x 10/100/1G Ethernet
  • Auto-MDIX
  • H.323 and/or SIP up to 6 Mbps in Poly App video mode
  • Lost Packet Recovery (LPR) technology
  • Dynamic bandwidth allocation
  • Reconfigurable MTU size
  • Web proxy support—basic, digest, and NTLM
  • Simple Certificate Enrollment Protocol (SCEP)
  • IPv6



SECURITY

  • Media Encryption (H.323, SIP): AES-128, AES-256
  • H.235.6 support
  • Authenticated access to admin menus, web interface, and APIs
  • Local account password policy configuration
  • Security profiles
  • Local account and login port lockout
  • Secure defaults
  • Remote logging with support for TLS
  • Active directory external authentication



OPTIONS

  • VESA mount kit
  • Stand

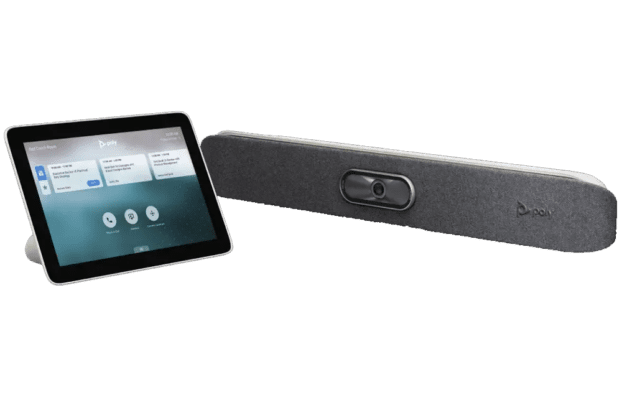

  • Poly TC8
  • Poly Bluetooth remote control
  • Poly Trio
  • Inverted mount kit
  • TAA, JITC and no radio versions available



INTEROPERABILITY

  • Zoom Certified
  • Microsoft Teams Certified
  • All cloud service providers through Poly Video App Mode
  • USB device mode
  • Support for native 3rd party applications includes Zoom, Microsoft Teams, 8x8, GoToRoom, RingCentral and StarLeaf



ELECTRICAL

  • Auto sensing power supply
  • Typical operating voltage/power
    • 37 VA @ 120 V @ 60 Hz
    • 37 VA @ 230 V @ 50/60 Hz
  • Typical BTU/h: 65



WARRANTY

  • One-year return to factory parts and labor
