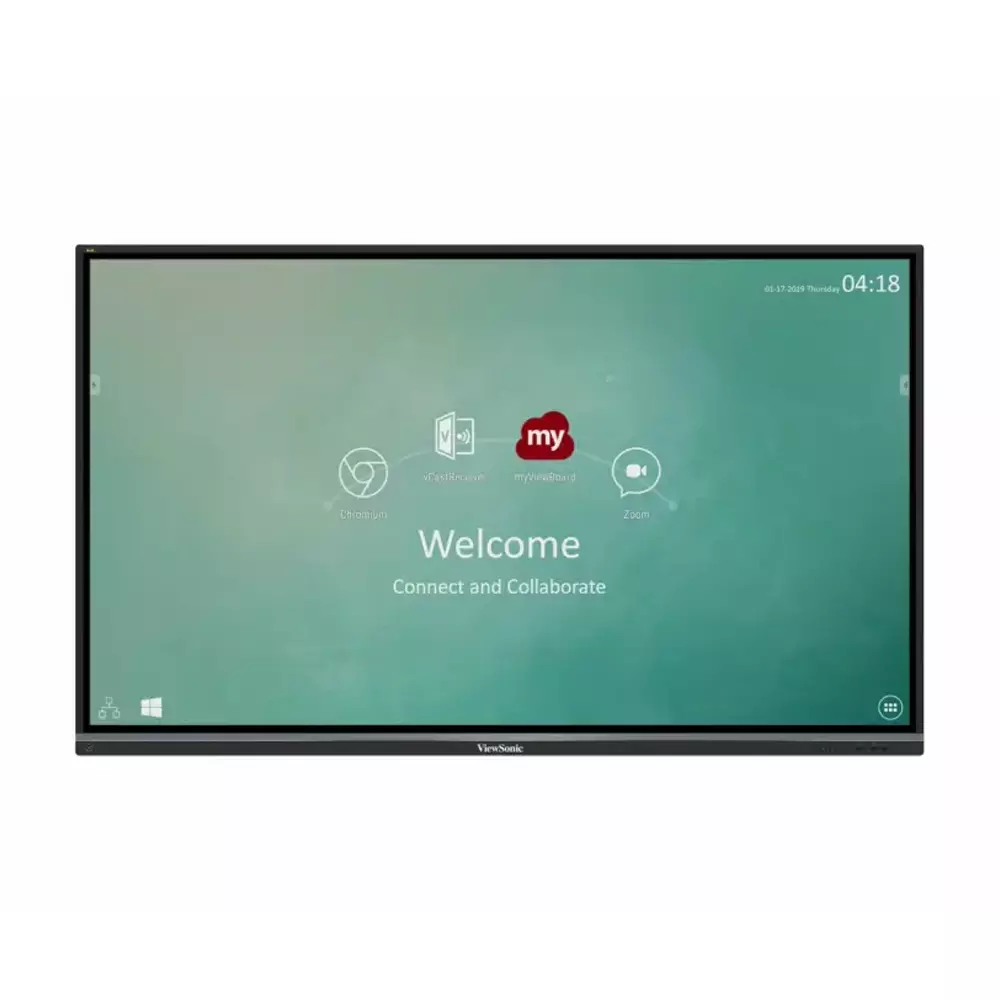

Viewsonic Smartboard IFP7550-2
Viewsonic Smartboard IFP7550-2 - Image 2
Viewsonic Smartboard IFP7550-2 - Image 3
Viewsonic Smartboard IFP7550-2 - Image 4
Viewsonic Smartboard IFP7550-2 - Image 5
Viewsonic Smartboard IFP7550-2 - Image 6

Viewsonic Smartboard IFP7550-2

Smartboard

• 75” interactive display
• Ultra fine touch technology delivering a smooth, natural handwriting experience
• 4K resolution with super clear colors and graphics
• TUV certified for low blue light emission
• myViewBoard software offering a customizable, secure, and future-proof whiteboarding solution
• Optional slot-in PC upgrade for more speed, flexibility, and versatility

Tag: Viewsonic

Description

Descriptions

viewsonic_smartboard_IFP7550-2

ViewBoard® 75" 4K Interactive Display

  • Intuitive Interactive Interface and Eye-care Certified Display
  • Synchronous Writing Performance with Dual Pens
  • Lag-free, Pen-on-paper Writing Experience with Ultra Fine Touch Technology
  • Native Whiteboarding Tool with built-in myViewBoard® App
  • Wireless Content Sharing and 4-way Split Screen with ViewBoard® Cast App

Key Features

UFT Technology

Ultra Fine Touch Technology produces a lag-free, pen-on-paper writing experience. Writing accuracy is greatly improved and student-teacher interaction flows more naturally thanks to real-time response rates, dual-pen recognition and our new 3mm tipped pens.

VIEWSONIC SMARTBOARD 3
VIEWSONIC SMARTBOARD 4

Dual-Pen

Automatically detect pen diameter (8mm & 3mm) and write simultaneously with different colours and thicknesses.

Full Native Performance on ViewBoard OS

Built-in myViewBoard® digital whiteboard software to collaborate on the go.

VIEWSONIC SMARTBOARD 5
VIEWSONIC SMARTBOARD 6

4-way Split Screen

4-way split-screen content sharing with built-in ViewBoard® Cast software

Shared USB Ports

SmartPort™ shared front USB ports for internal & external PCs.

VIEWSONIC SMARTBOARD 7
VIEWSONIC SMARTBOARD 8

Stereo Sound

2.1 Stereo sound with a built-in subwoofer.

Faster Internet

LAN sharing with slot-in PC provides a faster, more powerful internet connection.

VIEWSONIC SMARTBOARD 9
VIEWSONIC SMARTBOARD 10

Object Recognition and Windows Ink Compatible

Make annotations, write and draw on the whiteboard, Office365 or Windows Ink. Therefore your meetings will be more collaborative and interactive.

Remote Control

Built-in RS232 port and vController software for remote control.

VIEWSONIC SMARTBOARD 11
VIEWSONIC SMARTBOARD 12

Slot-in PC

Slot-in PC with Intel 8th-gen CPU (Optional).

Web Camera

Top-mounted 1080p web camera (Optional).

VIEWSONIC SMARTBOARD 1

I/O Port

viewsonic smartboard IFP7550 2 1 1

Specifications

Physical (inch / mm): 67.3 x 40.2 x 3.5 in / 1710 x 1020 x 90 mm
Packaging (inch / mm): 76.0 x 44.9 x 11.0 in / 1930 x 1140 x 280 mm

Processor:

ARM Cortex A73 dual-core 1.2GHz

RAM:

2GB DDR4
Storage:

16GB

  • Display
    Panel Size: 75"
    Type/Tech: TFT LCD Module with DLED Backlight.
    Display Area (mm): 1665.66 (H) x 944.73 (V) (74.5” diagonal)
    Aspect Ratio: 16:9
    Native Resolution: UHD 3840x2160(Pixels)
    Colours: 1.07B colours (10bit)
    Brightness: 350 nits (typ.) 300 nits (min.)
    Contrast Ratio: 5000:1 (DCR)
    Response Time: 8ms
    Viewing Angles: H = 178, V = 178 typ.
    Backlight Life: 30,000 Hours (Min)
    Surface Treatment: Anti-Glare
    Bezel: Slim
    Orientation: Landscape
  • Touch
    Type/ Tech: IR Recognition
    Touch Resolution: 32767 x 32767
    Touch Point: 20 points touch, 10 points writing
  • USB SUPPORTED FILE FORMAT

USB SUPPORTED FILE FORMAT: Picture -
BMP, JPEG, PNG

Video -
Codec: MPEG1, MPEG2, MPEG2-PS, MPEG4, MKV
Container: MPG, MP4, MOV, VOB, DAT, MKV

Audio -
Codec: AAC, HEAAC, MPEG1, MPEG2
Container: AAC, M4A, MP3

  • Bundle Software
Basic Annotation Software: myViewBoard
Pro Annotation Software: myViewBoard for windows (Embedded in Windows Slot-in PC)
Wireless Presentation with Touch Feedback: Viewboard Cast: yes
ViewSonic Launcher: Embedded
  • Special Features
All-in-one USB port (combine Windows/Android USB port; no need to distinguish them anymore): Front “SmartPort™ USB” to all channels.
Simple LAN sharing between IFP and slot-in device: Yes
  • Power
Voltage: 100-240VAC +/- 10% Wide Range
Consumption: 138W (Typ.)
< 0.5 W ("Off")
  • ERGONOMICS
Wall Mount (VESA® ): 800 x 400
  • OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensing
  • WEIGHT
Net (lb / kg): 116.8 lb/53 Kg
Gross (lb / kg): 143.3lb/65Kg
  • REGULATIONS
REGULATIONS: FCC, cTUVus, CB, CE, BSMI, RCM, BIS, EAC
  • Energy Star version
Energy Star version: ES8.0
  • EEI rating
EEI rating: A+
  • Compatible Slot-in PC
Compatible Slot-in PC: VPC14-WP series
VPC10-WP series
VPC15-WP series
VPC16-WP series
VPC17-WP series
1. Power cable (3 meters) x 4
2. Remote control
3. USB cable (3 meters)
4. AV cable
5. Touching pen x 2
6. Quick Start Guide
7. RS232 adapter
8. Clamp x 5
9. Plate
10. Screw x 8
11. HDMI cable
