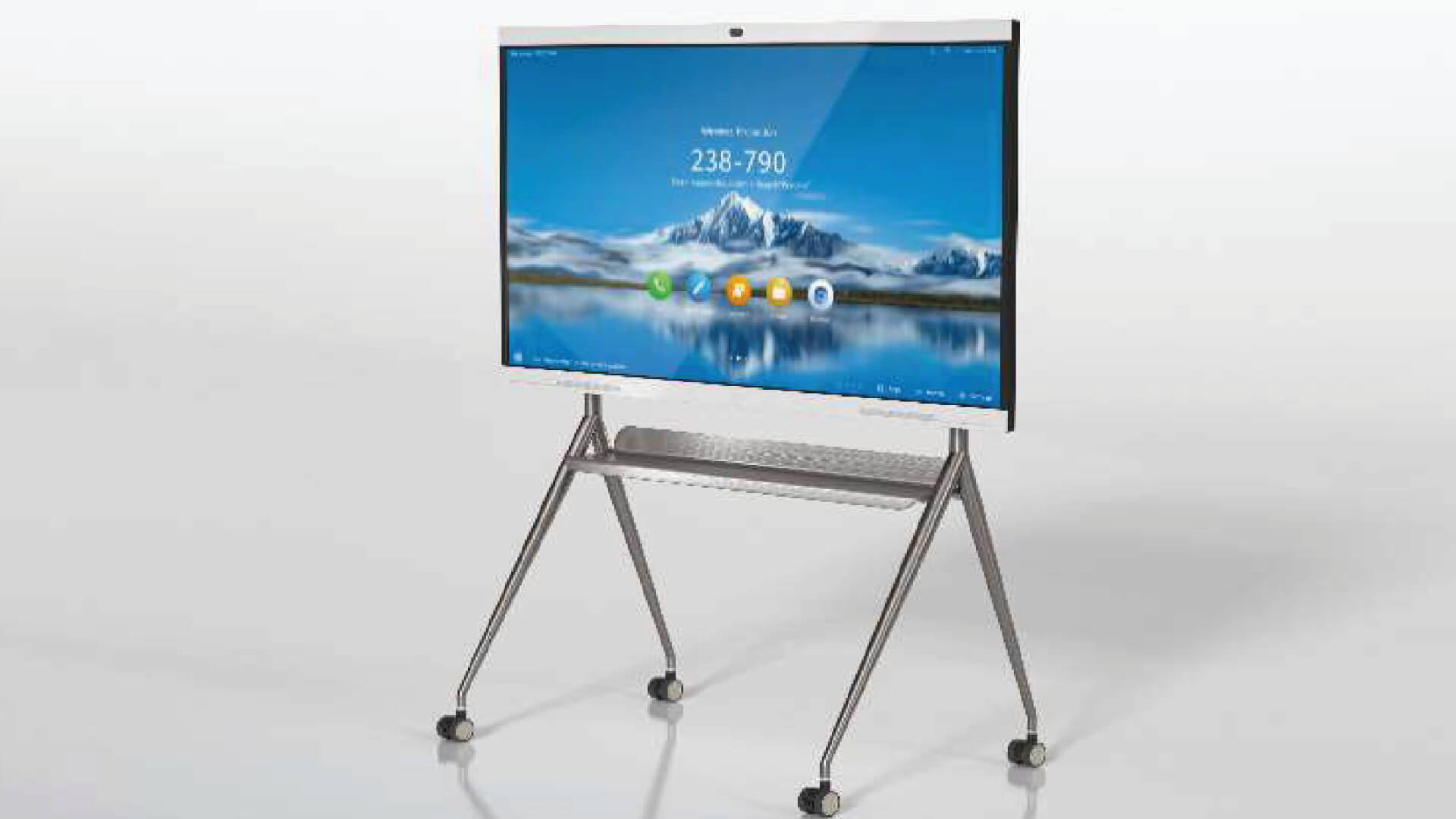

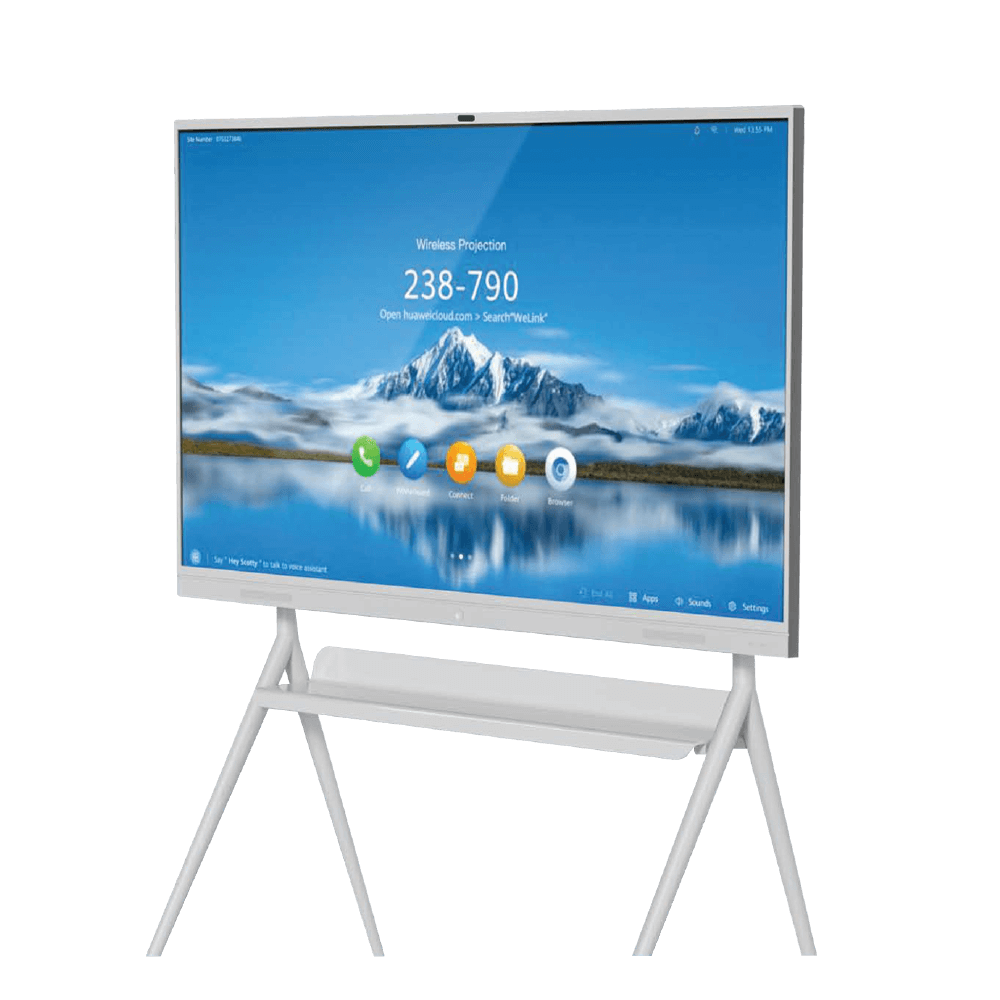

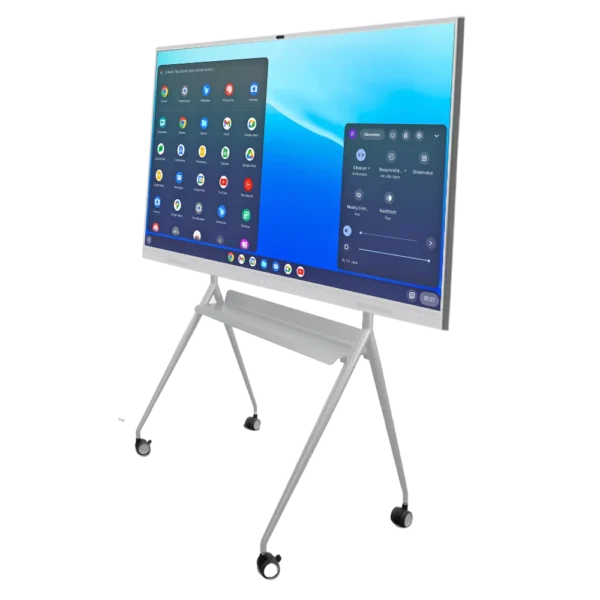

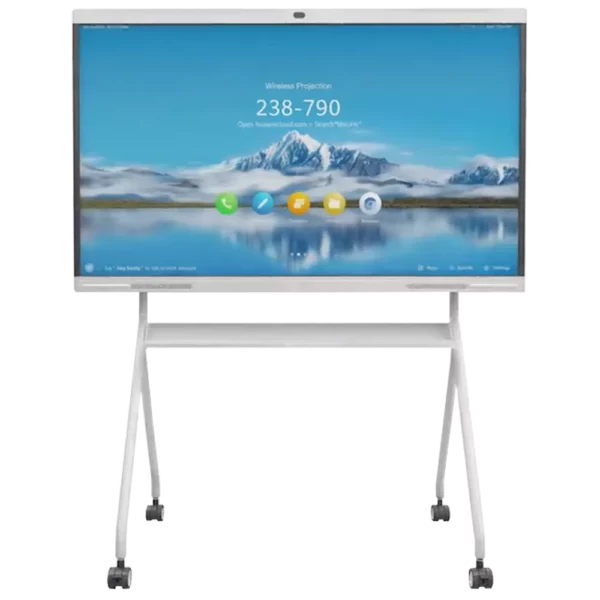

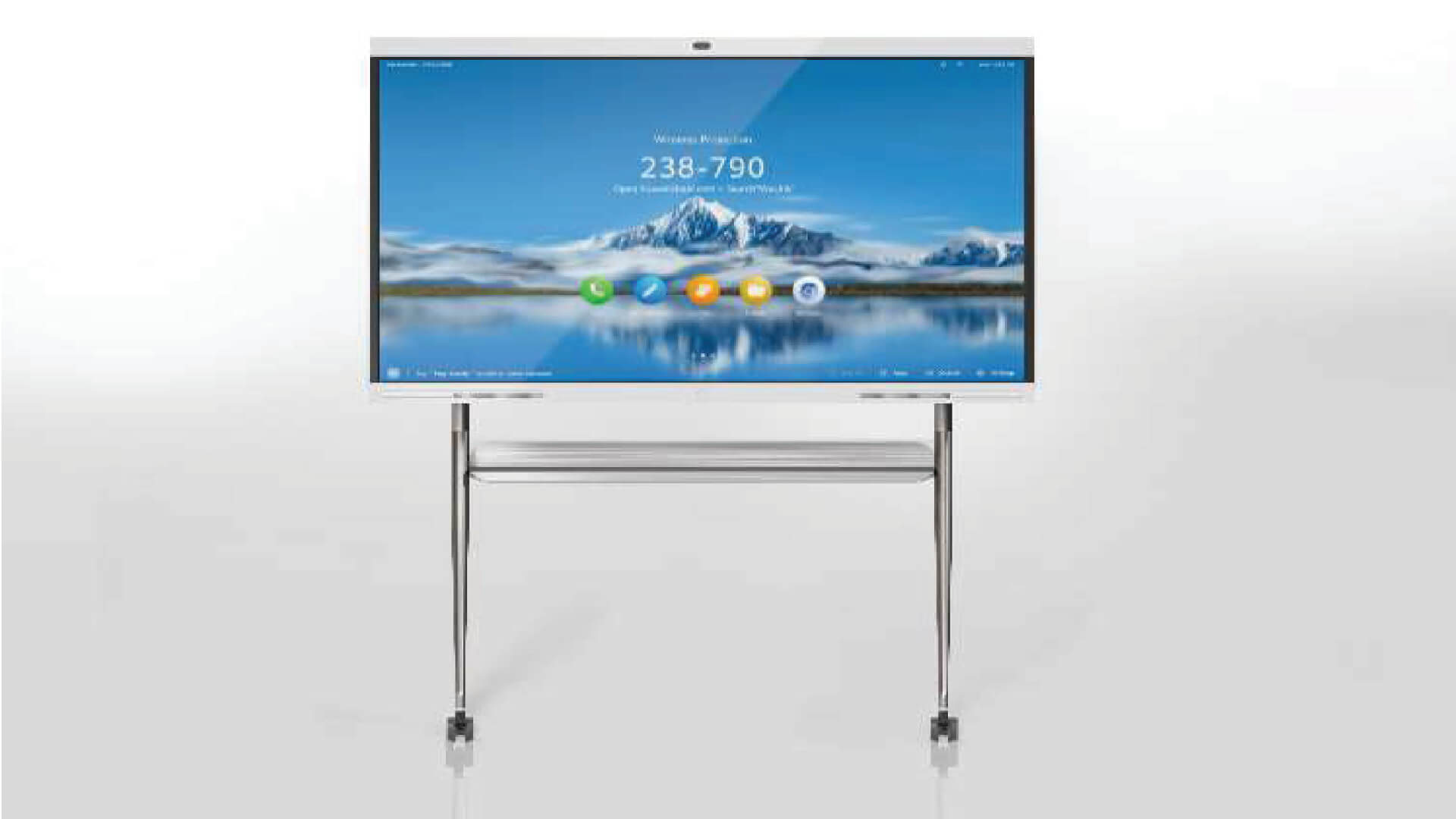

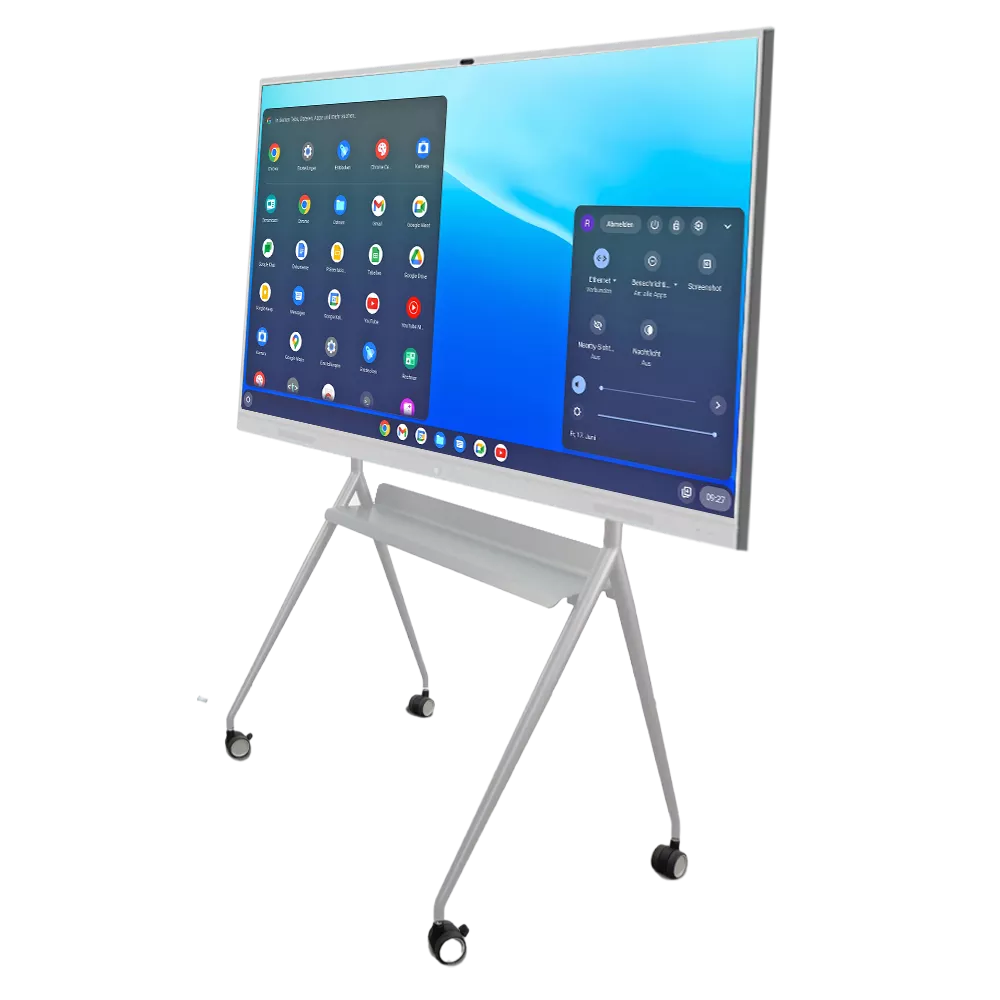

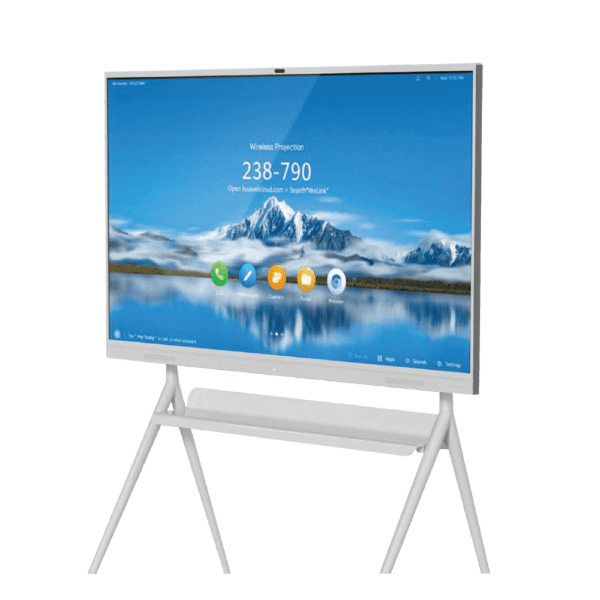

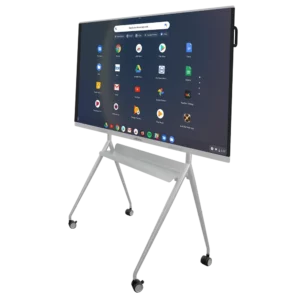

All in one Arvia Interactive Smartboard – ARV400
Smart ClassroomSmartboard• Have three types of operating system: Windows & Android, Windows only & Chrome OS
• Have infrared touch technology
• Super slim 4K UHD innovative smartboard
• Have 20 multi touch points
• Have 4 different sizes which is 55”, 65”, 75” and 86”
• Additional built in with microphone and camera
Description
DESCRIPTIONS
INNOVATION PRESENTATION
This is your gateway to the technology, tools and training for 21st century teaching and collabaration. We will help you choosing the right technology for your unique needs and maximizing the learning benefits of using your Smartboard and reload technologies.
Notes
Multicolor optional
Page increase
Free scaling
Background change
gesture erasure
Drag and drop
Free Circle
KEY FEATURES
Improve students’ attitude
fun and easy way
Smartboard from Israk aims to help teachers deliver messages in the most impactful way, allowing young and adult students to expand their knowledge and learn new things in a fun and easy way.
initiate interactive learning
With responsive multi-touch capability, teachers can easily initiate interactive learning and explore dynamic possibilities by inviting students to co-create artwork, participate in team activities and more.
For true collaborative learning
The smartboard empowers teachers to trigger interaction and touch-enhanced interactive learning in no time and significantly enhance learning outcomes.
APPLICATION SCENARIO

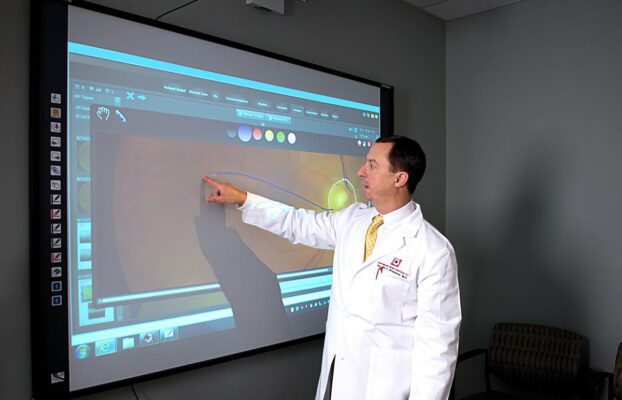

Medical Consultation

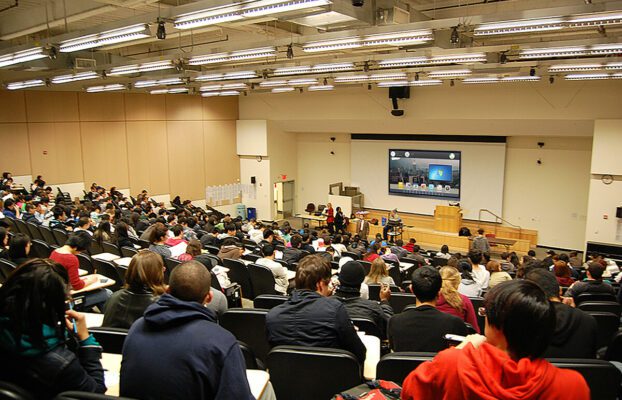

Large Lecture

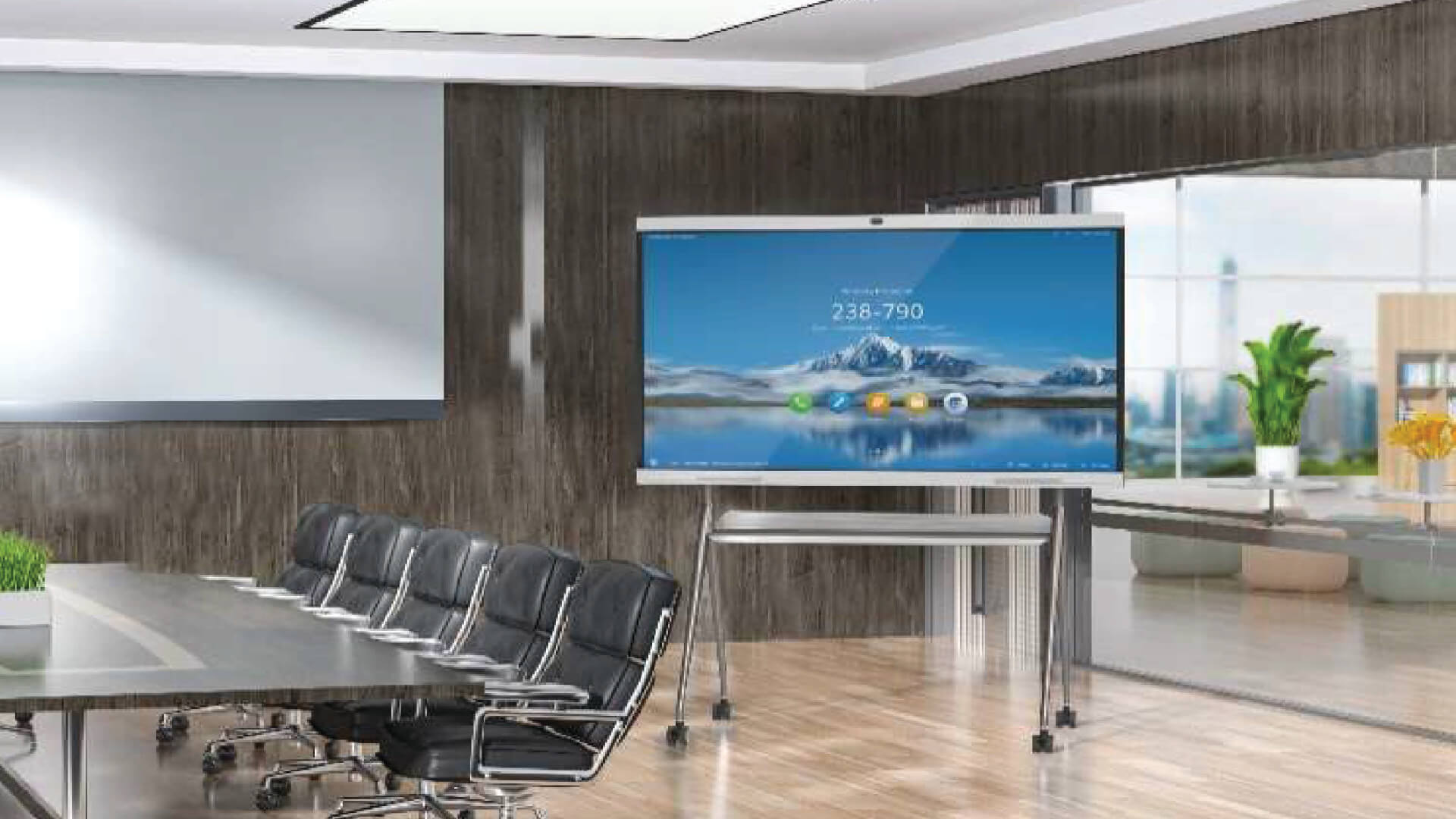

Conference Meeting

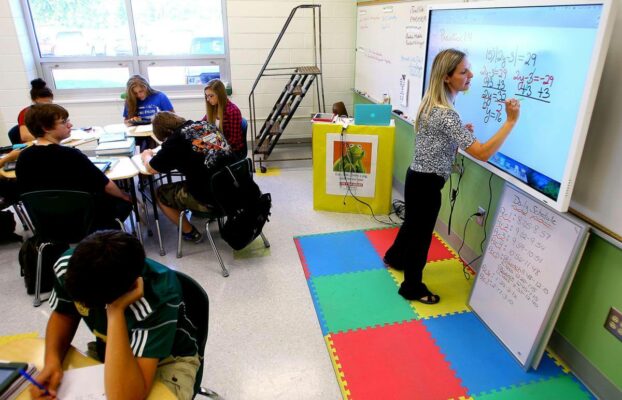

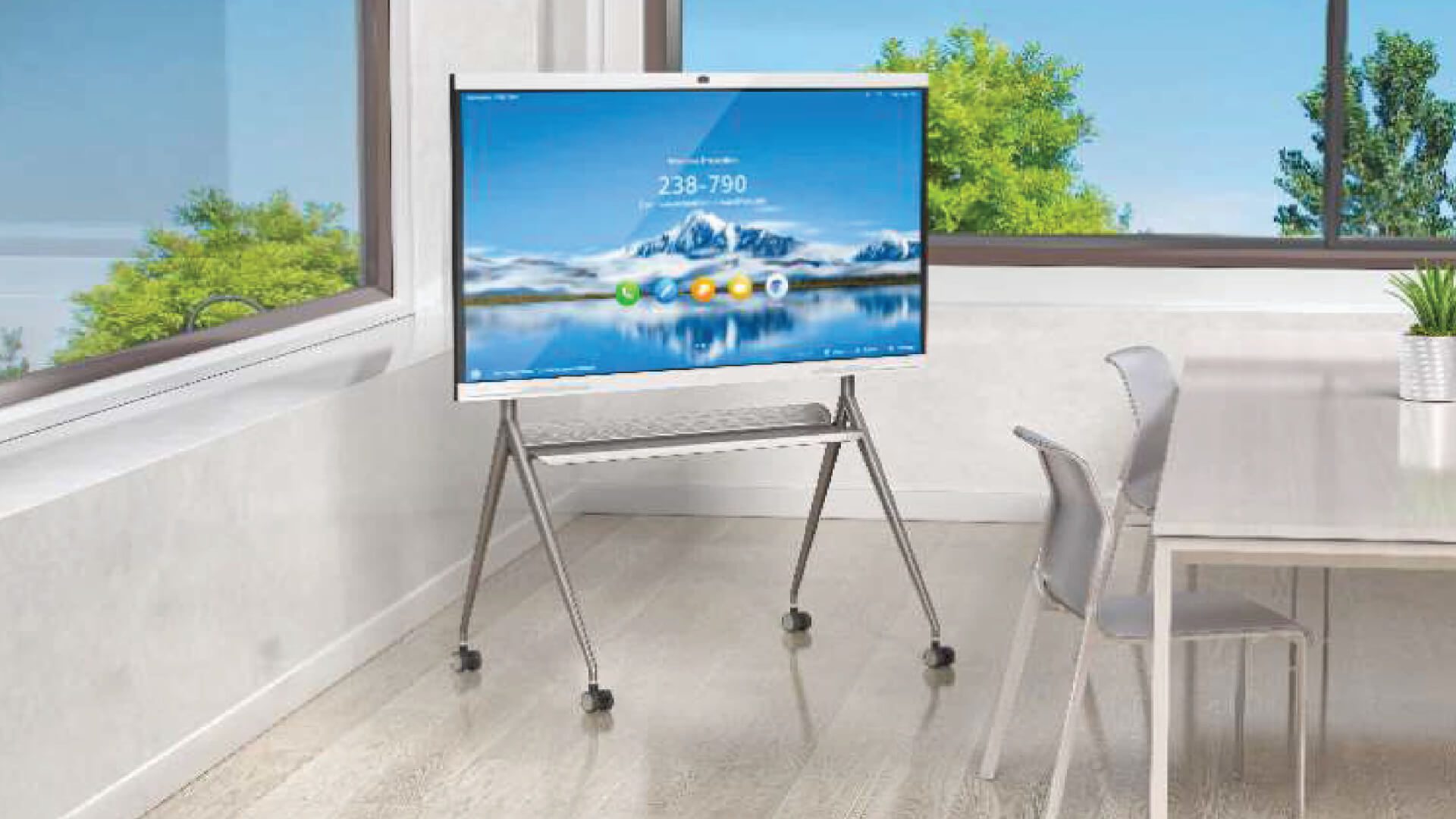

School Teaching
SPECIFICATIONS
Panel size 55/65/75/86 Inch
Backlight LED backlight
Resolution 3840.2160
Brightness 450cd/m2
Rate 3000: 1
Viewing angle 178°,178°
Respond time 9.5ms
Display color 8 bit/16.7 Billion
Back light DLED
Panel life ≥50000 hours
Working power ≤320W
Working voltage 100V-240VAC,50/60Hz
Speaker 80/10W*2 Net weight/Gross
weigh 73KG+5KG/91Kg+5KG
Android OS
Android 8.0 OS
Processor
Dual core A73 and dual core A53 1.5Ghz with Quad core Mali G51 GPU
RAM
4GB DDR4
Storage
32GB EMMC
Interface
HDMI*4 / USB2.0*3 / SD*1 / AV in*2 / AV out*1 / YPbPr*1 / RJ45*2 / SPDIF*1 / VGA in*1 / Audio input*1 / VGA out*1 / Audio output*1 / Touch screen USB*2 / RS232*1 / RF*1 / WIFI*1 / MIC*1 / USB3.0*2 / 8MP Camera*1 / 6 Array Micphone
Multi media
Audio: MP3 / WMA / WAV / APE / FLAC / MC / OGG / M4A / 3GP etc
Video: H.264 / VP8 / RV / WMV / AVS / H .263 / MPEG4 etc
JPG, BMP, PNG etc
Touch screen Infrared touch screen
Accurate 1.5mm
Install way Fixed inside with glass
Writing way Finger or pen ≥8mm opaque objects
Touch points 32 touch points
Writing screen media 4mm Physical toughened glass
Respond time ≤5ms
Driver Free driver
Driver way USB
Usage life 50000 Hours
Main board Intel® HM76
Graphics card Intel® UHD Graphics 630. Support True 4K @60Hz
WIFI MINI PCIE 802.11 A/B/G
RJ45 2
VGA 1
3.5 mm Audio 1
CPU Intel CPU i5/i7
RAM 8GB/16GB
SSD 256GB/512GB
USB 6x USB 3.0
HDMI l DP 1 + 1
Microphone 6 Array Micphone
