Description
Descriptions
Full HD, Wide View Angle, Multi-protocols, Multiple Video Interfaces, Multi-lens

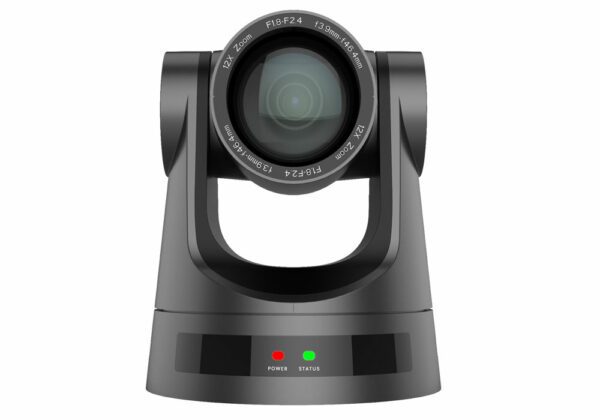

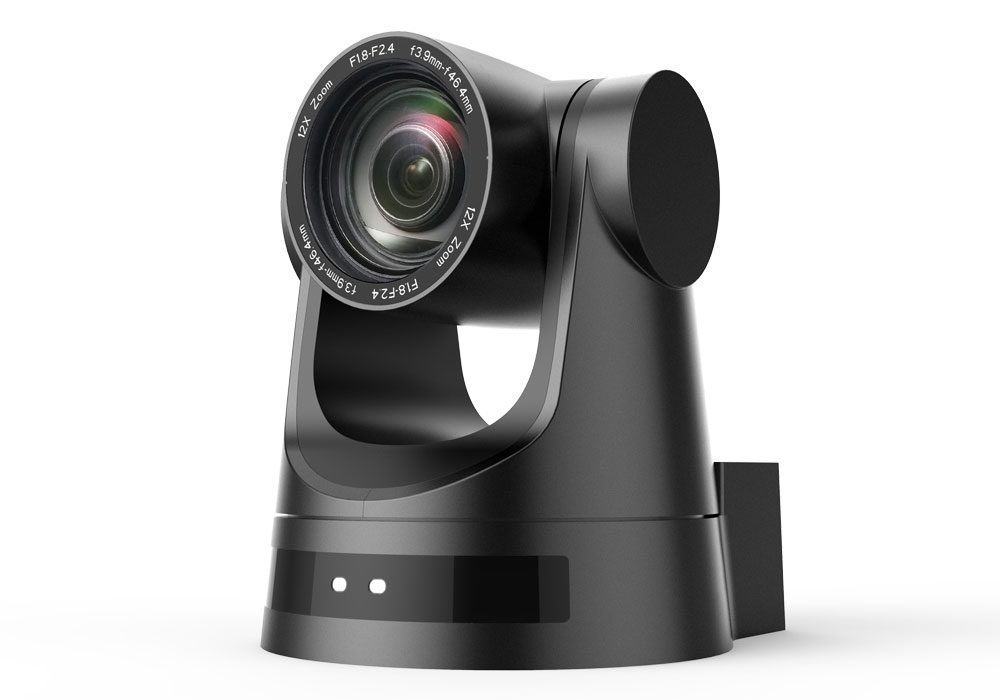

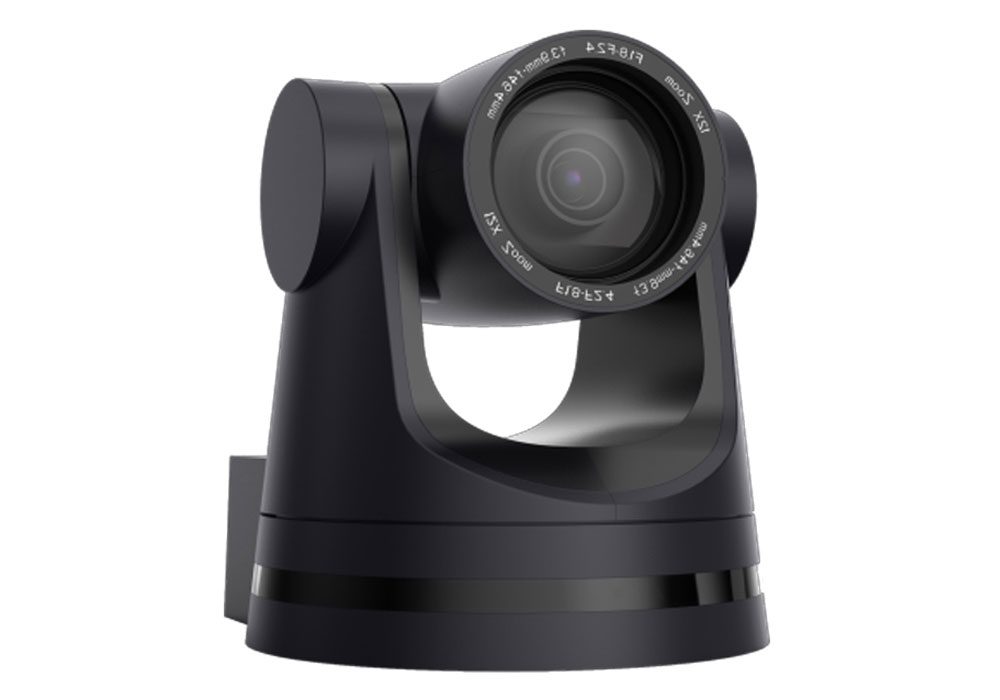

ARV-VC580 video conferencing camera is featured with an advanced ISP processing algorithm, providing high-quality video and smooth motion. It supports H.264/H.265 encoding which makes motion video fluent and clear under low bandwidth conditions.
Key Features
Superb High definition Image
ARV-VC 950 employs 1/2.8 inch high quality CMOS sensor. Resolution is up to1920x1080 with frame rate up to 60fps.
Low Noise and High SNR
Low noise CMOS ensures super high SNR image. The advanced 2D/3D noise reduction technology reduces the noise while ensuring high image clarity during video conference.
Leading Auto Focus Technology
Advanced and leading algorithm enables the camera autofocus fast and accurately while conducting video conference.
Specifications
| Model | ARV-VC580-05 | ARV-VC580-10 | ARV-VC580-12 | ARV-VC580-20 | ARV-VC580-30 | ||
| Camera, Len Parameter | |||||||
| Sensor | 1/2.8 inch high quality HD CMOS sensor | ||||||
| Effective Pixels | 16: 9, 2.07 megapixel | ||||||
| Video Format | DVI/HDMI/3G-SDI/HDBaseT video format: 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97 U3 interface video format: 1) U3: 1920X1080P60/50/30/25; 1280X720P60/50/30/25; 960X540P30; 640X360P30; 640X480P30; 352X288P30; 960X540P30; 800X600P30. 2) U3 compatible with U2: 960X540P30; 640X360P30; 1280X720P10/15; 720X576P50; 720X480P60; 640X480P30; 352X288P30; 800X600P30. U2 interface video format: 176×144/320×240/320×180/352×288/640×480/720×480/720×576/ 640×360/800X600/960X540/1024X576/1024X768/1280X720/1920X1080P30/25/20/15/10/5 | ||||||
| Optical Zoom | 5X f＝3.1～15.5mm | 10X f＝4.7～47mm | 12X f＝3.9～46.8mm | 20X f＝5.5～110mm | 30X f＝4.3～129mm | ||
| View Angle | 20°(tele)–83.5°(wide) | 6.43°(tele)–60.9°(wide) | 6.3°(tele)–72.5°(wide) | 3.3°(tele)–54.7°(wide) | 2.34°(tele)—65.1°(wide) | ||
| AV | F1.8 – F2.8 | F1.6 – F3.0 | F1.8 – F2.4 | F1.6 – F3.5 | F1.6 – F4.7 | ||
| Digital Zoom | 10X | ||||||
| Minimum Illumination | 0.5Lux (F1.8, AGC ON) | ||||||
| DNR | 2D & 3D DNR | ||||||
| White Balance | Auto / Manual/ One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K | ||||||
| Focus | Auto/Manual/One push focus | ||||||
| Aperture/Electronic Shutter | Auto/Manual | ||||||
| BLC | ON/OFF | ||||||
| WDR | OFF/ Dynamic level adjustment | ||||||
| Video Adjustment | Brightness,Color,Saturation,Contrast,Sharpness,B/W mode,Gamma curve | ||||||
| SNR | >55dB | ||||||
| Video Output Interfaces | HDMI、3G-SDI、LAN、USB3.0、USB2.0 | ||||||
| Image Stream | Double stream output | ||||||
| Video Compression Format | H.264, H.265 | ||||||
| Control Protocol | VISCA/Pelco-D/Pelco-P;Baud Rate:115200/9600/4800/2400bps | ||||||
| Audio Input Interface | A-IN：Double track 3.5mm linear input | ||||||
| Audio Compression Format | AAC/MP3/G.711A | ||||||
| Network Interface | 100M IP port(100BASE-TX) 5G WiFi (optional) . | ||||||
| Network Protocol | RTSP,RTMP,ONVIF,GB/T28181,NDI(Optional), Network VISCA Control Protocol,Support remote upgrade, reboot and reset. | ||||||
| ControlInterface | RS232 (input & output),RS485 | ||||||
| Power Interface | HEC3800 outlet (DC12V),2pin waterproof aerial socket (RF model) | ||||||
| Power Adapter | Input: AC110V-AC220V. Output: DC12V/1.5A | ||||||
| Input voltage | DC12V±10% | ||||||
| Input current | 1A (Maximum) | ||||||
| Power Consumption | 12W(Maximum) | ||||||
| Pan/Tilt Rotation | ±170°,-30°～+90° | ||||||
| Pan Control Speed | 0.1 -60°/sec | ||||||
| Tilt Control Speed | 0.1-30°/sec | ||||||
| Preset Speed | Pan: 60°/sec, Tilt: 30°/sec | ||||||
| Preset Number | 255 presets (10 presets by remote controller) | ||||||
| Other Parameter | |||||||
| Storage Temperature | -10℃～+60℃ | ||||||
| Storage Humidity | 20%～95% | ||||||
| Working Temperature | -10℃～+50℃ | ||||||
| Working Humidity | 20%～80% | ||||||
| Dimension | 150mm×150mm×180mm(RF model) | ||||||
| Weight (around) | 1.4KG | ||||||
| Using environment | Indoor | ||||||
| Operating frequency range | 5.1—5.9 (GHz) | ||||||
| Transmit power | 17dBm | ||||||
| Channel bandwidth | 40MHz | ||||||
| Modulation mode | OFDM | ||||||
| Transmission distance | ≤300m (Outdoor without blocking), ≤150m (Indoor without blocking) | ||||||
| Transmission data rate | Max 300Mbps (Determined by transmission distance and channel occupancy) | ||||||
| Anti-interference mode | Manual/automatic channel mode selection | ||||||
| Random Accessory | 12V/1.5A power supply, RS232 control line, USB3.0 connection line (U3 model), USB2.0 connection line (U2 model), remote controller, Manual, warranty card |
| Optional Accessories | Mounting bracket |
