Aten 4×4 VGA/Audio Matrix Switch – VM0404

Videowall Controller

– Connects any of 4 HDMI sources to any of 4 HDMI displays

– Supports 4K resolutions up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)

– Signaling rates up to 3.4 Gbits for fl awless 4K output

– Multiple Control Methods – system management via front-panel pushbuttons, IR remote and RS-232 control

Tag: Aten

Description

Descriptions

VM0404 Video Matrix Switches OL large

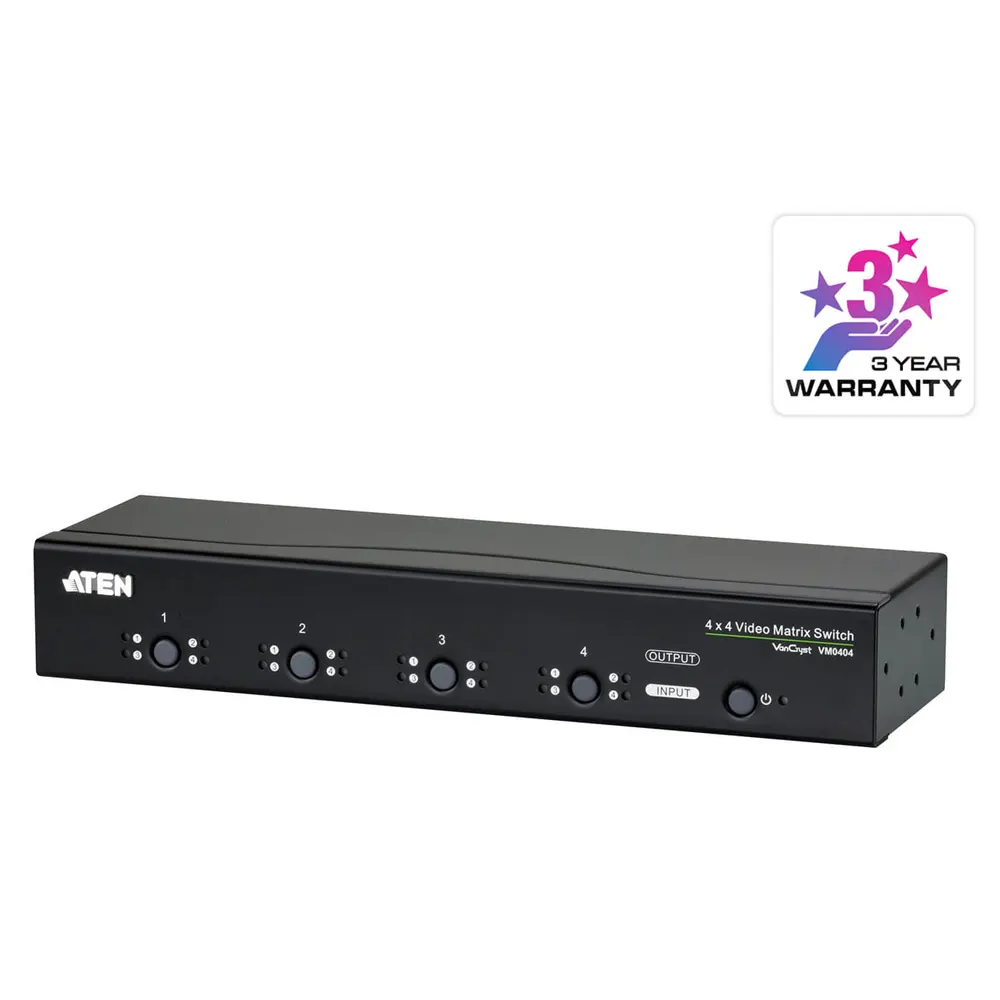

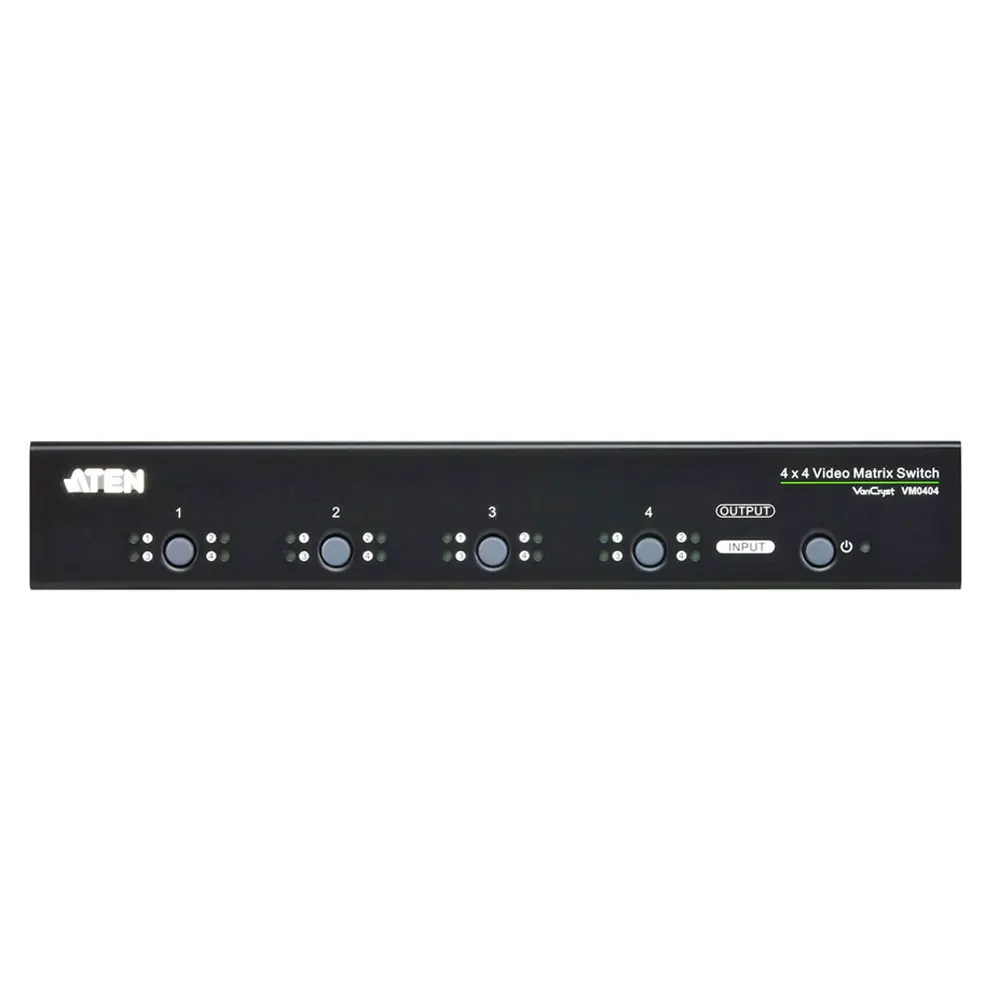

VM0404 4×4 Video Matrix Switch connecting four VGA source devices to four VGA monitors, displays, or projectors at the same time. It’s steadfast unique features include: EDID mode selection for high compatibility, long signal range, easy source/display switching, matrix connections.
As a Matrix Switch, each input can be independently connected to any or all outputs, and the audio and video inputs from each source device can also be switched independently, giving you the ultimate in flexibility and control in any multi-display audio/video installation.

Key Features

  • Connects any of four VGA Video + Audio inputs to any of four VGA Video + Audio outputs
  • Long distance transmission – up to 30m
  • Easily switch between multiple sources and multiple displays
  • Easy Operation:
    • Front panel pushbuttons
    • RS-232 serial controller
  • Superior video quality – up to 1920 x 1440; VGA, SVGA, XGA, SXGA, UXGA, and WUXGA (1920 x 1200)
  • Supports up to 300 MHz bandwidth for high performance video
  • EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display
  • Built-in bi-directional RS-232 serial port for high-end system control*
  • Independent switching of audio and video sources – each input can be independently connected to any or all outputs for flexibility
  • Rack Mountable
  • All-metal casing
    * Note: The VM0404 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)

DIAGRAM

VM0404 Video Matrix Switches dg org

Specifications

Video Input

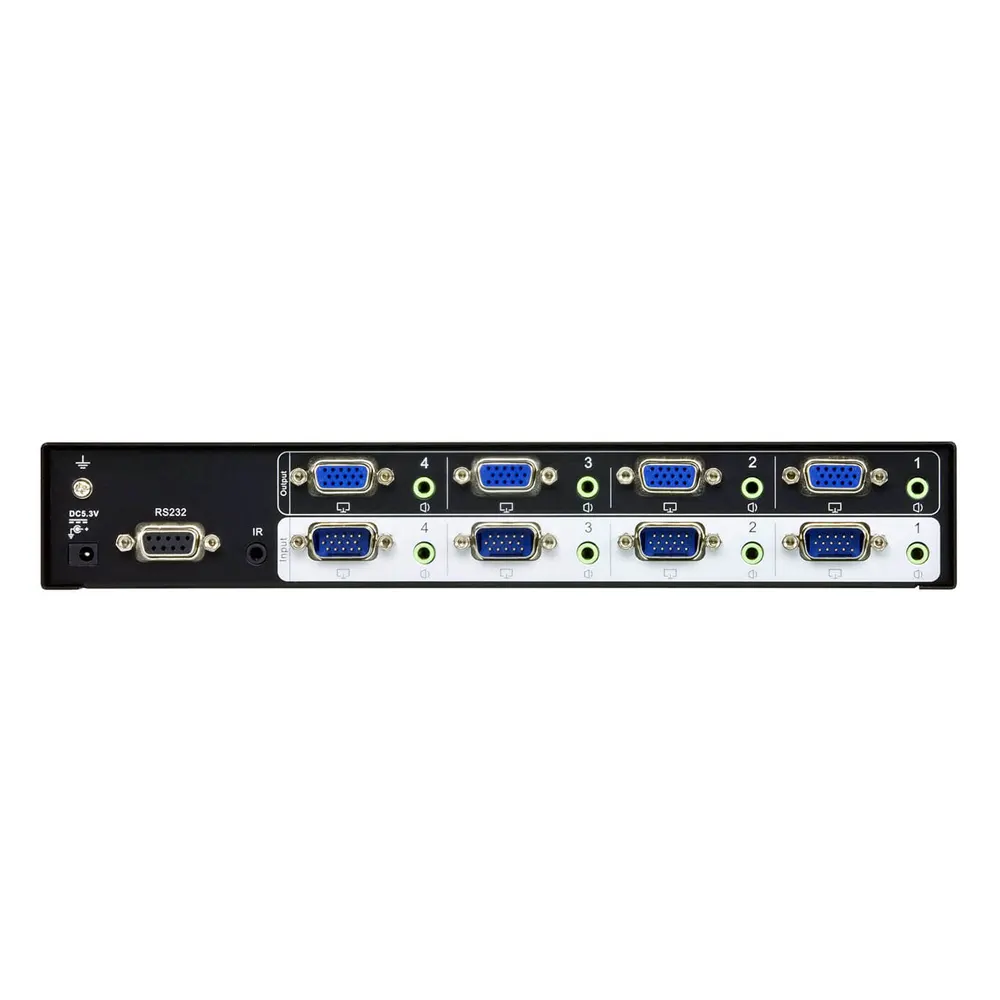

Interfaces 4 x HDB-15 Male (Blue)
Impedance 75 Ω
Max. Distance 1.8 m

Video Output
Interfaces 4 x HDB-15 Female (Blue)
Impedance 75 Ω
Max. Distance 30 m

Video
Max. Bandwidth 300 MHz
Max. Resolution Up to 1920 x 1440
Max. Distance Up to 30 m

Audio
Input 4 x Mini Stereo Jack Female (Green)
Output 4 x Mini Stereo Jack Female (Green)

Control
RS-232 Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR 1 x Mini Stereo Jack Female (Black)
EDID Settings EDID Mode: Default / Port1 / Remix / Auto

Connectors
Power 1 x DC Jack (Black)
Power Consumption DC5V:2.54W:12BTU

Environmental
Operating Temperature 0-50°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing

Carton Lot 5 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Physical Properties
Housing Metal
Weight 0.87 kg ( 1.92 lb )
Dimensions (L x W x H) 26.00 x 7.61 x 4.40 cm
(10.24 x 3 x 1.73 in.)

Package Contents

  • 1x VM0404 4x4 Video Matrix Switch with Audio
  • 1x Power Adapter
  • 1x User Instructions
