Independent Controller - MCTRL 600

MCTRL600 is a controller developed by NovaStar with a single-unit loading capacity of 1920×[email protected] MCTRL600 utilizes UART to cascade and control multiple units. Suitable for a variety of applications, especially rental and fixed installations such as stage broadcasts, monitoring centers, sports arenas, and more.

– 12bit/10bit HDMI input, DVI input
– HDMI input, external signal input
– HDCP Blue-Ray input
– 8bit video source loading capacity of 1920×[email protected]
– 12bit video source loading capacity of 1440×[email protected]

Descriptions

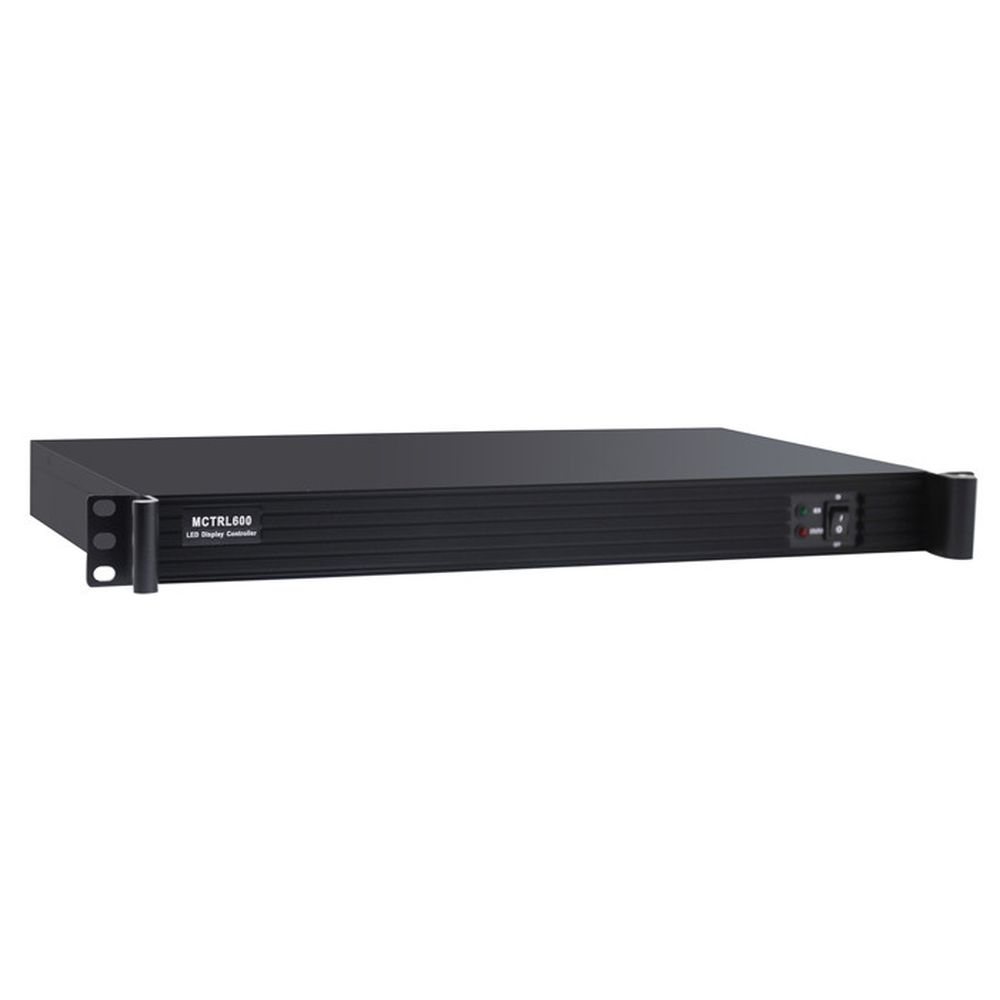

independent controller novastar mctrl 600 001

EXTRA-LARGE RESOLUTION

Support for custom resolutions: 3840 pixels of H resolution, 3840 pixels of V resolutionSupports cascading for control of multiple unitsSupport for multiple signal formats: RGB, YCrCb4:2:2, YCrCb4:4:4 Certifications, CE, RoHS, FCC, EAC, IC

Key Features

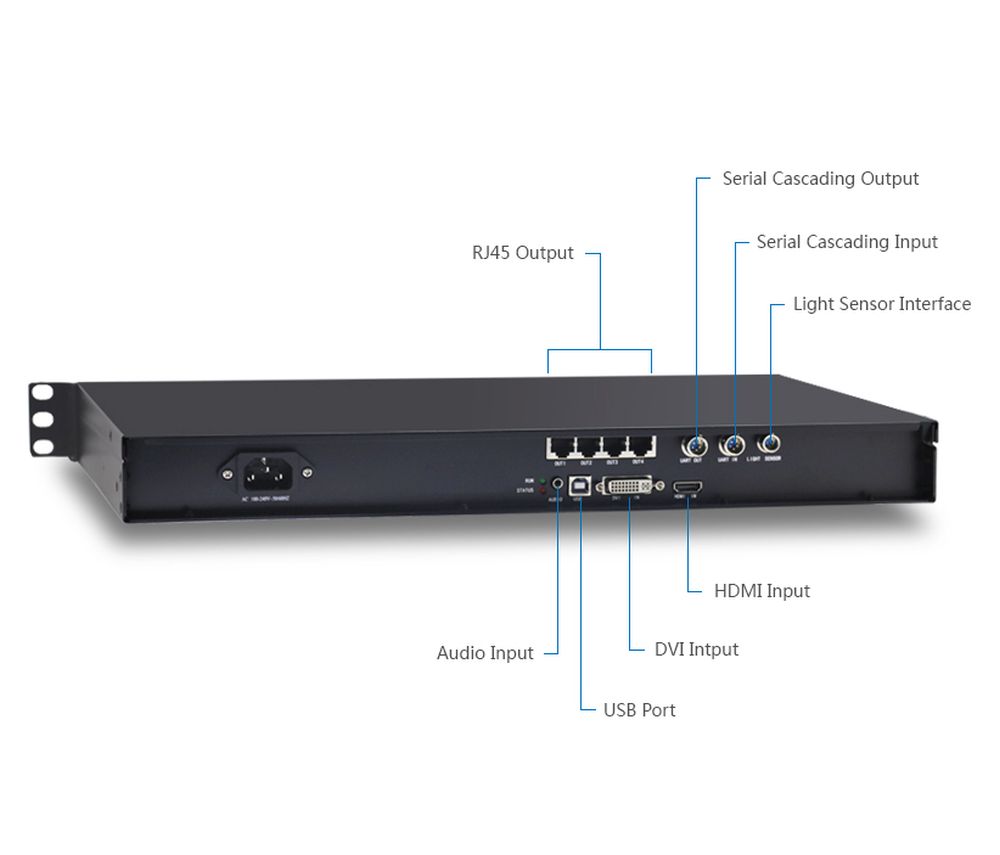

independent controller novastar mctrl 600 011

– 1 × DVI input

-1 × HDMI 1.3 input

-1 × audio input

-1 × light sensor connector

-Supports resolutions up to 1920 × [email protected] and downward compatibility.

-4 ×RJ45Gigabit Ethernet outputs, each up to 650,000 pixels.

-1 × type-B USB control port.

-UART IN and UART OUT control ports for device cascading.

-Supports the new generation of NovaStar calibration technology, which is fast and efficient.

-Supports a variety of video formats.

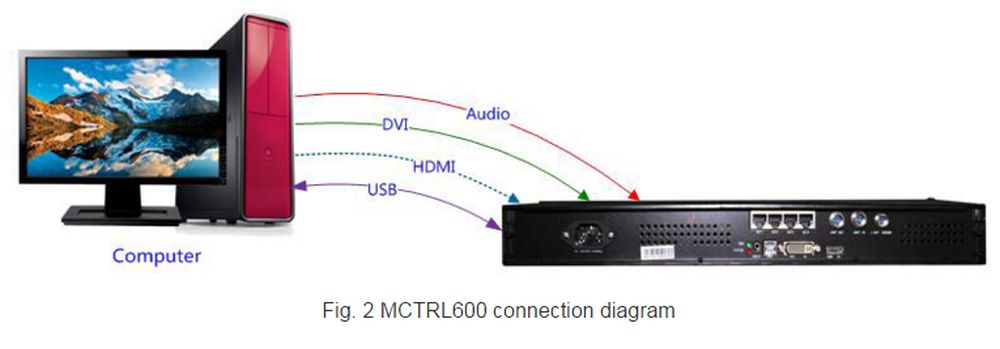

independent controller novastar mctrl 600 004

Specifications

Electrical Parameters

Input voltage AC 100 V–240 V, 50/60 Hz

Rated power consumption 16 W

Operating Environment

Temperature -20°C–60°C

Humidity 0% RH–90% RH, non-condensing

Space Requirement

1U

Size 482.0 mm × 268.5 mm × 44.4 mm

Weight 2.9 kg

FCC, RoHS, EAC, IC, PFOS, LVD, EMC

Each controller is provided with a carrying case, accessory box and packing box.

The controller and accessory box (containing controller related wires and accessories) is packed in the carrying case and the carrying case is packed in the packing box.

Carrying case

530 mm × 140 mm × 370 mm, craft paper box

Accessory box

402 mm× 347 mm × 65 mm, craft paper box

-1 × power cord

-1 × USB cable

-1 × DVI cable

Packing box

550 mm × 440 mm × 175 mm, craft paper box
