Partilink - HDMI 2.0 - 1 x 2 - P4K2-HH1S2

• Ultra HD video resolution up to 4K @60Hz 4:4:4 display
• HDCP 1.4 / 2.2
• EDID parsing and copy
• Cascade up to 16 layers
• Display HDMI 2.0 YuV 4:4:4 format

Descriptions

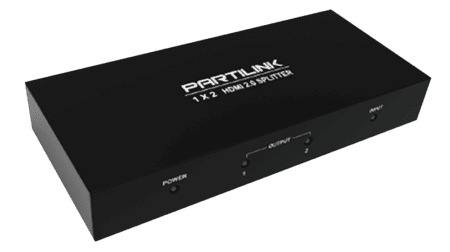

P4K2 HH1S2 HDMI 2.0 1x2 Partilink 02n

OVERVIEW

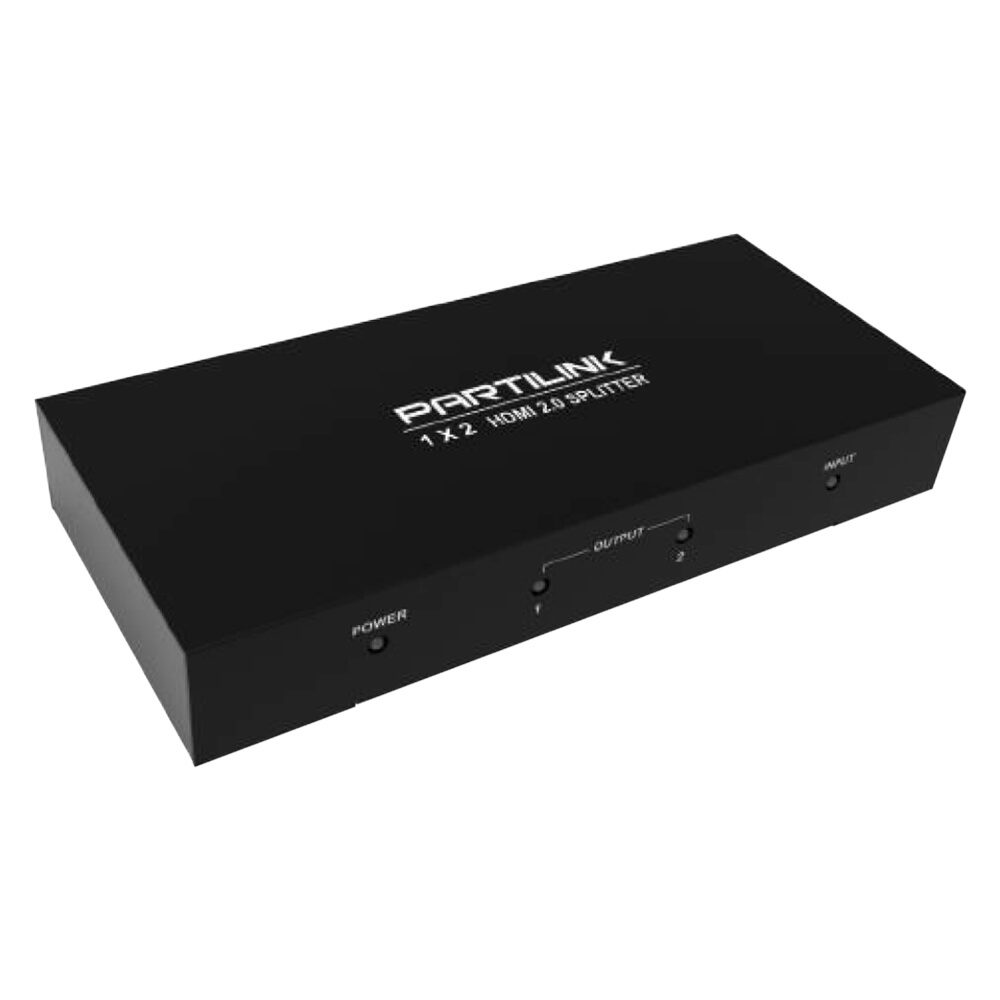

P4K2-HH1S2 is a HDMI 2.0 splitter to distribut one video images and audio to two displays.

Key Features

FEATURES

– Ultra HD video resolution up to 4K @60Hz 4:4:4 display
– HDCP 1.4 / 2.2
– EDID parsing and copy
– Cascade up to 16 layers
– Display HDMI 2.0 YuV 4:4:4 format
– Firmware upgradable via micro USB
– 7.1 CH audio
– LED indicator for power and active status
– RS232 control

APPLICATION

– Hospitality in lobby, hospital, clinic
– Conference room presentation
– Advertising in shopping mall, supermarket, restaurant,
– Broadcast in airport, bus or train station, classroom, Casino
– Rental and staging
– Entertainment in restaurant, bar, multimedia room, boardrooms, home cinema
– Integrating with DVR, IP camera as a surveillance system
– Monitoring in bank and stock market

Specifications

MODEL NO.

P4K2-HH1S2

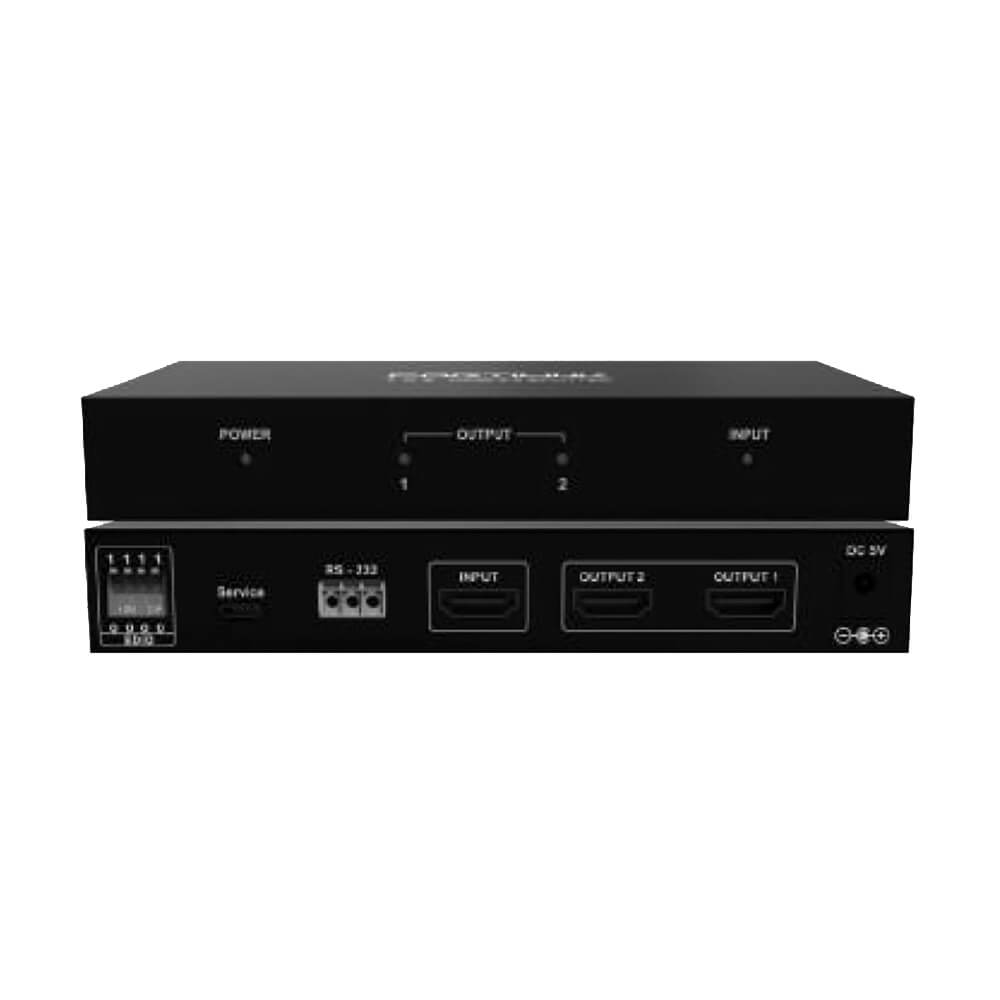

VIDEO INPUT

HDMI X 1

VIDEO OUTPUT

HDMI X 2

BANDWIDTH

18 Gbps

HDMI VERSION

HDMI 1.4 and 2.0 compliant

HDCP VERSION

HDCP 1.4 / 2.2



RESOLUTION

HDMI 4K x 2K @60p

HDMI 4K x 2K @60p/ 1080p/ 1080i/ 720p/ 576p/ 576i/ 480p/ 480i HDMI 1080p 3D @60p

COLOR DEPTH

24bit/ 30bit/ 36bit

AUDIO FORMAT

LPCM/Dolby-AC3/Dolby True HD/DTS MD master audio

DATA RATE

Data transfer throughput 6.0Gbps

RS232 control

TxD , RxD , SG

OPERATING TEMPERATURE

0~65°C

OPERATING HUMIDITY

5%~90% RH

DIMENSION

154 x 69.2 x 23 mm
( L x W x H )

WEIGHT

255 G

<
