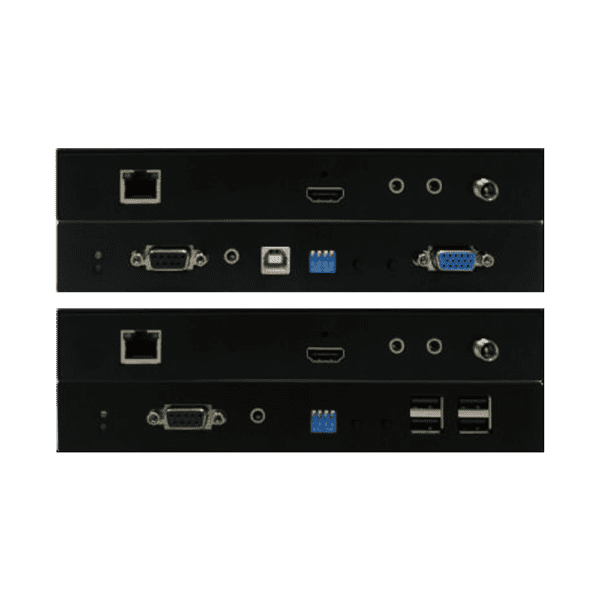

PARTILINK – 4K HDMI EXTENDER – P4K-HRSL4E1 / P4K-LHRS1E4

Accessories
• 4K UHD HDMI over IP extension
• USB 2.0 over IP extension
• RS-232 bi-directional extension
• 4 bits DIP switch for16stream channel selection

Description

Descriptions

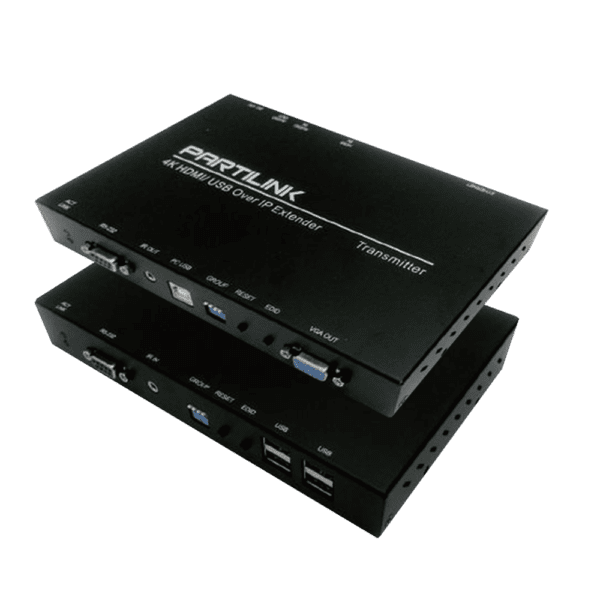

P4K HRSL4E1 P4K LHRS1E4 51725new

OVERVIEW

The Partilink 4K UHD HDMI / USB over IP Extender is composed of transmitter and receiver to extend HDMI, USB, RS232, and IR over IP via CATx cable and Gigabite Ethernet switch. It can be applied for point to point uni-cat, point to multi-point or multi-point to multi-point multi-cast and video wall. Easy installation with networking Giga Ethernet switch and CAT-5e cable for building up the extension or broadcast system.

Key Features

P4K HRSL4E1 P4K LHRS1E4 screen wall

FEATURES

– RS-232 bi-directional extension

– 4K UHD HDMI over IP extension

– USB 2.0 over IP extension

– RS-232 bi-directional extension

– 4 bits DIP switch for 16 stream channel selection

– HDCP 1.4 compliant and Blu-Ray ready

– Two way IR extension

– Output video rotation

– Output video partial enlargement

– Automatic EDID configuration

– Networking environment under Giga Ethernet switch and CAT-5e cable

– Point to point extension, unicast, multicast and video wall system

– Point to point extension via CAT-5e cable without Ethernet switch up to 100M

– Ethernet webpage management

– RS-232 serial control command management

– P4K-HRSL4E1-P / P4K-LHRS1E4-P supports power over Ethernet

APPLICATION

– Unicast, point to point extension
– Multicast, point to multi points or multi points to multi points extension
– Unicast
– Multicast

  • Video Distribution
  • Matrix Distribution
  • Billboard & Kiosk, PC to HDMI and USB interactive Monitor
  • Video Wall

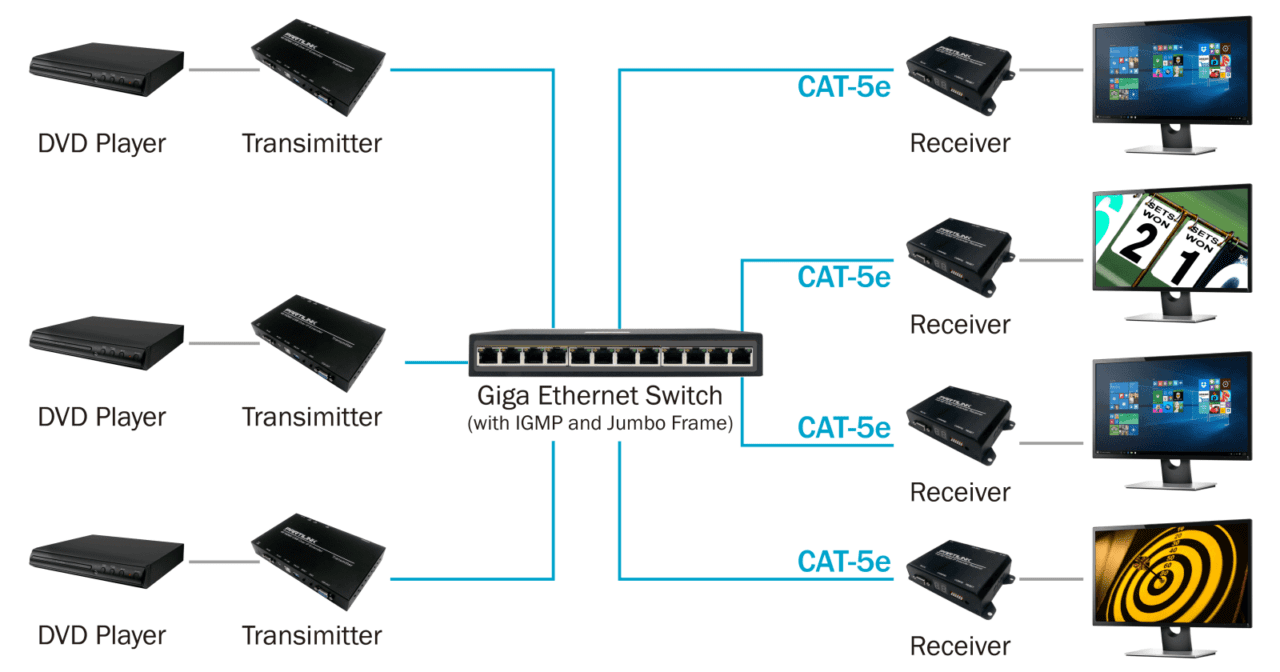

P4K HRSL4E1 P4K LHRS1E4 4K extender diagram 01

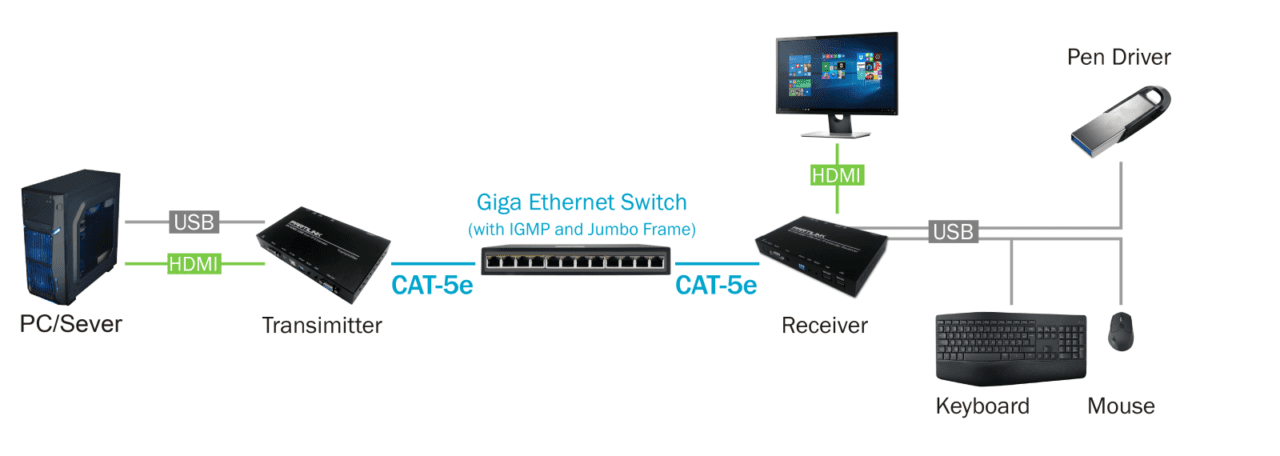

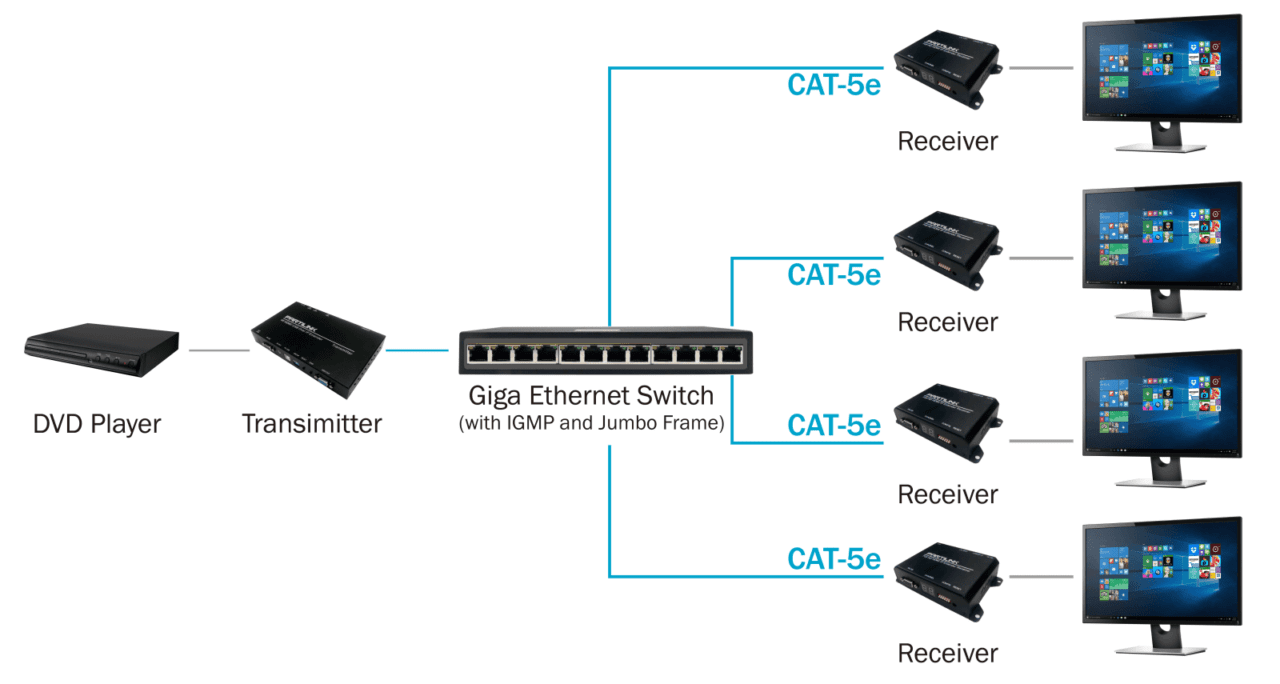

P4K HRSL4E1 P4K LHRS1E4 4K extender diagram 02
P4K HRSL4E1 P4K LHRS1E4 4K extender diagram 03

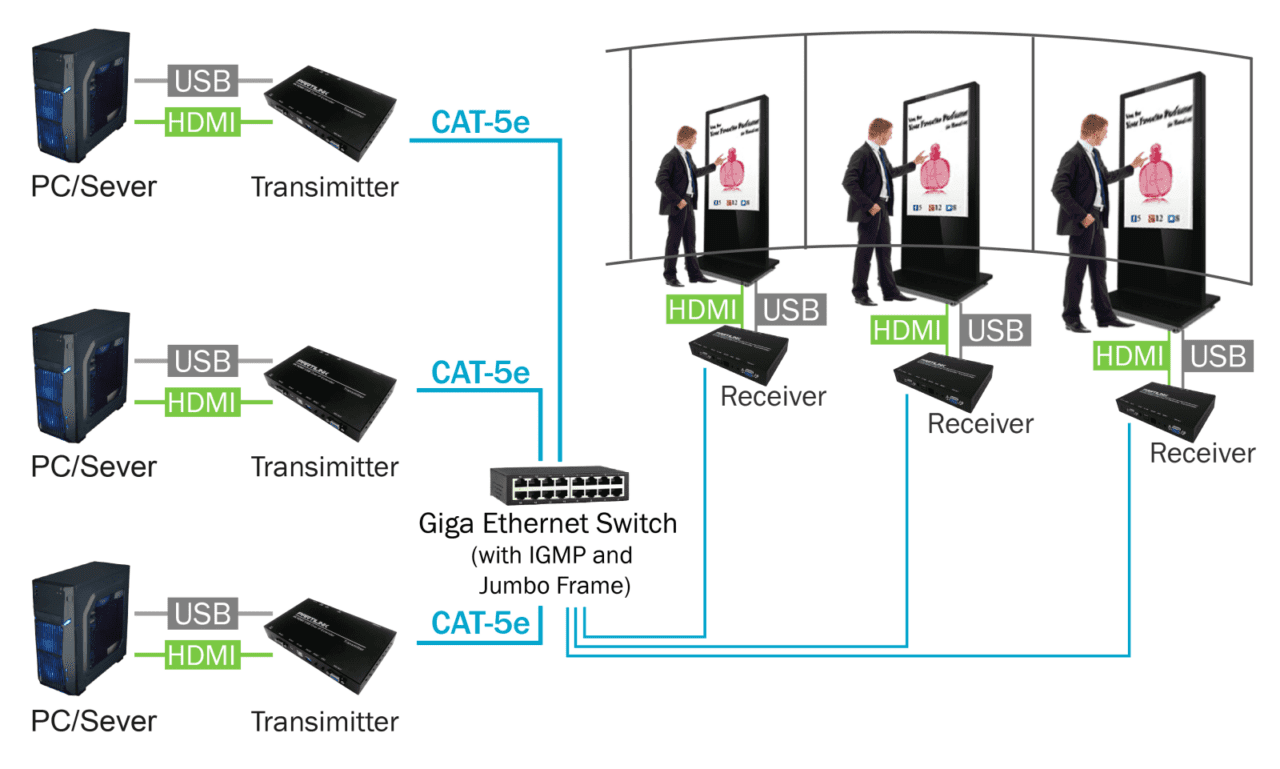

P4K HRSL4E1 P4K LHRS1E4 4K extender diagram 04

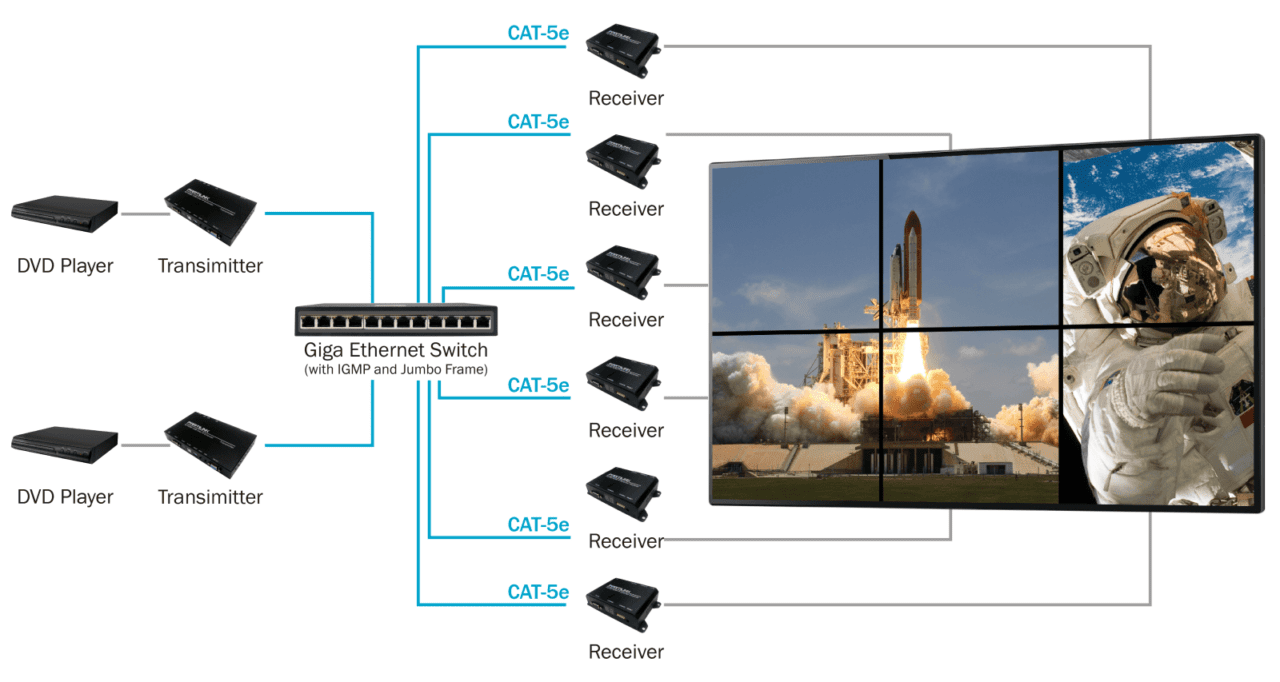

P4K HRSL4E1 P4K LHRS1E4 4K extender diagram 05

Specifications

MODEL NO.

P4K-HRSUL4E1 P4K-HRSUL4E1-P

Transmitter

P4K- LHRSU1E4 P4K-LHRSU1E4-P

Receiver

INPUT

HDMI Type-A female connector

None



OUTPUT

VGA DB-15 female local output

HDMI Type-A female connector

IR

2x 3.5mm phone jack for IR emitter and receiver to control video source device

COMPRESSION

Visual lossless compression

HDMI

INPUT RESOLUTION

3840x2160 30/24, 1080p 60/50, 1080p 30/25, 1080i 60/50

720p 60/50, 480i 60/50, 480p 60/50

HDMI

OUTPUT RESOLUTION

3840x2160 30/24, 1080p 30/25, 1080i 60/50,720p 60/50

480i 60/50, 480p 60/50

VGA

OUTPUT RESOLUTION

1080p 30/25, 1080i 60/50, 720p 60/50

480i 60/50, 480p 60/50

AUDIO FORMAT

Stereo 192Kbps

IP PROTOCOL

TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4

LAN PORT

RJ45 connector for Giga Ethernet

SERIAL

DB-9 female connector for RS-232

MANAGEMENT

  • LAN port                                       • Serial port
  • Embedded webpage management    • RS-232 debug, control command

POWER INPUT

  • 2.0mm power jack for DC5V/2A

OPERATING

TEMPERATURE

0~55°C

OPERATING HUMIDITY

5%~90% RH

POWER ADAPTER

Power adapter AC in 100~240V (50~60Hz)



ESD protection air gap discharge ±8KV, contact discharged ±4KV

DIMENSION

191.6 x 112.8 x 26.85 mm ( L x W x H )

WEIGHT

450 G
