Partilink Multiview Videowall Processor - MW4-16

• 4 inputs-16 outputs HDMI2.0

• Simultaneous display of 4 HDMI 2.0 on 16 screens video wall

• Resolutions 4K UHD on each output

• Fast switching between input channels and combined multiple source images

• PiP, PoP, quad-view and multiple customized screen layout configurations

Descriptions

partilink multiview videowall mw4 ms 01

OVERVIEW

The Partilink MW4-16 Multiview Video Wall Processor is an all-in-one  video wall system with multiview, scaling, customizing screen layouts, audio management and matrix. Its user-friendly web UI, RS232, RS485, RS422 and telnet. Modular and robust design made the video wall control effectively.

Key Features

partilink multiview videowall mw4 ms displaymode MW4 10

FEATURES

  • Fast switching between input channels and combined multiple source images on video wall
  • Handles HDMI® signals with Deep Color and HDCP 1.4/2.2 sources
  • Input resolution up to 4K @60Hz, 4:4:4 color sampling
  • Output resolution up to 4K @60Hz, 4:4:4 color sampling
  • Upscaling up to 4K @60Hz, 4:4:4 color sampling and able to downscale as well
  • PiP, PoP, quad-view and multiple customized screen layout configurations for video wall
  • Rotation (R90°and L90°) in full screen layout
  • Stereo audio output
  • Control by web UI, RS232, RS485, RS422 and telnet
  • Firmware upgrade via USB port
  • Dual built-in power supply
  • Display modes including video wall, multiview window
  • Multiple windows displaying across multiple screen array without screen boundary.
  • Able to build a 4K and even an 8K video wall system for supporting each output [email protected]
  • Able to build various video wall array system 1×10, 2×5, 3×3, 5×2, 10×1 by 10 output model and 2×8, 4×4, 8×2 by 16 output model

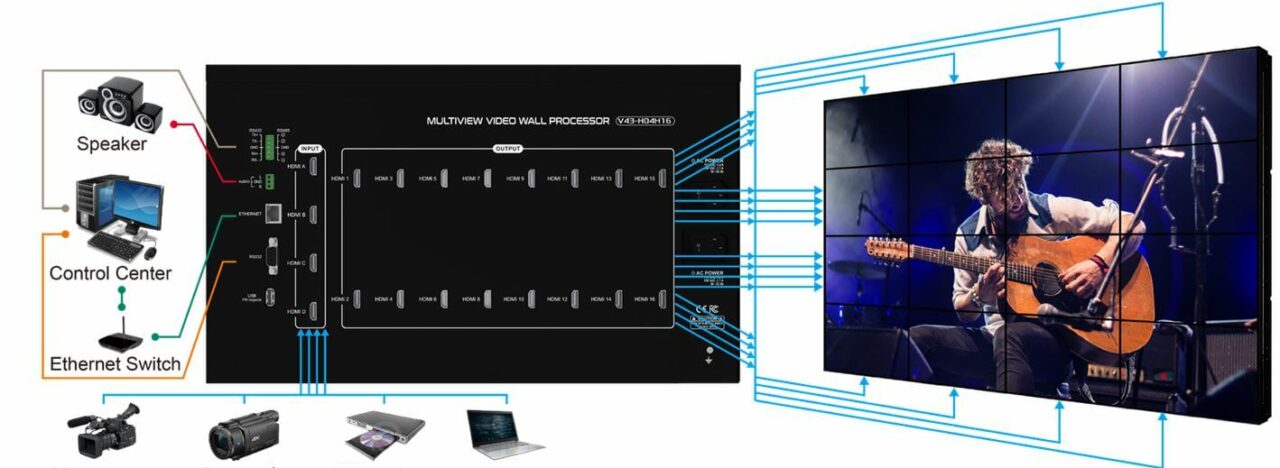

partilink multiview videowall mw4 ms 07 16

APPLICATION

  • Hospitality in lobby, hospital, clinic
  • Conference room presentation
  • Advertising in shopping mall, supermarket, restaurant,
  • Broadcast in airport, bus or train station, classroom, Casino
  • Rental and staging
  • Entertainment in restaurant, bar, multimedia room, boardrooms, home cinema
  • Integrating with DVR, IP camera as a surveillance system
  • Monitoring in bank and stock market

Specifications

System Structure pure hardware

Operating System no CPU and operating system

Inputs 4 x HDMI 2.0

Output 16 x HDMI 2.0

Audio Output terminal block 3 pole, stereo

Display Mode

full screen, PIP, POP, rotation R90°/ L90°, cross screen, quadview



Input Resolution

4096 x 2160p (60Hz, 50Hz, 24Hz)

3840 x 2160p (60Hz, 50Hz, 30Hz, 25Hz, 24Hz)

2560 x 1080p (60Hz)

1920 x 1080p (60Hz, 50Hz, 30Hz, 25Hz, 24Hz)

1920 x 1080i (60Hz, 50Hz)

1280 x 720p (60Hz)

720 x 480p (60Hz, 50Hz)

720 x 576p (50Hz)

640 x 480p (60Hz, 50Hz)



Input Color format

4:4:4



Output Resolutions

4096 x 2160p (60Hz ,50Hz, 24Hz)

3840 x 2160p (60Hz, 50Hz, 30Hz, 24Hz)

2048 x 2048p (57Hz)

1920 x 1200p (60Hz)

1920 x 1080p (60Hz, 50Hz, 30Hz, 24Hz)

1600 x 1200p (60Hz)

1280 x 720p (60Hz, 30Hz)



Output Color Format

4:4:4



Output Color Depth

24 bpp



Scaler

scaling up to 4K @60Hz,

4:4:4 color sampling and downscaling as well



Video Bandwidth

up to 18 Gbps



HDMI Compliance

HDMI 1.4 And HDMI 2.0



HDCP Compliance

HDCP 1.4 And HDCP 2.2

RS232 / Telnet

1 x D9 female connector / compatible with third party control system



RS485 / RS422

5-pole terminal block



Ethernet Port

1 x RJ45 / compatible with third party control system



Web UI

browser / touch screen via smartphone or tablet

Safety

hardware structure, no risk of virus interference



Running Time

no auto-reboot during 365 days/year, 7days/7, 24h/24

Possible Upgrade

1 x USB 2.0

Power Supply

dual built-in power module 100-240 VAC / 50/60 Hz



Power Consumption

300W



Dual Power Supply

yes

Operating Temperature

0°C ~ 40°C



Operating Humidity

20% ~ 90% RH



Storage Temperature

-20°C ~ 60°C

Dimensions

440 x 264 x 421 mm (L x W x H)



Weight

16.3 KG



Fixing Components

handles, footpad and screws
