8×8 True 4K HDMI Matrix Switch – VM0808HB

Videowall Controller

• Connects any of 8 HDMI sources to any of 8 HDMI displays or screen

• Support 4K resolutions up to 4096 x 2160 @ 60Hz

• Multiple Control Methods – system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via Ethernet connections

• HDCP 2.2 compatible and HDMI (3D, Deep Color, 4K)

Description

Descriptions

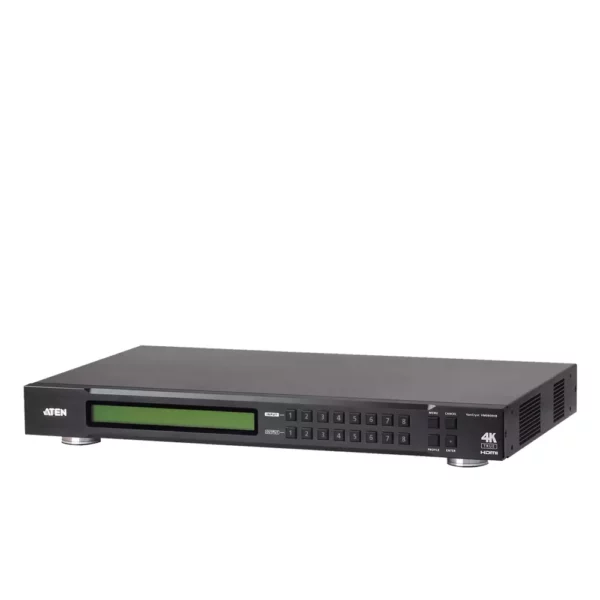

vm0808hb.professional audiovideo.video matrix switches.45

VM0808HB

ATEN’s VM0808HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 8 HDMI video sources to any of 8 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), the VM0808HB delivers robust signal routing and ultra-fast digital video switching, making it perfect for applications where routing of True 4K digital signals is required, such as event venues, digital classrooms, auditoriums, department stores, and more.

Key Features

The intuitive GUI design of the VM0808HB allows users to flexibly configure any input to output connections, eliminating the need of frequent physical configuration changes. In addition to the built-in web GUI, the VM0808HB can be operated through front-panel pushbuttons, IR remote, RS-232 control, and Telnet via Ethernet connections, giving users the ultimate convenience while keeping the system available with performance video switching anytime.

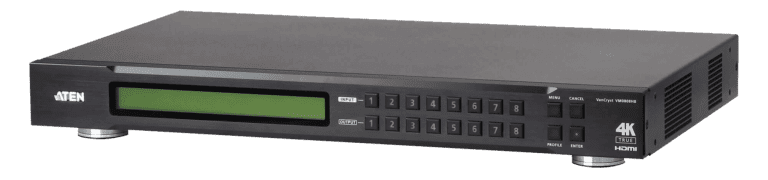

vm0808hb.professional audiovideo.video matrix switches.45

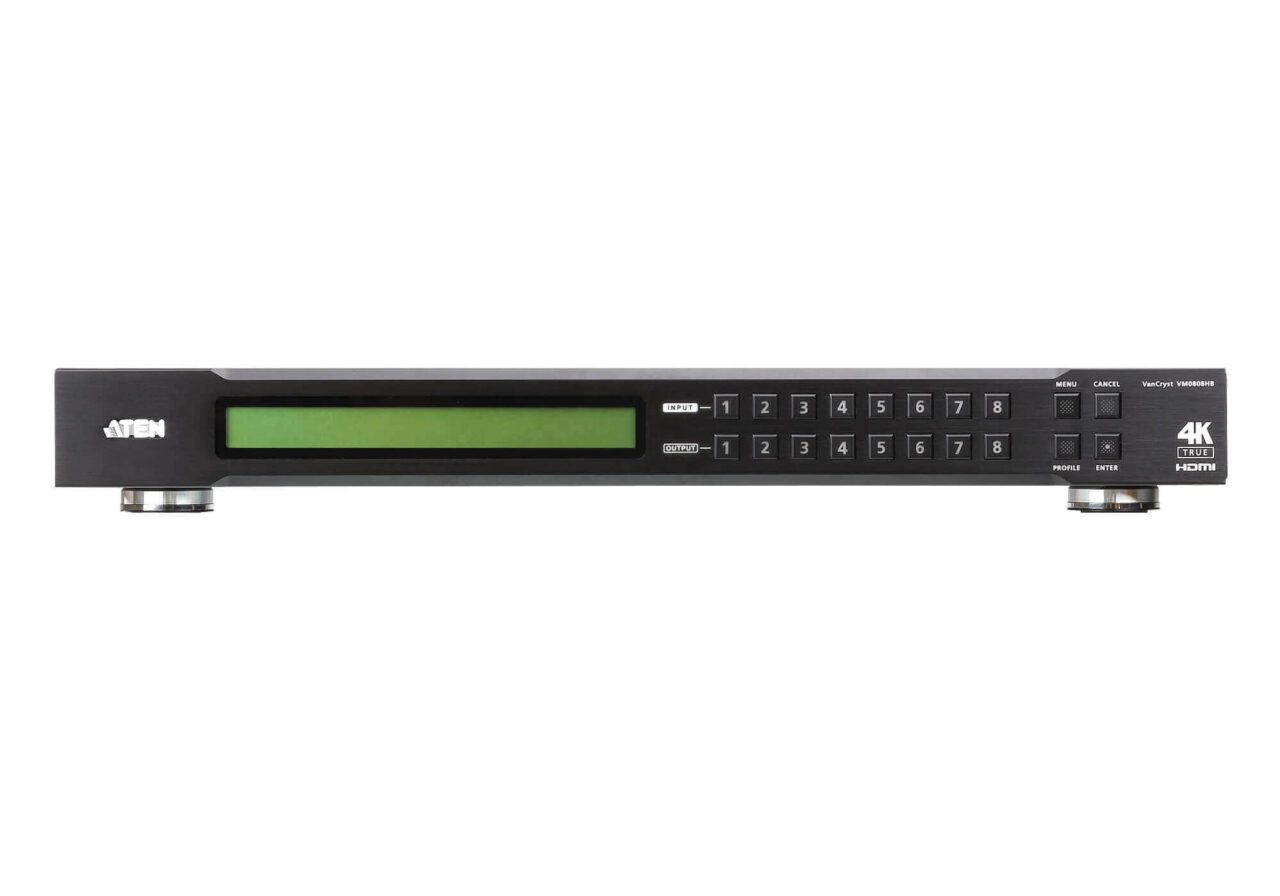

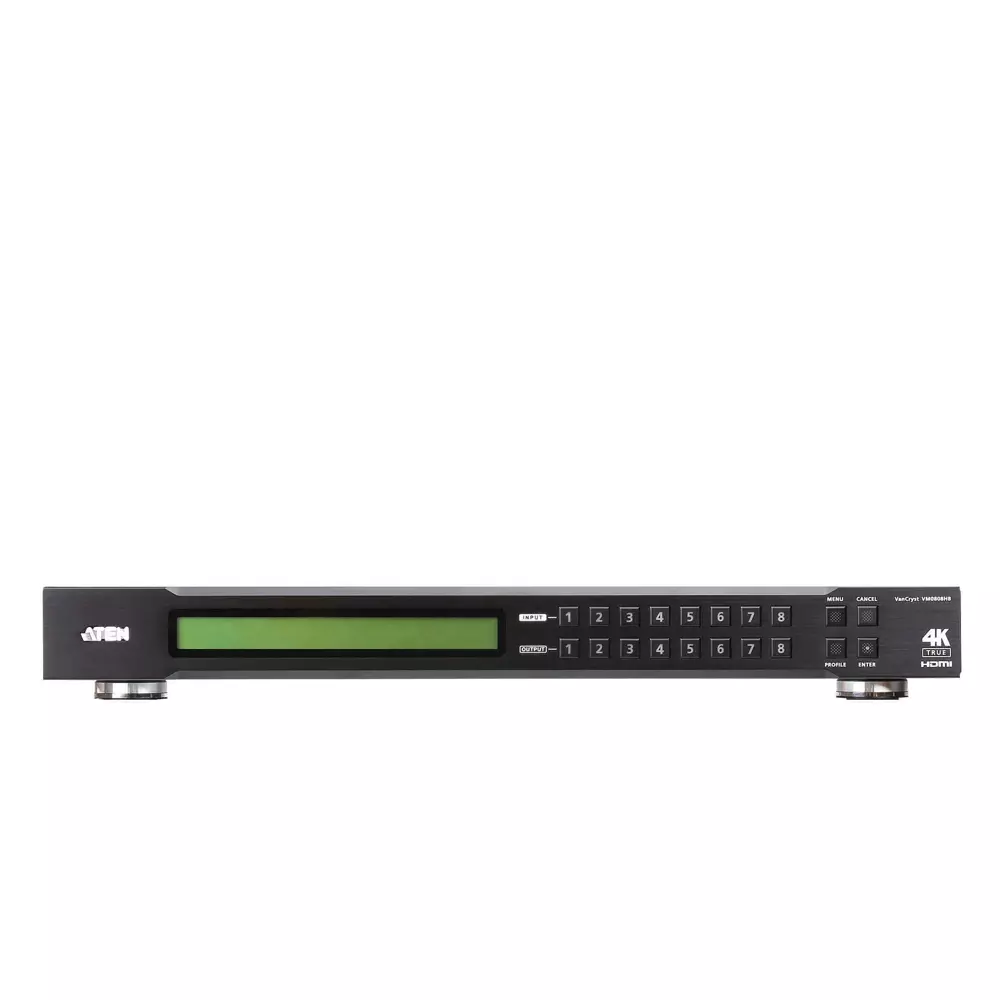

vm0808hb.professional audiovideo.video matrix switches.front
  • Connects any of 8 HDMI sources to any of 8 HDMI displays
  • Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
  • Supports HDR10+
  • Multiple Control Methods – system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via Ethernet connections
  • View and control via ATEN Video Matrix Control App in a swift and agile way
  • EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
  • Signaling rates up to 6 Gbits for flawless true 4K output
  • Supports Dolby True HD and DTS HD Master audio
  • HDMI (3D, Deep Color, 4K) and HDCP 2.2 compatible
  • Supports Consumer Electronics Control (CEC)
  • Power-on Detection – switches to the next powered-on source when one source is powered off
  • ESD protection for HDMI
  • Supports ATEN’s LockPro™ HDMI cable lock for secure HDMI cable connections
  • Firmware upgradeable
  • Rack mountable (1U design)

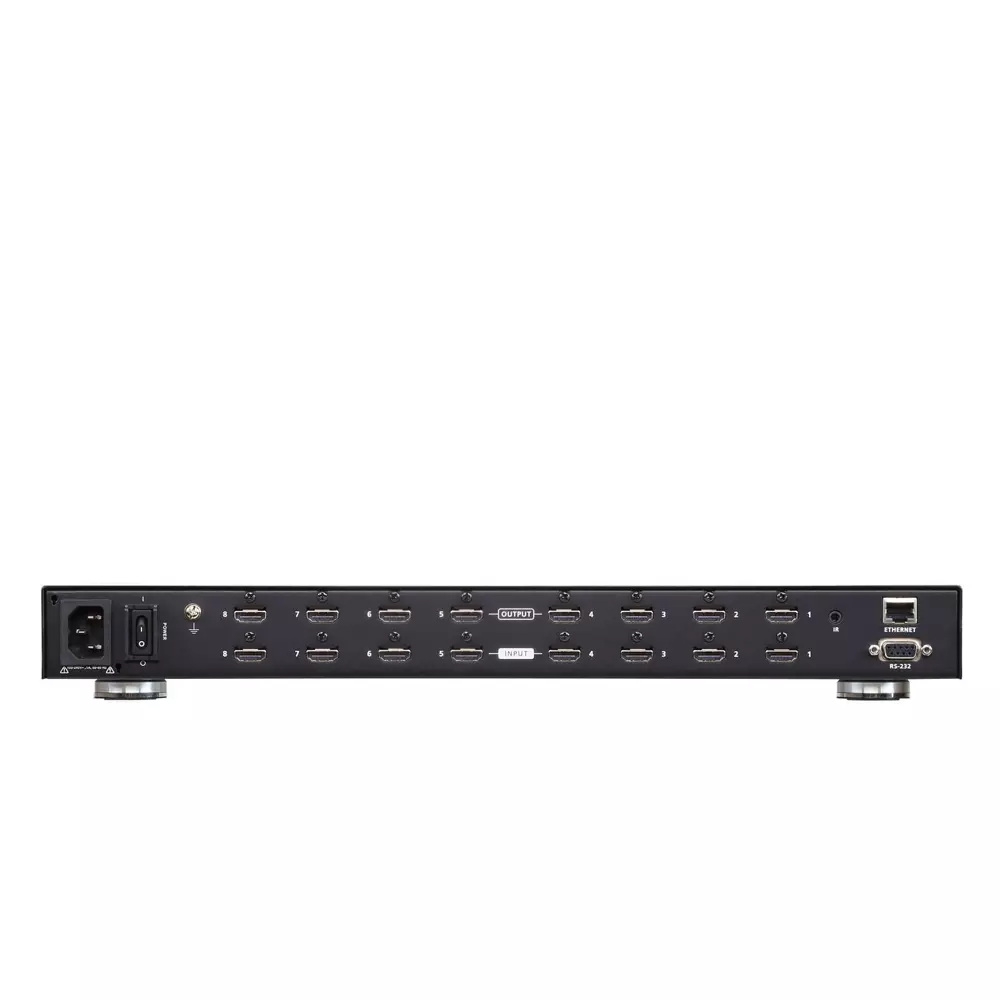

vm0808hb.professional audiovideo.video matrix switches.rear

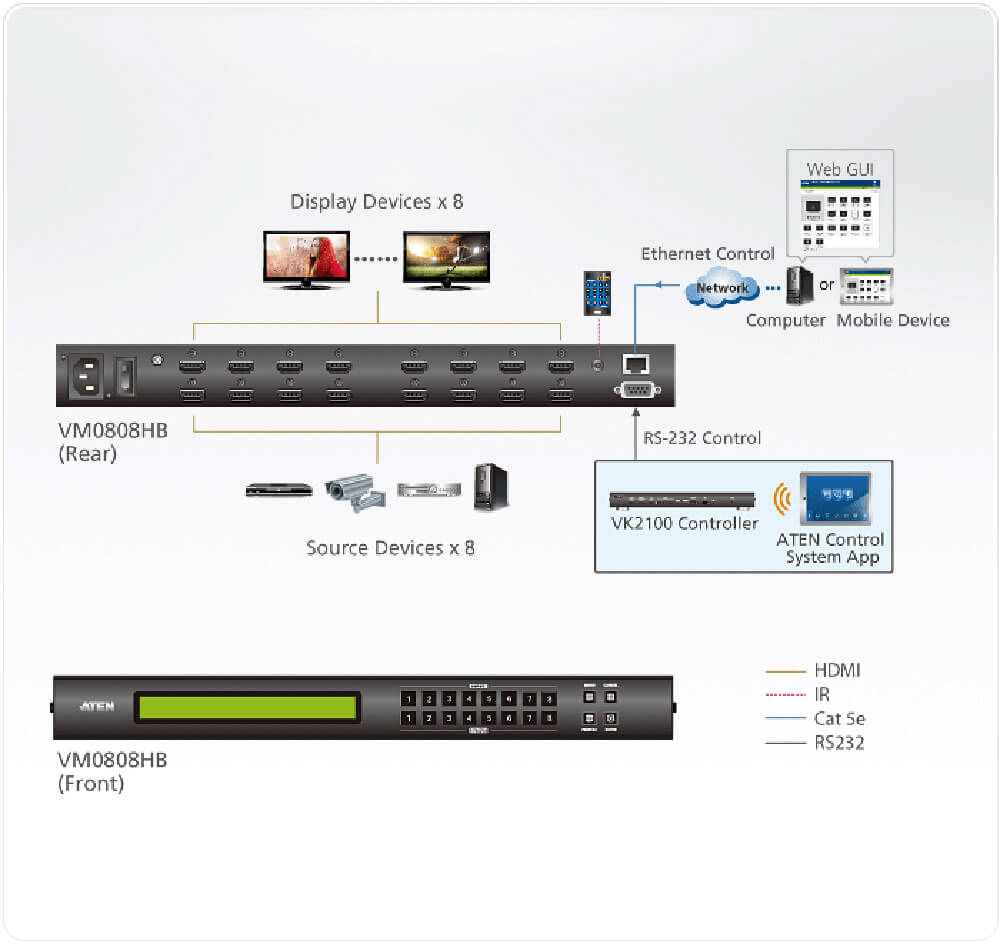

vm0808hb.professional audiovideo.video matrix switches.474

Specifications

Weight 3.99 kg ( 8.79 lb )

Housing Metal

Dimensions (L x W x H)
43.24 x 26.23 x 4.40 cm
(17.02 x 10.33 x 1.73 in.)



Video Input
Interfaces 8 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 5.0 m / 4K@60Hz (4:4:4)

Video Output
Interfaces 8 x HDMI Type A Female (Black)
Max. Distance 5m / 4K@60Hz (4:4:4)
15m / 1920 x 1200
Impedance 100 Ω

Video
Max. Pixel Clock 600 MHz
Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. Data Rate 18 Gbps( 6 Gbps Per Lane)
Compliance HDMI (3D, 4K, Deep Color)
HDCP 2.2 Compatible
Consumer Electronics Control (CEC)

Control
RS-232 Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR 1 x Mini Stereo Jack Female (Black)
Ethernet 1 x RJ-45 Female
EDID Settings EDID Mode: Default / Port 1 / Remix / Customized
(EDID Wizard Support)

Environmental
Operating Temperature 0-40°C
Humidity 0 - 80% RH, Non-Condensing
Storage Temperature -20 - 60°C

Connectors
Power 1 x 3-Prong AC Socket
Carton Lot 1 pc
Power Consumption AC110V:38.1W:179BTU
AC220V:37.8W:177BTU

Power
Maximum Input Power Rating 100-240 VAC; 50-60 Hz; 1.0A


Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

  • 1x VM0808HB 8 x 8 True 4K HDMI Matrix Switch
  • 1x Power Cord
  • 1x IR Remote Control
  • 1x IR Receiver
  • 1x Rack Mounting Kit
  • 1x User Instructions
