TV Wall Controller – FVM110

Videowall Controller

The product uses high-definition processing chip to support 4K signal input

The design has infrared remote control and button settings. The user can perform one-button shortcut control and full-function control on the video wall controller through buttons or remote control. The operation is convenient and concise; it can also be controlled by RS232 for more functions

Description

Descriptions

tv wall controller fvm110 15
Play Video

Key Features

SUPPORTS VARIETY OF CHANNEL INPUT SIGNALS

Supports 1 channel VGA, 1 channel USB, 1 channel DP, 1 channel HDMI input, all input signals can be switched to the full screen for video wall display

tv wall controller fvm110 001
tv wall controller fvm110 vga2

Supports VGA

Supports VGA audio input and supports audio and corresponding video sync output

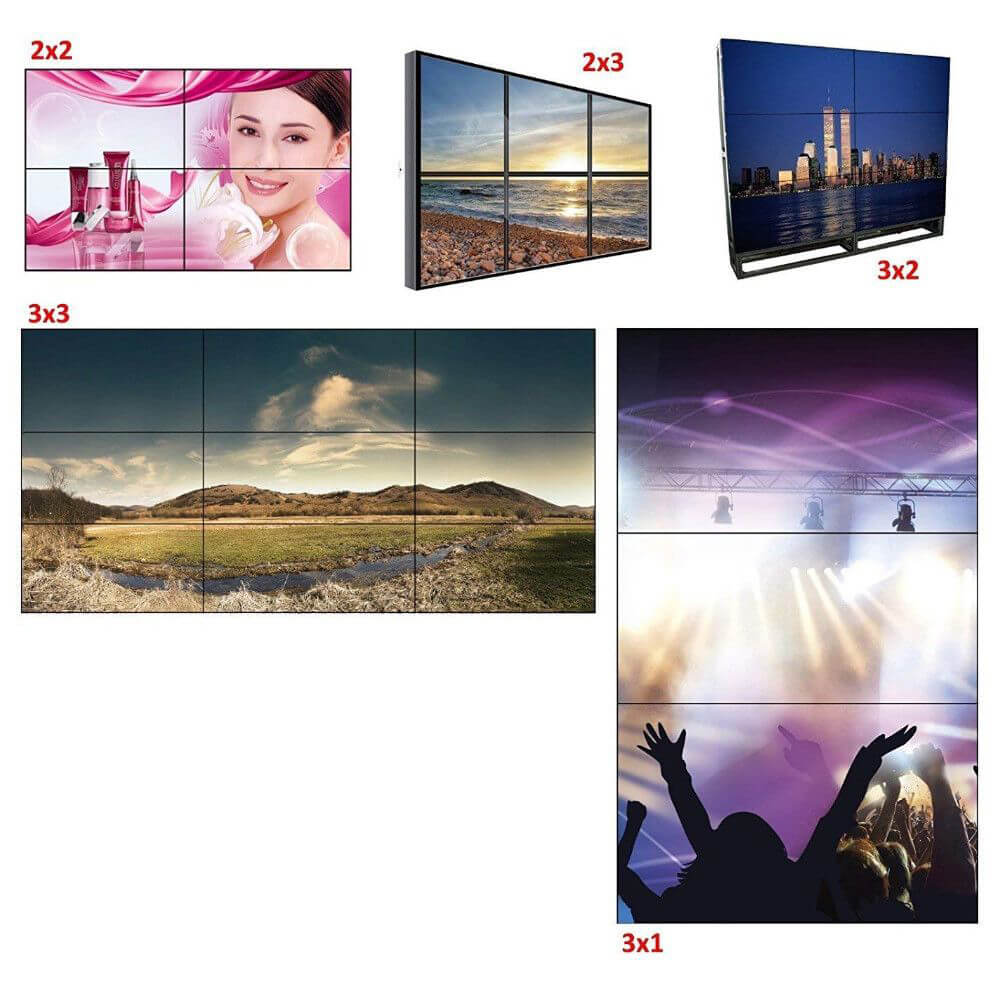

VARIETY OF STITCHING METHODS​

Support a variety of stitching methods (3×3, 2×5, 5×2, 1×2-10,2-10×1 ) and so on
tv wall controller fvm110 014
tv wall controller fvm110 usb

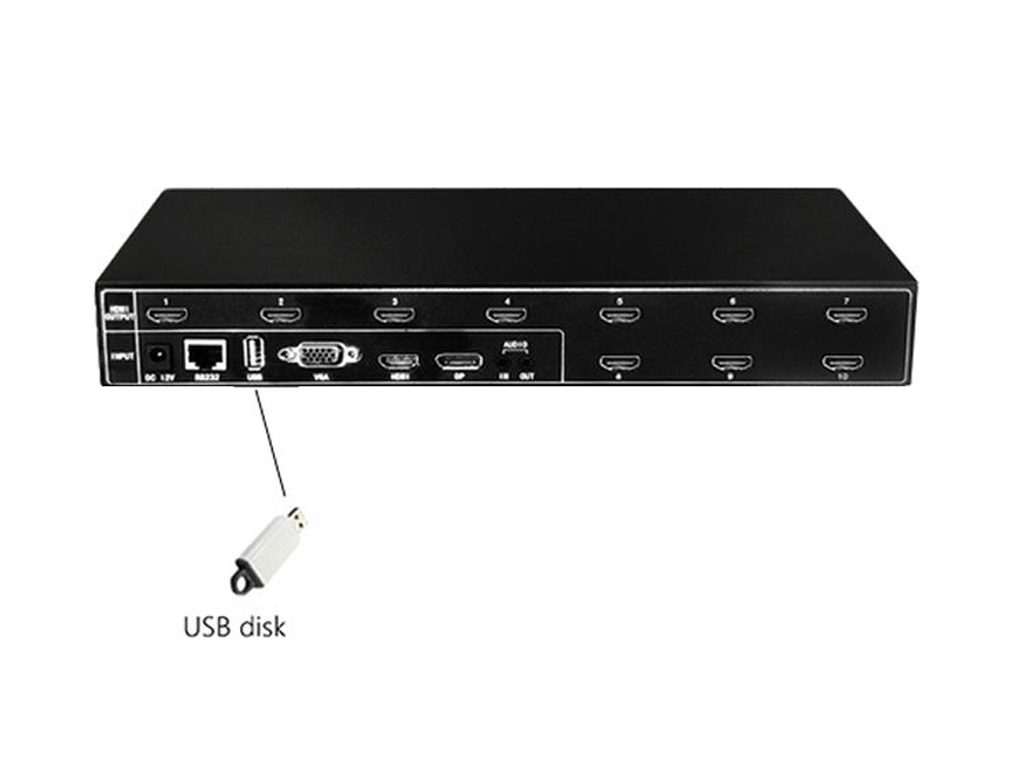

Support USB access

Support USB access, insert USB flash drive to directly decode video, picture, play MP3, document, etc.; no need to specially configure other front-end equipment, simple and practical

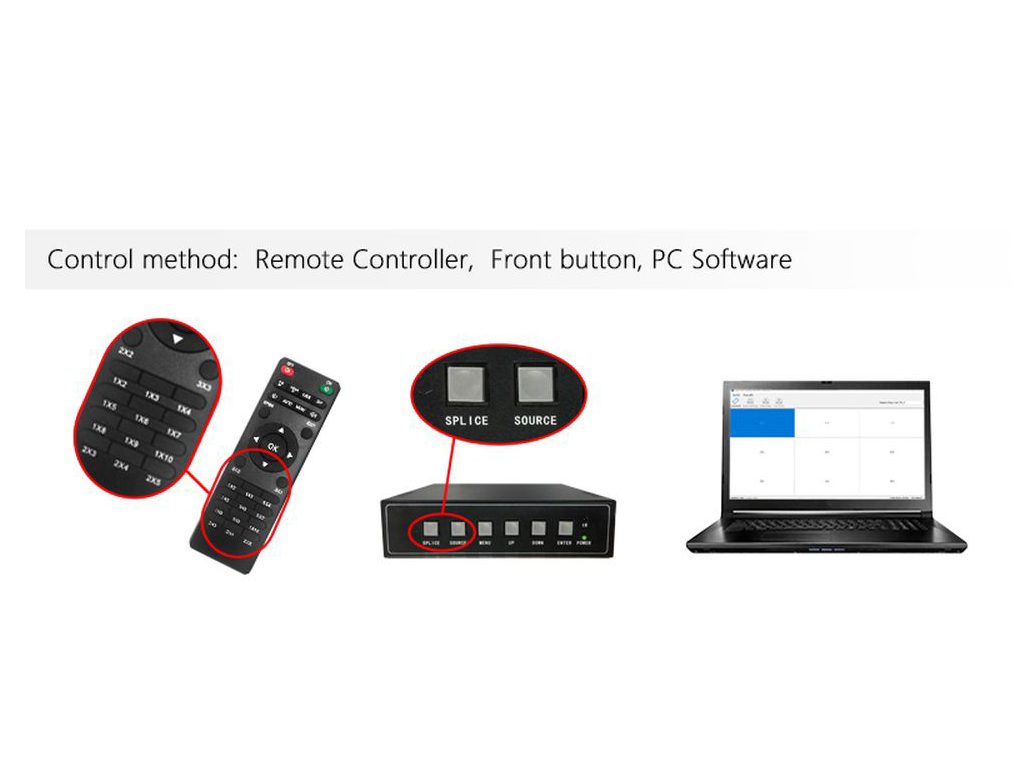

Support remote control

Support remote control and remote operation, 1key IR remote control can complete the setting, switching and adjustment of all functions of the splicing processor; the remote control adopts sensitive design, the remote control distance can reach 5 to 7 meters.

tv wall controller fvm110 004

Specifications

Product size(mm) 207.6*186.6*45mm

Work Temp.
-10°-50° No condensation

Storage Temp.
-20°-75°

Humidity (No condensation)
10%-90%RH

Input port
HDMI*1, DP*1, VGA*1, USB*1

Output port

HDMI*10

HDMI input
HDMI1.4 (HDCP1.3) HDMI embedded audio; maximum input 3840×2160/30Hz

DP input
Display digital signal input, the resolution supports up to 3840×2160/30Hz

VGA input
HD15 interface, 3.5mm audio interface input; support 640x480/85Hz to 1920x1200/60Hz;

USB input
Standard USB2.0 interface, can be connected to U disk and other storage devices; comes with video, audio and picture decoding playback, supports TXT document playback; pause, fast forward program list and other functions

HDMI output
4/ 7/ 10 HDMI output, a single unit supports up to 4/ 7/ 10 HDMI signal output, one outout resolution up to 1920x1080@60Hz, full video wall resolution up to 3840x2160@30Hz

Audio output
3.5mm Audio interface, support left and right channel stereo, audio and video signals synchronous switching

Video wall mode
2x5, 5x2, 2x4, 4x2, 2x3, 3x2, 3x3, 1x2-10, 2-10x1

Control mothed
Three ways: Remote control, PC software, front panel buttons

Power supply
DC 12V 2A

Power consumption
20W

Working hours
>40000 hours
