Real 4K LED Display Controller – MCTRL 4K

MCTRL 4K utilizes HDR10-Optima & HLG to realize high dynamic range display. When paired with A8s/A10s Plus, the MCTRL 4K can dramatically improve image quality through the optimization of every pixel.

Videowall Controller Brand : Novastar

Add to Cart

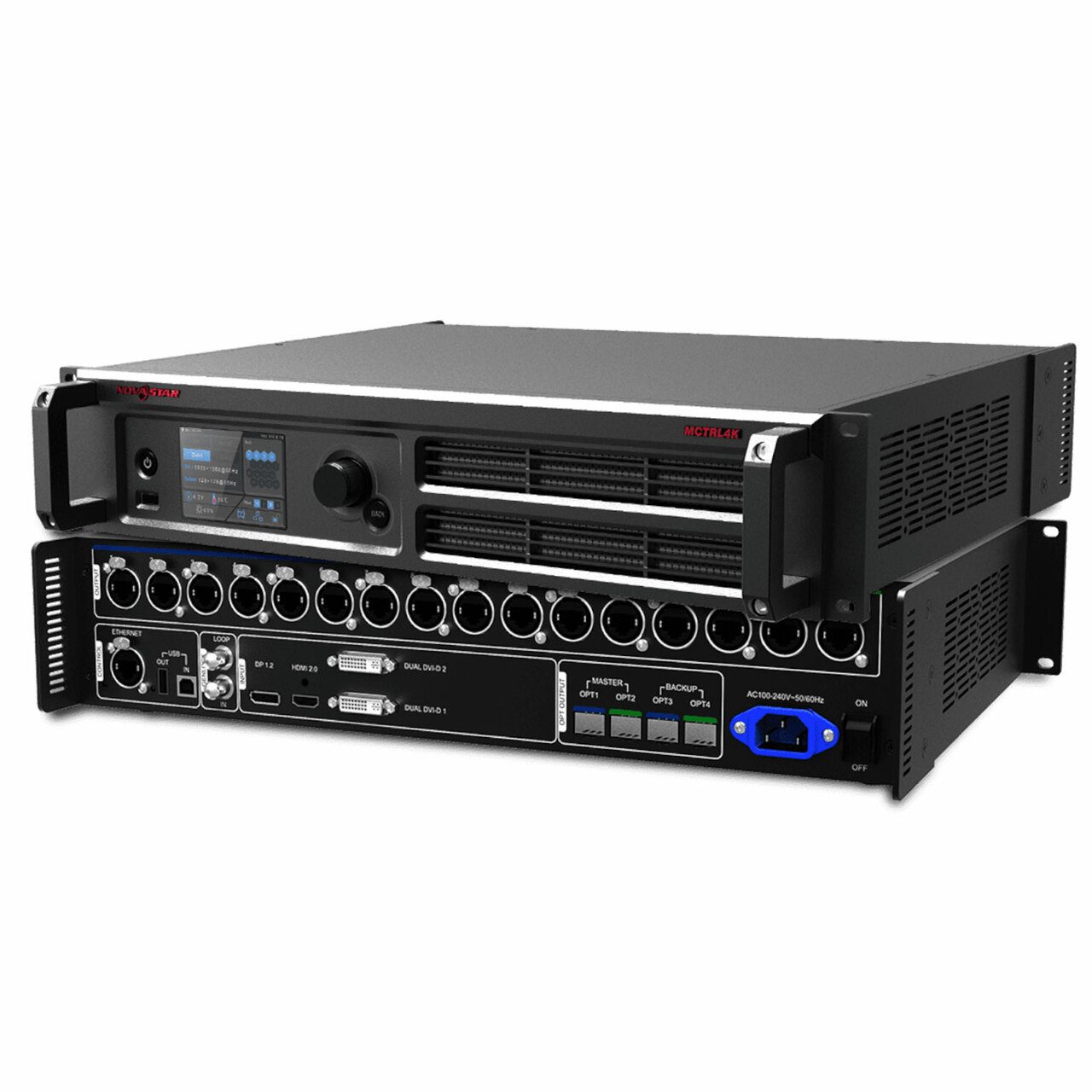

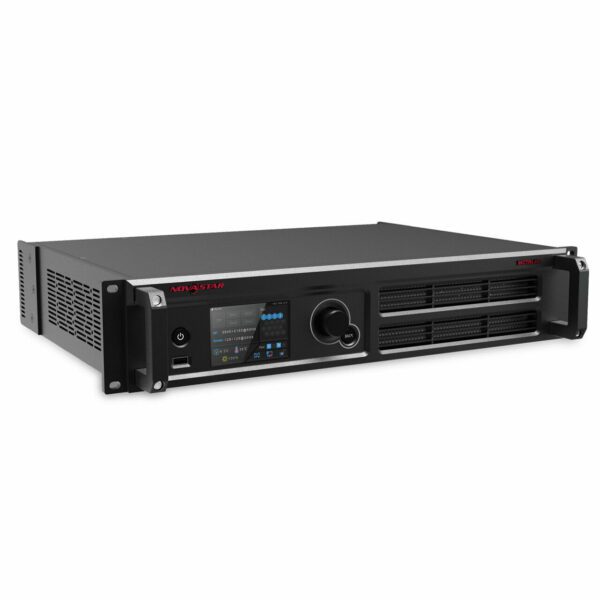

Novastar Real 4K LED Display Controller MCTRL 4K

Descriptions

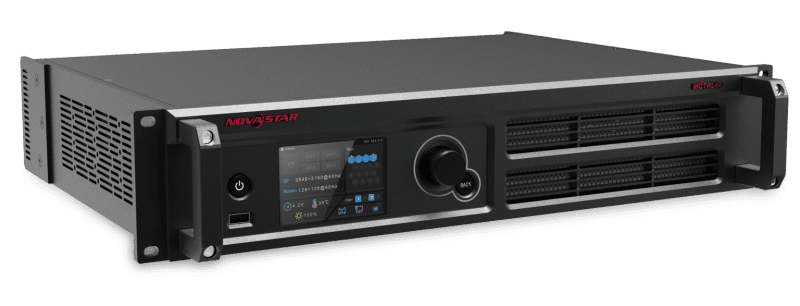

MCTRL 4K

Real 4K LED Display Controller

Key Features

HDR10-Optima

High dynamic

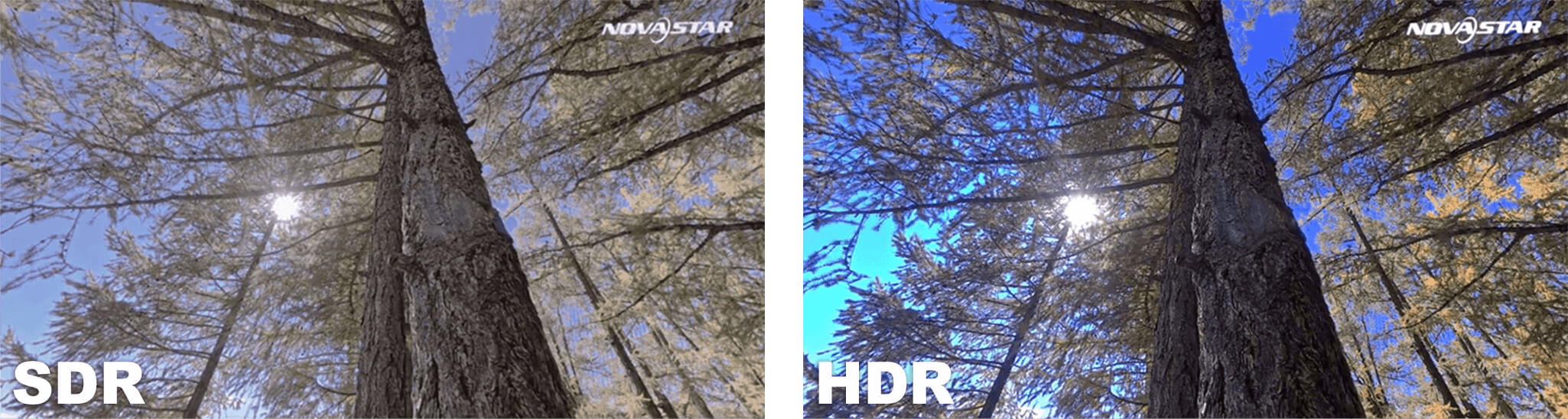

Dynamic range is the difference between the brightest and darkest parts of the image. In conditions with backlight, high dynamic works like the human eye, showing details in both light and dark areas of the image.

10bit color depth

Higher color depth means more shades of color.

During scenes with dynamic lighting changes, light, shadow, and color are all expressed in beautiful detail, making the image more real, accurate, and layered video wall display.

Wide color gamut

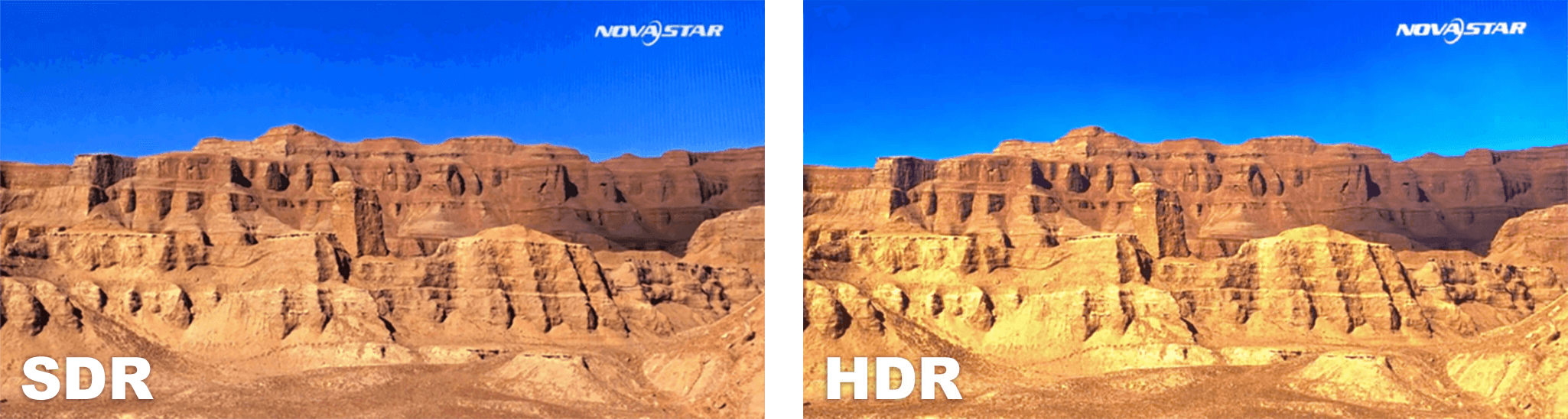

Going from BT.709 to BT.2020 allows for a greater amount of colors with more richness, bringing the image closer to what we see in the real world.

Simplify the post-production process and improve the live broadcast effect

HLG can be easily integrated into broadcasting world. What’s more convenient is that there is no need to adjust the highlights and shadows in the later stage, and we can directly get the high dynamic range image when shooting. HLG has helped us achieve the need for fast shooting and production of high-quality and high-dynamic-range images, allowing us to easily improve our image quality.

4K UHD

A single unit features a loading capacity of up to 4096×2160@60Hz. It supports any custom resolutions with the maximum width or height up to 7680 pixels, meeting the on-site configuration requirements of ultra-long or ultra-wide LED displays.

3D

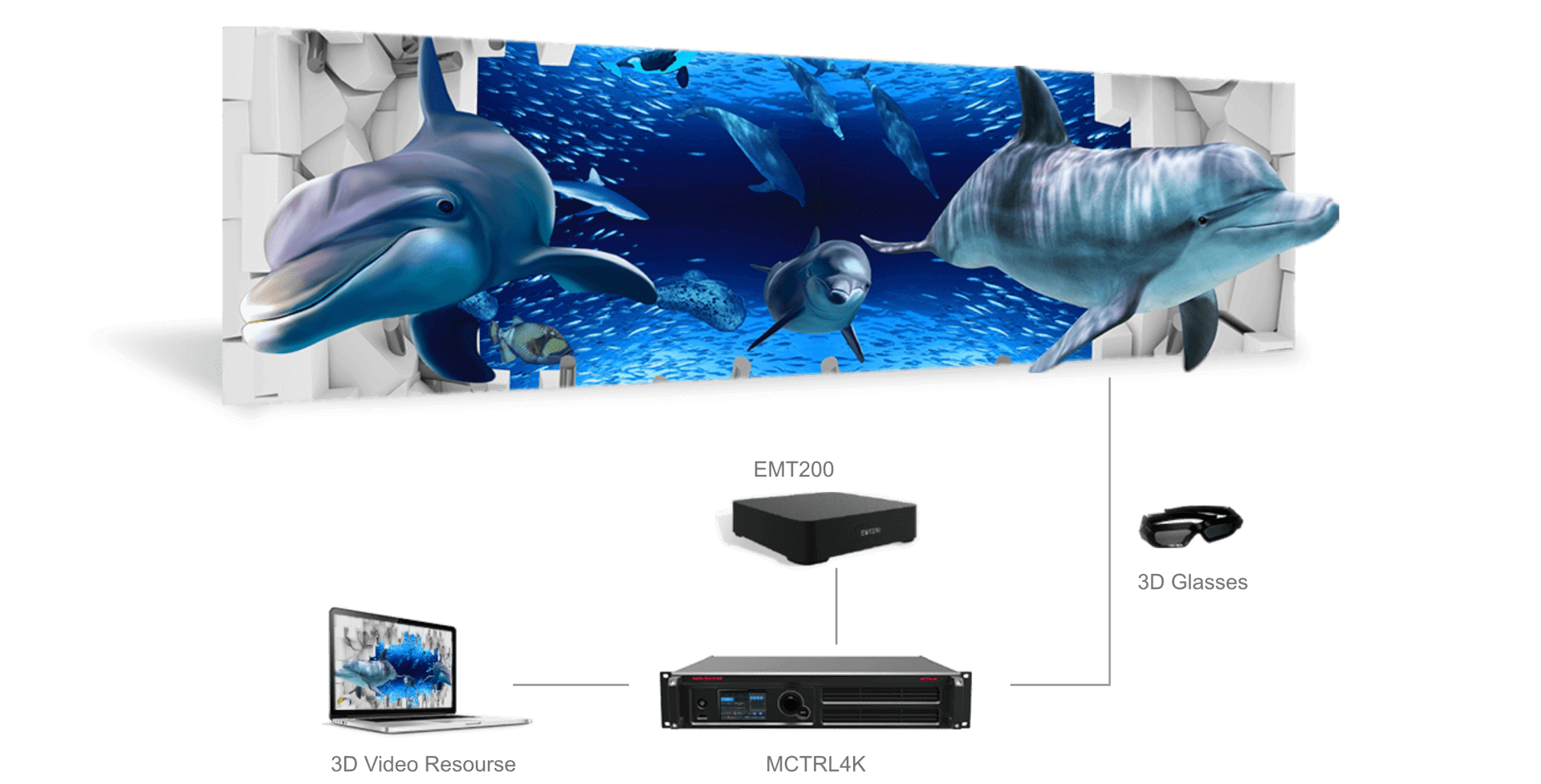

Supports 3D function when working with the 3D emitter EMT200 and 3D glasses, allowing you to experience 3D display effects.

Low latency

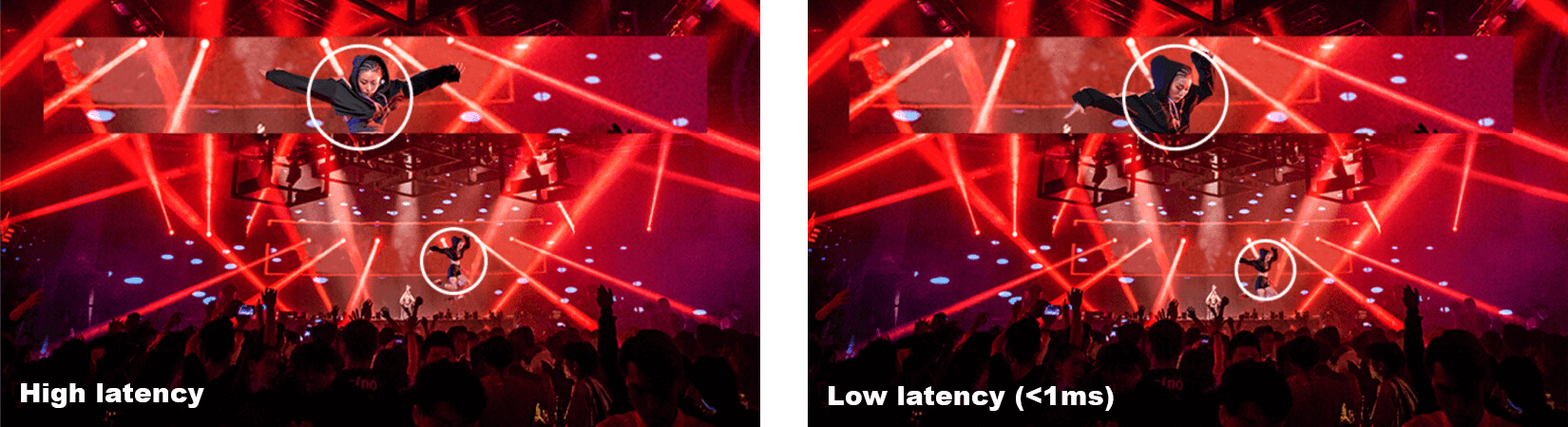

Image latency can be a very common issue with video transmission, but the latency of MCTRL 4K is less than 1ms, providing a smooth viewing experience.

Optical transmission for long distance

10G bandwidth optical fiber, Up to 10km long-distance transmission

Specifications

DP 1.2

DP 1.2 input, with a maximum resolution of 4096×2160@60Hz and minimum resolution of 640×480@24Hz

Pixel capacity: 8,800,000 pixels

Custom resolutions supported:
Resolution limit with maximum width: 7680×1080@60Hz
Resolution limit with maximum height: 1080×7680@60Hz

Supports HDCP 1.3.

Supported standard resolutions:
1280×1024@(24/25/30/48/50/60/ 72/75/85/100/120)Hz
1366×768@(24/25/30/48/50/60/ 72/75/85/100/120)Hz
1440×900@(24/25/30/48/50/60/ 72/75/85/100/120)Hz
1600×1200@(24/25/30/48/50/60/ 72/75/85/100/120)Hz
1920×1080@(24/25/30/48/50/60/ 72/75/85/100/120)Hz
1920×1200@(24/25/30/48/50/60/ 72/75/85/100/120)Hz
1920×2160@(24/25/30/48/50/60/ 72/75/85/100/120)Hz
2560×1600@(24/25/30/48/50/60/ 72/75/85/100/120)Hz
3840×1080@(24/25/30/48/50/60/ 72/75/85/100/120)Hz
3840×2160@(24/25/30/48/50/60)Hz

HDMI 2.0

HDMI 2.0 input, with a maximum resolution of 4096×2160@60Hz and minimum resolution of 800×600@30Hz

Pixel capacity: 8,800,000 pixels

Custom resolutions supported:
Resolution limit with maximum width: 7680×1080@60Hz
Resolution limit with maximum height: 1080×7680@60Hz

Supports HDCP 1.4 and HDCP 2.2.

Supported standard resolutions:
1280×1024@(24/25/30/48/50/60/ 72/75/85/100/120)Hz
1440×900@(24/25/30/48/50/60/ 72/75/85/100/120)Hz
1600×1200@(24/25/30/48/50/60/ 72/75/85/100/120)Hz
1920×1080@(24/25/30/48/50/60/ 72/75/85/100/120)Hz
1920×1200@(24/25/30/48/50/60/ 72/75/85/100/120)Hz
1920×2160@(24/25/30/48/50/60/ 72/75/85/100/120)Hz
2048×1536@(24/25/30/48/50/60/ 72/75/85/100/120)Hz
2560×1600@(24/25/30/48/50/60/ 72/75/85/100/120)Hz
3840×1080@(24/25/30/48/50/60/ 72/75/85/100/120)Hz
3840×2160@(24/25/30/48/50/60)Hz

DUAL DVI-D1 DUAL DVI-D2

2 × DVI inputs, each with a maximum resolution of 3840×1080@60Hz and minimum resolution of 800×600@30Hz

Pixel capacity: 8,300,000 pixels

Custom resolutions supported:
Resolution limit with maximum width: 3840×2160@60Hz Resolution limit with maximum height: 2160×3840@60Hz

Supported standard resolutions:

1280×1024@(24/25/30/48/50/60/ 72/75/85/100/120)Hz

1366×768@(24/25/30/48/50/60/ 72/75/85/100/120)Hz

1440×900@(24/25/30/48/50/60/ 72/75/85/100/120)Hz

1600×1200@(24/25/30/48/50/60/ 72/75/85/100/120)Hz

1920×1080@(24/25/30/48/50/60/ 72/75/85/100/120)Hz

1920×1200@(24/25/30/48/50/60/ 72/75/85/100)Hz

1920×2160@(24/25/30/48/50/60)Hz

2560×1600@(24/25/30/48/50/60)Hz

3840×1080@(24/25/30/48/50/60Hz

3840×2160@(24/25/30)Hz

1–16

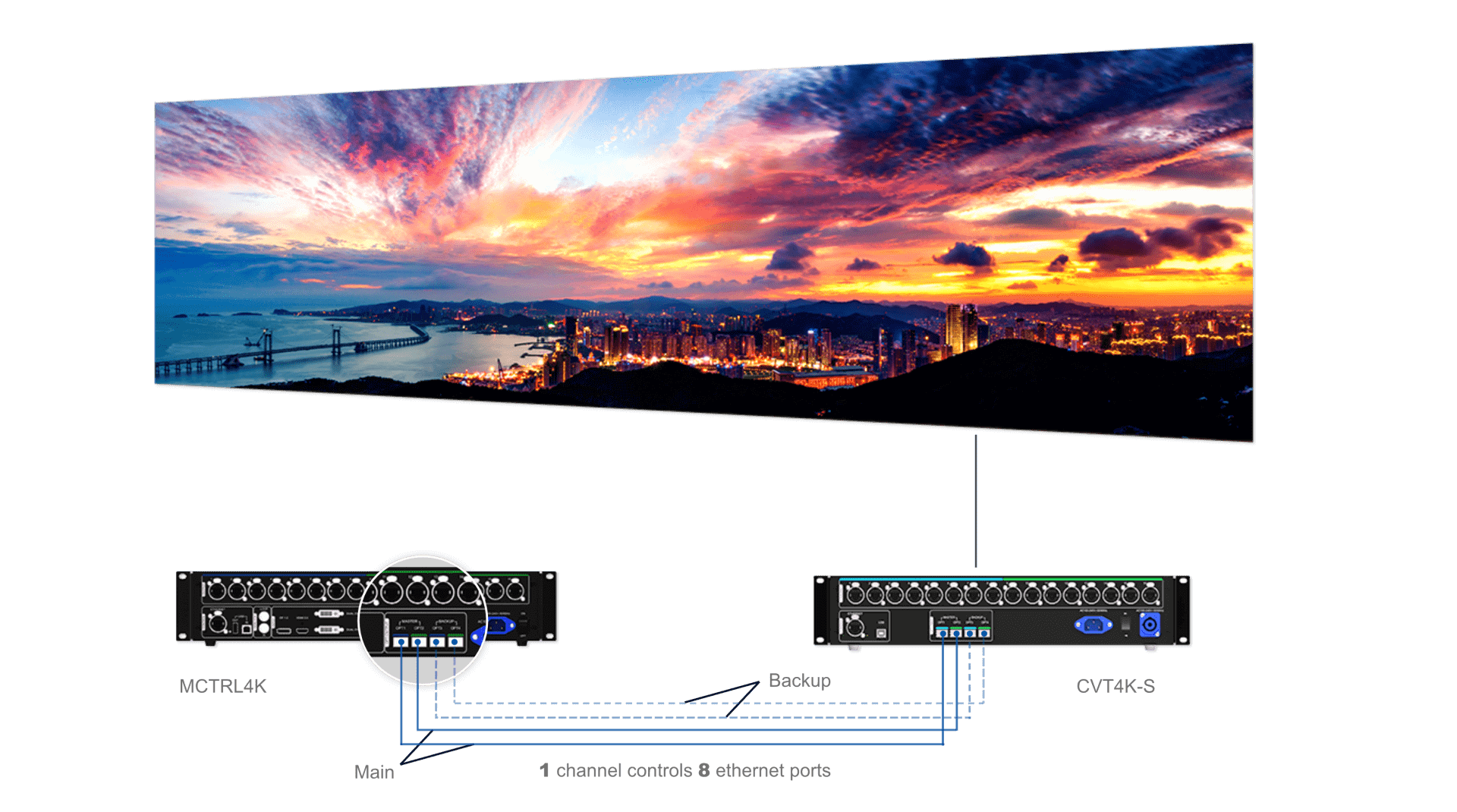

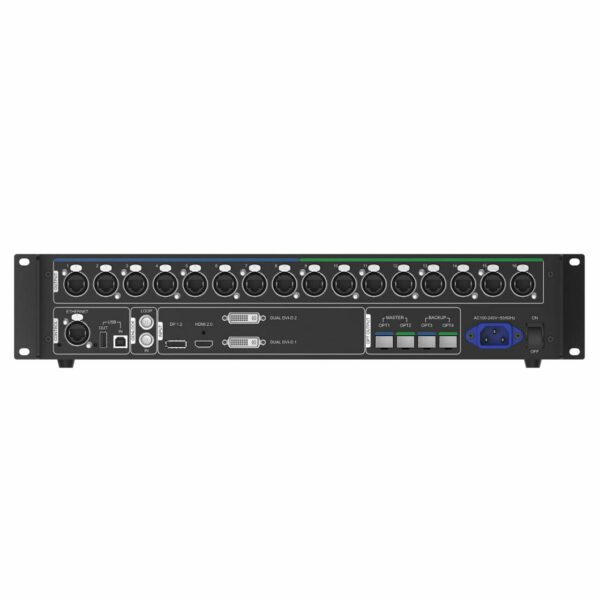

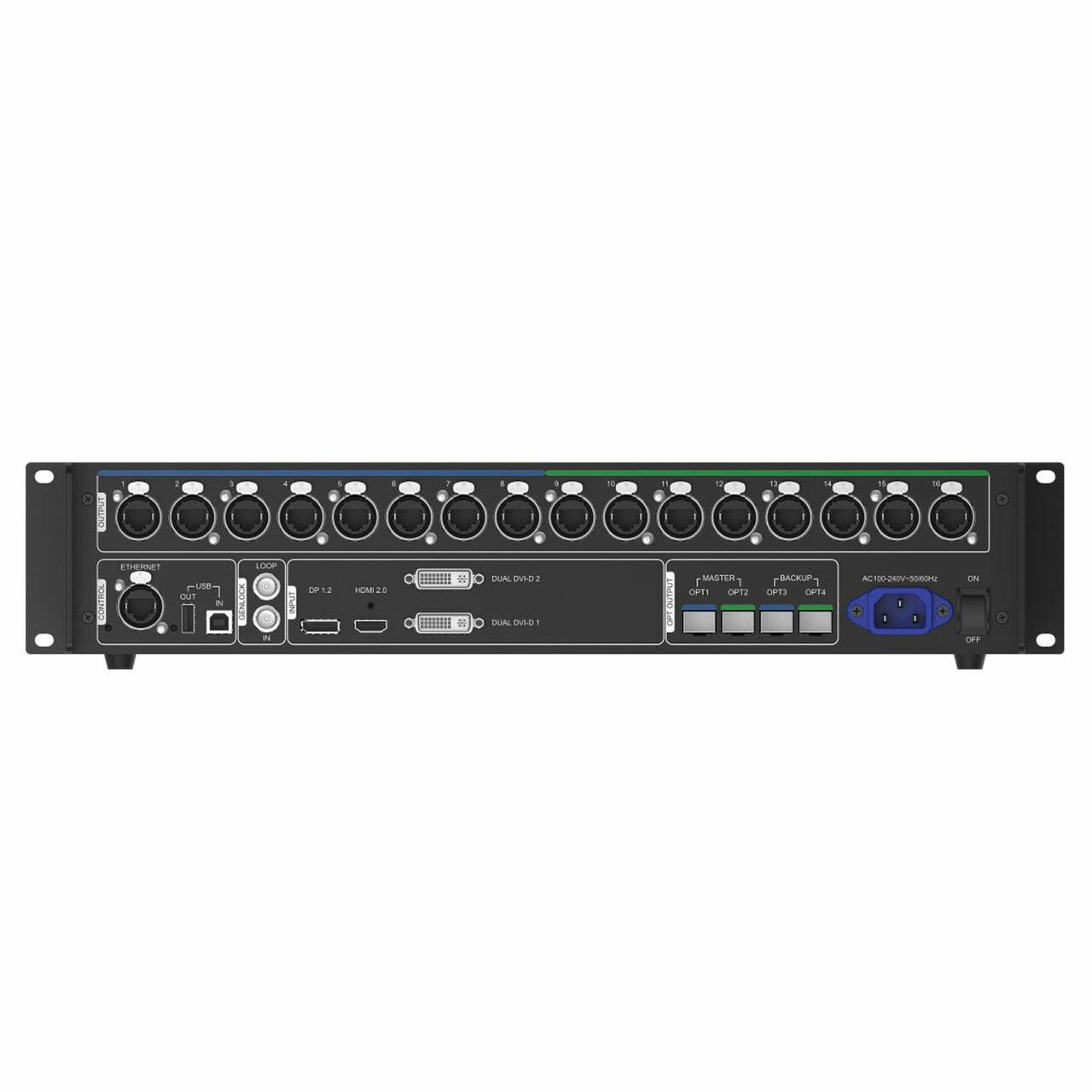

16 Neutrik (NE8FBH) Gigabit Ethernet ports

Maximum loading capacity of a single Ethernet port:
- For 8-bit input sources: 650,000 pixels
- For 10-bit/12-bit input sources: 320,000 pixels

Do not support audio output.

Support redundancy between Ethernet ports.

OPT1–OPT4

10G optical ports
- Single-mode twin-core fiber: Support LC optical connectors; wavelength: 1310 nm; transmission distance: 10 km; OS1/OS2 recommended.
- Dual-mode twin-core fiber: Support LC optical connectors; wavelength: 850 nm; transmission distance: 300 m; OM3/OM4 recommended.

The maximum loading capacity of a single optical port equals to that of all the 8 Ethernet ports.

4 OPT inputs/outputs
- OPT1 and OPT2 are main input/output ports. OPT1 corresponds to Ethernet ports 1–8 and OPT2 corresponds to Ethernet ports 9– 16.
- OPT3 and OPT4 are backup input/output ports. OPT3 is a duplicate channel of OPT1, and OPT4 is a duplicate channel of OPT2.

ETHERNET: For PC connection

USB IN: Input port for cascading devices, or connecting to PC

USB OUT: Output port for cascading devices

Genlock input connector

- Genlock type: Blackburst
- Input Genlock sync signal to ensure synchronization and same refresh rate between the output signals of cascaded MCTRL4K units and the external Genlock signal.

LOOP

Genlock loop output connector

Up to 10 MCTRL4K units can be cascaded.

AC power input AC 100 V–240 V, 50/60Hz
