SENNHEISER XSW-D PORTABLE LAVALIER SET

Video Conferencing

Capture crisp-sounding interviews for your videos. This set includes our popular ME 2-II omnidirectional lavalier. Plug it in, power it up and go.

Description

Descriptions

maono usb microphone au 903 cover2
Play Video

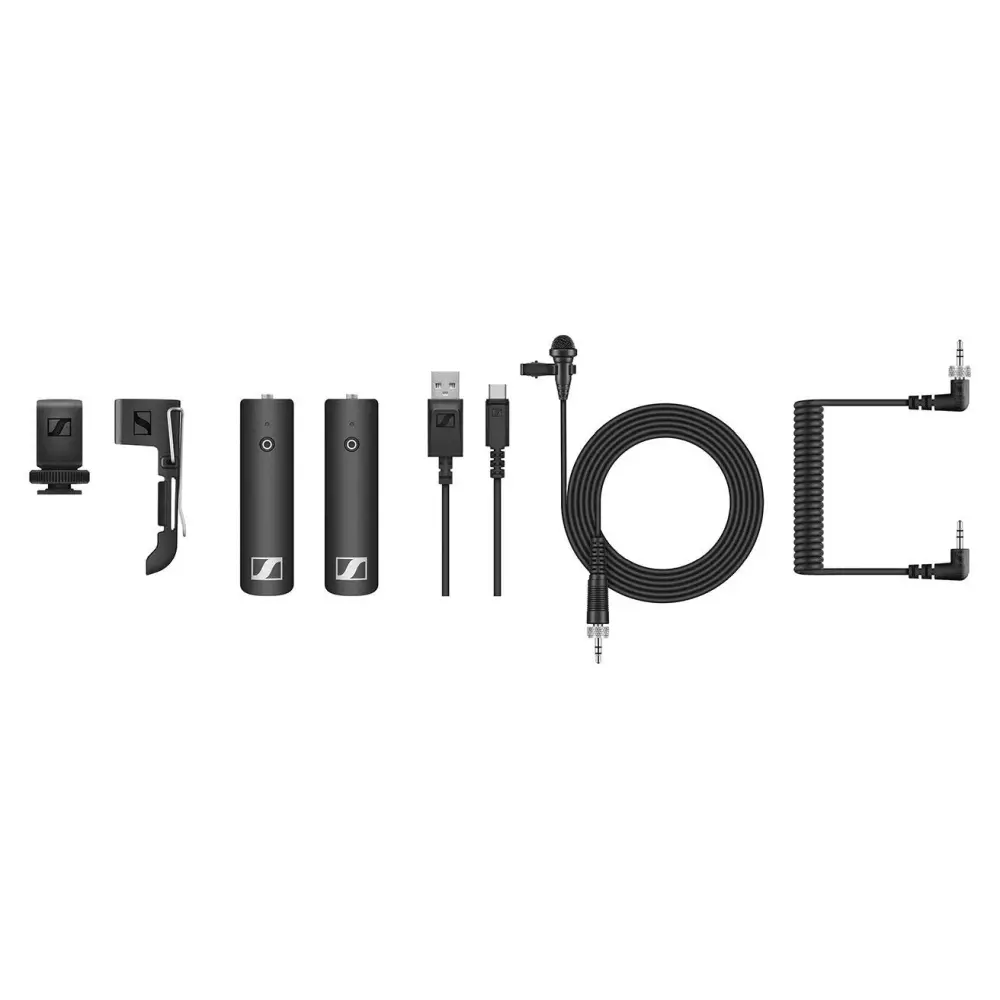

sennheiser xsw d portable lavalier set 011

SENNHEISER XSW-D PORTABLE LAVALIER SET

One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources in video-conferencing. Equipped with an ME2-II lavalier microphone, this elegant solution makes capturing dialogue on a DSLR easier than ever before while maintaining a reliable connection.

Key Features

sennheiser xsw d portable lavalier set 024

Enter the world of wireless audio

Wireless means never missing the moment. XS Wireless Digital brings great audio within reach; an ideal tool to effectively capture dialogue for videographers and mobile journalists alike. Compatible with any DSLR or mirrorless camera, XSW-D defines the term “plug-n-play” by way of its 3.5mm cables and included ME 2-ii lavalier. If you’re looking to enhance your workflow with clean and consistent audio, do so without the burden of a complex setup.

As easy as it gets

Each XS Wireless Digital transmitter and receiver have only one button. Press to power up and link simultaneously, click once to mute, and hold to power down. What’s more, they each feature a single LED that indicates when your connection is secure or when it’s time to charge the battery. There are no menus to fuss with or settings to worry about. It’s almost as easy as plugging a mic directing into your camera, only now with a lot more flexibility.
sennheiser xsw d portable lavalier set 022
sennheiser xsw d portable lavalier set 023

Digital for worldwide operation

XS Wireless Digital uses the same 2.4 GHz frequency as WiFi allowing for license free operation worldwide. There is no need to scan for available frequencies as the system automatically does it for you. This means you can take XSW-D with you wherever you go without fear of static interference or dropouts. Just turn it on and start recording.

Specifications

  • Dimensions
    XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm
    XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm
    XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm
    XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm
    XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm
    XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm
    XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm
  • THD, total harmonic distortion
    < 0.1 %
  • Charging time
    typ. 3 h
  • Audio output
    max. 12 dBu
  • Operating temperature
    -10 °C to +55 °C (14 °F to 131 °F)
  • Signal-to-noise ratio
    ≥ 106 dB
  • Operating time
    up to 5 h
  • Modulation
    GFSK with TDMA
  • Battery Specification
    Li-Ion
  • Capacity
    850 mAh
  • Codecs
    aptX® Live
  • Frequency range
    2,400 - 2,483.5MHz
  • Max. Input voltage
    typ. 5.0 V
  • Transmission power
    max. 10 mW
  • Voltage
    3.7 V
  • Operating relative humidity
    95 % (non-condensing)
  • Latency
    < 4 ms
  • Temperature Range
    0 °C - 60 °C (32 °F - 140 °F)
  • Audio frequency response
    3.5 mm Jack/XLR: 80 - 18,000 Hz
    6.3 mm Jack: 10 - 18,000 Hz
