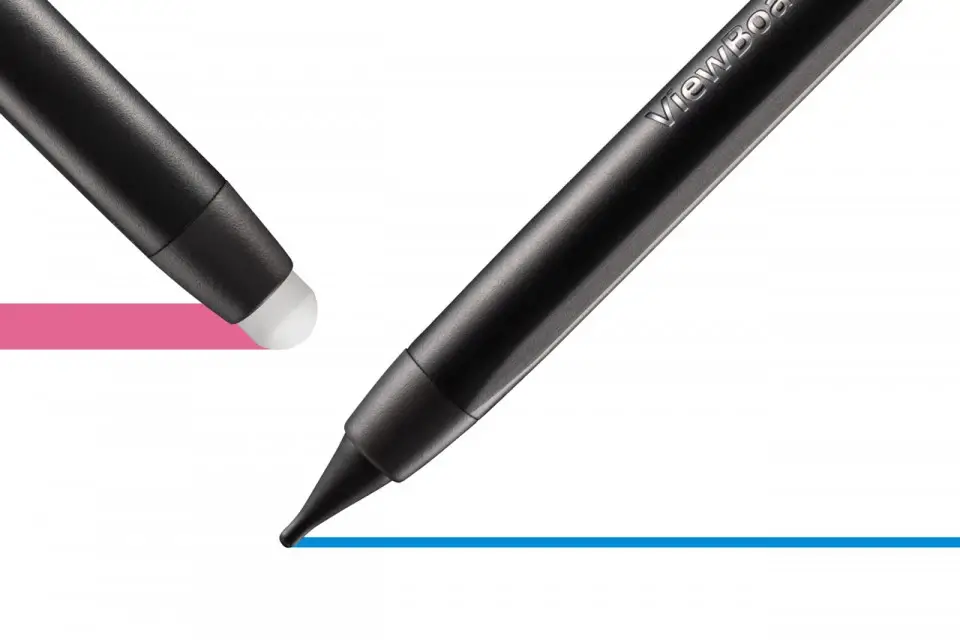

Dual-Pen
Automatically detect pen diameter (8mm & 3mm) and write simultaneously with different colours and thicknesses.

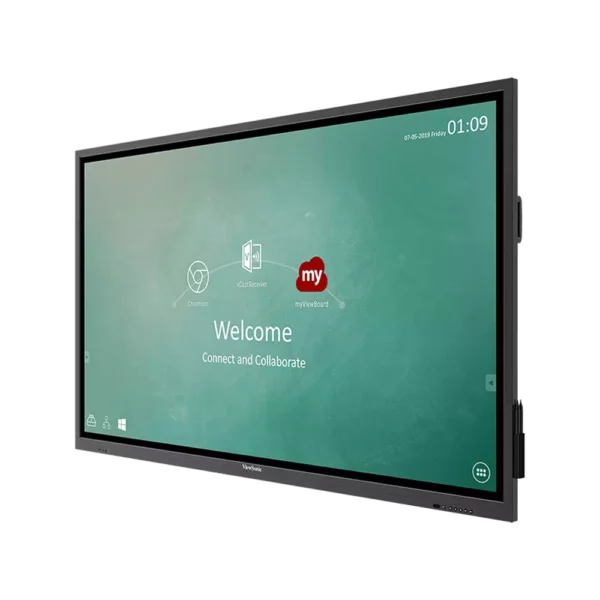

Viewsonic Smartboard IFP7530
• 75” panel size
• Technology Ultra Fine Touch (UFT)
• myViewBoard™ digital whiteboard software
• Dual-pen writing with 3mm/8mm diameter pen tips
• Ambient Light Sensor
Descriptions

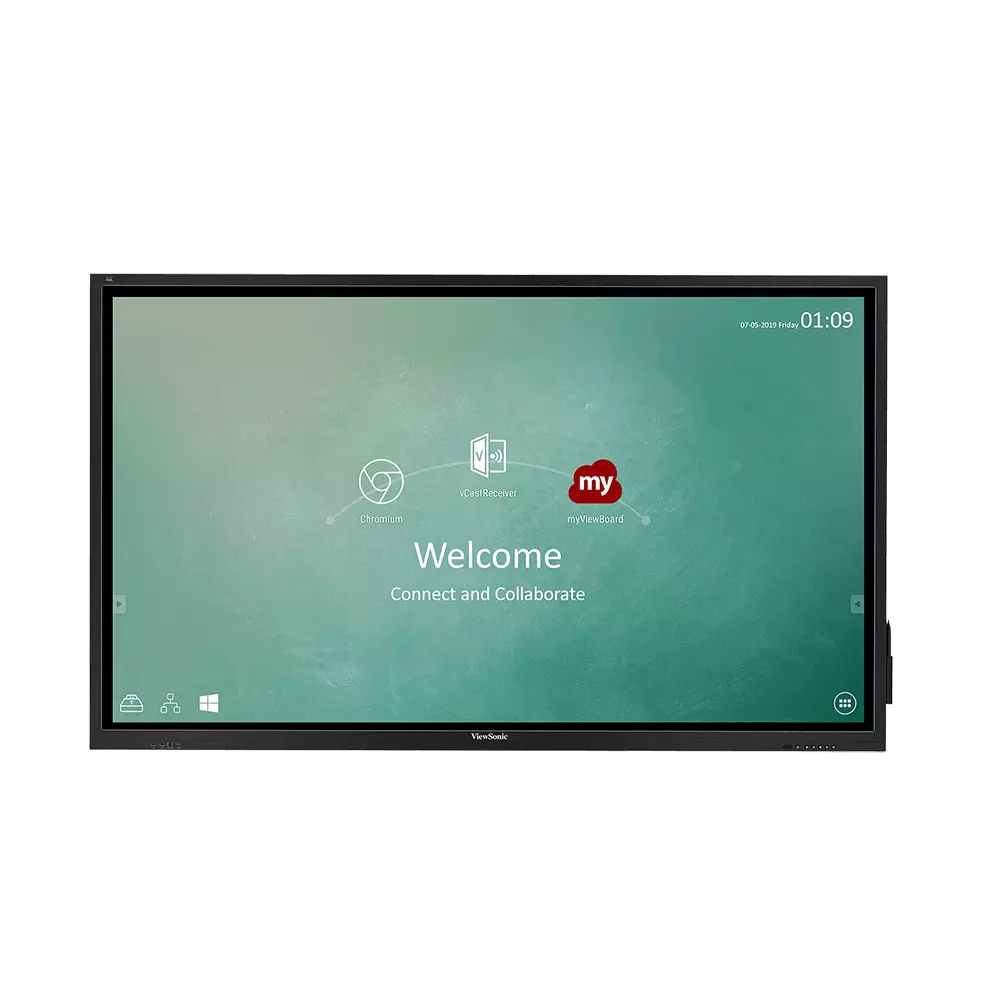

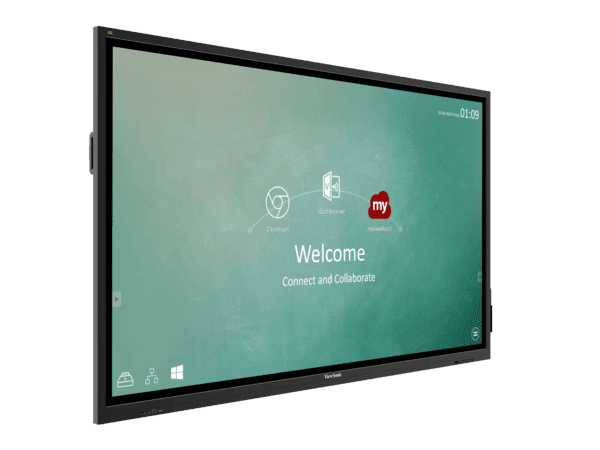

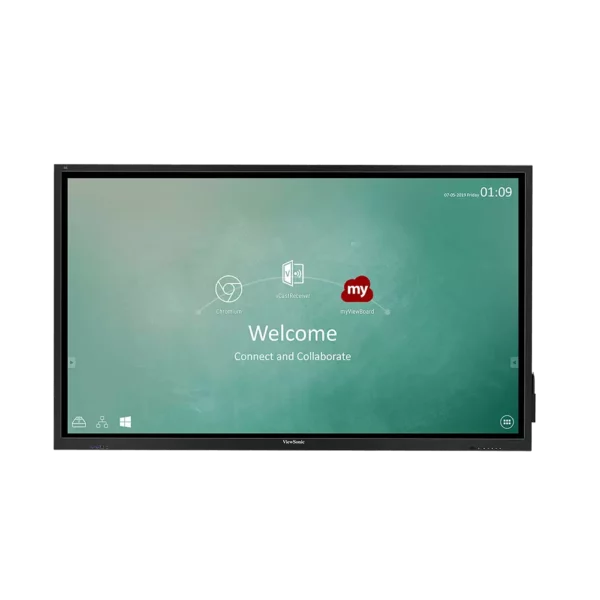

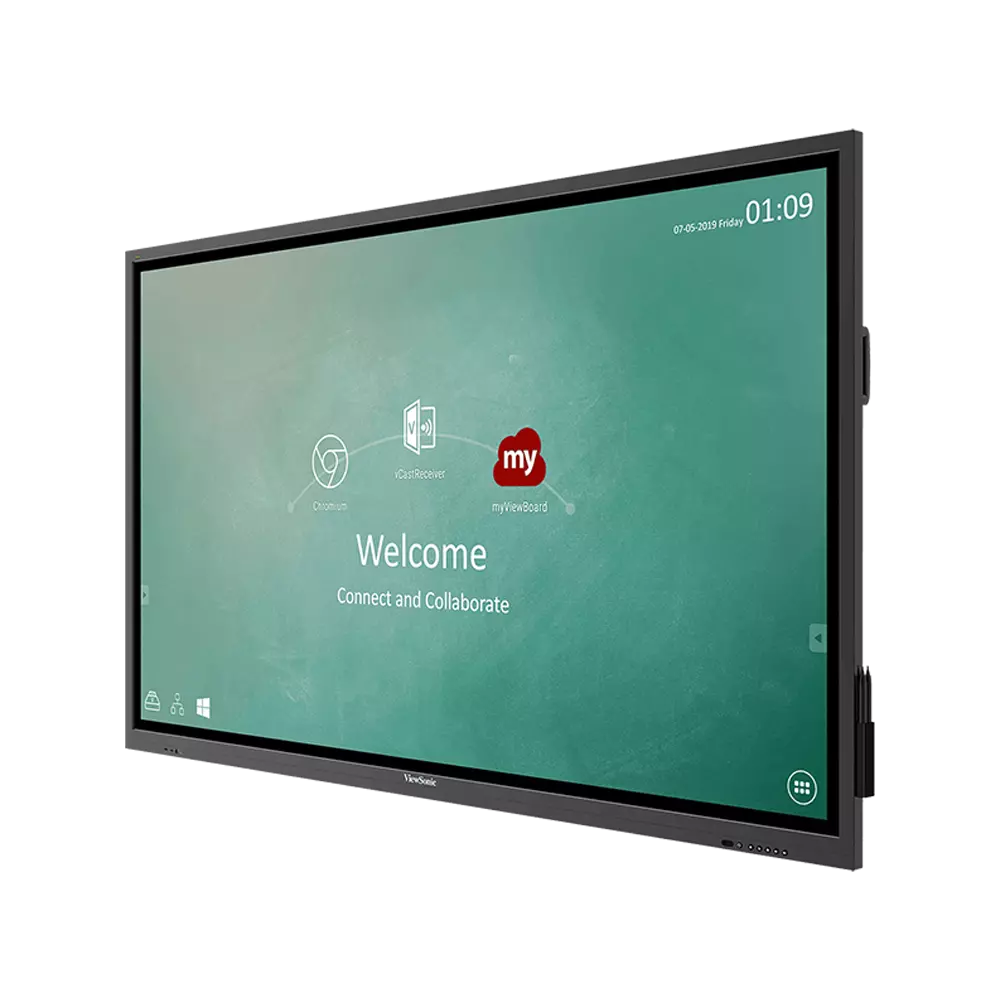

ViewBoard® 75" 4K Interactive Display
- UFT (Ultra Fine Touch) Technology
- myViewBoard™ digital whiteboard software
- Dual-pen writing with 3mm/8mm diameter pen tips
- Ambient Light Sensor
- ENERGY STAR® certified
OVERVIEW
The ViewBoard® IFP30 series embraces UFT (Ultra Fine Touch) Technology to offer more precise writing and faster processing time than traditional IR panels. 2mm height sensitivity increases writing accuracy while allowing for dual-pen annotation with both 3mm & 8mm diameter pens. It’s also incredibly responsive, distinguishing the different touch diameters among pens, fingers and palms to avoid false strokes. In addition, the IFP30 series is integrated with myViewBoard™ digital whiteboard software to provide collaboration on the go, and is further complimented by native casting including Miracast, Airplay, and Chromecast. Interactive whiteboards are becoming commonplace. The IFP30 series is the solution for schools and workplaces of all sizes and considerations.
Key Features
UFT Technology

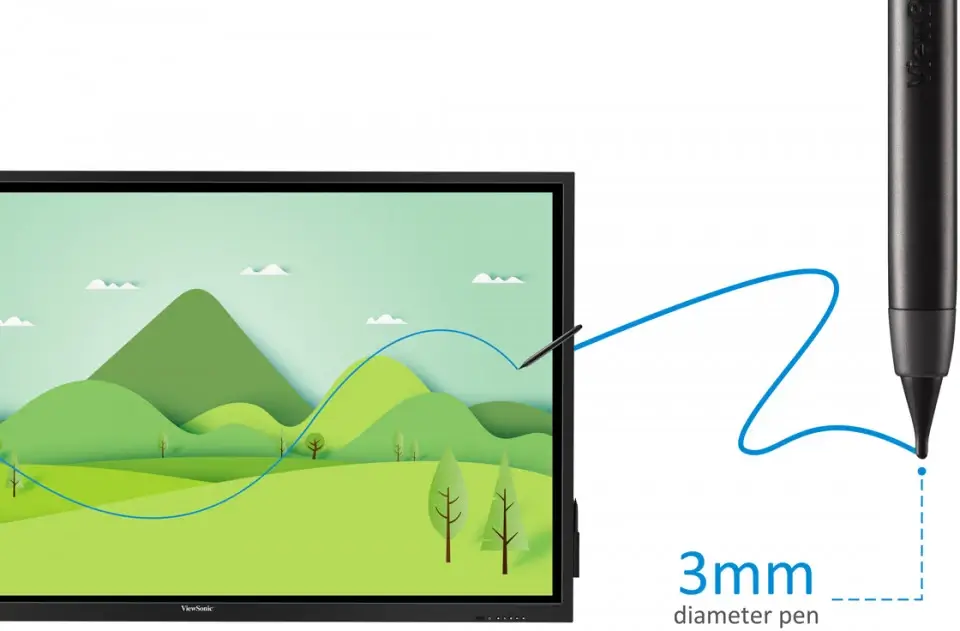

Ultra Fine Touch Technology produces a lag-free, pen-on-paper writing experience. Writing accuracy is greatly improved and student-teacher interaction flows more naturally thanks to real-time response rates, dual-pen recognition and our new 3mm tipped pens.
Full Native Performance on ViewBoard OS
Built-in myViewBoard® digital whiteboard software to collaborate on the go.

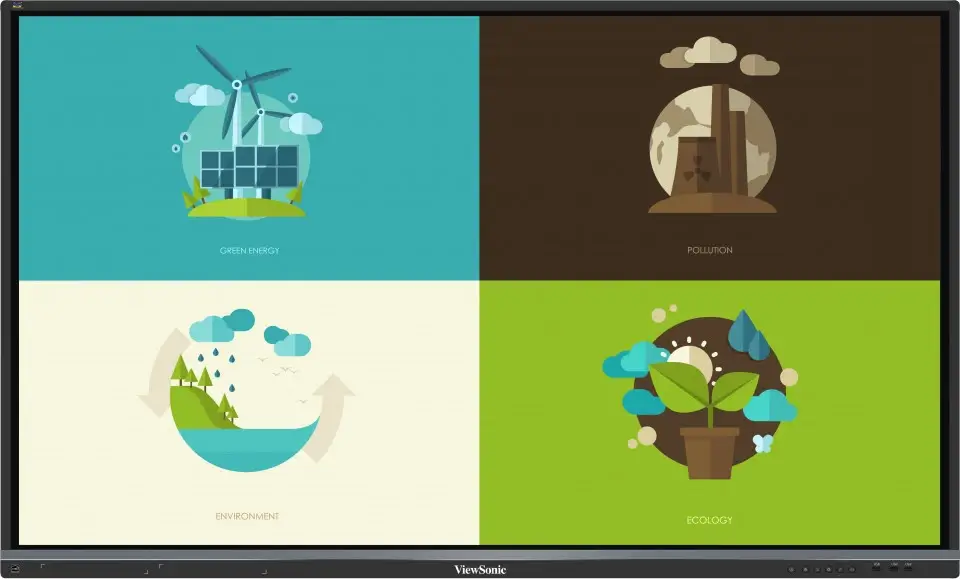

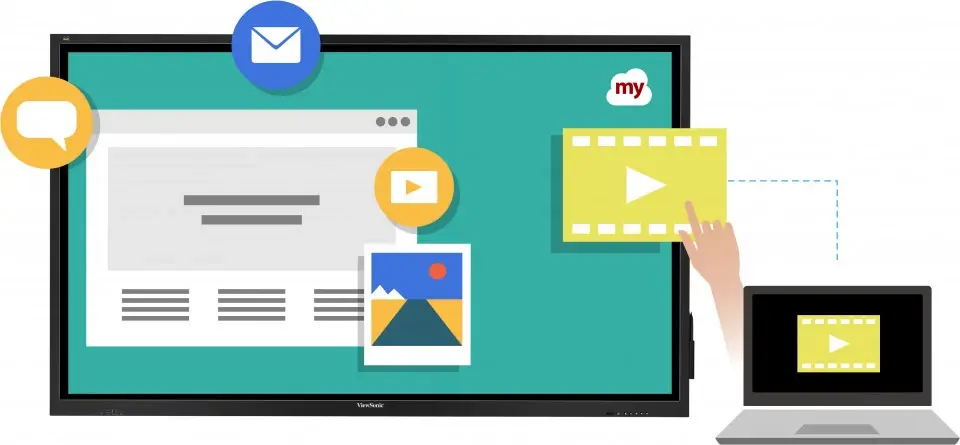

4-way Split Screen
4-way split-screen content sharing with built-in ViewBoard® Cast software

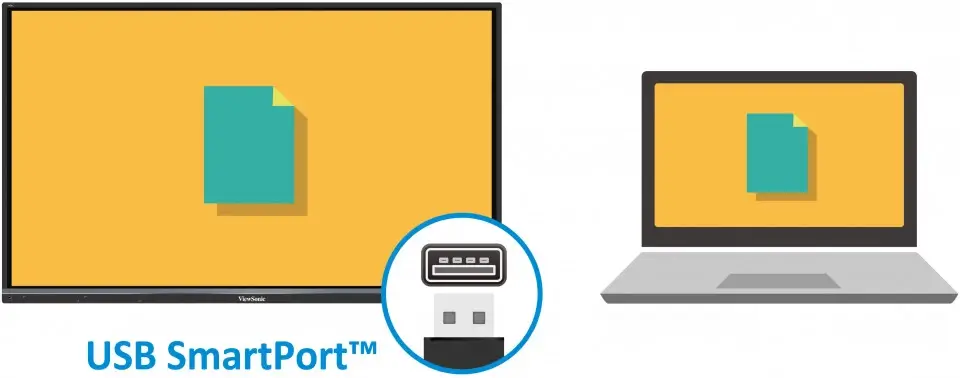

Shared USB Ports
SmartPort™ shared front USB ports for internal & external PCs.
Stereo Sound
2.1 Stereo sound with a built-in subwoofer.

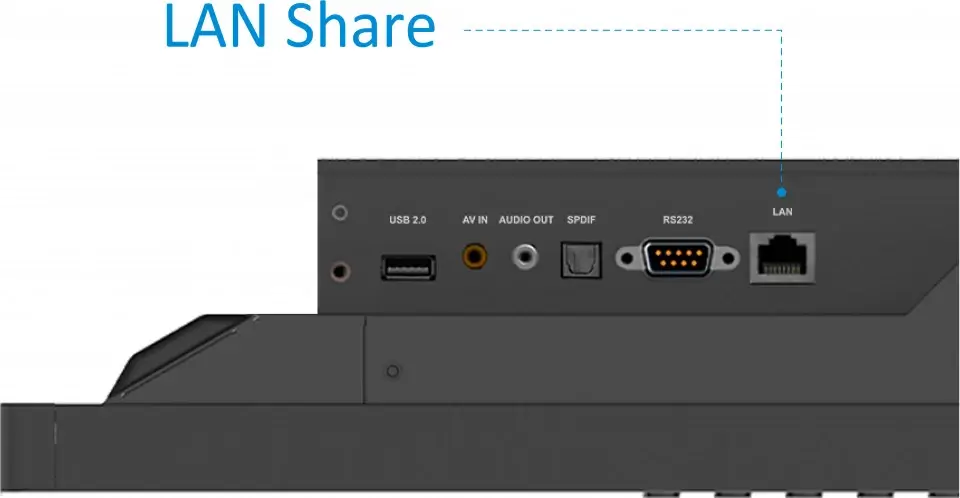

Faster Internet
LAN sharing with slot-in PC provides a faster, more powerful internet connection.

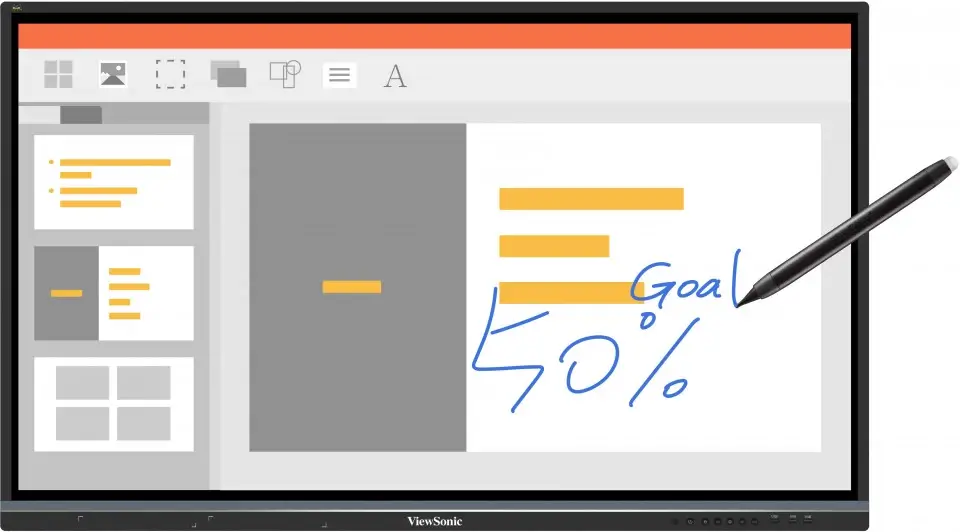

Object Recognition and Windows Ink Compatible
Make annotations, write and draw on the whiteboard, Office365 or Windows Ink. Therefore your meetings will be more collaborative and interactive.

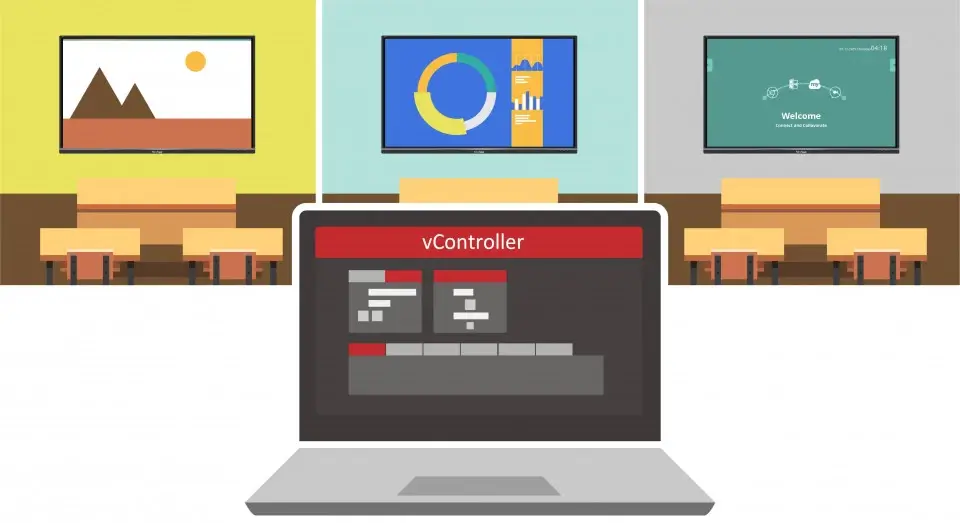

Remote Control
Built-in RS232 port and vController software for remote control.

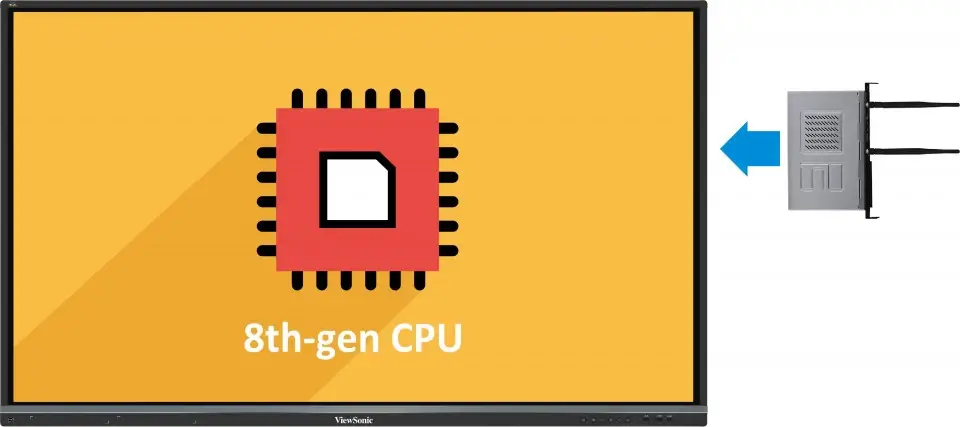

Slot-in PC
Slot-in PC with Intel 8th-gen CPU (Optional).
Web Camera
Top-mounted 1080p web camera (Optional).

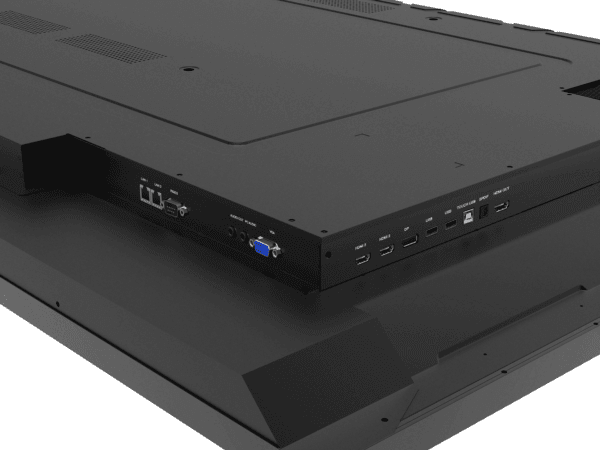

I/O Port
Specifications

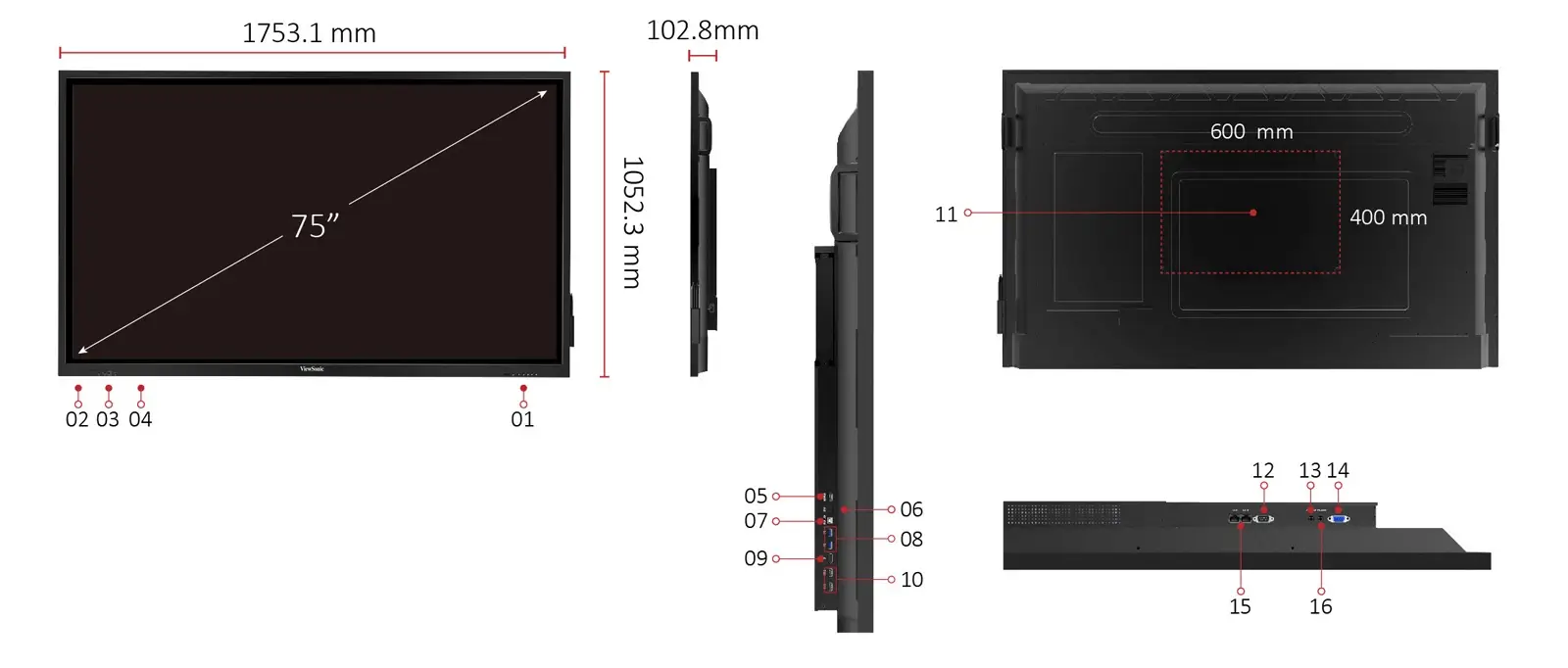

Physical (inch / mm):
1753.1*1052.3*102.8(mm)
69.02*41.43*4.05(inch)
Packaging (inch / mm):
1880*1160*280(mm)
74*45*11(inch)
Processor: ARM Cortex-A73*2 + Cortex-A53*2 1.5Hz
RAM: 3GB DDR4
Storage: 16GB
Display
Panel Size: 75"
Type/Tech: IPS/V-by-one
Display Area (mm): 1647.36*926.64mm
Aspect Ratio: 16:9
Native Resolution: 4K60hz
Colours: 10 bits
Brightness: 450(Typ.)
400(min.)
Contrast Ratio: 1200:1
Response Time: 8ms(Type)
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 30,000hr(min)
Surface Treatment: Hardness: 7H
Costing: AG coating
Thickness: 4mm
Bezel: 29/29/29/49.7mm(btm.)
Orientation: LandscapeTouch
Type/ Tech: IR Recognition
Touch Resolution: 32767W*32767D
Touch Point: 20 points
INPUT
HDMI: Front*1
Rear* 2
All ports HDMI2.0
RGB / VGA: 1
DisplayPort: DP1.2*1
Audio: PC audio in (3.5 mm)*1
RS232: x1
OPS: 1OUTPUT
HDMI: *1
Audio: 3.5mm Earphone Out *1, SPDIF*1
SPDIF: x1LAN
RJ45: *2
10M/100USB
Type A: USB2.0 *4 (Front:*2 Rear: *2 )
Type B: For touch (Front*1, rear*1))SPEAKERS
SPEAKERS: 15WX2Camera plate on top for screw-in webcam installation
Camera plate on top for screw-in webcam installation: yesCOMPATIBILITY
RGB PC/HDMI PC: VGA: 1080p
HDMI: 4K
HDMI: 3840x2160
DisplayPort: 3840x2160Embedded OS
Embedded OS: OS 8.0
Resolution: 1080p
Power
Voltage: PB model:
100-240VAC +/- 10% Wide Range
Consumption: On: 115W(Typ.)
Off: <0.5WERGONOMICS
Wall Mount (VESA® ): 600x400OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
Humidity: 20% ~ 80% RH Non-Condensing(working)WEIGHT
Net (lb / kg): 135lb, 61.25kg
Gross (lb / kg): 173.8lb, 78.85kgREGULATIONS
REGULATIONS: EMC/CE-EU, CB-EU/IEC62368, RoHS Green BOM & RoSH DoC, REACH, WEEE (Doc & Disassebly report), ErP, EAC(local apply), UKrSEPRO(local apply), , BIS-IndiaEnergy Star version
Energy Star version: YESEEI rating
EEI rating: A+Compatible Slot-in PC
Compatible Slot-in PC: VPC12 series
1. US/EU/UK/AU power cord , no PE bag
2. QSG
3. Compliance statement
4. HDMI cable*1
5. Touch USB cable *1
6. Touch PEN *2. Extra tip: Thick*2, thin*1
7. Remote control with AAA batteries (VS version)
8. Webcam plate with screws pack
a. Need to compatible with Logi CC4000e)
b. Add screw holes on top of the frame

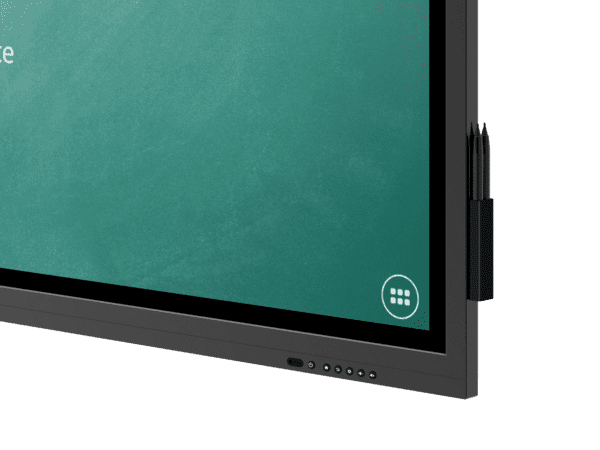

9. Pen tray*1 (two pen, detachable, mount for both side)
10. Wall mount screws
