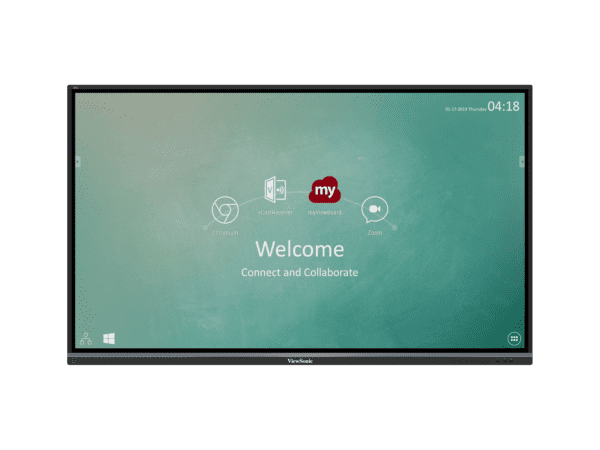

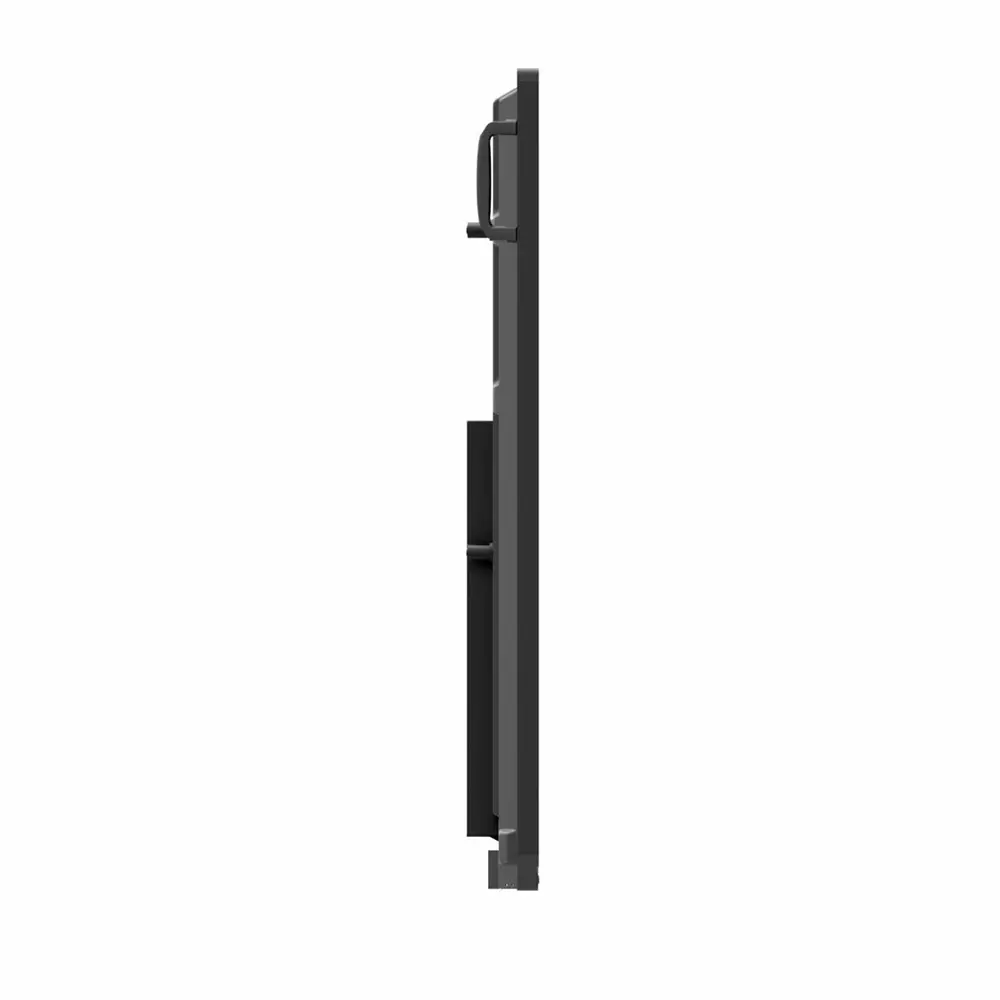

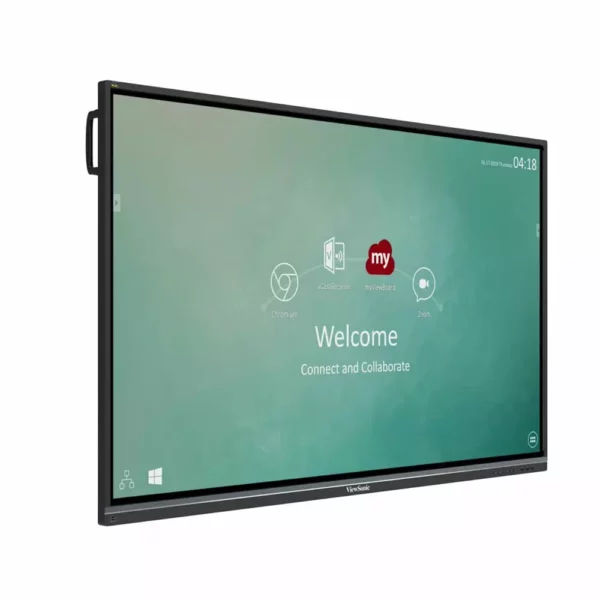

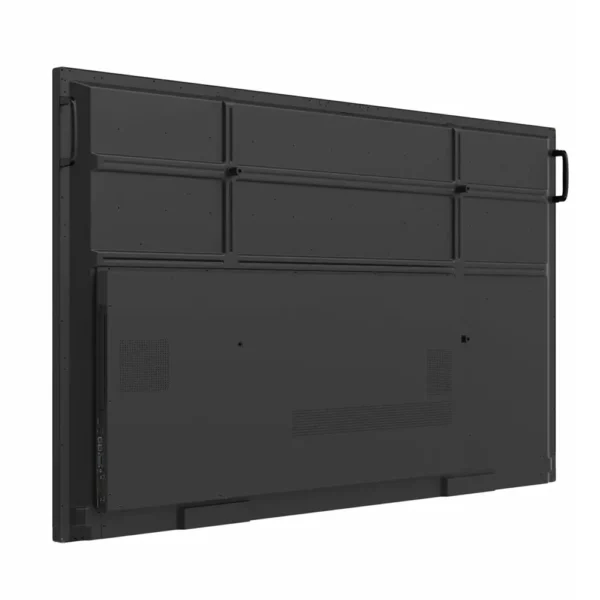

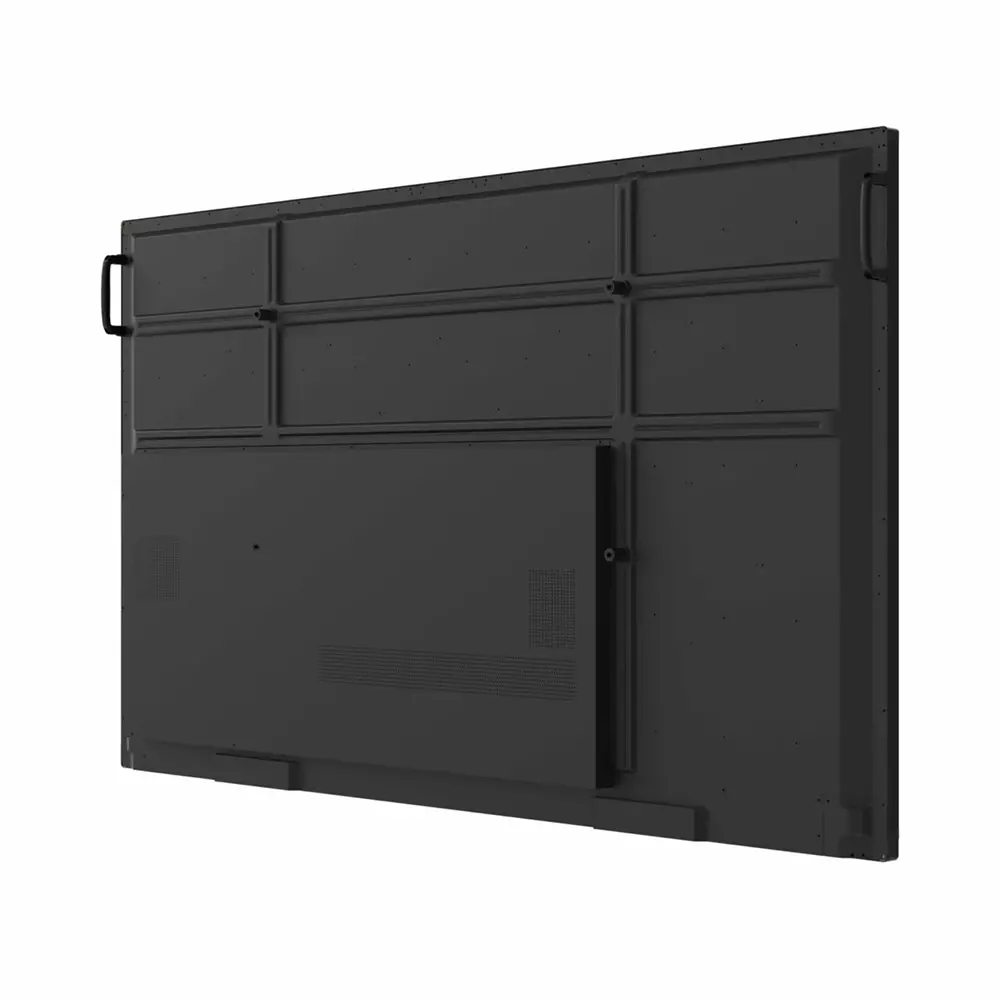

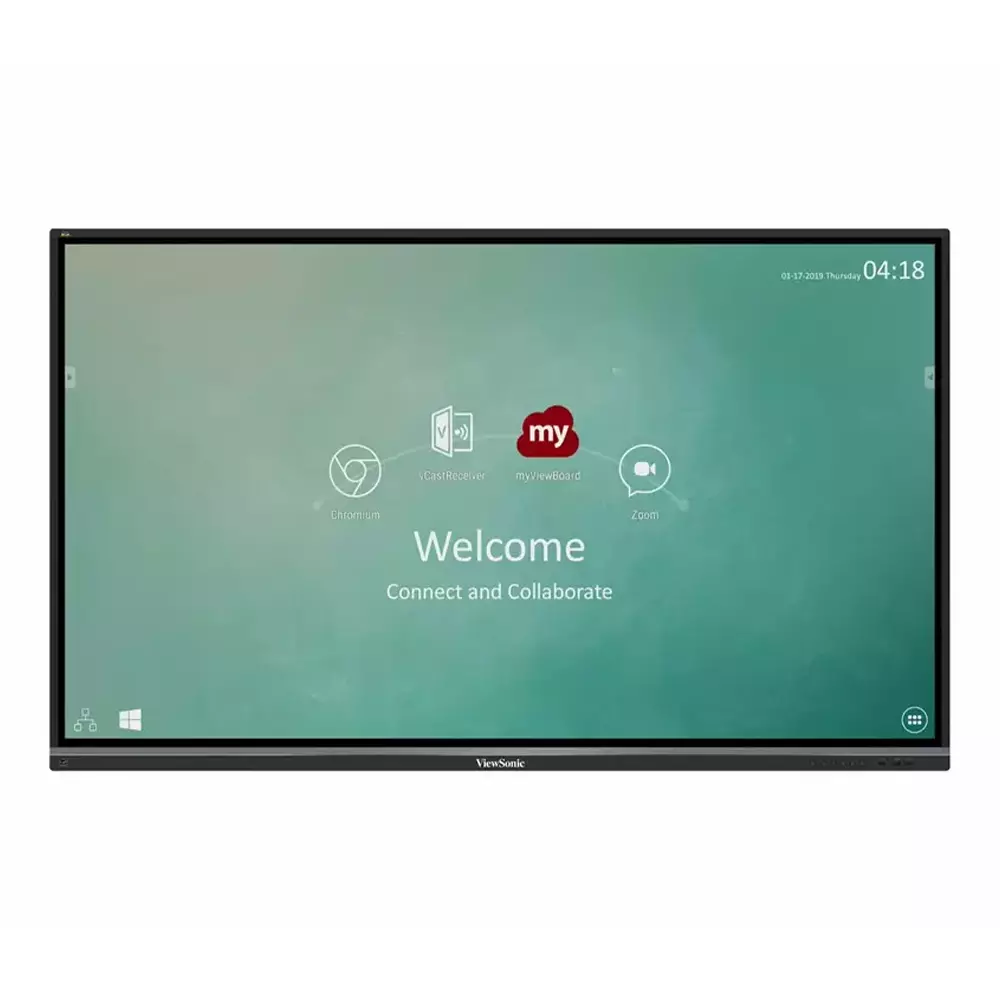

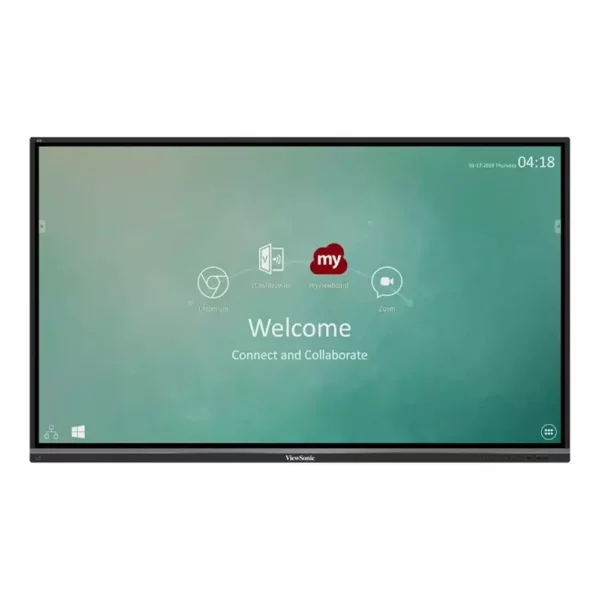

Viewsonic Smartboard IFP9850-3

Smartboard

• 98” interactive display
• Ultra fine touch technology delivering a smooth, natural handwriting experience
• 4K resolution with super clear colors and graphics
• TUV certified for low blue light emission
• myViewBoard software offering a customizable, secure, and future-proof whiteboarding solution
• Optional slot-in PC upgrade for more speed, flexibility, and versatility

Tag: Viewsonic

Description

Descriptions

viewsonic_smartboard_IFP9850-3

ViewBoard® 98'' 4K Interactive Display

  • Intuitive Interactive Interface and Eye-care Certified Display
  • Synchronous Writing Performance with Dual Pens
  • Lag-free, Pen-on-paper Writing Experience with Ultra Fine Touch Technology
  • Native Whiteboarding Tool with built-in myViewBoard® App
  • Wireless Content Sharing and 4-way Split Screen with ViewBoard® Cast App

Key Features

UFT Technology

Ultra Fine Touch Technology produces a lag-free, pen-on-paper writing experience. Writing accuracy is greatly improved and student-teacher interaction flows more naturally thanks to real-time response rates, dual-pen recognition and our new 3mm tipped pens.

VIEWSONIC SMARTBOARD 3
VIEWSONIC SMARTBOARD 4

Dual-Pen

Automatically detect pen diameter (8mm & 3mm) and write simultaneously with different colours and thicknesses.

Full Native Performance on ViewBoard OS

Built-in myViewBoard® digital whiteboard software to collaborate on the go.

VIEWSONIC SMARTBOARD 5
VIEWSONIC SMARTBOARD 6

4-way Split Screen

4-way split-screen content sharing with built-in ViewBoard® Cast software

Shared USB Ports

SmartPort™ shared front USB ports for internal & external PCs.

VIEWSONIC SMARTBOARD 7
VIEWSONIC SMARTBOARD 8

Stereo Sound

2.1 Stereo sound with a built-in subwoofer.

Faster Internet

LAN sharing with slot-in PC provides a faster, more powerful internet connection.

VIEWSONIC SMARTBOARD 9
VIEWSONIC SMARTBOARD 10

Object Recognition and Windows Ink Compatible

Make annotations, write and draw on the digital whiteboard, Office365 or Windows Ink. Therefore your meetings will be more collaborative and interactive.

Remote Control

Built-in RS232 port and vController software for remote control.

VIEWSONIC SMARTBOARD 11
VIEWSONIC SMARTBOARD 12

Slot-in PC

Slot-in PC with Intel 8th-gen CPU (Optional).

Web Camera

Top-mounted 1080p web camera (Optional).

VIEWSONIC SMARTBOARD 1

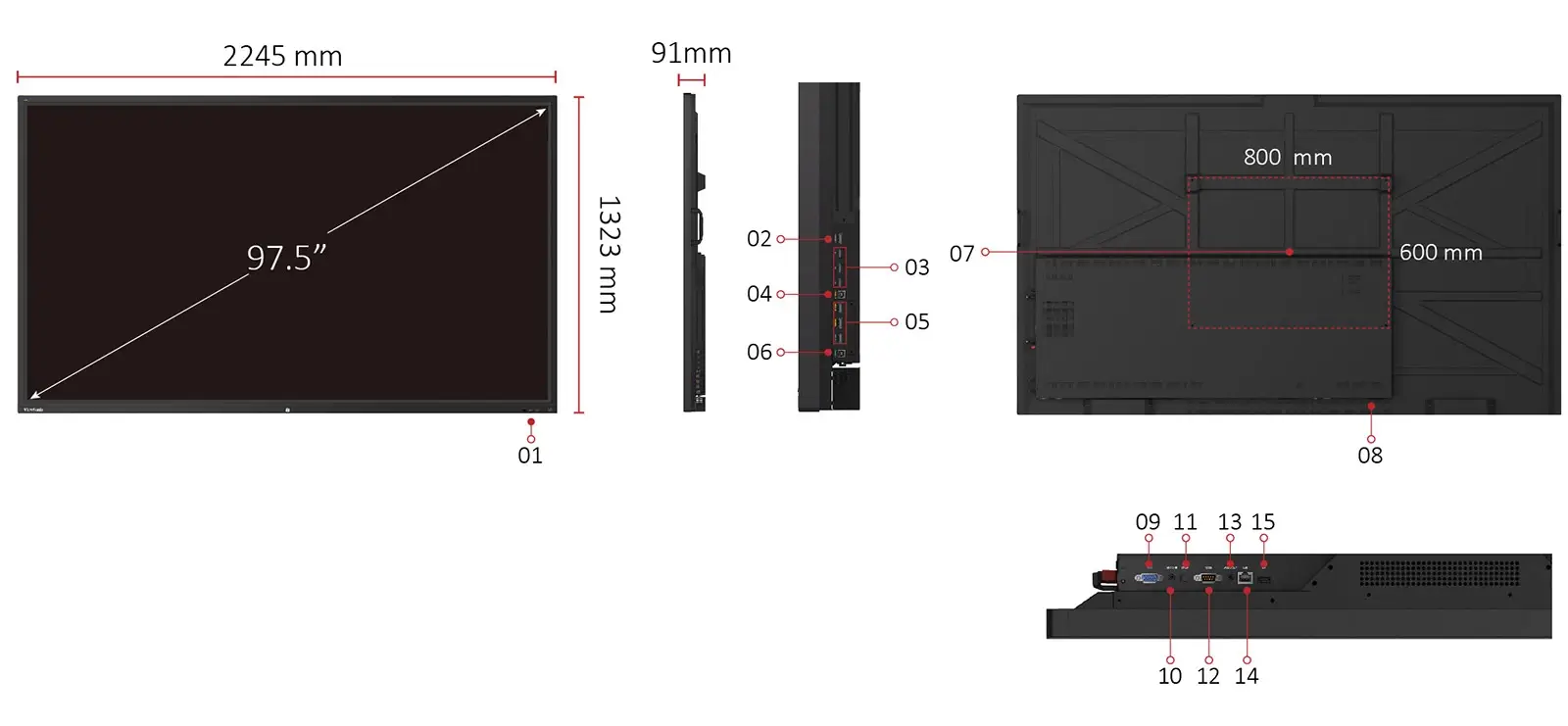

I/O Port

viewsonic_smartboard_IFP9850-3

Specifications

Physical (inch / mm):

 88.4 x 52.1 x 3.6 in / 2245 x 1323 x 91 mm
Packaging (inch / mm):

97.8 x 58.8 x 14.8 in / 2483 x 1493 x 376 mm

Processor:

ARM Cortex A73*2(1.5GHz)+A53*2(1.2GHz)
RAM:

3GB DDR4
Storage:

 16GB

  • Display
    Panel Size: 98"
    Type/Tech: TFT LCD Module with DLED Backlight.
    Display Area (mm): 2171.85(H) x 1232.35(V) (97.52”diagonal)
    Aspect Ratio: 16:9
    Native Resolution: UHD 3840x2160(Pixels)
    Colours: 1.07B colours (10bit)
    Brightness: 350 nits (typ.)
    Contrast Ratio: 5000:1 (DCR)
    Response Time: 6ms
    Viewing Angles: H = 178, V = 178 typ.
    Backlight Life: 30,000 Hours (Min)
    Surface Treatment: Anti-Glare
    Orientation: Landscape
  • Touch
    Type/ Tech: IR Recognition
    Touch Resolution: 32767 x 32767
    Touch Point: 20 points touch, 10 points writing

1. Power cable(3 meters) x 4

2. Remote control

3. USB cable(3 meters)

4. Touching pen x 2

5. Quick Start Guide

6. RS232 adapter

7. Clamp x 5

8. Plate

9. Screw x 8

10. HDMI cable
