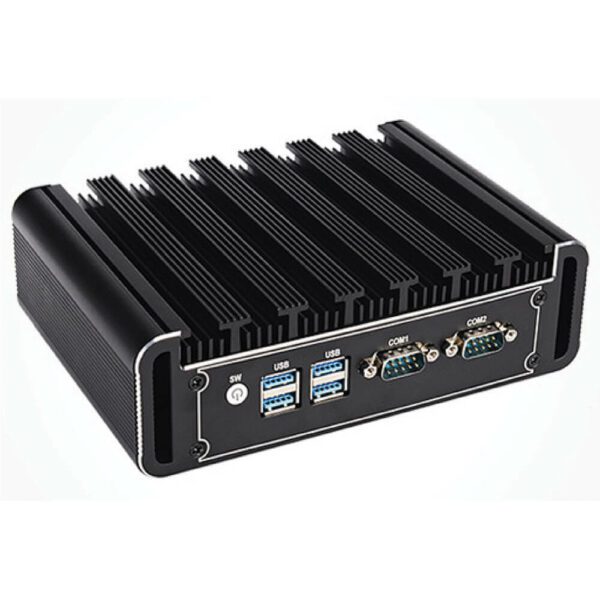

Arvia Fanless Mini Computer – M8-Core i3/i5 6200U
AccessoriesCPU: Products formerly Skylake Intel® Core™ i3/i5-6200U Dual core 4 threads
2.80 GHz 4MB TDP 15W Intel® HD Graphics 520
Description
Descriptions
Model: M8-Core i3/i5 6200U
Smart tiny case 177*123*55mm hold by a hand, but powerful stronger performance.
Key Features
interface
Rich interfaces: USB ,HDMI, 2 COM, 2*LAN ,MIC, SPK, etc. to connect more devices.
fanless system
Fanless system without cooling fan, Brushed Full Aluminum Alloy shell for heat dissipation, fit for industrial grade field, work as long as 24 hours.
support ddr3l
Support DDR3L-1600MHZ Memory , 8GB/16GB RAM
support simcard
One embedded SIM card slot onboard for 3G/4G Wi-Fi module.
reset functions
Support Watchdog, AWAL, RTC, WOL, PXE, Reset functions
Specifications
Basic Informations
CPU Onboard Intel Core I3/I5 6200U
RAM 8GB/16GB
TDP 15W
Level 2 Cache Depend on CPU
BIOS American Megatrends Inc
Chipset Refer to CPU
OS Windows 7/Windows 8/Windows 10/Linux, WES7/10
PXE YES
Audio Intel High Definition Audio Controller
Network 2 x Onboard Realtek RTL8168/8111/8112 Gigabit Ethernet Controller 10/100Mbps/1000Mbps BaseT LAN
Video Intel® HD Graphics 520
RAM 8GB/16GB
TDP 15W
Level 2 Cache Depend on CPU
BIOS American Megatrends Inc
Chipset Refer to CPU
OS Windows 7/Windows 8/Windows 10/Linux, WES7/10
PXE YES
Audio Intel High Definition Audio Controller
Network 2 x Onboard Realtek RTL8168/8111/8112 Gigabit Ethernet Controller 10/100Mbps/1000Mbps BaseT LAN
Video Intel® HD Graphics 520
WIFI
Module 1 x Support 2.4/5G AC Protocol; Support SIM+4G Model
Antenna 2 x inner RF cables and without external antenna
Antenna 2 x inner RF cables and without external antenna
Power and Working Environment
Input DC100-240V AC/50-60Hz
Operating Temperature DC +12V 4A
Output -10/60 Centigrade
Relative Humidity 10%~85%
Input DC100-240V AC/50-60Hz
Operating Temperature DC +12V 4A
Output -10/60 Centigrade
Relative Humidity 10%~85%
Input/output port
Switch 1 x Power On/Off Switch
Power 1 x Power In
USB 4 x USB3.0, 2 x USB2.0
Display 2 x HDM1
LAN 2 x RJ45 Giga LAN
Audio 1 x AUD
Switch 1 x Power On/Off Switch
Power 1 x Power In
USB 4 x USB3.0, 2 x USB2.0
Display 2 x HDM1
LAN 2 x RJ45 Giga LAN
Audio 1 x AUD
Storage
MSATA 1*M.2 SATA （Only supports SATA protocol）
1*2.5"SSD/HDD
MSATA 1*M.2 SATA （Only supports SATA protocol）
1*2.5"SSD/HDD
Size 177*123*55mm
Weight Net 1.4kg, Gross 1.8kg
Shell Black color aluminum alloy body
Cooling Mode Fanless
Weight Net 1.4kg, Gross 1.8kg
Shell Black color aluminum alloy body
Cooling Mode Fanless
Standard 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag
Optional Wi-Fi antennas, 1xHDMI cable, 1xUser Manual
