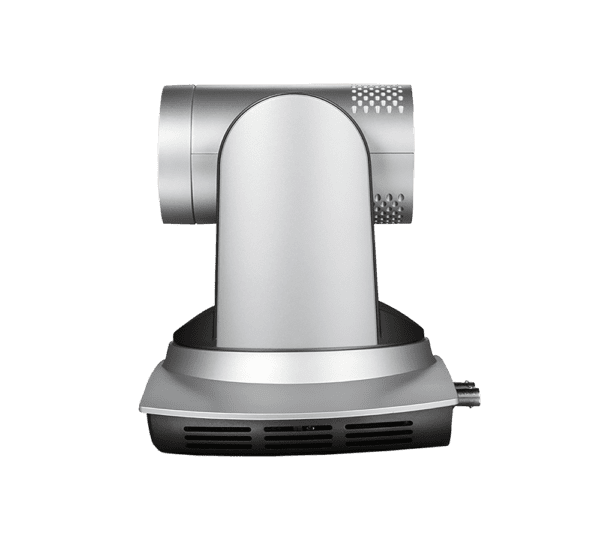

Arvia Auto-Tracking PTZ Camera ARV-100T
Video Conferencing• Ideal for small and big classroom or meeting room
• Built-up with dual lens for both Auto-tracking lens and Panoramic View
• Resolution is up to 1920×1080 with frame rate up to 60 fps and 1/2.8 inch high quality CMOS sensor. 2.07 megapixel; 16:9
• Lens 1: 12x optical zoom, 10x Digital Zoom , Pan -170°～+170° , Tilt -30°～+90°
• Lens 2: 1/3 inch high quality HD CMOS sensor, 2.1 megapixel, View Angle(D/H/V) 122°/98°/73°
Description
Descriptions
UV100 SERIES EDUCATIONAL INTELLIGENT AUTO-TRACKING CAMERA
ARV-100T series is a dedicated intelligent auto-tracking camera,with cutting-edge technology in the field of Education informatization. It includes a lecturer camera ARV-100T and a student camera ARV-100S.
ARV-100 series is built-in with high speed processor, advanced image processing and analysis algorithms to track lecturers and students accurately and quickly, which is in line with the requirements of lecturer capture and remote interactive teaching.
ARV-100 series adopts advanced ISP technologies and algorithms, to make a vivid image quality, screen brightness uniformity, strong sense of depth, high-definition, and fantastic color rendition.
As a stable, reliable and simple machine to operate, ARV-100 series has full function and high performance.Also it is easy to install and maintain.
Key Features
Superb High definition Image
ARV-100T employs 1/2.8 inch high quality CMOS sensor. Resolution is up to1920x1080 with frame rate up to 60fps during video conference.
Wide range, Quiet and Quick Pan/Tilt Mechanism
By adopting step driving motor mechanism, ARV-100T camera works extremely quiet and moves smoothly during video conference.
Multiple Video compression
Support H.264/H.265 video compression; AAC, MP3 and PCM audio compression; Support compression of resolution up to 1920×1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression.
Multiple Network Protocol
Support ONVIF, RTSP, RTMP, NDI protocols and support RTMP push mode, easy to link streaming media server (Wowza, FMS)
Low Noise and High SNR
Low Noise CMOS effectively ensure high SNR of camera video.Advanced 2D/3D noise reduction technology is used to further reduce the noise, while ensuring image sharpness during video conference.
Low power sleep function
Support low-power sleep/wake up, the consumption is lower than 400mW under sleep mode.
Audio Input Interface
Support 16000,32000,44100,48000 sampling frequency and AAC,MP3,PCM audio coding.
Specifications
| Parameters/Model | ARV-100T/ S-12 | ARV-100T/ S-20 |
| Tracking Camera and Lens Parameter | ||
| Sensor | 1/2.8 inch high quality HD CMOS sensor | |
| Effective Pixels | 2.07 megapixel; 16:9 | |
| Video Signals | 1080P60/50/30/25/59.94/29.97 ,1080I60/50/59.94,720P60/50/30/25 / 59.94 /2 9.97 | |
| Optical Zoom | 12x optical zoom f＝3.9～46.1mm | 20x optical zoom f＝4.7～94mm |
| View Angle | 6.3°(tele)～72.5°(wide) | 2.9°(tele)～55.4°(wide) |
| Iris | F1.8 ～ F2.4 | F1.6 ～ F3.5 |
| Digital Zoom | X10 | |
| Minimum Illumination | 0.5Lux(F1.8, AGC ON) | |
| Digital Noise Reduction | 2D﹠3D digital noise reduction | |
| White Balance | Manual/Auto/One Push/ 3000K/ 4000K/5000K/6500K | |
| Focus | Auto/Manual | |
| Aperture | Auto/Manual | |
| Electronic Shutter | Auto/Manual | |
| BLC | ON/OFF | |
| WDR | OFF/Dynamic Range adjustment | |
| Video Adjustment | Brightness,Color,Saturation,Contrast,Sharpness,Gamma curve | |
| SNR | >55dB | |
| Panoramic Camera | ||
| Sensor | 1/3 inch high quality HD CMOS sensor | |
| Effective Pixels | 2.1 megapixel | |
| Lens | Manual Focus | |
| View Angle(D/H/V) | 122°/98°/73° | |
| Input/Output Interface and Protocols | ||

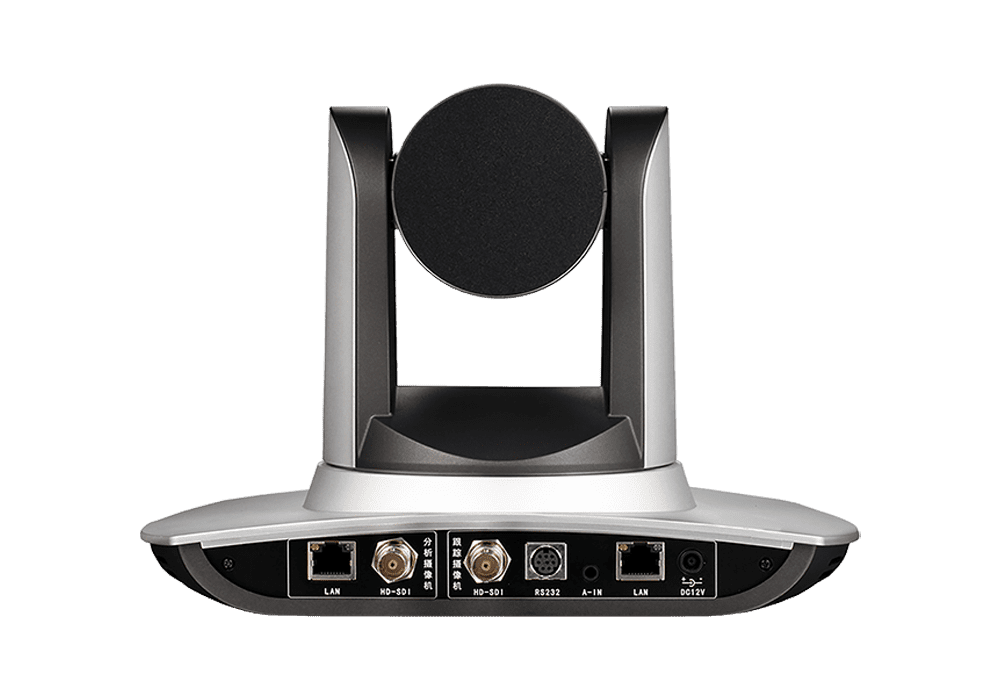

| Video Interface | SDI Model: SDI, LAN, HDMI/U3 Model: HDMI, USB3.0, LAN | |
| Network Interface | 100M network interface (10/100BASE-TX) 5G WiFi(optional), Support VISCA protocol control through IP port | |
| Network Protocol | RTSP,RTMP,ONVIF,GB/T28181 | |
| Compress Image Code Stream | Dual stream output | |
| Video Compress Format | H.264,H.265 | |
| Control Signal Interface | RS-232 | |
| Control Protocol | VISCA/Pelco-D/Pelco-P Baud Rate:115200/9600/4800/2400bps | |
| Audio Input Interface | Dual audio channel 3.5mm linear input | |
| Audio Compress Format | AAC,MP3,PCM | |
| Power Interface | HEC3800 power jacket(DC12V) | |
| Pan Tilt Parameter | ||
| Pan Rotation | -170°～+170° | |
| Tilt Rotation | -30°～+90° | |
| Pan Control Speed | 0.1 ～100°/s | |
| Tilt Control Speed | 0.1～45°/s | |
| Preset Speed | Pan: 100°/s,Tilt:45°/s | |
| Preset Number | User can set up to 255 presets(remoter 10 presets) | |
| Other Parameters | ||
| Supply Adapter | Input AC110V-AC220V to DC12V/2.5A | |
| Input Voltage | Output DC12V±10% POE power supply optional | |
| Input Current | 1.5A(Max.) | |
| Consumption | 18W(Max.) | |
| Store Temperature | -10℃～+60℃ | |
| Store Humidity | 20%～95% | |
| Working Temperature | -10℃～+50℃ | |
| Working Humidity | 20%～80% | |
| Dimension(WxHxW) | 254mmX144mmX174mm | |
| Weight(appr.) | 1.54kg | |
| Application | Indoor | |
| Remote Maintenance (LAN) | Remote Update,Remote Reboot,Remote Reset | |
| Accessory | 12V/2.5A power supply adapter,RS232 control cable,Remote Controller,User Manual,Warranty Card，brackets(optional) | |
