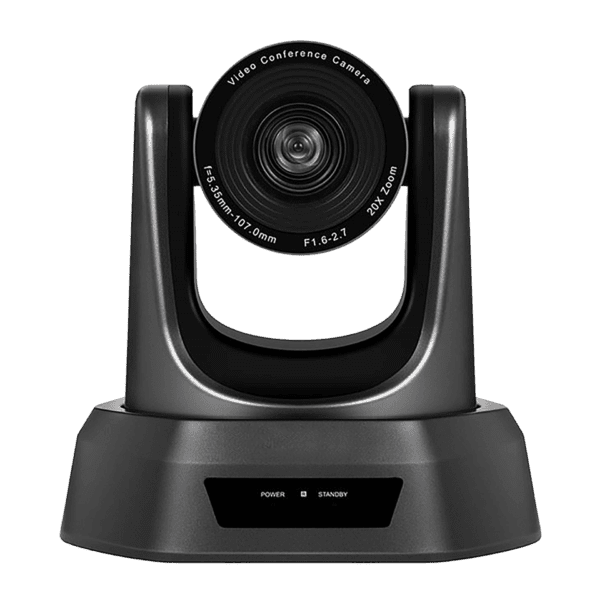

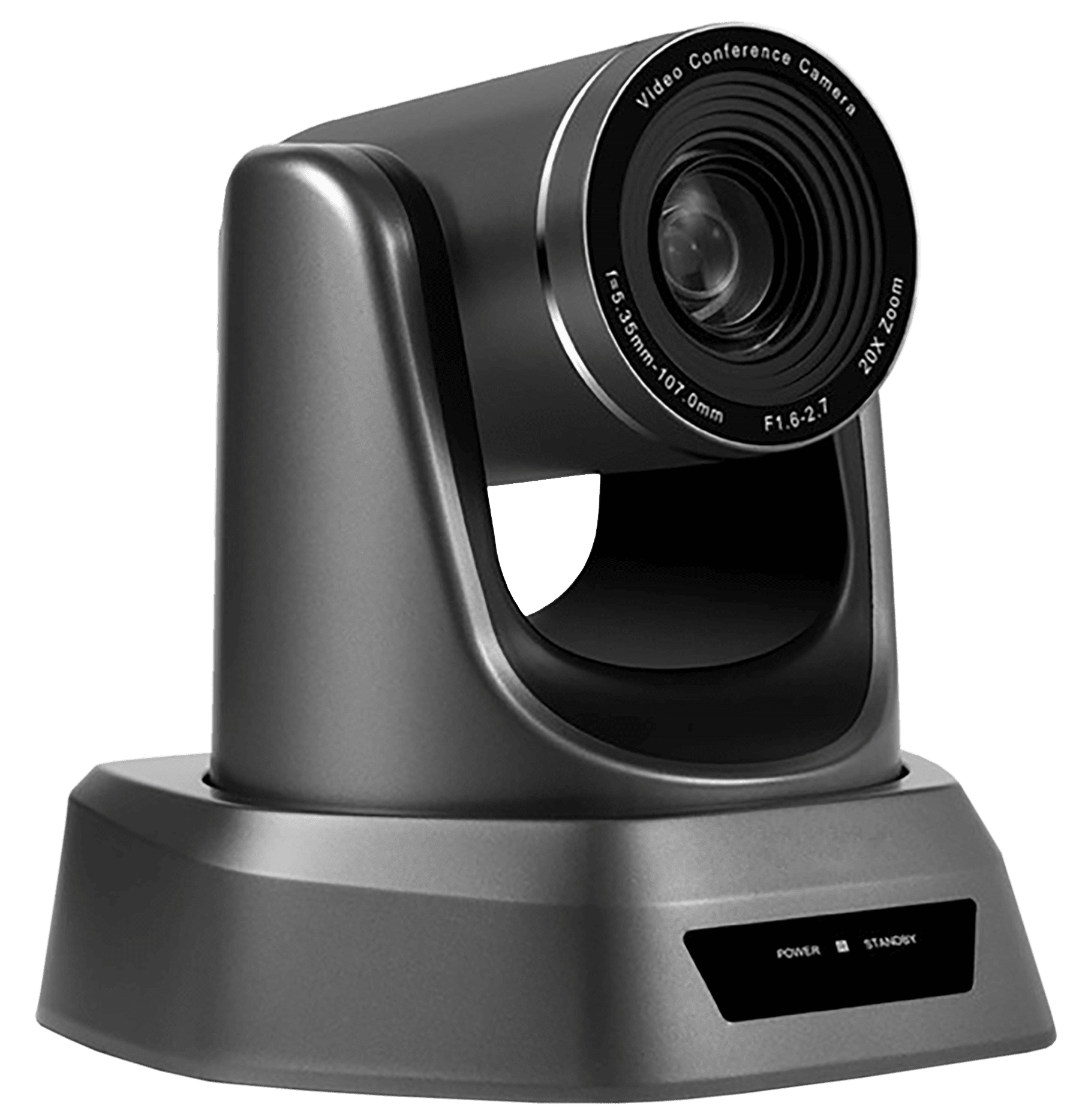

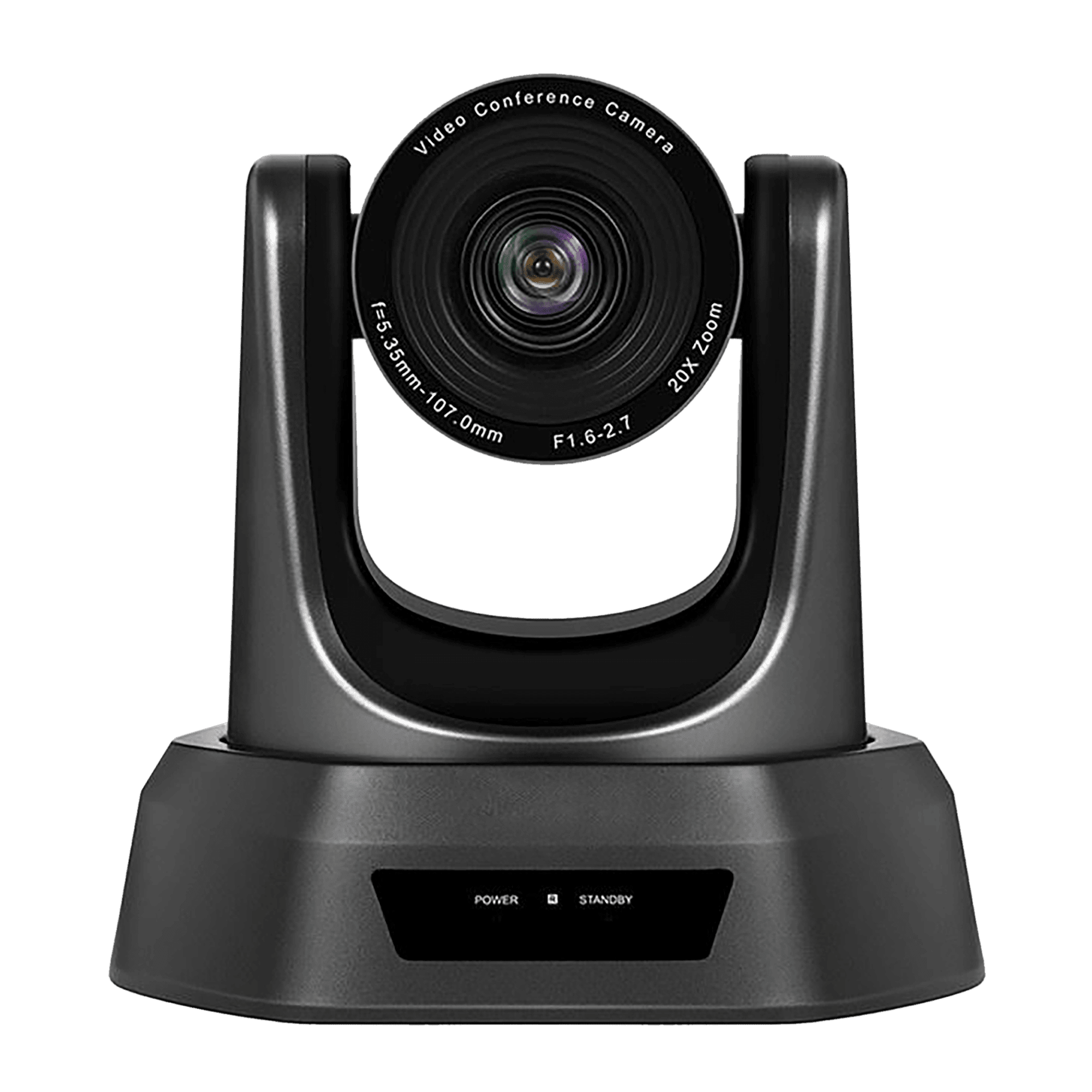

Arvia PTZ Camera ARV-T10
Video Conferencing• Ideal for small, medium and large room
• 10x optical zoom, 1/3 inch HD Color CMOS with 2.1 mega pixel (16:9) and Full HD 1080p
• 51.3° wide field of view with no video distortion
• Accurate, smooth and silent PTZ Movement
• USB-Plug-And-Play Set up
• Compatible with Mac and PC. System Requirements: Windows 7, 8.lor 10,Mac OS X 10.7 or higher, Andriod, Linux.
Description
Descriptions
ARV-T10 1OX PTZ CAMERA
The ARV-T10 Pan/Tilt/Zoom (PTZ) camera has USB video output. It is equipped with a 1/3 inch HD Color CMOS with 2.1 mega pixel (16:9) and Full HD 1080p output resolution & a high dynamic image of 30 fps. The superior 10x optical zoom lens, excellent white balance, and exposure mode delivers a clear image even in low light or the extreme
contrast of brightness and darkness in a conference room.

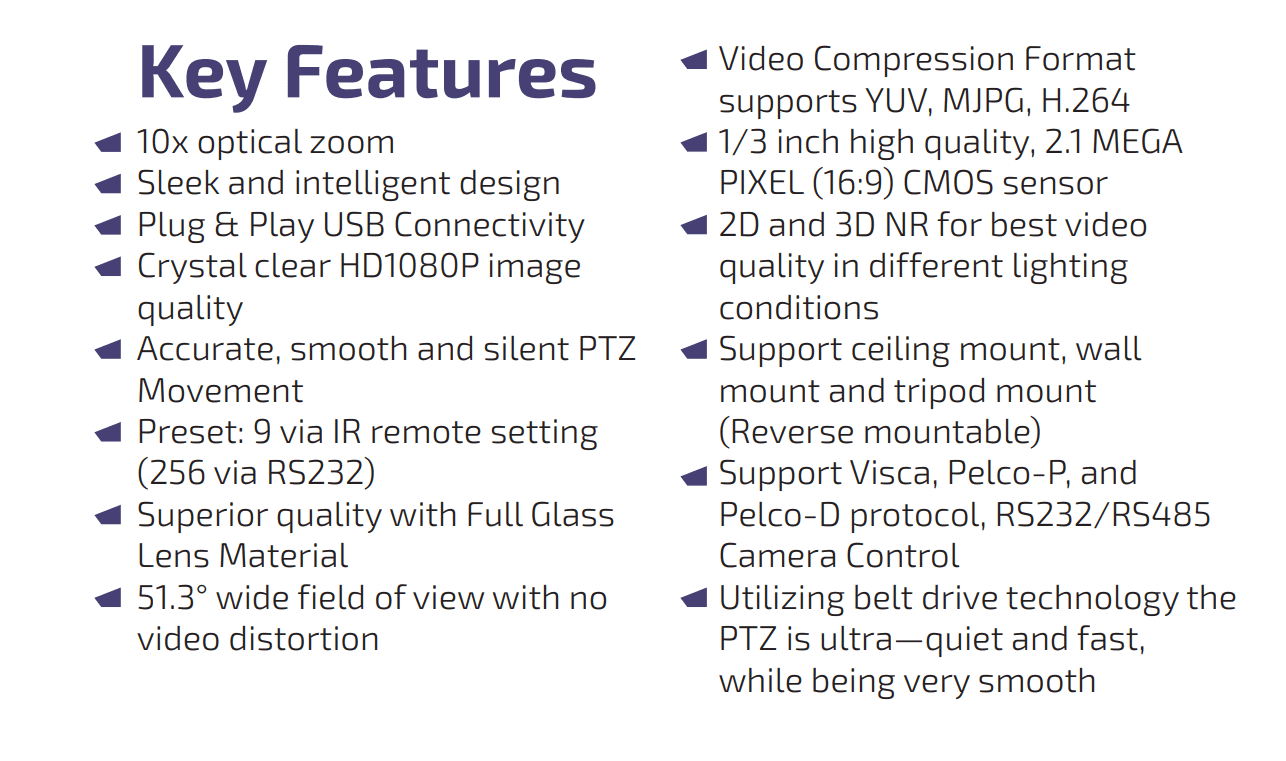

Key Features
As EASY AS PLUG AND PLAY
Video output: USB2.0 Plug and play, Anyone can easily setup this USB Camera and control conferencing / Live Streaming.

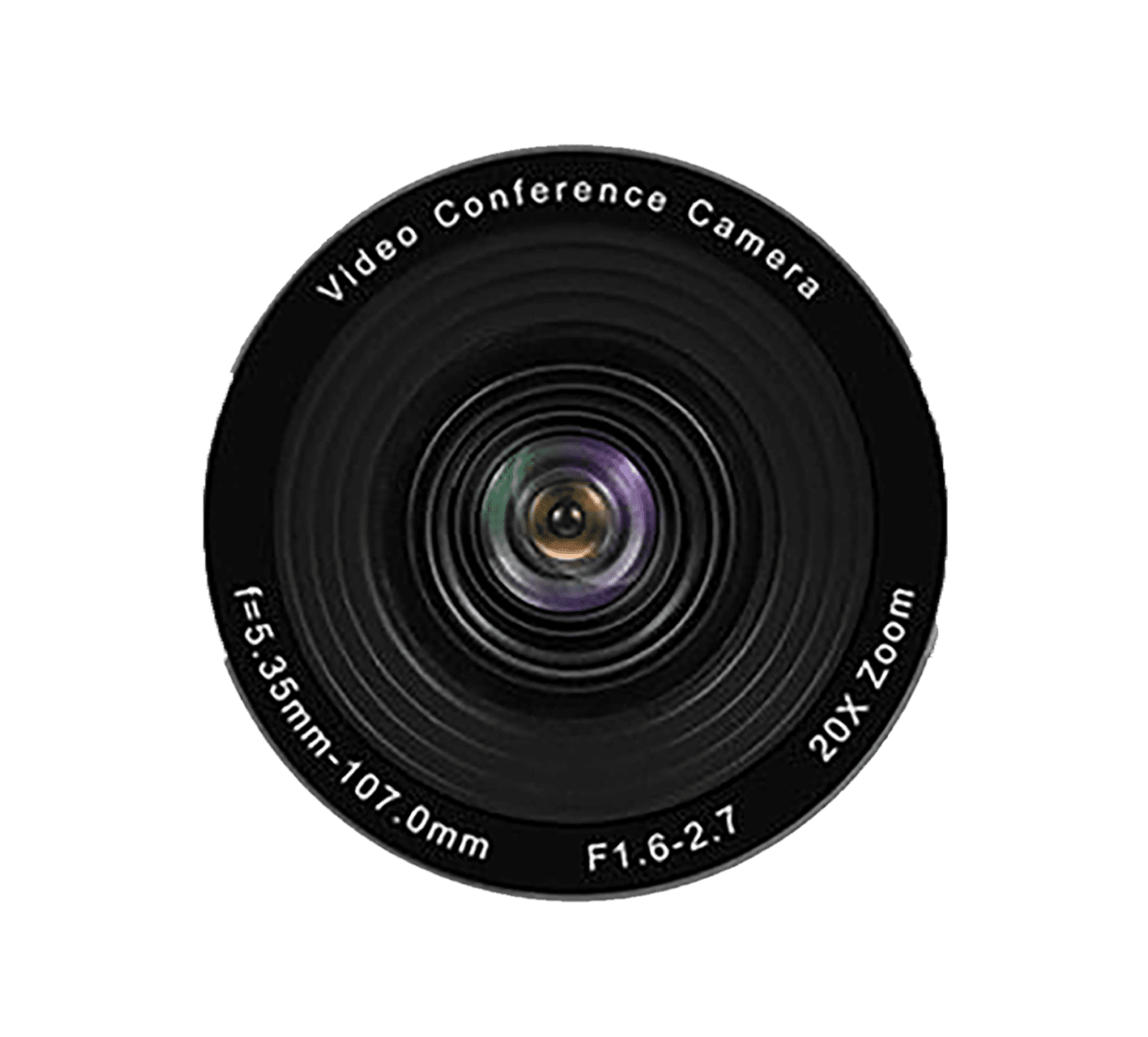

SUPERIOR QUALITY FULL GLASS LENS
Equipped with a 1/3 inch HD Color CMOS with 2.1 mega pixel (16:9) and Full HD 1080p output resolution & a high dynamic image of 30 fps during video conference.
Specifications
30*23*22 CM (L×W×H) / 2.8KG
Windows 7, 8.1 or 10,Mac OS X 10.10 or higher.
Product.
SDI Camera ( 10X / 20X / 30X )
PTZ Camera
Pan: 0 to 340 degree (max speed is 80 degree per second.Wide angle is 90 degree.)
Tilt: 0 to 120 degree
10X/20X/30X Optical Zoom HD 1080p Camera. 2.38 mega pixel.

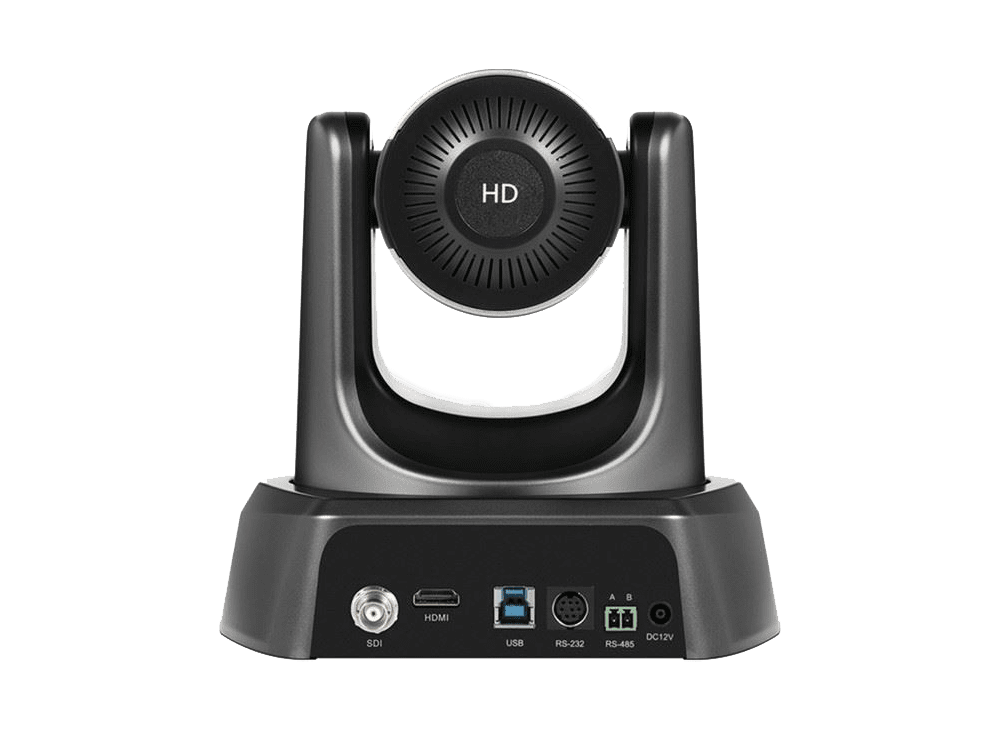

Output
HD-SDI, HDMI,USB
Control Protocol
VISCA，PELCO-D/P（RS-232，RS485)
Video output pixel
10X Zoom VHD10N: 1080P 30/25 720P 60/50/30/25
20X Zoom VHD20N: 1080P 60/50/30/25 720P 60/50/30/25
30X Zoom VHD30N: 1080P 60/50/30/25 720P 60/50/30/25
Image Sensor
1/2.8" type Exmor CMOS
Lens
10X Zoom VHD10N: f=5.0-50.0mm
20X Zoom VHD20N: f=4.7-94mm
30X Zoom VHD30N: f=4.7-140mm
Signal standard
NTSC/PAL
Horizontal Angle
10X Zoom VHD10N: Near-end 51.3°～Far-end 4.64°
20X Zoom VHD20N: Near-end 55.5°～Far-end 3.0°
30X Zoom VHD30N: Near-end 59.5°～Far-end 2.3°
Gain control
Auto/manual
Focus
Auto/manual
SNR(Signal to Noise Ratio)
≥50dB (AGC OFF)
Shutter speed
1/25s to 1/10,000s
Baud rate
2400/4800/9600/19200bps
Conference Cam, DC 12V power adapter, IR remote control, manual, RS-232C serial control line, Celling brackets & screws.
