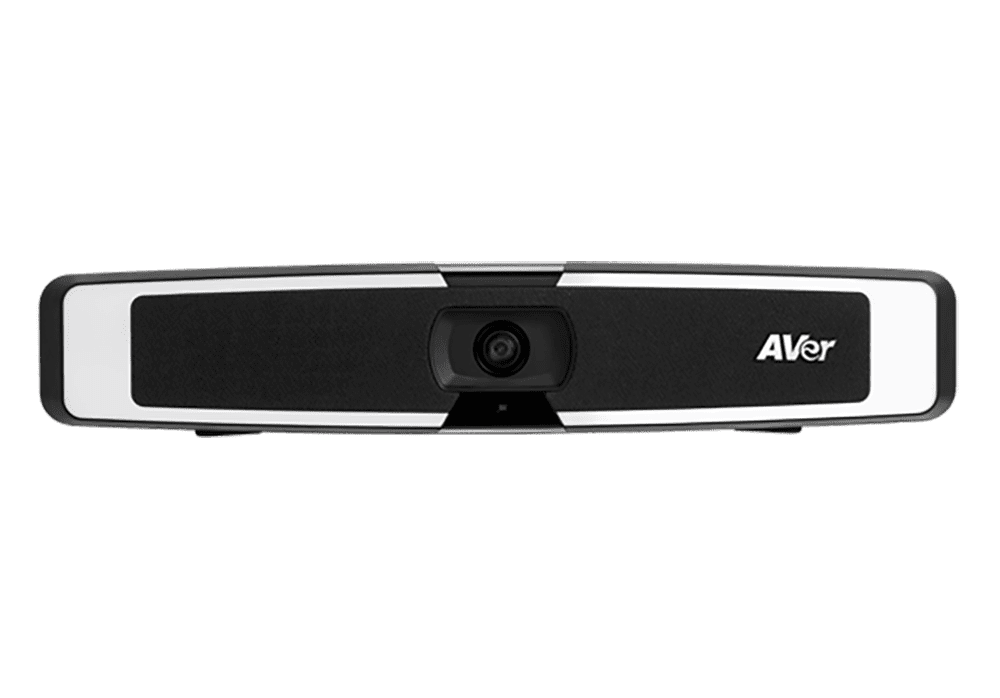

AVER VB130

4K Video Bar
Simply Brighter and Better

Descriptions

video conferencing webcam aver vb130 cover
Play Video

4K Video Bar with Intelligent Lighting for Huddle Rooms

The All-in-One VB130 is equipped with the latest Intelligent Lighting so you can appear energetic and professional in any environment. Also, AVer’s audio fence, beamforming technology, and audio tracking precisely pick up voices. There’s even auto framing to fit every participant onscreen in seconds. Activate a brighter and better video conferencing experience with the VB130.

icon Intelligent light
Intelligent Lighting
icon Aver audio fence
AVer Audio Fence
icon Beamforming technology
Beamforming technology
icon Auto framing
Auto framing
icon Audio tracking
Audio Tracking

Ultra-Clear 4K Imaging with Flexible FOV

Flexibly adjust the field of view ( FOV) to fit y our situation. Equipped with a dual FOV function, the AVer VB130 ensures viewers always focus on the right spot and lets you experience versatile, 4K imaging in focus rooms or huddle rooms.

Key Features

video conferencing webcam aver vb130 product Images color sensor

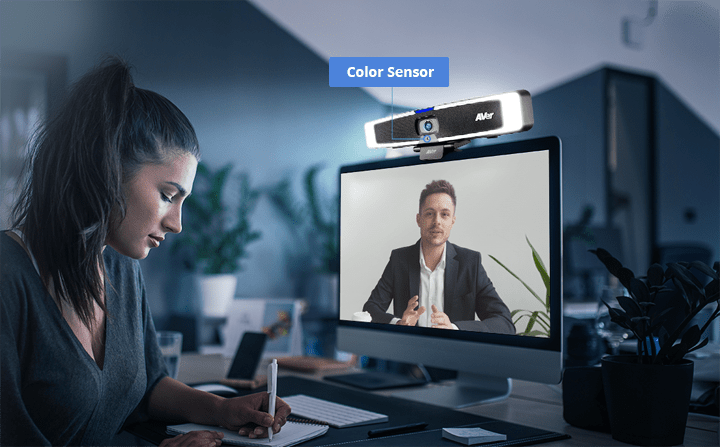

Always Appear Energetic via Intelligent Lighting

Look energetic and professional onscreen no matter where you are. AVer’s VB130 automatically adjusts lighting levels during virtual meetings in dim rooms*, and it also offers full-range color temperature (2700–5700 K) to fit any environment. Show your best side via AVer Intelligent Lighting.

Uninterrupted Collaboration with AVer’s Audio Fence

Make sure you have an uninterrupted video meeting experience with the VB130’ s audio shield. AVer noise-blocking technology provides an adjustable audio fence that lets you silence any sound outside the viewing angle. Maintain focus on the meeting at hand to take advantage of every business opportunity.

video conferencing webcam aver vb130 product Images color visual
video conferencing webcam aver vb130 product Images beamforming

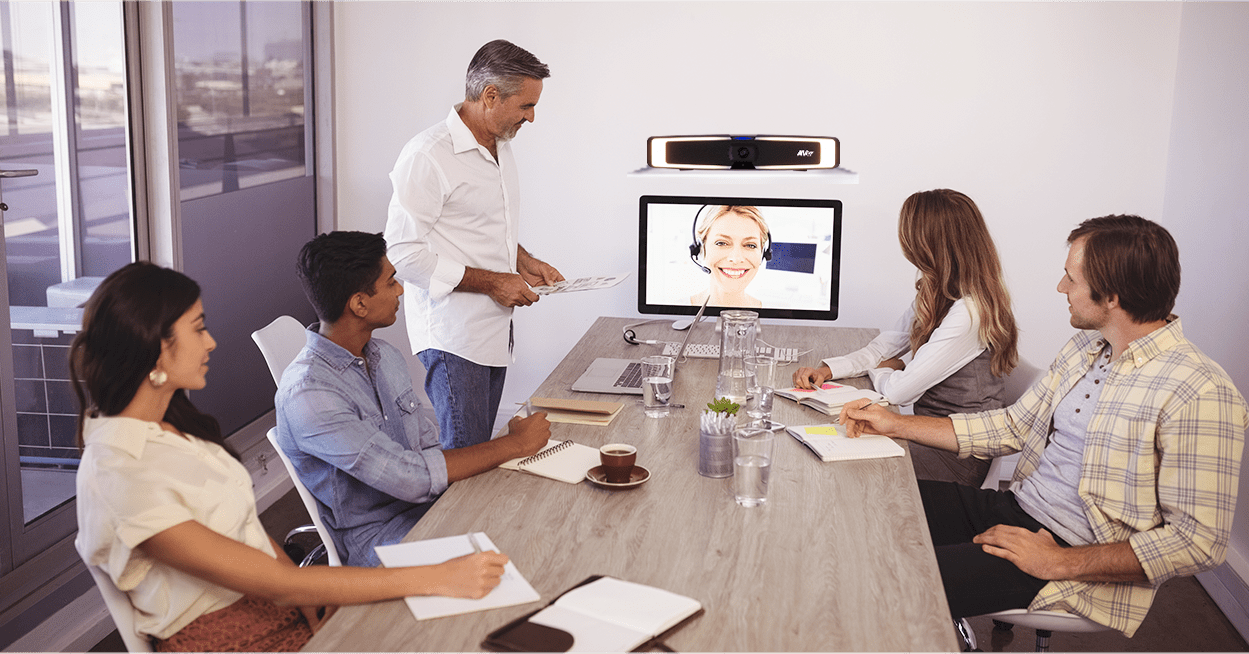

Exceptional Audio Quality via Beamforming Technology

Everyone is a key participant in meetings with the Aver VB130. A beamforming five-microphone array precisely picks up and reproduces resonant voices from anywhere in the room. It’s your time to shine—with a little help from exceptional audio quality.

Efficient and Safe Meetings with Less Touching

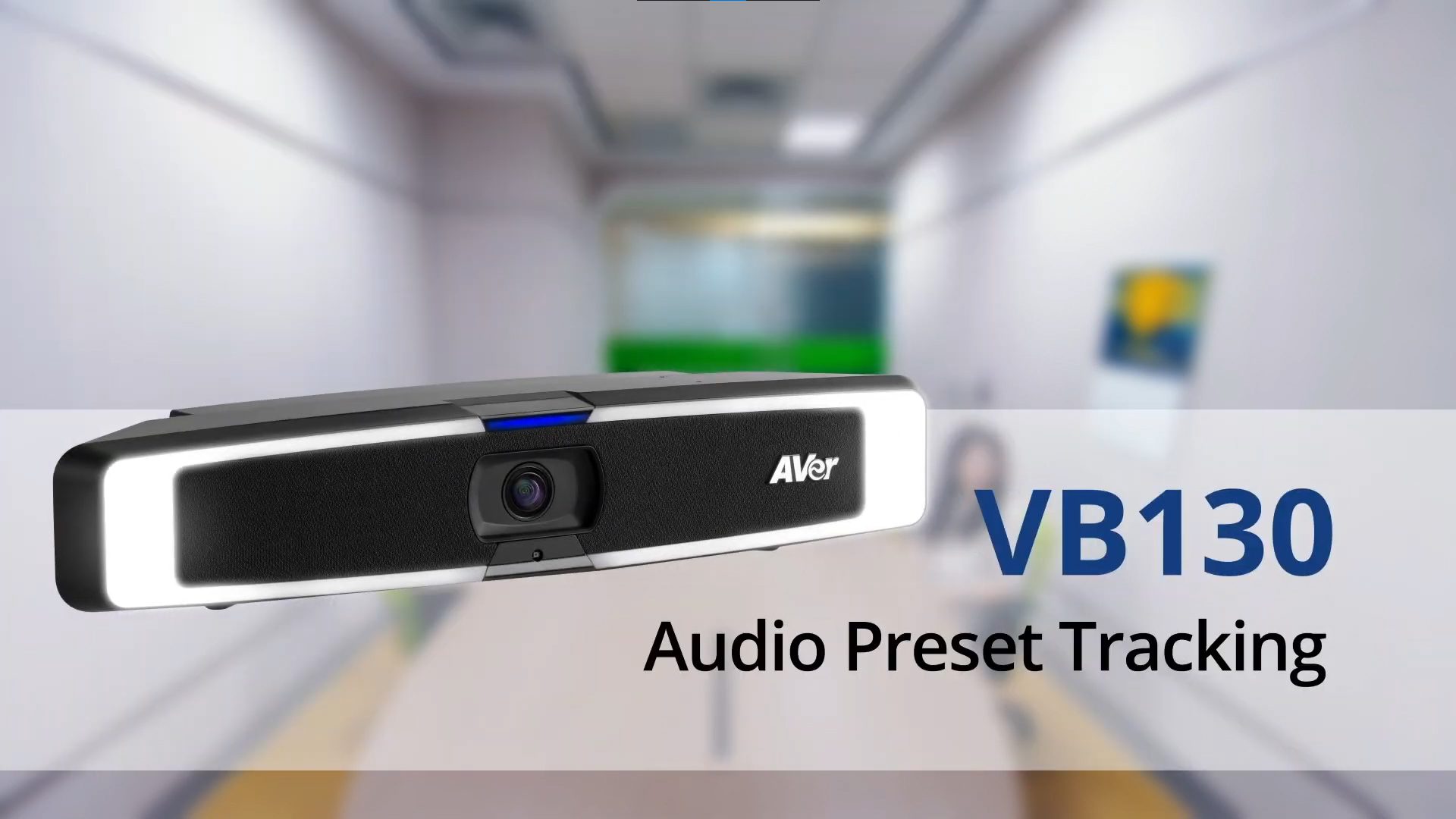

Enjoy less touching and increase efficiency with the latest AI-triggered viewing-angle adjustment. The camera’s audio tracking function automatically focuses on the person speaking. Plus, an Audio Preset Tracking Mode identifies and follows the human voice to track based on preset areas. Stay efficient and safe with the AVer VB130!

Specifications

Package dimensions

406(L)x146(W)x189(H) mm

Package weight

2.358 kg

Camera

350(L) x 65(H) x 75(D) mm/0.922 kg

Remote control

149.72 x 42.3 x 19.29 mm/50g

Windows® 7/10

MacOS X 10.7 or later

Google Chromebook™ version 29.0.1547.70

Camera

4K optics lens, 120° FOV, up to 4X zoom
Sony 4K sensor: ultra-crystal-clear image in any lighting
Frame rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
Adjustable audio fence: freedom to define your meeting area
Intelligent fill light: Automatically adjust lighting level to make you look energetic in virtual meetings in a dim environment*
SmartFrame: automatic FOV adjustment (auto focus) to fit all participants
SmartSpeaker: Voice triggered tracking people or specific preset areas.
True WDR up to 120db: 3D noise-reduction and superb backlight compensation optimize lighting in high-contrast conditions
Mirror, flip, AE, white balance: auto/manual override via PTZApp2
Minimum focus distance: 60 cm
People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
10 camera presets (through remote control and IP web page)

*The best lighting distance is for people sitting within 1meter far from the camera

Audio
Beamforming microphone array: 5 microphones, 4-meter pickup range
Echo cancellation and background noise suppression
Supports an expansion microphone
6W speaker with a professional bass port tuned for communication
180Hz–20kHz speaker frequency response
Output volume: 94dB SPL +/-2dB at 0.5 meters

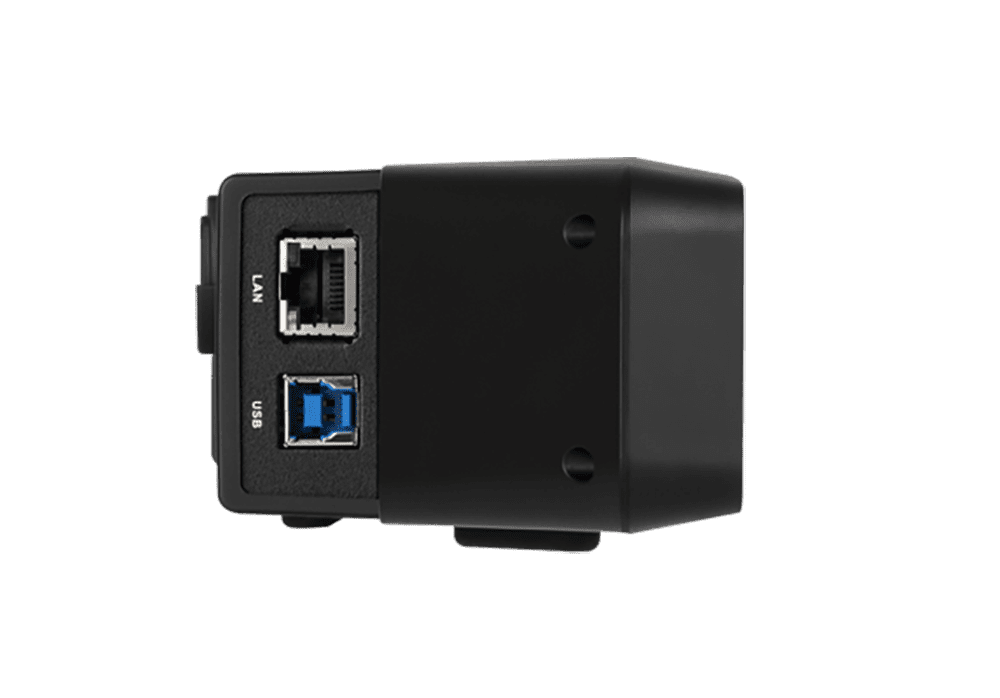

Connectivity
12V/2A power adapter
Mini-B for expansion microphone connection
USB Type-B 3.1 connector, backward compatible with USB 2.0
RJ45 port for Ethernet
USB 2.0 Type-A for wireless connection*

*Optional wireless dongle is required to connect with mobile phone

Video Format
YUV, YUY2, MJPEG
Network video compression format: H.264
Network protocols: RTSP, RTMP*
*When USB streaming is in use, RTSP and RTMP are not available.

USB
3.1 Gen 1, backward compatible with USB 2.0
UVC 1.1 (USB video), UAC 1.0 (USB audio)

Control
IR remote control
WebUI: IP access via Chrome browser (Chrome 76.x or later; Internet Explorer not supported)
UVC/UVA plug-and-play
PTZApp 2

Mount
Screen mount kit
Camera wall-mount bracket

Optional Accessories
Wall mount and mounting screws
Screen mount kit
BT Dongle
10m/20m expansion microphone
10m/20m/30m USB 3.1 extension cable
USB 3.1 GEN1 Type-B to Type-A cable, 3 m

Warranty
Camera: 3 years
Accessories: 1 year

Hardware Specs
3.2 GHz Intel® Core™ i5-4460 processor
4 GB RAM or more
USB 3.1 port, backward compatible with USB 2.0

Power Supply
AC 100V–240V, 50/60 Hz
Consumption: 12V/2A
Free Applications for Meeting Collaboration
(Free Apps support on Windows® and Mac® computers)
EZManager 2: Camera Central Management Software
Remotely group FW/SW upgrades, control the camera, and manage settings
PTZApp 2: Camera Setting Software
View live video, people counting number, meeting interval information
Enable Skype for Business far-end control
Upgrade firmware automatically or manually
Control the camera
Set parameters and adjust the camera image
Diagnose operating status
EZLive: Broadcasting Software
Enjoy multi-camera real-time streaming, annotating, image capturing, and video recording

Environmental Data
Operation temperature: 0 ~ 40°C
Operation humidity: 20% ~ 80%
Storage temperature: -20 ~ 60°C
Storage humidity: 20% ~ 80%

VB130 unit

Power cable 10 ft (3 m)

USB 2.0 Type-B to Type-A Cable 15 ft (5 m)

QR code card

Screen mount or wall mount*

Remote control

Tripod screw
