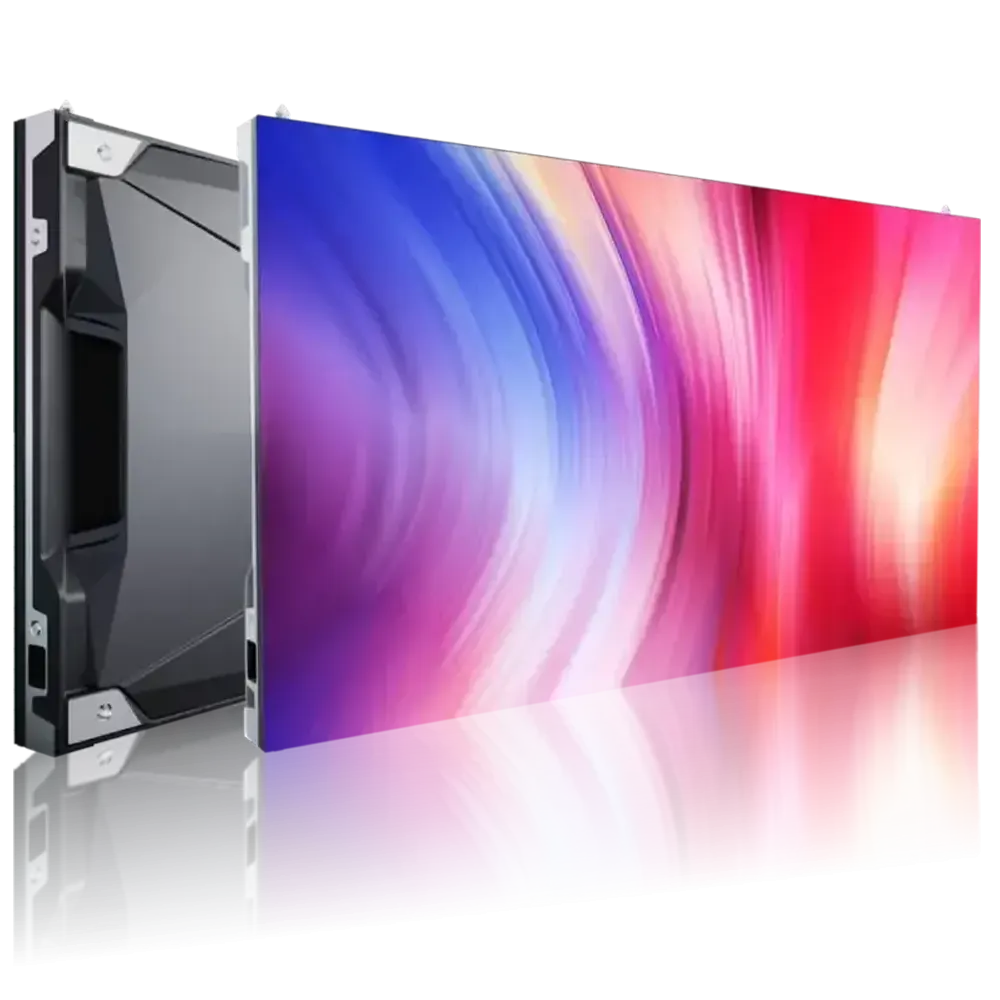

LED Display - Unilumin UHWIII

•  Lighter: 6kg/cabinet, 25% lighter than previous generation
•  Slimmer: Cabinet thickness ≤39mm
•  The high refresh rate of 3840Hz
•  Wide viewing angle (H160° / V160° )

Descriptions

led display uhw3 4 2

UHWⅢ

Unlock more possibilities with lighter and slimmer design
Highly energy saving to increase productivity
Excellent performance on visual clarity and color uniformity
Remote control to improve efficiency
Easier use for more user-friendly experience
Secure every event through safety protection mechanism

Key Features

Application Scenario

led0display-command-centre
Command Center
led display uhw3 12 1
Meeting Room
led display uhw3 5 1
Company Exhibition Hall
led display uhw3 13 1
Education
led display uhw3 6 1

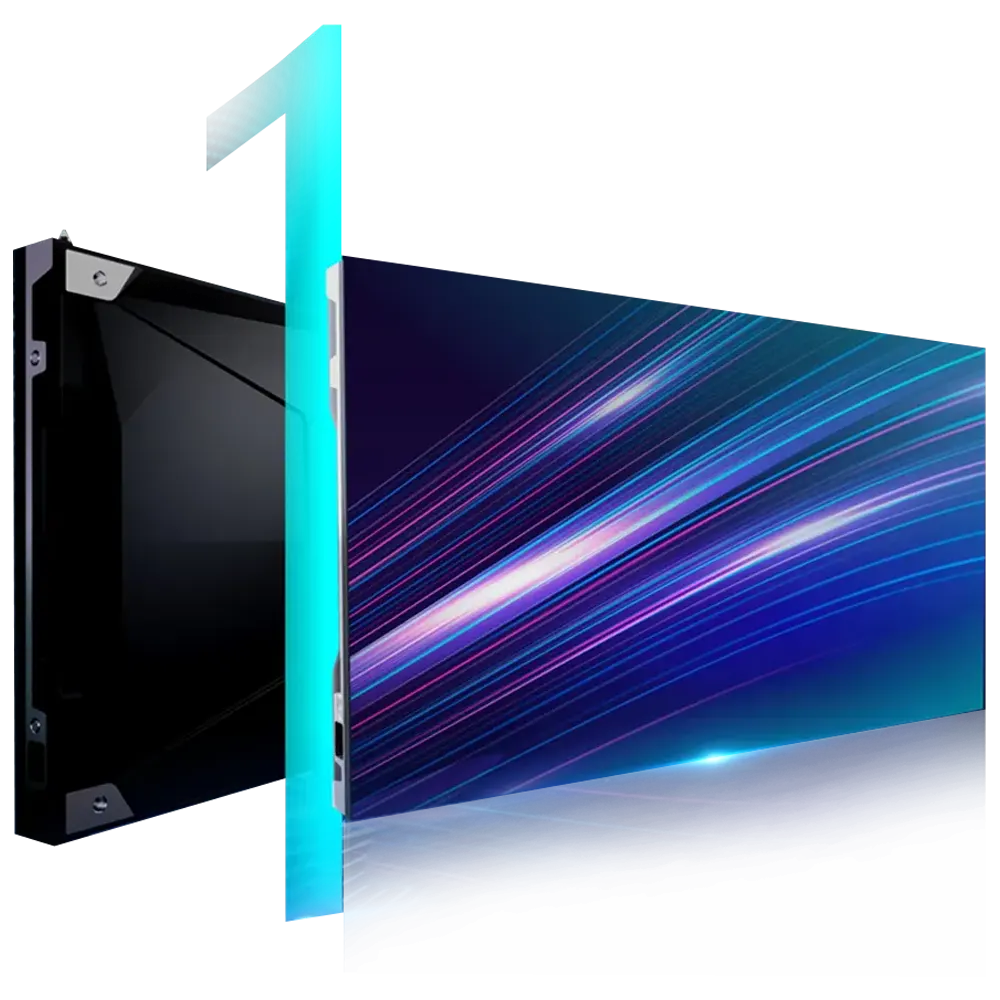

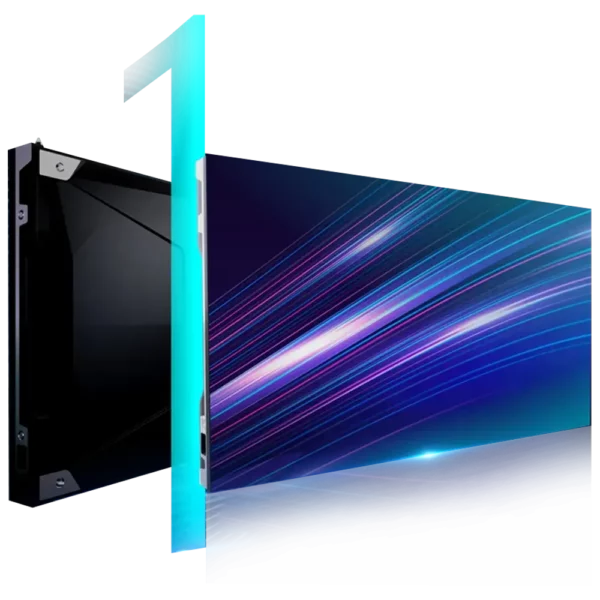

Never Ever Light And Slim Like This

· Lighter: 6kg/cabinet, 25% lighter than previous generation

· Slimmer: Cabinet thickness ≤39mm, 50% slimmer than previous generation

· Distance from the wall<80mm

ABS Technology

led display uhw3 3 1
led-display

Premium Picture

Uniform details: Powered by 16bit high gray scale, adjustable color temperature ranging from 2,000K to 9,000K, and 5000:1 high contrast ratio, the picture always stays clear and uniform display

High refresh rate: The high refresh rate of 3840Hz provides a smooth watching experience with clear images and no distortion.

Ultra wide viewing angle: The wide viewing angle (H160° / V160°) covers a larger viewable space and enables more viewers to experience the stunning details.

One Button Click To Get Immediate Response

led-display
led display uhw3 10 2 2

Single Person Handling Maintenance

Designed For More User - Friendly Experience

led display uhw3 11 2
led-display

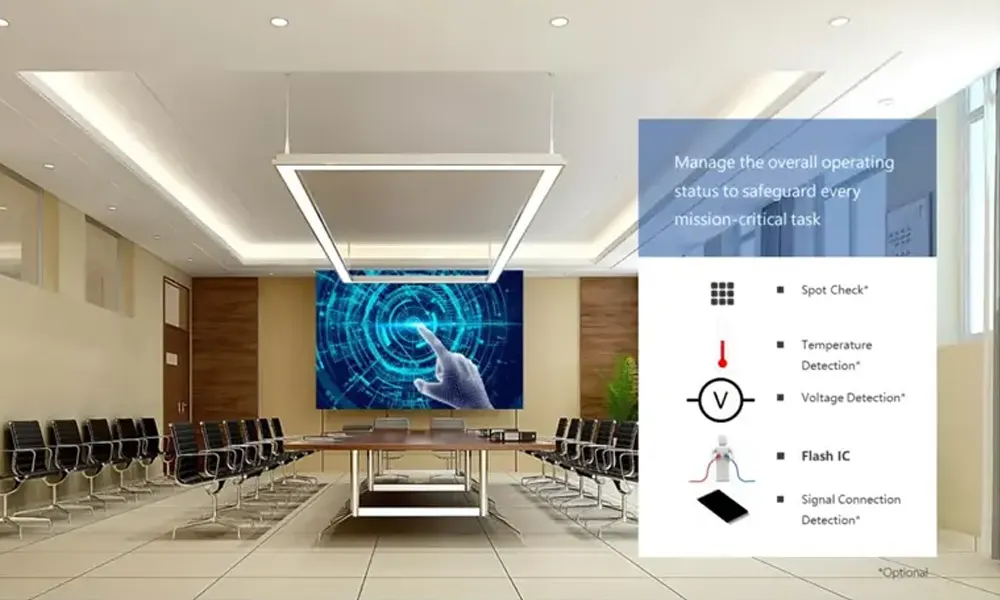

Multiple Protections To Secure Every Mission - Critical Task

Module Level: Overcurrent Protection

Module Level: Short Circuit Protection

Smoke Fault Alarm: Temperature and Humidity

Specifications

Pixel Pitch 1.17 mm
Pixel Density 728,177 dots/m²
Panel Size (W×H×D) 600mm × 337.5mm × 39mm
Panel Resolution 512 × 288 dots
Material Die-cast Aluminum
Brightness 600 cd/m²
Color Temperature 2,000 - 9,500 K Adjustable
Viewing Angle (H/V) 160°/160°
Panel Weight 6 kg
Contrast Ratio 5,000:1
Service Access Full Front & Rear
Input Power/Panel (Max.)
142 W
Input Power/Panel (Ave.)
47 W
Ingress Protection Rear IP30
Input Voltage 100-240 VAC (50-60Hz)
Refresh Rate 3,840 Hz
Operating Temperature / Humidity  -10°C to 40°C / 10% - 80% RH
Storage Temperature / Humidity -20°C to 60°C / 10% - 85% RH

Pixel Pitch 1.25 mm
Pixel Density 640,000 dots/m²
Panel Size (W×H×D) 600mm × 337.5mm × 39mm
Panel Resolution 480 × 270 dots
Material Die-cast Aluminum
Brightness 600 cd/m²
Color Temperature 2,000 - 9,500 K Adjustable
Viewing Angle (H/V) 160°/160°
Panel Weight 6 kg
Contrast Ratio 5,000:1
Service Access Full Front & Rear
Input Power/Panel (Max.)
140 W
Input Power/Panel (Ave.)
46 W
Ingress Protection Rear IP30
Input Voltage 100-240 VAC (50-60Hz)
Refresh Rate 3,840 Hz
Operating Temperature / Humidity  -10°C to 40°C / 10% - 80% RH
Storage Temperature / Humidity -20°C to 60°C / 10% - 85% RH

Pixel Pitch 1.4 mm
Pixel Density 480,711 dots/m²
Panel Size (W×H×D) 600mm × 337.5mm × 39mm
Panel Resolution 416 × 234 dots
Material Die-cast Aluminum
Brightness 600 cd/m²
Color Temperature 2,000 - 9,500 K Adjustable
Viewing Angle (H/V) 160°/160°
Panel Weight 6 kg
Contrast Ratio 5,000:1
Service Access Full Front & Rear
Input Power/Panel (Max.)
138 W
Input Power/Panel (Ave.)
46 W
Ingress Protection Rear IP30
Input Voltage 100-240 VAC (50-60Hz)
Refresh Rate 3,840 Hz
Operating Temperature / Humidity  -10°C to 40°C / 10% - 80% RH
Storage Temperature / Humidity -20°C to 60°C / 10% - 85% RH

Pixel Pitch 1.56 mm
Pixel Density 409,600 dots/m²
Panel Size (W×H×D) 600mm × 337.5mm × 39mm
Panel Resolution 384 × 216 dots
Material Die-cast Aluminum
Brightness 600 cd/m²
Color Temperature 2,000 - 9,500 K Adjustable
Viewing Angle (H/V) 160°/160°
Panel Weight 6 kg
Contrast Ratio 5,000:1
Service Access Full Front & Rear
Input Power/Panel (Max.)
135 W
Input Power/Panel (Ave.)
45 W
Ingress Protection Rear IP30
Input Voltage 100-240 VAC (50-60Hz)
Refresh Rate 3,840 Hz
Operating Temperature / Humidity  -10°C to 40°C / 10% - 80% RH
Storage Temperature / Humidity -20°C to 60°C / 10% - 85% RH

Pixel Pitch 1.8 mm
Pixel Density 284,444 dots/m²
Panel Size (W×H×D) 600mm × 337.5mm × 39mm
Panel Resolution 320 × 180 dots
Material Die-cast Aluminum
Brightness 600 cd/m²
Color Temperature 2,000 - 9,500 K Adjustable
Viewing Angle (H/V) 160°/160°
Panel Weight 6 kg
Contrast Ratio 5,000:1
Service Access Full Front & Rear
Input Power/Panel (Max.)
126 W
Input Power/Panel (Ave.)
43 W
Ingress Protection Rear IP30
Input Voltage 100-240 VAC (50-60Hz)
Refresh Rate 3,840 Hz
Operating Temperature / Humidity  -10°C to 40°C / 10% - 80% RH
Storage Temperature / Humidity -20°C to 60°C / 10% - 85% RH
