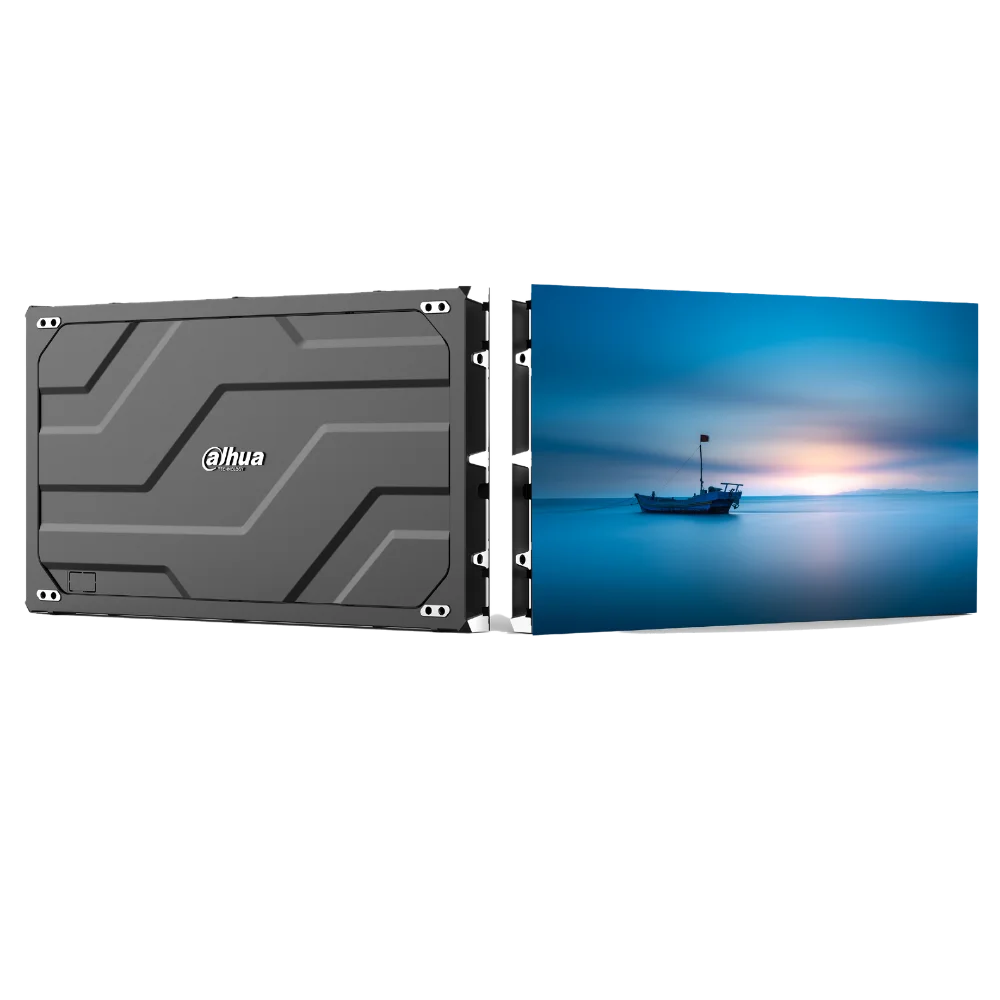

Dahua LED Screen – PHSIA CH Series

Introducing the DHI-PHSIA1.2-CH, an exceptional Flip COB Indoor Fine Pixel Pitch LED display from Dahua Security. Leveraging Mini Flip COB (Chips on Board) technology, this display achieves a remarkable ultra-thin 40mm design and an incredibly light weight of 4.0kg. With a 16:9 golden aspect ratio, it effortlessly achieves pixel-to-pixel resolutions of 2K, 4K, 8K, and 16K. The CNC die-casting aluminum cabinet ensures precision, with splicing tolerance controlled within ±0.1mm. All components are designed for front maintenance, providing easy accessibility. The display’s dot-by-dot calibration guarantees rich color and uniform brightness, delivering an immersive visual experience. With specifications like a pixel pitch of 1.25mm, Flip COB Chip LED type, and a maximum brightness of 600 nit, the DHI-PHSIA1.2-CH stands as an industry-leading solution for fine pixel pitch LED displays.

Designed for versatility, the DHI-PHSIA1.2-CH offers a module size of 150mm×168.75mm, a cabinet size of W600mm×H337.5mm×D39.75mm, and supports wall-mounted or floor-mounted installations. The die-cast aluminum cabinet ensures durability, with an IP65 front rating and IP43 rear rating for enhanced protection. Operating seamlessly in diverse environments with an operating temperature range of -10℃~+40℃ and input power ranging from 120 W/m² on average to a maximum of 350 W/m², this LED display is energy-efficient and adaptable. Whether for high-profile events, retail displays, or corporate settings, the DHI-PHSIA1.2-CH redefines visual excellence with its cutting-edge technology and sleek design.
