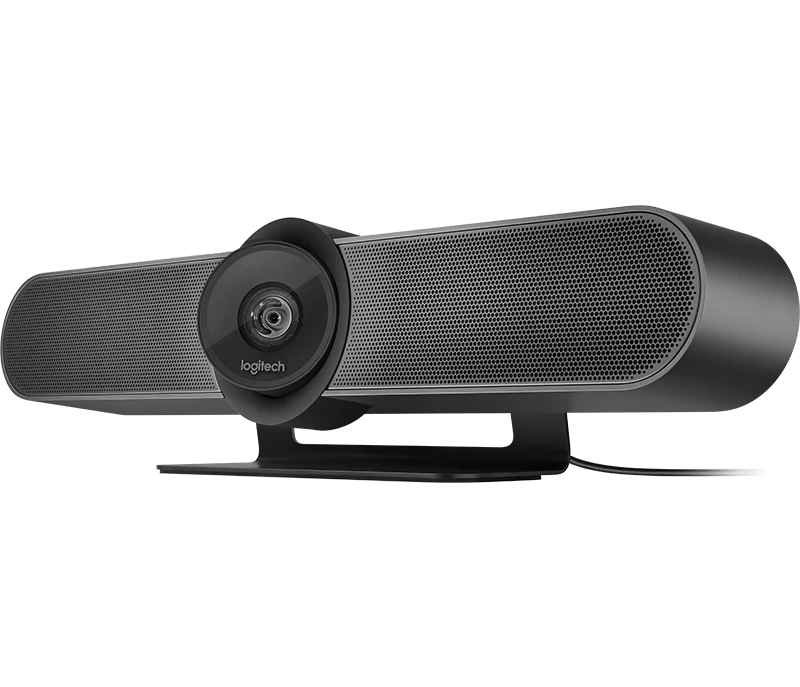

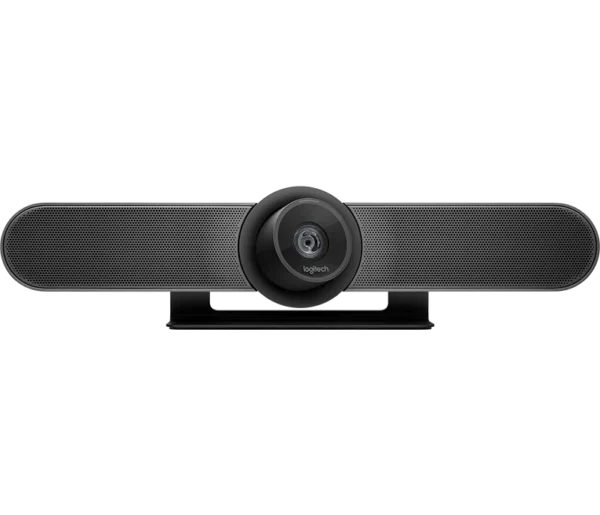

Logitech MeetUp Conference Camera

All-in-one conference cam with an ultra-wide lens for small rooms

Descriptions

cover for Logitech MeetUp YouTube
Play Video about cover for Logitech MeetUp YouTube

Key Features

tablet slide 1 img 2x new

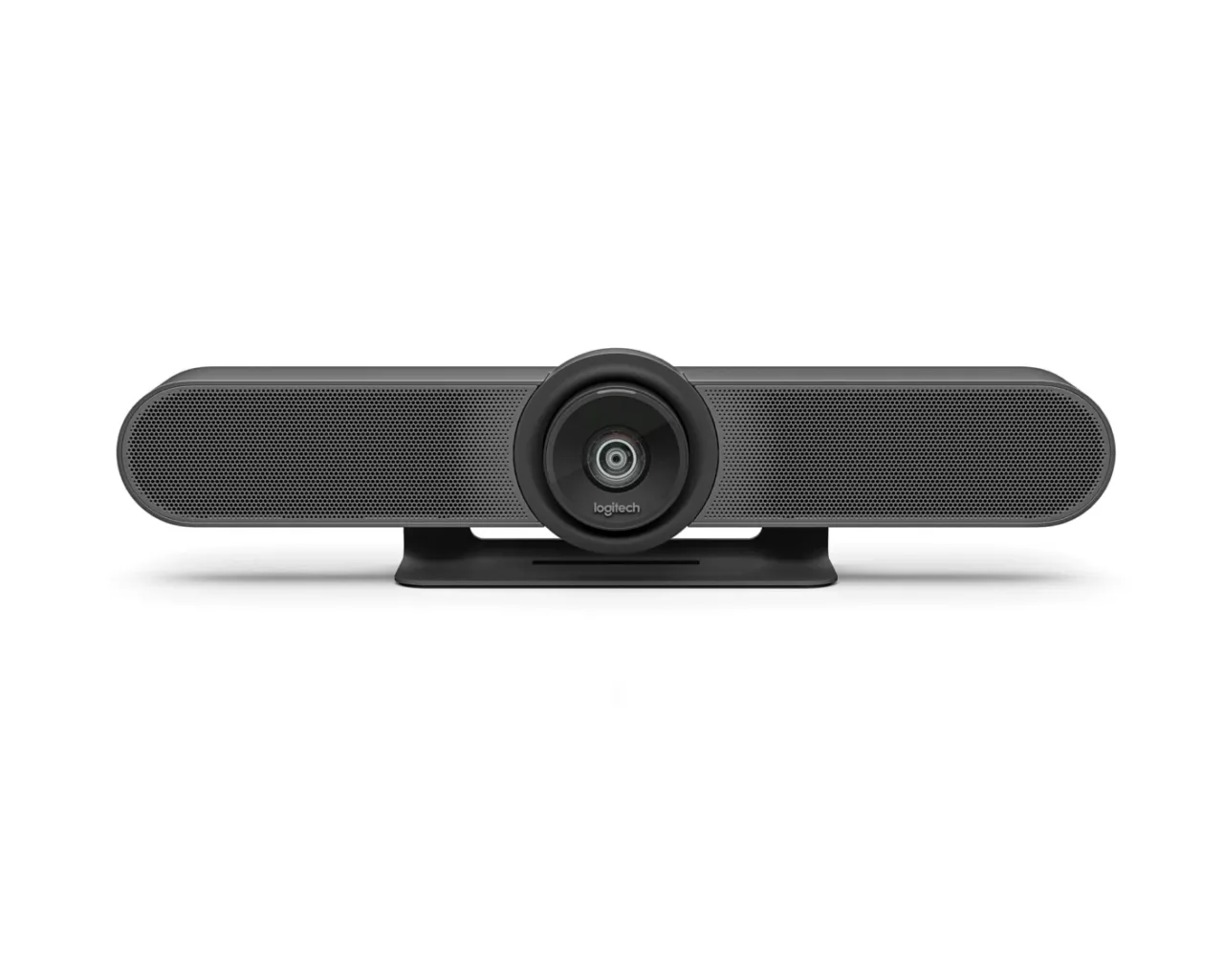

All-In-One Design

Designed for huddle rooms and other smaller spaces, MeetUp packs big features into a compact form factor.

Simple Setup

MeetUp connects to a computer or laptop via USB for easy installation and plug-and-play video conferencing.

tablet slide 2 img 2x new
tablet slide 3 img 2x new

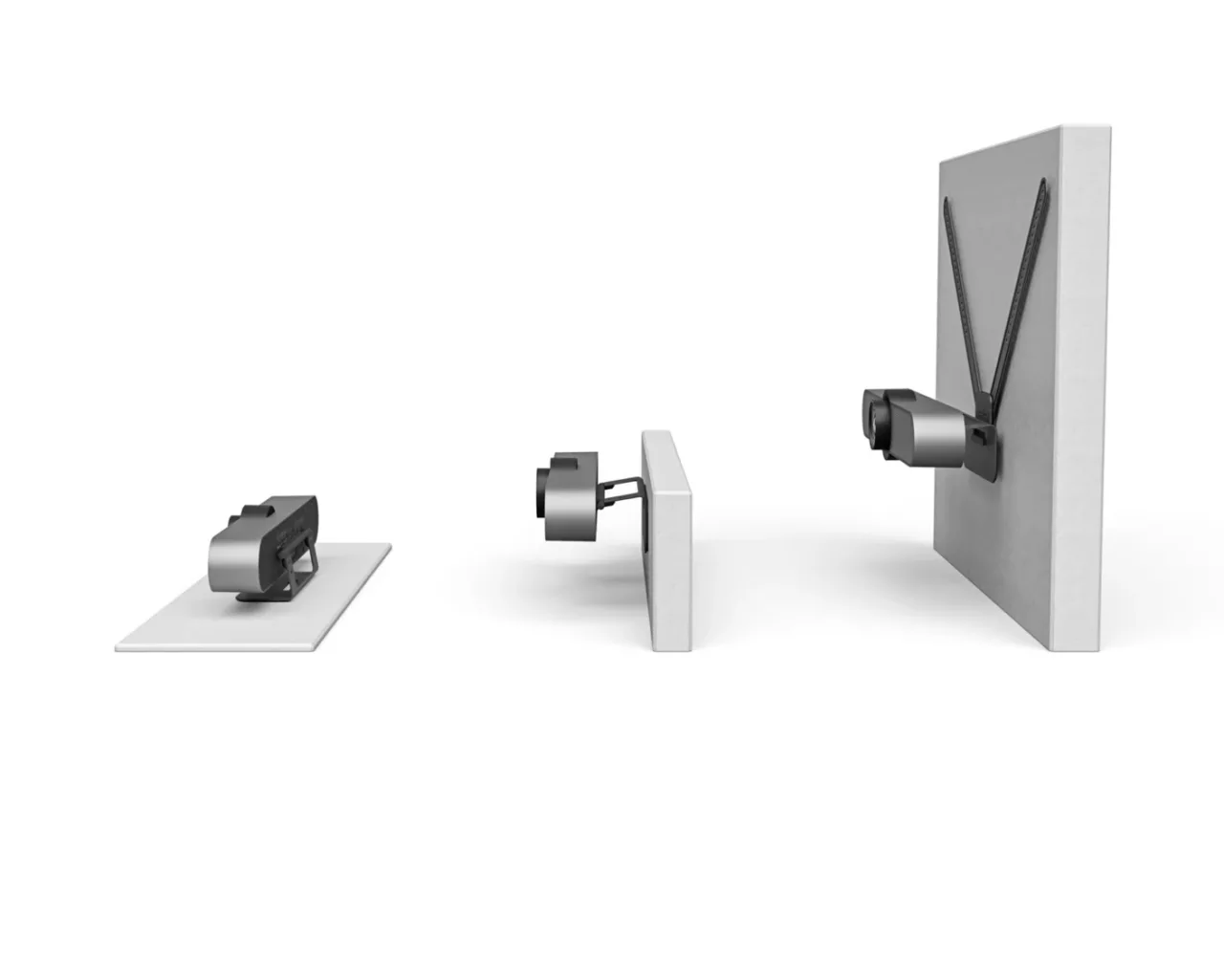

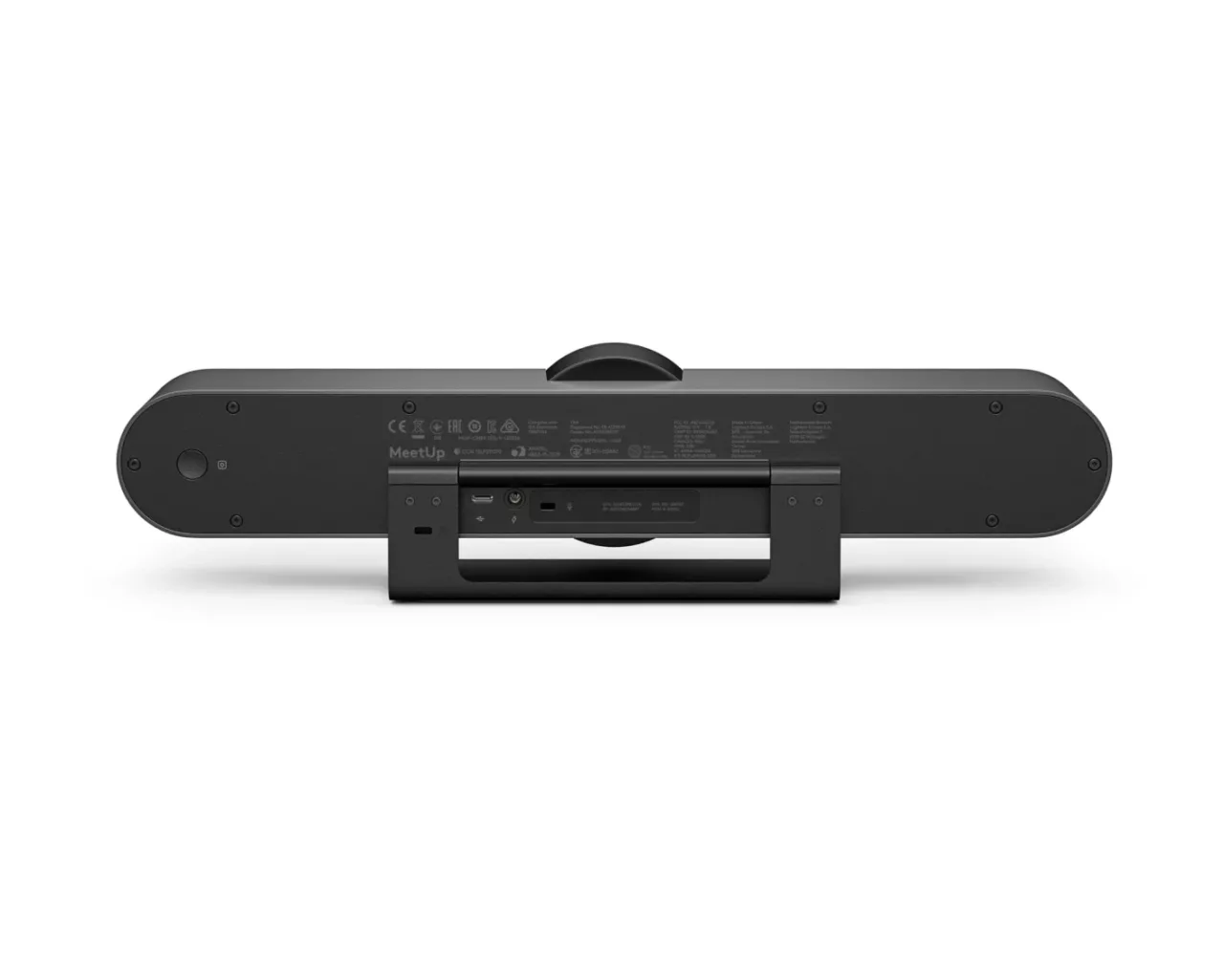

Convenient Mounts

Compact dimensions and versatile mounting options conserve space and minimize visible cabling.

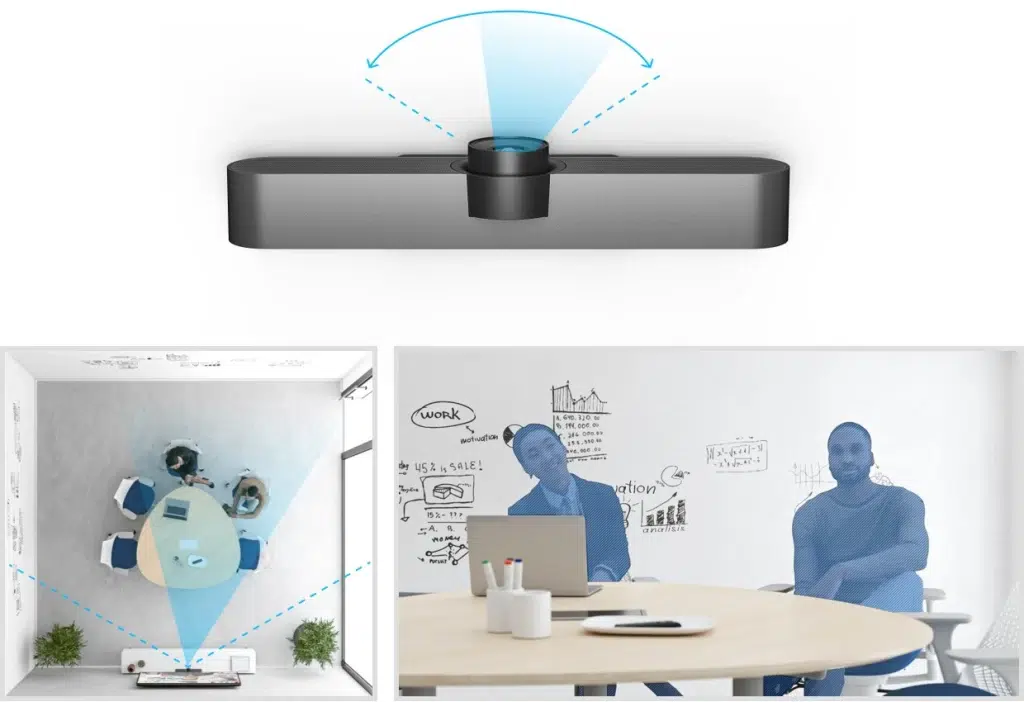

rightsight

computer vision

With RightSight™ computer vision, MeetUp automatically adjusts camera position and zoom to find and frame everyone in the room.

meetup blade 3 poster desktop

make space

Mounted at the display like a soundbar, MeetUp takes the speakerphone off the table to reduce cross-room cabling and maximize usable space for video conference.

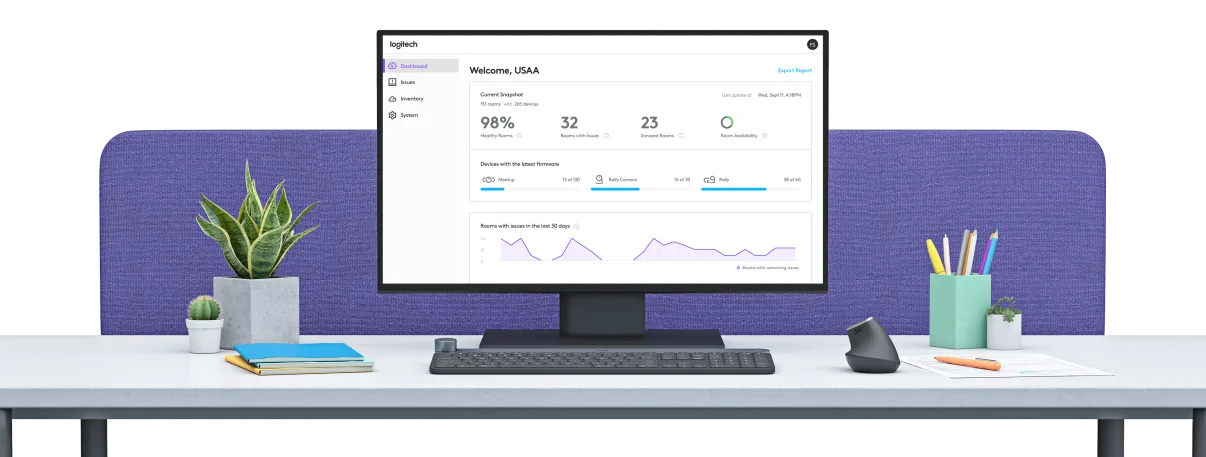

simple to manage

with Logitech Sync Device Management

Monitor and manage your meeting room devices from one single platform with Logitech Sync. Plus, get business insights into how your rooms are being used.
meetup blade 5 desktop

ROOM SOLUTIONS WITH MEETUP

Get everything you need to build out small rooms for video meetings, including Logitech MeetUp, a compute platform (such as a mini PC, Meet compute system, or Logitech RoomMate), room-optimized software, and the Logitech Tap touch controller.

google workspace 500
microsoft
zoom 1

5X ZOOM
Perfectly frame presenters to minimize background distractions. Zoom in on whiteboards and objects so remote participants can see what you see. Thanks to its advanced 4K image sensor, video remains sharp and clear, even when you zoom in on the details.

PREMIUM CAMERA OPTICS
MeetUp features exquisitely engineered, premium camera optics that capture a wide field-of-view without distorting faces and furniture with a “fisheye” effect. Faces look natural, whiteboard writing remains legible, and straight lines stay straight.

EXTENDED RANGE
Logitech Expansion Mic for MeetUp provides greater flexibility in huddle room configurations. MeetUp's built-in beamforming mics are optimized for up to 4 meters. To extend that range up to 5 meters, add an Expansion Mic. So whether people are seated at a table, sitting against the wall, or walking around the room, Expansion Mic for MeetUp means everyone will be heard.

BLUETOOTH® SPEAKERPHONE
Already connected on your smartphone? Dialing into an audio conference? Pair MeetUp with your smartphone or tablet to enjoy outstanding audio clarity, volume, and range that handheld devices can't match.

TAKE CONTROL
When you need to adjust the volume, mute the microphone, or take manual control over camera position, MeetUp' s remote control uses radio frequency (RF) signals for reliable and discreet control from anywhere in the room. You can even download the free Logi Remote app (available on iTunes) to control MeetUp with an iPhone or iPad.

WALL SAVER
No drilling? No problem. By attaching to the VESA mounting points behind the display, the optional TV Mount for MeetUp lets you position MeetUp above or below the display without drilling new holes.

RIGHTSENSE TECHNOLOGIES
Logitech RightSense™ proactive technologies make better video meetings easy and automatic. RightSound optimizes the human voice and enhances conversational clarity, RightSight automatically moves the camera and adjusts the zoom so no one gets left out of the picture, and RightLight helps everyone look their best on camera, regardless of lighting conditions.

Specifications

Main unit
Height: 104 mm
Width: 400 mm
Depth: 85 mm
Weight: 1.04 kg



Remote Control
Height: 83 mm
Width: 83 mm
Depth: 10 mm

Windows® 7, Windows 8.1, or Windows 10

macOS 10.10 or higher

USB 2.0 prt (USB 3.0 Port and cable required for 4K video)

Camera
Custom Logitech lens with 5x HD zoom and motorized pan (+/- 25°) and tilt (+/- 15°)
Field of View: Diagonal: 120°, Horizontal: 113°, Vertical: 80.7°
Total Room Coverage (field of view + pan and tilt): 163° wide x 110° tall
3 camera position presets
RightSight auto-framing: Requires Windows 10 64-bit or macOS 10.14 or higher

Video Performance
4K Ultra HD video calling (up to 3840 x 2160 pixels @ 30 fps with customer-supplied USB 3.0 cable)
1080p Full HD video calling (up to 1920 x 1080 pixels @ 30 fps)
720p HD video calling (up to 1280 x 720 pixels @ 30 fps)

Microphone
Integrated microphone with 3 beamforming elements
Pickup Range
MeetUp: 4 m
With optional Expansion Mic: 5 m
Sensitivity: -27 dB
Microphone frequency response: 90Hz-16KHz for full voice reproduction and high intelligibility without noise
Beamforming performance: Factory-paired, very low distortion broadside beamforming algorithm steers the microphones directly at the talker for the best voice pickup and noise reduction
AEC (Acoustic Echo Cancellation)
VAD (Voice Activity Detector)
Microphone background noise suppression
Microphone date rate: 32KHz sampling rate
Recommended # of participants: 6
Recommended # of participants with expansion mic: 8

Speaker
Volume adjustable to 95 dB SPL at 1/2 meter peak
Speaker sensitivity 86.5+/-3dB SPL at 1/2 meter
Distortion: 200-300Hz < 3%, 3000 Hz -10KHz < 1%
Patent-pending anti-vibration enclosure improves voice clarity while limiting sound transmission to adjacent spaces

General
Bluetooth wireless technology
RF remote control
Integrated table/wall mount; optional TV mount available
Kensington security slot

RIGHTSENSE TECHNOLOGIES
Advanced technologies and design innovations that make video collaboration easy and automatic.

RightLight
Low-light compensation
Video noise reduction
Low-light saturation optimization

RightSight
Human figure detection
Auto-frame participants at meeting start
Auto-frame participants on-demand
Auto-reframe when participants enter, leave, or change positions

RightSound
Machine learning AI trained to distinguish human speech from other sounds
AEC (Acoustic Echo Cancellation)
VAD (Voice Activity Detector)
Background noise suppression
Auto-level loud and soft voices
Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion
Anti-vibration enclosure

COMPATIBILITY AND INTEGRATIONS
Plug-and-play USB connectivity
Certified for Skype™ for Business and Microsoft Teams
Zoom™ Certified
Fuze™ Certified
Certified for Google Hangouts Meet Hardware
Microsoft Cortana®
Cisco Jabber®
Compatible with BlueJeans, BroadSoft™, GoToMeeting™, Vidyo™, and other video conferencing, recording, and broadcasting applications that support USB cameras

MeetUp ConferenceCam
Remote control
USB 2.0 cable: 5 m
Power supply
Wall mount and hardware
User documentation
