Logitech Rally Plus

Logitech® Rally offers an Ultra-HD imaging system, delivering brilliantly sharp video, outstanding color, and exceptional optical accuracy at resolutions up to 4K. The modular audio system brings crisp, clear audio and unmatched voice clarity to the table.

Descriptions

RALLY PLUS

Premier modular video conferencing system for large rooms

Key Features

FIND THE BEST FIT FOR YOUR LARGE ROOM

In large rooms with one or two displays, deploy Rally with tremendous flexibility and ease.
Previous
Next

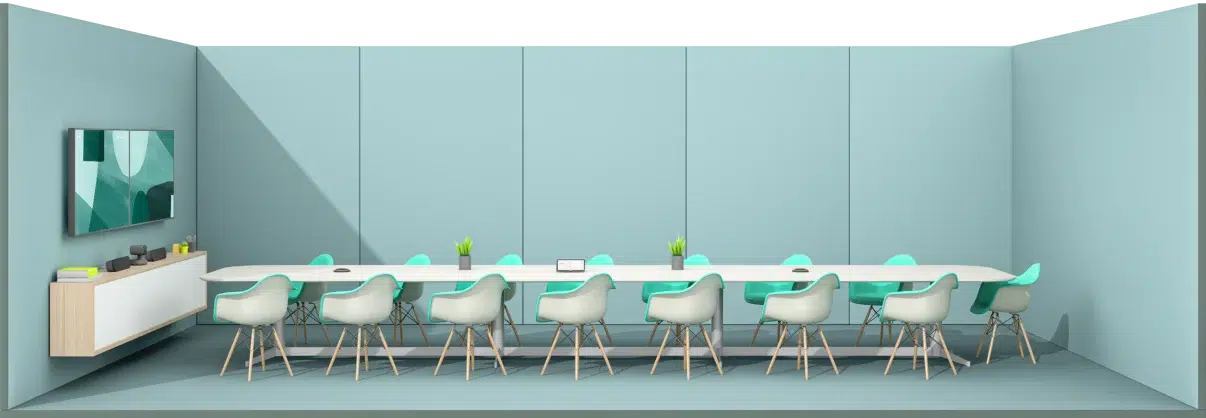

SIMPLE TO USE

Start your virtual meeting with just one touch, seamlessly connecting Rally to your preconfigured room solution.1Tap included as part of a room solutions bundle.

google logo 2 210x60 1
msft logo 210x60 1
zooom logo 210x60 1
simple to use google

EXPAND THE CONVERSATION

Add up to 7 mic pods to accommodate larger groups and provide convenient access to mute controls.
rally expand convo v3

SIMPLE TO MANAGE

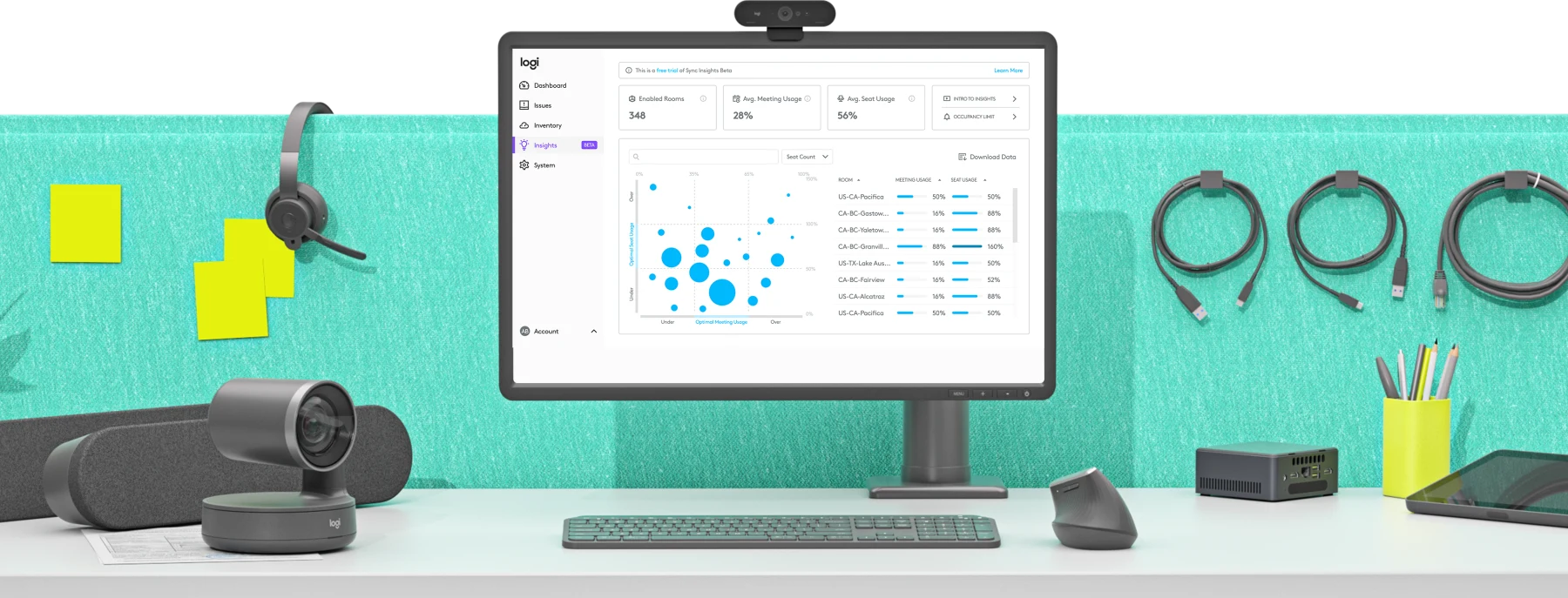

Monitor and manage your meeting room devices from one single platform with Logitech Sync. Plus, get business insights into how your rooms are being used for video conference.

lg manage insights desktop v2

SIMPLE TO MANAGEDEVICE MANAGEMENT TECHNOLOGY PARTNERS

Our integration with partner solutions and dashboards means you can easily manage your devices in other platforms.
msft logo
zoom logo
utelogy logo
domotz copy

ADDITIONAL FEATURES

e5d79ffaa459d

SEE EVERYONE, PERFECTLY FRAMED

Logitech RightSight™ camera control automatically moves and adjusts the lens to comfortably frame meeting participants in rooms of all shapes and sizes.
rightlight

LET THE SUNSHINE IN

Even in meeting rooms with bright windows, Logitech RightLight™ technology with Wide Dynamic Range (WDR) prioritizes faces and human figures over objects and surfaces. The result is a balanced image that renders participants in flattering light with reduced glare and softer shadows, even in dim or backlit conditions.
download 1

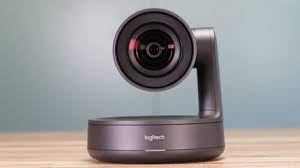

ADAPTIVE PAN, TILT AND ZOOM

Pan and tilt speeds automatically adapt to the level of zoom. The result: faster camera movement when zoomed out for quick framing and slower camera movement when zoomed in for more control.
additional features front audio

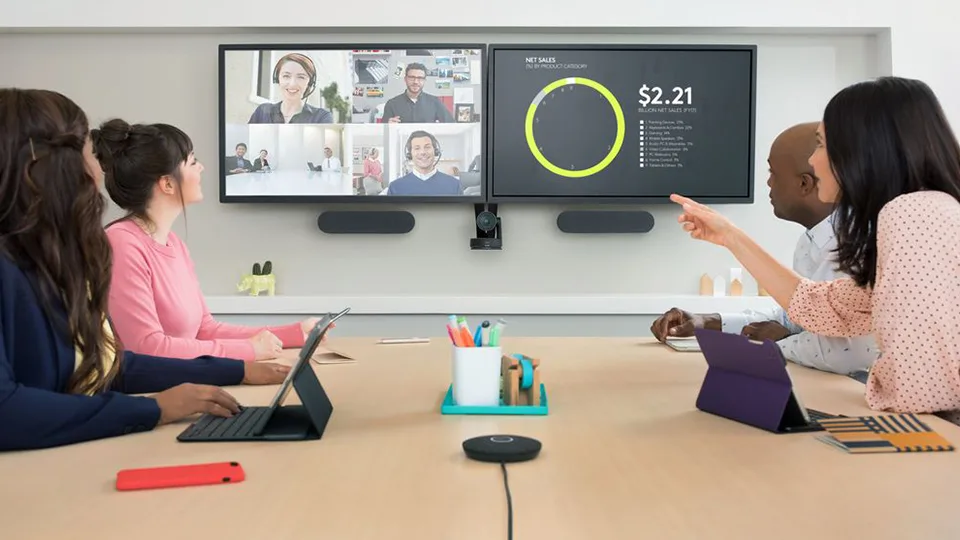

FRONT OF ROOM AUDIO

Unlike tabletop speakerphones that decouple voices from video, Rally speakers are designed for placement at the front of the room. By aligning speakers with the display, a person’s voice and video both come from the same place — and never from behind you — so conversations feel more natural and lifelike.
additional features mounting

OPTIONAL MOUNTING KIT

Add Rally Mounting Kit for a streamlined installation of each component. Strong wall mounts allow ideal placement for the camera and two speakers, while ventilated mounting plates attach the display and table hubs on a wall or beneath a table. Two cleverly-designed retainers keep cables secure.
additional features loud clear

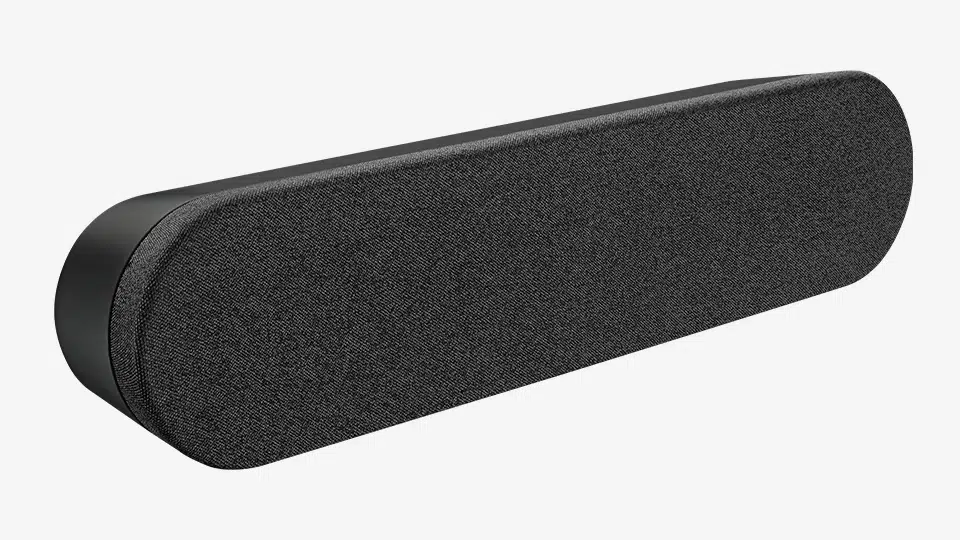

LOUD AND CLEAR

The Rally display hub powers up to two speakers, providing rich sound even in larger rooms. A patented suspension system virtually eliminates vibrations that travel through walls, stands, and tables. This improves echo cancellation while keeping video shake-free, even at high volume levels and when zoomed in.
additional features micpod

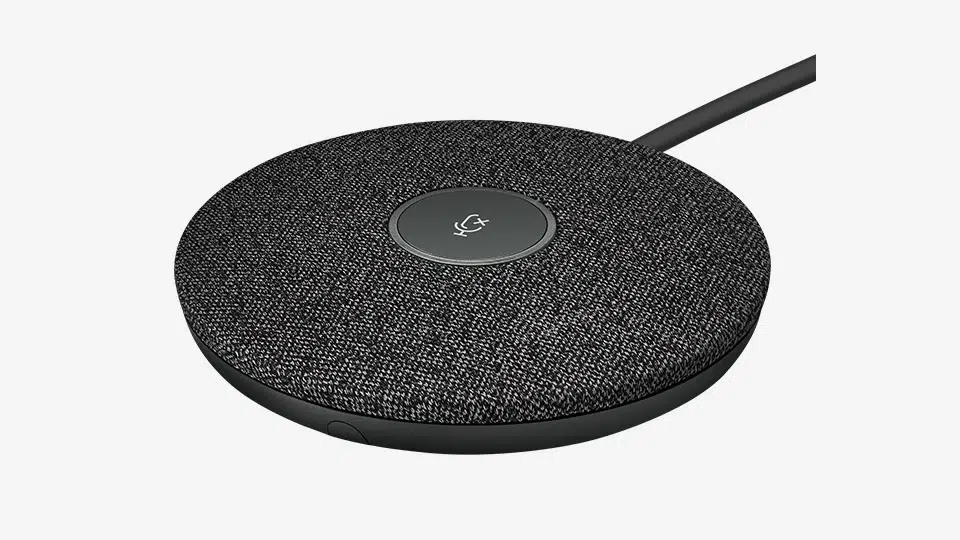

UP TO 7 MIC PODS

For rooms with more than 10 participants, add Rally Mic Pods to expand audio coverage and provide convenient access to mute controls. Each pod adds coverage for six more participants, so you can deploy Rally in large meeting spaces and boardrooms with up to 46 people.
additional features cabling

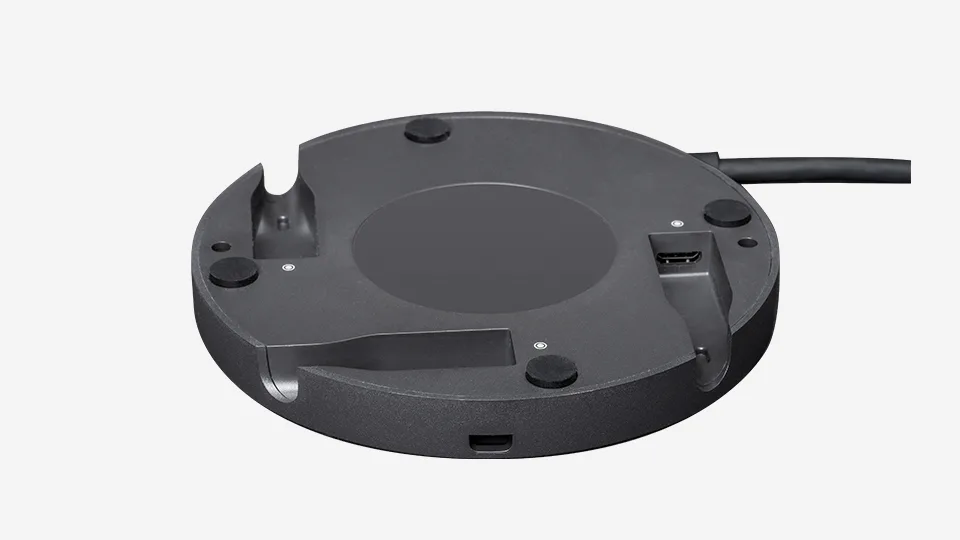

FLEXIBLE MIC POD CABLING

A more flexible alternative to daisy-chain connections, Rally Mic Pod Hub makes it easy to run cables beneath the table with three connections for Rally Mic Pods or additional Mic Pod Hubs. With a single-cable connection, participants can reposition individual mic pods to make space on the table or to bring mute control within easy reach.

Specifications

Rally Camera
Height: 182.5 mm
Width: 152 mm
Depth: 152 mm

Rally Speaker
Height: 103 mm
Width: 449 mm
Depth: 80 mm

Rally Mic Pod
Height: 21 mm
Width: 102 mm
Depth: 102 mm

Rally Display Hub
Height: 40 mm
Width: 206 mm
Depth: 179 mm

Rally Table Hub
Height: 40 mm
Width: 176 mm
Depth: 138 mm

Operating Systems
Windows 7, 8.1 or Windows 10
macOS: 10.10 or higher
Chrome OS™

Resolutions higher than 1080p
Windows 8.1 or higher or macOS 10.10 or higher
USB 3.0 port
Compatible software

RIGHTSENSE TECHNOLOGIES
RightLight with WDR
Low-light compensation
Video noise reduction
Low-light saturation optimization
Renders natural skin tones for each participant on camera
Reduces backlighting and glare without darkening the entire image.

RightSight 2
Human figure detection
Auto-frame participants at meeting start
Auto-frame participants on-demand
Auto-reframe participants during meetings

RightSound
Machine learning AI trained to distinguish human speech from other sounds
AEC (Acoustic Echo Cancellation)
VAD (Voice Activity Detector)
Background noise suppression
Auto-level loud and soft voices

RightSound Mic Matrix
Very low distortion broadside beamforming algorithm steers the factory-paired microphones directly at the talker for the best voice pickup and noise reduction
Supports up to 56 acoustic beams (8 per Rally Mic Pod) to lock onto the active talker
Beam focus refresh rate: 8ms (125 times/second)

Anti-Vibration Suspension
A patent-pending suspension system decouples the speaker module within the external enclosure, virtually eliminating the vibrations that can travel through walls, stands, and tables. This improves the echo cancelling performance of Rally Mic Pods, while ensuring that video images remain clear and steady, even at high volume levels and when zoomed in.
Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion

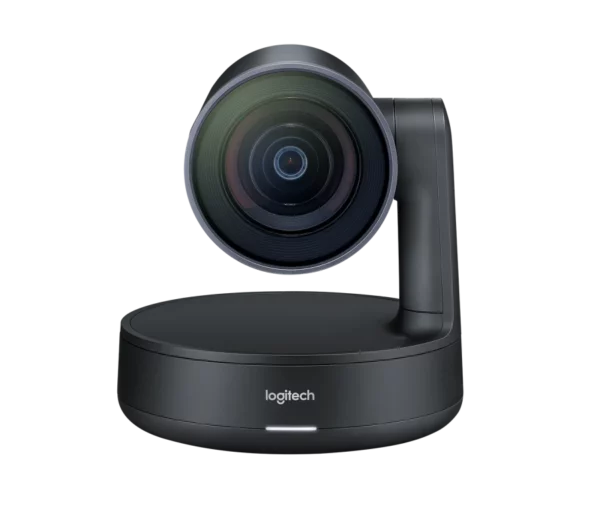

Rally Camera
Zoom: 15x HD zoom (5x optical + 3x digital)
Pan: 180° (±90°)
Tilt: 140° (+50° / -90°)
Field of View
-Diagonal: 90°
-Horizontal: 82°
-Vertical: 52°

Total Room Coverage: 262° wide x 192° tall (field of view + pan and tilt)
Resolutions @ 30fps: 4K Ultra HD, 1440p, 1080p, 900p, 720p, and SD
Resolutions @ 60fps: 1080p, 720p
RightLight™ Technologies: Wide Dynamic Range (WDR), low-light compensation, video noise reduction, low-light saturation optimization
Privacy: Lens parks at -90° in sleep mode for assured privacy

Rally Mic Pod
Pickup Range: 4.5 m diameter
Four omnidirectional microphones forming eight acoustic beams
AEC: Acoustic Echo Cancellation
VAD: Voice Activity Detector
Background noise suppression
Mute button with LED status indicator
Captive 2.95 m 12-pin cable
Daisy chain up to 7 Rally Mic Pods
Frequency response: 90Hz – 16kHz
Sensitivity: >-27 dB +/-1dB @ 1Pa
Microphone data rate: 48 kHz
Recommended # of participants
-Rally (one Mic Pod): 16
-Rally Plus (two Mic Pods): 16
-Additional participants per Mic Pod: 6
-Recommended participants for Rally with 7 Mic Pods: 46

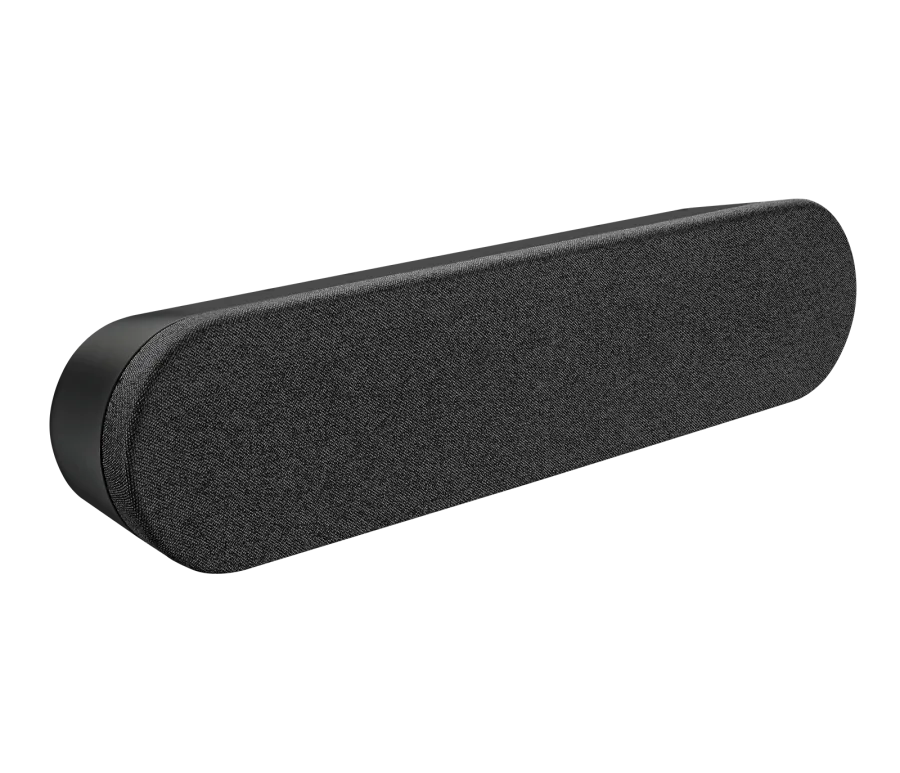

Rally Speaker
High-performance 76 mm driver with rare-earth magnet
Patent-pending suspension system eliminates vibration-induced camera shake and audio interference
Mini XLR cable connects to Rally Display Hub for both signal and power
Speaker volume 95dB SPL @1W, 100dB SPL @7.5W, both +/-2dB at ½ meter
Sensitivity: 95+/-2 dB SPL at ½ meter
Distortion: 200Hz–300Hz <2.5%, 300Hz–10kHz < 1%@7.5W
Sampling rate: 48 kHz

Rally Table Hub
Single CAT6A cable connection to Rally Display Hub 5 m cable included, supports customer-supplied cables up to 50 m
Hub 5 m cable included, supports customer-supplied cables up to 50 m
Active speaker detection: analyzes audio from up to 7 Mic Pods and 56 beams every 8 ms
12 Pin connector for Rally Mic Pod
HDMI Type A passthrough to Display Hub (x2)
USB Type C
USB Type A (reserved for future capability)
USB Type B (connects to meeting room computer)
RJ45 (reserved for future capability)
Power input

Rally Display Hub
HDMI Type A: (x2) (connects to displays)
USB C (connects to Rally Camera)
USB Type B (connects to meeting room computer)
RJ45: connects to Table Hub
Mini XLR: x2
Powers one or two Rally Speakers
Power input

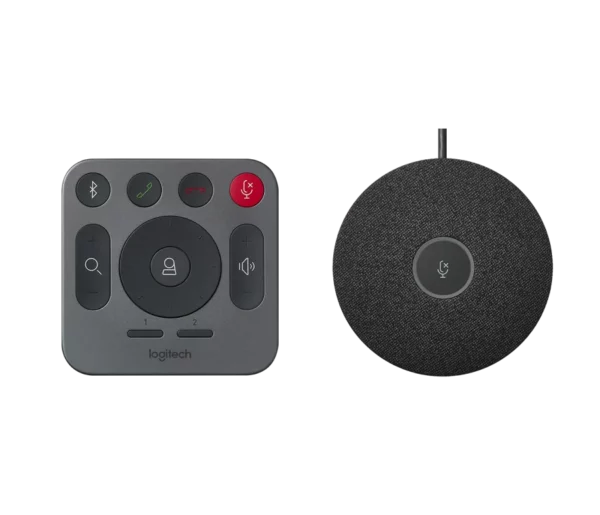

Remote Control
RF remote control (line of sight not required)
CR2032 batteries (included)

Cables / Power
Camera to Display Hub -2 m USB 3.1 Type C to USB Type C 3.1

Conference Room Computer to Display or Table Hub -2 m USB 3.1 Type A to USB Type B

Display Hub to Table Hub -5 m CAT6A Ethernet cable (supports customer-supplied cables up to 50 m

Display Hub to Speaker (x2)
-2.95 m Mini XLR (supports customer-supplied extension cables up to 3 m

Conference Room Computer to Displays (x2) -2 m HDMI A

Mic Pod -2.95 m: Hardwired with 12 pin connector

Power Outlets to Power Supplies (x2): 1 m -1 m

Power Supplies to Table Hub / Display Hub (x2) -1.5 m

AVAILABLE ACCESSORIES
RALLY MOUNTING KIT
Rally Mounting Kit with cable retainers: (x2) and mounting brackets for camera, speakers (x2), and hubs (x2)
Rally Mic Pod
Deploy up to 7 Rally Mic Pods for greater audio coverage in larger rooms
MIC POD MOUNT
Anchors mics and hides cables for a finished look
RALLY MIC POD HUB
Connect 1-3 Rally Mic Pods (or additional hubs) for placement flexibility and under-table cabling
Rally Speaker
Add a second Rally Speaker for larger rooms

Certifications
Certified for Skype for Business and ready for Teams
Zoom Certified
Certified for Google Hangouts Meet Hardware
Microsoft Cortana® certified
Cisco Jabber® and WebEx

compatible
Compatible with BlueJeans, BroadSoft, GoToMeeting, Video, and other video conferencing, recording, and broadcasting applications that support USB cameras
Compatibility
Plug-and-play USB connectivity

Appliance mode
Supports compatible video conferencing software in appliance mode when deployed with Logitech RoomMate, including Zoom Rooms Appliances. Certification pending for Microsoft Teams Rooms on Android and additional video conferencing platforms.

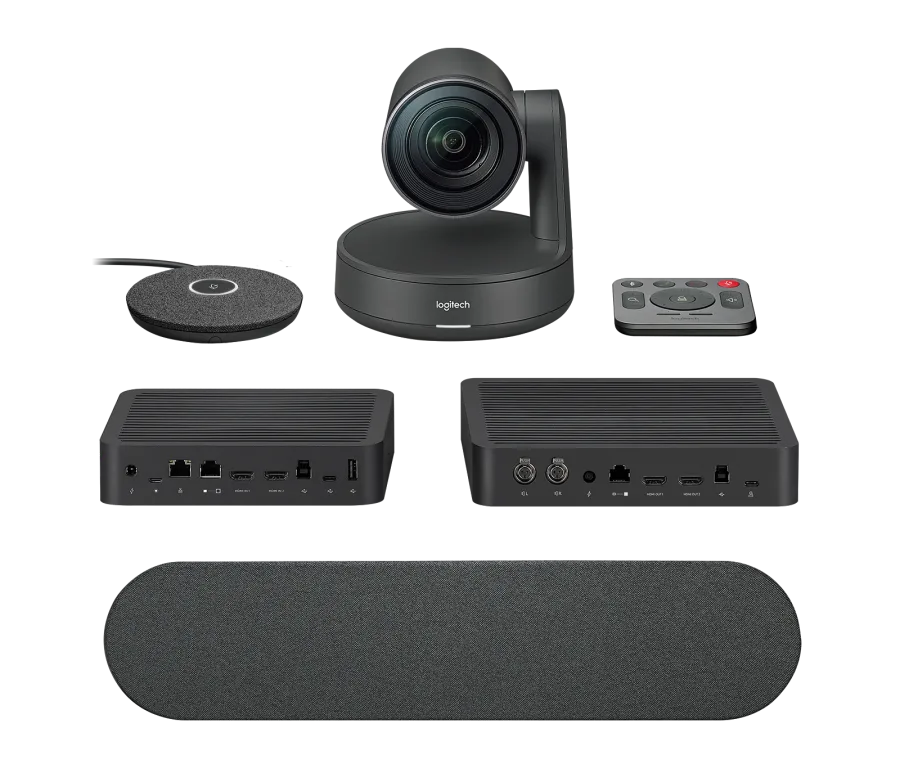

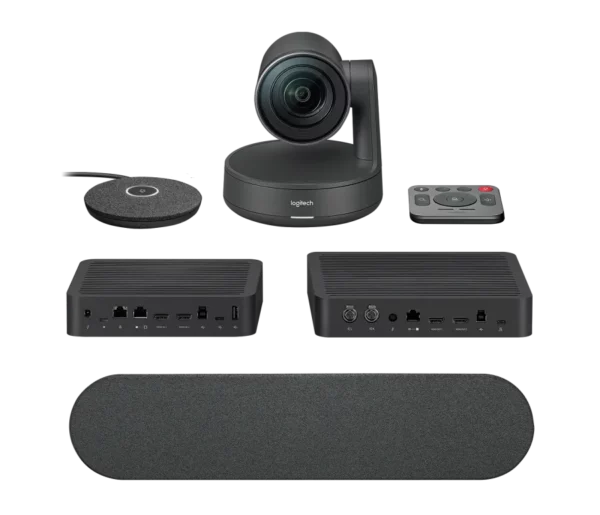

Logitech Rally
Rally Camera
Rally Display Hub
Rally Table Hub
Rally Speaker (x1)
Rally Mic Pod (x1)
Remote control
USB Type C to USB Type C
USB Type A to USB Type B
CAT6A Ethernet cable
HDMI Type A (x2)
A/C cables (x2)
Power Supplies (x2)
Documentation
Logitech Rally Plus
Rally Camera
Rally Display Hub
Rally Table Hub
Rally Speaker (x2)
Rally Mic Pod (x2)
Remote control
USB Type C to USB Type C
USB Type A to USB Type B
CAT6A Ethernet cable
HDMI Type A (x2)
A/C cables (x2)
Power Supplies (x2)
Documentation
