Medical Digital Signage ARV MS 01
Digital SignageSuitable for outpatient and nursing in hospital
• Full HD
• Supports Android/Windows/Linux System
• Supports LAN & Build in camera 5.0M/P
• Diverse Customization
• Optional Touchscreen
• Panel Life Over 50000 hours
Description
Descriptions
Healthcare Digital Signage
Suitable for outpatient and nursing in hospital
Key Features
Structure
Display
Specifications
System
CPU RK3288 Quad core cortex A17
RAM 2GB
Internal memory 16GB
Operation system Android 8.1
Touch screen 10-Point capacitive touch
CPU RK3288 Quad core cortex A17
RAM 2GB
Internal memory 16GB
Operation system Android 8.1
Touch screen 10-Point capacitive touch
Display
Panel 15.6"LCD panel
Resolution 1920*1080
Display mode Normally black
viewing angle 85/85/85/85(L/R/U/D)
Contrast ratio 800
Luminance 250cdm2
Aspect Ratio 16:9
Panel 15.6"LCD panel
Resolution 1920*1080
Display mode Normally black
viewing angle 85/85/85/85(L/R/U/D)
Contrast ratio 800
Luminance 250cdm2
Aspect Ratio 16:9
Network
WiFi 802.11b/g/n/ac,2.4G/5G
Ethernet 100M/1000M
Bluetooth Bluetooth 4.0
WiFi 802.11b/g/n/ac,2.4G/5G
Ethernet 100M/1000M
Bluetooth Bluetooth 4.0
Interface
Type-c Support
Power Jack DC power input
RJ45 Ethernet interface ( POE function standard, IEEE802.3at,POE+,class 4, 25.5W )
USB USB Host 2.0
Serial 8PIN, 2.0MM ( RS232 fomat)
Earphone 3.5mm earphone +microphone
Type-c Support
Power Jack DC power input
RJ45 Ethernet interface ( POE function standard, IEEE802.3at,POE+,class 4, 25.5W )
USB USB Host 2.0
Serial 8PIN, 2.0MM ( RS232 fomat)
Earphone 3.5mm earphone +microphone
Media players
Video format MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8,VP9, etc.,support up to 4K
Audio format MP3/WMA/AAC etc.
Photo jpeg
Video format MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8,VP9, etc.,support up to 4K
Audio format MP3/WMA/AAC etc.
Photo jpeg
Other
Vesa 100mm*100mm
NFC Optional ,(NFC 13.56MHz,ISO14443A/ISO14443B/ISO 15693/Mifare classic/ Sony felica)
Vesa 100mm*100mm
NFC Optional ,(NFC 13.56MHz,ISO14443A/ISO14443B/ISO 15693/Mifare classic/ Sony felica)
Speaker 2*3W
Camera 5.0M/P,front camera
Internal Microphone Standard single microphone
Language Multi-language
Working temp 0--40degree
Certificates
Camera 5.0M/P,front camera
Internal Microphone Standard single microphone
Language Multi-language
Working temp 0--40degree
Certificates
Accessories
Adapter Adapter,12V/2A
User manual yes
Call handgrip yes
Adapter Adapter,12V/2A
User manual yes
Call handgrip yes
Unit (Without packaging)

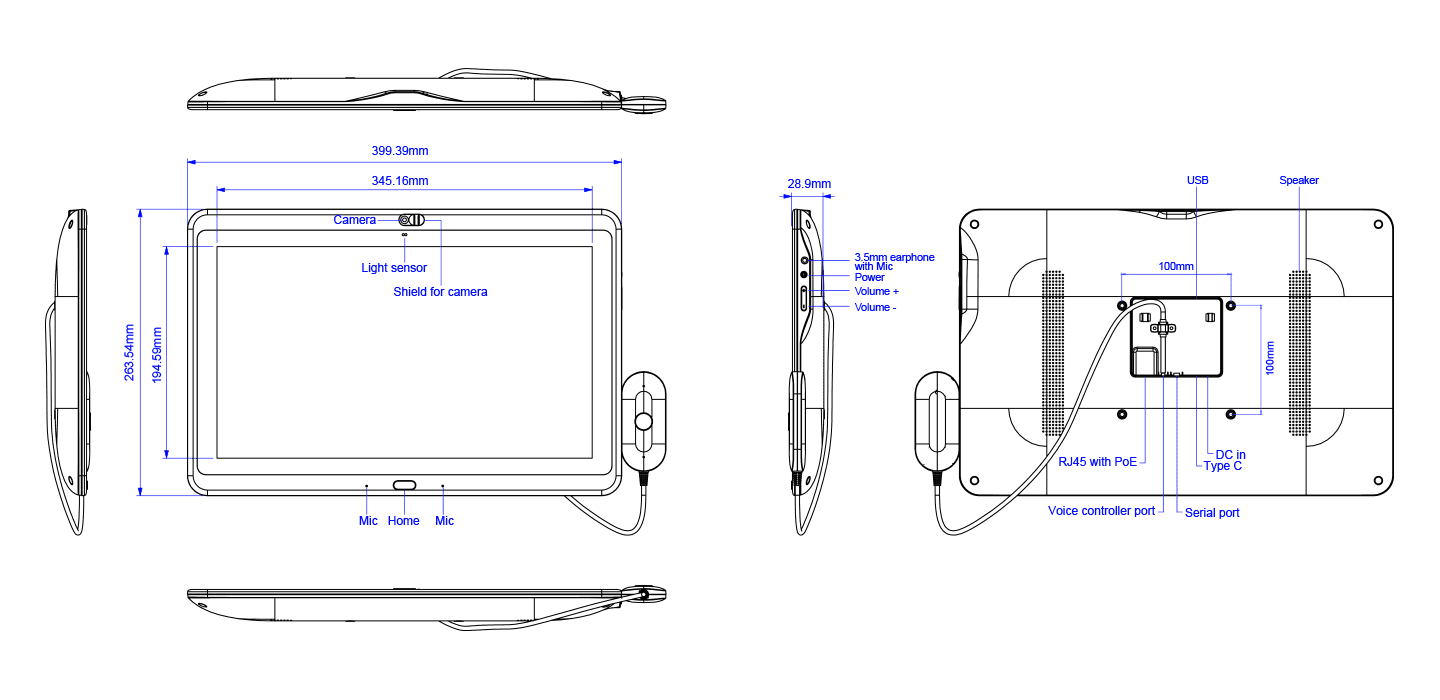

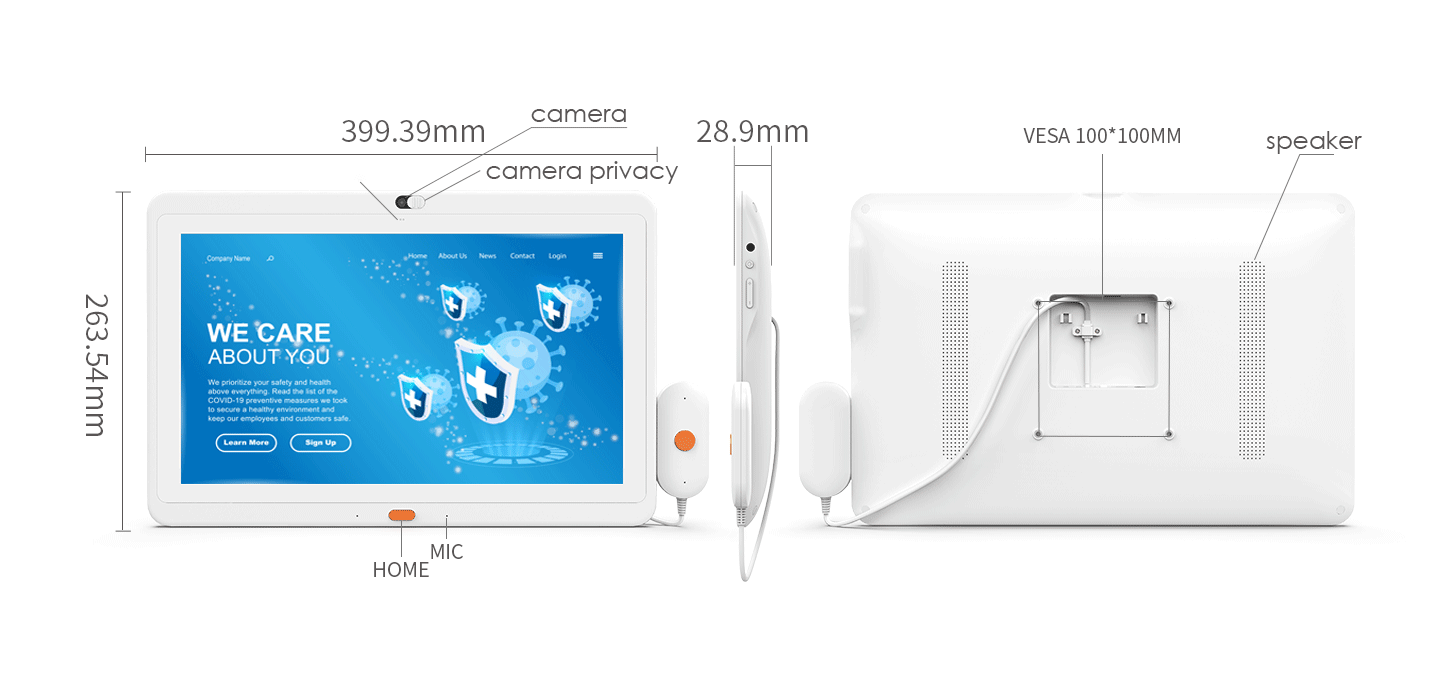

L x W x H 399.39mm x 263.54mm x 28.9mm
Net(kg) 1.61KG Net(kg)
Giftbox (With Packaging)
L x W x H 502mm x 75mm x 324mm
Net(kg) 2.3KG Net(kg)
Carton 5pcs/CTN
L x W x H 517mm x 398mm x 344mm
Net(kg) 12.6KG
G.W
