Nanlite MixPanel 60. Uniquely combines three LED light sources into one compact housing, giving you the ability to switch between hard light, soft light, and colored light at the touch of a button. Coupled with ultra-bright light output (6600 Lux @ 1m 5600K Hard Light Boost Mode), 0-100% dimming, a CRI of 98, a TLCI of 95, green/magenta adjustment, 43 gel presets in two light sources (3200K & 5600K), and 9 special effects.

Tag: Nanlite

Description

Descriptions

Play Video

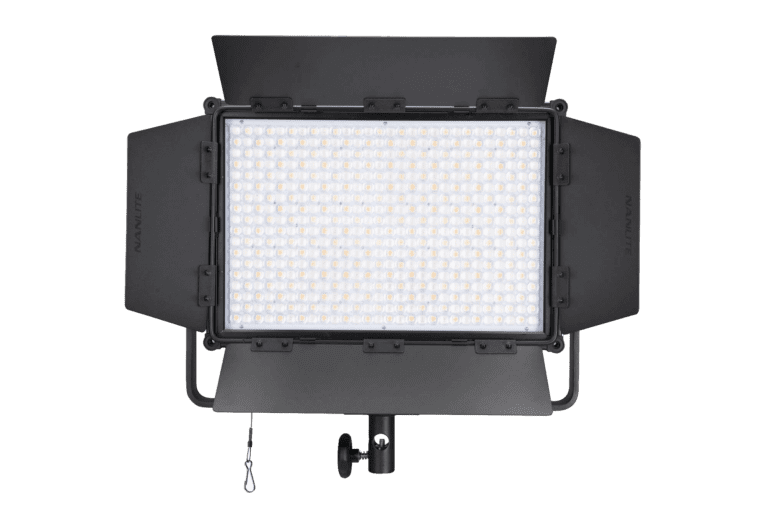

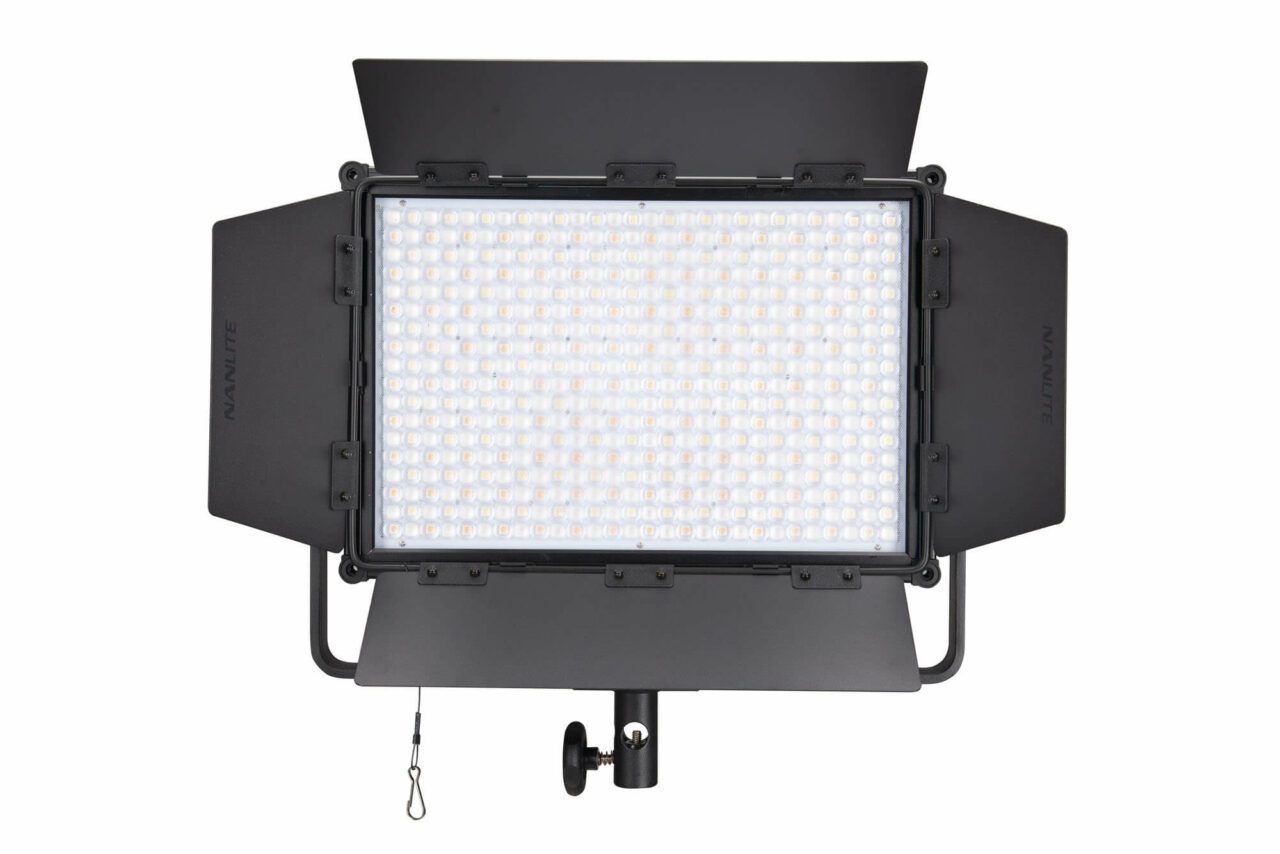

NanLite MixPanel 60 11 3000x

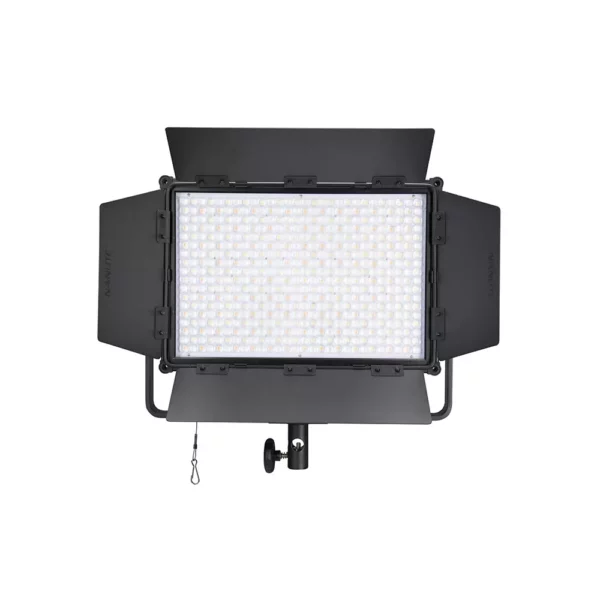

Nanlite MixPanel 60 RGBWW LED Panel

Can be integrated in online learning setup or corporate video conferencing.

Key Features

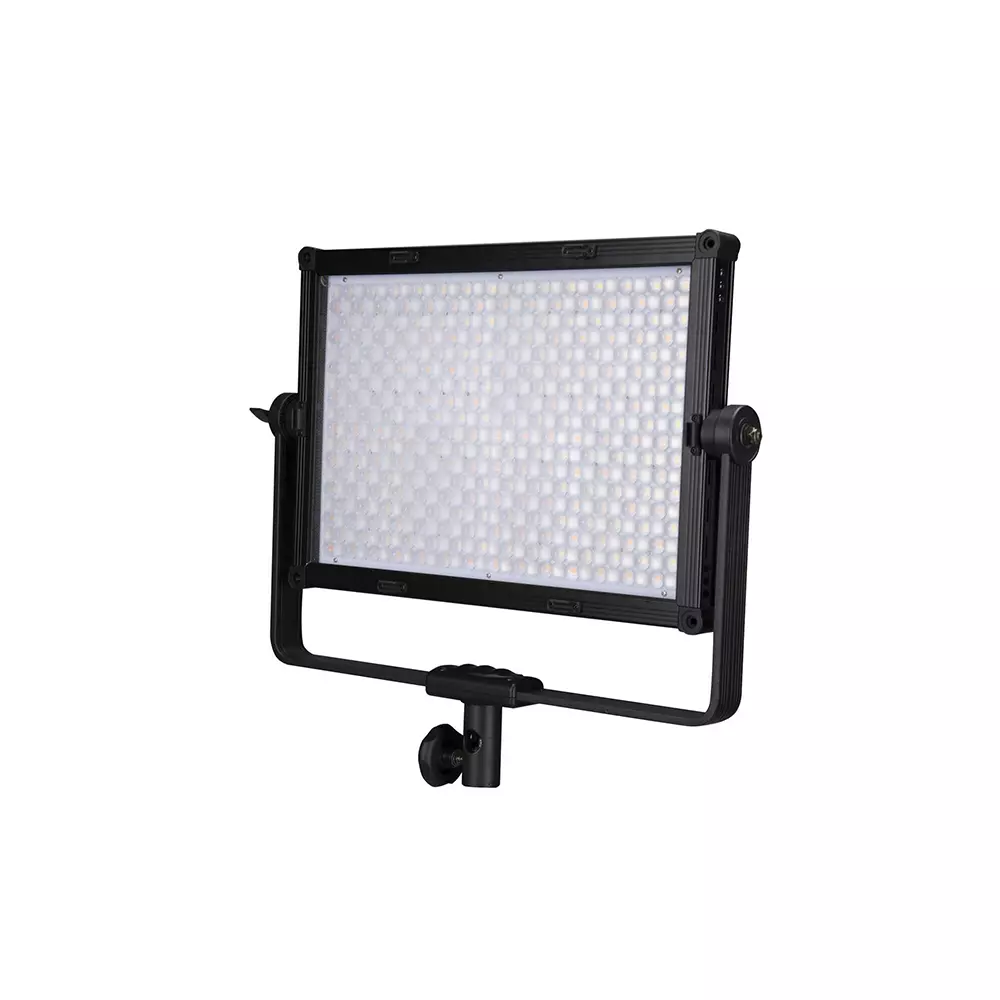

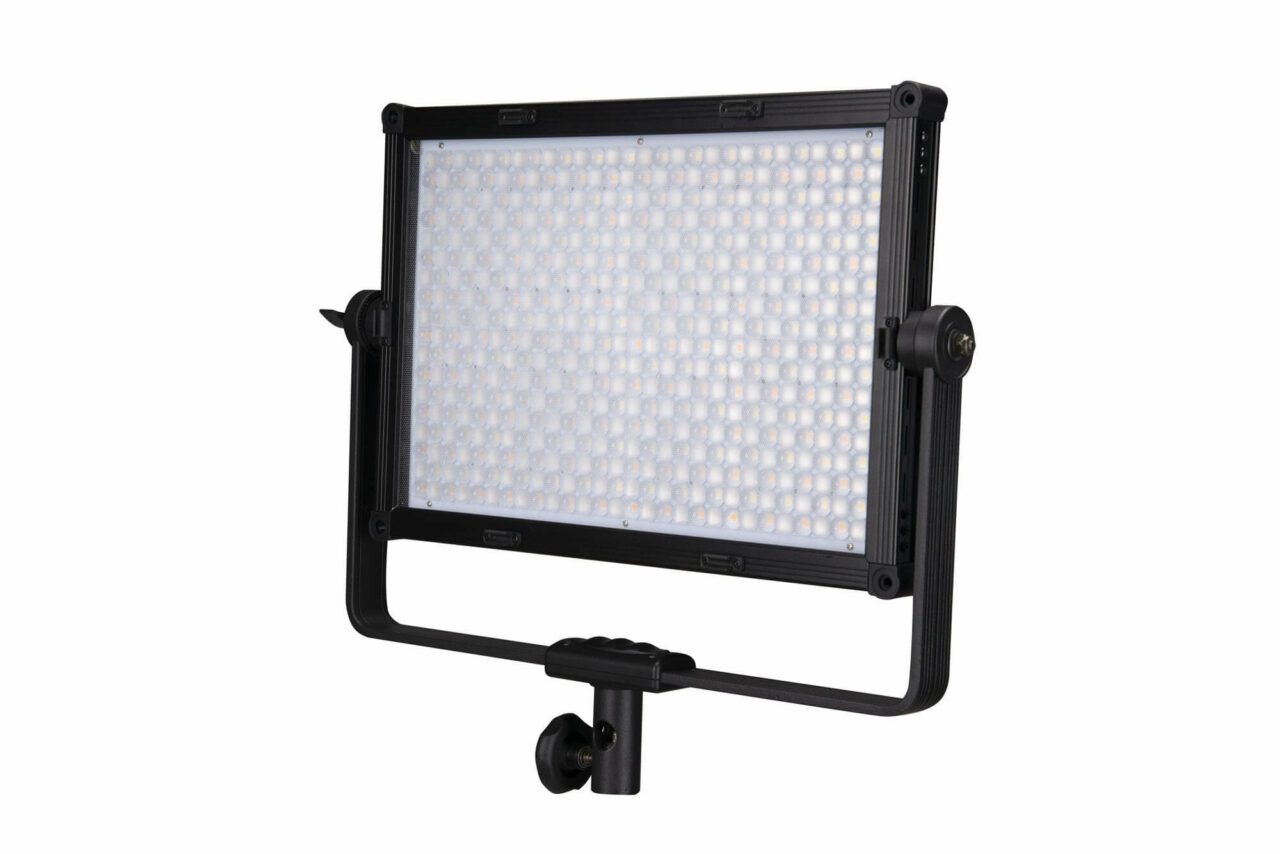

NanLite MixPanel 60 6 3000x

Three LED Light Sources in One Compact Panel

NanLite MixPanels are capable of switching between a “traditional” multi-LED panel for hard light, a diffuse SMD LED panel for soft light and a Tunable RGB panel for colorful, creative effects at the push of a button.

Ultra-Bright Output

When using the hard light fixture in normal mode, the MixPanel 60 emits an impressive 4980 Lux@1m 5600K. When shifted into boost mode the output climbs even higher to 6600 Lux at 1m. Plus with dimming from 100% down to 1%, you can quickly adapt the MixPanel 60 to any scene without adding ND gel or diffusion.

NanLite MixPanel 60 9 3000x
NanLite MixPanel 60 11 3000x

Color Perfection

The brightness of a light is important, but without color accuracy, a ton of time and money will be lost in post-production. The MixPanel 60 features a CRI of 98, a TLCI of 95 plus Green/Magenta adjustment in CCT mode, meaning you can shoot with confidence knowing the color reproduction will be precise.

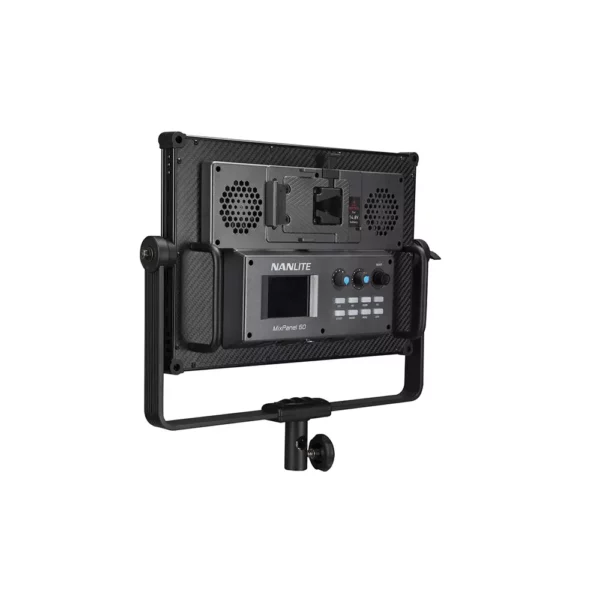

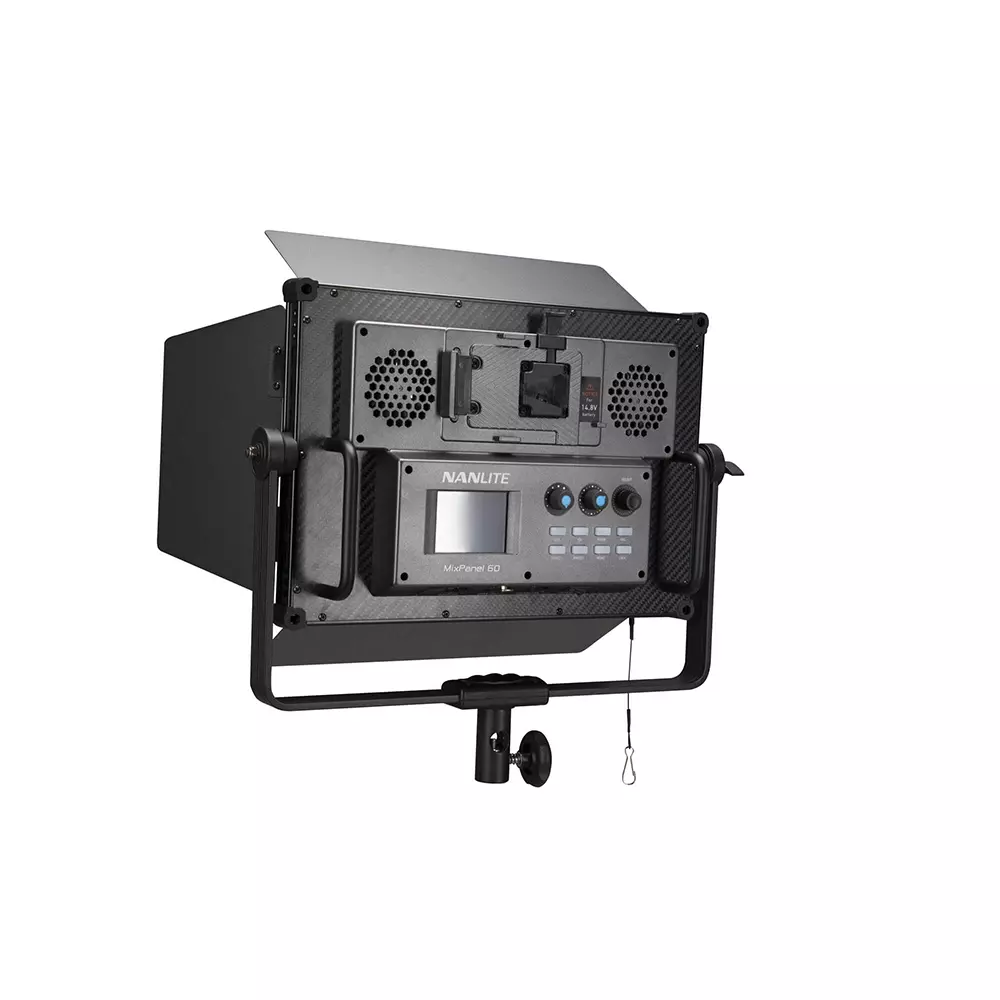

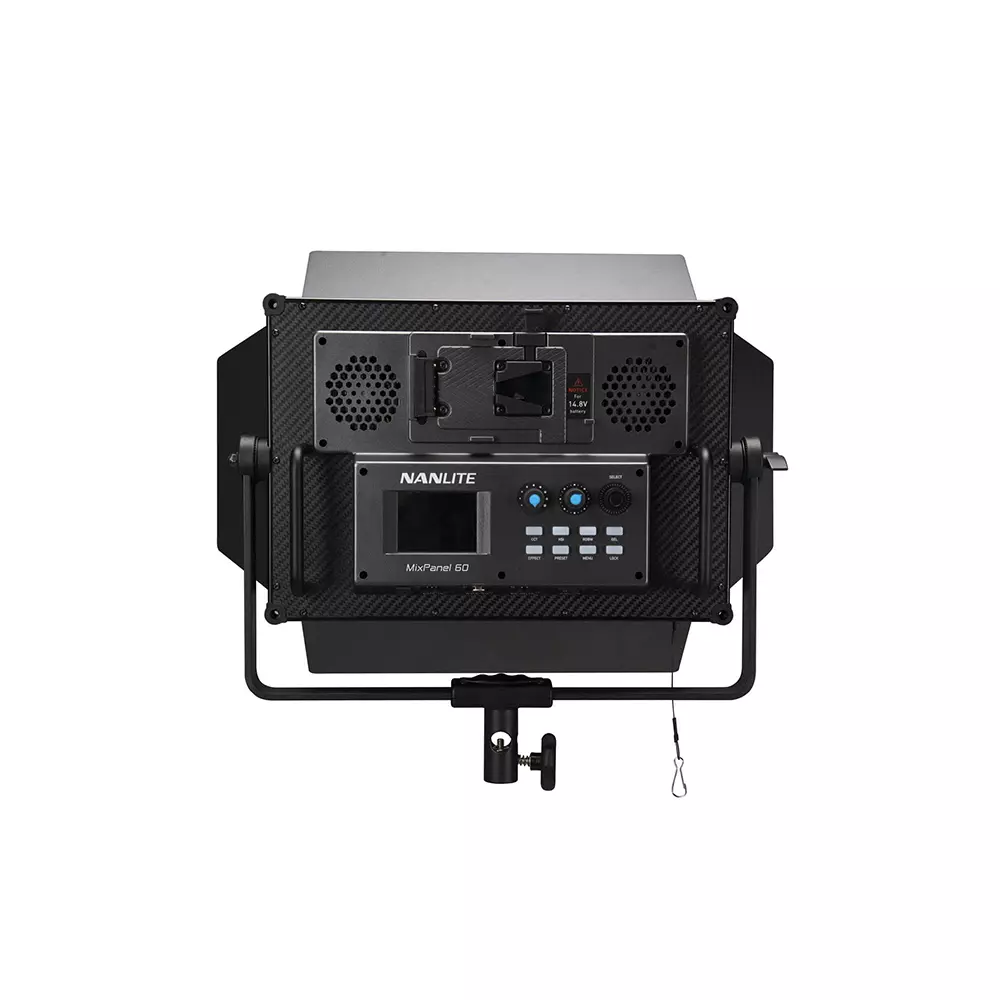

Intuitive User Interface

If there is one thing an RGBWW LED panel can not be it’s cumbersome to use on set. That is why the MixPanel 60’s operating system has been developed from the ground up to be efficient and intuitive to use. What’s more, you can save your settings as presets to make your lighting consistent and repeatable.

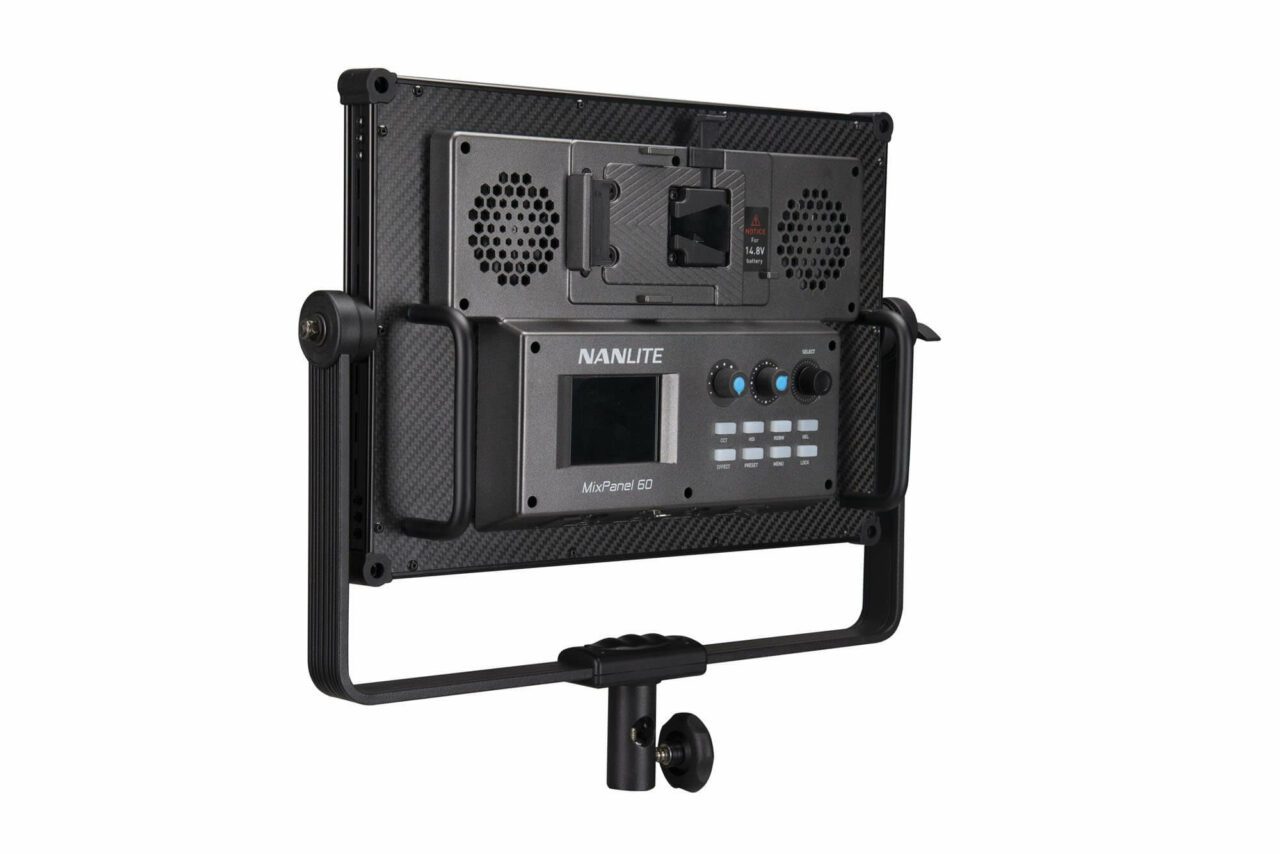

NanLite MixPanel 60 7 3000x
NanLite MixPanel 60 12 3000x

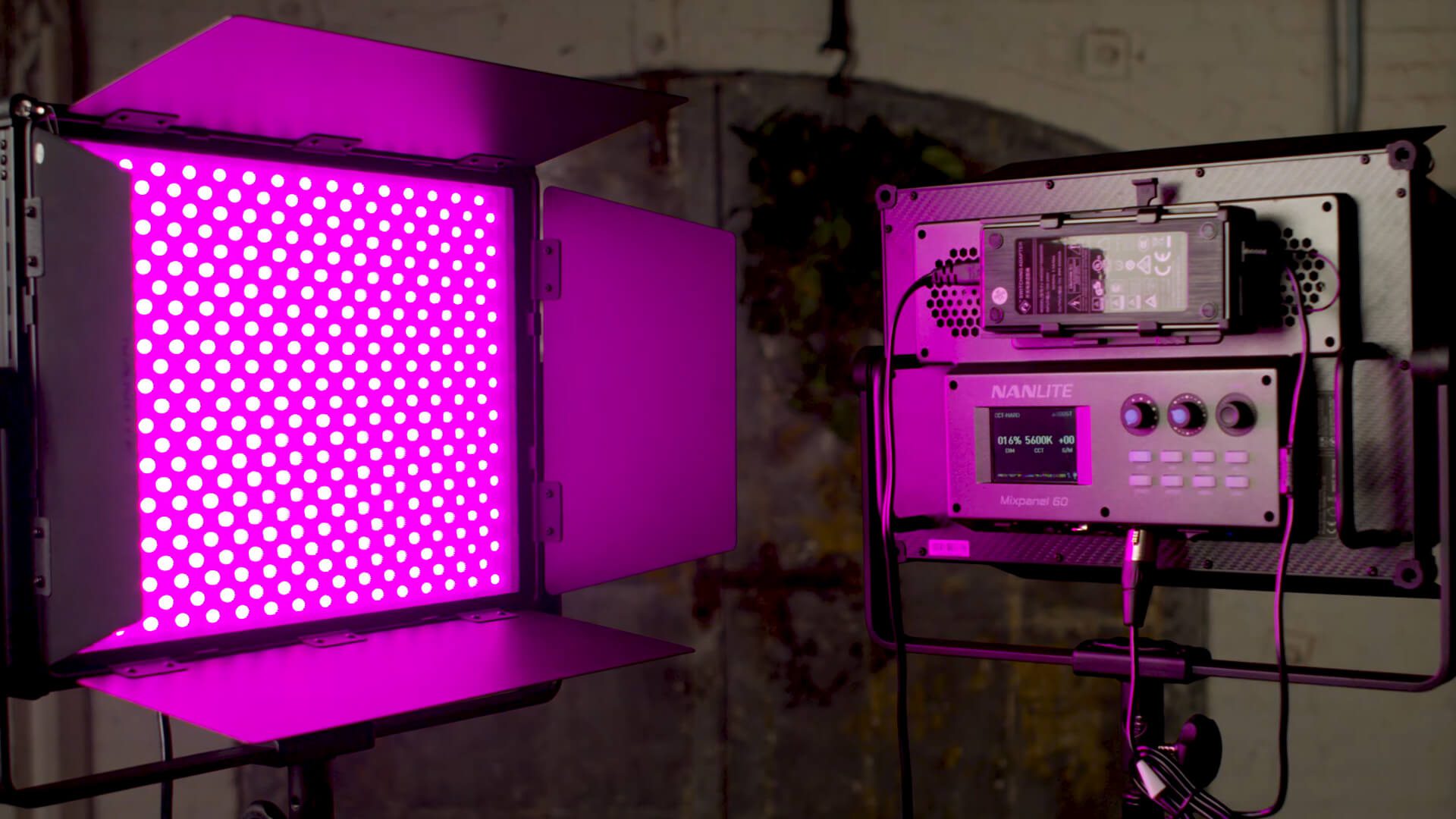

Gel Emulation and Practical Effects

The MixPanel’s gel emulation mode provides a selection of 43 gel presets in two light sources (3200K & 5600K) encompassing 5x CTOx 5x CTB, and 33x Calcolor. Also, with 9 pre-programmed and adjustable special effects, the MixPanel makes it possible to imitate lighting scenarios that can otherwise be tricky to recreate such as hue loop, CCT loop, flash, pulse, storm, siren, TV screen, paparazzi, and candle/fire.

Power Anywhere

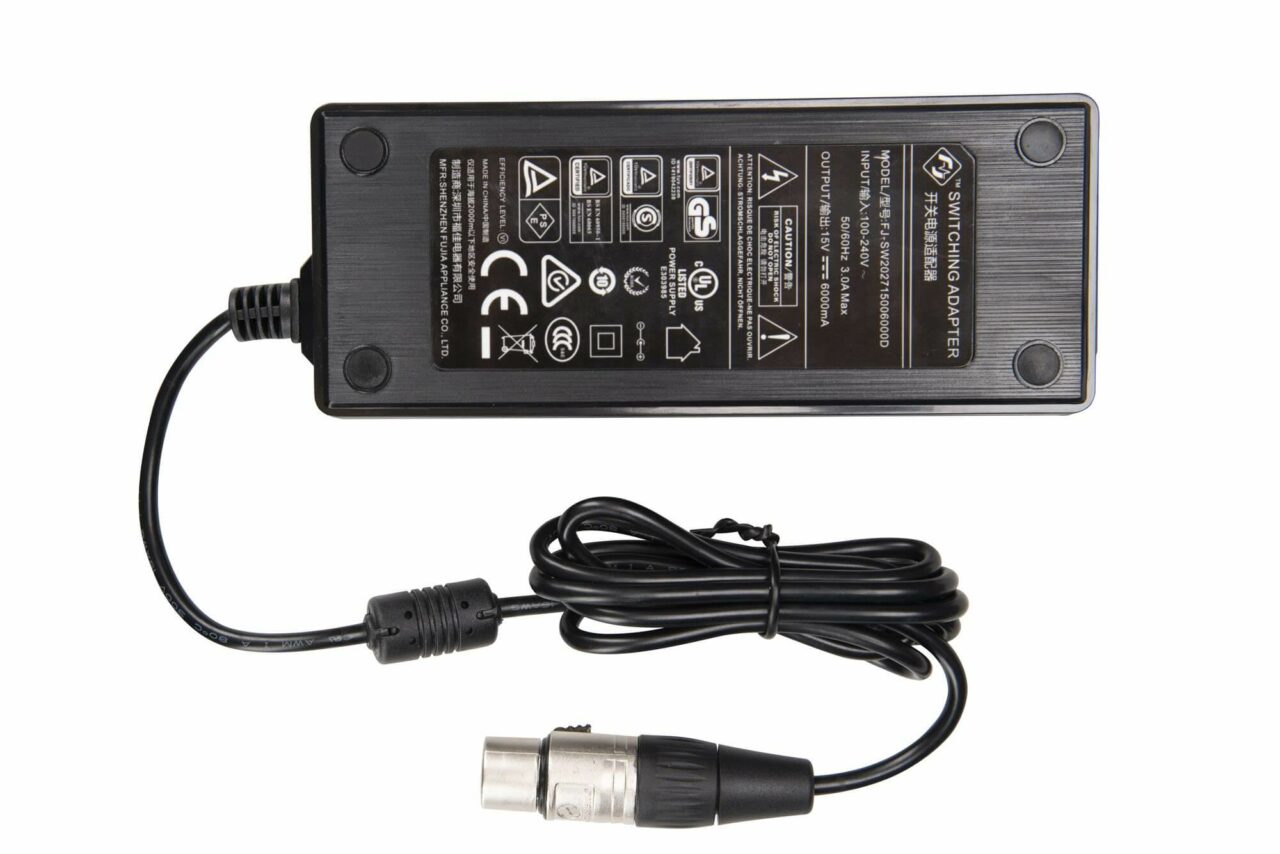

Optimized for use in the studio or on location, the MixPanel 60 can run off either the included AC adapter or 14.8V V-Mount batteries (Not Included), so you can operate in any location regardless of power availability.

NanLite MixPanel 60 4 3000x

Specifications

  • Color Temp: 2700-7500K
  • CRI: 98
  • TLCI: 95
  • Dimming: 0-100%
  • Photometrics
  • 3200K
  • 64 fc / 690 lux at 9.84’ / 3m
  • 5600K
  • 68 fc / 729 lux at 9.84’ / 3m
  • Power Source: DC15V/6A
  • Max Power Draw: 60w
  • Battery: Sony V-Mount 14.8v Battery(Not Included)
  • Battery Run Time at 100% Brightness (approx): 2 Hours (14.8v Sony V-Mount 150wh)
  • Mount: 5/8" Receiver
  • Gel Emulation:43 gel presets in two light sources (3200K & 5600K) encompassing 5x CTOx 5x CTB, and 33x Calcolor
  • Special Effects: hue loop, CCT loop, flash, pulse, storm, siren, TV screen, paparazzi, and candle/fire.
  • Green/Magenta Adjustment: Yes in CCT Mode
  • Size L/W/H: 17 x 3 x 14 in
  • Weight: 7.3 lbs
  • NanLite MixPanel 60

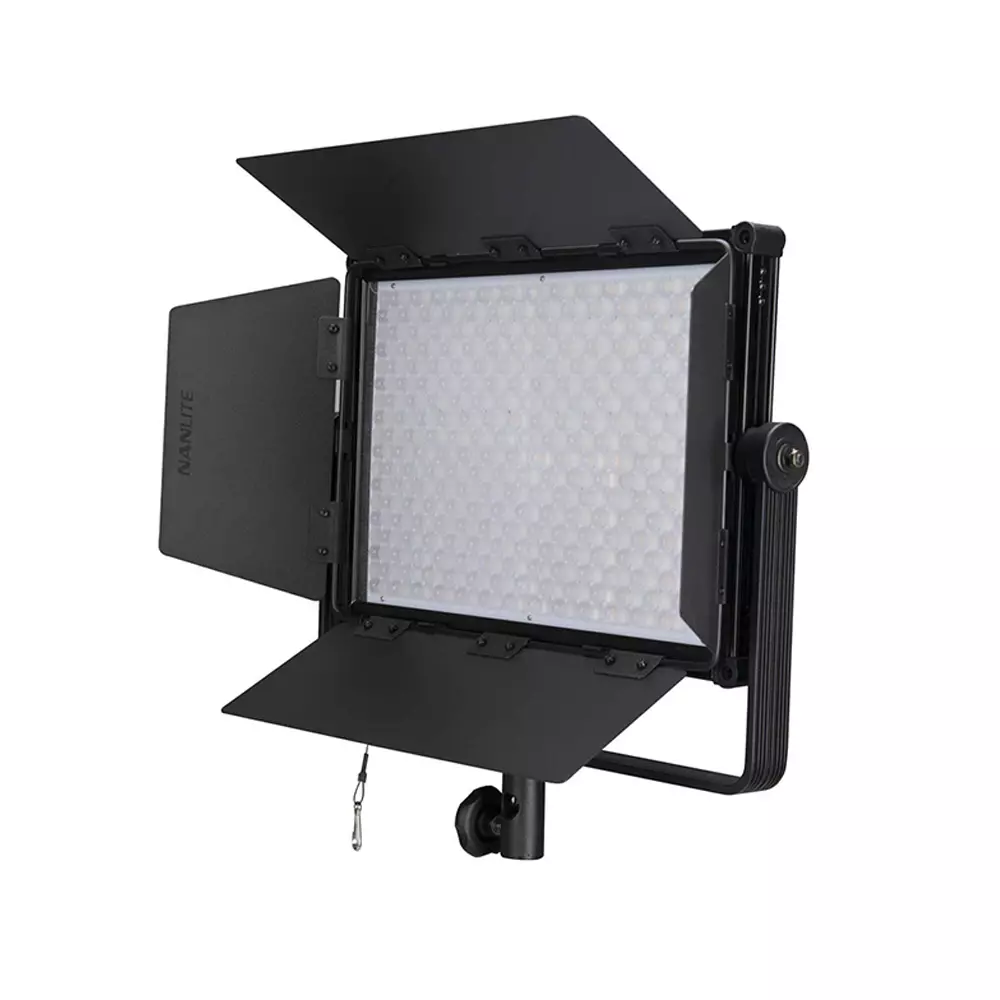

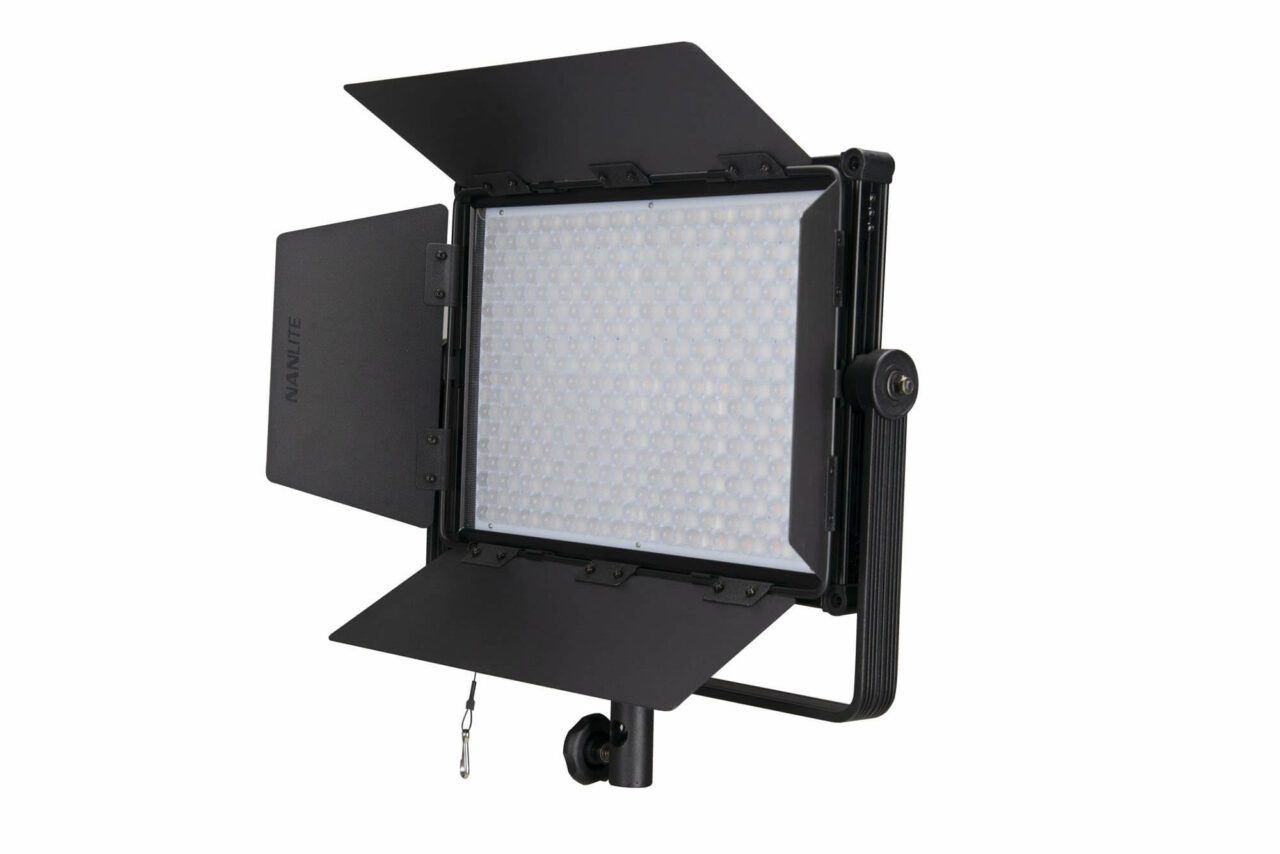

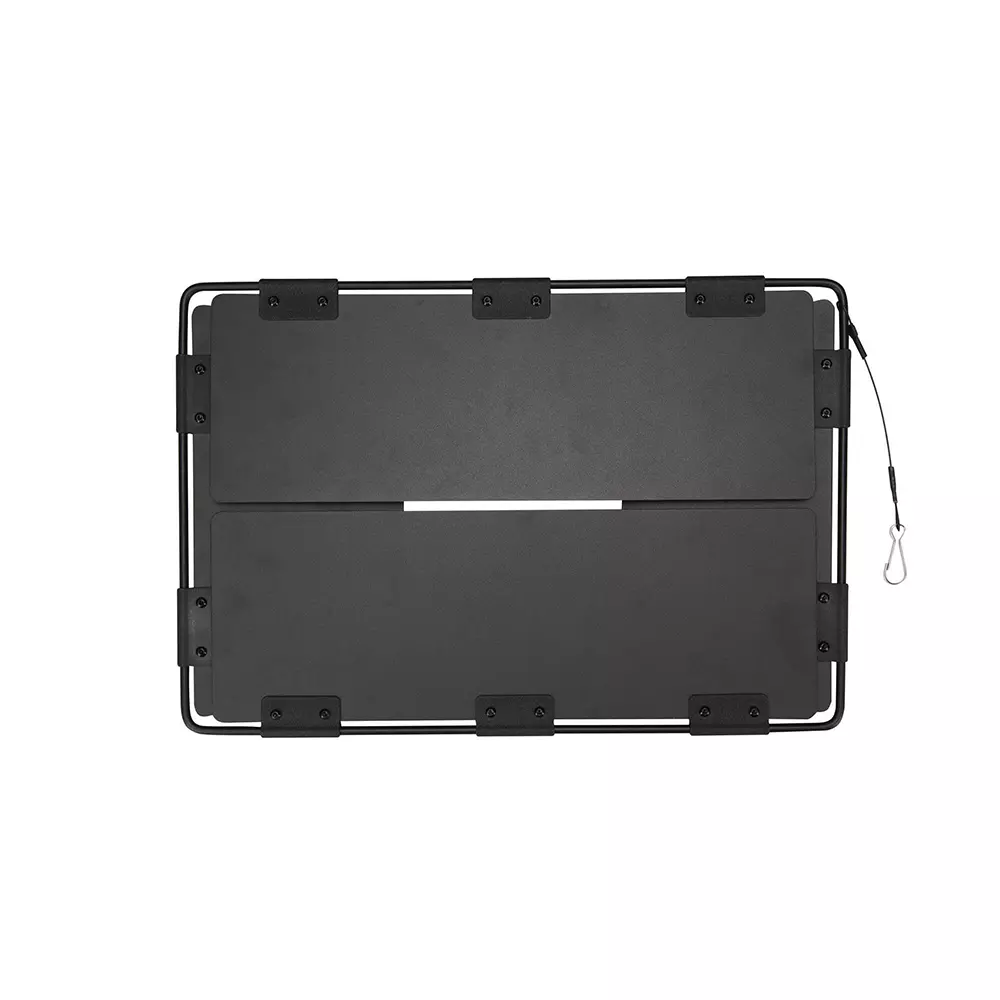

  • Metal Barn Doors
  • Power Adapter
  • Carry Bag
  • Limited 2 Year Warranty
